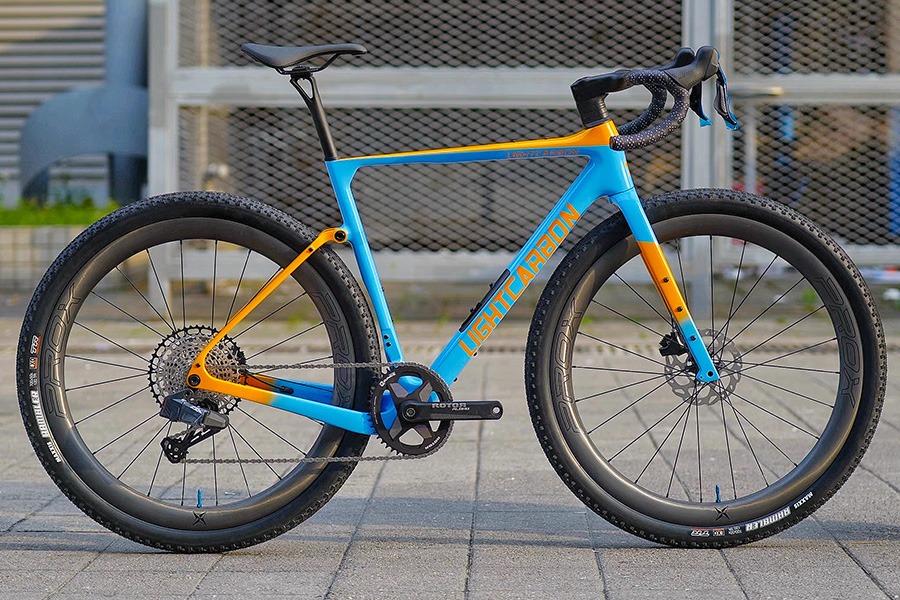

The LightCarbon Gravel with the Pivot Micro Suspension gravel frameset introduces a clever micro-suspension pivot system to smooth rough terrain without added weight. With full internal cable routing and a sleek integrated handlebar/stem combo (or choose traditional stem), it delivers a clean cockpit and modern look designed for serious gravel riders.
Built tough for all-terrain adventures, the frame also includes a downtube storage compartment for tools or snacks, a threaded T47 bottom bracket, UDH rear derailleur hanger, and room for up to 700x50C tires (or 29×1.95″). Tested to ISO4210 safety standards and backed by a 2‑year warranty, it's a versatile gravel weapon that bridges performance and practicality.
Features & Benefits
- Micro-Suspension Pivot: Provides subtle rear compliance to tame rough terrain.
- Integrated Handlebar Cockpit: choose LightCarbon bar/stem with fully concealed routing for aerodynamic and clean aesthetics (or traditional stem option)
- Downtube Storage: Integrated compartment ideal for CO₂, tools, or nutrition.
- Threaded T47 BB: Durable, service-friendly bottom bracket shell.
- UDH Hanger: Future-ready, derailleur-friendly hanger standard.
- Tire Flexibility: Fits up to 700x50C, 650Bx2.1″, or 29×1.95″ tires for true gravel versatility.
- Flat Mount Disc Brakes: 140/160mm rotor compatibility with modern stopping power.
- ISO4210 Certified & 2‑Year Warranty: Rigorous testing and solid support.
Frame Specs
- Material: Toray T700 + T800 carbon fiber
- Sizes: 49, 52, 55, 58 cm
- Frame Weight: ~1230g (52cm, includes downtube lid, ±4%)
- Fork Weight: 495g (±4%)
- Integrated Handlebar: LightCarbon HBR08 carbon, widths 380/400/420/440 mm; stems 90–120 mm
- Seatpost: SP03‑27.2mm, 15 mm offset, 192 g (±4%)
- Bottom Bracket: Threaded T47, P1.0, 85.5 mm width
- Brake Compatibility: Flat mount disc, rotors 140/160 mm
- Thru-Axles: Front 12×100 mm / Rear 12×142 mm
- Tire Clearance: 700×50C, 650Bx2.1″, or 29×1.95″
- Rear Derailleur Hanger: SRAM UDH standard
- Shifting: 1x max 42T single; 2x max 54/40T double
Included with Frameset
- LCG074-D Frame & Fork
- Integrated HBR08 Handlebar & Stem
- Seatpost (15 mm offset)
- Downtube Storage Lid
- Headset & Spacers
- Front & Rear Thru-Axles
- Seatpost Clamp
Torque Specs
- Stem/Handlebar Clamp: 6Nm
- Seatpost Clamp: 6Nm
- Thru-Axles: 10Nm
- Derailleur Hanger: Front 3Nm / Rear 2Nm
- Downtube Lid Bolts: 1Nm
- Cage Bolts: 3Nm
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 450 | 480 | 510 | 540 | 570 |
| Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 |
| Head Tube Length (mm) | 110 | 130 | 150 | 170 | 190 |
| Head Tube Angle (°) | 70.5 | 71 | 71.5 | 72 | 72 |
| Seat Tube Angle (°) | 74 | 74 | 73.5 | 73.5 | 73 |
| Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 |
| BB Drop (mm) | 72 | 72 | 72 | 72 | 72 |
| Wheelbase (mm) | 1003 | 1012 | 1022 | 1032 | 1042 |
| Stack (mm) | 531 | 550 | 569 | 588 | 607 |
| Reach (mm) | 374 | 381 | 388 | 395 | 402 |
| Fork Offset (mm) | 50 | 50 | 50 | 50 | 50 |
| Recommended Rider Height (cm) | 155–165 | 165–172 | 172–178 | 178–185 | 185–195 |
Note: All dimensions are in mm unless otherwise noted.
Source: LightCarbon Official
