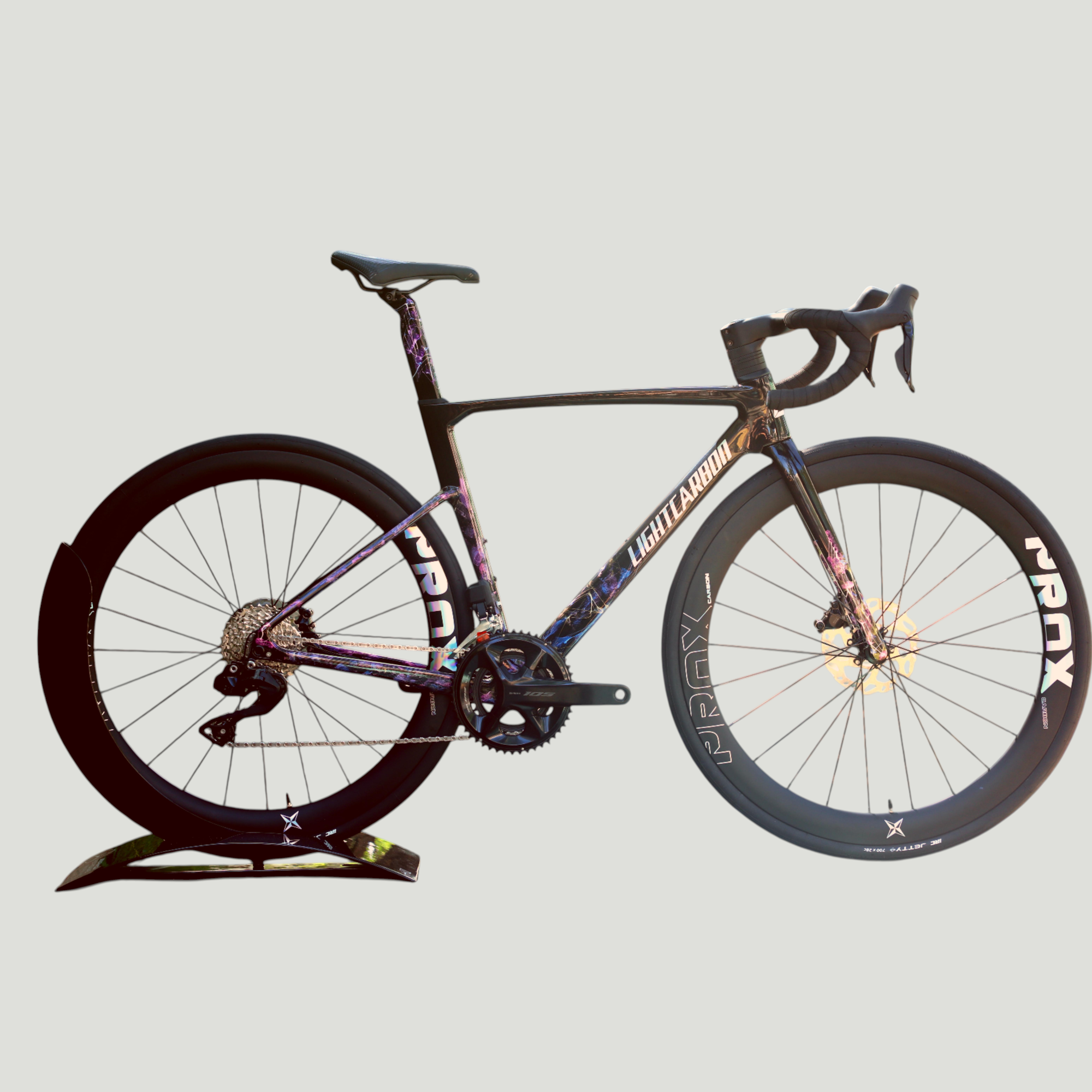

The LightCarbon Super Light Disc Road Frameset is engineered for riders seeking ultimate performance, featherweight construction, and a clean integrated look. Utilizing a blend of Toray T700, T800, and T1000 carbon fibers, this frame delivers top-tier stiffness and compliance at just 870g (size 52cm). Fully internal cable routing, modern aero profiles, and a seamless integrated handlebar make it as fast as it is beautiful. With geometry designed for confident handling and a range of fit options, it's the perfect platform for building your dream disc road bike.
Every detail is optimized: the frame features a threaded T47 bottom bracket, 32mm tire clearance, and flat mount disc brakes for maximum versatility. The matching carbon fork and integrated HBR14 handlebar/stem ensure precise steering and a cockpit that’s both ergonomic and aerodynamic. Tested to ISO4210 standards and backed by a 2-year warranty, the LCR017-D frameset is ready for everything from race day to epic adventures.
Features & Benefits
- Superlight Construction: Weighs just 870g (52cm), with high modulus Toray carbon for world-class stiffness-to-weight.
- Integrated Cockpit: HBR14 carbon bar/stem with fully internal routing for clean aesthetics and aero advantage.
- Performance Geometry: Sporty, balanced handling across all sizes for riders 156cm–199cm tall.
- Wide Tire Clearance: Accommodates up to 700x32C tires for comfort and grip.
- T47 Threaded BB: Easy maintenance, creak-free performance.
- Flat Mount Disc Brakes: Modern stopping power, compatible with 140mm or 160mm rotors.
- ISO4210 Certified: Tested for safety and durability to international standards.
- 2-Year Warranty: Peace of mind for every kilometer.
Frame Specs
- Material: Toray T700 + T800 + T1000 carbon fiber
- Frame Weight: 870g (52cm, ±30g)
- Fork Weight: 390g (±15g)
- Integrated Handlebar: HBR14 carbon, widths 380/400/420mm, stems 90/100/110/120mm
- Bottom Bracket: T47, 68mm wide, P1.0 thread
- Headset: Integrated, 1-1/2”
- Seatpost: LightCarbon carbon, 20mm setback (option for 0mm), 160g ±10g
- Max Tire Clearance: 700x32C
- Brakes: Flat mount disc only
- Rotor Size: 140mm / 160mm compatible
- Thru-Axles: 12x100mm (Front) / 12x142mm (Rear)
- Groupset Compatibility: Mechanical and electronic (Shimano Di2, SRAM AXS, Campagnolo EPS)
- Max Chainring: Up to 55/42T
Included with Frameset
- LightCarbon SL Road Frame & Fork
- Seatpost (20mm setback standard, 0mm optional)
- HBR14 Integrated Handlebar/Stem
- Headset & spacers
- Front & Rear Thru-Axles
- Seatpost Clamp
Torque Specs
- Stem Clamp Bolts: 6Nm
- Handlebar Clamp: 6Nm
- Seatpost Clamp: 6Nm
- Thru-Axles: 10Nm
- Front Derailleur Hanger: 3Nm
- Rear Derailleur Hanger: 2Nm
- Water Bottle Cage Bolts: 3Nm
Geometry Chart
| Measurement | 46 cm | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm |
|---|---|---|---|---|---|---|
| Body Height | 156–165 cm | 166–172 cm | 173–179 cm | 180–186 cm | 187–193 cm | 194–199 cm |
| Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm | 402.1 mm |
| Top Tube (Effective) | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm | 580 mm |
| Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm | 582.9 mm |
| Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm | 1006.9 mm |
| Chainstay Length | 410 mm | |||||
| Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm | 607 mm |
| BB Drop | 70 mm | |||||
| BB Height | 278 mm | |||||
| Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° | 73° |
| Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° | 73.3° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm | 560 mm |
| Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm | 181 mm |
| Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm | 831.3 mm |
| Fork Rake / Offset | 45 mm | |||||
| Fork Length (A→C) | 368 mm | |||||
| Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm | 57.4 mm |
