8LIEN L Series Carbon Wheelset
The 8LIEN L Series carbon wheelset combines Toray T1000 rims, aero carbon spokes (1:1), and the in-house R01 36T ratchet hub with S&S ceramic bearings for instant pickup and silky rolling. Pick your depth by terrain: L3 F30/R35 (climber), strong>L4 F40/R45 (mid-depth all-round), or L5 F45/R50 (fast all-round). Coating-free (paintless) rims are hooked & tubeless-ready for easy setup; the L-series is backed by a 3-year warranty (with crash-replacement support). Independent tests have shown the L5 around ~1180 g per set.
8LIEN L Series Carbon Wheelset — Features & Benefits
- Toray T1000 Rims: premium high-modulus layup across L3/L4/L5 for strength-to-weight and response.

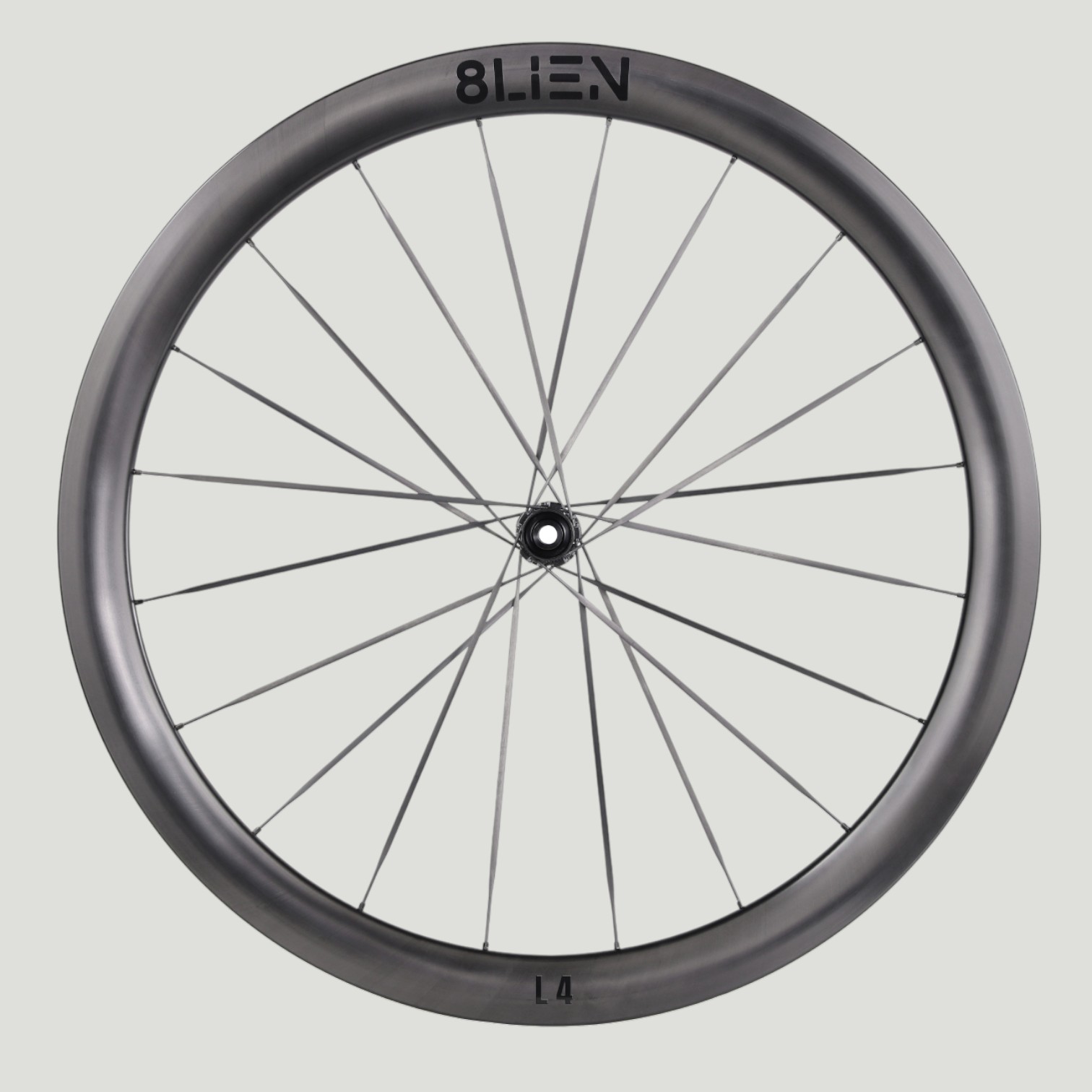

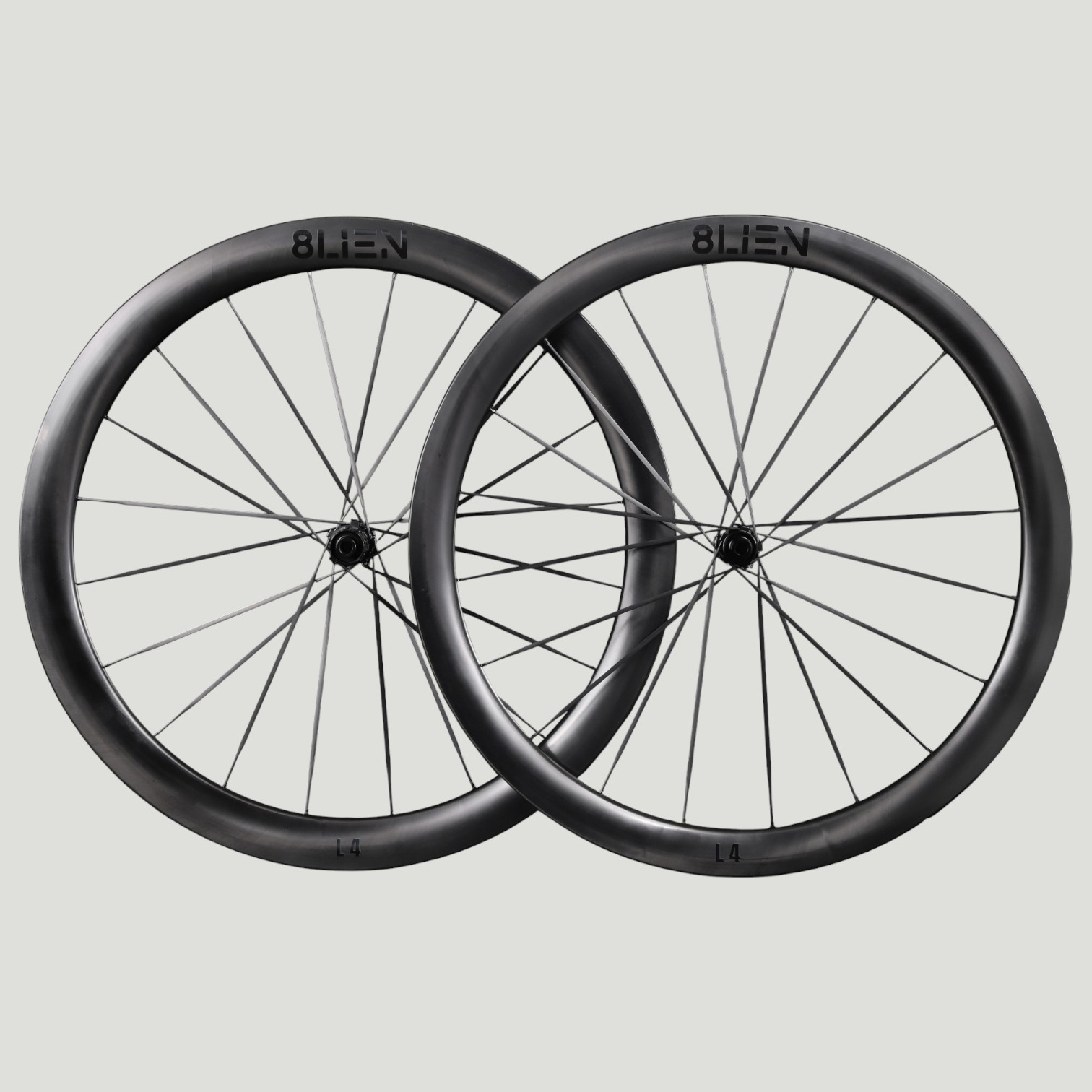

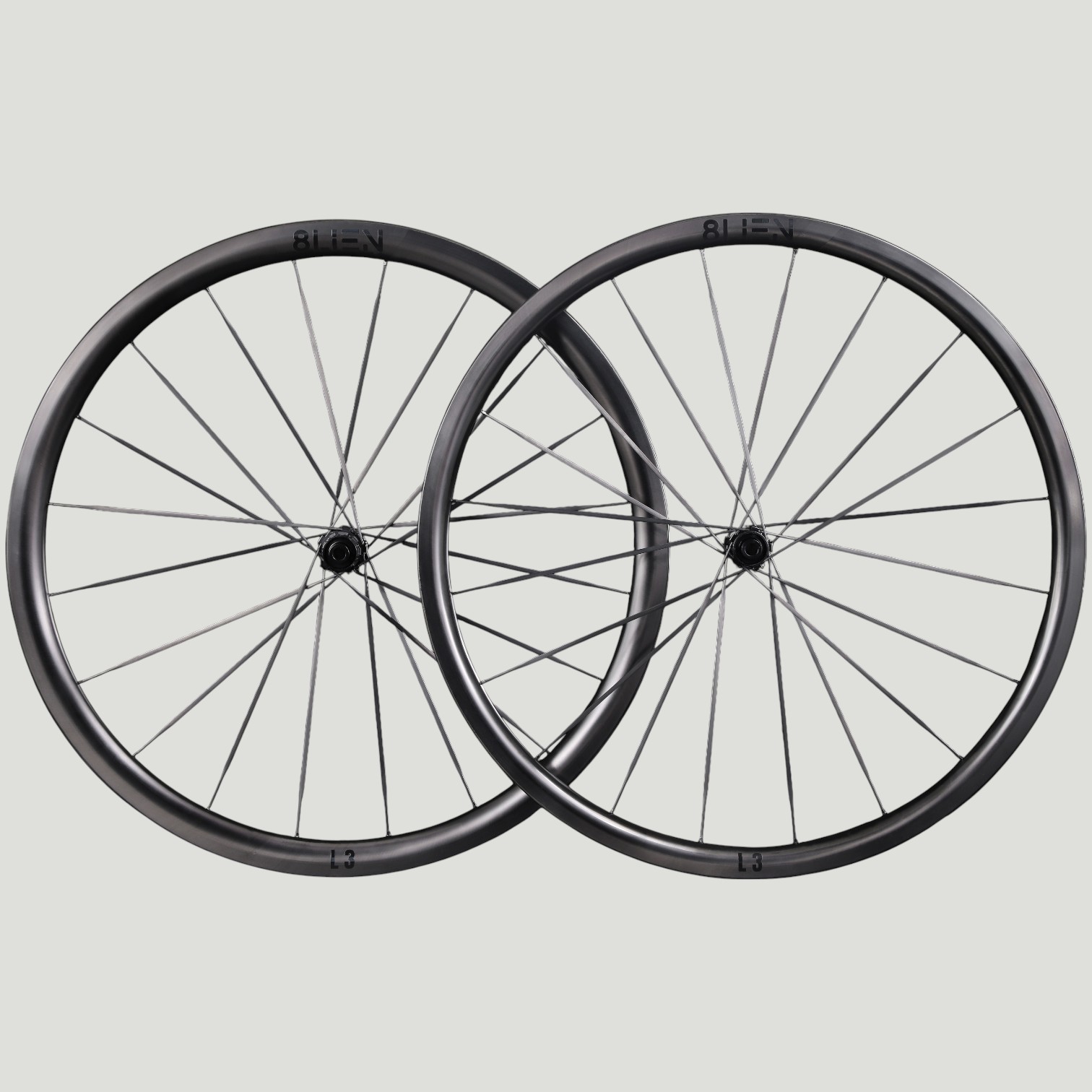

- Ride-Tuned Depths: L3 30/35 for punchy climbs; L4 40/45 as the do-everything mid-depth; L5 45/50 for fast all-round speed.
- R01 Hubs, 36T Ratchet: crisp engagement and easy service; S&S ceramic bearings keep drag low.
- Carbon Aero Spokes: 1:1 pattern (20F/20R typical) balances stiffness, weight, and aero efficiency.
- Hooked & Tubeless-Ready: easy inflation and secure tire fit for modern road pressures.
- Coating-Free Finish: paintless surface for durability, clean aesthetics, and a few grams saved.
- Coverage: 3-year manufacturer warranty with crash-replacement support.
8LIEN L Series — Specifications
Rims & Tyres
- Material: Toray T1000 carbon, coating-free (paintless) finish
- Tyre Setup: Hooked, tubeless-ready; rim bed geometry aids mounting & inflation
- Wheel Size: 700C
Hubs & Spokes

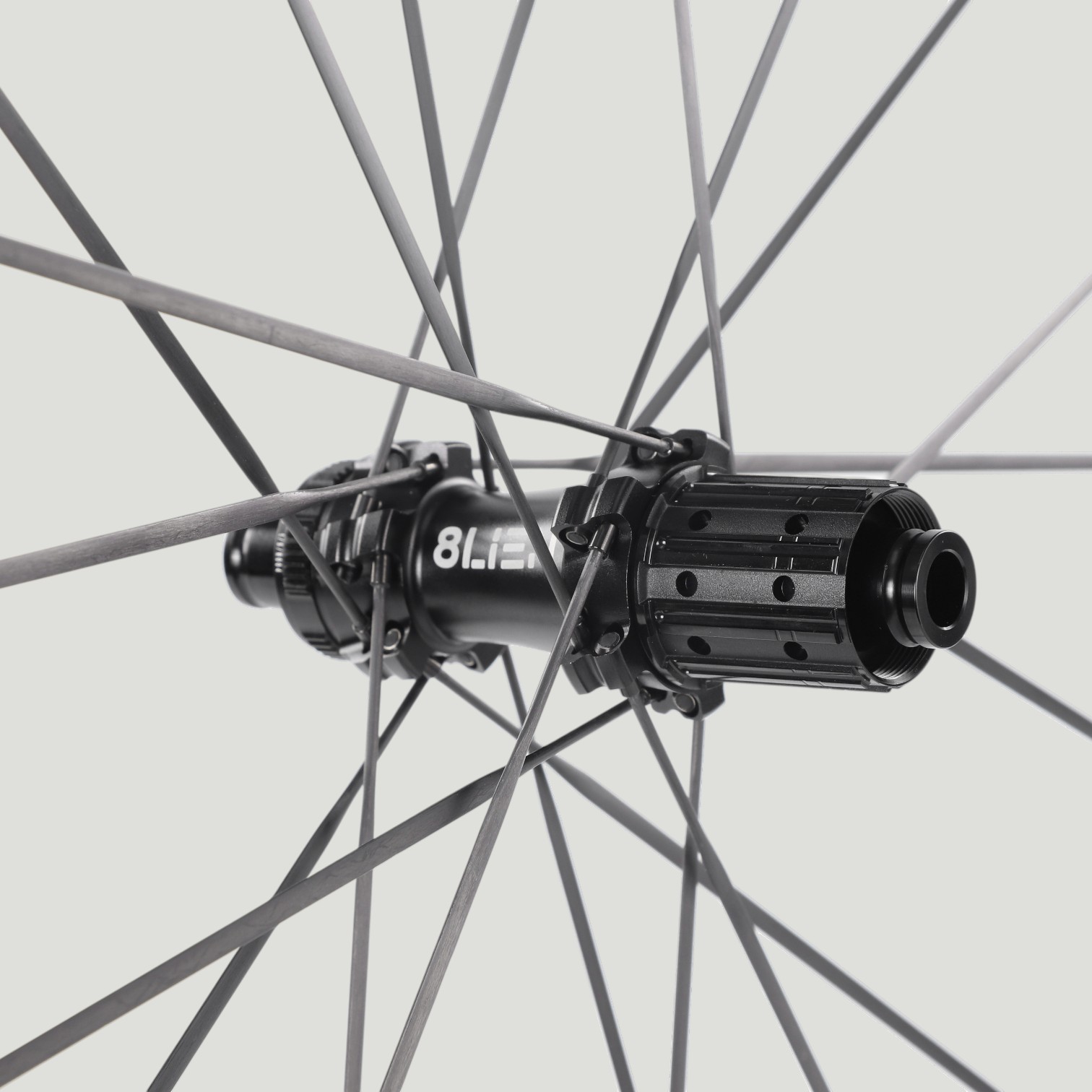

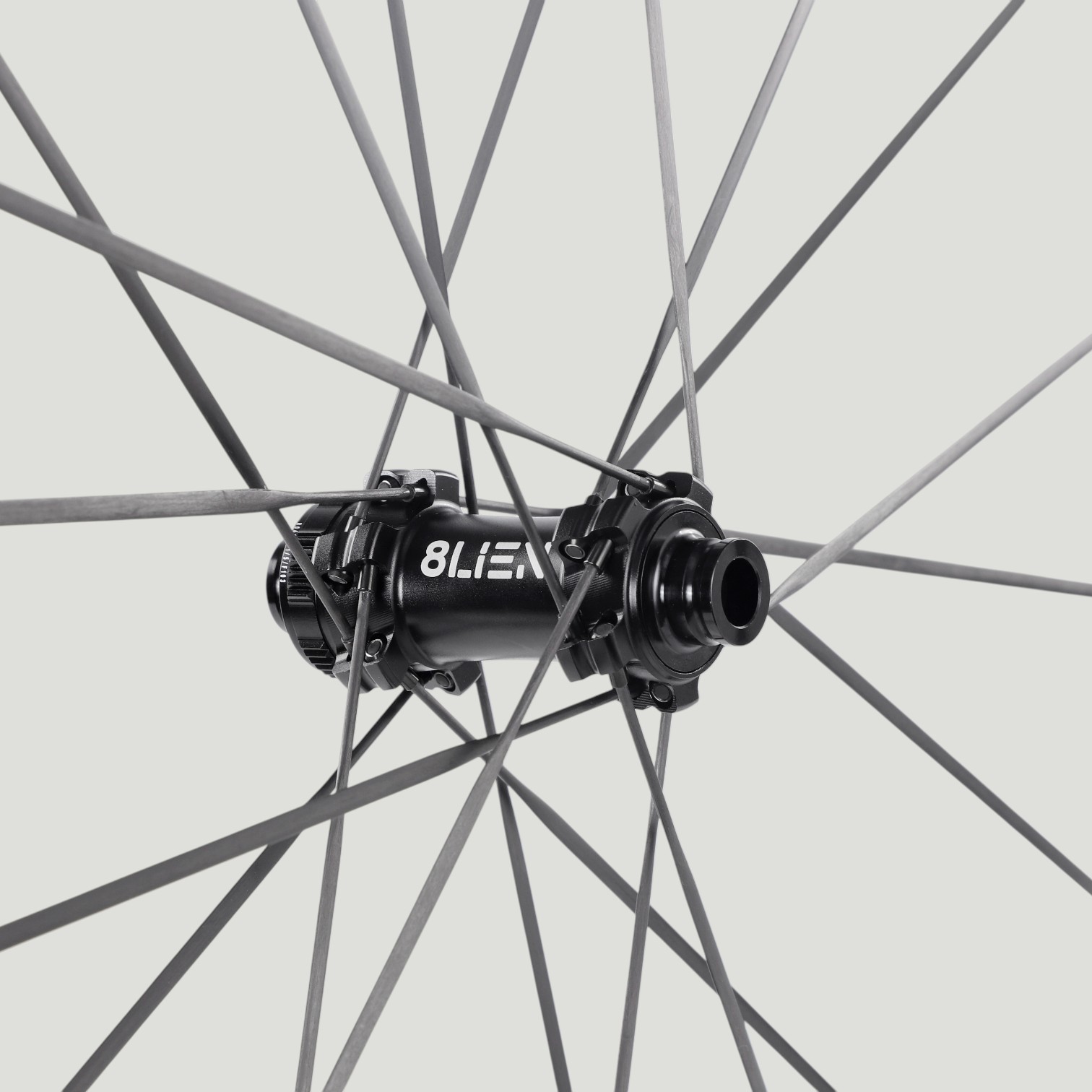

- Hubs: 8LIEN R01 hubset, 36T star-ratchet, Center Lock
- Bearings: S&S ceramic
- Spokes: Aero carbon spokes, 1:1 pattern (typ. 20F / 20R)
- Freehubs: Shimano 11/12-speed, SRAM XDR, Campagnolo (varies by build)
Weights & Warranty
- L3 (F30/R35): lightweight climber: 1100+/-30g
- L4 (F40/R45): mid-depth all-round: 1150+/-30g

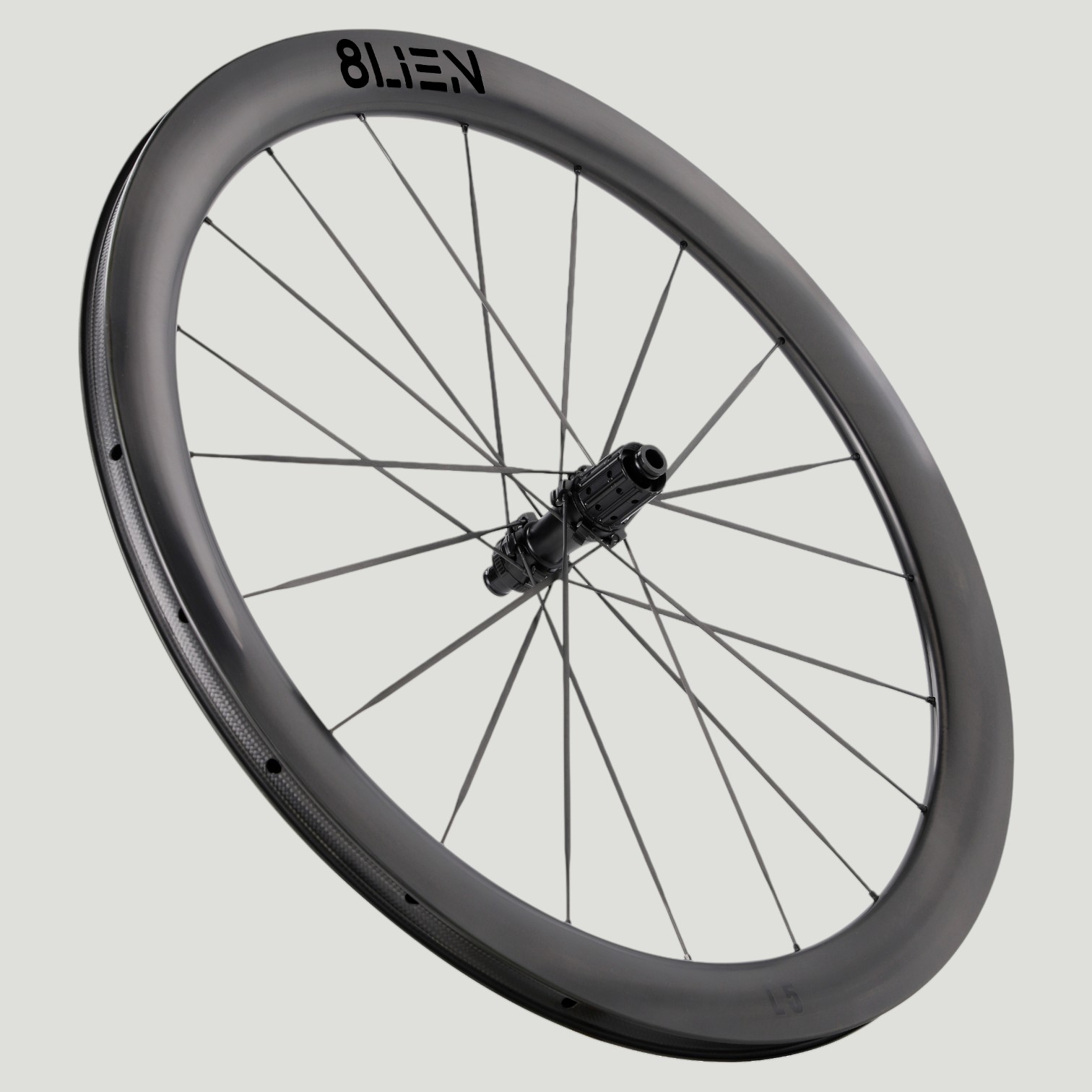

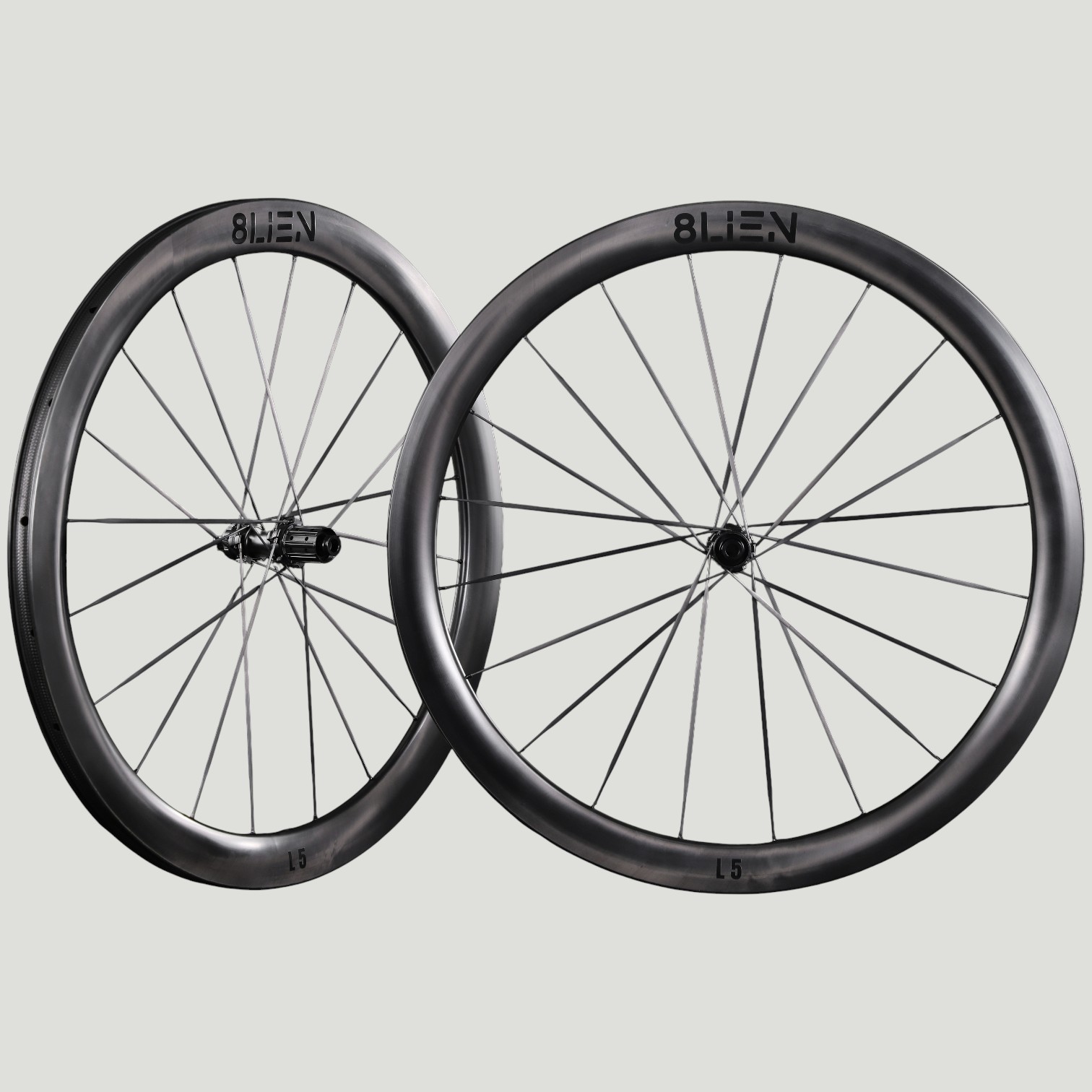

- L5 (F45/R50): 1180+/-30g
- Warranty: 3-year manufacturer warranty; crash-replacement support

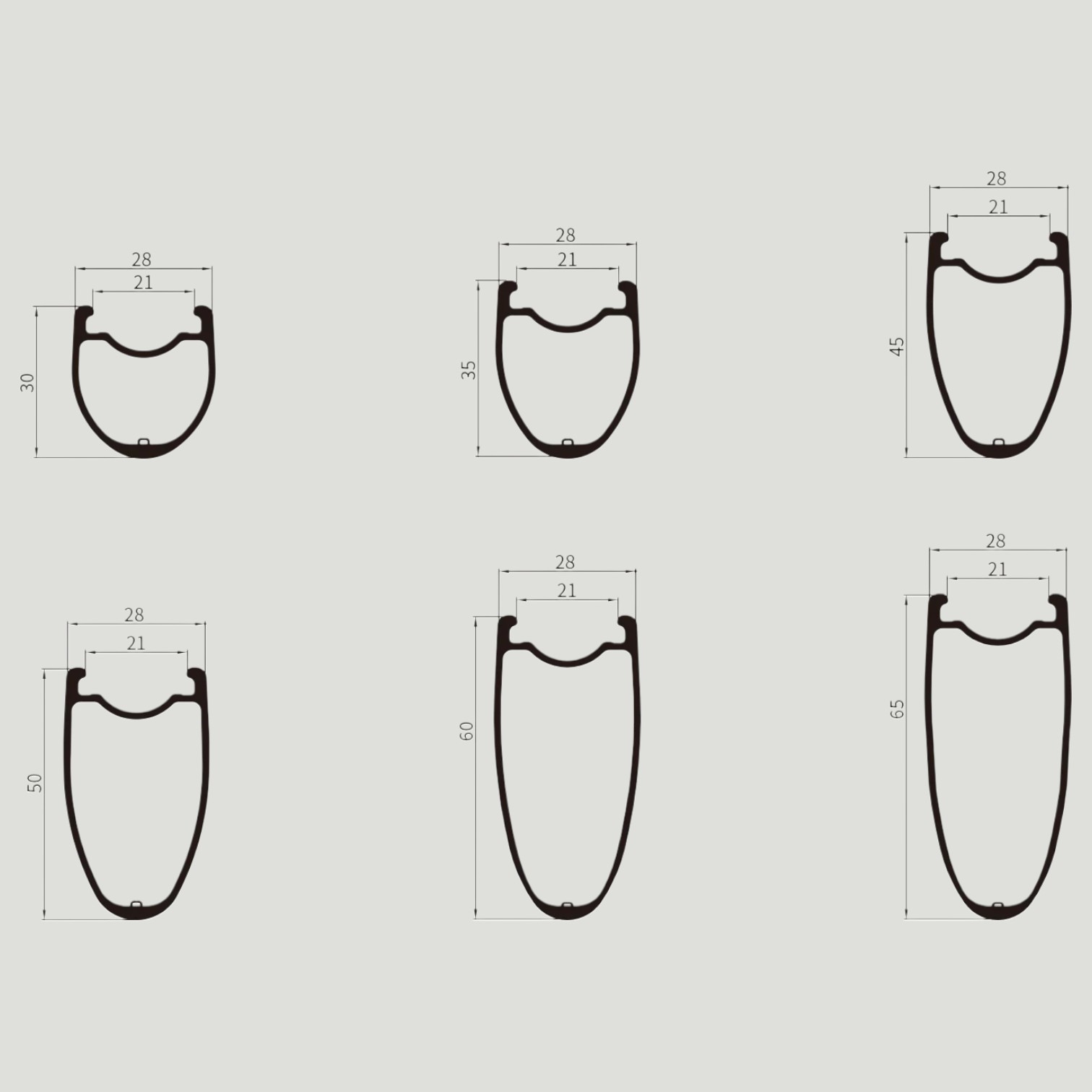

8LIEN L Series — Lineup & Depths
| Model | L3 | L4 | L5 |
|---|---|---|---|
| Depth (Front / Rear) | 30 / 35 mm | 40 / 45 mm | 45 / 50 mm |
| Rim Material | Toray T1000 carbon | ||
| Spoke Pattern | Carbon aero spokes • 1:1 (typ. 20F / 20R) | ||
| Hubset | 8LIEN R01 • 36T ratchet • S&S ceramic • Center Lock | ||
| Tubeless | Hooked • Tubeless-ready • Easy-inflation rim bed | ||
| Approx. Weight (pair) | 1100+/-30g | 1130+/-30g | 1180+/-30g |
Weights vary by finish/freehub. Contact us for L3/L4 build weights.
