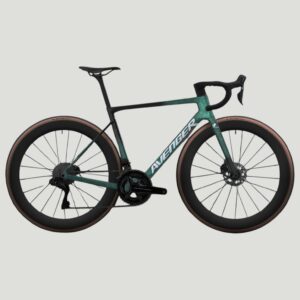

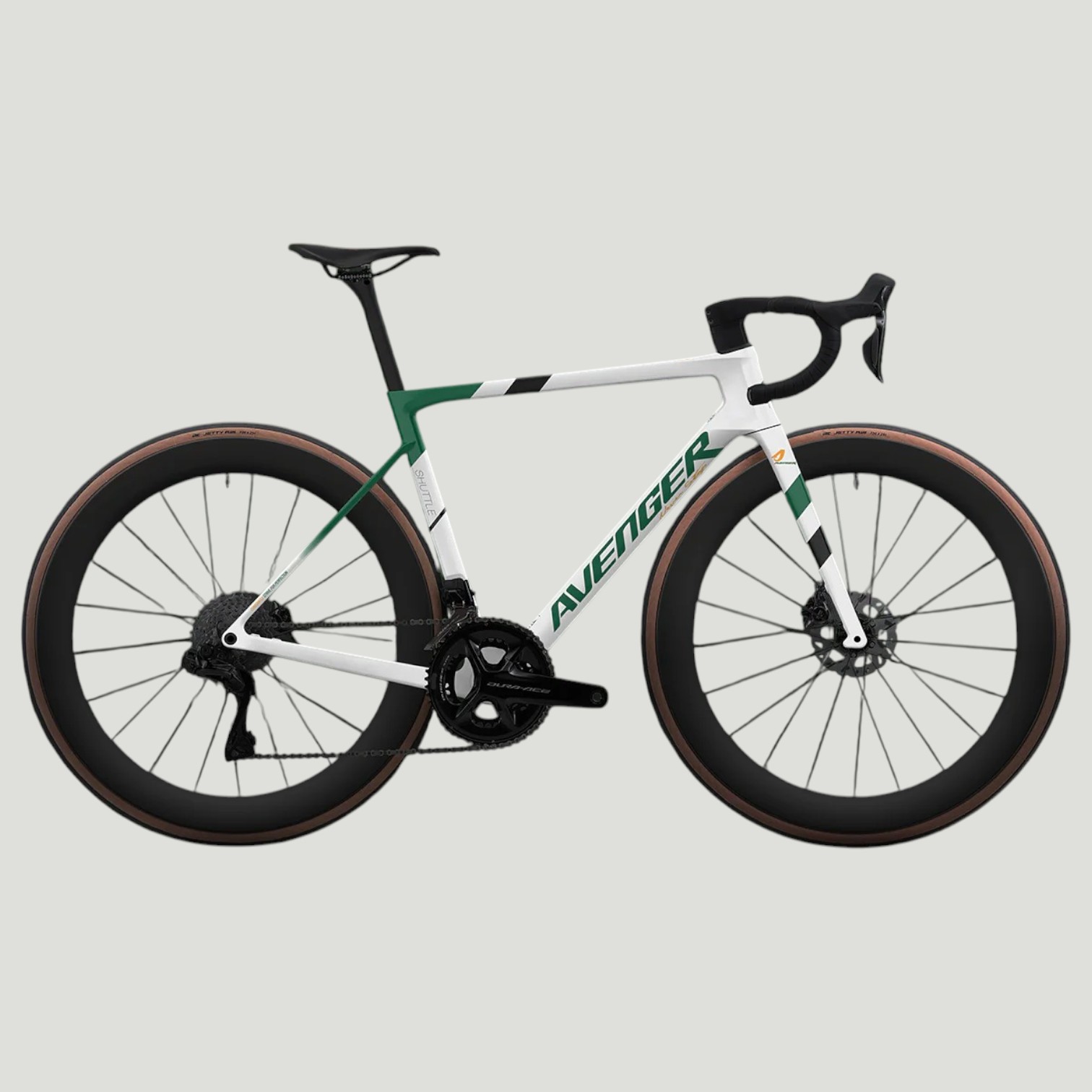

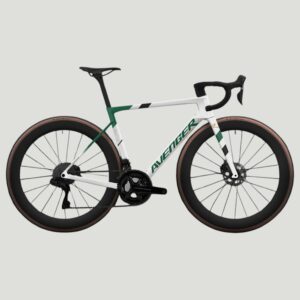

Avenger Shuttle Complete Bike
The Avenger Shuttle complete bike is an aero carbon road frameset built for real-world speed and stability. Its Toray T800/T1000 UD layup and fully-internal routing create a clean, stiff front end with precise handling on fast group rides, hard training, or race day. Modern standards—flat-mount discs, 12×100/12×142 thru-axles, and 140/160 mm rotor compatibility—deliver confident braking and tracking, while clearance up to 700×32C keeps it quick without beating you up on rough pavement. Claimed weights come in light for the category (frame 950 ± 40 g, fork 430 ± 15 g, normal version), and sizes from 50–58 cm make it easy to dial in fit and ride feel.
Modern standards throughout (threaded T47 BB, flat-mount discs, 12×100/12×142 thru-axles) pair with generous tire clearance for confident tracking and comfort on imperfect roads.
Why Riders Choose the Avenger Shuttle
- CFD-shaped aero tubes: reduced drag with predictable handling in crosswinds.
- Stiff where it matters: reinforced HT/DT/BB zones for crisp power transfer.
- Full internal front end: 52×52 mm headset compatible with integrated cockpits.
- Modern standards: T47 (68 mm) BB, flat-mount discs, 12×100 / 12×142.
- Real-world speed: clearance up to 700×32C (confirm exact spec from tech sheet).
- Fit range: five sizes (S–XL or 50–58; confirm final), dialed geometry.
- Kit contents: frame, fork, seatpost, headset, thru-axles (confirm package list).
Avenger Shuttle Complete Bike Specifications
Frame Details
- Type: Aero Full Carbon Disc Road Frame — Shuttle
- Finish: UD carbon finish
- Material: Toray T800 / T1000
- Weave: UD
- Tire Clearance: Max up to 700×32C
- Rear Axle: 142×12 mm
- Front Axle: 100×12 mm
- Rotor Diameter: 140 / 160 mm
- Frame Weight: 950 ± 40 g (Normal Version)
- Fork Weight: 430 ± 15 g (Normal Version)
- Headset: FSA NO.55R
- Available Sizes: 50 / 52 / 54 / 56 / 58 cm
Shimano 105 Di2 Build Specs
- Shift/brake levers: ST-R7170-R/L (423 g)
- Front derailleur: FD-R7150 (142 g)
- Rear derailleur: RD-R7150 (302 g)
- Crankset: FC-R7100 2×12 52-36T (754 g)
- Cassette: CS-R7101-12 11-34T (361 g)
- Chain: CN-M7100 (252 g)
- Front brake: BR-R7170 (123 g)
- Rear brake: BR-R7070-R (138 g)
- Battery: BT-DN300 (52 g)
- Charging cable: EW-EC300
- Rotors: SM-RT70 140 mm (121 g ×2)
- Bottom bracket: T47-B (86 g)
- Rims: UAM 50 mm clincher, 24/24 holes (480 g ×2)
- Hubs: UAM-12S disc (375 g)
- Spokes: Carbon fiber (4 g ×48)
- Spoke nipples: Black (0.2 g ×48)
- Tires: 700×28C (250 g ×2)
- Valve extensions: Black (2 g ×2)
- Handlebar tape: Black (24 g ×2)
- Bottle cages: Carbon (18 g ×2)
- Pedals: PD-R8000 (148 g ×2)
- Saddle: GUB 1150 (chrome-molybdenum steel) (230 g)
Shimano Ultegra Build Specs
- Shift/brake levers: ST-R8170-R/L (391 g)
- Front derailleur: FD-R8150 (110 g)
- Rear derailleur: RD-R8150 (262 g)
- Crankset: FC-R8100 2×11 52-36T (711 g)
- Cassette: CS-R8100-12 11-34T (345 g)
- Chain: CN-M8100 (252 g)
- Front brake: BR-R8170-F (146 g)
- Rear brake: BR-R8170-R (136 g)
- Rotors: SM-MT800 160 mm (108 g ×2)
- Bottom bracket: T47-B (86 g)
- Rims: UAM 50 mm clincher, 24/24 holes (480 g ×2)
- Hubs: UAM-XDR disc (375 g)
- Spokes: Carbon fiber (4 g ×48)
- Spoke nipples: Black (0.2 g ×48)
- Tires: 700×28C (250 g ×2)
- Valve extensions: Black (2 g ×2)
- Handlebar tape: Black (24 g ×2)
- Bottle cages: Carbon (18 g ×2)
- Pedals: PD-R8000 (148 g ×2)
- Saddle: GUB 1150 (chrome-molybdenum steel) (230 g)
Avenger Shuttle Frameset Geometry
| SIZE | S | SC | O | HS | HC | F | OT | WB | FC | RC | H | standover | Stack | Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 447 | 73.5 | 520 | 95 | 71 | 368 | 45 | 972 | 593.9 | 410 | 69 | 721 | 502 | 367 |
| 520 | 467 | 73.5 | 528 | 110 | 72 | 368 | 45 | 973 | 593.9 | 410 | 69 | 738 | 520 | 371 |
| 540 | 493 | 73 | 551 | 134 | 73 | 368 | 45 | 982 | 582 | 410 | 69 | 763 | 543 | 381 |
| 560 | 515 | 73 | 563 | 151 | 73 | 368 | 45 | 994 | 593.9 | 410 | 69 | 780 | 559 | 390 |
| 580 | 546 | 73 | 580 | 185 | 73 | 368 | 45 | 1014 | 614 | 410 | 69 | 810 | 591 | 403 |
Avenger Shuttle Weights
| Frame weight (Normal Version) — with small parts | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm |
|---|---|---|---|---|---|
| Mass | 930 ± 20 g | 935 ± 20 g | 947 ± 20 g | 966 ± 20 g | 993 ± 20 g |
| Component | Weight | Notes |
|---|---|---|
| Fork (Normal Version) | 430 ± 10 g | |
| Seatpost (350 mm) | 90 ± 10 g | w/o clamp parts (39 g) |
| Handlebar | 330 ± 10 g |
All weights from Avenger sheet. Tolerances shown as ±. “With small parts” includes hanger and seatpost clamp hardware.
Avenger ICON Integrated Carbon Handlebar — Geometry & Sizes
