The ELVES Falath EXP (UCI-approved) is a 2025 aero road frameset that blends wind-tunnel-driven shaping with real-world comfort. Its new Inverted Triangle Airflow Channel (ITAC) seat-stay/seat-tube structure reduces drag while allowing controlled vertical compliance, and the move to a T47 threaded BB simplifies maintenance without sacrificing stiffness. Built from Toray T800 reinforced with T1000 in key zones and molded via EPS + latex bladder for smooth internal walls, the EXP clears 700×32 mm tyres and ships with everything you need for a clean, fully-internal build.
Elves Falath EXP - Features & Benefits
- ITAC Aero Rear Triangle: Seat-stay/seat-tube channel reduces turbulence and drag while improving comfort over rough roads.
- Next-gen Carbon Layup: Toray T800 with T1000 reinforcement at the head tube and BB for power transfer and durability.
- EPS + Latex Bladder Moulding: Smoother internal walls, fewer folds/creases, and more uniform strength.
- T47 Threaded BB: Choose Shimano 24 mm, SRAM DUB 28.99, or 30 mm—easy service with ceramic options available.
- Full Internal Routing: Clean aero build; compatible with mechanical and electronic groupsets.
- Real-world Speed: 32 mm tyre clearance for grip, comfort, and fewer pinch-flats.
- UCI & Safety: UCI-approved; designed to meet modern ISO/EN standards; backed by a 5-year global frame/fork warranty.
Technical Specifications
- Frame: Toray T800 w/ T1000 reinforcement; ITAC aero rear triangle; EPS + latex bladder moulding
- Sizes: 45, 49, 52, 55, 58 cm
- Tyre Clearance: 700×32 mm
- Bottom Bracket: T47 threaded — 24 mm (Shimano), 28.99 (SRAM DUB), or 30 mm
- Routing: Fully internal; mechanical & electronic compatible
- Frame Weights (unpainted, ±15 g): 45: 1160 g; 49: 1190 g; 52: 1220 g; 55: 1240 g; 58: 1270 g
- Fork Weight: ~480 g (w/o thru-axle)
- Seatpost: 10 mm offset, ~190 g w/ metal parts; two-way clamp (7×7 mm & 7×10 mm)
- Certifications: UCI-approved; ISO/EN compliant
- Warranty: 5 yrs frame/fork; 2 yrs bars & wheels; 1 yr saddles
What's Included
- Falath EXP Frame & Fork
- Headset & handlebar spacers
- Thru-axles (100 mm front, 142 mm rear)
- 2 × Standard derailleur hangers (non-UDH)
- Di2 battery holder & internal cable dampeners
- T47 bottom bracket (option: 24 mm / DUB / 30 mm)
- Small parts & hardware

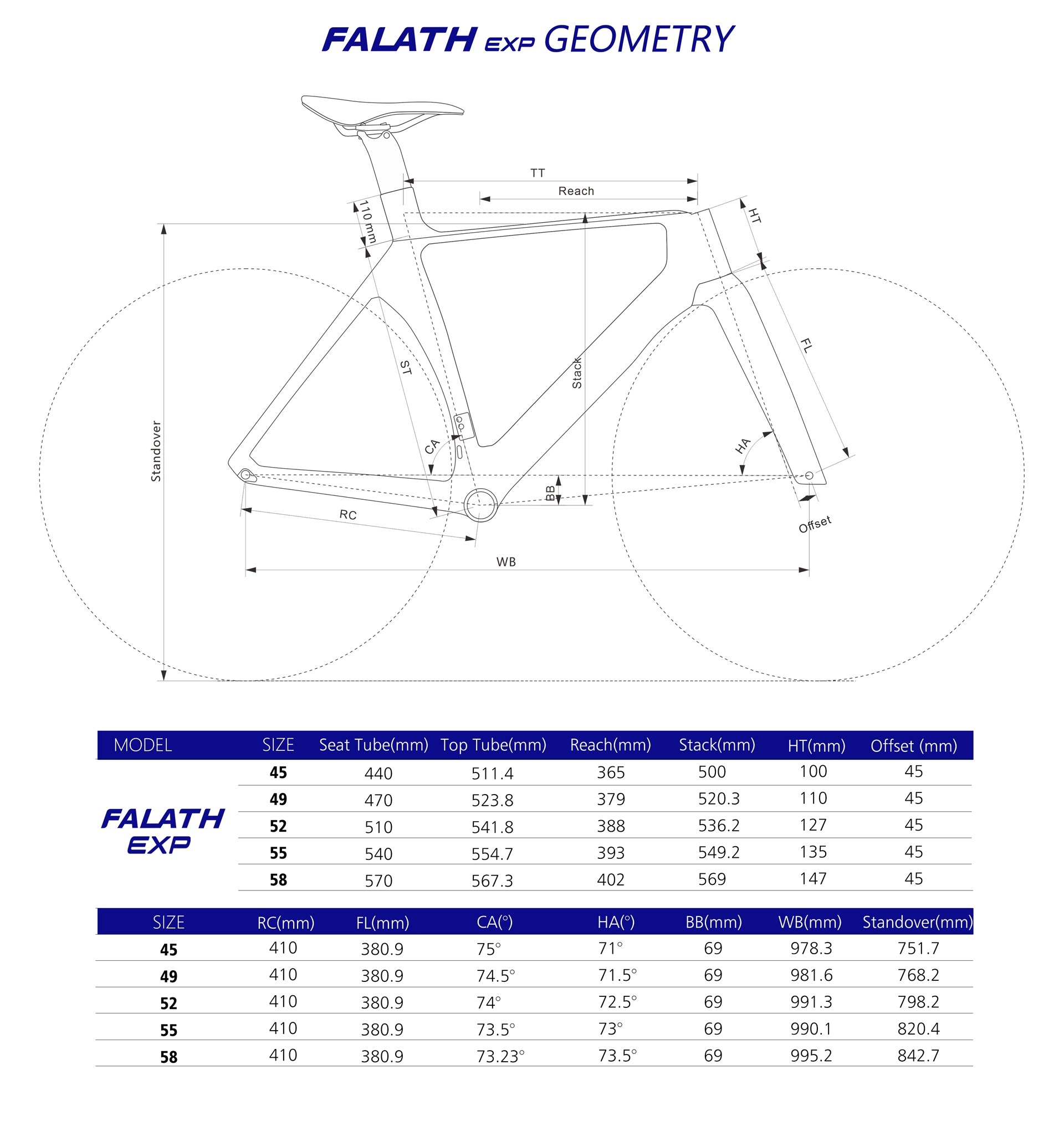

Rider Fit Guide
| Size | Recommended Height |
|---|---|
| 45 | 155–165 cm |
| 49 | 165–173 cm |
| 52 | 170–178 cm |
| 55 | 178–186 cm |
| 58 | 184–193 cm |
Guidance only—confirm using your fit and stack/reach.
