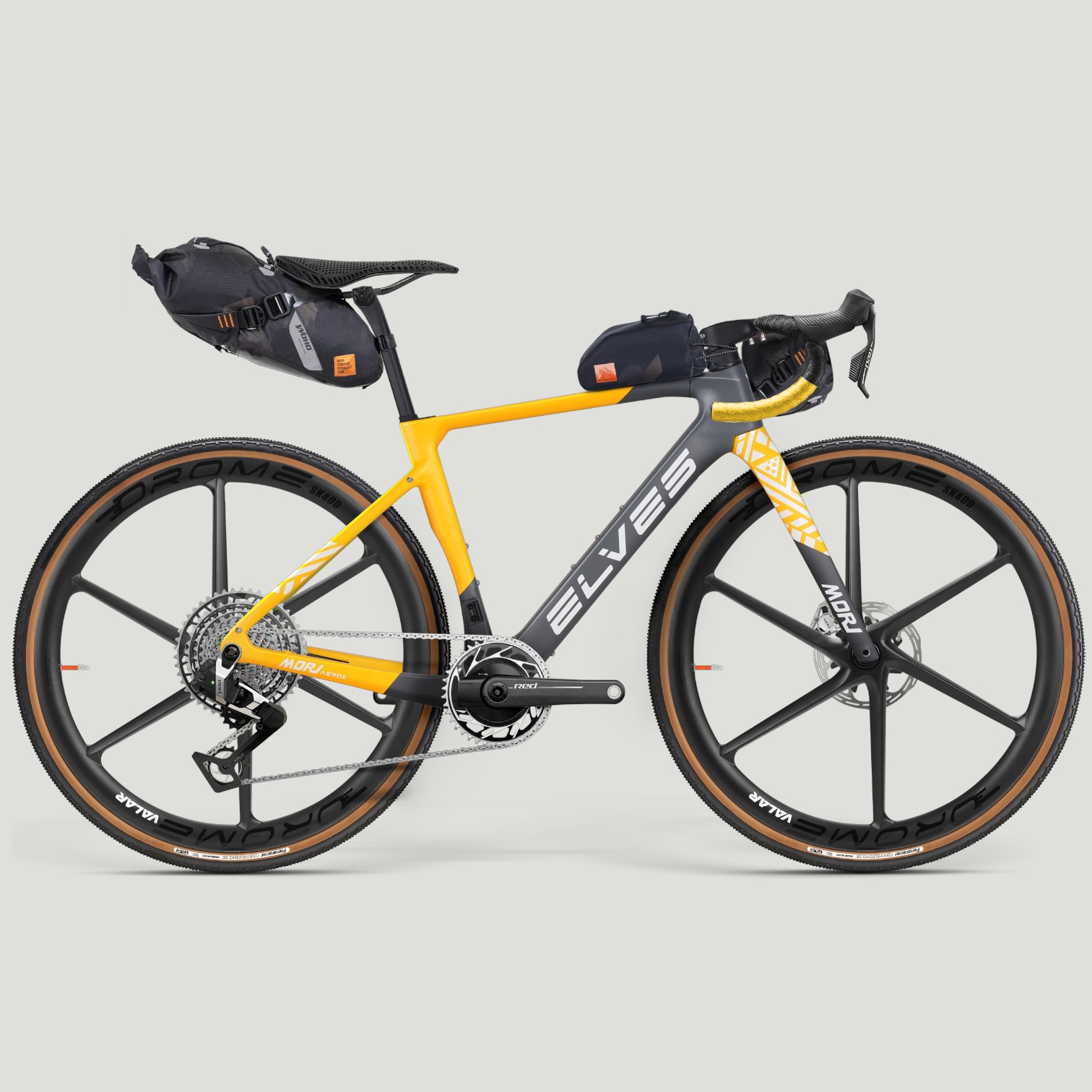

The ELVES Mori AeroX is an aero-gravel race frameset that blends road-bike speed with true mixed-surface control. Built from Toray T800/T1000 carbon using EPS + latex bladder molding, it features a creak-resistant T47 threaded BB, full internal routing, flat-mount discs, and modern electronic/mechanical drivetrain compatibility (Di2/eTap). With clearance up to 700×45c (or 650b×50), AeroX is ready for fast gravel, endurance fondos, and bikepacking.
Elves Mori AeroX Frameset — Features & Benefits
- Aero-Gravel Efficiency: Pro-leaning geometry and aero tube shaping deliver road-like speed on hardpack.
- Premium Carbon Layup: Toray T800 with T1000 reinforcement for high stiffness-to-weight and precise handling.
- Clean, Quiet Routing: Fully integrated cabling keeps the cockpit sleek and protected from dust/mud.
- T47 Threaded BB: Serviceable, creak-resistant standard with 24 mm / DUB 28.99 / 30 mm options.
- Gravel-Ready Clearance: Room for 700×45c (or 650b×50) to tune speed vs. comfort.
- UDH Ecosystem: Ships with SRAM UDH hanger for broad drivetrain compatibility and easy spares.
- Confident Braking: Flat-mount discs with rotor sizes up to 160 mm front & rear.
- Tested for Safety: Meets EN 14766 & ISO 4210-6:2023; UCI approval pending.
Elves Mori AeroX Frameset — Specifications
Technical Specifications
- Frame: Full-carbon Toray T800/T1000, EPS + latex bladder molding, pro geometry; integrated seat clamp
- Bottom Bracket: T47 threaded
- Routing: Fully internal; electronic & mechanical compatible (Di2/eTap)
- Fork: Full-carbon; 45 mm offset; 300 mm steerer; flat-mount; max rotor 160 mm
- Axles: Front M12×1.5×121 mm; Rear M12×1.5×170 mm (142 mm spacing)
- Max Tire Size: 700×45c (650b×50 compatible)
- Max Rotor Size: Up to 160 mm (front & rear)
- Headset bearings: 1-1/2" × 8 mm lower, 1-1/2" × 7 mm upper
- Frame weights (unpainted): 46 = 960 g; 49 = 990 g; 52 = 1020 g; 54 = 1050 g; 56 = 1080 g
- Fork weight: 428 g (w/o thru-axle)
- Seatpost weight: 188 g (12 mm offset) / 220 g (25 mm offset)
- Paint weights: Single-colour 80 g; Two-tone 120 g; Three-tone 180 g
- Hanger: SRAM UDH (x2 supplied)
- Certifications: EN 14766 & ISO 4210-6:2023 (UCI pending)
What's Included

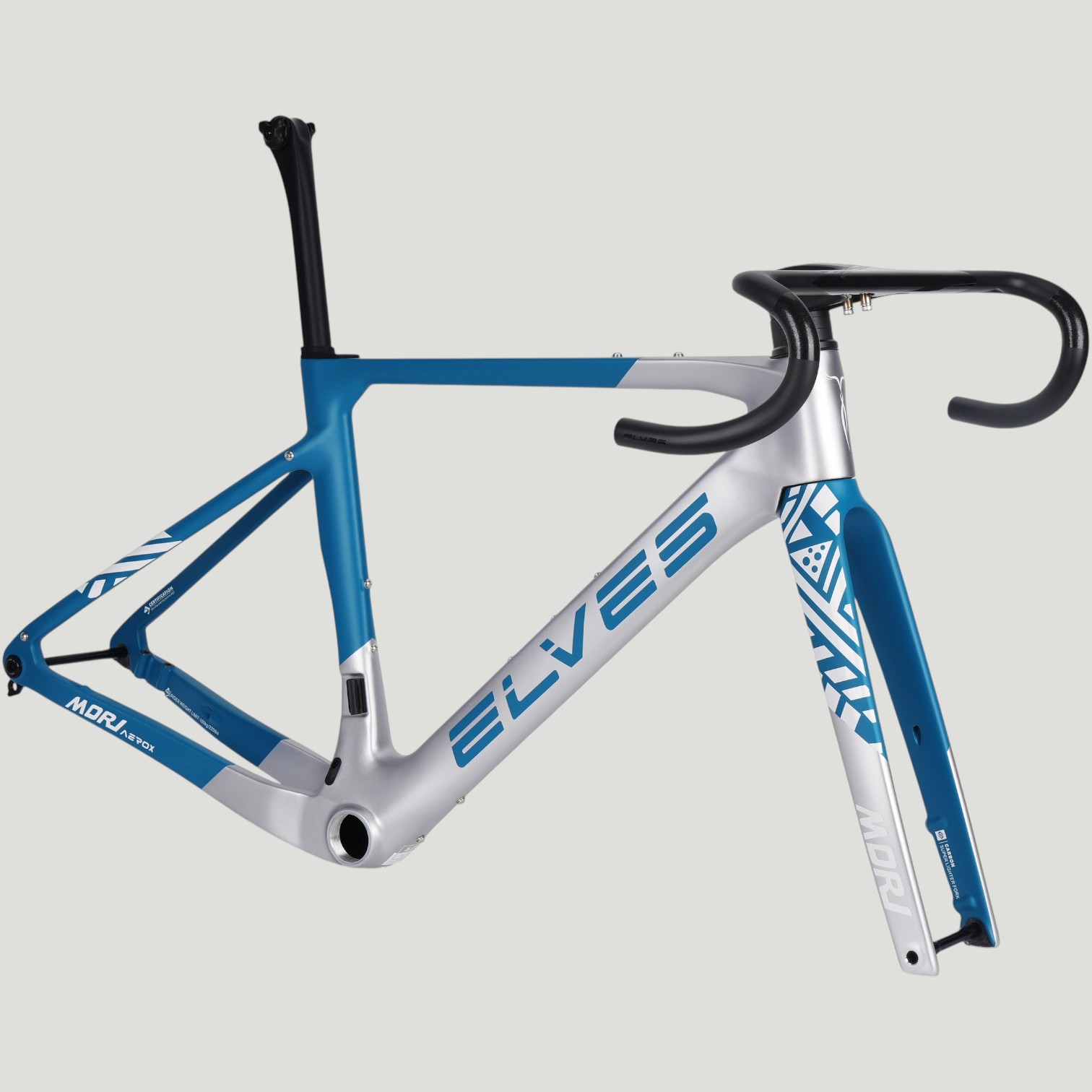

- Mori AeroX frame & fork
- Full-carbon seatpost (350/400 mm) with 12 mm & 25 mm offset clamps
- Headset & three × 10 mm integrated handlebar spacers
- Front & rear thru-axles (12×121 / 12×170)
- UDH derailleur hangers ×2
- Cable-routing adapter spacer for regular (non-internal) stem
- Front derailleur mounting-holes cover
Recommended Torque Values
- Saddle rail bolts: 10–12 Nm
- Integrated seat clamp: 10–12 Nm
- Stem (steerer): 6 Nm
- Stem (handlebar): 6 Nm
- Front derailleur hanger: 3 Nm
- UDH bolt: 25 Nm
- Water bottle cage bolts: 3 Nm
- Front/Rear caliper: 6 Nm
- Fork compression plug: 10 Nm
- Front/Rear thru-axle: 6 Nm
- Computer mount: 3 Nm
- Top-tube bag bolts: 3 Nm
Additional Technical Resources
Helpful Links
Browse compatible carbon wheelsets.

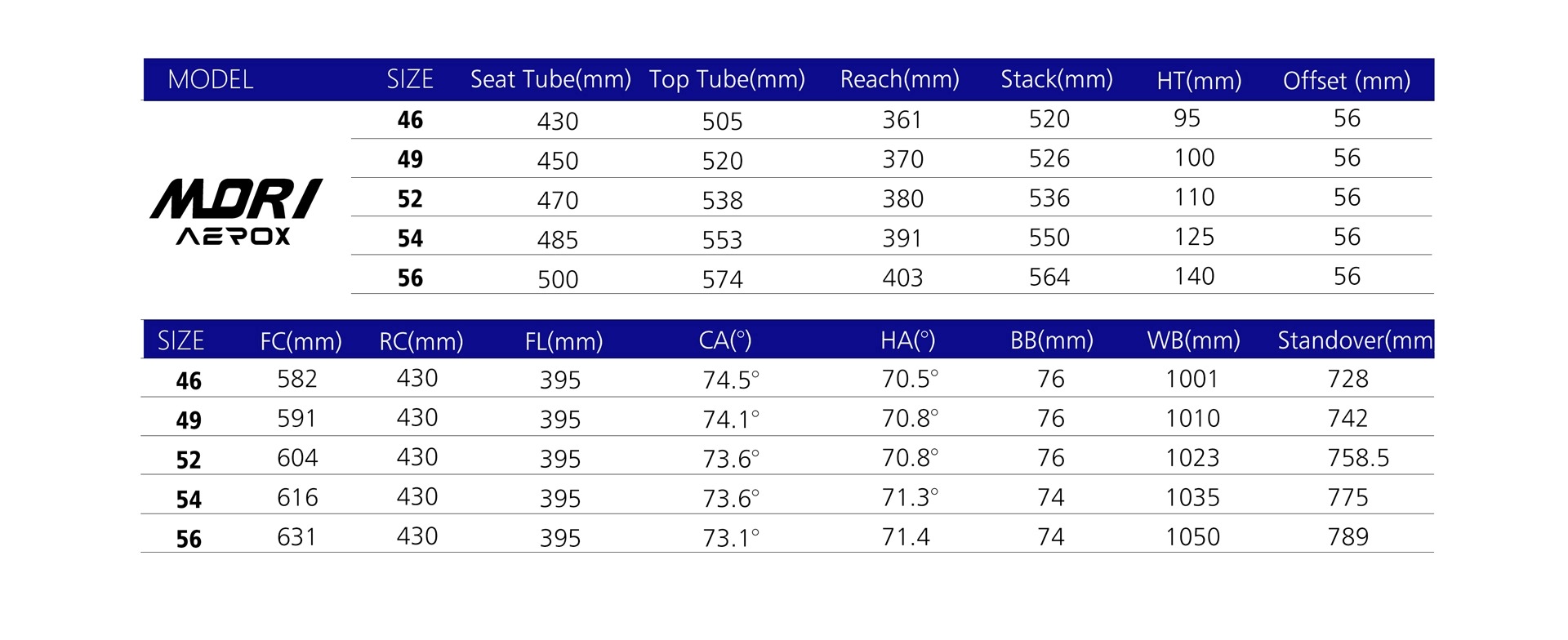

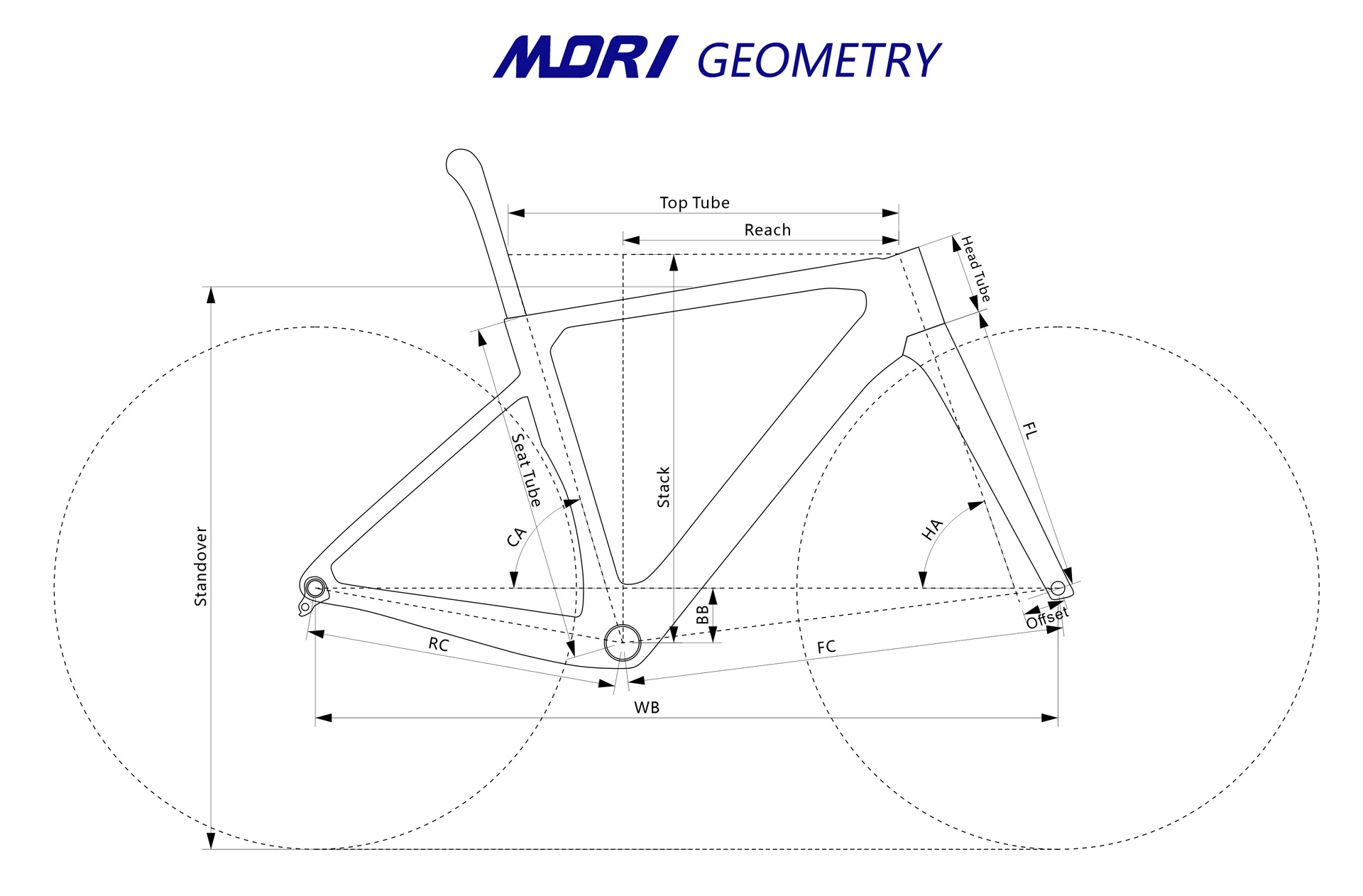

Compare the Mori Aerox geometry to other bikes on Geometry Geeks.
