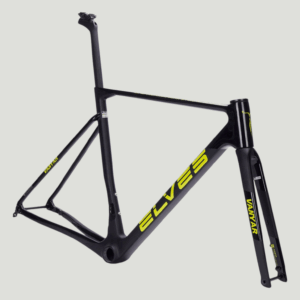

The ELVES Vanyar Pro Disc is an ultra-light hill-climber designed for maximum aerodynamic efficiency and stiffness. Built with Toray T800/T1000 carbon using EPS molding, it features a pro geometry with steep angles for optimized power transfer and cockpit integration for clean lines. Weighing from just 870 g (47 cm, unpainted), this UCI-approved frameset redefines what a race-ready carbon bike can be.
Elves Vanyar Pro Disc Frameset - Features & Benefits
- Featherlight Build: From 870 g for 47 cm frame (±30 g unpainted) — one of the lightest UCI-approved disc frames on the market.
- Pro Geometry: Steep seat tube (73.5–75°) and headtube angles (72–73.5°) for climbing and sprinting efficiency. :contentReference[oaicite:1]{index=1}
- Premium Carbon Layup: Toray T800 with T1000 reinforcement in key load zones using EPS molding for clean internals. :contentReference[oaicite:2]{index=2}
- Press-Fit BB386: Increases stiffness and strength while maintaining sleek lines. :contentReference[oaicite:3]{index=3}
- Full Internal Routing: Supports 10/11/12-speed mechanical or electronic groupsets (e.g., Di2 & AXS). :contentReference[oaicite:4]{index=4}
- Modern Drivetrain Friendly: Integrated cockpit design ideal for mechanical and electronic builds. :contentReference[oaicite:5]{index=5}
- UCI & Safety Certified: UCI-approved (code 44895), meeting EN 14766 and ISO 4210-6:2023 safety standards. :contentReference[oaicite:6]{index=6}
- Comprehensive Warranty: 5-year global frame/fork, 2-year bars & wheels, 1-year saddles. :contentReference[oaicite:7]{index=7}
Elves Vanyar Pro Disc Frameset — Specifications
Technical Specifications
- Frame: Toray T800 & T1000 carbon, EPS molding, pro geometry
- Frame Weights (unpainted): 47 cm 870 g; 50 cm 890 g; 53 cm 920 g; 56 cm 950 g; 59 cm 980 g; 62 cm 1050 g (±30 g) :contentReference[oaicite:8]{index=8}
- Fork: Carbon fiber, 430 g (uncut steerer), 45 mm offset, flat-mount disc, 300 mm steerer, 121 mm thru-axle, 140/160 mm rotor :contentReference[oaicite:9]{index=9}
- Bottom Bracket: Press-fit BB386 (46 mm ID × 86.5 mm width) :contentReference[oaicite:10]{index=10}
- Routing: Fully internal, mechanical/electronic 10–12 speed compatible :contentReference[oaicite:11]{index=11}
- Thru-Axles: 100 mm front & 142 mm rear supplied :contentReference[oaicite:12]{index=12}
- Seatpost: Full carbon, 350 mm for 47–53 cm, 400 mm for 56–62 cm, 200–215 g, offsets 25 mm & 12 mm, adjustable clamp (7×7 mm & 7×10 mm) :contentReference[oaicite:13]{index=13}
- Max Tyre Clearance: 700×30 mm :contentReference[oaicite:14]{index=14}
- Certifications: UCI (code 44895), EN 14766, ISO 4210-6:2023 :contentReference[oaicite:15]{index=15}
- Warranty: 5-year frame/fork; 2-year bars & wheels; 1-year saddles :contentReference[oaicite:16]{index=16}
What's Included
- Vanyar Pro Frame & Fork
- Press-fit BB386 (choice of Shimano 24 mm, SRAM DUB 28.99 mm, or 30 mm) — tool included
- Headset & 10 mm handlebar spacers (×3)
- Thru-axles (100 mm front, 142 mm rear)
- 2 × Standard derailleur hangers (non-UDH)
- Cable-routing stem adapter (for standard bar compatibility)
- Internal cable dampeners, end stops, and computer mount (bundled options) :contentReference[oaicite:17]{index=17}

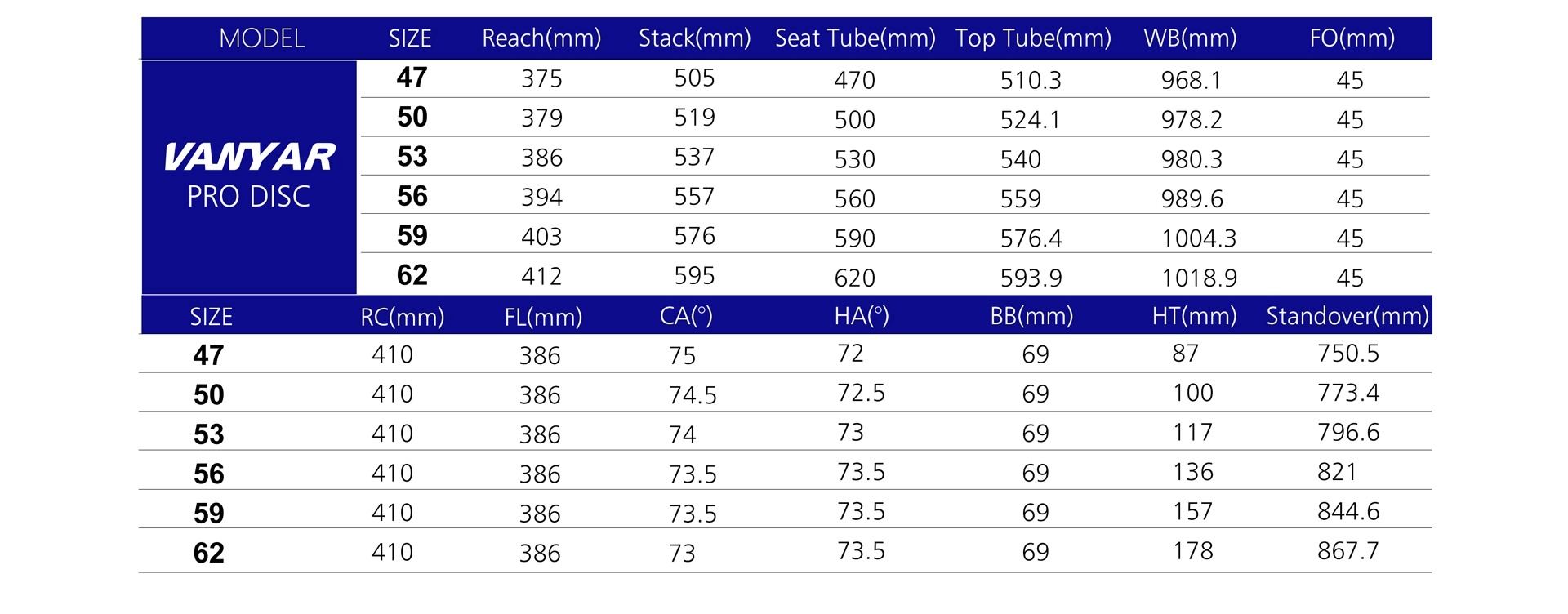

Rider Fit Guide
| Size | Recommended Rider Height |
|---|---|
| 47 | 155–165 cm |
| 50 | 165–173 cm |
| 53 | 170–178 cm |
| 56 | 178–186 cm |
| 59 | 184–192 cm |
| 62 | 190–198 cm |

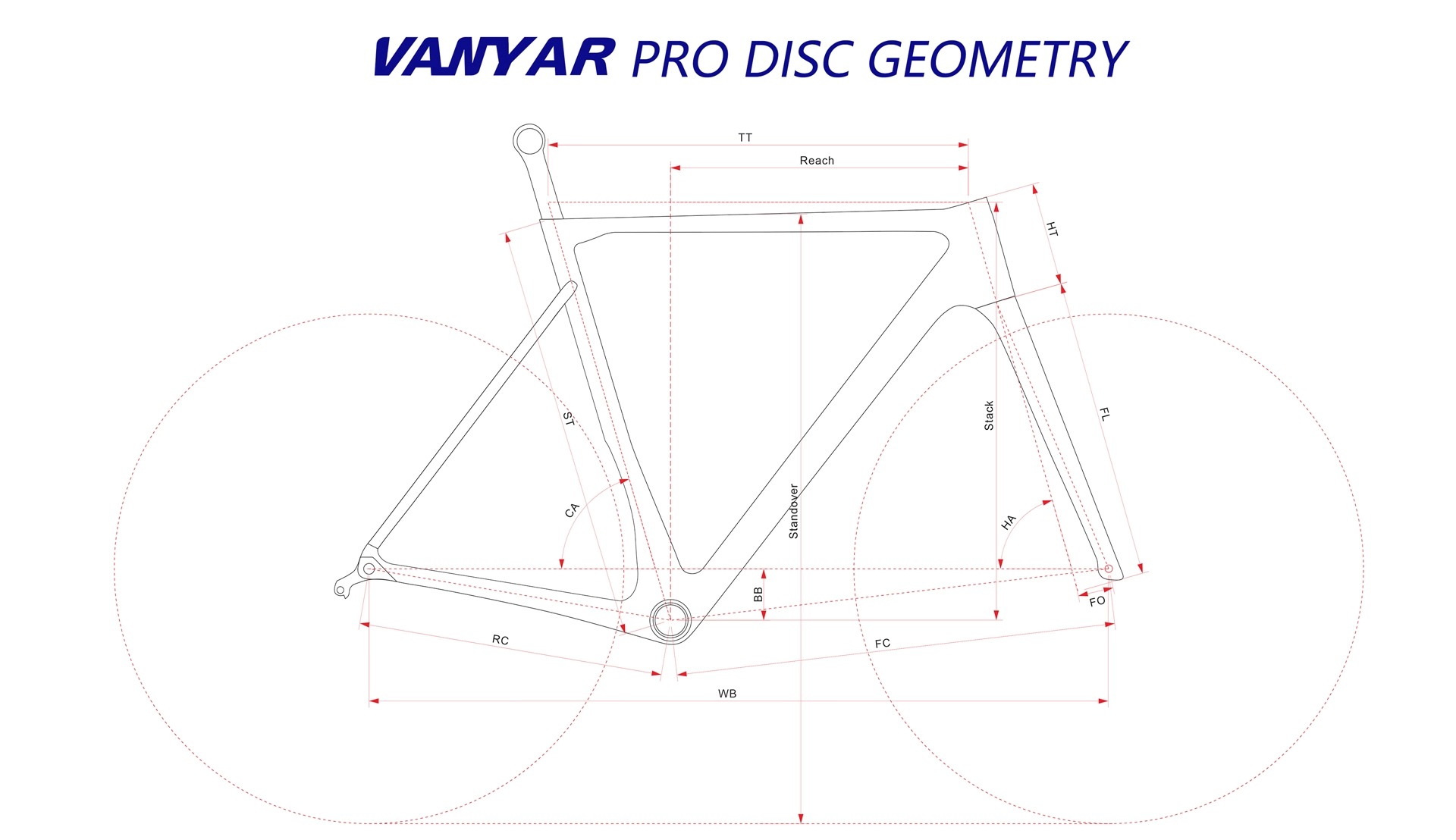

Sizing guidance — use stack/reach to fine-tune fit.
