2026 Farsports C Series Carbon Wheelset
The 2026 Farsports C Series Carbon Wheelset is a versatile, tubeless/clincher-ready disc wheelset built around Alpina® Ultralite aero steel spokes and Farsports’ in-house CH01F&CH01R ratchet hubs. Choose your depth—C4 45 mm (climbing), C5 50 mm (all-round), or C6 58.5 mm (aero)—each with modern 24 mm internal / 31.5 mm external hooked rims. Balanced 2:1 lacing (21F/24R) delivers responsive handling and power transfer, while claimed weights start at about 1290–1420 g per pair (±5%). There’s No weight limit, suitable for gravel.
2026 Farsports C Series — Features & Benefits
- Depths by Purpose: C4 45 mm (climb), C5 50 mm (all-round), C6 58.5 mm (aero).
- Unified Rim Shape: All models use 24 mm internal / 31.5 mm external hooked rims for confident tire profiles.
- Steel Reliability: Alpina® Ultralite aero and stiff steel spokes with 2:1 balance—21F / 24R.
- Ratchet Hubs: CH01F&CH01R hubset with a ratchet system and Center Lock interface for easy servicing.
- Light but Durable: Claimed pair weights ~1290 g (C4), ~1320 g (C5), ~1420 g (C6) (±5%).
- Use Case: No weight limit, suitable for gravel; tubeless/clincher ready.
- Bearings: Equipped with standard steel bearings.
- Aero Focus: Proven aerodynamic performance.
- Power Transfer: Optimized for max power transfer, with claimed power gains vs leading brands.

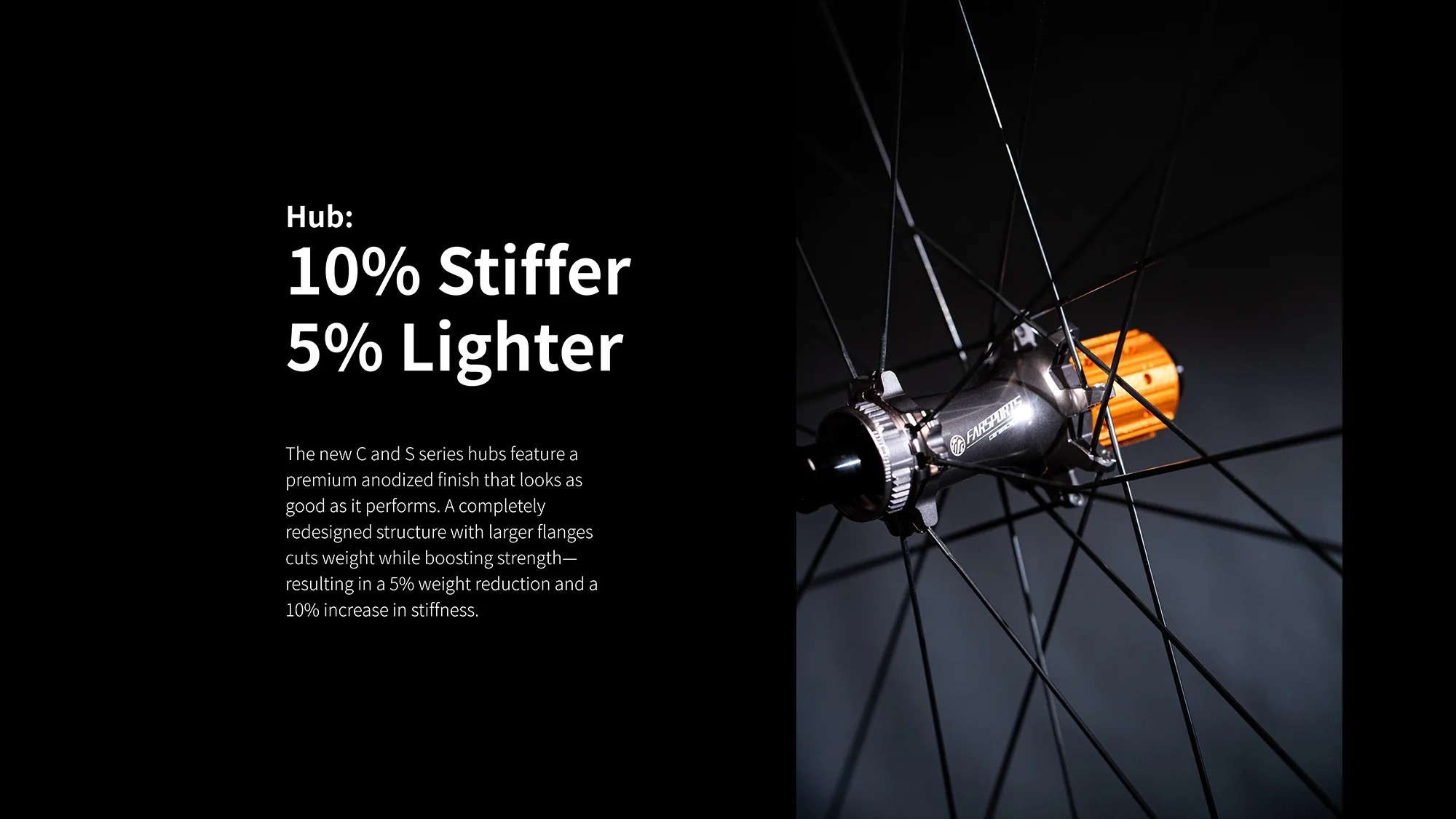

- Hub Update: Larger flange design with claimed 10% higher stiffness and 5% lower weight vs the prior (MY2025) hub structure.

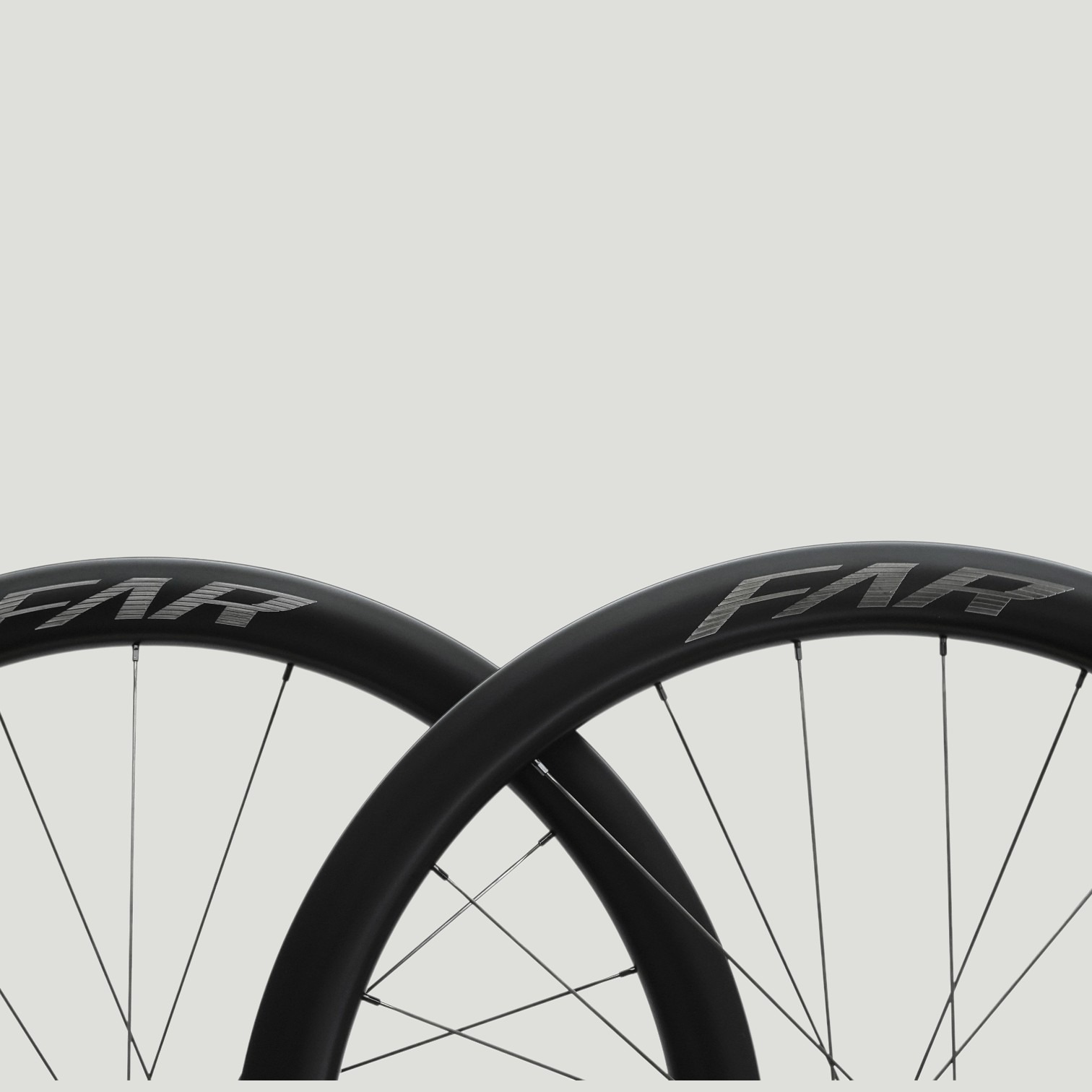

- Branding: Brand new laser etched logo design.
- Rim Design: Tubeless-ready hook rim design.
- Brake / Interface: Disc brake & Center Lock, with 21H/24H and 2:1 lacing.
- Stiffness-to-Weight: A combination of incredible stiffness & lightweight.
- Mix & Match: Front and rear wheel rim profile can be randomly paired.
2026 Farsports C Series — Specifications
Models & Dimensions

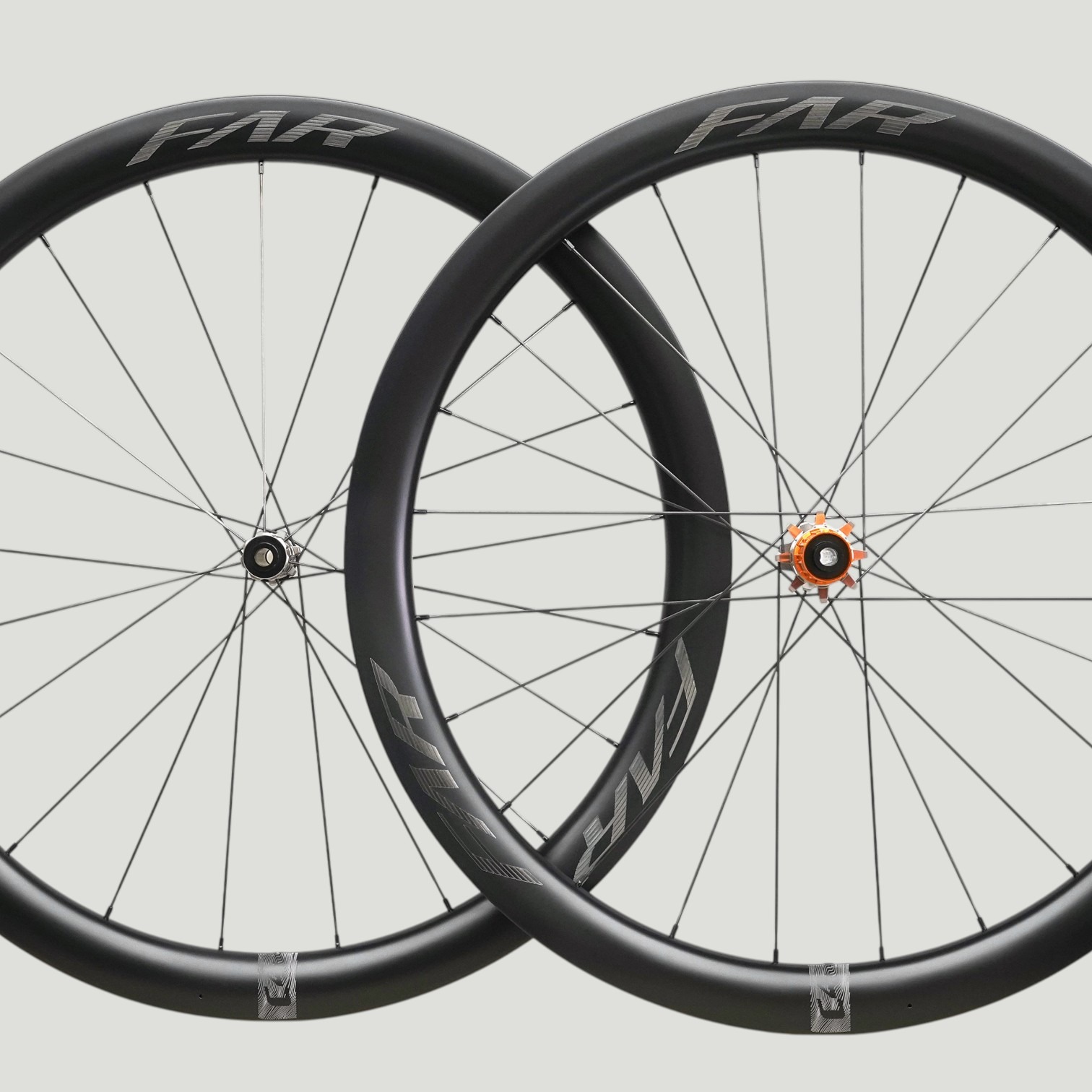

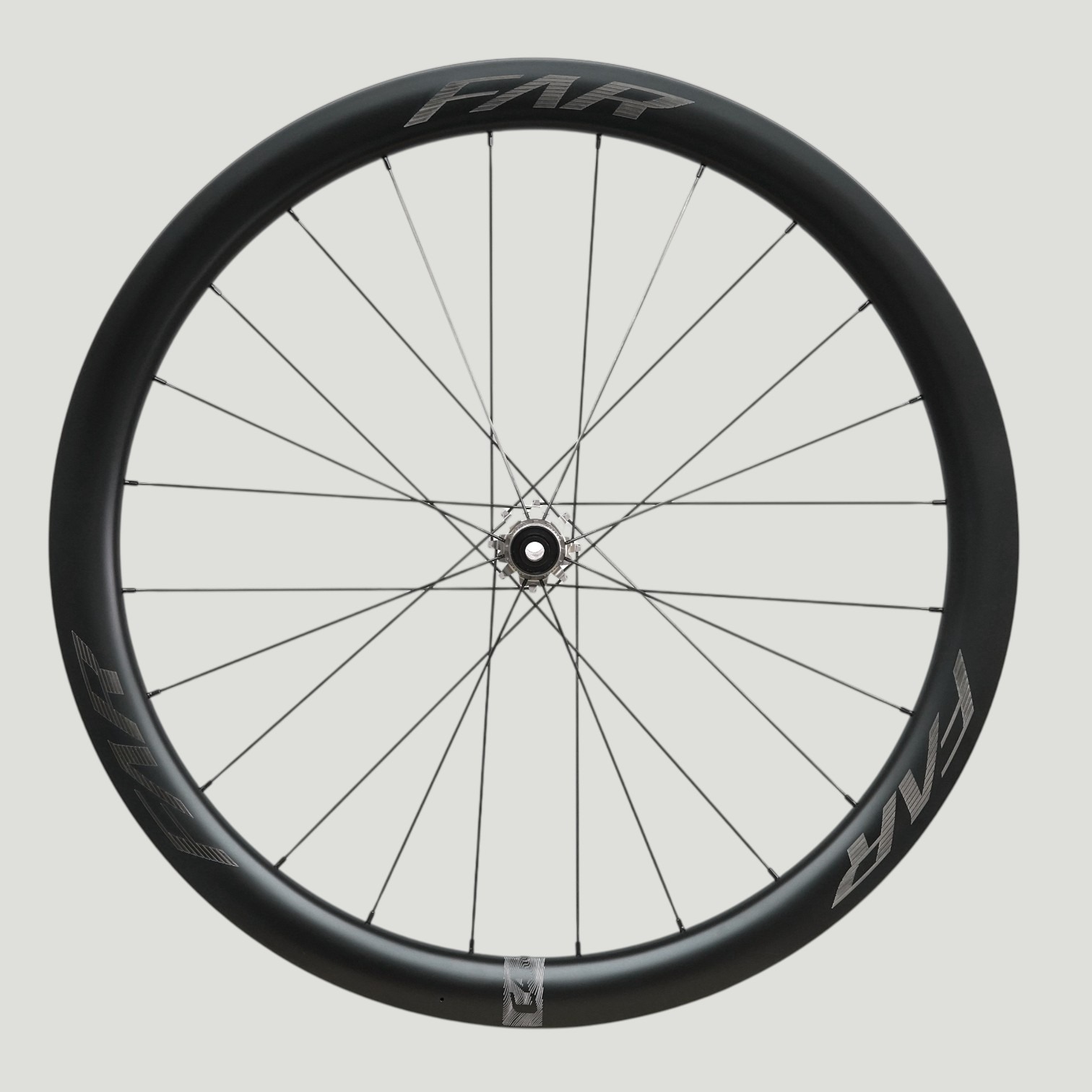

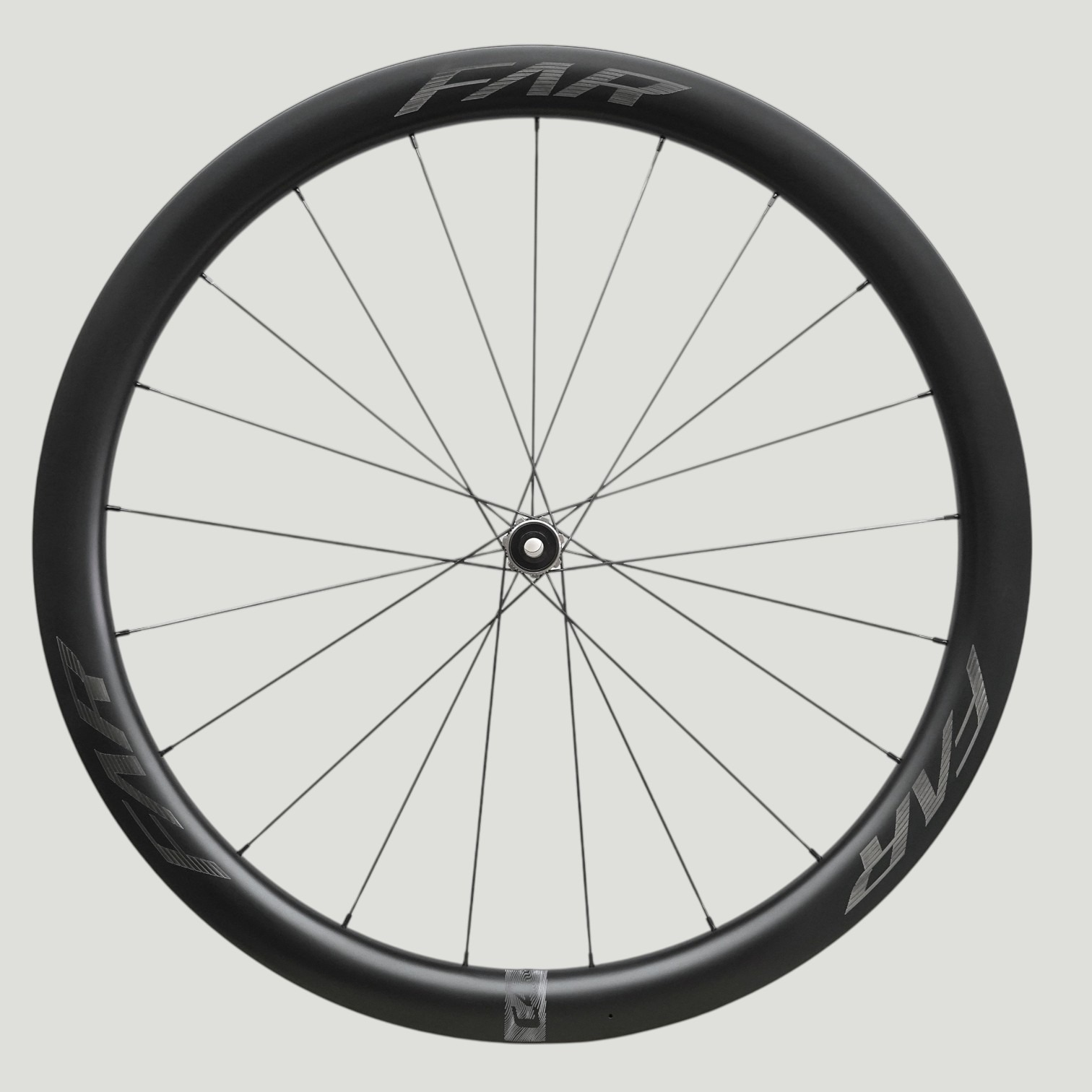

- C4: 45 mm depth (Front/Rear); 24 mm internal; 31.5 mm external.

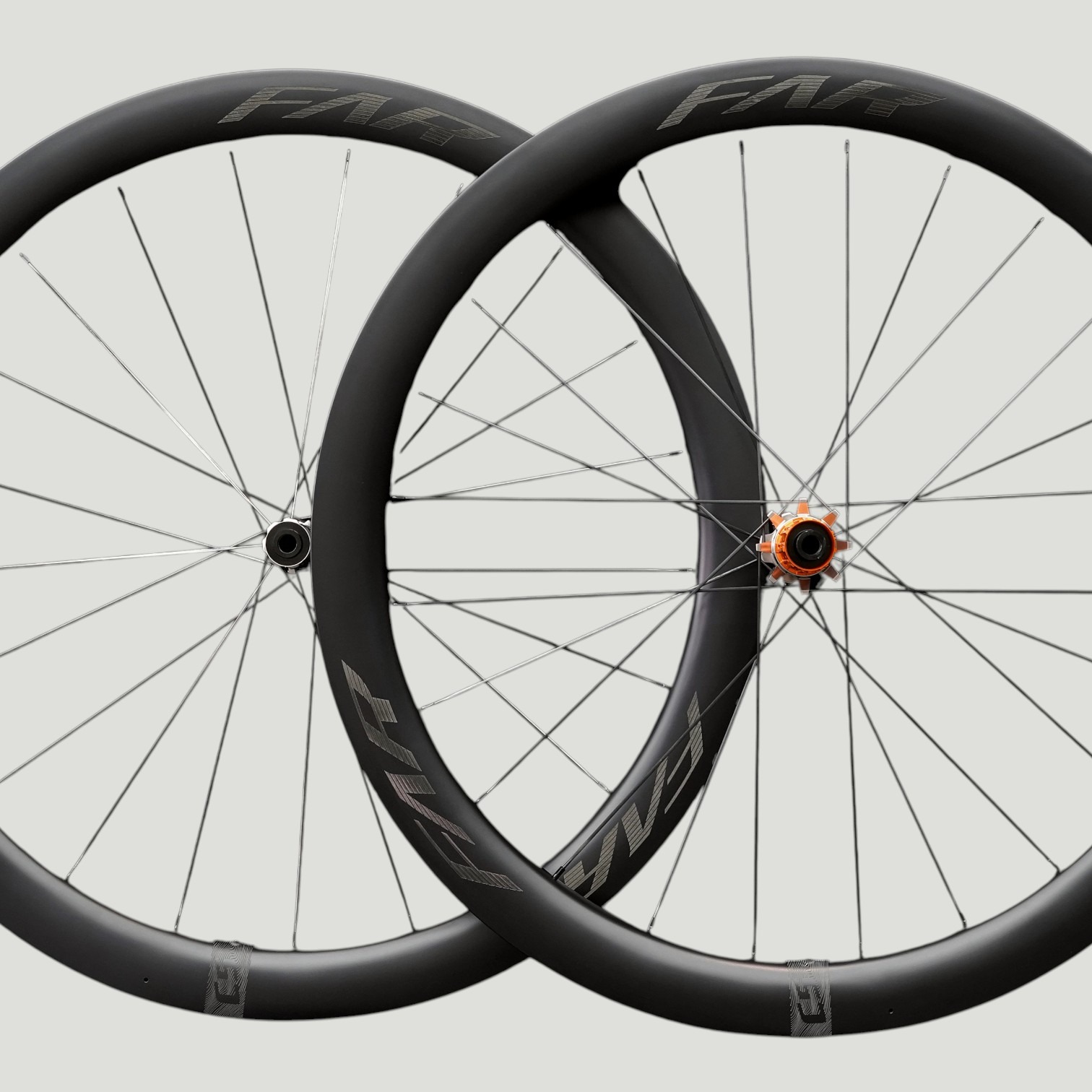

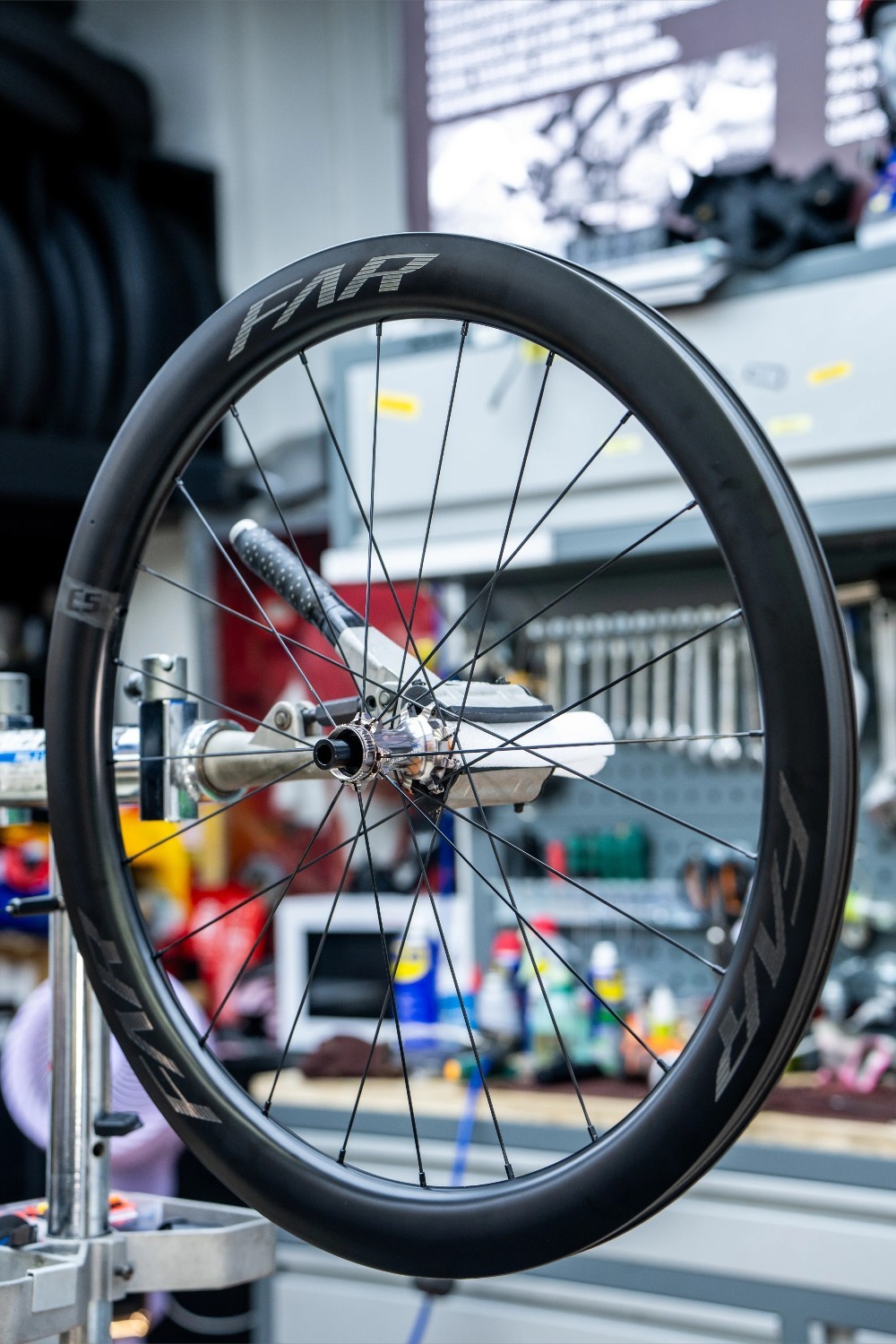

- C5: 50 mm depth (Front/Rear); 24 mm internal; 31.5 mm external.

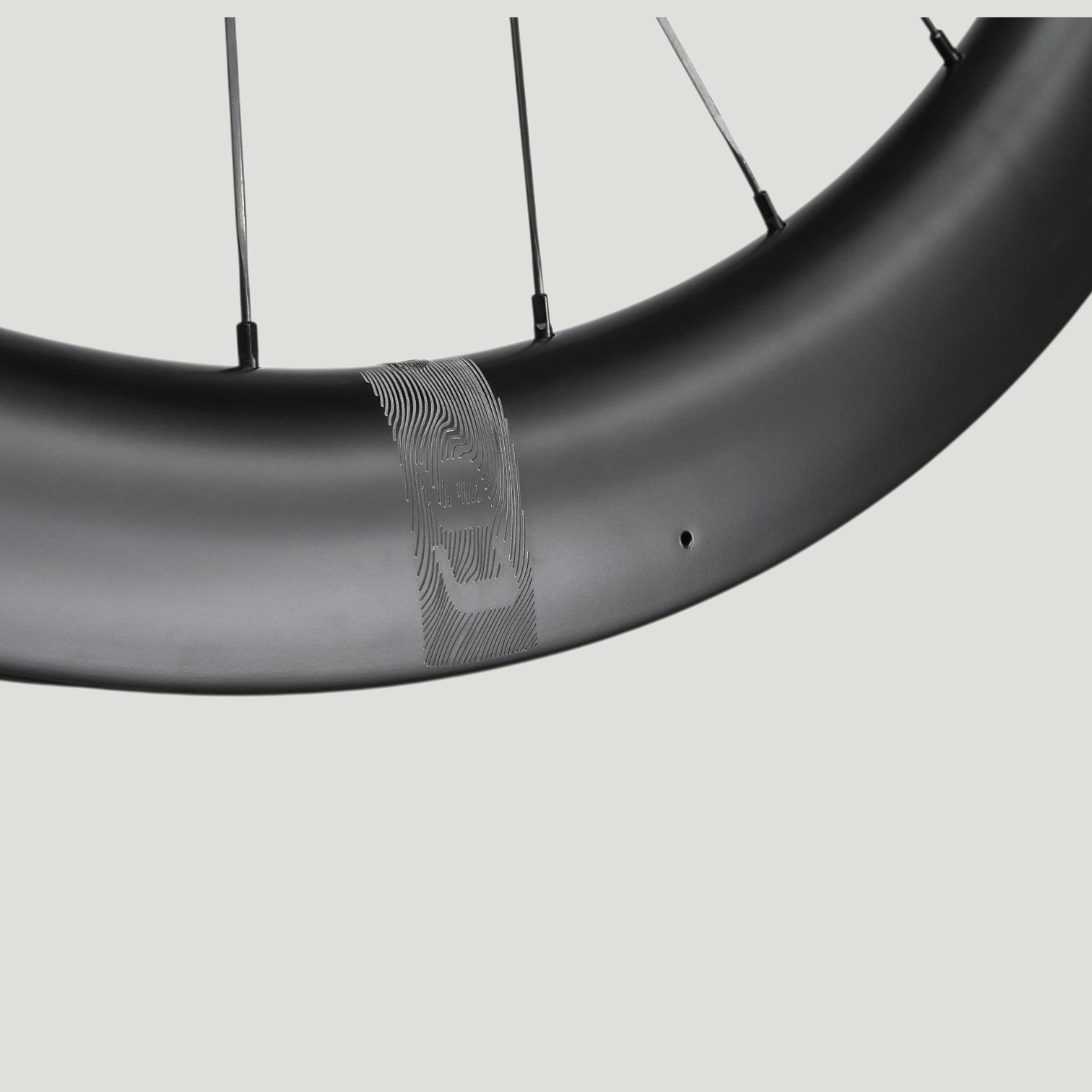

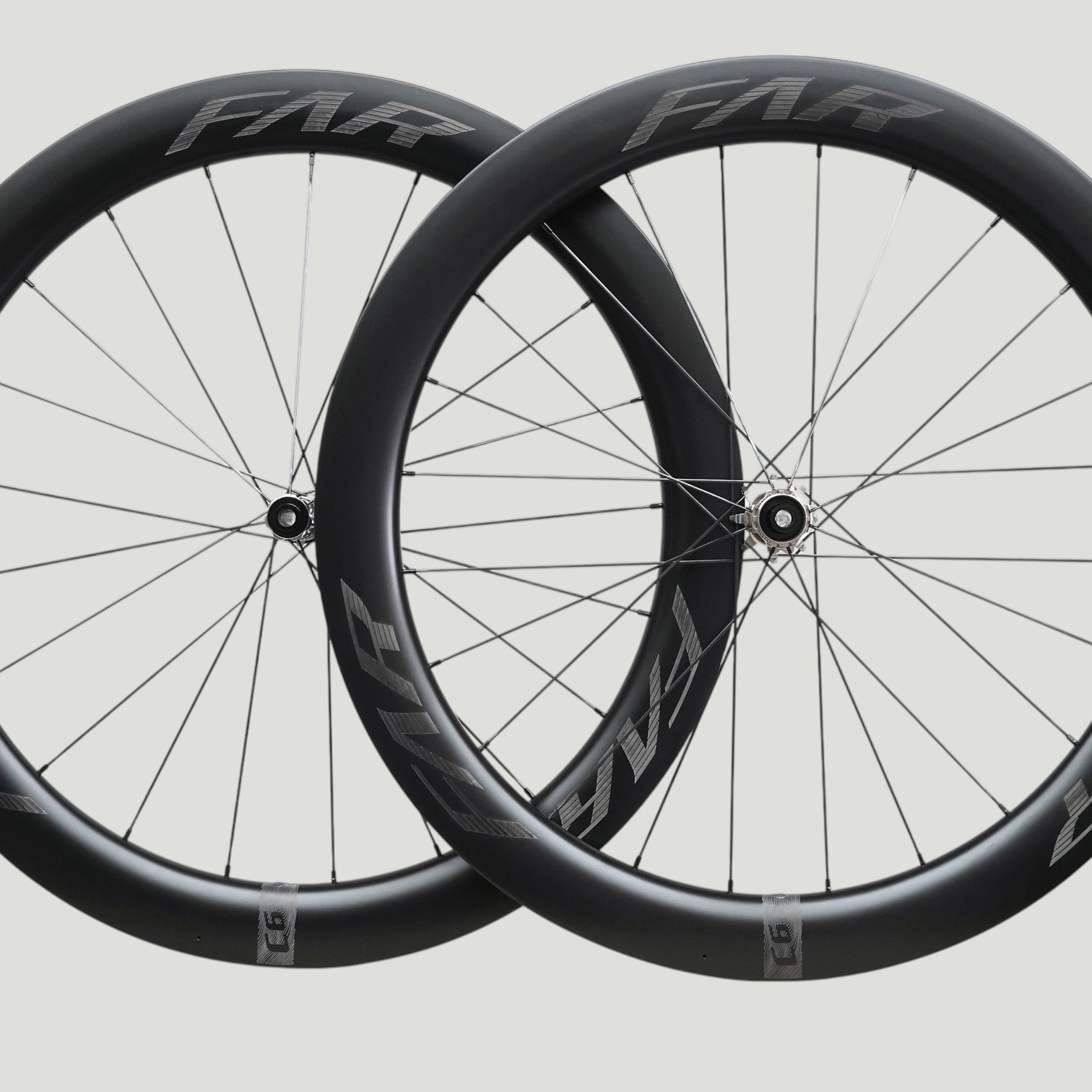

- C6: 58.5 mm depth (Front/Rear); 24 mm internal; 31.5 mm external.
- Tire Setup: Hooked, tubeless/clincher-ready.
Hubs & Spokes
- Spokes: Alpina® Ultralite aero steel spokes; Front 21 (2:1) / Rear 24.

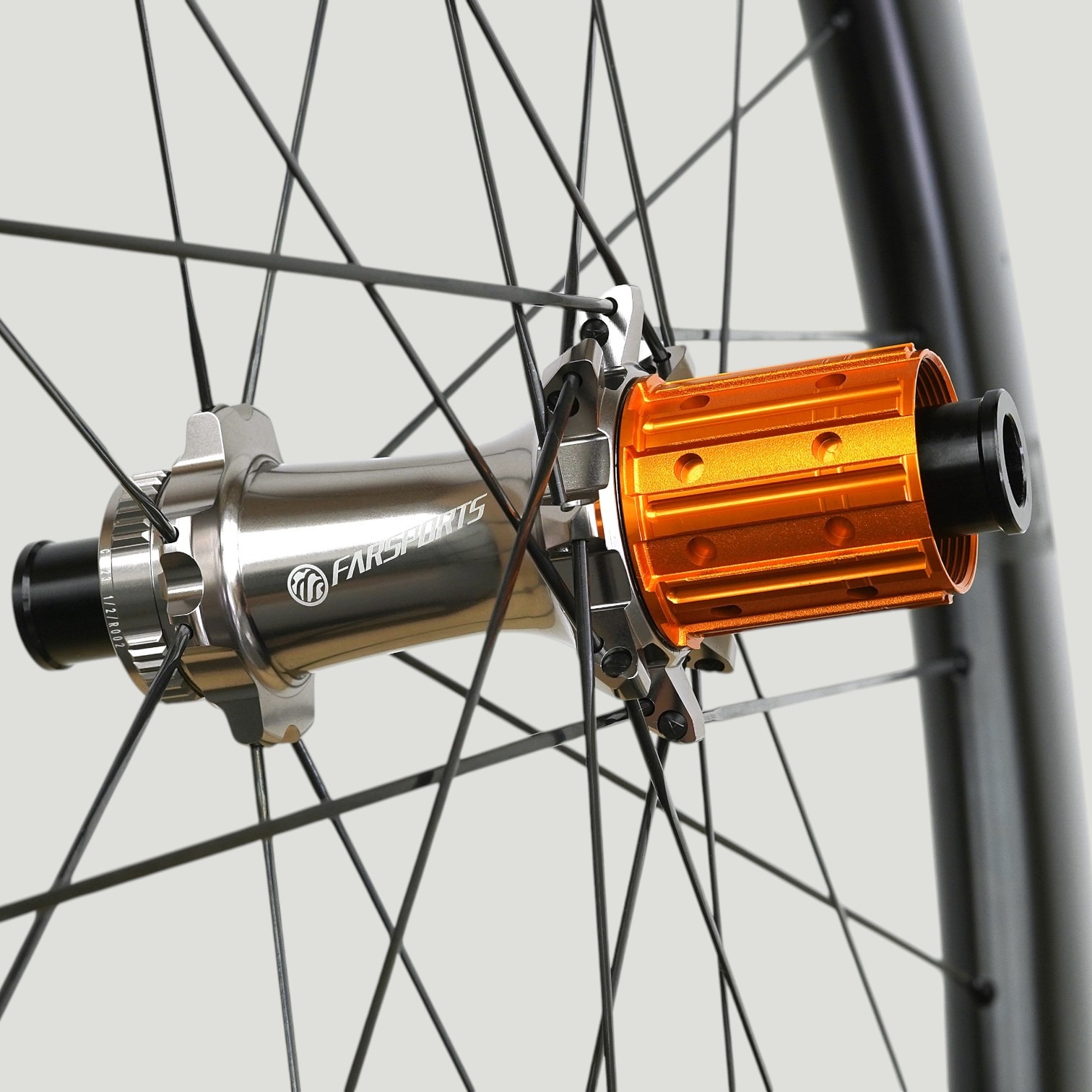

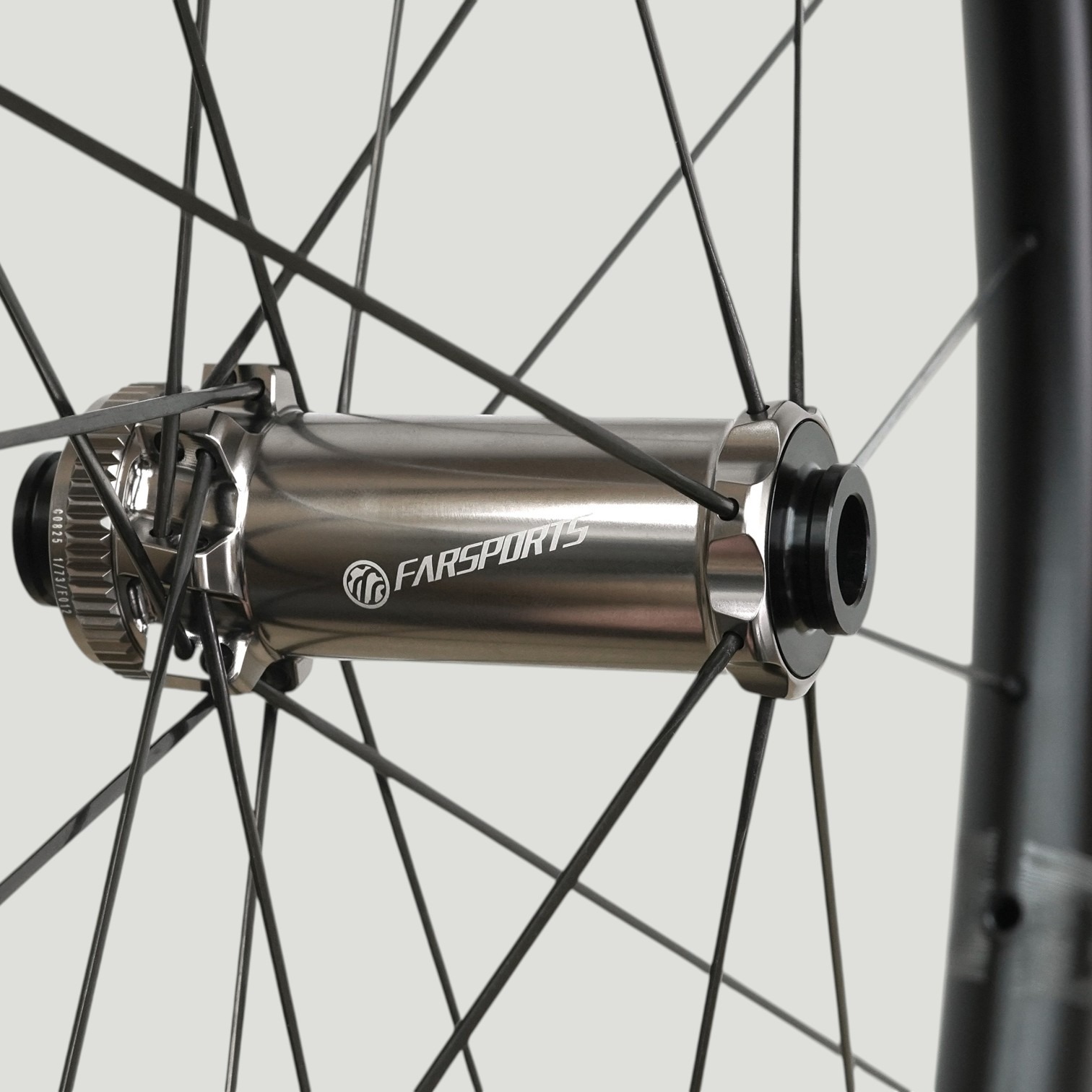

- Hubset: Farsports CH01F&CH01R ratchet hubs, Center Lock.
- Bearings: Standard steel (serviceable).
- Freehubs: Shimano 11/12-speed (HG), SRAM XDR, Campagnolo 11/12s, Micro Spline 12S, N3W Campagnolo 13s.
Weights & Compatibility
- Approx. Pair Weights (±5%): C4 ~1290 g; C5 ~1320 g; C6 ~1420 g.
- Rider Limit: No weight limit, suitable for gravel.
- Brake: Disc, Center Lock.
2026 Farsports C Series — Lineup & Sizes
| Model | C4 | C5 | C6 |
|---|---|---|---|
| Depths (F/R) | 45 / 45 | 50 / 50 | 58.5 / 58.5 |
| Internal Width (mm) | 24 | 24 | 24 |
| External Width (mm) | 31.5 | 31.5 | 31.5 |
| Spokes (F/R) | 21 / 24 (2:1) | 21 / 24 (2:1) | 21 / 24 (2:1) |
| Hubset | Farsports CH01F & CH01R ratchet hubs • Center Lock | ||
| Approx. Weight (pair) | ~1290 g | ~1320 g | ~1420 g |
| Tyre Setup | Hooked • Tubeless / Clincher | ||
| Freehub Options | Shimano HG 11/12s • SRAM XDR • Campagnolo 11/12s • Micro Spline 12S • N3W 13s | ||
| Notes | No weight limit • Suitable for gravel | ||
Specs and weights are provided as reference and can vary by configuration (±5%). Always confirm compatibility (freehub, axle/rotor standard, tyre choice) before ordering.
Helpful Links
Pair this with one of our framesets Framesets at Underdogs Cycling.
Compare your bike to one of our framesets on Geometry Geeks.
2026 Farsports C Series Carbon Wheelset — FAQ
Is there a rider weight limit for the C Series?
This wheelset is listed with no weight limit and is positioned as suitable for gravel. We still recommend choosing tyres, pressures, and riding style appropriately for your terrain and system weight.
Are the rims tubeless-ready?
Yes. The C Series uses a hooked rim and supports tubeless or clincher setups. Use quality tape/valves and confirm tyre compatibility for best results.
What spokes are used, and what’s the spoke count?
The C Series uses Alpina® Ultralite aero steel spokes with a 2:1 balance: Front 21 (2:1) and Rear 24.
What hubs does the C Series use?
It’s built on CH01F & CH01R ratchet hubs with a Center Lock rotor interface.
Which freehub body do I need?
Options include Shimano HG 11/12s, SRAM XDR, Campagnolo 11/12s, Micro Spline 12S, and N3W 13s. If you’re unsure, message us your drivetrain and cassette model and we’ll help confirm the correct choice.
Can I run different rim depths front and rear?
Yes—mixed depth setups are supported (for example, a shallower front for stability and a deeper rear for aero). Availability depends on the specific build options in stock at the time of order.
