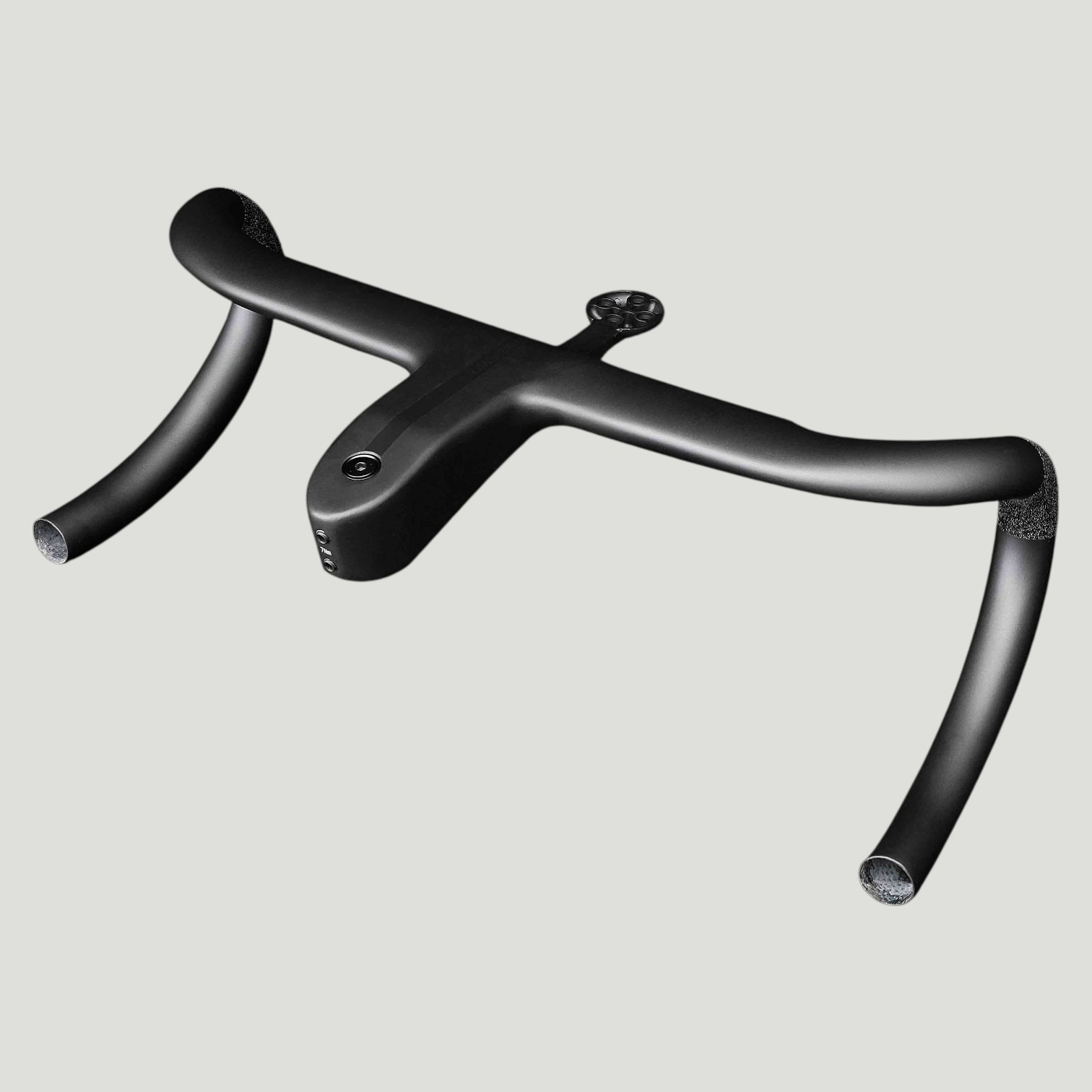

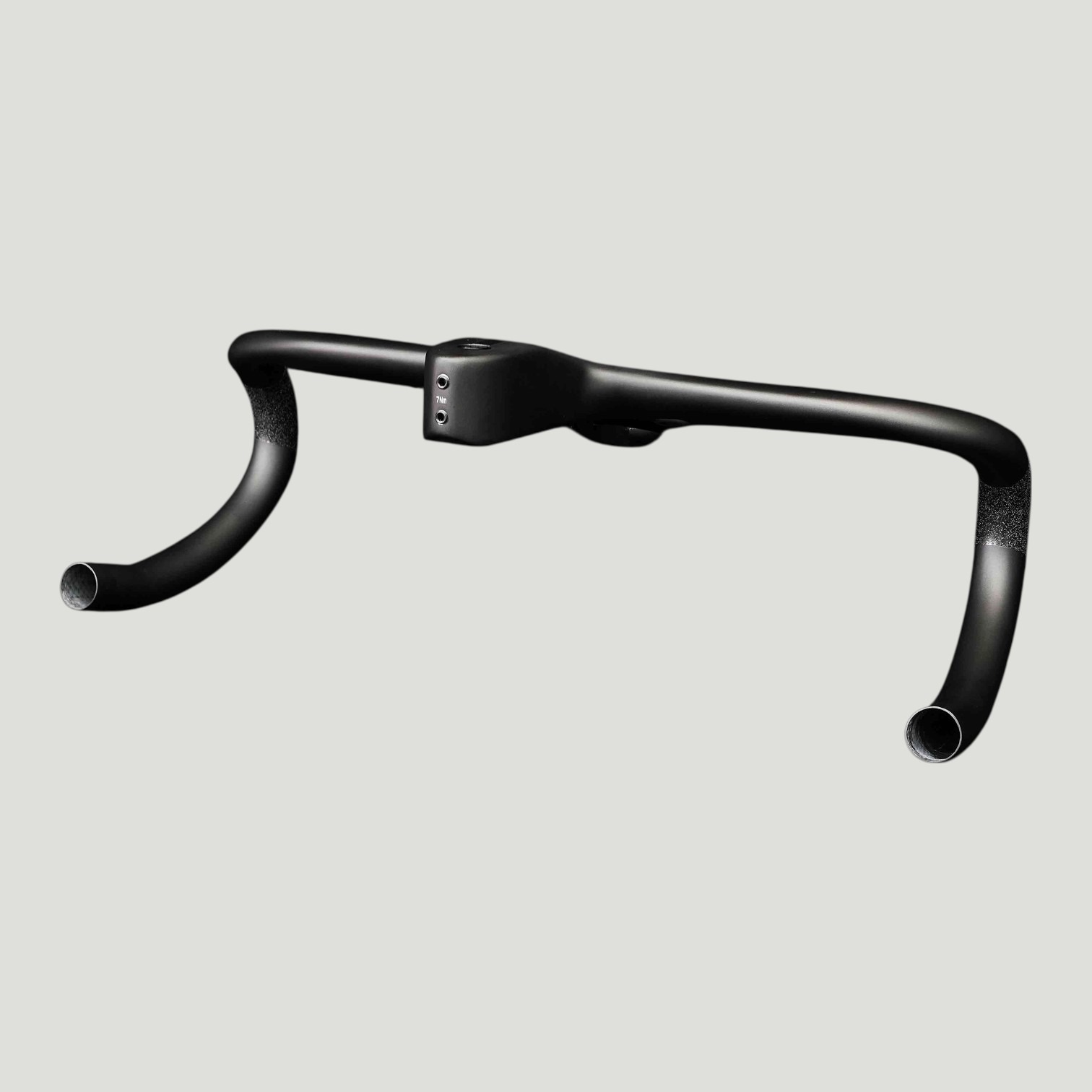

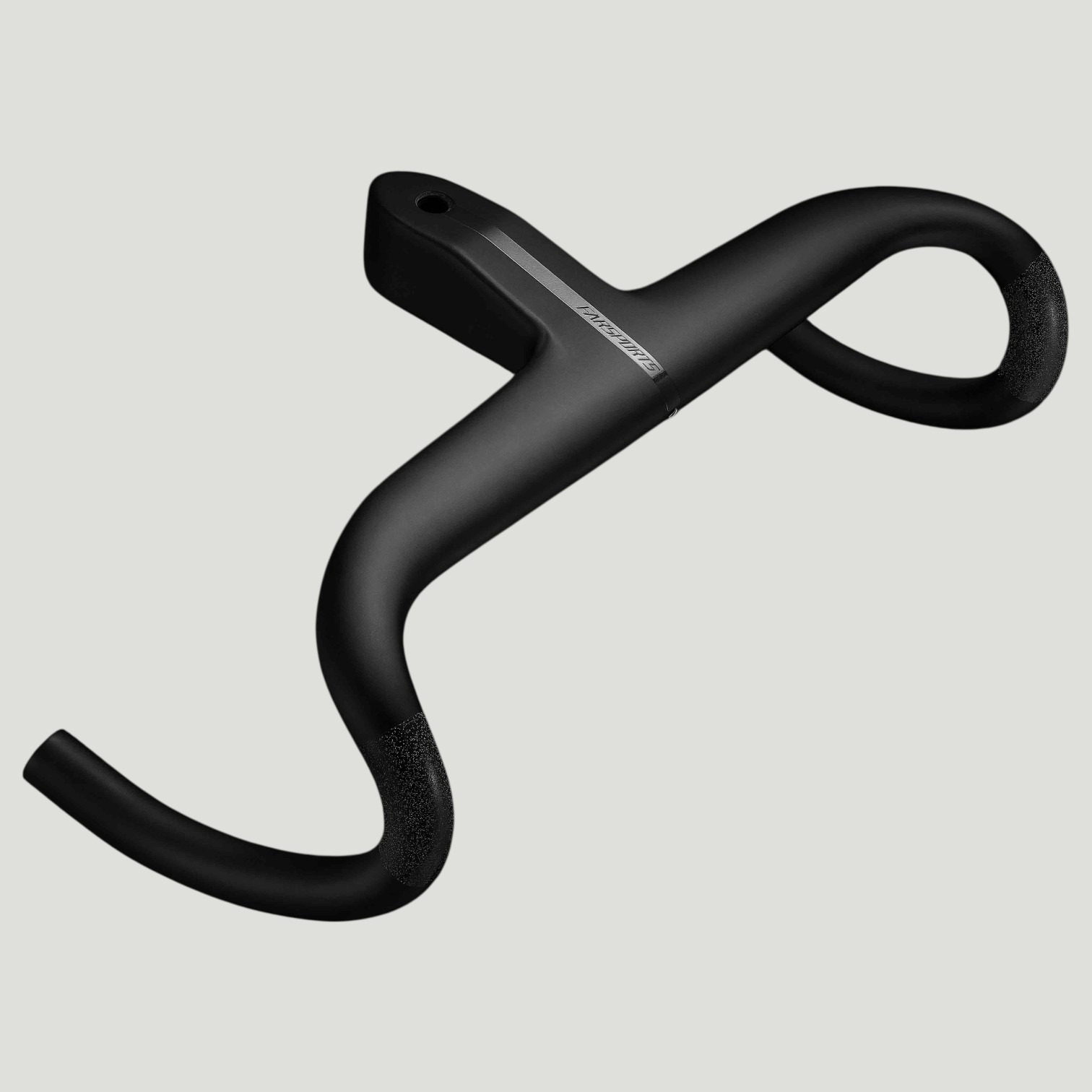

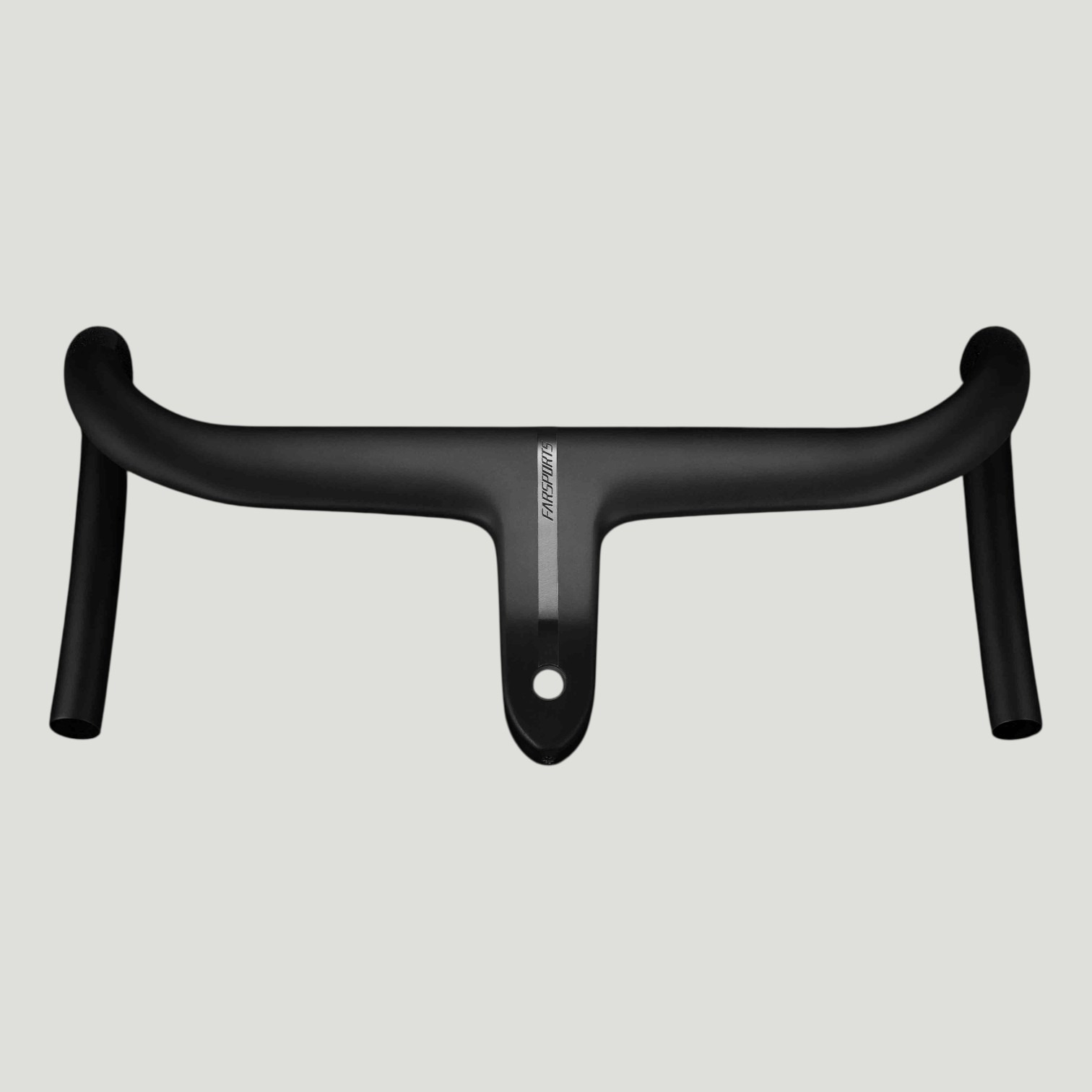

FARSPORTS F1 Ultimate Integrated Handlebar
The Farsports F1 Ultimate Integrated Handlebar is an ultra-light integrated cockpit designed for modern internally routed road bikes. In the reference size of 390×100, FARSPORTS claims a remarkably low 257 g ± 20 g bare weight (without accessories or metal parts), and approximately 290 g ± 20 g when fully installed with hardware and the included out-front mount.
A stem-cap-free design delivers a clean, seamless front end, while updated 350 / 370 / 390 / 410 mm top widths (center-to-center) reflect today’s narrow cockpit trend. Cable entry is optimized with improved SRAM compatibility for smoother routing, and the 30 mm flare enhances sprint control without sacrificing versatility. A Garmin/Wahoo-compatible computer mount and sleeves for 1-1/4" and 1-1/8" headtube standards are included.
Spec Snapshot:
350/370/390/410 mm top C-C •
257 g ± 20 (bare, 390×100) / 290 g ± 20 (installed) •
Stem-cap-free design •
Flare 30 mm •
Optimized routing with improved SRAM compatibility •
Garmin/Wahoo mount included •
1-1/4" & 1-1/8" sleeves included •
3-year warranty (bar)
FARSPORTS F1 Ultimate Integrated Handlebar — Features & Benefits
- Incredibly Lightweight: 257 g ± 20 g bare (390×100) and 290 g ± 20 g fully installed with metal parts and mount.

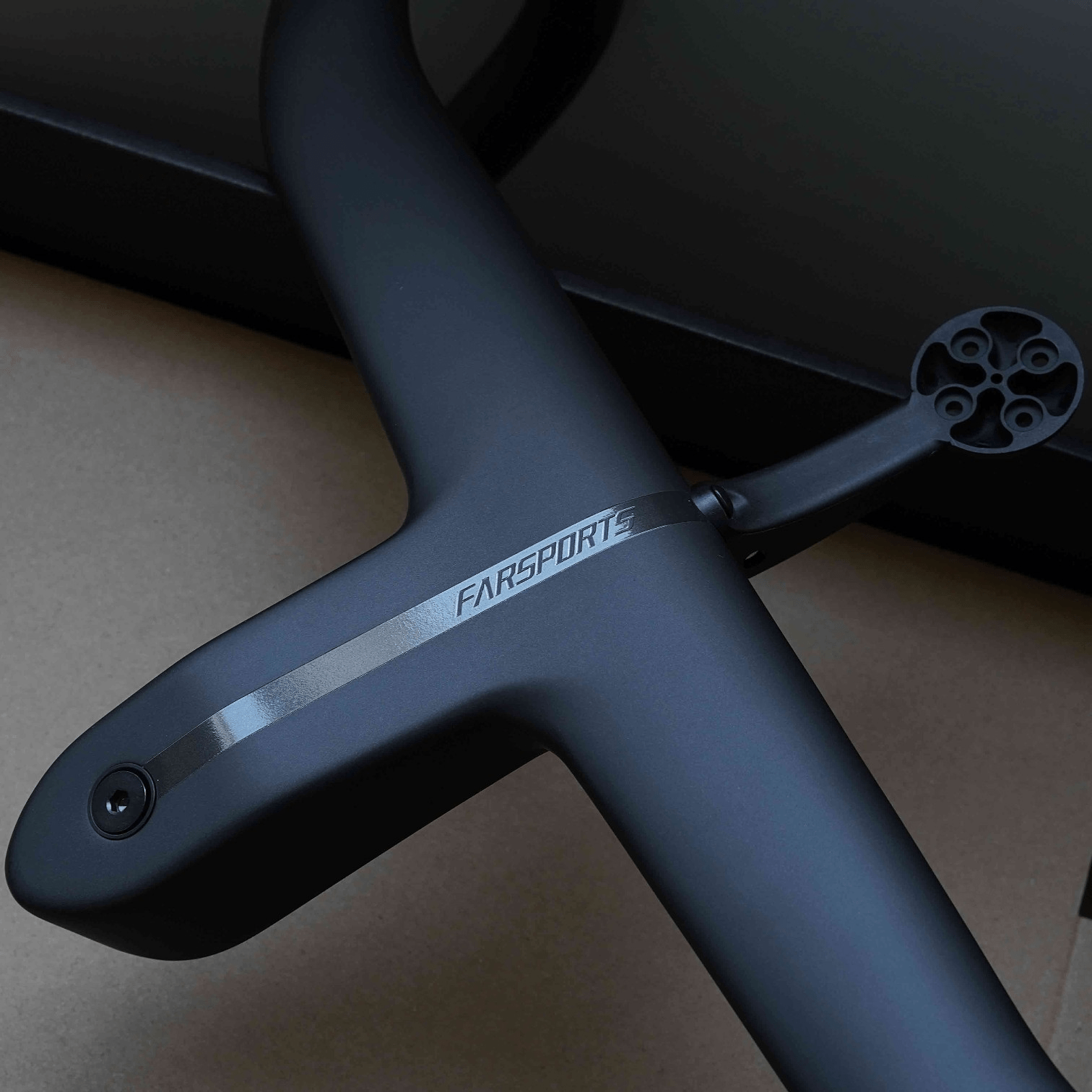

- Stem-Cap-Free Integration: A modern, seamless look with a stem-cap-free concept.
- Narrow Cockpit Trend: Updated top widths (C-C) of 350 / 370 / 390 / 410 mm for today’s narrower fit preferences.

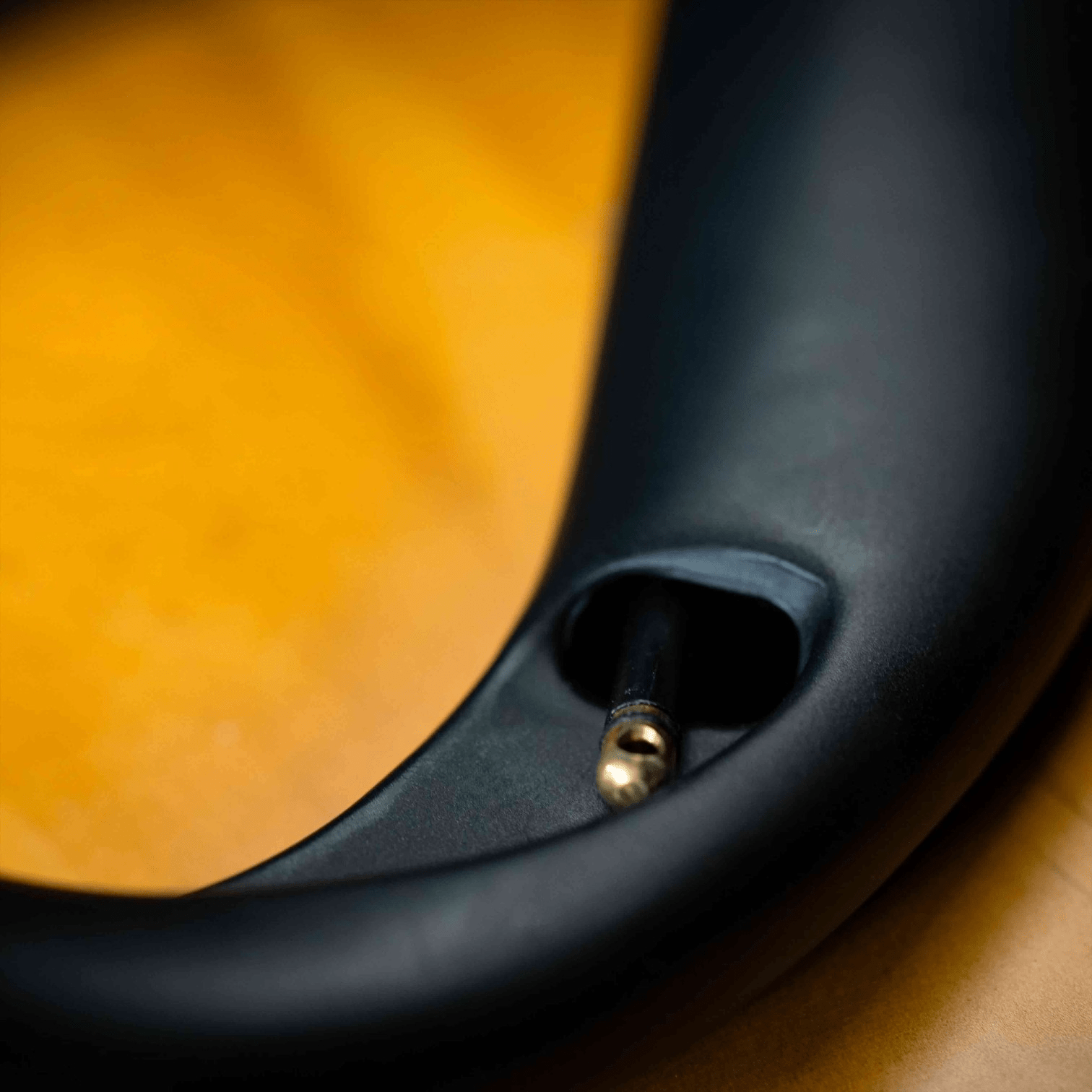

- Improved SRAM Routing: Optimized cable entry designed to make routing smoother and simpler, with specific SRAM-focused improvements.

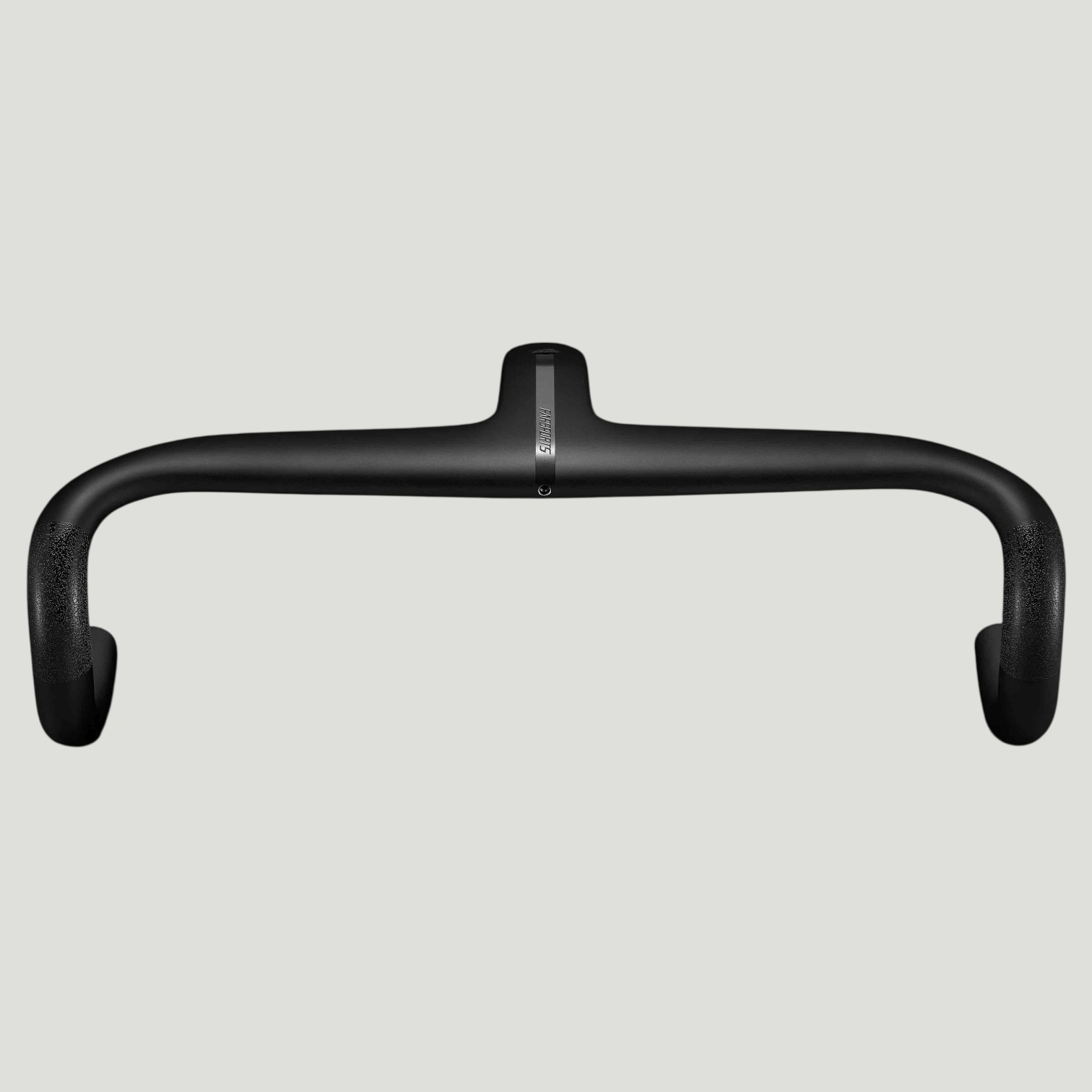

- More Control in the Drops: Drop-bar flare increased to 30 mm for better sprinting leverage while remaining versatile for light gravel.
- Computer Mount Included: Mount compatible with Garmin and Wahoo computers.
- Headtube Sleeves Included: Supplied with sleeves for 1-1/4" and 1-1/8" standards.
- Adapter-Based Fitment: Compatible with most modern internally routed bikes; a specific spacer/adapter is required depending on your frame.
- Proven & Tested: Manufacturer states the cockpit is proven on the world stage and tested by SGS.
- Warranty: 3-year manufacturer warranty on the bar.
FARSPORTS F1 Ultimate Integrated Handlebar — Specifications
Fit & Sizing
- Top widths (C-C): 350 / 370 / 390 / 410 mm
- Drop flare: 30 mm (manufacturer-stated)
- Routing: Internally routed bikes; optimized cable entry with improved SRAM compatibility (manufacturer-stated)
Weight (ref.)
- Bare (390×100): 257 g ± 20 g (no accessories/metal parts)
- Fully installed (390×100): 290 g ± 20 g (including metal parts, screws, and out-front mount)
Included & Warranty
- Included: Garmin/Wahoo-compatible computer mount.
- Included: Sleeves for 1-1/4" and 1-1/8" headtube standards.
- Warranty: 3-year manufacturer warranty (bar).
- Use carbon assembly paste and torque to the manufacturer specification.

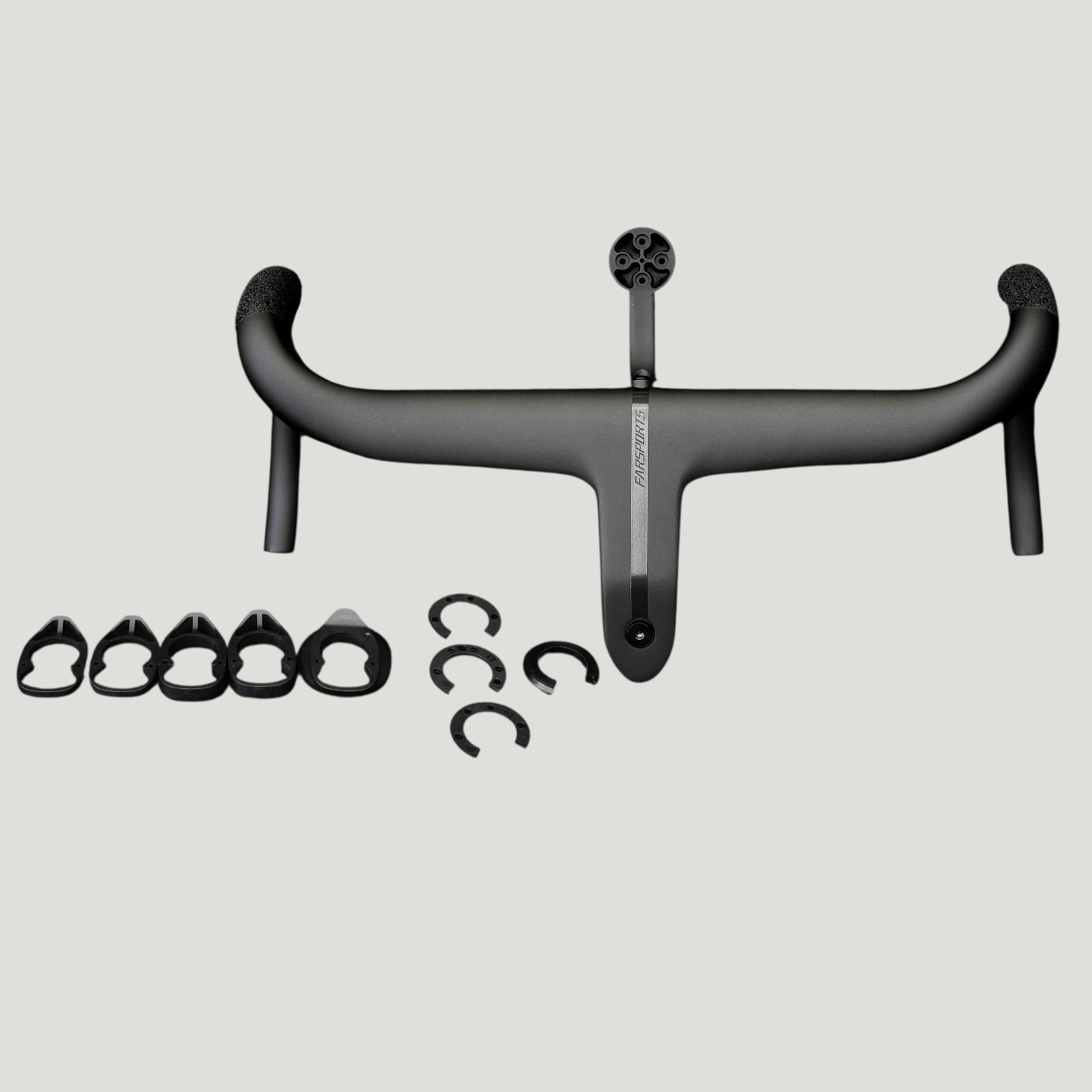

FARSPORTS F1 Ultimate Integrated Handlebar — Spacer / Adapter Compatibility
This cockpit is designed for most modern internally routed bikes, but fitment is adapter-based.
Choose the spacer/adapter that matches your frame standard. If you’re unsure, message us your bike model and year and we’ll help confirm the right selection before you order.
BMC / Cannondale
- BMC TMR 01 2021+
- BMC SLR 01 2020+
- Cannondale SuperSix EVO G3
- Cannondale SuperSix EVO G4 (with custom top cap)
- Cannondale SystemSix
Cervélo / Colnago / Pinarello
- Cervelo R5
- Cervelo Soloist 2024
- Colnago V3r/C64
- Colnago V4rs/C68
- Colnago V3 2024
- Pinarello F12 Disc
Factor / Focus / Giant / Merida
- Factor Ostro Vam (no spacer needed; fits directly)
- Factor Ostro Vam Gravel V2 2024
- Focus IzalcoMax 2020+
- Focus Izalco Max 2023
- Giant Propel Advanced 2023
- 2024 Giant TCR ADV 10 (28.6 mm internal routing)
- 2024 Giant TCR ADV 10 (31.8 mm internal routing)
- Merida Reacto/Scultura (FSA ACR)
Orbea / Ridley / Scott
- Orbea ORCA OMX/OMR MY2023–2025
- Ridley Helium SLX
- Scott Addict 2021
- Scott Addict RC 2025
- Scott New Addict RC
- Scott New Foil RC
- Scott Foil 2021
- Scott Foil 2021-2
Specialized / Trek
- Specialized SL7
- Specialized Tarmac SL8
- Specialized New Venge
- Specialized Allez Sprint (default spacer kit + thinner compression ring)
- Trek Emonda SLR
- Trek Madone SLR
- Trek Madone SLR 7 Gen 8
- Trek Checkpoint Gravel MY2025
Other Frames / Standards
- Deda DCR (Bottecchia DCR)
- SEKA Exceed
- Winspace T1550
- TAVELO ARROW
- Aurum HC6
- Aurum HC9
- Bianchi Specialissima 2025
- Evolve Cima
- Wilier Cento 10
- Wilier Filante SLR/Cento 10 SL
- Willer Filante 2024–2025
- OD1 28.6 mm external cables routing adapter
- OD2 31.8 mm external cables routing adapter
Notes: Some options are model-year specific, and one configuration (Factor Ostro Vam) is stated to fit directly without a spacer. If you want help selecting the correct option, send us your bike model and year.
Design Philosophy — Pure Integration
Down to the Details
- Accessory system is built around the same goal as the cockpit: keep the front end clean and minimize unnecessary mass.

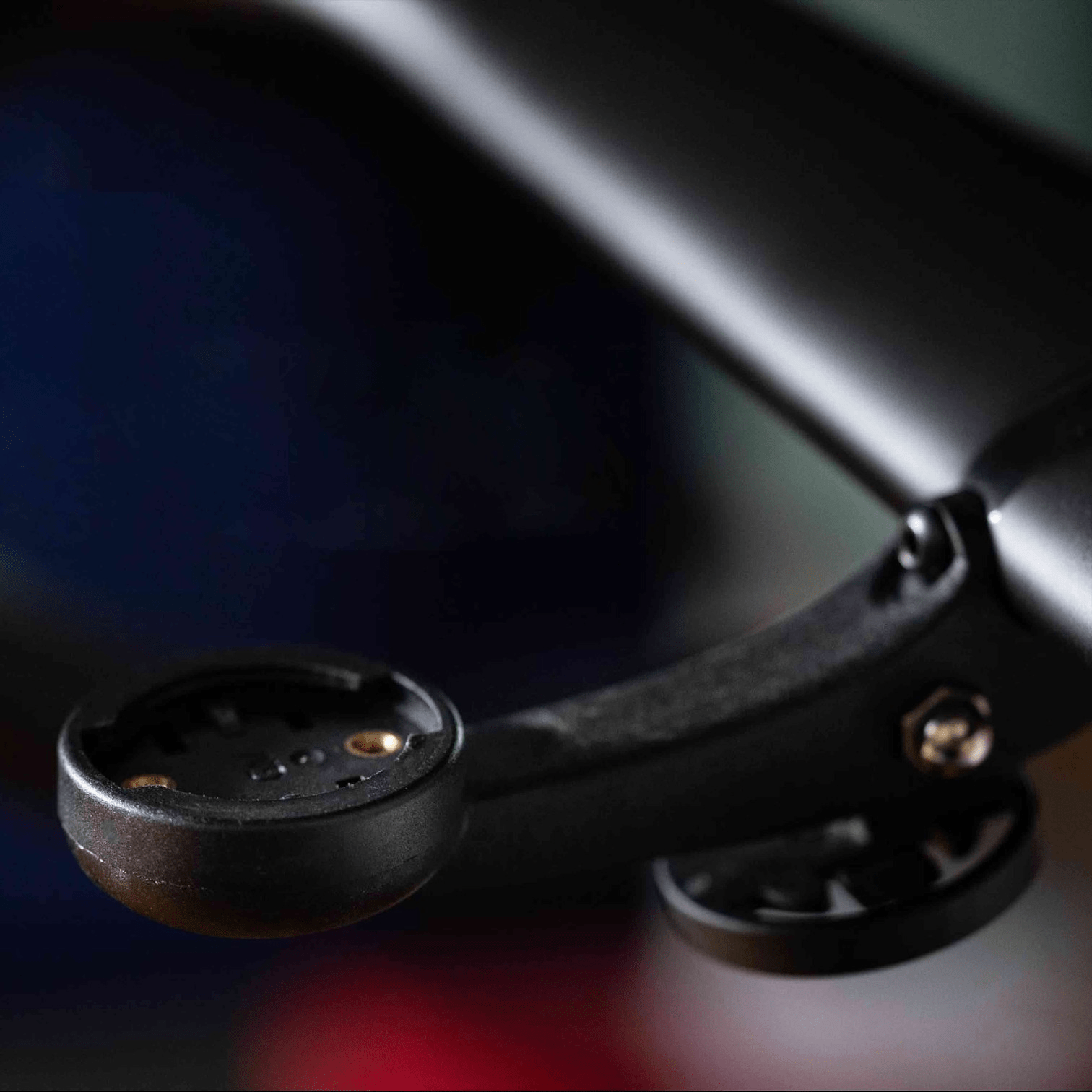

- The included computer mount is designed to be light and compact while still offering strong real-world load support.

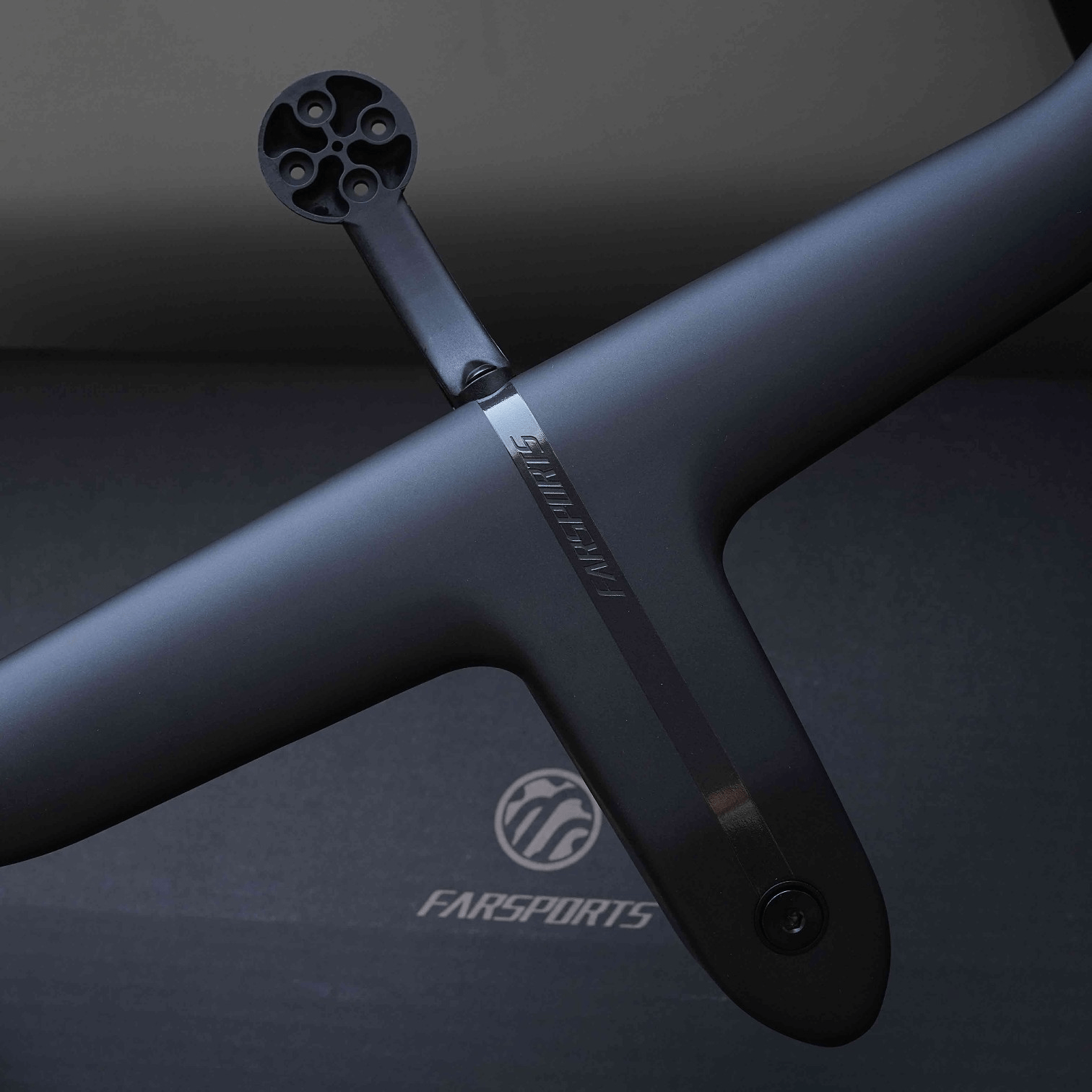

Stem-Cap-Free Simplicity
- The stem-cap-free approach emphasizes a seamless visual line from steerer to bar.
- Weight is reduced without positioning the cockpit as “fragile”; it’s aimed at confident top-level use.
Racing-Proven Intent
- Manufacturer states it has been used at the highest level and validated through third-party testing (SGS).
- Best suited to performance road builds where integration, aerodynamics, and weight matter.

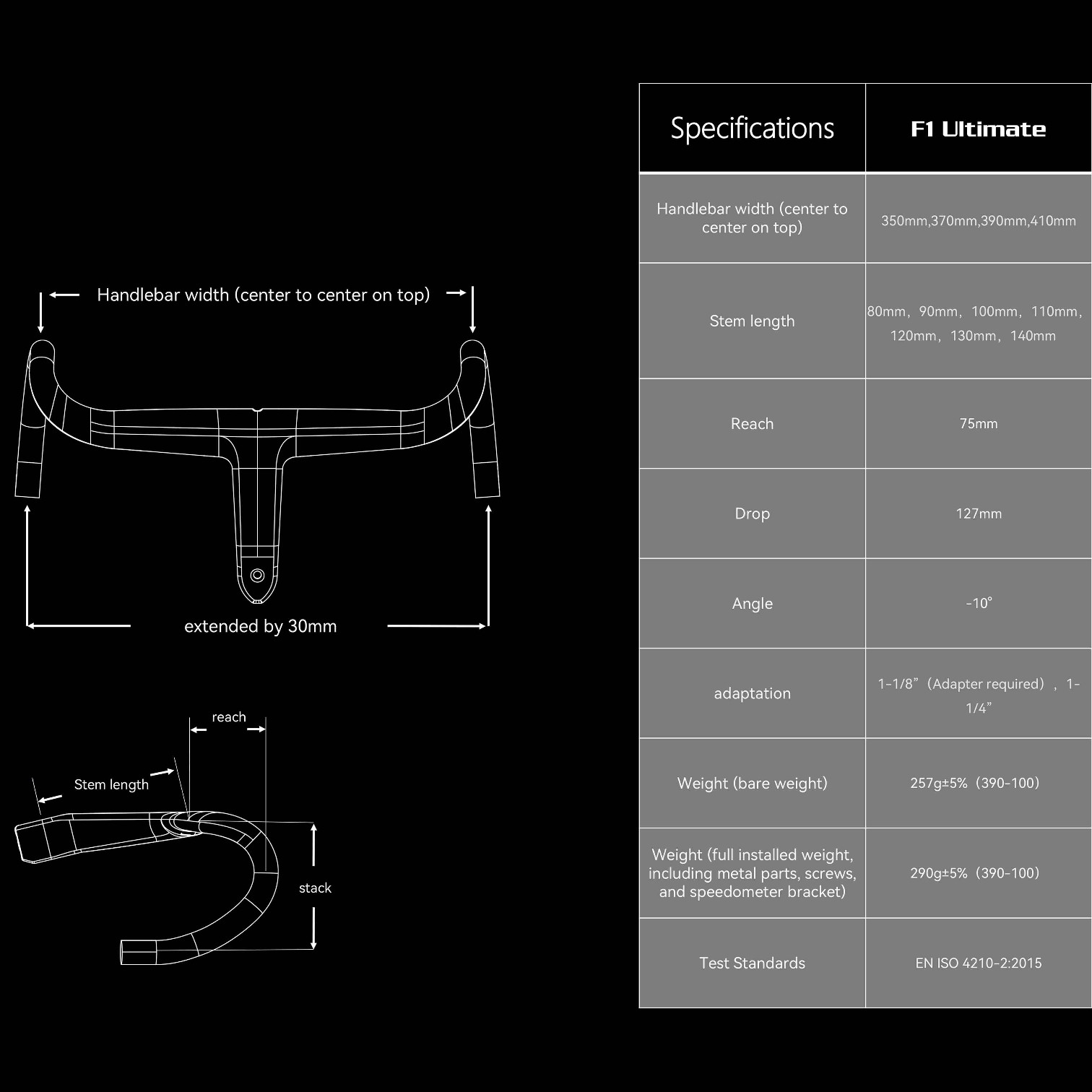

FARSPORTS F1 Ultimate — Geometry & Sizes
Always verify fit, routing, and torque values with manufacturer documentation for your specific frame.
Helpful Links
Pair with our framesets and components.
Compare fits with Geometry Geeks.
FARSPORTS F1 Ultimate Integrated Handlebar — FAQ
How fast does it ship?
Orders ship once processing is complete and a tracking number is generated. Delivery time depends on destination. If you want an ETA before ordering, message us with your location and the exact F1 Ultimate configuration you’re considering.
Do prices include duties and taxes?
Shipping and duty handling can vary by destination and product type. If DDP (Delivered Duties Paid) is offered for your destination, duties and import handling are included at checkout for eligible orders. If DDP is not available, duties and taxes may be collected by the carrier or local customs authority.
How light is the F1 Ultimate?
For the reference size 390×100, the manufacturer claims 257 g ± 20 g bare weight (without accessories/metal parts), and about 290 g ± 20 g fully installed with hardware and the out-front mount.
Is a Garmin or Wahoo mount included?
Yes. A computer mount compatible with Garmin and Wahoo is included.
Will it work with my internally routed bike?
It is designed for most modern internally routed bikes, but fitment is adapter-based. Choose the spacer/adapter option that matches your frame standard. If you send your bike model and year, we can help confirm compatibility before you order.
Does it have improved SRAM routing compatibility?
Manufacturer states the cable entry has been optimized with improved SRAM compatibility to make routing smoother and simpler. Final routing depends on your frame’s internal routing layout.
What headtube sizes are supported?
The cockpit is supplied with sleeves for 1-1/4" and 1-1/8" headtube standards. Depending on your frame, a specific spacer/adapter option may still be required.
What is the warranty?
This handlebar includes a 3-year manufacturer warranty on the bar. If an issue occurs, Underdogs Cycling will guide you through the claims process and coordinate with the manufacturer where applicable.
Which spacer/adapter options are available?
Spacer/adapter options include many model-year-specific frames such as BMC TMR 01, Cannondale SuperSix EVO (G3/G4), Cervelo R5/Soloist, Colnago V3/V4rs, Specialized SL7/SL8, Trek Emonda/Madone, Scott Addict/Foil, Giant Propel/TCR, and others. If you want, send us your bike model and year and we’ll confirm the correct choice.
