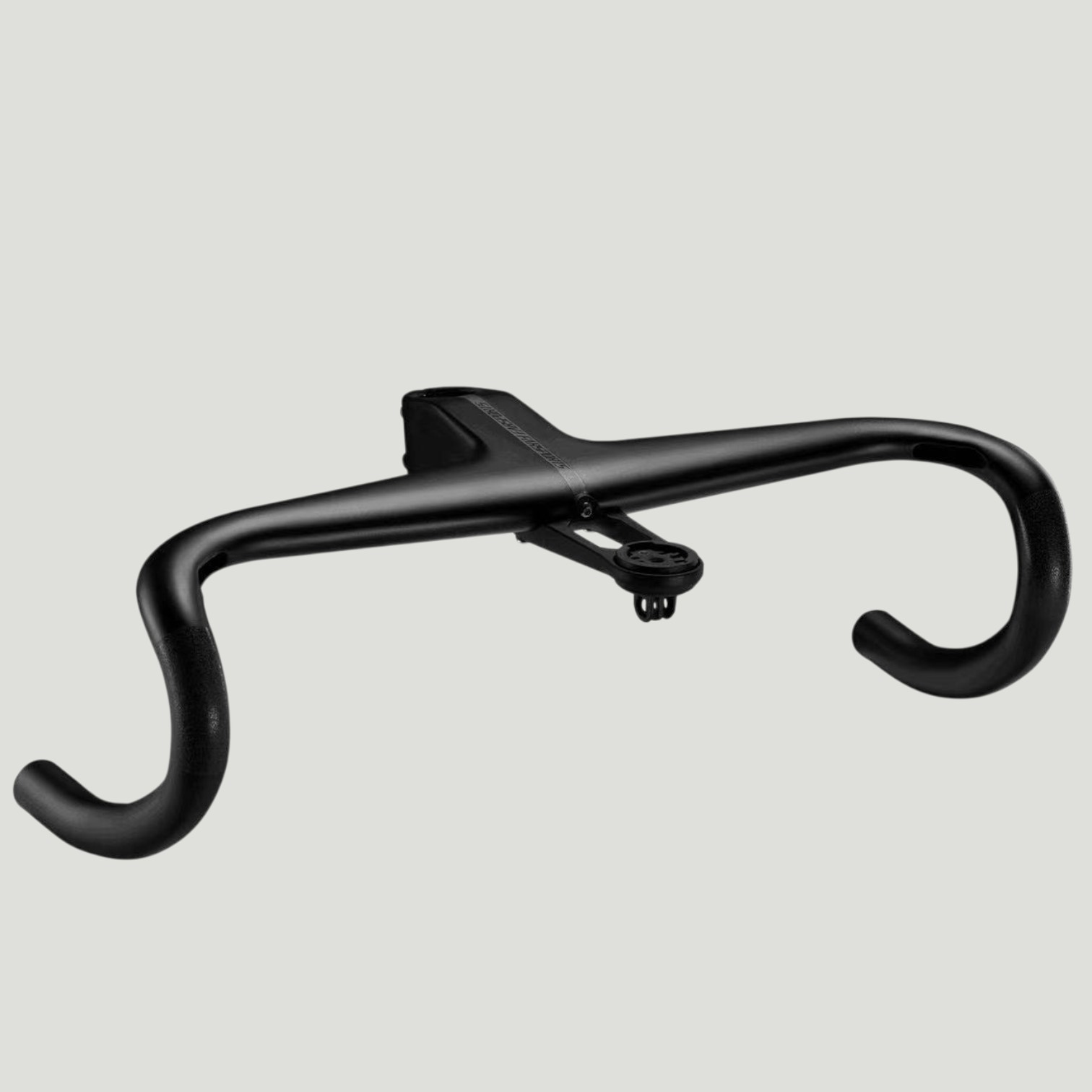

Farsports F1s Integrated Handlebar

The Farsports F1s Integrated Handlebar is a one-piece carbon road cockpit built for stiffness, control and clean cable routing. A compact 75 mm reach, 127 mm stack and −10° stem angle deliver a racy position, while multiple widths and stem lengths cover most fits. Claimed weight: 325 g (400×100).

Farsports F1s Integrated Handlebar — Features & Benefits

Integrated cockpit: one-piece bar/stem with internal routing.
Fit & control: 75 mm reach, −10° stem, compact road ergonomics.
Light weight: ~325 g (400×100 reference).
Steerer compatibility: 1-1/8″ (with shim) & 1-1/4″ (OD2).
Certified: EN ISO 4210-2:2015.

Farsports F1s Handlebar — Specifications

Dimensions & Fit

Reach: 75 mm
Stack: 127 mm
Stem angle: −10°

Construction & Limits

Claimed weight: 325 g (400×100)
Steerer sizes: 1-1/8″ (with shim) & 1-1/4″ (OD2)
Certification: EN ISO 4210-2:2015

Notes

Integrated one-piece bar/stem. Verify headset, spacers and routing with your frame.
Use carbon assembly paste and torque to manufacturer specifications.

Farsports F1s — Size Options

Handlebar widths (hood-to-hood) × stem lengths — 20 combinations
Stem length (mm)	360	380	400	420
80	✓	✓	✓	✓
90	✓	✓	✓	✓
100	✓	✓	✓	✓
110	✓	✓	✓	✓
120	✓	✓	✓	✓

Widths

360 / 380 / 400 / 420 mm

Drop Widths

380 / 400 / 420 / 440 mm

Stem Lengths

80 / 90 / 100 / 110 / 120 mm

Shared Geometry

Reach: 75 mm • Stack: 127 mm • Angle: −10°

All data based on the F1s spec sheet. If you have fit questions, compare stack/reach with your current cockpit.

Helpful Links

Headset spacers & adapters kit: found here ↗

Compare bike fits with Geometry Geeks.

Additional information

BRAND	FARSPORTS
COMPONENTS	HANDLEBAR
DISCIPLINE	ROAD
