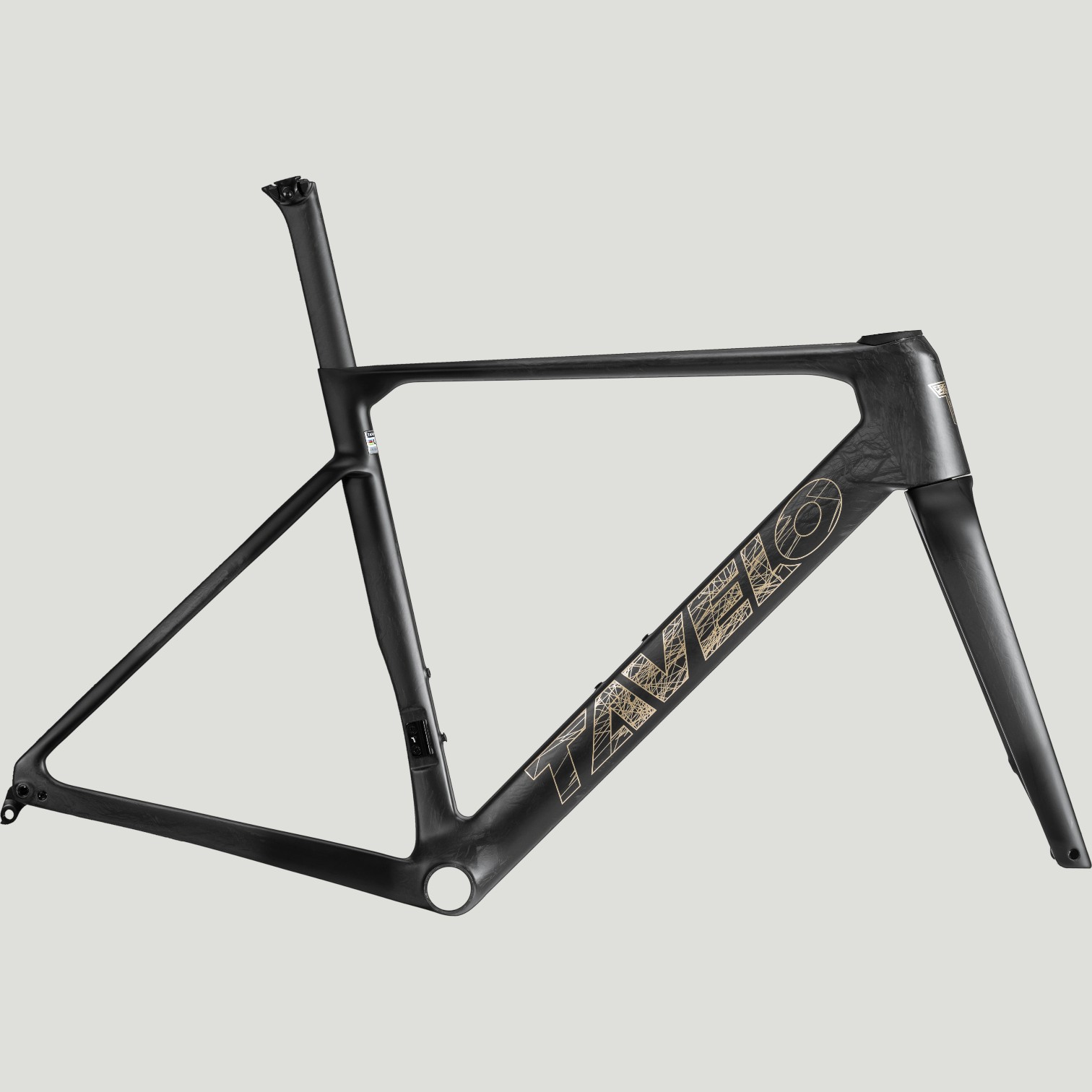

The Tavelo Arow Frameset is engineered around the principle that aero is everything—developed in the wind tunnel to maximize speed while minimizing energy expenditure by reducing frontal area. A narrowed, streamlined head tube cuts drag, while the frame design balances stiffness and comfort for confident handling and all-day efficiency. With clearance for 32 mm tires, the Arow adds compliance without sacrificing race-ready responsiveness.
Through precise calculations and optimization, the Arow’s tube shapes and lay-up target low aerodynamic drag and efficient power transfer. The rear triangle is tuned for comfort and control, so the bike stays fast and forgiving on varied road surfaces. Included in your purchase, is Tavelo’s integrated AVRO GEN-1 cockpit for clean routing and enhanced aerodynamics.
Tavelo Arow Frameset Features & Benefits
- Wind-Tunnel Developed: Narrowed, streamlined head tube reduces frontal surface area and drag.
- Lightweight Construction: Optimized lay-up; Race (XS) ~820 g, SL (XS) ~710 g (frameset).
- Ride Quality: Enhanced stiffness with a rear design tuned for comfort and precise control.
- Tire Clearance: Up to 700×32 mm for added compliance and traction.
- Integrated Cockpit: AVRO GEN-1 handlebar with sleek internal cable routing.
Tavelo Arow Frameset Specifications
Frame Specs
- Material: Toray T800 carbon
- Brake Type: Disc
- Cable Routing: Fully internal
- Bottom Bracket: PF-BB86 (41 mm press-fit)
- Thru-Axles: 12×100 mm (front), 12×142 mm (rear)
- Headset: 32.8–41.8 mm & 34.1–46.9 mm (FSA)
- Seat Rail Specs: 7×7 mm (metal), 7×9 mm (carbon)
- Tire Clearance: Max 700×32 mm
- Compliance: EN ISO 4210:2014; UCI approved
Included with Frameset
- Frame & Fork
- Seatpost
- Headset & Spacers
- Front & Rear Thru-Axles
- Saddle Clamp (alloy & carbon-rail)
- Shimano-compatible 24 mm bottom bracket
- Integrated AVRO GEN-1 handlebar
- Warranty: 5 years
Compatibility
- Gear Type: Electronic shifting
- Brake Type: Disc brakes (140 mm or 160 mm rotor)
- Tire Clearance: Supports up to 32 mm
- Dropout Type: Modular or direct mount

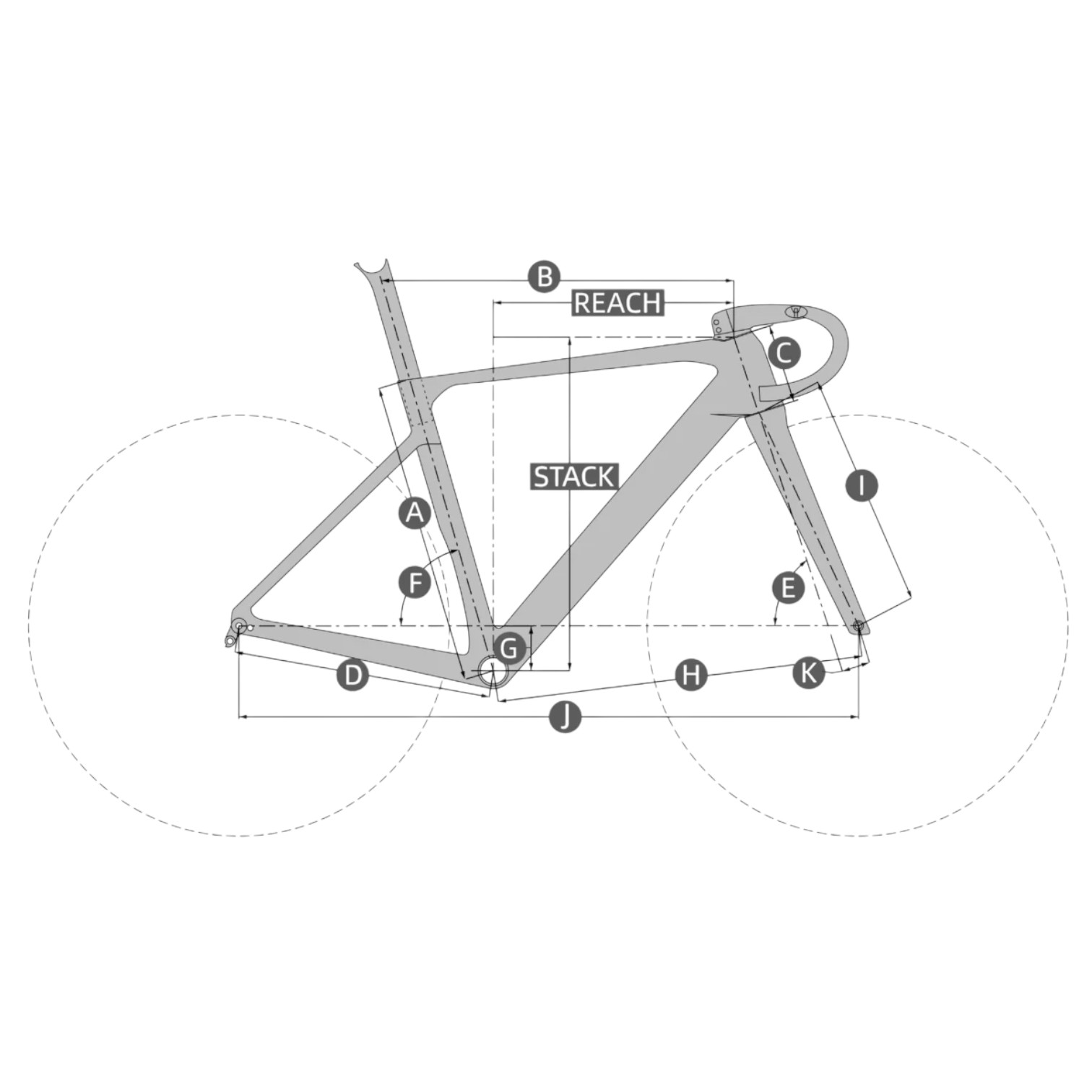

Tavelo Arow Frameset Geometry
| SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A | 420 | 450 | 480 | 510 | 540 | 580 |
| B | 510 | 520 | 536 | 549 | 575 | 587 |
| C | 116 | 123.3 | 134.1 | 148.9 | 172.1 | 200.7 |
| D | 410 | 410 | 410 | 410 | 410 | 410 |
| E (°) | 70.8° | 71.4° | 72° | 72.8° | 73° | 73° |
| F (°) | 75° | 74.5° | 74° | 73.5° | 73° | 73° |
| G | 71 | 71 | 71 | 70 | 70 | 70 |
| H | 572.2 | 577 | 583.5 | 589.3 | 602 | 620.5 |
| I | 370 | 370 | 370 | 370 | 370 | 370 |
| J | 971.6 | 976.4 | 983 | 989.1 | 1001.9 | 1020.5 |
| K | 45 | 45 | 45 | 45 | 45 | 45 |
| REACH | 365 | 372 | 380 | 388 | 396 | 407 |
| STACK | 517 | 526 | 538 | 554 | 576 | 604 |
| STAND OVER | 702 | 727 | 752 | 779 | 805 | 841 |
| FORK TRAIL | 72.4 | 68.4 | 64.6 | 59.6 | 58.4 | 58.4 |
Compare your current bike’s reach and stack for best results.
