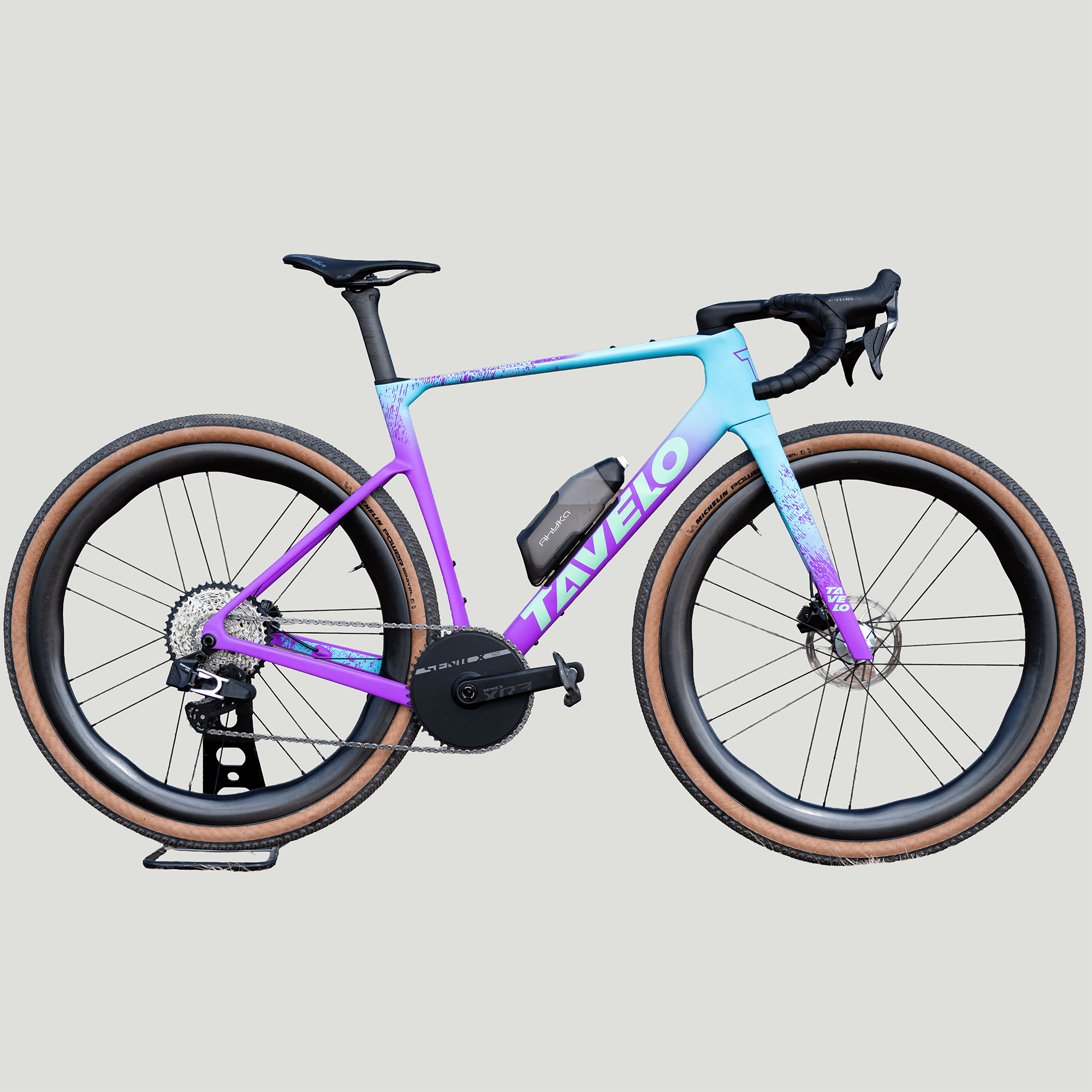

TAVELO Grow Complete Bike
The TAVELO Grow complete bike is a carbon gravel platform designed around a balanced mix of weight, aerodynamics, control, and comfort. It uses a threaded BSA bottom bracket, a UDH derailleur hanger, and a modern gravel-focused layout for clean complete-bike builds. Clearance is generous for mixed-surface riding, with a stated maximum of 700x55C front and 700x50C rear. The frame is built around a single-ring drivetrain, includes a FIDLOCK-based storage box system, and is available as a complete bike in multiple build options and six frame sizes.
TAVELO Grow Complete Bike — Features & Benefits
- Complete gravel bike platform: built around the UCI-approved Grow gravel frame with complete-bike options for riders who want a ready-to-ride carbon gravel setup.
- Modern carbon gravel platform: shaped for riders who want one bike that can cover fast gravel, rougher mixed-terrain riding, and long adventure days.
- Built around control and comfort: the published Grow positioning specifically highlights control and comfort alongside weight and aero development.
- Threaded BSA bottom bracket: a practical serviceable standard that many riders and mechanics still prefer.
- UDH-ready frame: easier hanger replacement and broader drivetrain compatibility planning.
- Complete bike build options: available with SRAM Rival AXS XPLR or Shimano GRX RX717 build options.

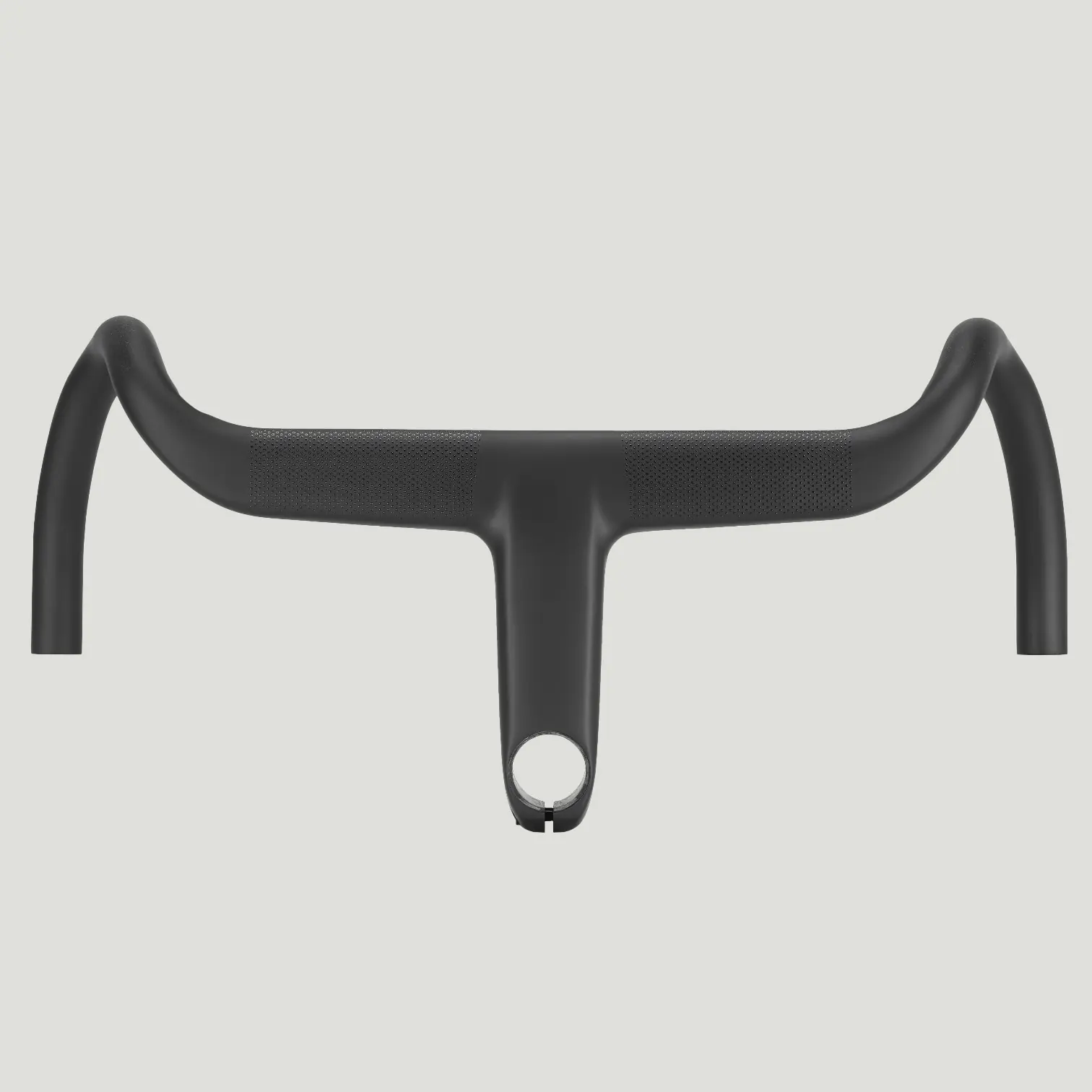

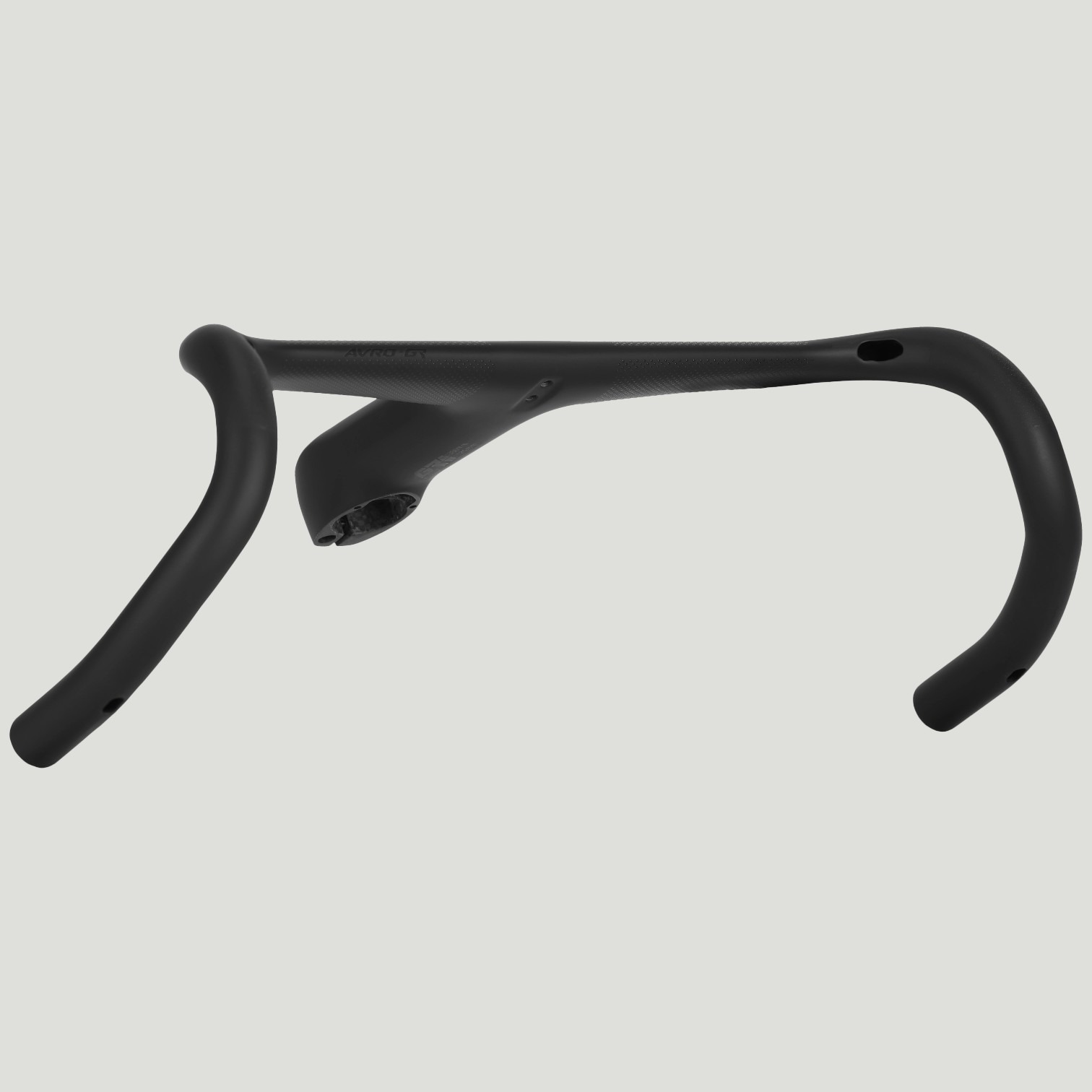

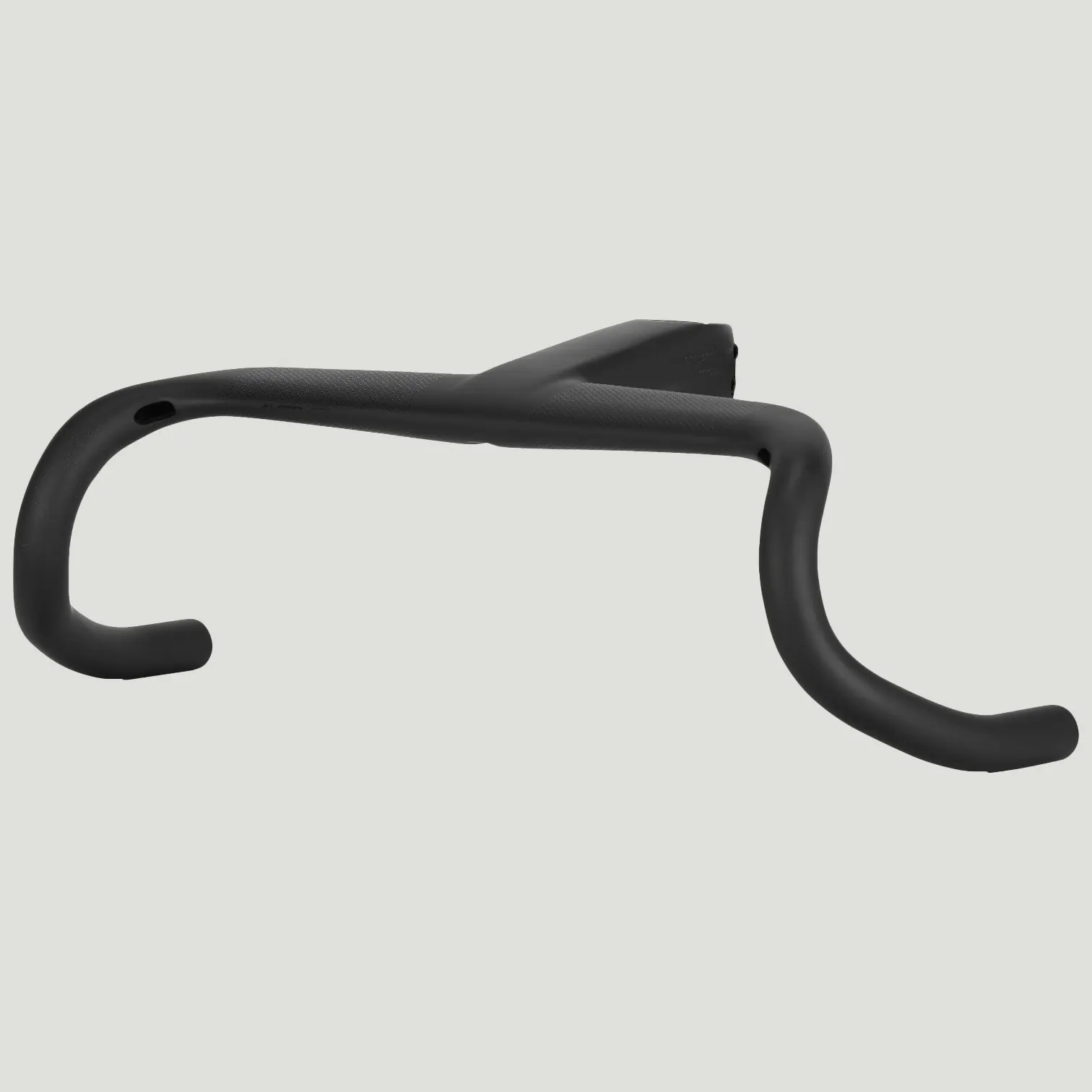

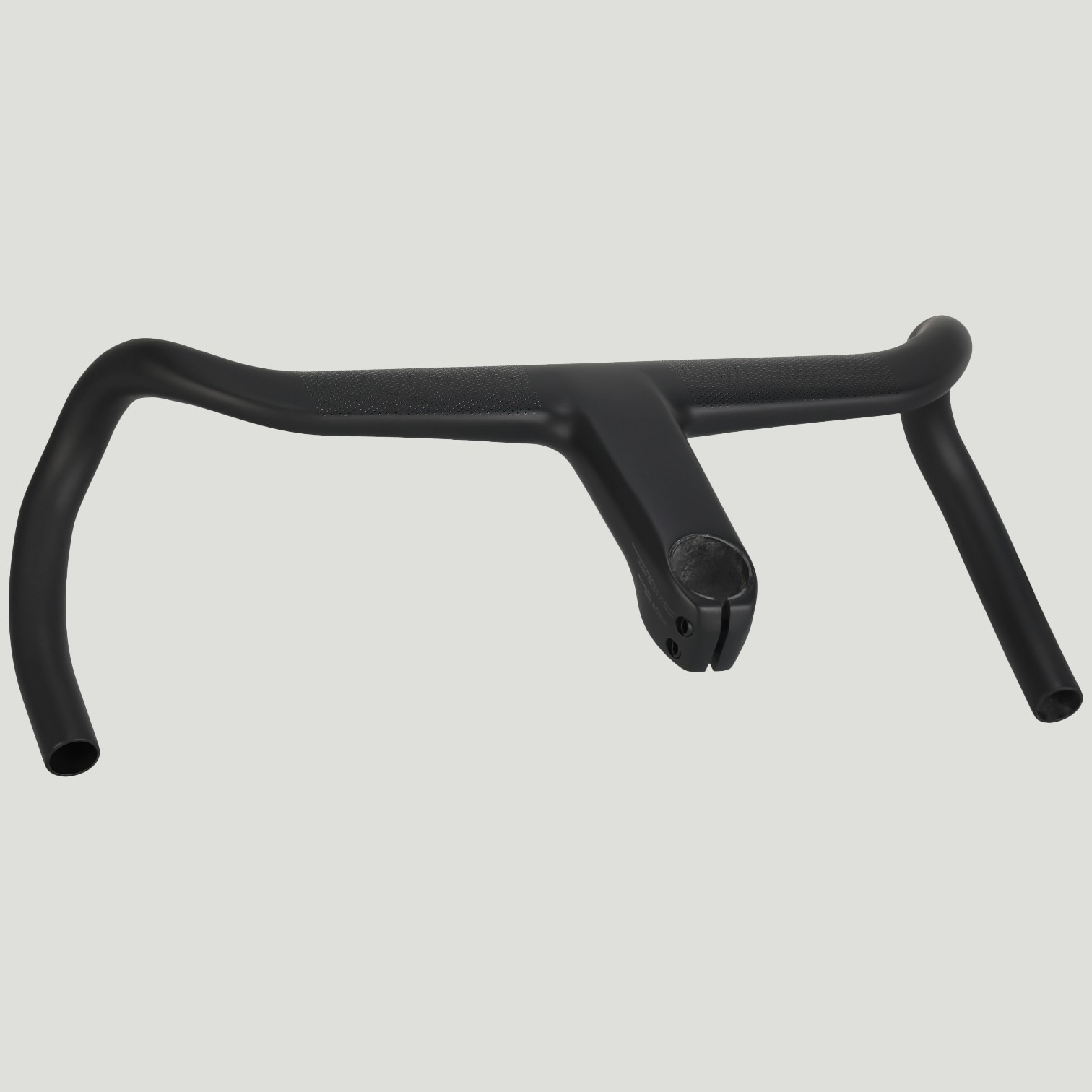

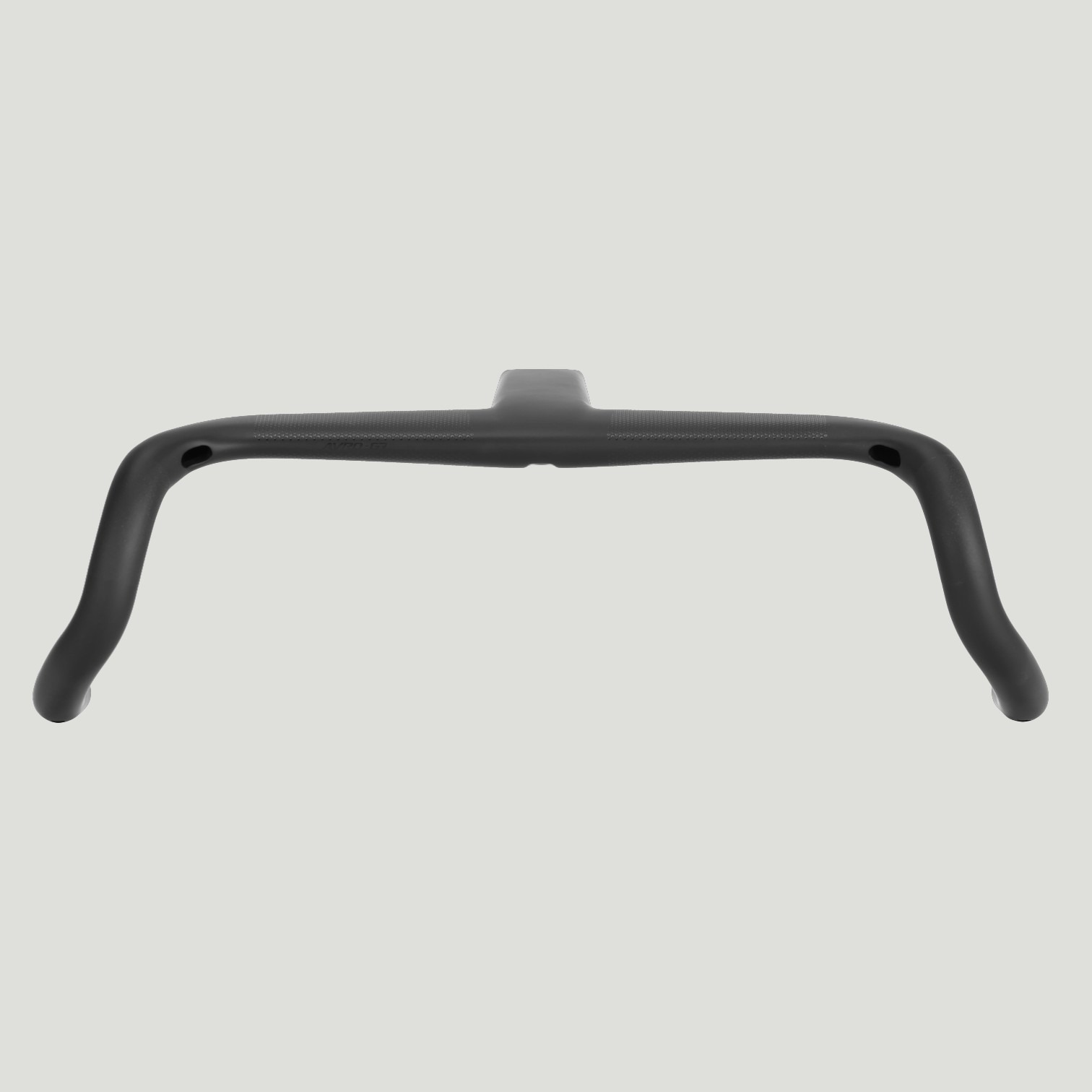

- Gravel cockpit included: complete bike options use the Avro GR Gravel integrated handlebar.
- Carbon wheelset included: supplied with PERTUAL GRIT-X wheels with steel spokes.
- Large tire clearance: stated maximum tire room is 700x55C front and 700x50C rear.
- Single-ring gravel focus: designed around 1x gravel drivetrains, with a stated maximum 50T chainring when chainline is 47.5 mm.
- Integrated storage concept: the frame chart notes a storage box fixed by FIDLOCK system, adding practical on-bike storage for tools and ride essentials.
- Six frame sizes: available in XS / S / M / L / XL / XXL, corresponding to 430 / 460 / 490 / 515 / 540 / 570.
Fit note: If you send us your height, inseam, current bike size, and the kind of terrain you ride most, we’ll help you sanity-check the right Grow size before you order.
TAVELO Grow — Complete Bike Options
Grow SRAM Rival
- Frame: UCI-approved Grow Gravel Frame
- Handlebar: Avro GR Gravel integrated handlebar
- Wheels: PERTUAL GRIT-X wheel with steel spokes
- Groupset: SRAM Rival AXS XPLR
- Saddle: Selle Italia MODEL X
- Bar tape: Selle Italia
- Tires: MICHELIN ADVENTURE TLR
Grow GRX
- Frame: UCI-approved Grow Gravel Frame
- Handlebar: Avro GR Gravel integrated handlebar
- Wheels: PERTUAL GRIT-X wheel with steel spokes
- Groupset: Shimano GRX RX717
- Saddle: Selle Italia MODEL X
- Bar tape: Selle Italia
- Tires: MICHELIN ADVENTURE TLR
Available Sizes
- XS: 430 mm
- S: 460 mm
- M: 490 mm
- L: 515 mm
- XL: 540 mm
- XXL: 570 mm
TAVELO Grow — Specifications
Frame Platform
- Model: TAVELO Grow
- Category: Carbon gravel complete bike

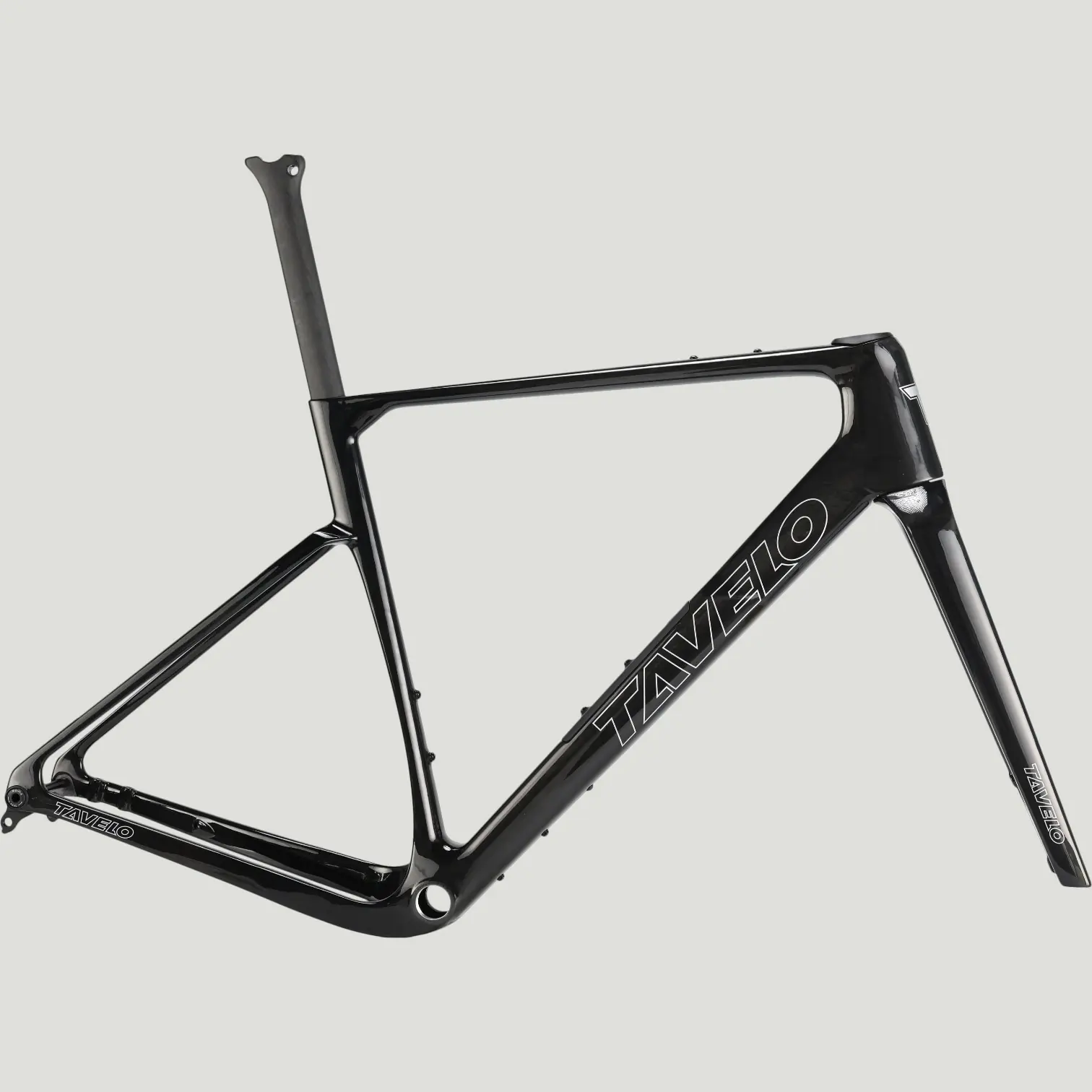

- Frame: UCI-approved Grow Gravel Frame
- Bottom Bracket: Threaded BSA
- Hanger: UDH system
- Drivetrain format: Single-ring gravel build
- Max chainring: 50T with 47.5 mm chainline
- Storage: Storage box fixed by FIDLOCK system
Tires / Cockpit / Integration
- Max front tire: 700x55C
- Max rear tire: 700x50C
- Complete bike tires: MICHELIN ADVENTURE TLR
- Handlebar: Avro GR Gravel integrated handlebar
- Wheelset: PERTUAL GRIT-X wheel with steel spokes
- Seatpost offset options: 0 mm / 15 mm
- Fork length: 400 mm across all listed sizes
- Fork rake: 55 mm across all listed sizes
- Frame intent: developed around weight, aerodynamics, control, and comfort
Available Sizes & Colours
- Complete bike sizes: XS / S / M / L / XL / XXL
- Frame sizes: 430 / 460 / 490 / 515 / 540 / 570

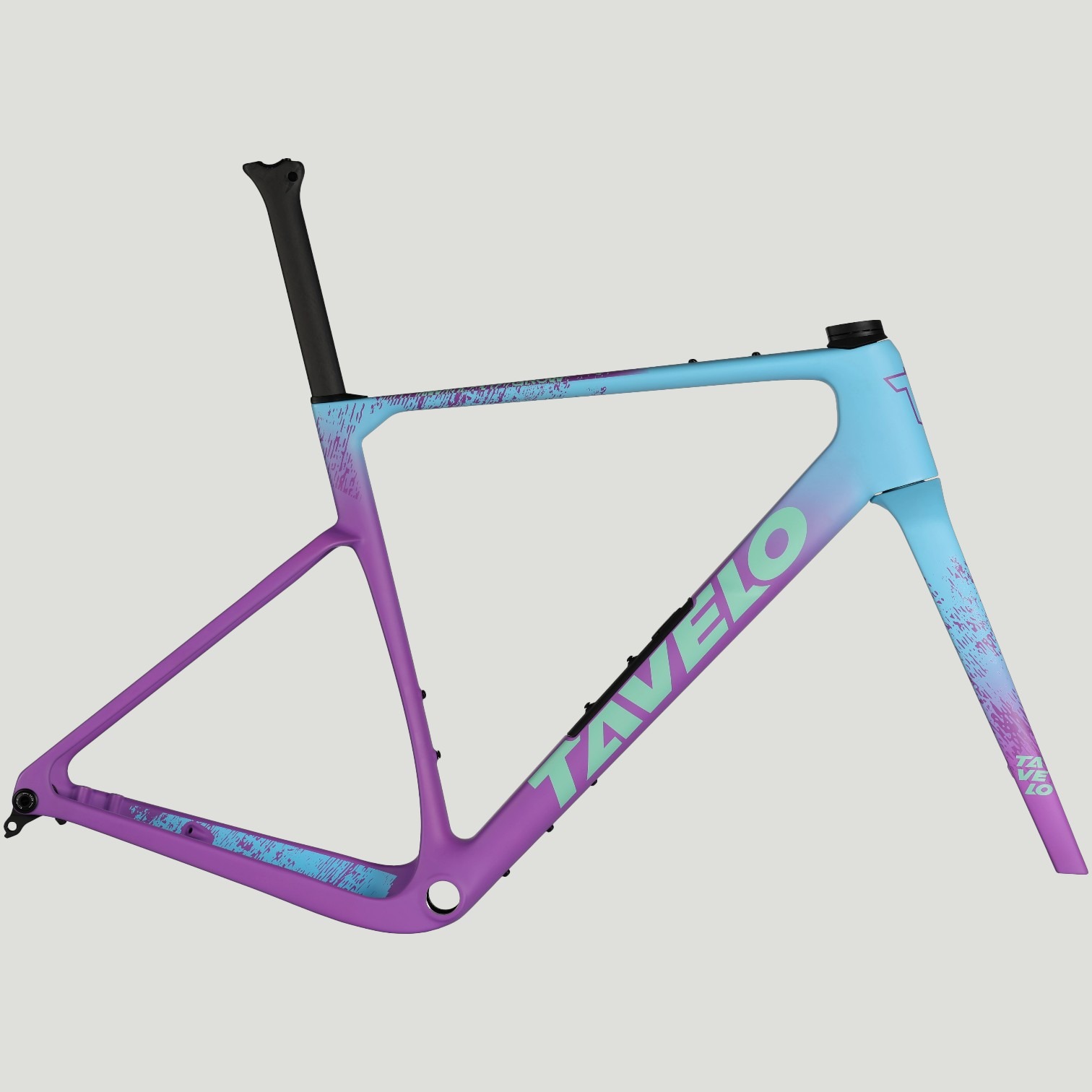

- Colours: Purple/Teal / Yellow/Green / Black
- Geometry guidance: see the geometry table below for stack, reach, and key fit numbers
- Best final fit still depends on inseam, saddle height, bar setup, tire choice, and intended riding style.
Platform Notes
What you’re getting
- Your selected TAVELO Grow complete bike size
- UCI-approved Grow Gravel Frame
- Avro GR Gravel integrated handlebar
- PERTUAL GRIT-X wheelset with steel spokes
- MICHELIN ADVENTURE TLR tires
- Selle Italia MODEL X saddle
- Selle Italia bar tape
- Internal frame storage concept using a FIDLOCK-fixed storage box system
Build options
- Grow SRAM Rival: SRAM Rival AXS XPLR build
- Grow GRX: Shimano GRX RX717 build
- Both options use the same Grow gravel frame platform
- Both options use the same listed cockpit, wheelset, saddle, bar tape and tire package
- Grit-X 1500g 36mm depth 24mm internal 34mm external
- Sharp GR 1345g 47/53mm depth 32mm internal 40mm external
Need help choosing?
- Send your height and inseam
- Your current bike size and fit reference
- Your main terrain: fast gravel, rough mixed surfaces, or all-road
- If you want to confirm cockpit fit, see the AVRO-GR geometry section below

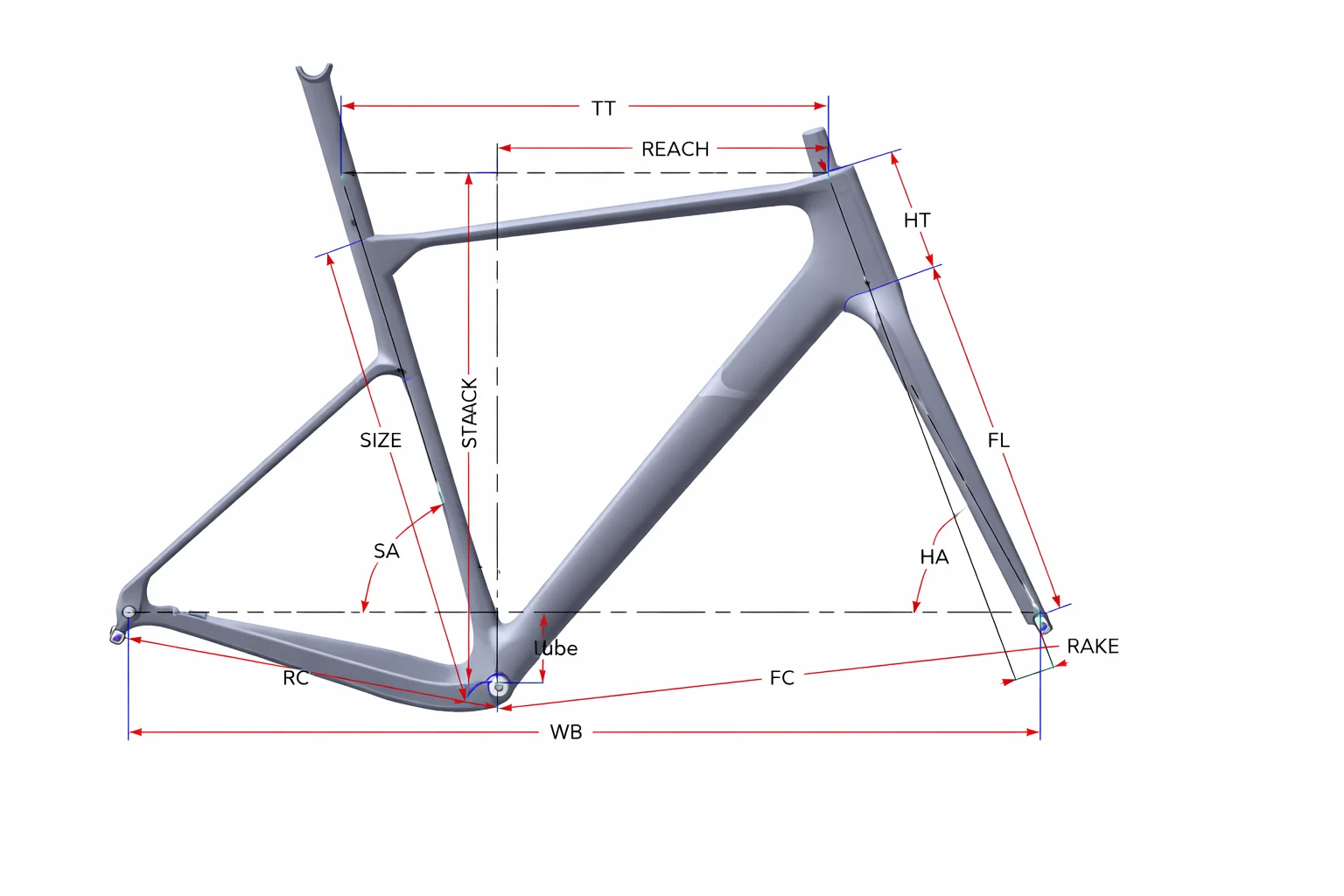

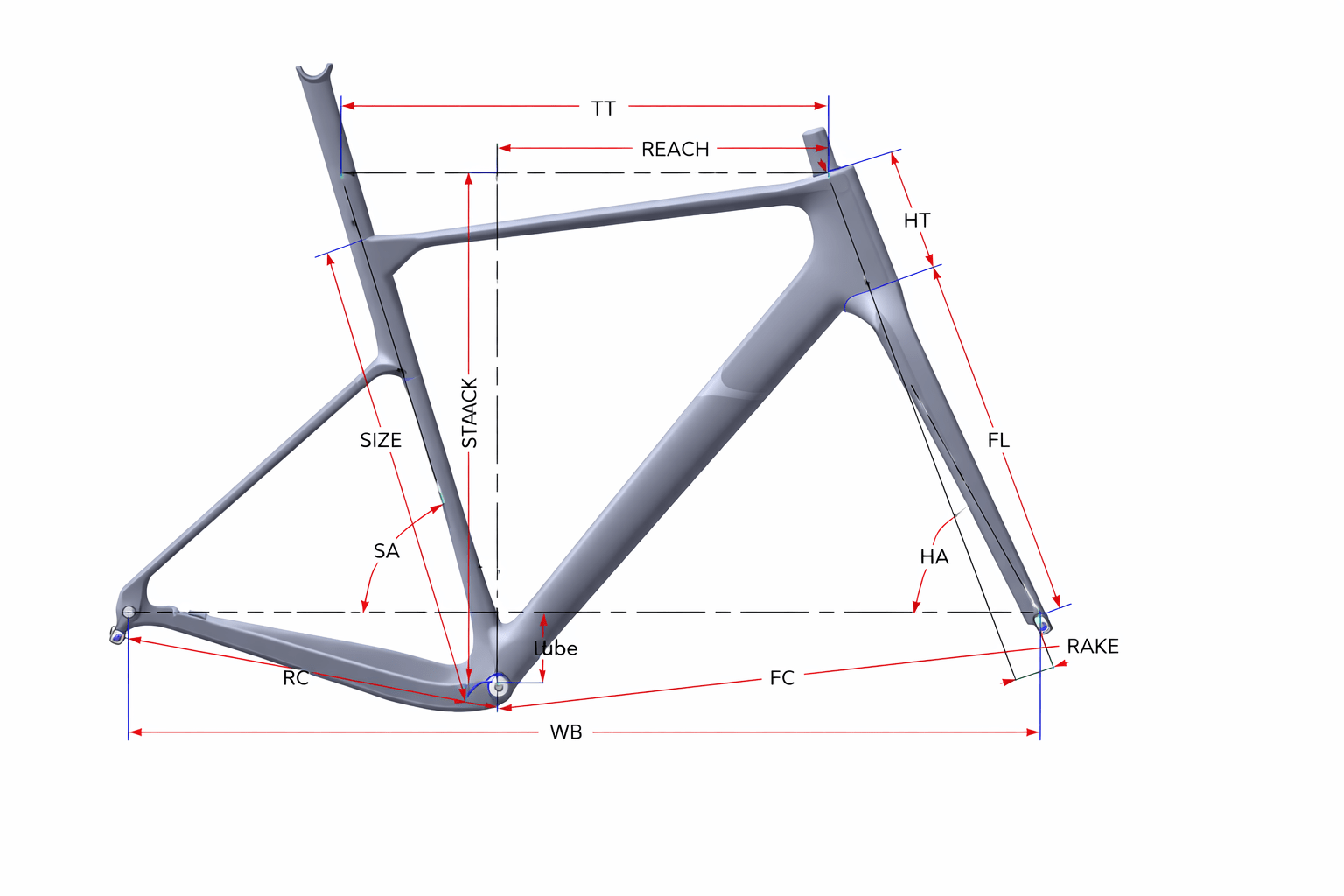

TAVELO Grow — Geometry
| Size | 430 | 460 | 490 | 515 | 540 | 570 |
|---|---|---|---|---|---|---|
| Standover (mm) | 747 | 768 | 794 | 816 | 843 | 869 |
| Head Tube / HT (mm) | 95 | 105 | 127 | 145 | 174 | 197 |
| Seat Angle / SA (°) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Head Angle / HA (°) | 70.5 | 71 | 71 | 71.3 | 71.3 | 71.6 |
| Top Tube / TT (mm) | 520 | 530 | 550 | 567 | 586 | 605 |
| Front Center / FC (mm) | 588 | 598 | 614 | 622 | 642 | 652 |
| Rear Center / RC (mm) | 423 | 423 | 423 | 423 | 423 | 423 |
| Fork Length / FL (mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Wheelbase / WB (mm) | 998 | 1008 | 1025 | 1033 | 1054 | 1064 |
| BB Drop / BB DROP (mm) | 80 | 80 | 78 | 78 | 75 | 75 |
| Fork Rake / RAKE (mm) | 55 | 55 | 55 | 55 | 55 | 55 |
| Trail (mm) | 69.67 | 66.31 | 66.31 | 64.3 | 64.3 | 62.29 |
| Reach (mm) | 368 | 375 | 385 | 395 | 406 | 414 |
| Stack (mm) | 530 | 540 | 558 | 579 | 603 | 627 |
All dimensions are shown in millimeters unless otherwise noted. Final fit should always be checked against your current bike, bar setup, tire choice, and riding goals.

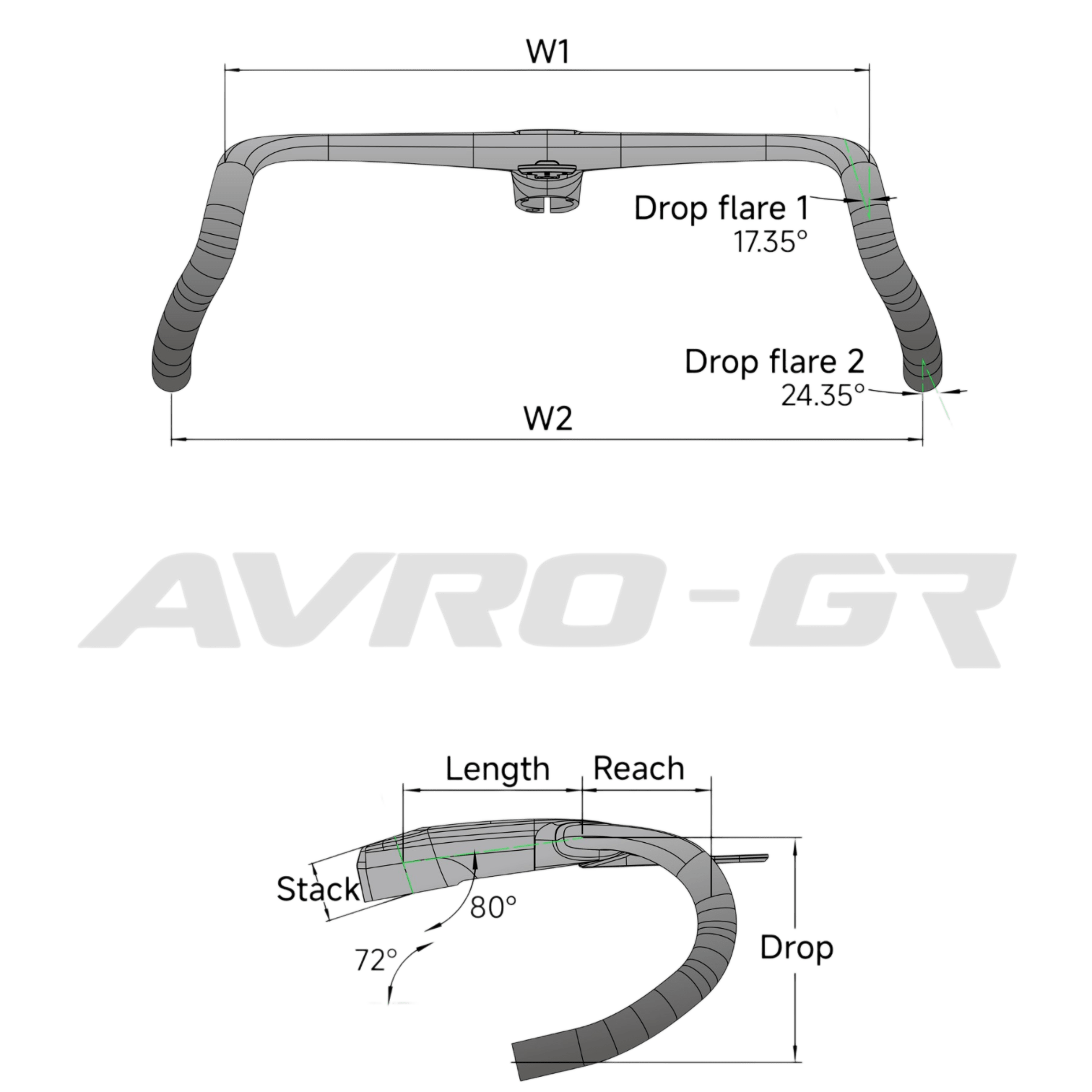

AVRO-GR Gravel Cockpit — Geometry & Sizes
Always verify frame, fork, bar, seatpost, drivetrain, tire, wheel, cockpit and complete-bike compatibility before final assembly. If you’re unsure, message us your current bike and intended riding style.
Helpful Links
Compare gravel bike geometry with other bikes on Geometry Geeks.
Tavelo AVRO GEN 1 handlebar details here.
Tavelo AVRO Rise handlebar details here.
Browse compatible components.
TAVELO Grow Complete Bike — FAQ
What kind of bike is the TAVELO Grow?
The Grow is a carbon gravel complete bike developed around weight, aerodynamics, control, and comfort, making it suitable for riders who want a fast but capable mixed-surface bike.
What complete bike options are available?
The TAVELO Grow complete bike is available in two listed build options: Grow SRAM Rival with SRAM Rival AXS XPLR, and Grow GRX with Shimano GRX RX717.
What is included with the complete bike?
Both listed complete bike options include the UCI-approved Grow Gravel Frame, Avro GR Gravel integrated handlebar, PERTUAL GRIT-X wheelset with steel spokes, Selle Italia MODEL X saddle, Selle Italia bar tape, and MICHELIN ADVENTURE TLR tires.
What frame sizes are available?
The Grow complete bike is listed in XS / S / M / L / XL / XXL, corresponding to 430 / 460 / 490 / 515 / 540 / 570. Use the geometry chart above as the starting point, then refine fit based on inseam, saddle height, bar reach, and intended terrain.
What colours are shown for the Grow?
TAVELO currently shows the Grow in Purple/Teal, Yellow/Green, and Black.
What are the key frame standards?
The Grow uses a threaded BSA bottom bracket, a UDH hanger, and a modern gravel frame layout built around clean complete-bike setups.
Is the TAVELO Grow designed for 1x or 2x drivetrains?
The published frame chart states that the Grow is for single-ring drivetrains only. TAVELO also lists a maximum of 50T when chainline is 47.5 mm.
What tire clearance does the Grow have?
The listed maximum tire clearance is 700x55C up front and 700x50C at the rear. The complete bike options are listed with MICHELIN ADVENTURE TLR tires.
Does the Grow have internal storage?

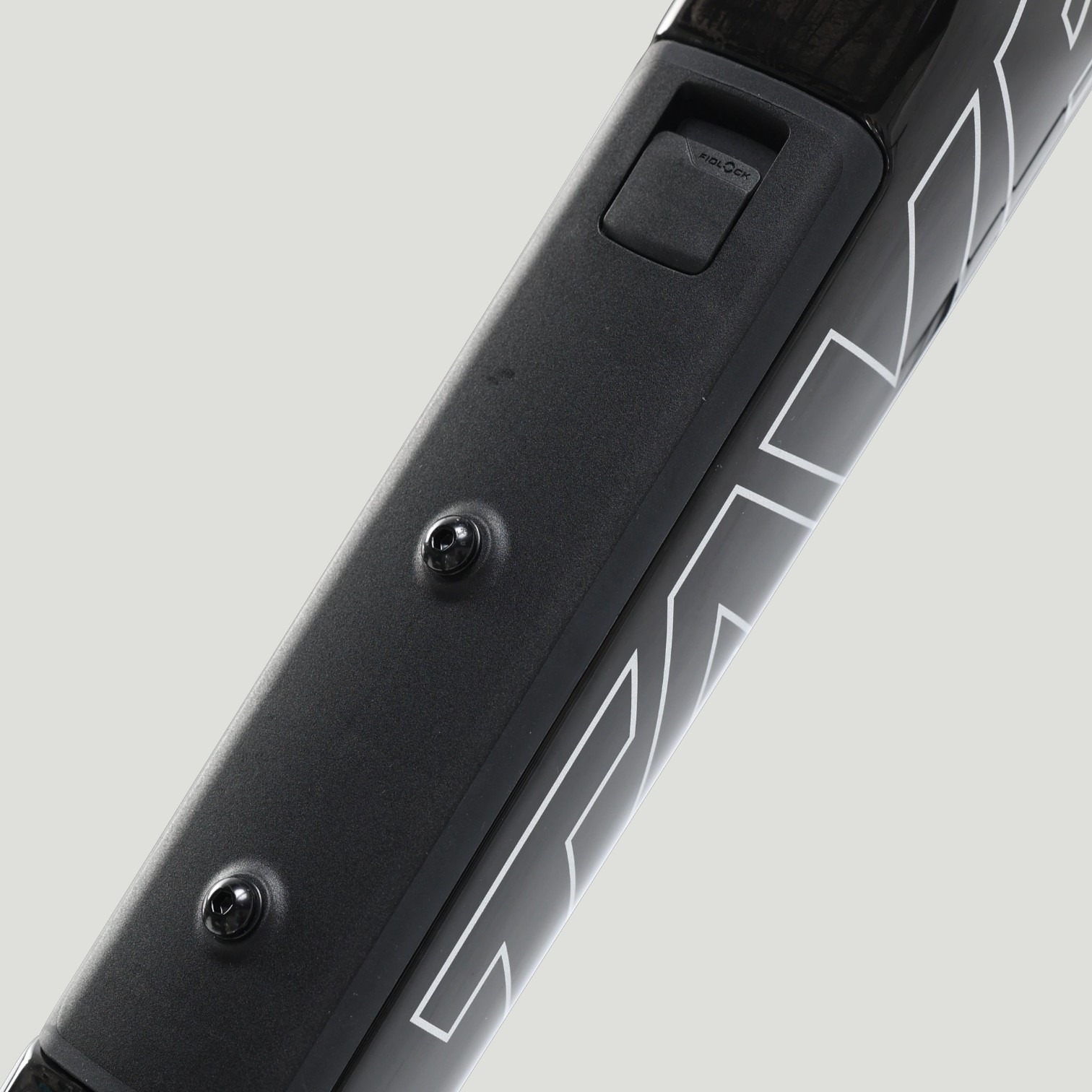

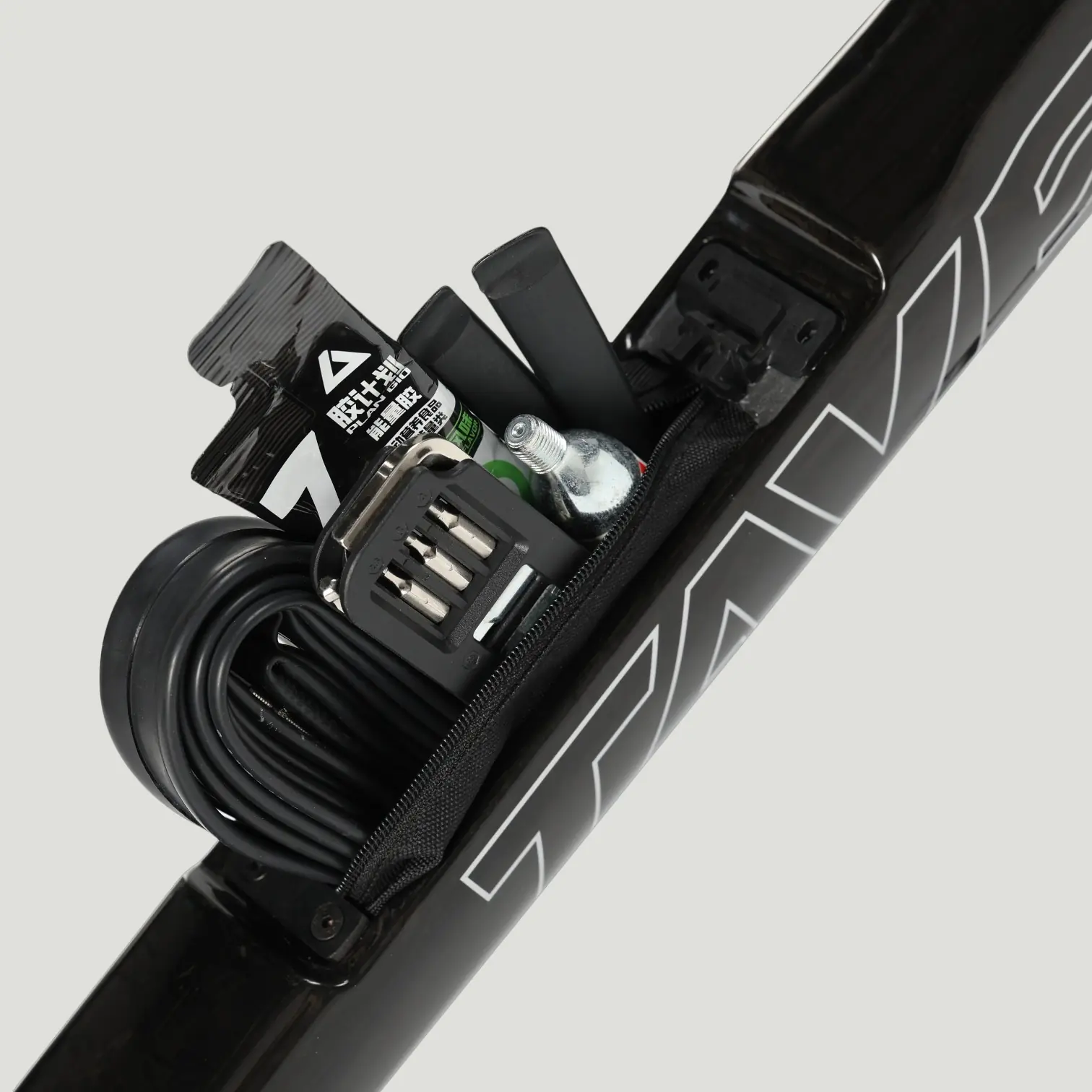

Yes. The published frame chart notes a storage box fixed by FIDLOCK system, and TAVELO’s product images show an internal downtube storage solution for ride essentials.
What cockpit comes with the complete bike?
The listed complete bike options include the Avro GR Gravel integrated handlebar. The geometry chart above summarizes the width, stem length, reach, drop, and flare values from the supplied AVRO-GR chart.
How do I choose the right size?
Start with stack, reach, top tube, and standover from the geometry chart, then compare them to your current bike and intended bar/stem setup. If you send us your fit reference, we’ll help you narrow it down.
Do prices include duties and taxes?
Shipping and import handling can vary by destination. If DDP is available for your region, duties and import handling are included at checkout for eligible orders. If DDP is not available, duties and taxes may be collected by the carrier or local customs authority.
