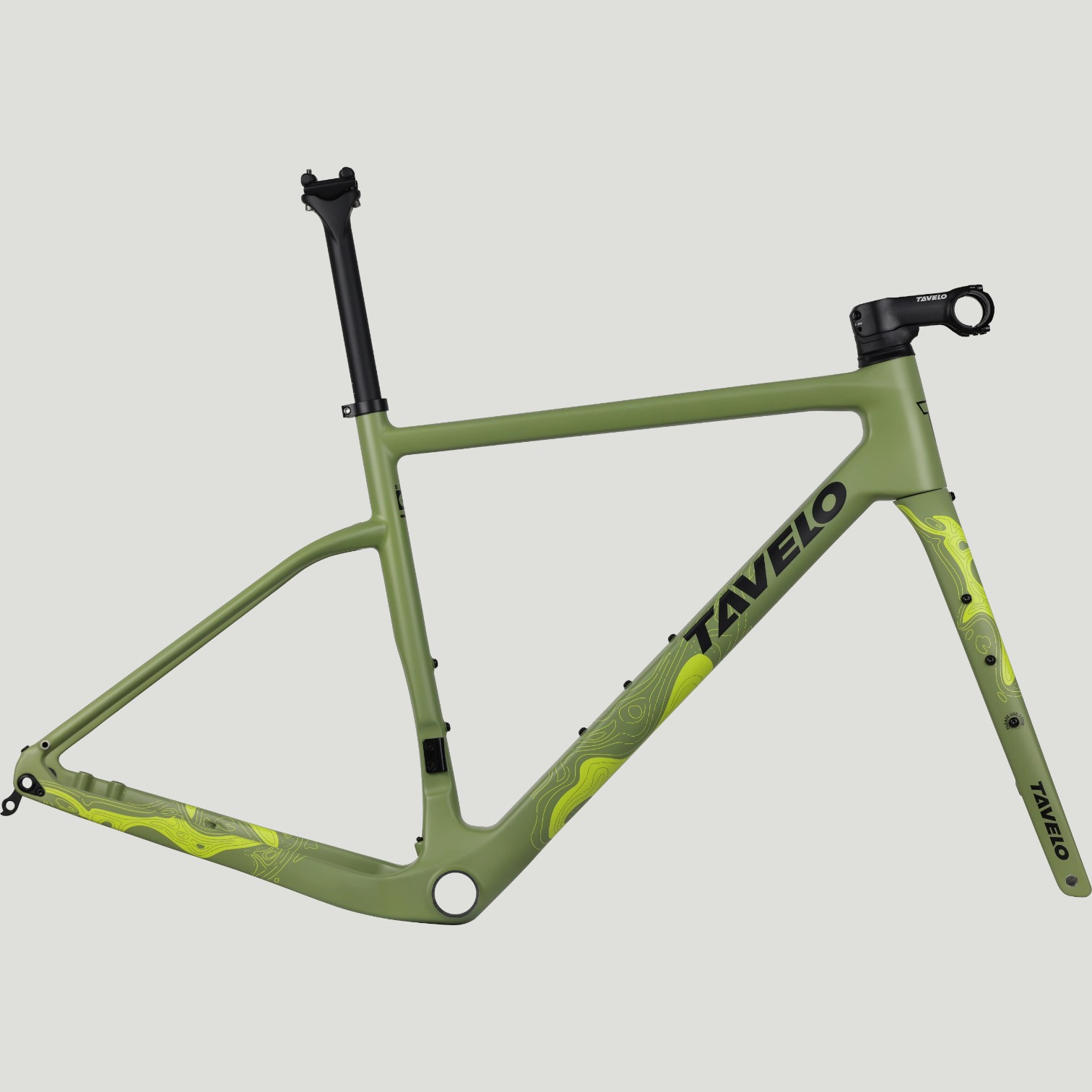

Let the Tavelo WILD GXR Frameset be your partner in crime as you embark on a journey where riding isn’t just a sport—it’s an expression of unbridled fun and a testament to the wild spirit within. Unleash the adventurer in you with the WILD GXR, and let the joy of riding take you to new heights of excitement and exploration.
Features & Benefits
- Lightweight Carbon Construction: Crafted from premium Toray T800 carbon fiber, the frame and fork offer a responsive and agile ride, enhancing performance on varied terrains.
- Generous Tire Clearance: Accommodates tires up to 50 mm wide, providing versatility and improved traction for diverse gravel conditions.
- Modern Frame Design: Features clean internal cable routing, a press-fit BB86 bottom bracket, and flat-mount disc brakes, ensuring a sleek appearance and efficient functionality.
- Thru-Axle Compatibility: Equipped with 12×142 mm rear and 12×100 mm front thru-axles, enhancing stiffness and handling precision.
- 27.2 mm Carbon Seatpost: Includes a Tavelo carbon seatpost with 0 mm offset for comfort and clean aesthetics.
- Enhanced Ride Quality: The carbon frame’s compliance absorbs vibrations, reducing fatigue during long rides and improving overall comfort.
- Versatile Performance: With ample tire clearance and robust construction, the Tavelo WILD GXR is suited for both competitive gravel racing and adventurous explorations.
- Streamlined Aesthetics: Internal cable routing and modern design elements provide a clean, aerodynamic profile.
- Optimized Geometry: Designed for responsiveness and stability, the frame geometry supports confident handling across various terrains.
Tavelo WILD GXR Frameset Specifications
Frame Specs
- Frame Material: Toray T800 carbon fiber
- Frame Weight: Starting from 960 g (size XS, raw finish)
- Fork: Toray T800 carbon fiber
- Headset: FSA integrated (1-1/8″ to 1-1/4″)
- Bottom Bracket: Press-fit BB86
- Brake Type: Flat-mount disc
- Front Axle: 12×100 mm thru-axle
- Rear Axle: 12×142 mm thru-axle
- Tire Clearance: Up to 50 mm
- Seatpost: 27.2 mm Tavelo carbon seatpost with 0 mm offset
Included with Frameset
- Frame & Fork
- Headset & Spacers
- Front & Rear Thru-Axles
- Seatpost (27.2 mm) & Seatpost Clamp
- Derailleur Hanger / Small Parts
Size Recommendation
| Rider Height | Recommended Size |
|---|---|
| < 168 cm | XS (460) |
| 168–175 cm | S (490) |
| 173–180 cm | M (510) |
| 181–186 cm | L (530) |
| > 186 cm | XL (560) |
If you’re between sizes, compare reach/stack and stem length preferences.
Tavelo WILD GXR Geometry Chart
| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 460 | 460 | 517 | 115 | 70.5° | 74.5° | 70 | 591 | 400 | 1006 | 50 | 367 | 367 | 539 |
| 490 | 490 | 532 | 135 | 71° | 74.5° | 70 | 602 | 400 | 1017 | 50 | 377 | 377 | 560 |
| 510 | 510 | 556 | 155 | 71° | 73.5° | 70 | 617 | 400 | 1032 | 50 | 385 | 385 | 579 |
| 530 | 530 | 573 | 170 | 71.5° | 73.5° | 70 | 627 | 400 | 1043 | 50 | 395 | 395 | 595 |
| 560 | 560 | 585 | 190 | 71.5° | 73.5° | 70 | 642 | 400 | 1057 | 50 | 403 | 403 | 614 |
Tavelo Avro Gen 1 Integrated Carbon Handlebar Geometry & Sizes
Or check out some of the best offerings in carbon wheelsets.
If you're looking to compare your existing frame or fit, and considering this frame, be sure to check out Geometry Geeks. If you still have questions about sizing, feel free to contact us. We're readily available and happy to assist.
