Complete Bikes Avenger

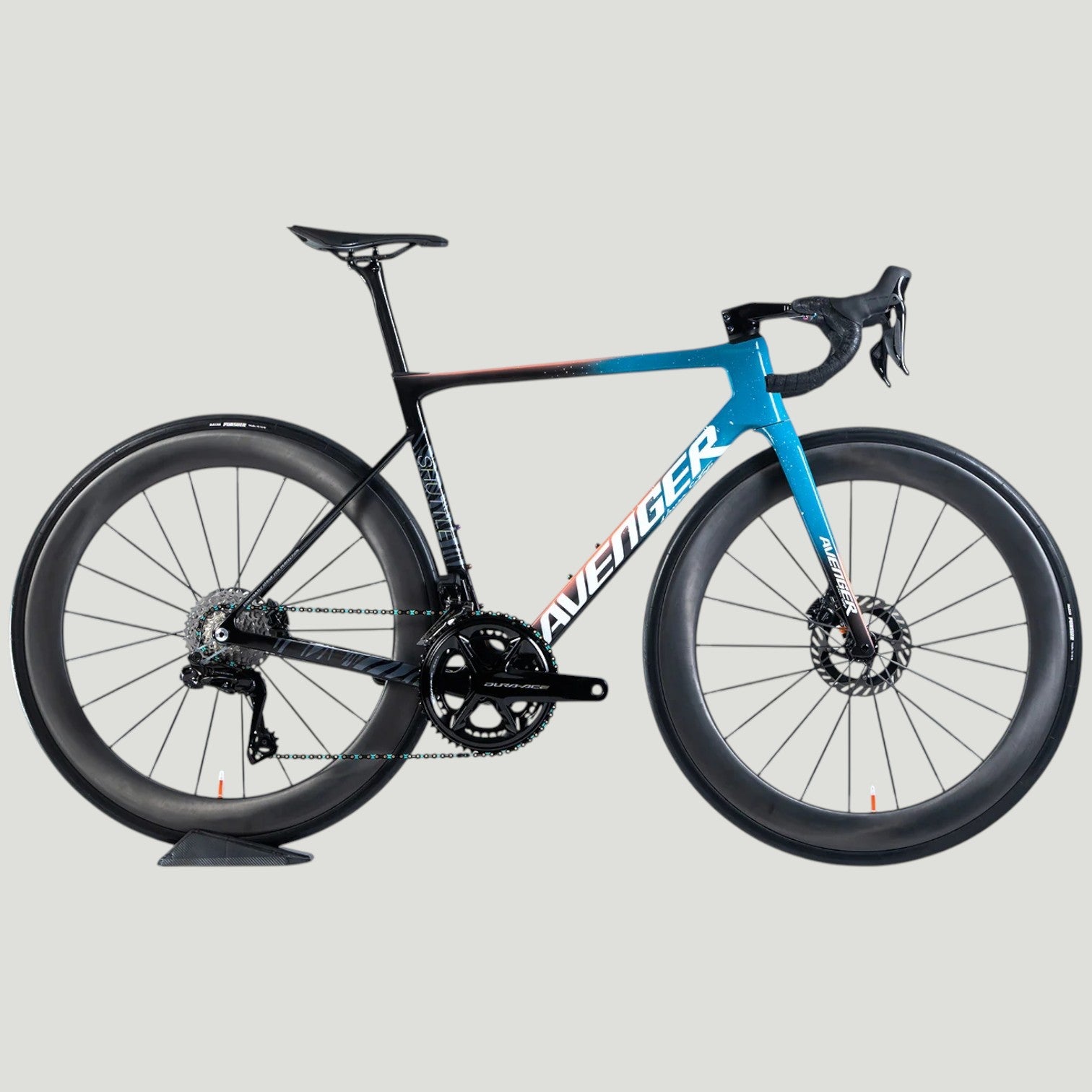

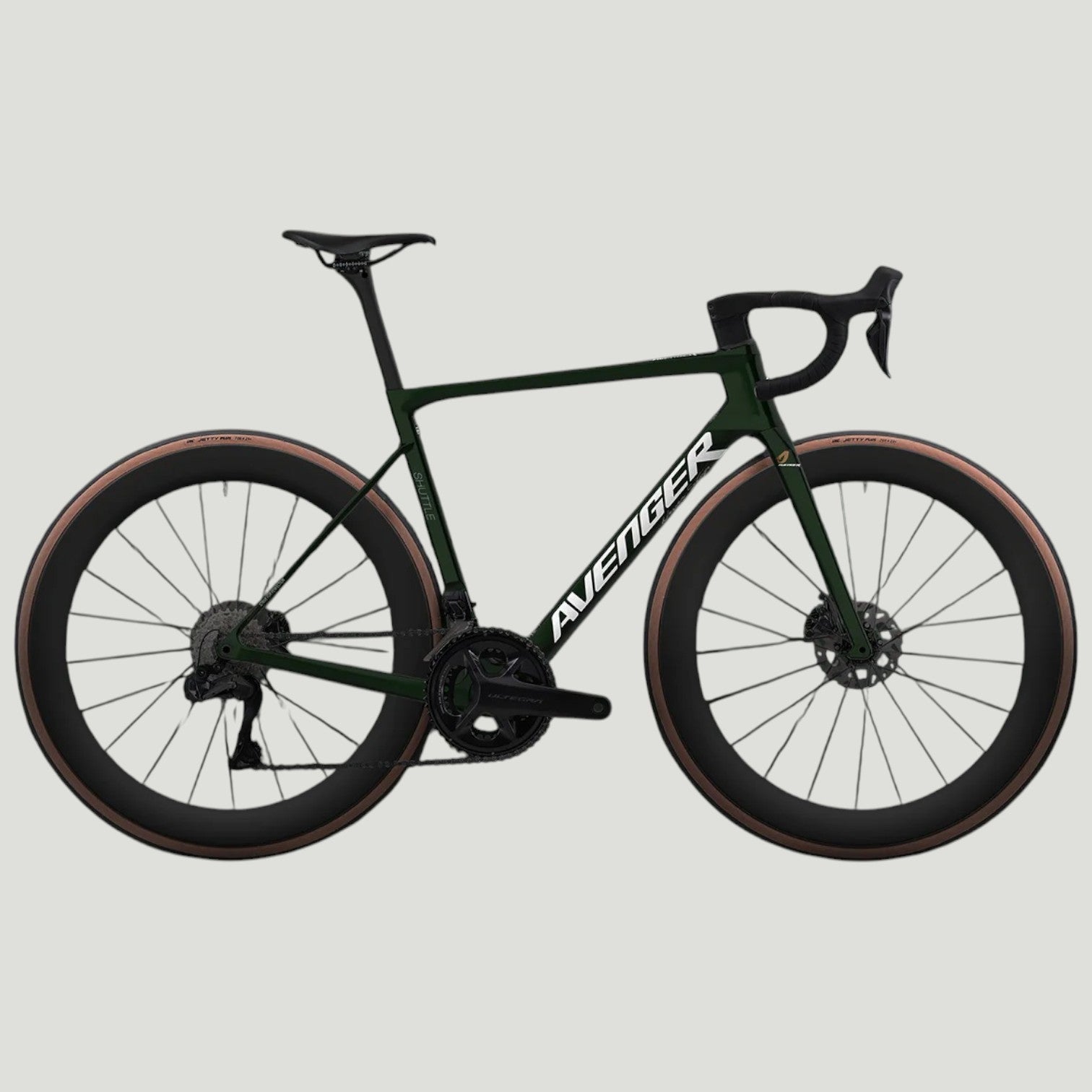

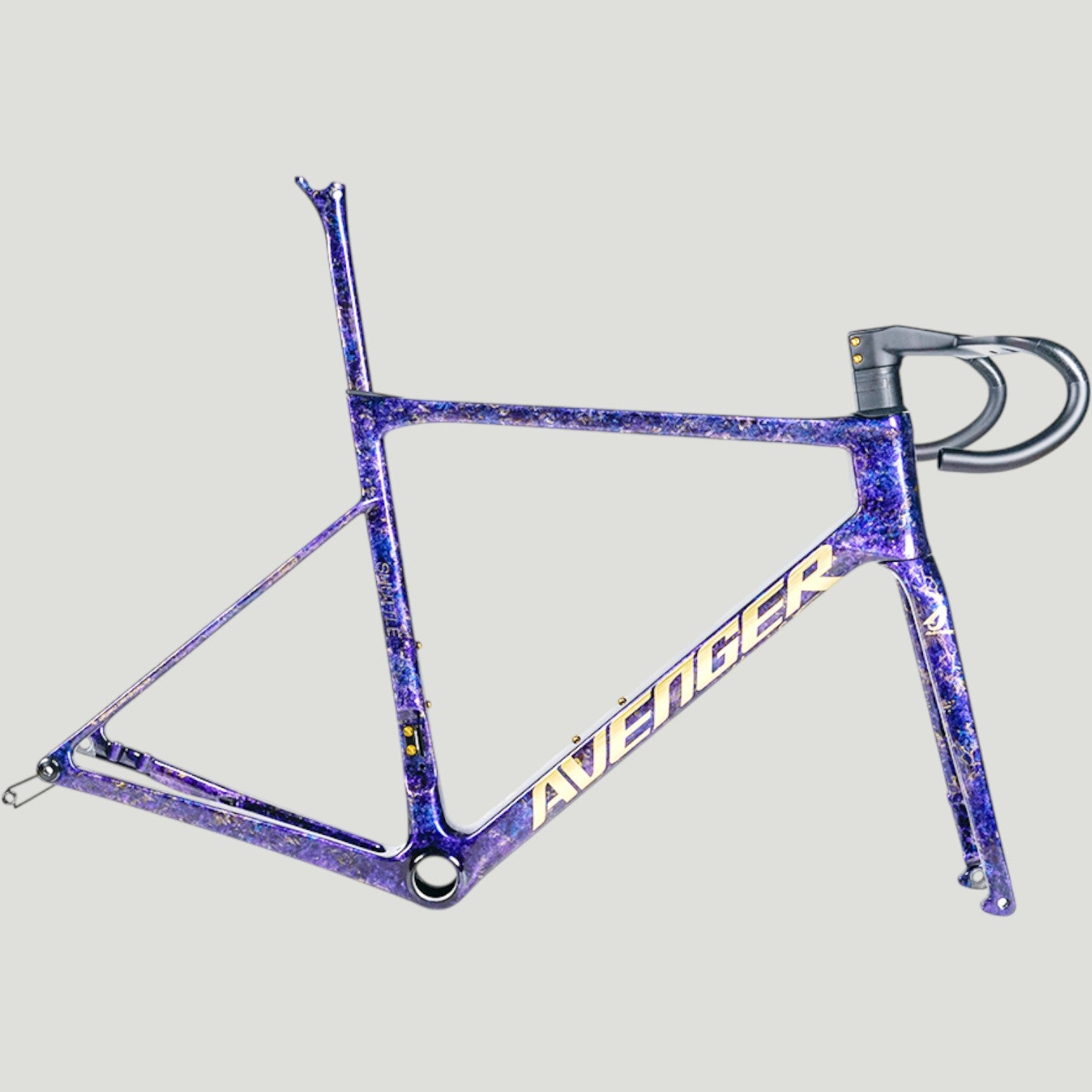

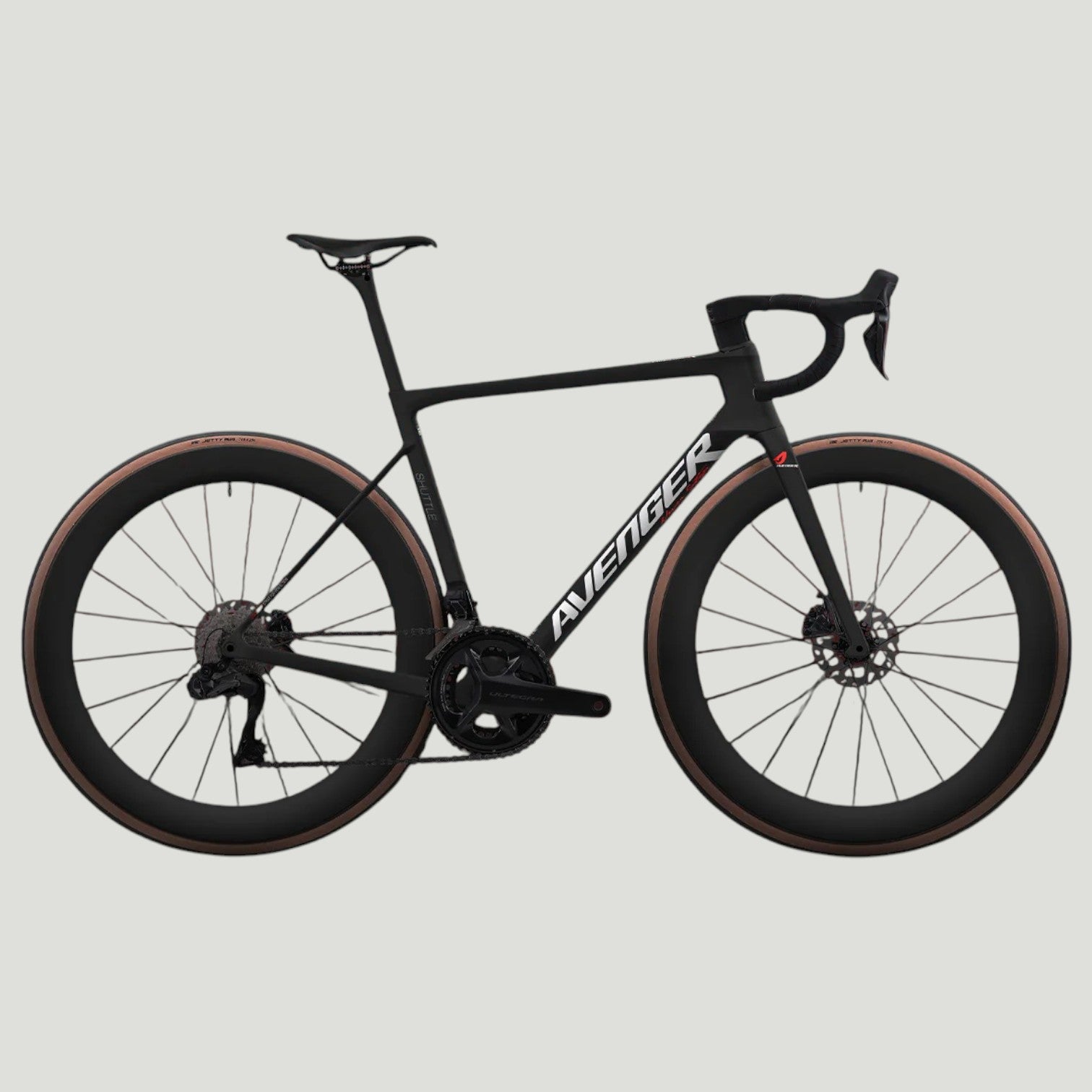

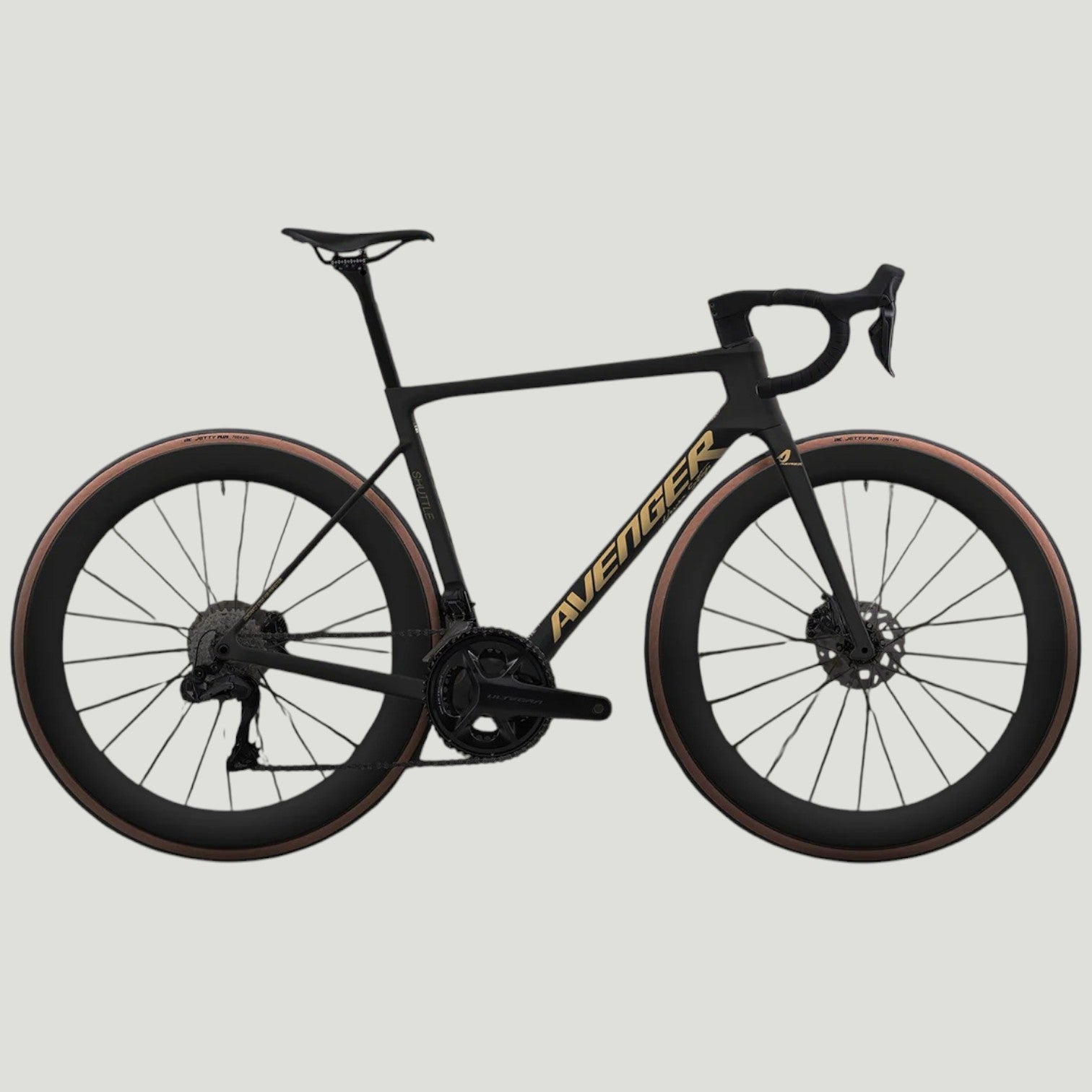

Avenger Shuttle SL Complete Bike

Name: Avenger Shuttle SL Complete Bike
Brand: Avenger Complete
Price: 4198.00 USD
Availability: InStock

$4,198.00 USD

0 products in stock

The Avenger Shuttle SL Complete Bike is a super-light aero road rocket built from Toray T800/T1100 UD carbon. Fully-internal routing and a T47 BB keep the front end clean and stiff, while clearance up to 700×32C delivers speed without the sting. Choose Ultegra Di2, Dura-Ace Di2, or SRAM Red AXS builds with deep 50 mm wheels for race-day efficiency and everyday reliability.
ATTENTION: When measuring the stem length for this bike, be sure to subtract 1cm from your selection, since the reference markers used by Avenger are not to the center of the handlebar.

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected 5-year frame warranty

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

Avenger Shuttle SL Complete Bike

The Avenger Shuttle SL is our super-light aero road platform—built for real-world speed with race-day snap. A Toray T800/T1100 UD layup, CFD-guided tube profiles, and fully-internal 52×52 mm routing create a clean, stiff front end and stable handling in crosswinds. The SL layup trims mass without dulling road feel: the frame is quoted at 801 ± 40 g and the fork at 380 ± 15 g (ref. sizes), putting the Shuttle SL firmly in featherweight territory.

Modern standards—T47 threaded BB, flat-mount discs with 140/160 mm rotors, and strong>12×100 / 12×142 thru-axles—deliver quiet speed and easy serviceability, while clearance up to 700×32C keeps you fast and comfortable on imperfect roads. Build options include Shimano Ultegra Di2 and Dura-Ace Di2 with deep-section 50 mm wheels for all-out efficiency.

Why Riders Choose the Shuttle SL

Super-light chassis: SL layup targets ~801 g frame / 380 g fork while preserving ride quality.
Aero tube shaping: CFD-informed profiles for speed and stability in crosswinds.
Clean, fully-internal front end: 52×52 mm headset with one-piece cockpit compatibility.
Modern standards: T47 (68 mm) threaded BB, flat-mount discs, 12×100 / 12×142 thru-axles.
Real-world speed: Tire clearance up to 700×32C for low rolling resistance and comfort.
Confident braking: 140/160 mm rotor compatibility for power and modulation.
Pro builds: Shimano Ultegra Di2 or Dura-Ace Di2 with 50 mm clincher wheelset.
Fit range: Sizes 50 / 52 / 54 / 56 / 58 cm.

Avenger Shuttle SL Complete Bike Specifications

Frame Details

Type	Aero Full Carbon Disc — Shuttle-SL	Finish	UD carbon finish
Material	Toray T800 / T1100	Weave	UD
Tire Clearance	Max up to 700×32C	Rear Axle	142×12 mm
Front Axle	100×12 mm	Rotor Diameter	140 / 160 mm
Bottom Bracket	T47 threaded (68 mm)	Frame Weight	801 ± 40 g
Fork Weight	380 ± 15 g	Headset	FSA NO.55R
Cockpit	ICON HB038 one-piece	Seatpost	SP108-SL aero post
Available Sizes	50 / 52 / 54 / 56 / 58 cm

Shimano Ultegra Di2 Build Specs

Shift/brake levers: ST-R8170-R/L (391 g)
Front derailleur: FD-R8150 (110 g)
Rear derailleur: RD-R8150 (262 g)
Crankset: FC-R8100 2×11 52–36T (711 g)
Cassette: CS-R8100-12 11–34T (345 g)
Chain: CN-M8100 (252 g)
Front brake: BR-R8170-F (146 g)
Rear brake: BR-R8170-R (136 g)
Rotors: SM-MT800 160 mm (108 g ×2)
Bottom bracket: T47-B (86 g)
Rims: UAM 50 mm clincher, 24/24 holes (480 g ×2)
Hubs: UAM-XDR disc (375 g)
Spokes: Carbon fiber (4 g ×48)
Spoke nipples: Black (0.2 g ×48)
Tires: 700×28C (250 g ×2)
Valve extensions: Black (2 g ×2)
Handlebar tape: Black (24 g ×2)
Bottle cages: Carbon (18 g ×2)
Pedals: PD-R8000 (148 g ×2)
Saddle: GUB 1150 (chrome-molybdenum steel) (230 g)

Shimano Dura-Ace Di2 Build Specs

Shift/brake levers: ST-R9270-R/L (350 g)
Front derailleur: FD-R9250 (96 g)
Rear derailleur: RD-R9250 (215 g)
Crankset: FC-R9200 2×11 52–36T (685 g)
Cassette: CS-R9200-12 11–34T (253 g)
Chain: CN-M9100 (242 g)
Front brake: BR-R9270-F (120 g)
Rear brake: BR-R9270-R (110 g)
Rotors: SM-RT900 160 mm (108 g ×2)
Bottom bracket: T47-B (86 g)
Rims: UAM 50 mm clincher, 24/24 holes (480 g ×2)
Hubs: UAM-XDR disc (375 g)
Spokes: Carbon fiber (4 g ×48)
Spoke nipples: Black (0.2 g ×48)
Tires: 700×28C (250 g ×2)
Valve extensions: Black (2 g ×2)
Handlebar tape: Black (24 g ×2)
Bottle cages: Carbon (18 g ×2)
Pedals: PD-R8000 (148 g ×2)
Saddle: GUB 1150 (chrome-molybdenum steel) (230 g)

SRAM RED AXS Build Specs

Shift/brake levers: ED-RED-E1
Front derailleur: FD-RED-E-E1
Rear derailleur: RD-RED-E-E1
Crankset: FC-RED-ASSY-E1
Cassette: CS-XG-1290-E1
Chain: CN-RED-E1
Rotors: Paceline X Rotor
Bottom bracket: T47
Battery: EP-EAC-BAT-A1
Battery charger: RED eTap Charger
Rims: UAM 50 mm clincher, 24/24 holes
Hubs: UAM Center Lock Disc
Spokes: Carbon fiber
Spoke nipples: Black
Tires: MAXXIS High Road SL 700×28C
Handlebar tape: Black
Bottle cages: Carbon
Pedals: PD-R8000
Saddle: RIDEA

Avenger Shuttle SL Complete Bike Geometry

Avenger Shuttle geometry reference diagram with labeled measurements (S, SC, O, HS, HC, F, OT, WB, FC, RC, H, standover, Stack, Reach) — Geometry reference for S, SC, O, HS, HC, F, OT, WB, FC, RC, H, standover, Stack and Reach.

SIZE	S	SC	O	HS	HC	F	OT	WB	FC	RC	H	standover	Stack	Reach
500	447	73.5	520	95	71	368	45	972	593.9	410	69	721	502	367
520	467	73.5	528	110	72	368	45	973	593.9	410	69	738	520	371
540	493	73	551	134	73	368	45	982	582	410	69	763	543	381
560	515	73	563	151	73	368	45	994	593.9	410	69	780	559	390
580	546	73	580	185	73	368	45	1014	614	410	69	810	591	403
