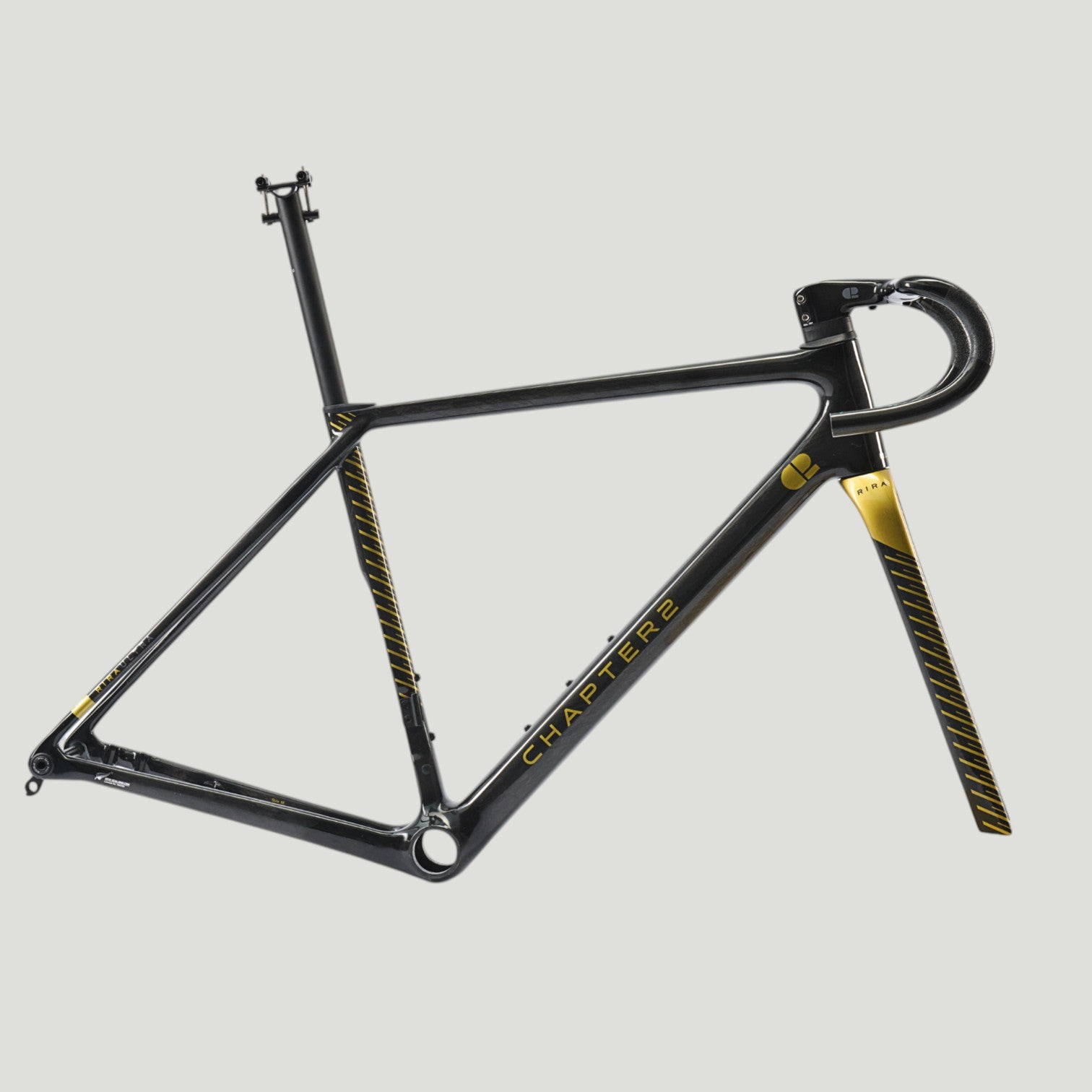

Chapter2 Rira Ultra Gold Frameset Side View

Product label: % Sale

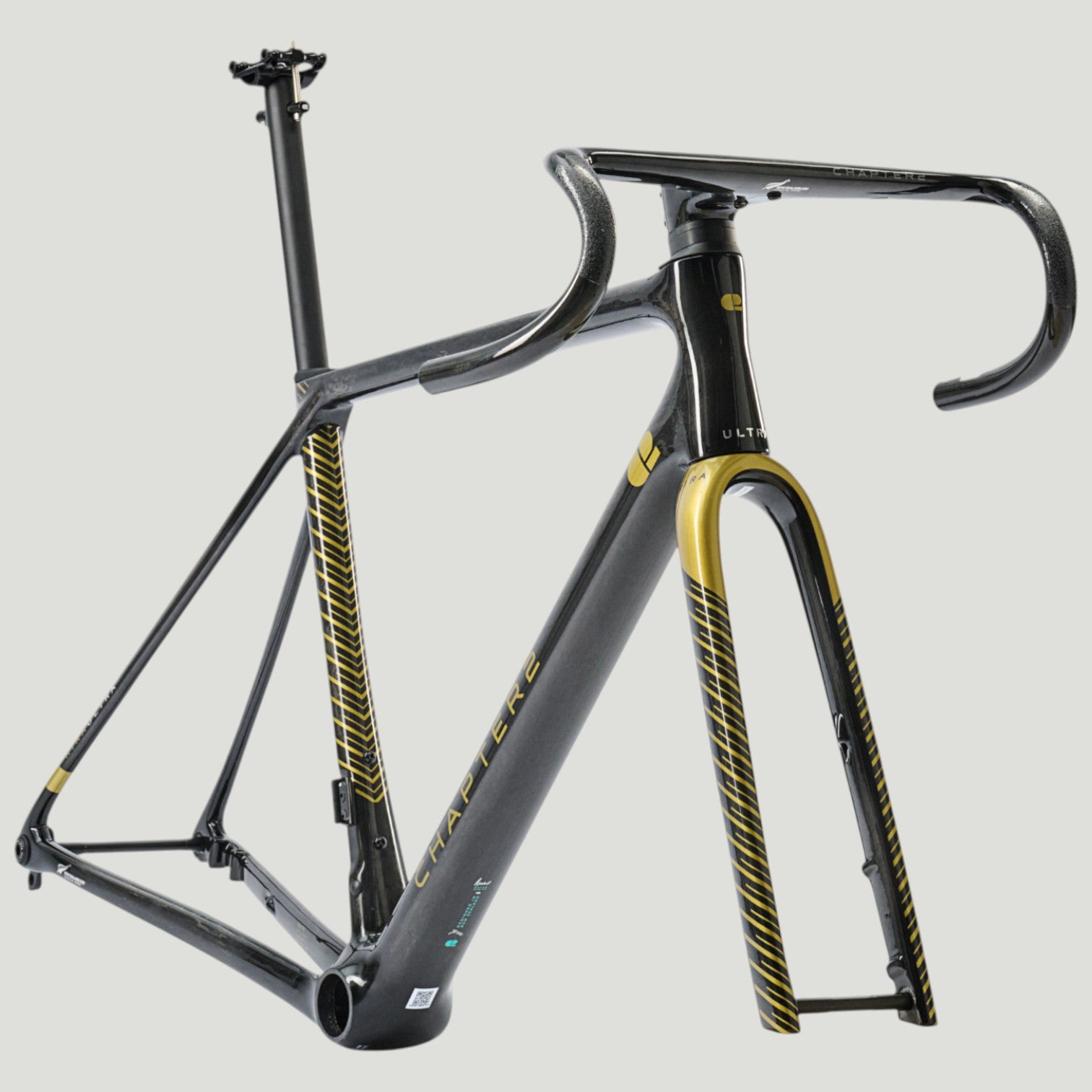

Chapter2 Rira Ultra Gold Frameset Front Angled View

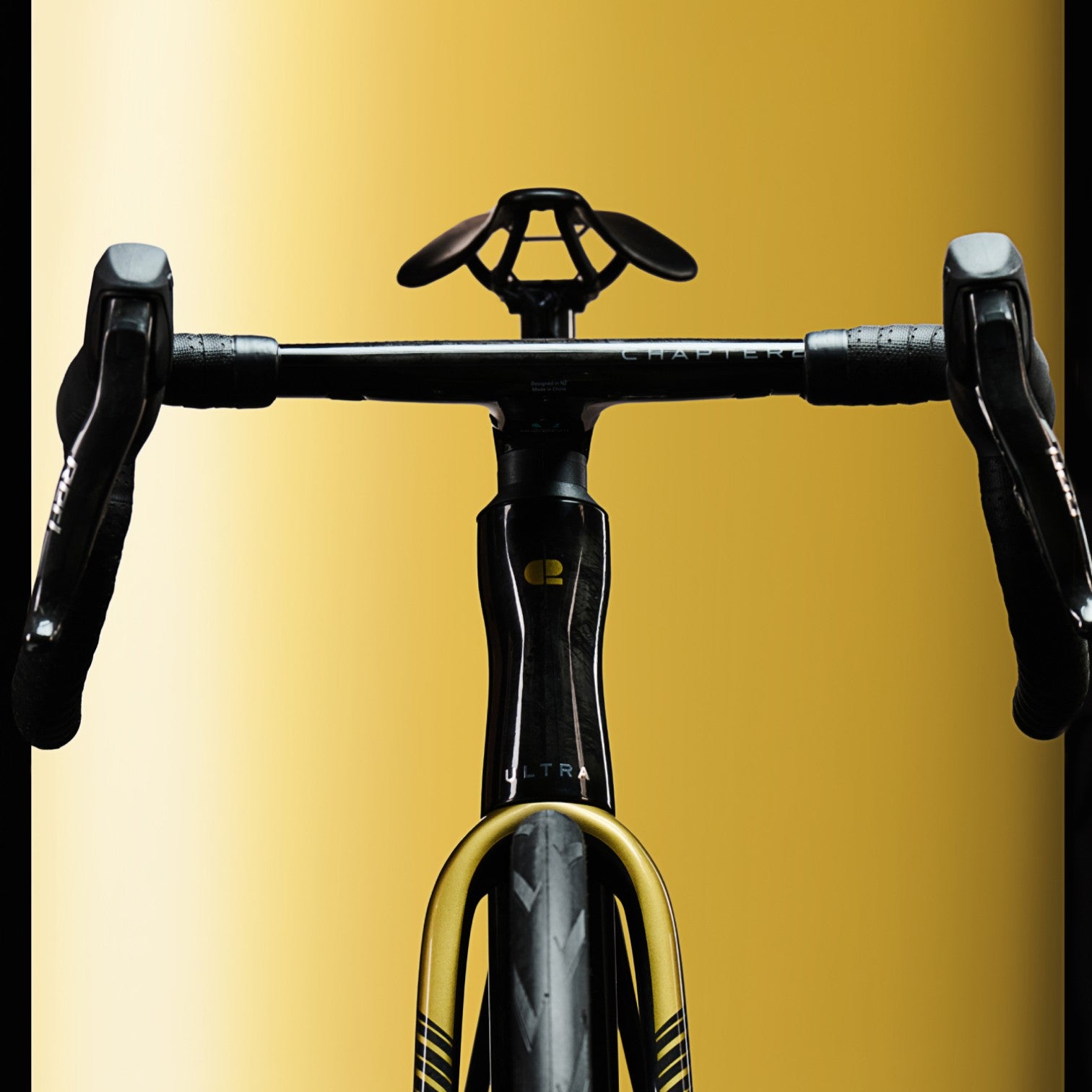

Chapter2 Rira Ultra Gold Frameset Cockpit View

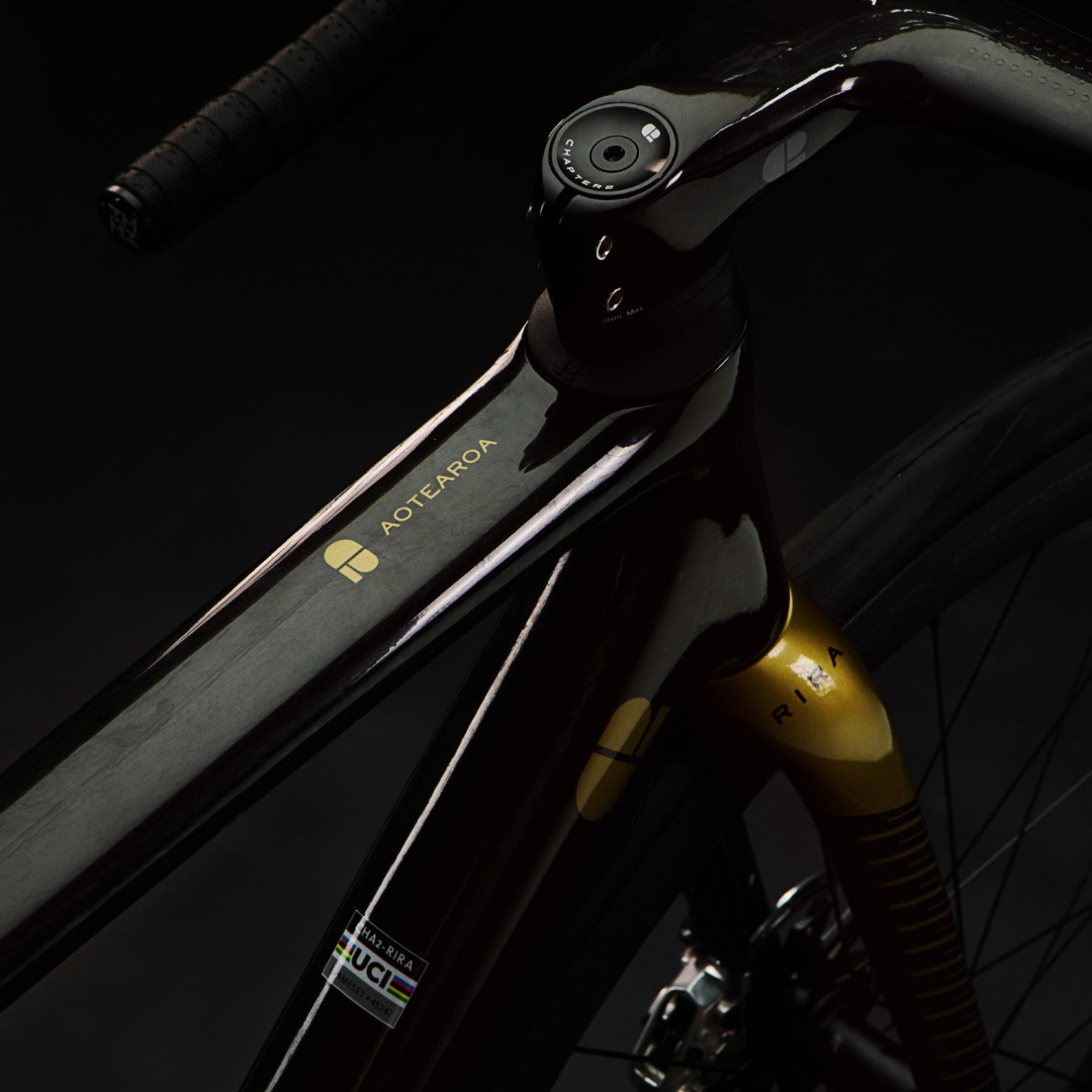

Chapter2 Rira Ultra Gold Frameset Toptube

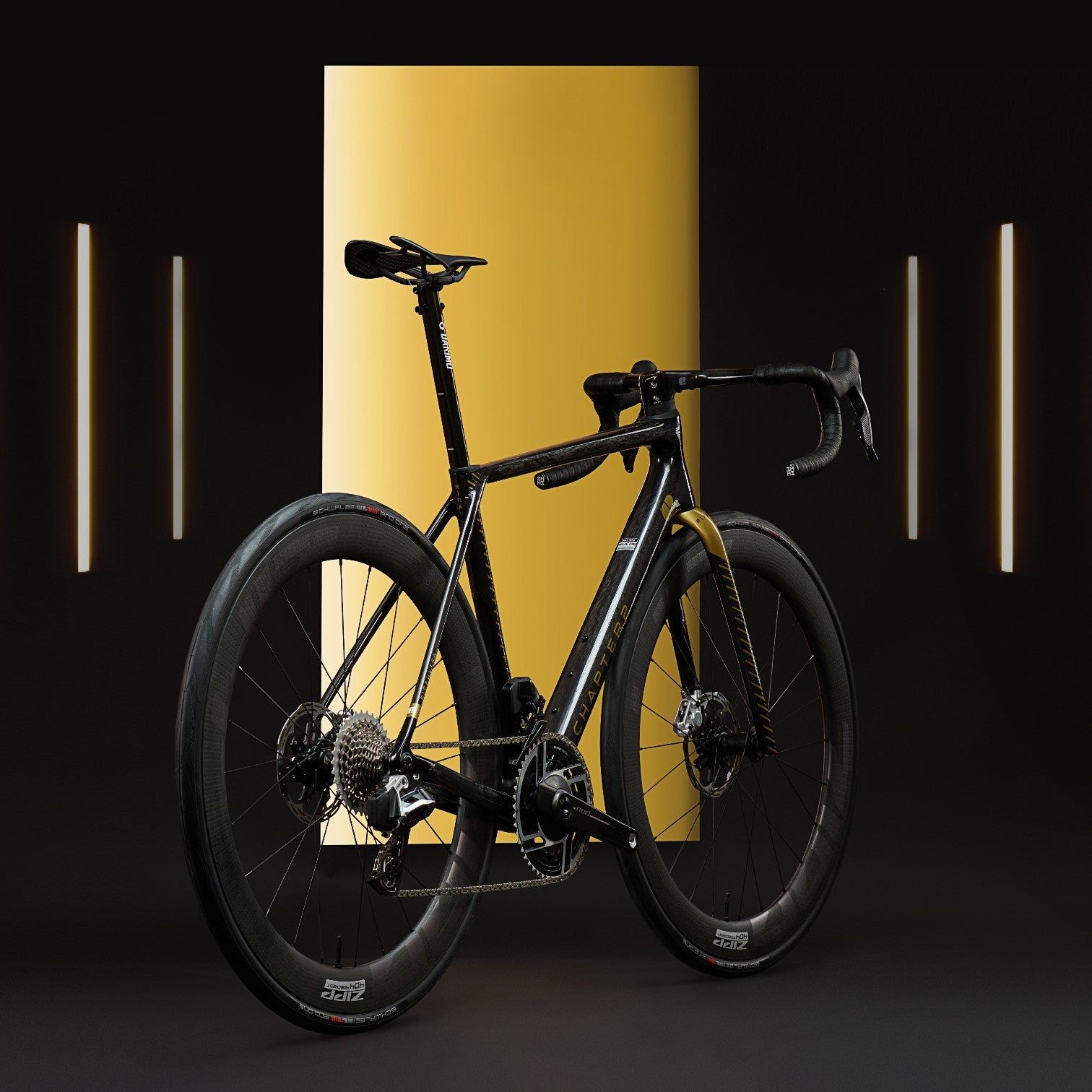

Chatper2 Rira Ultra Gold Complete Bike Rear View Angled

Framesets CHAPTER2

Chapter2 RIRA Ultra

Name: Chapter2 RIRA Ultra
Brand: CHAPTER2
Price: 3449.00 USD
Availability: InStock

$3,449.00 USD

0 products in stock

The RIRA Ultra’s ultra-light chassis delivers a clear advantage on steep climbs and accelerations, while its race geometry provides precise control on high-speed descents and technical corners. The EVO386 bottom bracket reduces weight yet preserves stiffness for maximum power transfer when it matters.
Clearance for 34 mm front / 32 mm rear tyres lets you run wider, lower-pressure setups for more grip, comfort, and confidence on rough roads. And with SRAM UDH included, 1× Transmission builds are fully supported — giving you a cleaner, quieter, more robust drivetrain for aggressive racing and minimal maintenance

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected Lifetime frame & fork warranty

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

Chapter2 RIRA Ultra

The Chapter2 RIRA Ultra is their flagship race chassis: a superlight 695 g (M) Toray carbon frame, aero-tuned RIRA geometry, and modern standards throughout. Built for electronic-only drivetrains, EVO386 stiffness at the BB, and real-world speed with clearance up to 34 mm front / 32 mm rear tires. Supplied with both SRAM UDH and Shimano Direct-Mount hangers for maximum drivetrain flexibility.

Chapter2 RIRA Ultra — Features & Benefits

Featherweight frame: ~695 g (size M) with high-grade Toray layup for race-day acceleration.
Aero-tuned RIRA shaping: Surfaces and profiles optimized to reduce drag at typical road yaw.
Electronic-only: Di2/eTap/EPS routing for a clean, future-proof build.
EVO386 BB platform: Broad shell for power-transfer stiffness and reliable alignment.
Disc-only, flat-mount: Confident braking with 12×100 / 12×142 thru-axles.
Real-world clearance: Up to 34 mm front / 32 mm rear tires for fast, rough tarmac.
Hanger flexibility: Includes SRAM UDH and Shimano DM derailleur hangers.

Chapter2 RIRA Ultra — Specifications

Frame Specs

Material: Toray carbon (high-modulus layup)
Frame Weight: ~695 g (M, ±3%)
Fork Weight: ~395 g (uncut, ±3%)
Bottom Bracket: EVO386 press-fit

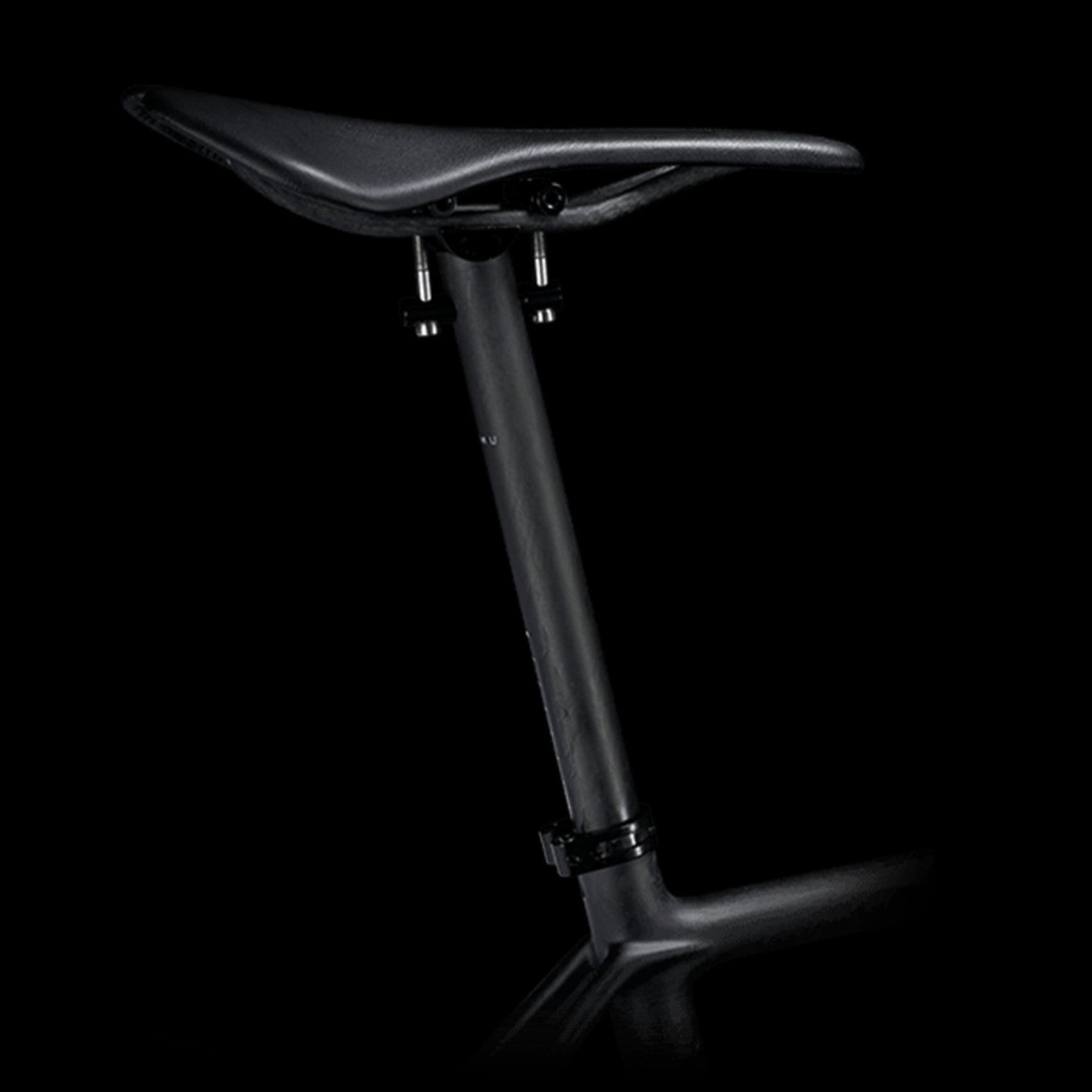

Seatpost: 27.2 mm round (C2 “Tumu” optional)
Brake Mount: Flat-mount disc
Axles: 12×100 (F) / 12×142 (R)
Tire Clearance: 34 mm (front) / 32 mm (rear)
Shifting: Electronic only (Di2 / eTap / EPS)
Certifications: EN ISO 4210; UCI-approved

Included with the Frameset

Frame & Fork: RIRA Ultra frame and matching fork
Hangers: SRAM UDH & Shimano Direct-Mount
Headset & Small Parts: headset, spacers, axles, grommets, hardware
Seatpost: 27.2 mm round (clamp hardware included)
Warranty: Manufacturer warranty (see brand terms)

Torque Specs

Saddle Rail: 6 Nm
Seatclamp: 8 Nm
Stem (Steerer): 6 Nm
Stem (Handlebar): 6 Nm
Front Derailleur Hanger: 3 Nm
Rear Derailleur Hanger: 2 Nm
BB Cable Guide Cover: 1 Nm
Thru-Axle: 10 Nm
Water Bottle Cage Bolts: 3 Nm

Chapter2 RIRA Ultra — Geometry

Size	XS	S	M	L	XL
Stack (mm)	489	517	545	573	601
Reach (mm)	361	371	381	391	401
A Top Tube (mm)	502	520	538	555	574
B Head Tube (mm)	90	112	135	161	191
C Seat Tube Angle (°)	74	74	74	74	74
D Head Tube Angle (°)	70	72	73	74	74
E Seat Tube (mm)	430	450	470	500	530
F BB Drop (mm)	74	73.5	73	72.5	72
G Rear Centre (mm)	410	410	410	410	410
H Wheelbase (mm)	972	974	975	982	1001
I Front Centre (mm)	574	576	574	584	602
J Fork Offset (mm)	53	53	43	43	43

All dimensions in millimeters unless noted (°).

CHAPTER2 Mana5 integrated cockpit with labeled A, B, C dimensions — Geometry reference: A (stem length), B (width at drops), C (width at hoods).

CHAPTER2 Mana5 Integrated Cockpit — Geometry & Sizes

A = Stem length (mm)
B = Width at Drops (mm)
C = Width at Hoods (mm)

B/C Width Options

Size label	B — Drops (mm)	C — Hoods (mm)
405 / 355	405	355
416 / 366	416	366
427 / 377	427	377
438 / 388	438	388
449 / 399	449	399

A — Stem Lengths

80 | 90 | 100 | 110 | 120

B — Drops Widths

405 | 416 | 427 | 438 | 449

C — Hoods Widths

355 | 366 | 377 | 388 | 399

*Multiple factory combinations are available (e.g., 80×405, 90×416, 100×427, 110×438, 120×449, etc.). Stem angle −7°, reach 70 mm, drop 128 mm across sizes.
