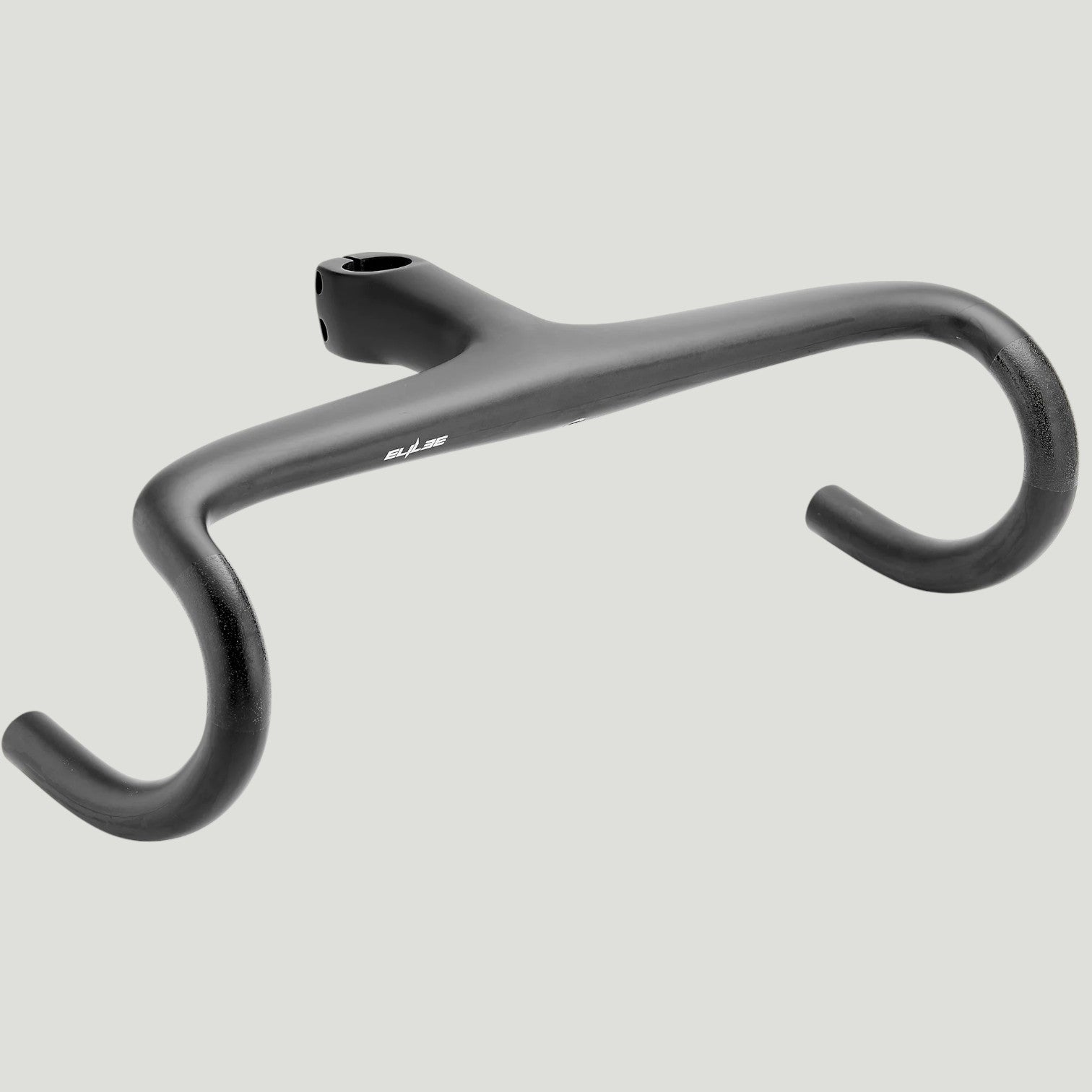

Elilee Ultralight Integrated Handlebar Full

Product label: Sold out
Product label: % Sale

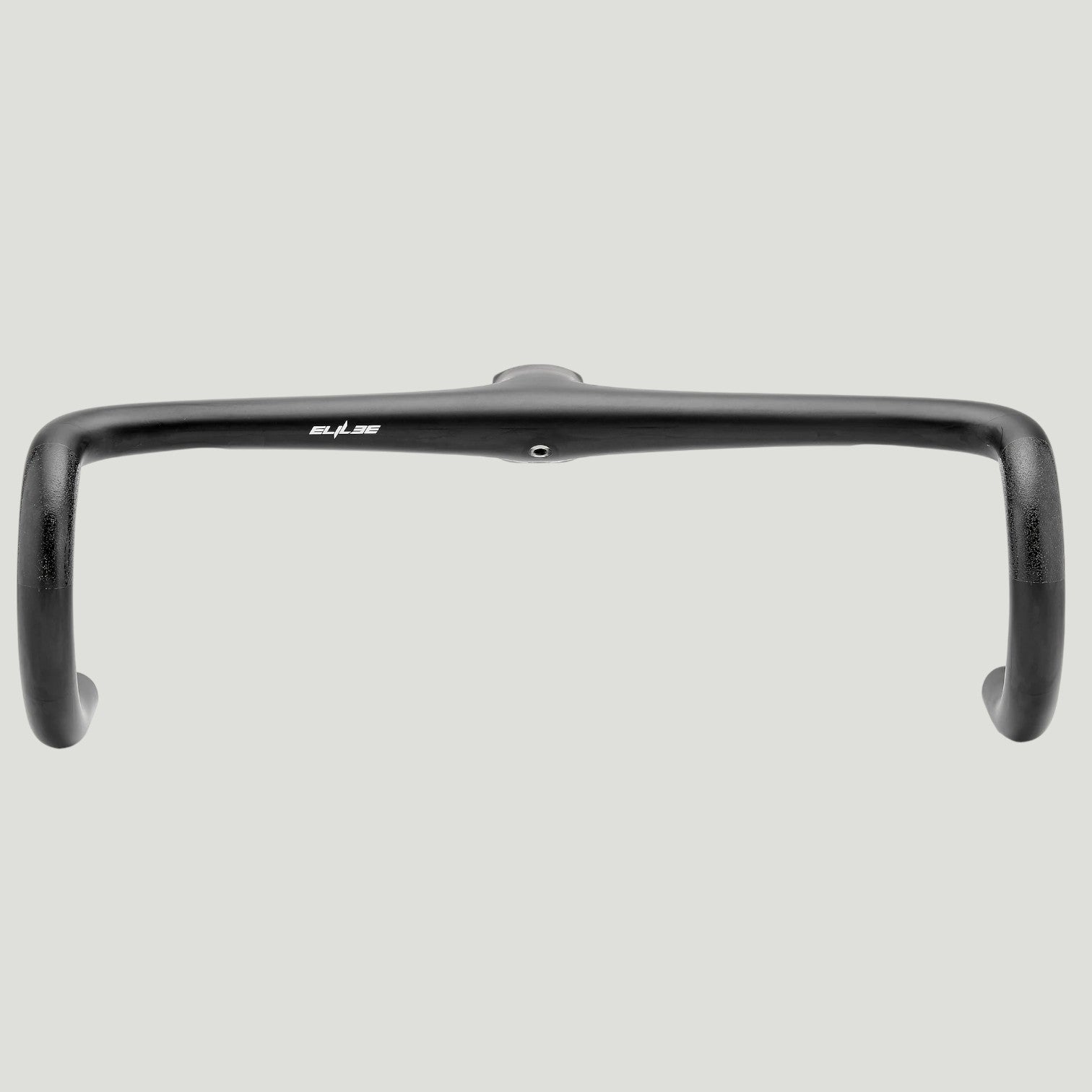

Elilee Ultralight Integrated Handlebar Front Image

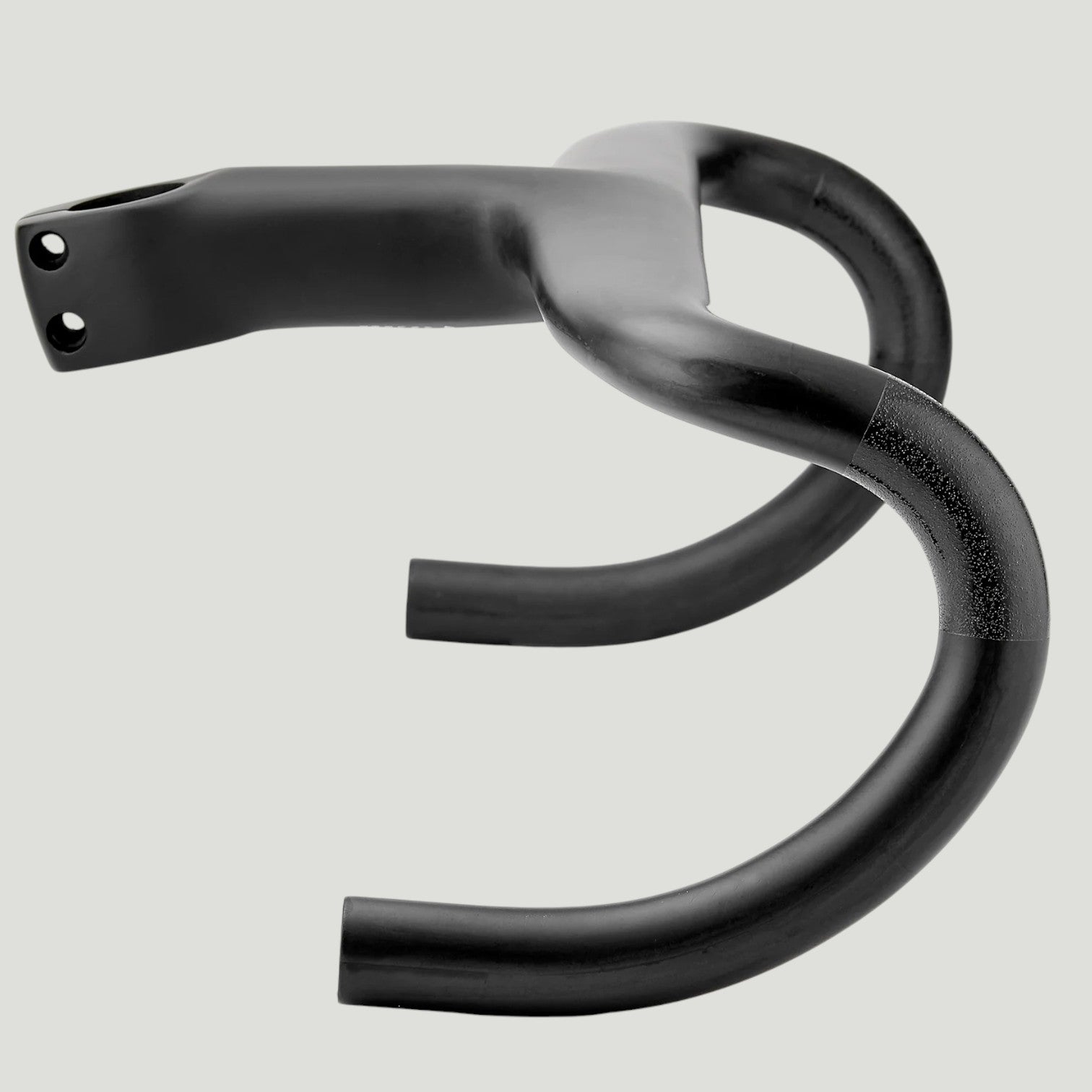

Elilee Ultralight Integrated Handlebar Side View

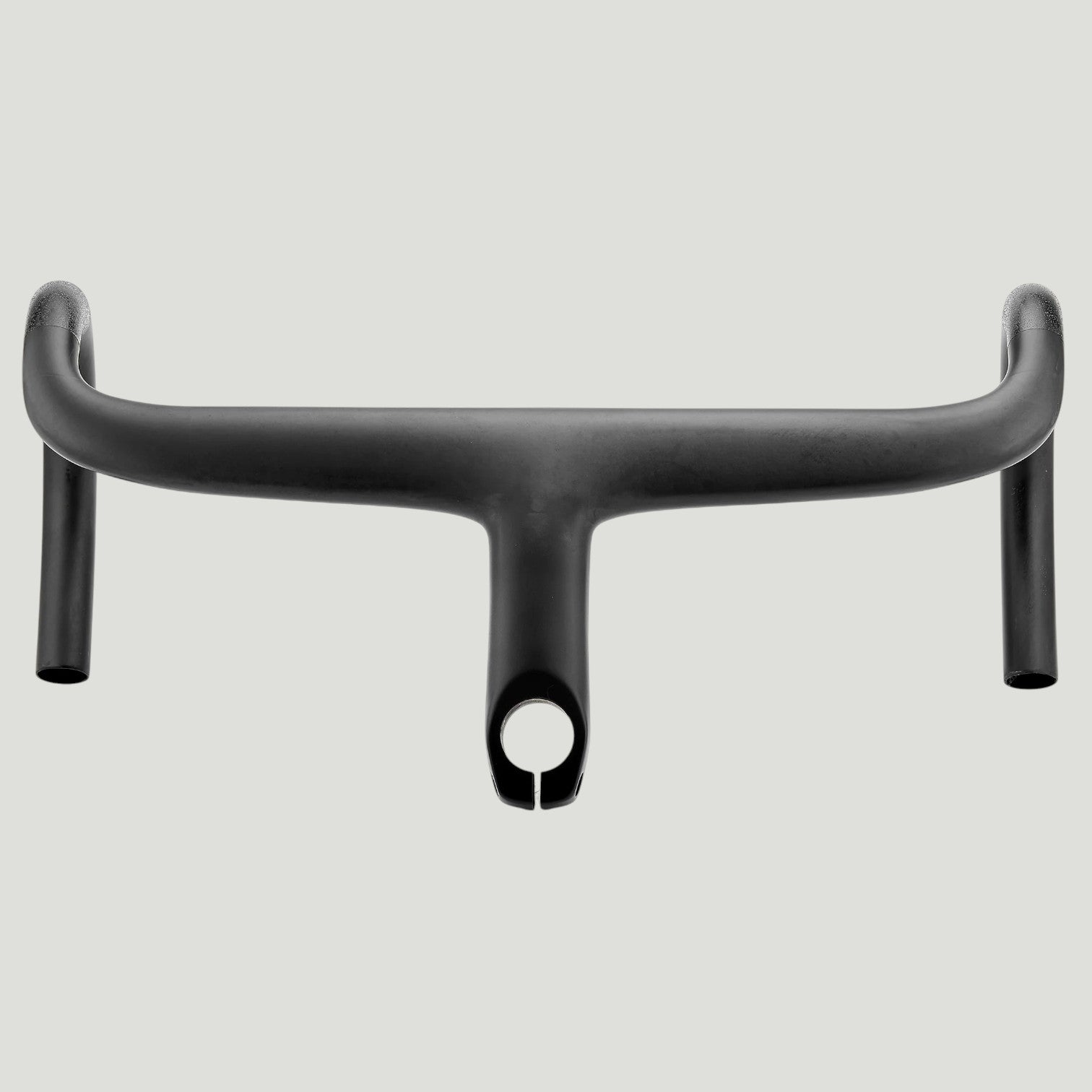

Elilee Ultralight Integrated Handlebar Top View

Components ELILEE

ELILEE Ultralight Integrated Handlebar

Name: ELILEE Ultralight Integrated Handlebar
Brand: ELILEE
Price: 380.00 USD
Availability: OutOfStock

$380.00 USD

0 products in stock

The ELILEE Ultralight Integrated Handlebar (FS-R) is an ultralight, one-piece carbon cockpit engineered for high-performance road riding. Crafted with Toray T1100 carbon fiber, it weighs approximately 240 g (400 × 100 mm spec) and features a −6° stem angle and clean internal routing. Its precision engineering delivers race-ready stiffness and aero efficiency, while the included 5×5 mm spacer pack ensures optimal headset compatibility.

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected Lifetime warranty on carbon components

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

ELILEE Ultralight Integrated Handlebar

The ELILEE Ultralight Integrated Handlebar (model FS-R) is a one-piece road cockpit designed to be exceptionally light and stiff for climbing and sprinting.
Constructed from Toray T1100 carbon, it features a race-oriented −6° stem angle with compact ergonomics and internal routing. Claimed weight is about
240 g (400 mm × 100 mm).

ELILEE Ultralight — Features & Benefits

Carbon layup: Toray T1100 for high stiffness-to-weight.
Race fit: integrated −6° stem with compact road ergonomics.
Lightweight: ~240 g (400×100 reference size).
Clean routing: one-piece bar/stem with internal cable paths.
Setup friendly: recommended torque 6 Nm; spacer pack 5 × 5 mm.

ELILEE Ultralight — Specifications

Dimensions & Fit

Stem angle: −6°
Stack (headset cover): 38 mm
Reach (bar): 75 mm
Drop (bar): 130 mm

Construction & Limits

Material: Carbon Fiber (Toray T1100)
Claimed weight: ~240 g (400×100)
Recommended torque: 6 Nm
Spacers included: 5 mm × 5

Notes

Integrated one-piece bar/stem. Verify steerer, headset and routing compatibility for your frame.
Use carbon assembly paste and torque to manufacturer specifications.

ELILEE FS-R — Size Options

ELILEE FS-R integrated handlebar size chart showing widths and stem length diagram — Widths 360–420 mm • Stem lengths 80–130 mm • Reach 75 mm • Drop 130 mm • Angle −6°

Handlebar widths (hood-to-hood) × stem lengths — 24 combinations

Stem length (mm)	360	380	400	420
80	✓	✓	✓	✓
90	✓	✓	✓	✓
100	✓	✓	✓	✓
110	✓	✓	✓	✓
120	✓	✓	✓	✓
130	✓	✓	✓	✓

Widths

360 / 380 / 400 / 420 mm

Stem Lengths

80 / 90 / 100 / 110 / 120 / 130 mm

Geometry (All Sizes)

Reach: 75 mm • Drop: 130 mm
Angle: −6° • Cover Stack: 38 mm

All FS-R sizes share the same 75 mm reach, 130 mm drop, and −6° stem angle. 24 total size combinations (4 widths × 6 stem lengths).

Headset Cover Compatibility (FS-R)

ELILEE FS-R headset cover compatibility examples — Representative headset/top cover shapes shown for reference.

Compatible Frames / Systems (as supplied by ELILEE)

#	Frame / System
1	Trek Madone Gen 7
2	Colnago V3Rs (variant “V3rsh”)
3	Colnago V3Rs (variant “V3rsl”)
4	Cervélo R5
5	Trek Émonda
6	Pinarello (select models)
7	Scott Addict
8	Specialized Tarmac SL7 (listed “SI7”)
9	Specialized Tarmac SL8 (listed “SI8”)
10	FSA system
11	FSA D-P (split cover)
12	Trek Madone Gen 8
