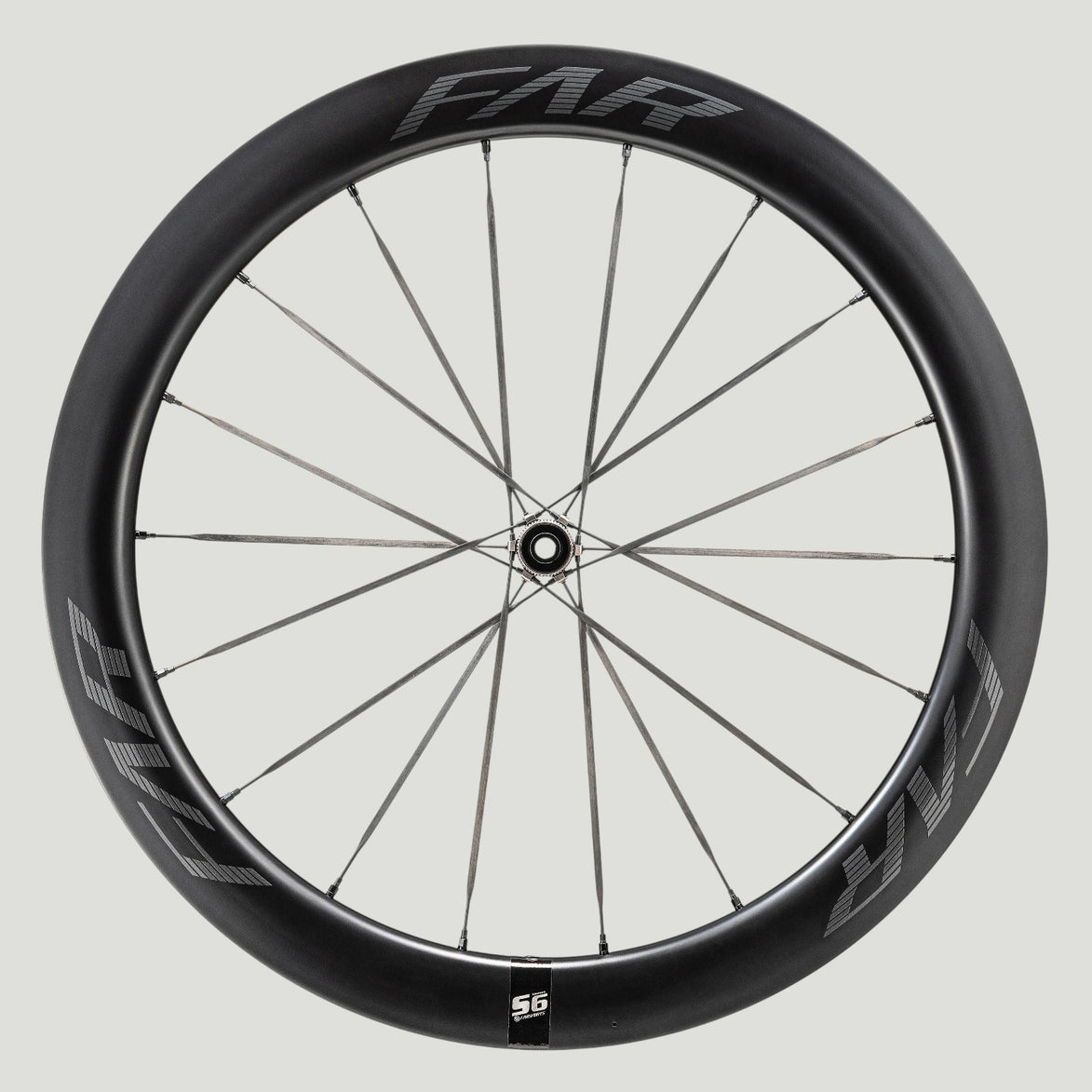

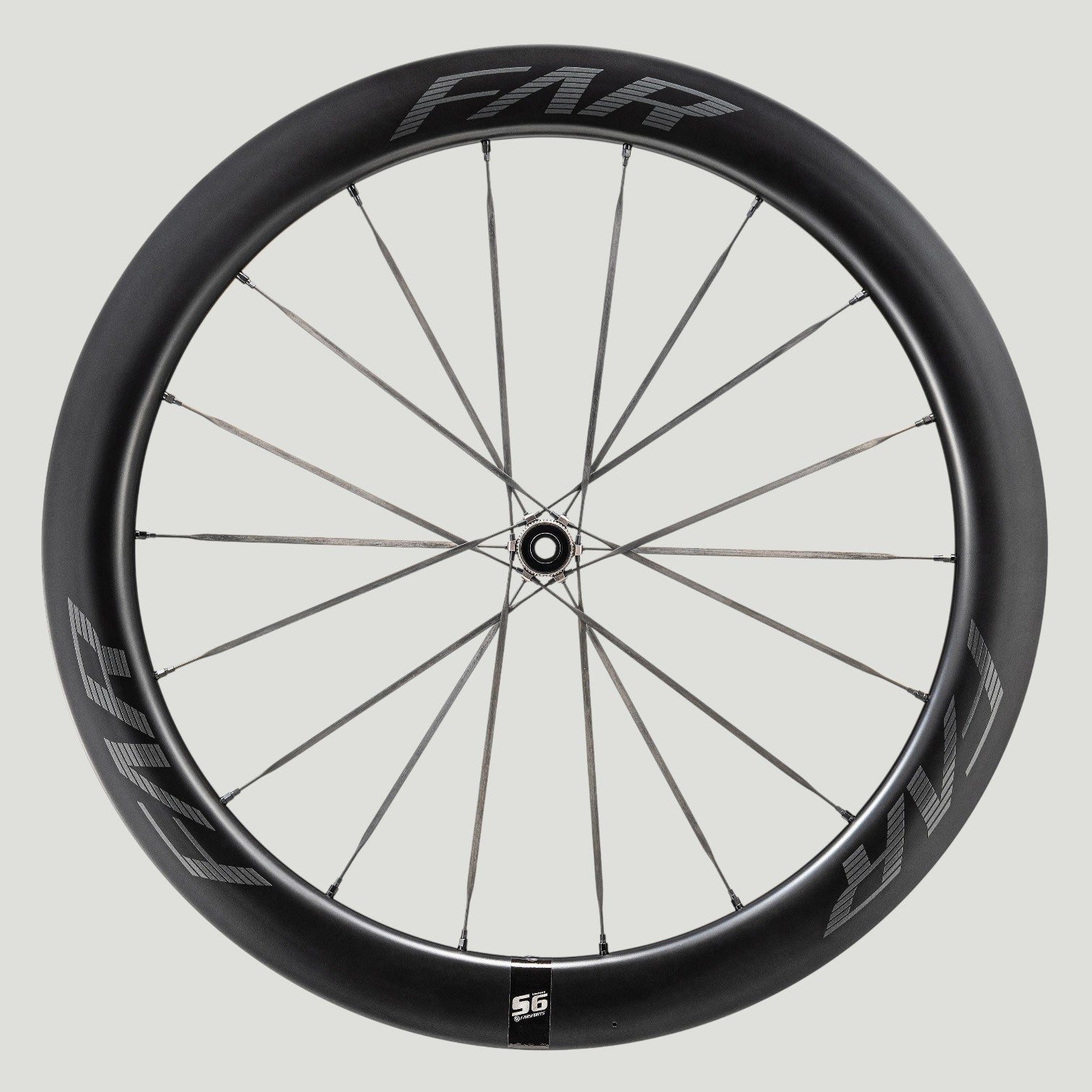

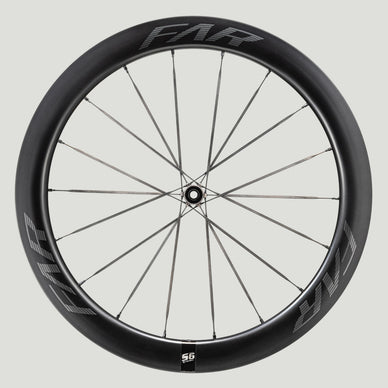

Farsports S Series Carbon Wheelset S6 Front

Product label: % Sale

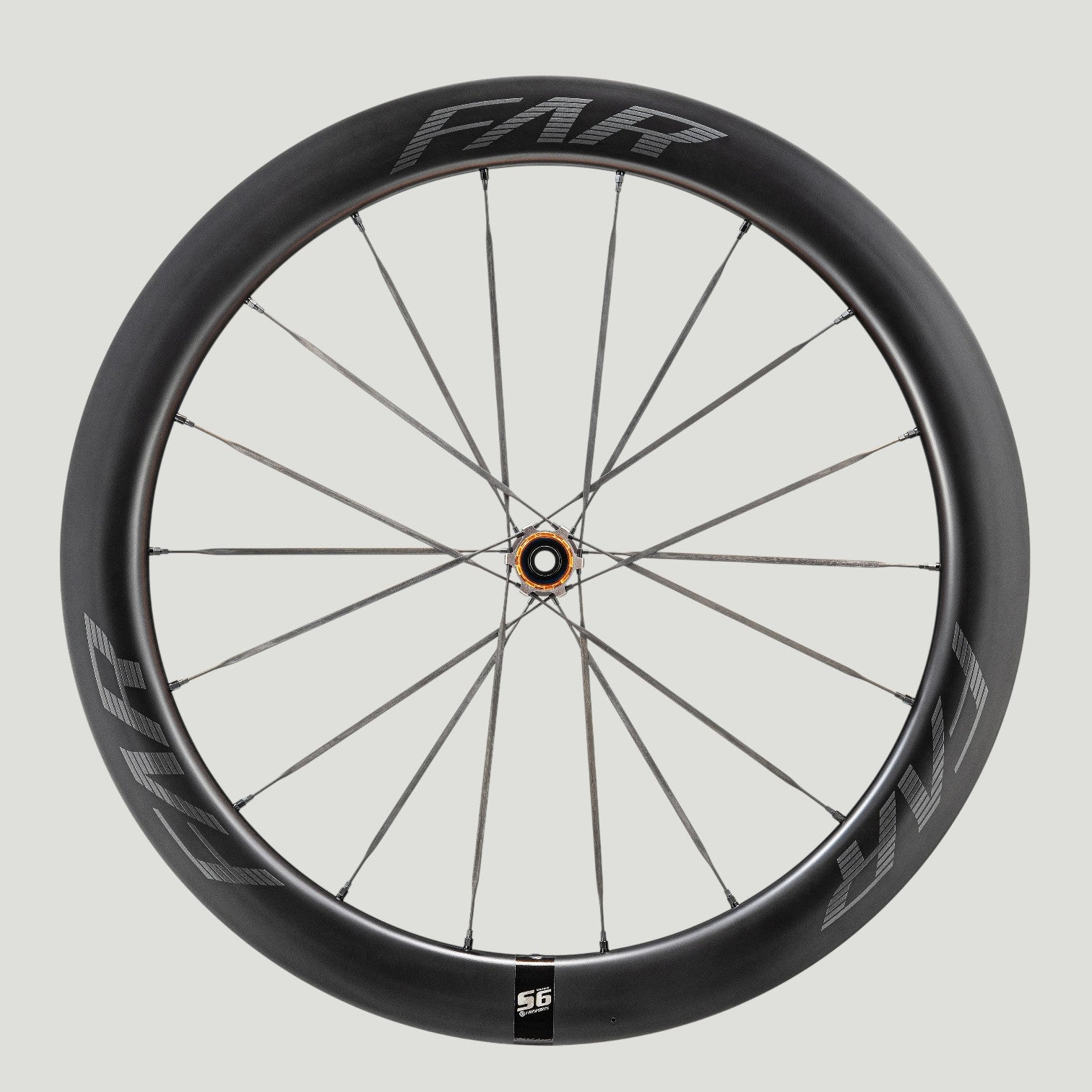

Farsports S Series Carbon Wheelset S6 Rear

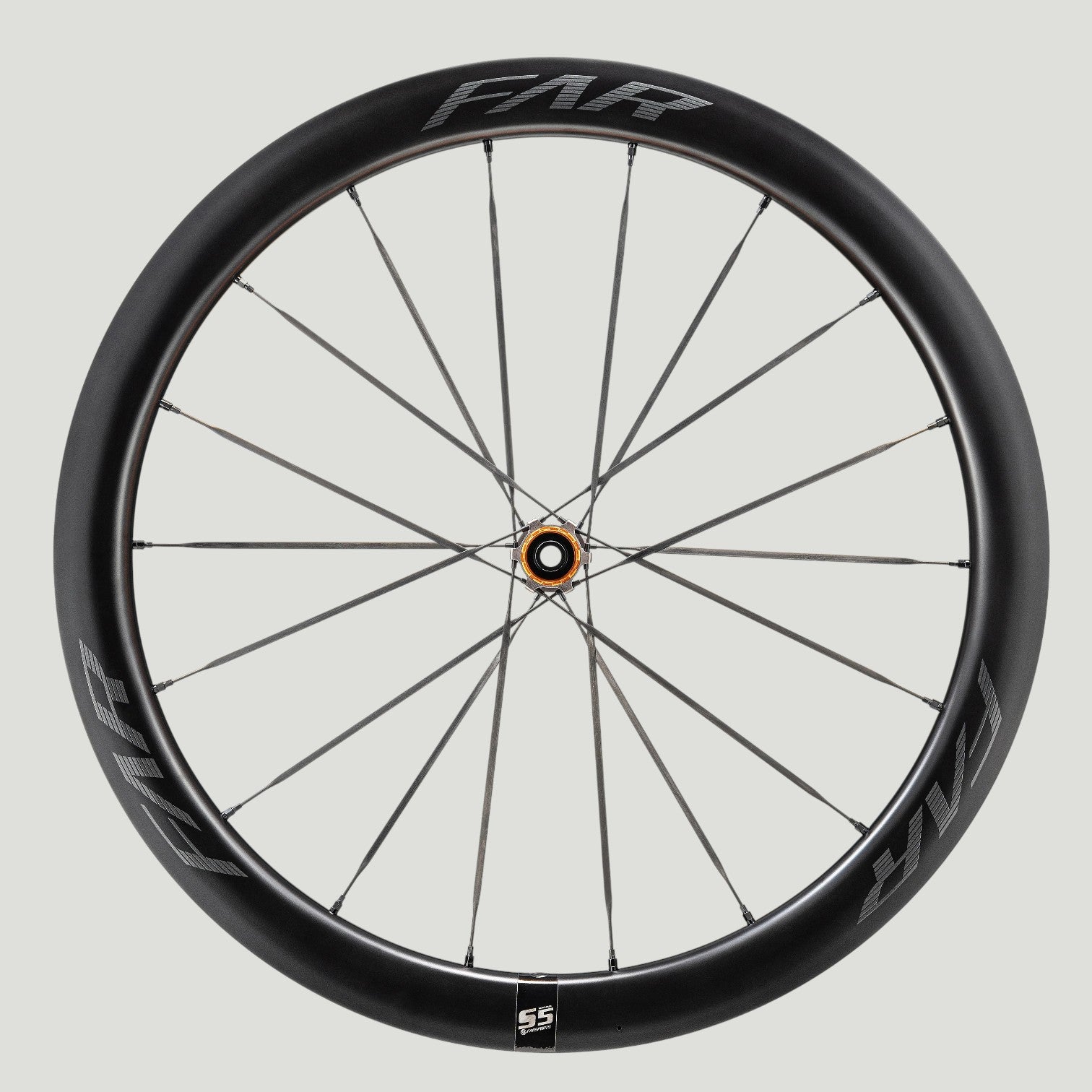

Farsports S Series Carbon Wheelset S5 Rear

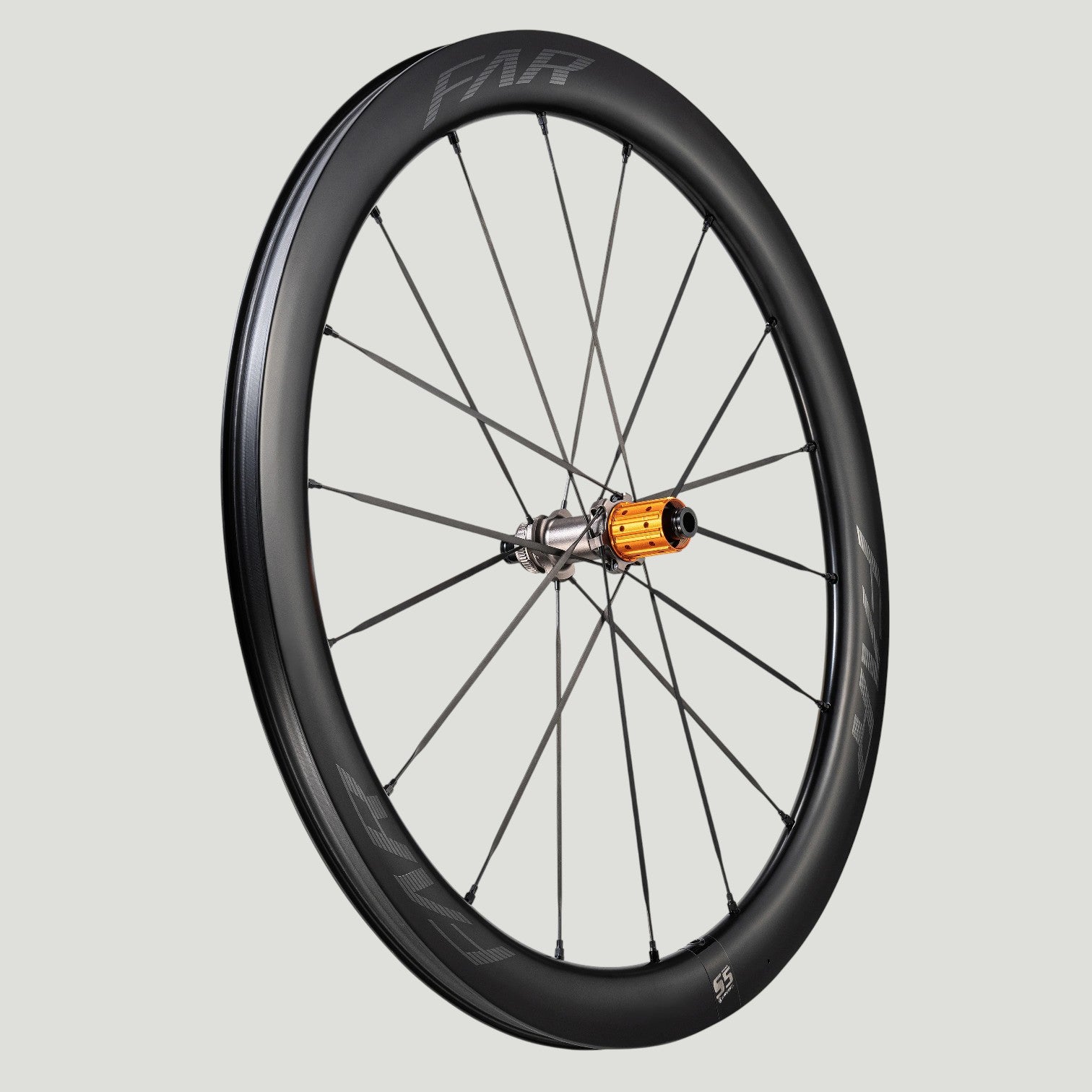

Farsports S Series Carbon Wheelset S5 Rear Angled

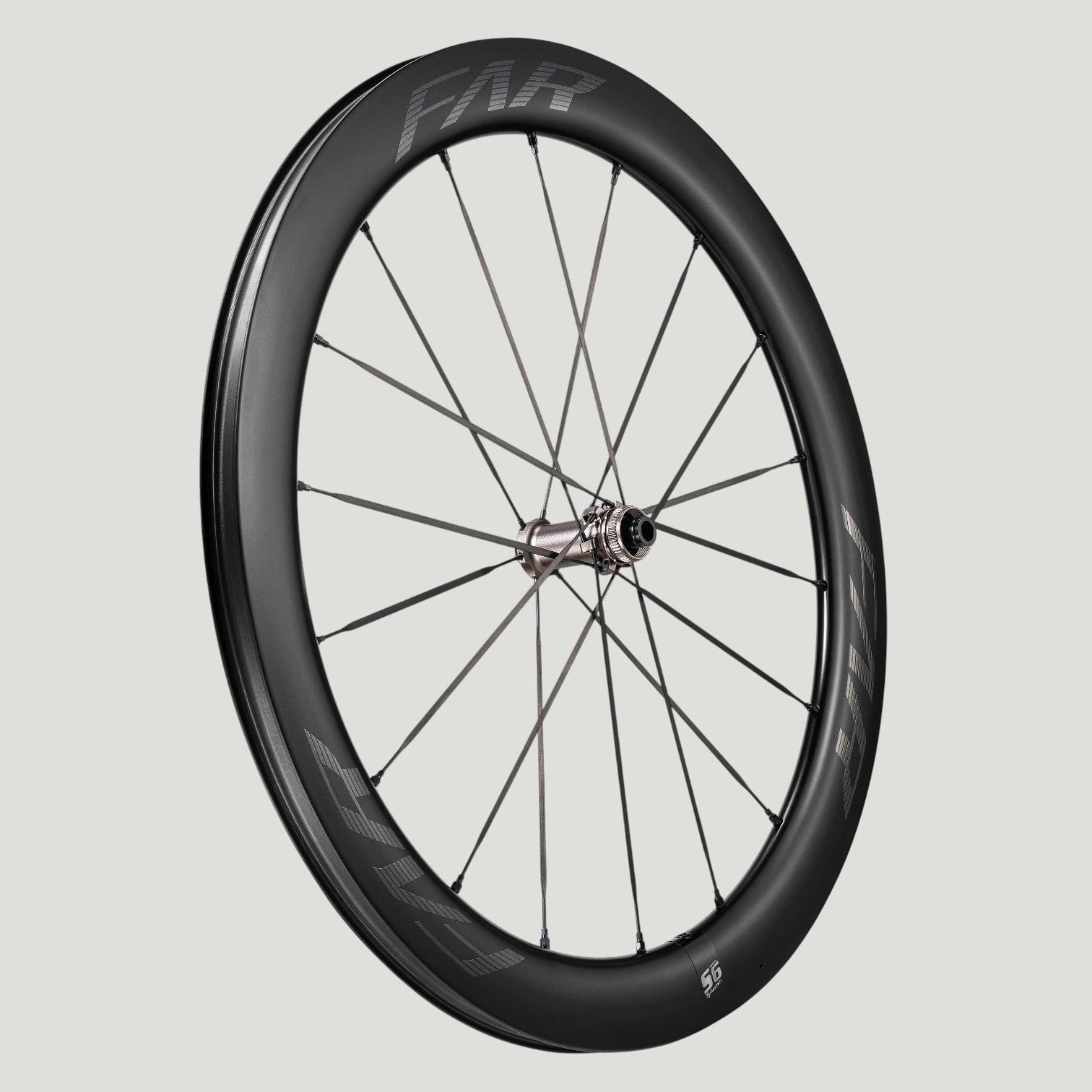

Farsports S Series Carbon Wheelset S6 Front Angled

Wheelsets FARSPORTS

2026 FARSPORTS EVO S Series Carbon Wheelset

Name: 2026 FARSPORTS EVO S Series Carbon Wheelset
Brand: FARSPORTS
Price: 1559.00 USD
Availability: InStock

$1,559.00 USD

-1 products in stock

Farsports EVO S is a modern aero wheelset with three depth options—S4 45 mm (climber), S5 50 mm (all-rounder) and S6 58.5 mm (aero). Wide 24 mm internal / 31.5 mm external hooked rims shape 28–32 mm tyres for speed and stability. Redesigned carbon spokes in a 2:1 pattern and new SH01F/SH01R ratchet hubs (≈10% stiffer, 5% lighter) deliver crisp response. Tubeless/clincher, Center Lock, rider limit ≤120 kg, and claimed weights ~1190–1320 g.

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected 2-year manufacturer warranty (3-year on handlebars)

Worldwide Shipping Tracked delivery to most countries. Shipping options and costs vary by product and destination and are shown at checkout.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

2026 FARSPORTS EVO S Series Carbon Wheelset

The 2026 FARSPORTS EVO S Series Carbon Wheelset is FARSPORTS’ flagship carbon-spoke road platform—built for riders who want maximum stiffness, fast acceleration, and premium finishing without the guesswork. Choose your depth: EVO S4 45 mm (climbing-focused), EVO S5 50 mm (all-round), or EVO S6 58.5 mm (aero-focused). All models use 24 mm internal / 31.5 mm external hooked rims that are tubeless/clincher ready, laced 18F / 18R (2:1) on FARSPORTS’ SH01F/SH01R ratchet hubs. FARSPORTS also offers bearing options (standard steel or CeramicSpeed) and states the latest hub structure is ~10% stiffer and ~5% lighter vs their MY2025 design.

FARSPORTS EVO S (2026) — Features & Benefits

Depth Options: EVO S4 45 mm (climbing) | EVO S5 50 mm (all-round) | EVO S6 58.5 mm (aero).
Modern Rim Shape: 24 mm internal / 31.5 mm external hooked profile—made for fast, stable 28–32 mm road tyres and “fast gravel” setups.
Redesigned T-Head Carbon Spokes: FARSPORTS positions the new spoke shape as stiffer and more stable in crosswinds versus the prior flat-and-wide design.
Manufacturer Aero Testing: FARSPORTS reports a new-vs-old spoke test at 40 / 45 / 50 km/h, with a peak ~3 W improvement at higher speeds.
Hub System: FARSPORTS Light Hub with ratchet drive; Center Lock; larger flange redesign with stated ~10% stiffness gain and ~5% weight reduction vs MY2025.
Bearing Options: Choose Standard Steel or CeramicSpeed bearing builds (availability varies).
Lacing & Drivetrain: 18/18H front and rear with 2:1 lacing for balanced tension and power transfer.
Premium Rim Branding: Glossy water-transfer decal logos for a clean, premium look.
Tubeless-Ready Hook Rim: Hooked rim design that’s tubeless/clincher compatible for real-world pressures and easy setup.
Axle Size: 12×100 front / 12×142 rear (thru-axle).
Rider Weight Limit: ≤ 120 kg.

Underdogs note: FARSPORTS’ watt savings, stiffness/weight percentage claims, and finish-process notes are manufacturer-provided launch details. Real-world results vary by tyres, pressures, rider power, and conditions.

2026 FARSPORTS EVO S Series carbon wheelset lifestyle image

2026 FARSPORTS EVO S — Specifications

Rims & Tyres

Rim Type: Hooked, tubeless-ready.
Internal / External Width: 24 mm / 31.5 mm.
Depths: EVO S4 45 mm • EVO S5 50 mm • EVO S6 58.5 mm.
Tyre Range (practical): Optimized for modern road tyres; 28–32 mm is a common fitment window.
Front/Rear Pairing: FARSPORTS notes the front and rear wheel rim profile can be randomly paired (manufacturer production/option detail).

Hubs, Bearings & Spokes

Hubs: SH01F (front) & SH01R (rear), ratchet drive, Center Lock.
Hub Redesign (Manufacturer Claim): Larger flange structure stated to be ~10% stiffer and ~5% lighter vs MY2025.
Bearing Options: Standard Steel or CeramicSpeed bearing builds (availability varies by configuration).
Spokes & Lacing: FARSPORTS redesigned T-head carbon spokes, Front 18 (2:1), Rear 18 (2:1).
Aero Validation (Manufacturer Data): New spokes tested vs old at 40/45/50 km/h; peak ~3 W improvement at higher speeds.

Weights & Compatibility

Weights (pair, ±5%): EVO S4 1150 g • EVO S5 1180 g • EVO S6 1280 g.
Rider Weight Limit: ≤ 120 kg.
Brake: Disc, Center Lock.
Axles: 12×100 (front) / 12×142 (rear).

Rim Profiles & Sizes

2026 FARSPORTS EVO S rim and spoke visuals — Flagship carbon spokes + wide hooked rim for real-world speed and stability.

Model	EVO S4	EVO S5	EVO S6
Front wheel	45 mm height • 31.5 mm external • 24 mm inner	50 mm height • 31.5 mm external • 24 mm inner	58.5 mm height • 31.5 mm external • 24 mm inner
Rear wheel	45 mm height • 31.5 mm external • 24 mm inner	50 mm height • 31.5 mm external • 24 mm inner	58.5 mm height • 31.5 mm external • 24 mm inner
Spokes	Farsports carbon spoke • Front 18 (2:1) • Rear 18 (2:1)
Hub	SH01F & SH01R • Ratchet structure • Farsports own hub • Center Lock structure
Weight limit	≤120 kg
Weight (±5%)	1150 g	1180 g	1280 g
Tyre Setup	Hooked • Tubeless / Clincher
Axles	12×100 (front) / 12×142 (rear)

Weights and performance notes include manufacturer-provided claims (spoke aero testing, watt savings, and MY2025 comparison for hub stiffness/weight). Real-world results and availability can vary by configuration.
