IMTOS Universal Carbon Thru-Axle

Sale price $269.00 USDRegular price
Regular price $269.00 USD
Customer Support Our dedicated team is always here to help with sizing, builds, and orders.
Warranty Protected Backed by manufacturer warranty
Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.
Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

IMTOS Universal Carbon Thru-Axle

The IMTOS Universal Carbon Thru-Axle is a featherweight carbon-fiber axle that replaces your frame’s standard aluminium thru-axle to save more than 50 g — the axle itself weighs just 25–28 g. Built from an optimised carbon lay-up and SGS-certified for strength, it uses interchangeable heads to fit most major bike brands. Available in a short (Model A) and long (Model B) version to match your frame.

Spec Snapshot:
Carbon fiber • 25–28 g (saves >50 g vs aluminium) •
Up to 20 Nm torque • SGS certified •
Interchangeable heads — universal fit • Model A (short) / Model B (long)

IMTOS Carbon Thru-Axle — Features & Benefits

  • Featherweight: Just 25–28 g per axle — saves more than 50 g over a conventional aluminium thru-axle.
  • Optimised carbon lay-up: Engineered carbon construction for high stiffness at minimal weight.
  • SGS-certified strength: Independently strength-verified; rated to a 20 Nm install torque.
  • Universal fit: Interchangeable heads designed to fit most major bike brands.
  • Two lengths: Model A (short) and Model B (long) to match common front/rear frame standards.
IMTOS universal carbon thru-axle

IMTOS Carbon Thru-Axle — Specifications

Construction

  • Material: Carbon fiber (optimised lay-up)
  • Heads: Interchangeable

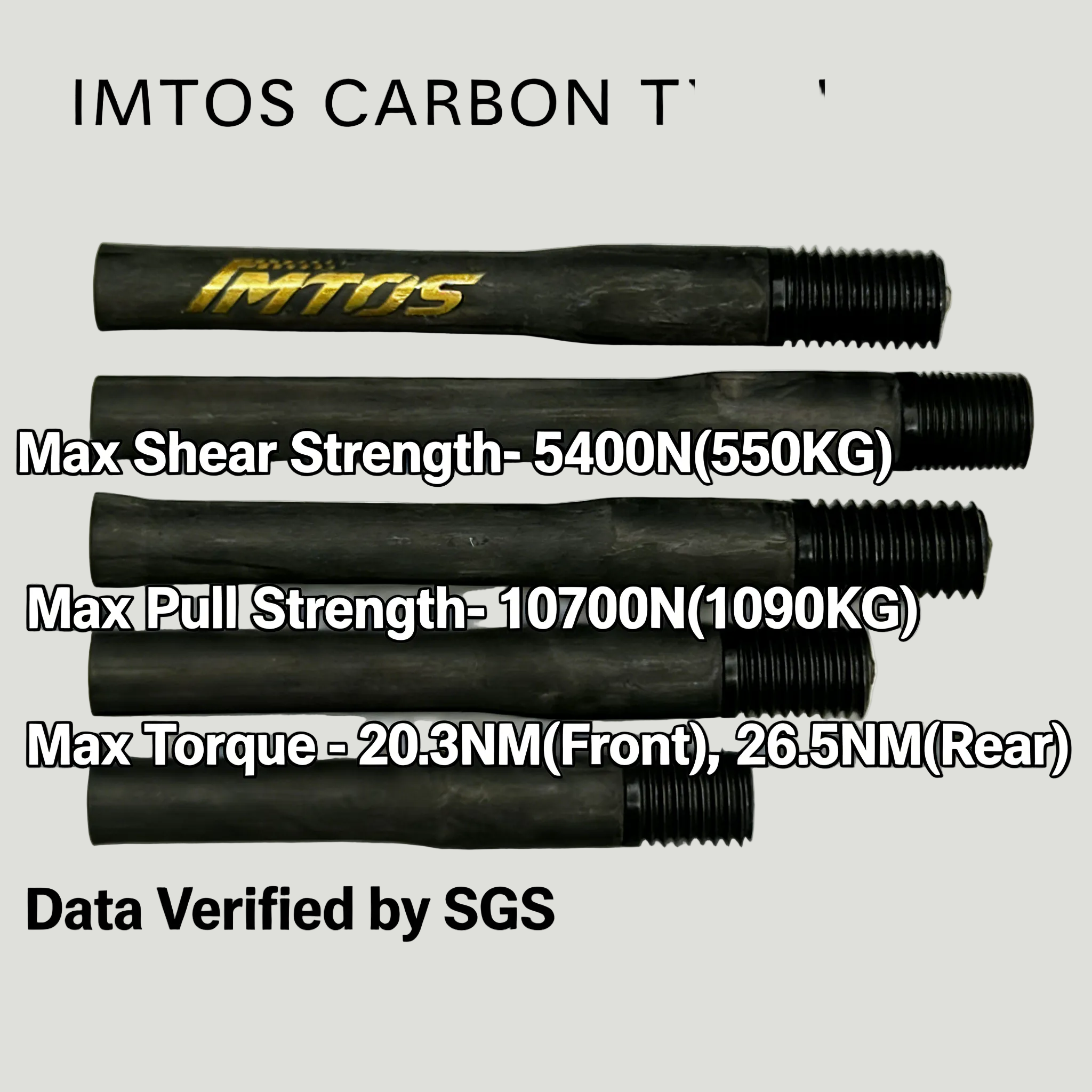

  • Certification: SGS strength-verified
  • Max install torque: 20 Nm

Weight

  • Axle weight: 25–28 g
  • Weight saving: > 50 g vs conventional aluminium axle

Versions & Fitment

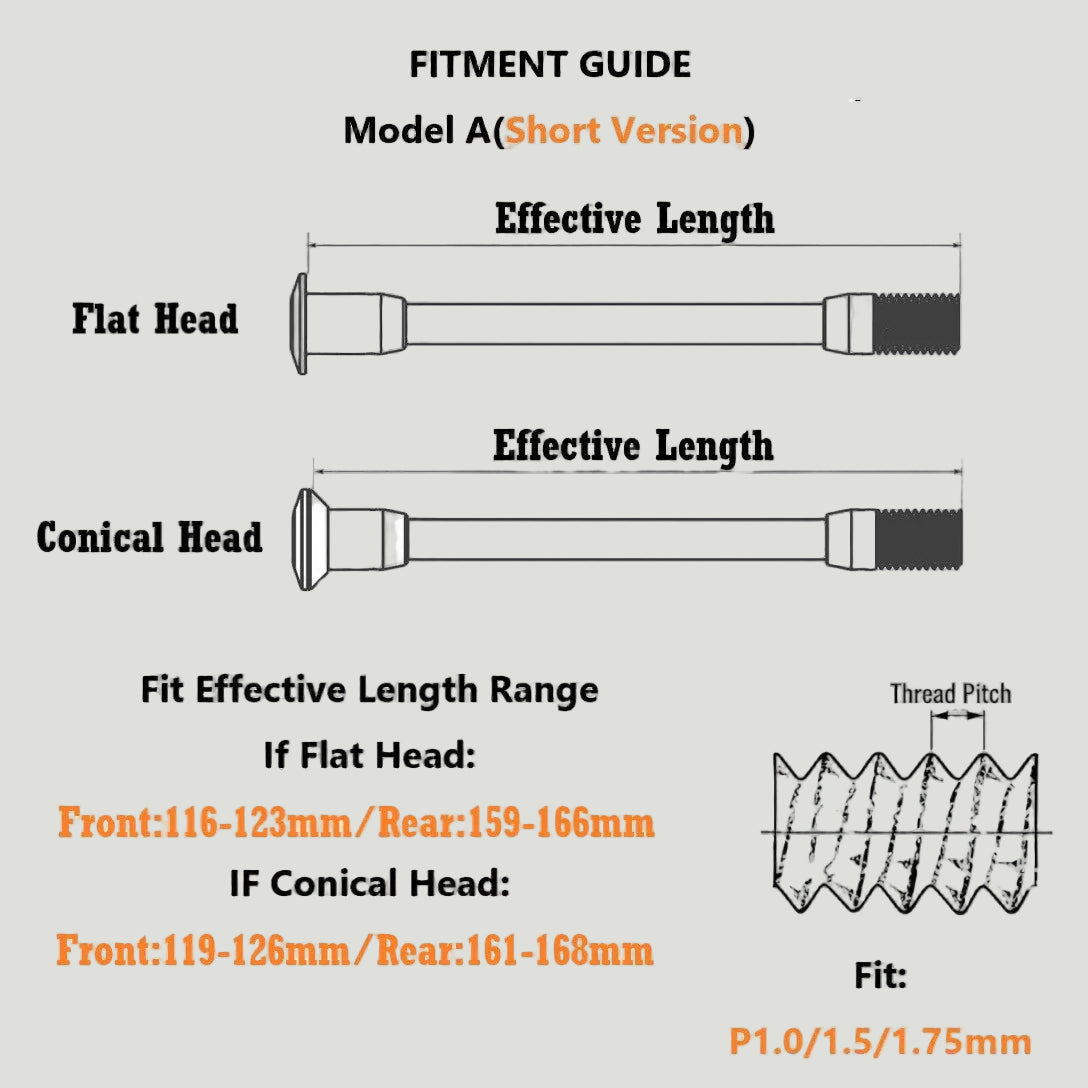

  • Model A: Short version

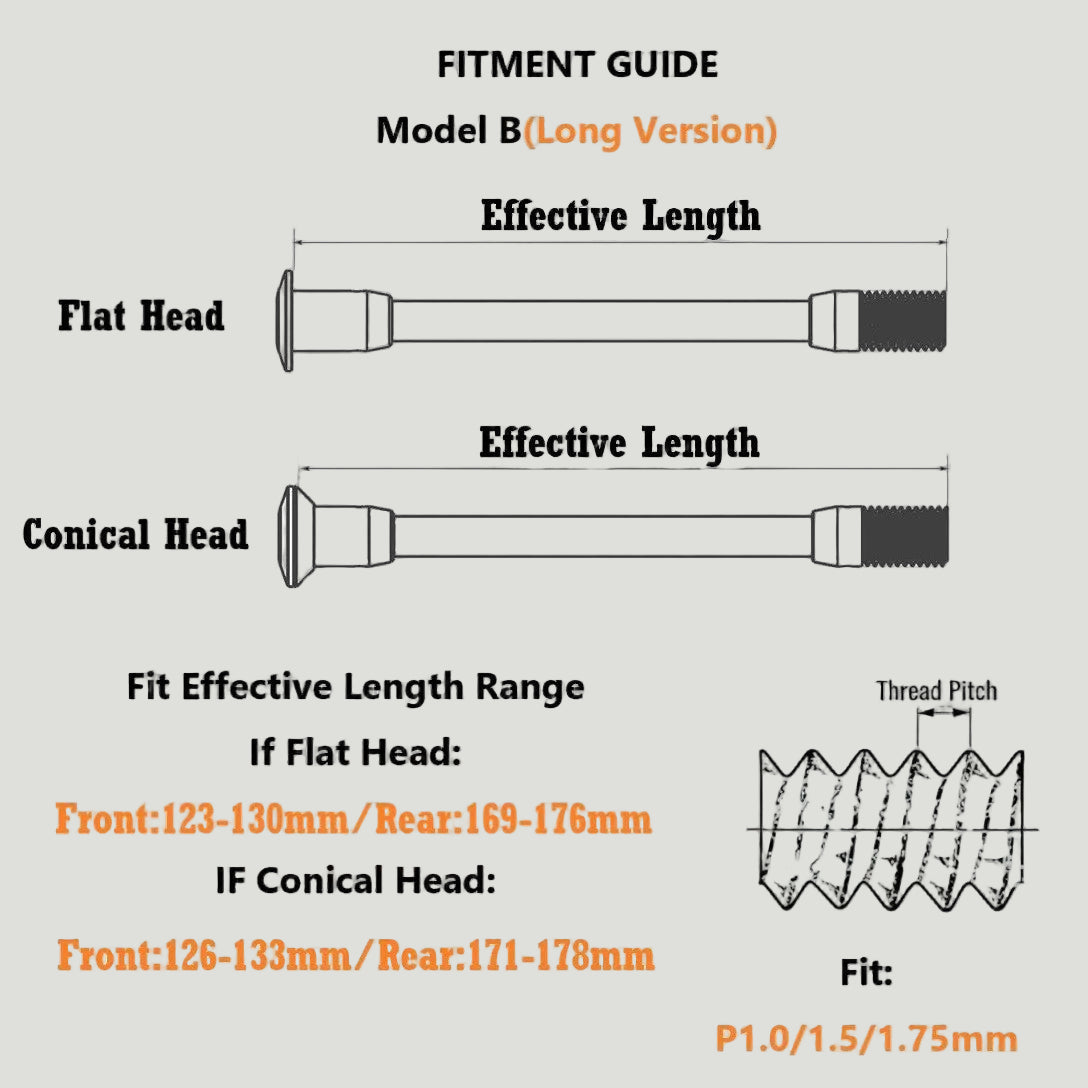

  • Model B: Long version
  • Compatibility: Designed to fit most major bike brands

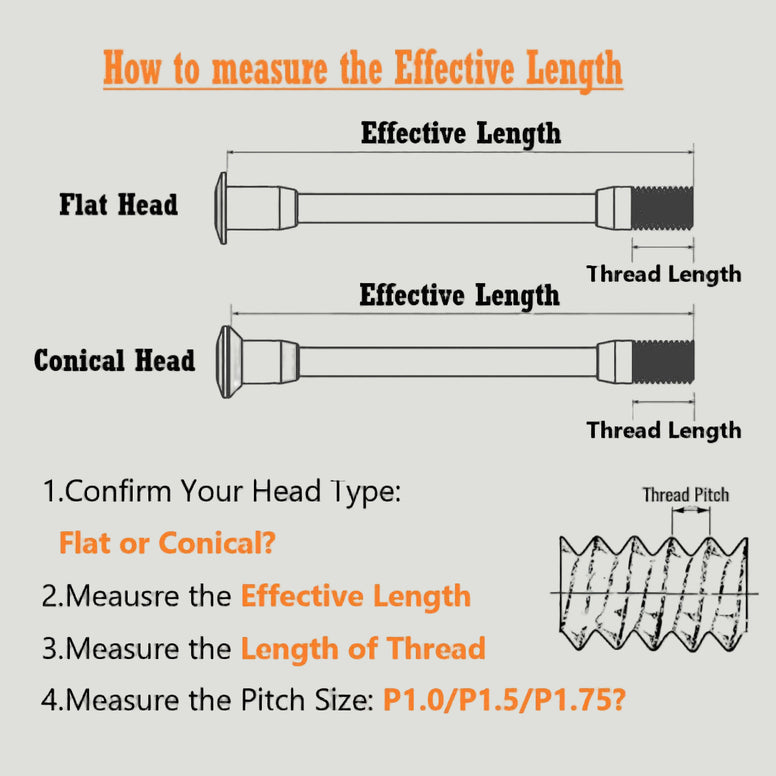

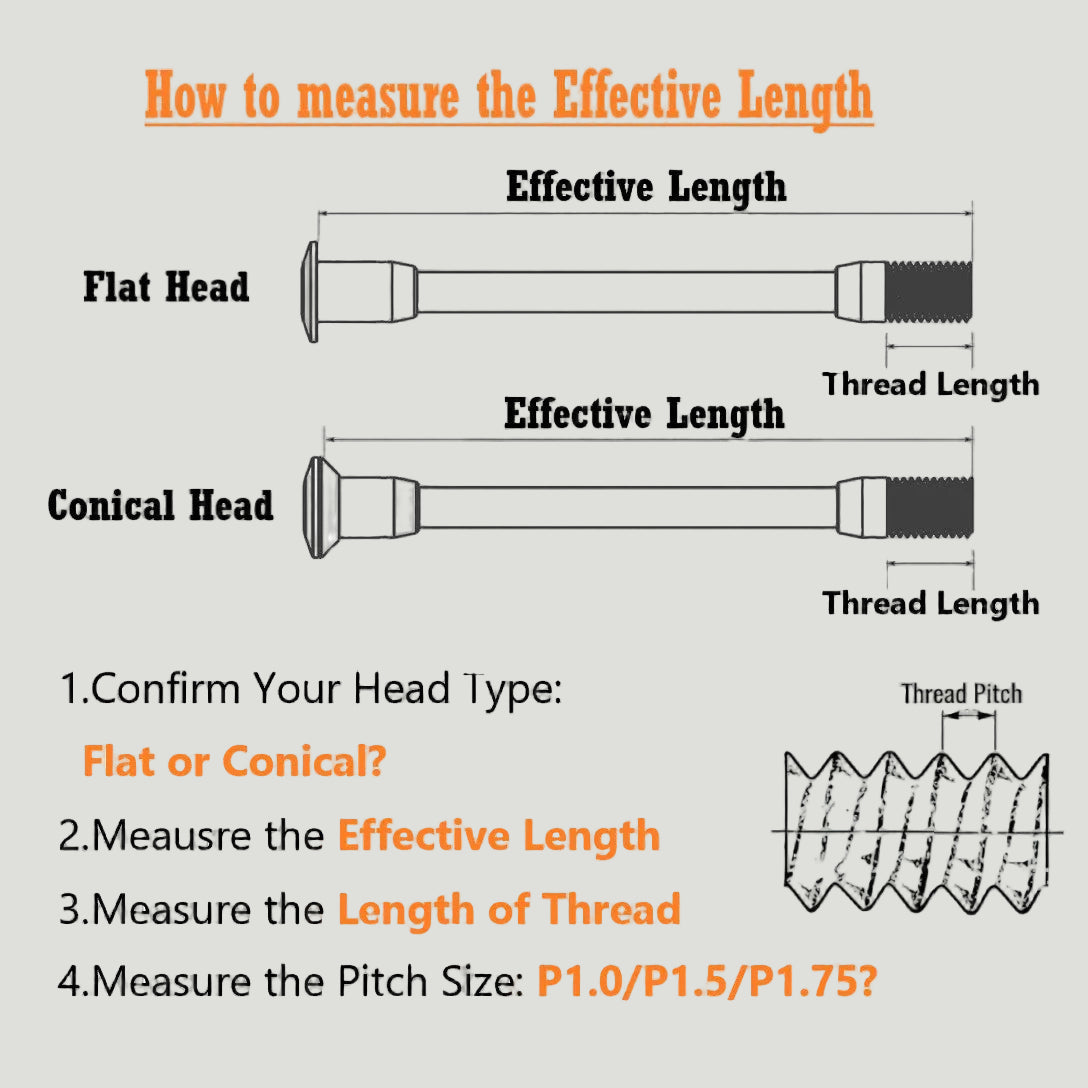

  • Confirm your frame’s axle length, diameter and thread pitch before ordering.

IMTOS Universal Carbon Thru-Axle — FAQ

How fast does it ship?

Orders ship once processing is complete and a tracking number is generated. Delivery time depends on destination. For an ETA, message us with your location and the exact item/size you’re considering.

Do prices include duties and taxes?

Shipping and duty handling vary by destination. If DDP is offered for your destination, duties and import handling are included at checkout for eligible orders. If DDP is not available, duties and taxes may be collected by the carrier or local customs authority.

What is the warranty?

Warranty terms are provided by the manufacturer. If an issue occurs, Underdogs Cycling will guide you through the claims process and coordinate with the manufacturer where applicable.

How do I confirm compatibility before ordering?

Compatibility depends on your frame/crank standard and drivetrain. If you’re unsure, send us your bike model/year and groupset (Shimano vs SRAM) and we’ll help confirm fit.

Which version do I need — Model A or Model B?

Model A is the short version and Model B is the long version. The correct one depends on your frame’s axle length and whether it’s front or rear. Send us your frame model and we’ll confirm.

How much weight does it save?

The axle weighs 25–28 g and saves more than 50 g compared with a conventional aluminium thru-axle.

How tight should I install it?

Torque to a maximum of 20 Nm using a calibrated torque wrench. Do not exceed the rated torque.

Will it fit my bike?

It’s designed to fit most major bike brands via interchangeable heads, but always confirm your axle length, diameter and thread pitch first.


More Information

BRAND IMTOS
COMPONENT THRU-AXLE
DISCIPLINE ROAD, GRAVEL, MTB
