LiteTech Carbon Chainring (Single & Double)

Sale price $285.00 USDRegular price
Regular price $285.00 USD
Customer Support Our dedicated team is always here to help with sizing, builds, and orders.
Warranty Protected Backed by manufacturer warranty
Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.
Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

LiteTech Carbon Chainring (Single & Double)

LiteTech’s carbon chainrings blend a high-pressure-moulded Toray T800 / T700 carbon body with AL7075-T6 aerospace-grade alloy teeth and a GR5 titanium shift structure — a true carbon ring that doesn’t trade away shift quality. Choose the Double (50-34T / 52-36T / 54-38T, 110 BCD 4-arm) for road and all-round riding, or the full-carbon Single (52–60T) built specifically for time-trial and triathlon. Matte 3K finish; teeth are specially anodised for long life.

Spec Snapshot:
Toray T800 / T700 carbon + AL7075-T6 teeth • GR5 titanium shift pins •
Double: 50-34T / 52-36T / 54-38T (110 BCD 4-arm) • Single: 52–60T (TT/Tri) •
Matte 3K • Shimano 11/12s · SRAM 11/12s

LiteTech Carbon Chainring — Features & Benefits

  • Carbon body, alloy teeth: Toray T800/T700 carbon moulded as one with AL7075-T6 teeth — light, stiff, and durable.
  • Shift quality kept: GR5 titanium shift structure preserves smooth, reliable front shifting on the double.

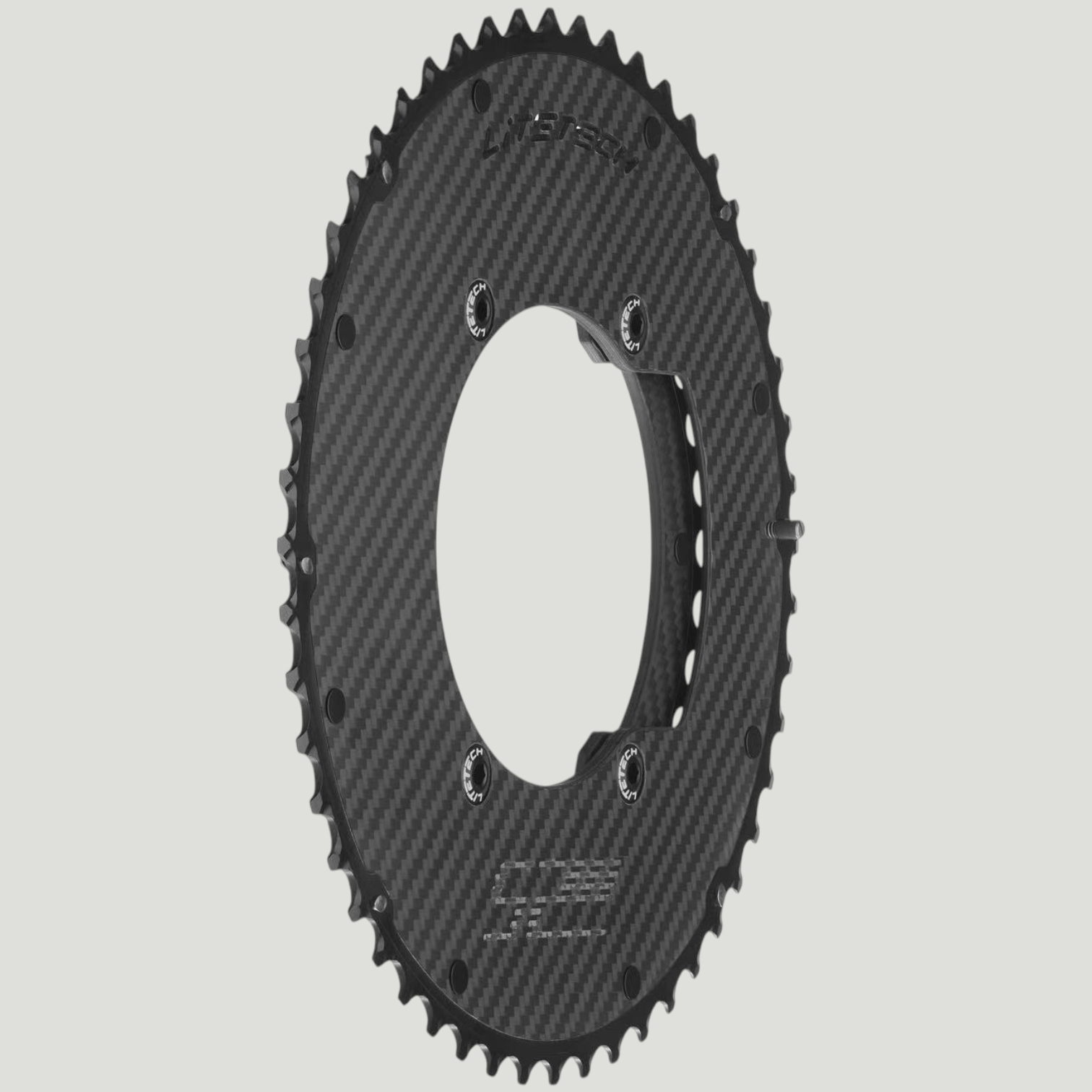

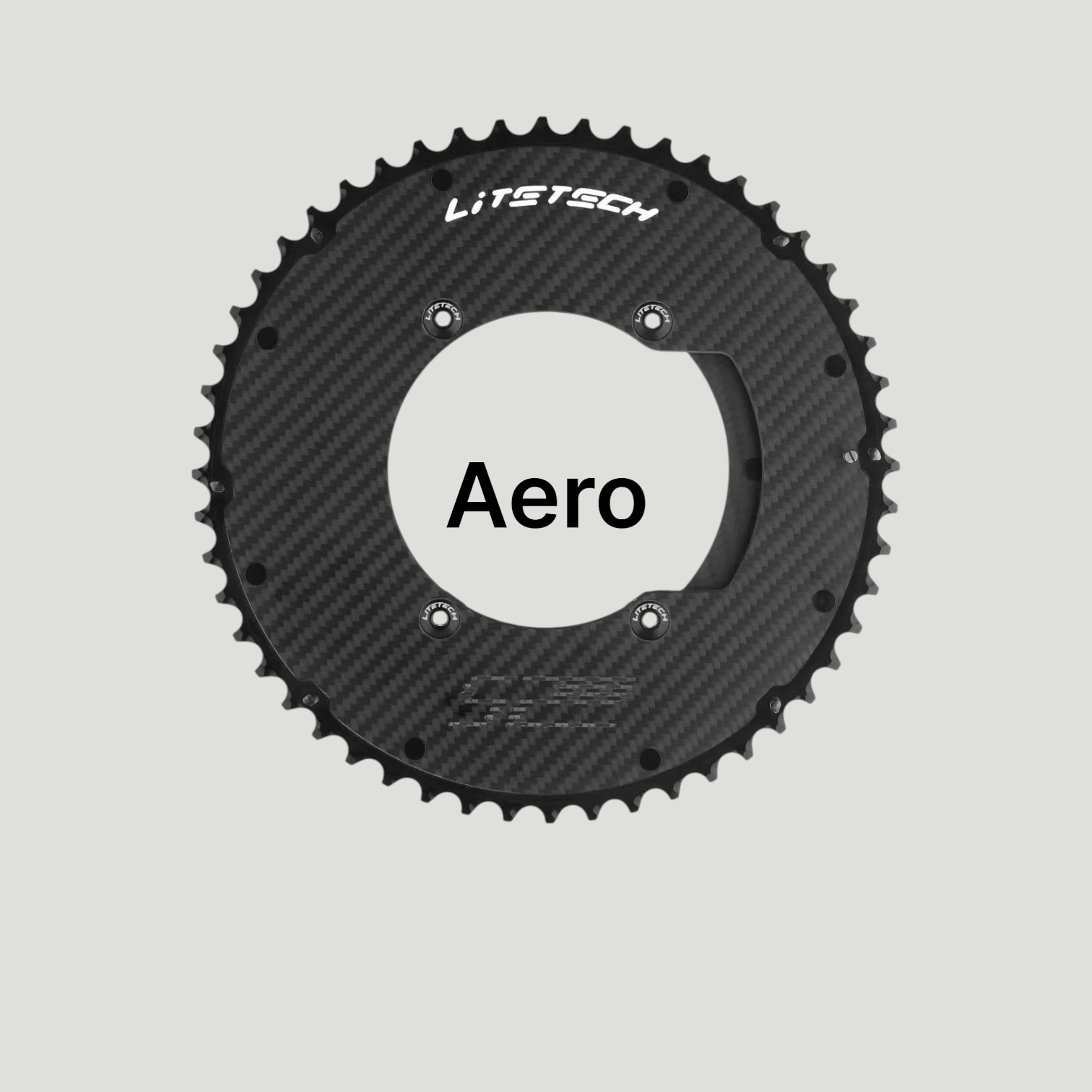

  • Single for TT/Tri: The full-carbon single (T800 + T1100) is purpose-built for time trial and triathlon, 52–60T.
  • 110 BCD 4-arm: Double mounts to 110 BCD four-arm cranksets; single spider is 110 BCD 4-arm by default (customisable).
  • Durable teeth: Special anodising (two colours) on the double; wear-resistant resin nonwoven on the single’s teeth.
  • Broad compatibility: Shimano 11/12-speed and SRAM 11/12-speed drivetrains.
LiteTech carbon chainring

LiteTech Carbon Chainring — Specifications

Construction & Material

  • Double body: Toray T800 / T700 carbon, high-pressure moulded
  • Double teeth: AL7075-T6 aerospace alloy, anodised (2 colours)
  • Shift structure: GR5 titanium
  • Single material: Full carbon — Toray T800 + T1100 (Zhongfu Shenying)
  • Single teeth: Wear-resistant resin nonwoven
  • Finish: Matte 3K carbon

Gearing & Weights

  • Double 50-34T: 113 g + 34 g (set)
  • Double 52-36T: 119 g + 37 g (set)
  • Double 54-38T: 126 g + 46 g (set)
  • Carbon Single : 52T-165g 54T-171g 56T-184g 58T-192g

Fit & Compatibility

  • BCD: 110 BCD 4-arm
  • Double cranks: 110 BCD four-arm cranksets
  • Single cranks: Shimano 7100 / 8100 / 9200 (spider customisable)
  • Drivetrains: Shimano 11/12-speed · SRAM 11/12-speed

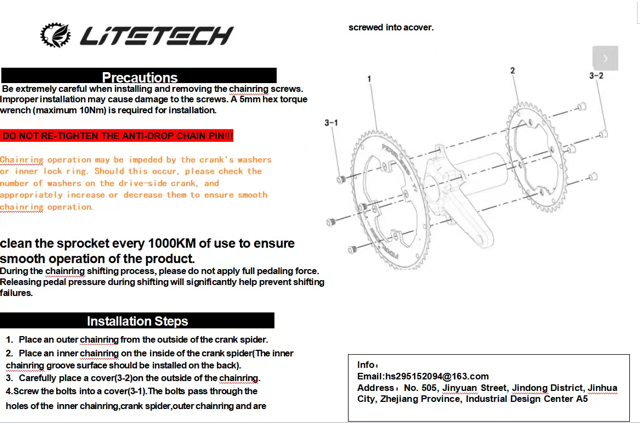

  • Note: With a single ring and the front derailleur removed on Shimano, add a chain catcher/guide.

LiteTech Carbon Double — Gearing & Weight — Comparison

Gearing Large ring Small ring (set add)
50-34T 113 g 34 g
52-36T 119 g 37 g
54-38T 126 g 46 g

All weights are manufacturer-claimed. Single ring offered 52–60T for TT/triathlon.

LiteTech Carbon Chainring (Single & Double) — FAQ

How fast does it ship?

Orders ship once processing is complete and a tracking number is generated. Delivery time depends on destination. For an ETA, message us with your location and the exact item/size you’re considering.

Do prices include duties and taxes?

Shipping and duty handling vary by destination. If DDP is offered for your destination, duties and import handling are included at checkout for eligible orders. If DDP is not available, duties and taxes may be collected by the carrier or local customs authority.

What is the warranty?

Warranty terms are provided by the manufacturer. If an issue occurs, Underdogs Cycling will guide you through the claims process and coordinate with the manufacturer where applicable.

How do I confirm compatibility before ordering?

Compatibility depends on your frame/crank standard and drivetrain. If you’re unsure, send us your bike model/year and groupset (Shimano vs SRAM) and we’ll help confirm fit.

Single or double — what’s the difference?

The double (50-34/52-36/54-38T) is for road and all-round riding on a front-shifting crank. The single (52–60T) is a full-carbon 1x ring built for time trial and triathlon.

Which cranks does it fit?

The double mounts to 110 BCD four-arm cranksets. The single fits Shimano 7100/8100/9200 cranks and its spider can be customised. Confirm your crank model with us if unsure.

Is it compatible with my groupset?

Yes — Shimano 11- and 12-speed and SRAM 11/12-speed. The single works with Shimano/SRAM 11–12 speed.

Any setup tips for the single ring?

On Shimano with the front derailleur removed, fit a chain catcher/guide to prevent drops, and lubricate the chain to help the teeth break in.




More Information

BRAND LITETECH
COMPONENT CARBON CHAINRING
DISCIPLINE ROAD, TT/TRIATHLON
