Wheeltop Road EDS TX Groupset

Sale price $650.00 USDRegular price
Regular price $650.00 USD

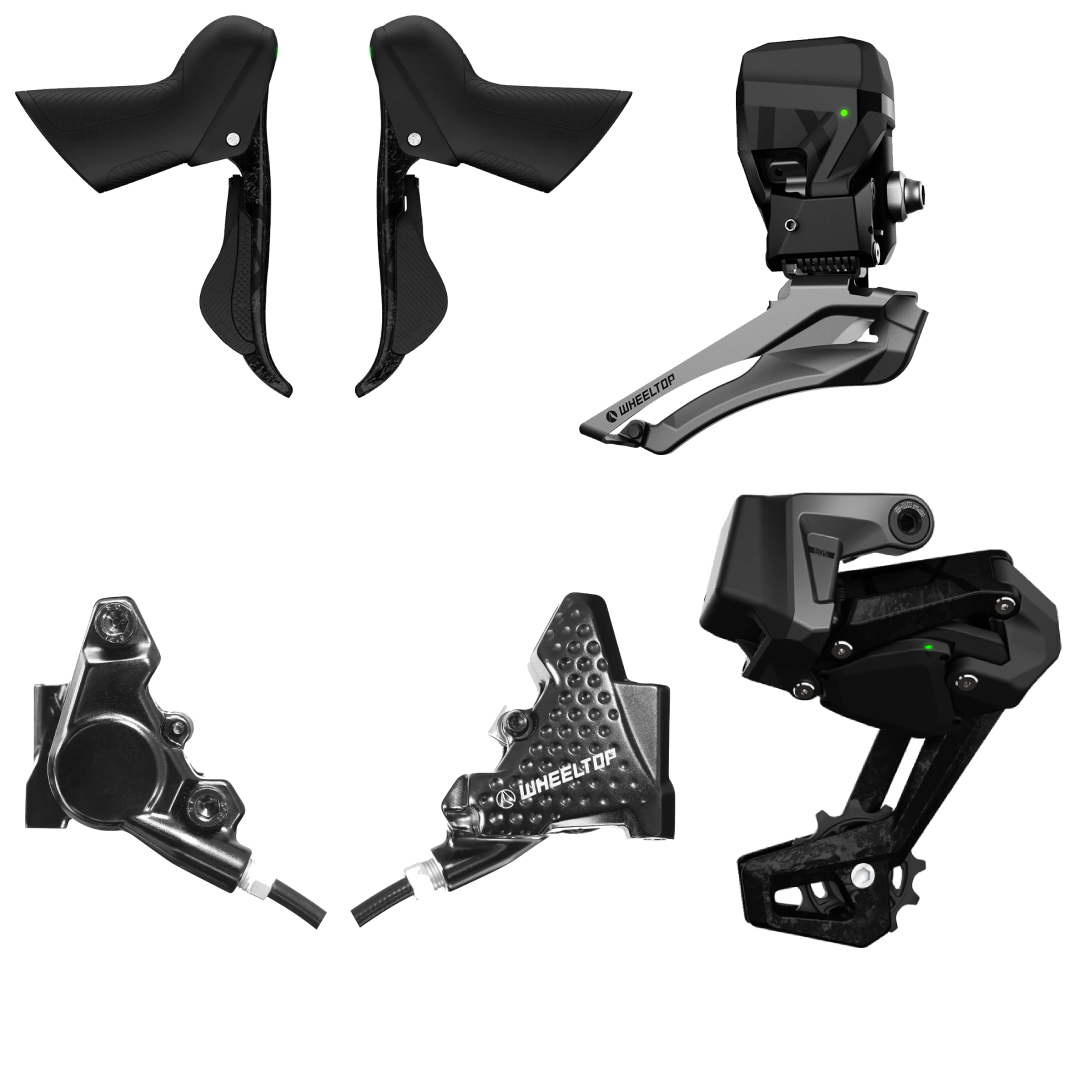

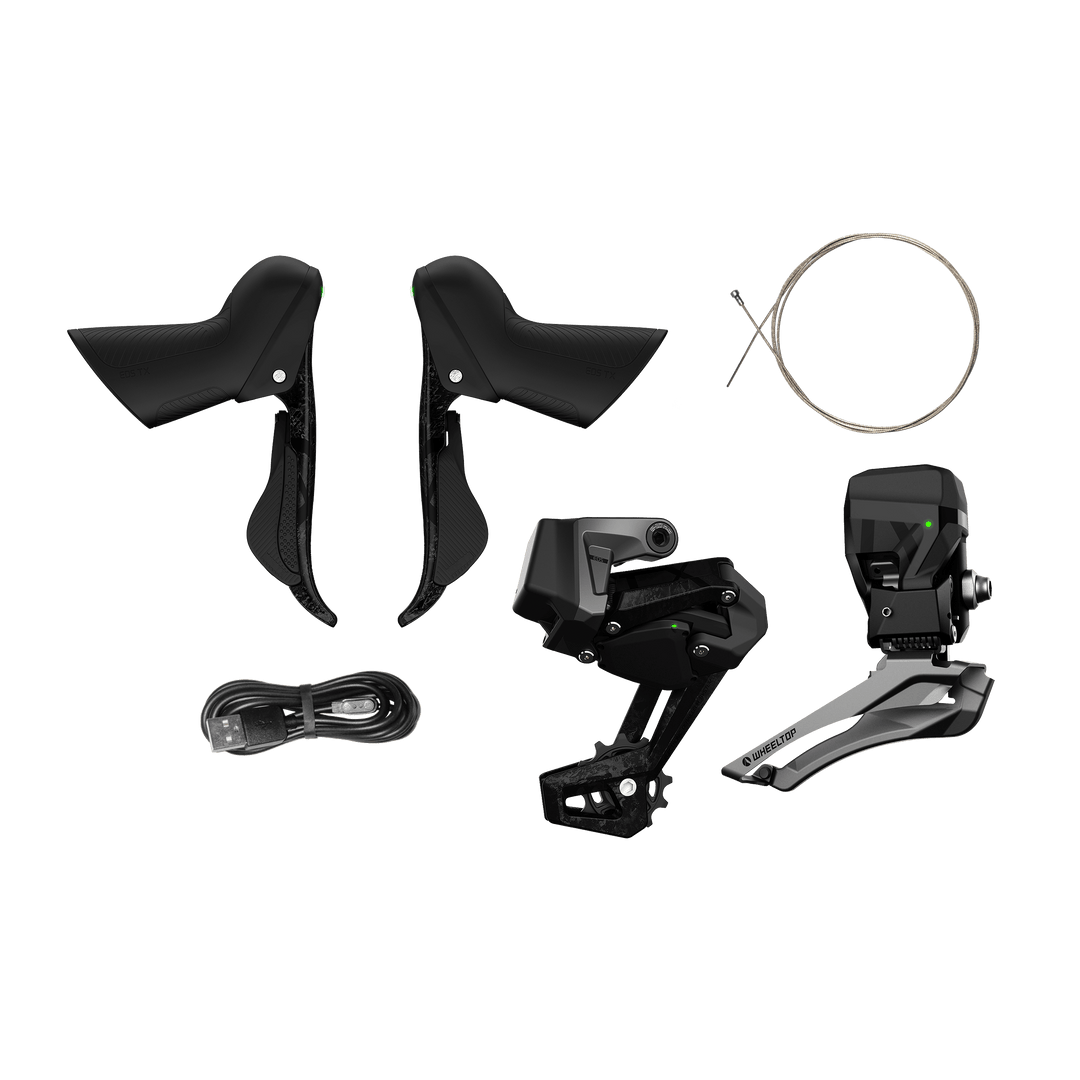

The WheelTop EDS-TX Series is available with hydraulic and cable brake options to suit your needs. Offered in alloy or carbon, the TX derailleur sets are designed to help you lose the shift cables and go wireless, providing you with an easy shift.
Customer Support Our dedicated team is always here to help with sizing, builds, and orders.
Warranty Protected 1-year manufacturer warranty
Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.
Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

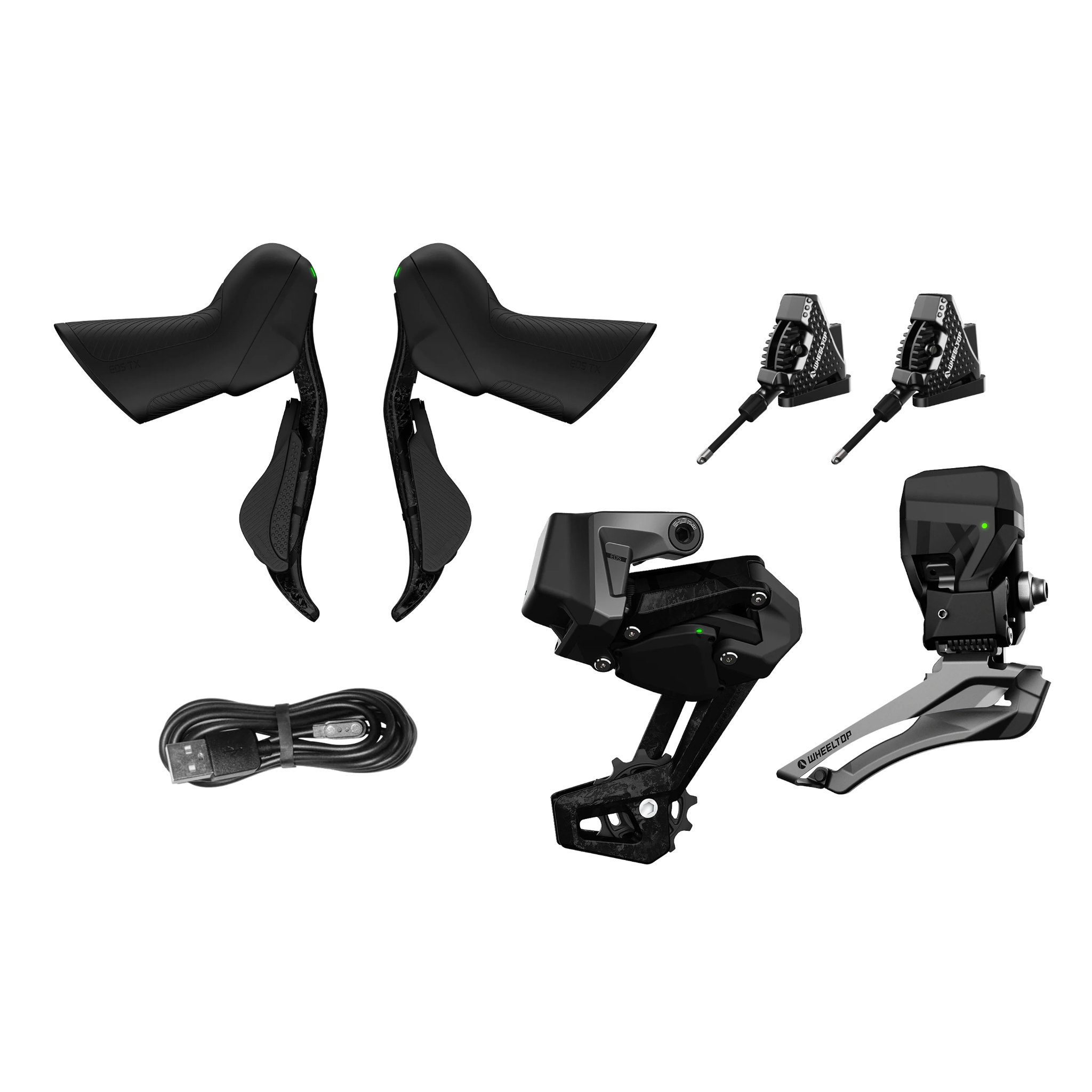

Wheeltop Road EDS TX Groupset

A fully wireless electronic road groupset in carbon, with app-based tuning, long battery life, and a choice of hydraulic or cable brakes.

Wheeltop Road EDS TX Groupset — Features & Benefits

  • Fully Wireless: drop the shift cables for a clean cockpit and easy install.
  • Carbon Construction: balances strength and weight for efficient riding.
  • App Control: fine-tune shifting, calibrate, update firmware, record rides, check battery, switch leisure/race modes.
  • Long Battery Life: up to ~20,000 shifts per charge and up to 800 charge cycles.
  • Wide Speed Range: 3–14 speed rear (1/2 speed front).
  • Hydraulic or Cable: choose the brake system that matches your build.

Wheeltop Road EDS TX Groupset — Specifications

App Features

  • Record riding data
  • 3–14 cassette compatibility
  • Multiple languages
  • Battery status check
  • Free shift up/down setting
  • Precise per-cog tuning

Specifications — Hydraulic vs Cable

Component Hydraulic Cable
Brake Lever Length 140mm 140mm
Adjustable Range Not Available Up To 8mm
Battery Type CR2032 CR2032
Speed Compatibility L 1/2s R 3-14s L 1/2s R 3-14s
Weight HD:L 223±5g R 223±5g L 202±5g R 214±5g
Minimum Sprocket 10-11T 10-11T
Maximum Sprocket 30-36T 30-36T
Total Range of Gear Change 36T 36T
RD Weight 336±5g 336±5g
Battery Capacity 800mAh 800mAh
Speed Compatibility (FD) 1/2s 1/2s
Chainring Compatibility 53T 53T
Total Range of Gear Change (FD) 16T 16T
FD Weight 191±5g 191±5g
Angle of Chain 61°-66° 61°-66°
Installation Type Band-On/Braze-On Band-On/Braze-On
Battery Capacity (FD) 500mAh 500mAh
Brake Fluid Mineral Oil Not Applicable
Caliper Mounting Type Flat-Mount (Not Compatible with Post-Mount) Not Applicable
Brake Disc Compatibility 140mm/160mm Not Applicable
Brake System Weight 163±10g (Single) Not Applicable
Brake Pads Type Compatible with Shimano L04C, L05A, L04A Not Applicable
Oil Hose Length Front: 900mm, Rear: 1550mm Not Applicable
Oil Hose Type Available with Shimano BH-90 Not Applicable

Wheeltop Road EDS TX Groupset — FAQ

How fast do orders ship?

Orders ship once processing is complete and a tracking number is generated. Delivery time depends on your destination and the carrier.

Are duties included?

Shipping and import handling vary by destination. Where DDP (Delivered Duties Paid) is available, duties are settled at checkout for eligible orders; otherwise local import duties may apply on delivery.

What warranty applies?

Wheeltop groupsets carry a manufacturer warranty. If an issue occurs, Underdogs Cycling will guide you through the claim with the manufacturer.

Will it fit my bike?

The EDS TX supports 3–14 speed rear setups with hydraulic (flat-mount) or cable brakes and up to a 53T chainring. Check the specifications table for sprocket, rotor and mount details.

Add additional information content in the block settings.
Add reviews content in the block settings or integrate with your reviews app.

You might also like

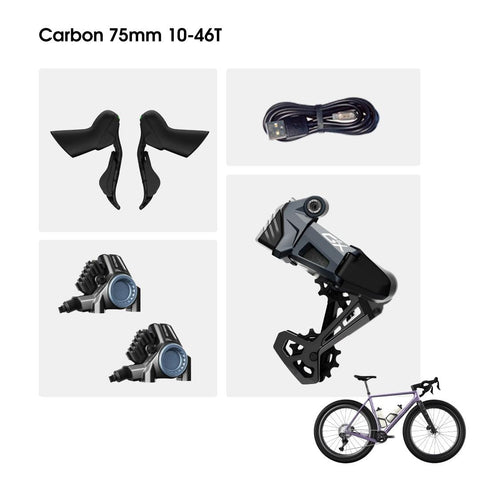

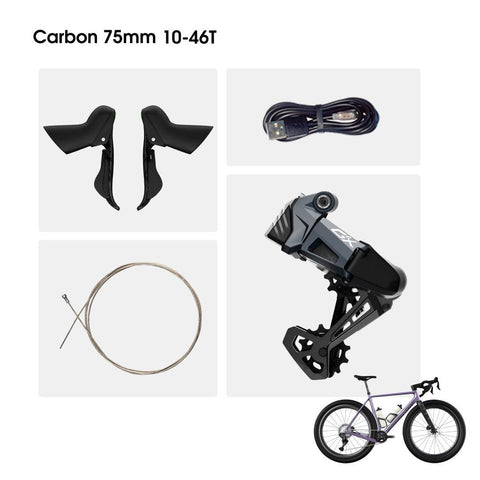

GeX 7700 Hydraulic Brake 75mm Cage (Carbon Lever) GeX 6600 Mechanical Brake 75mm Cage (Carbon Lever)
Elilee X310 Carbon Crankset Full Image Elilee X310 Carbon Crankset 24mm Spindle

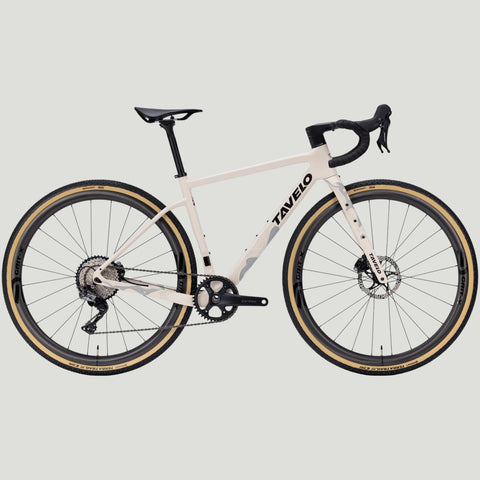

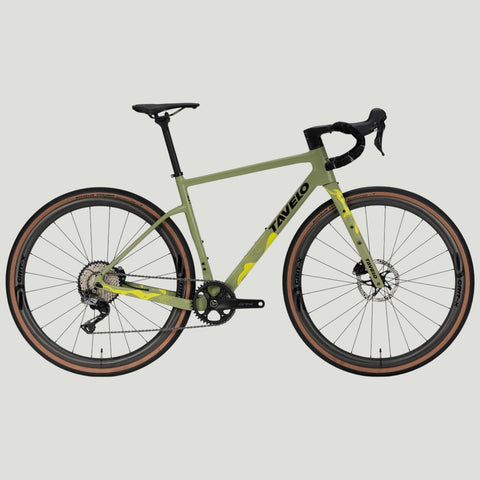

CAMO GREEN CAMO CREAM

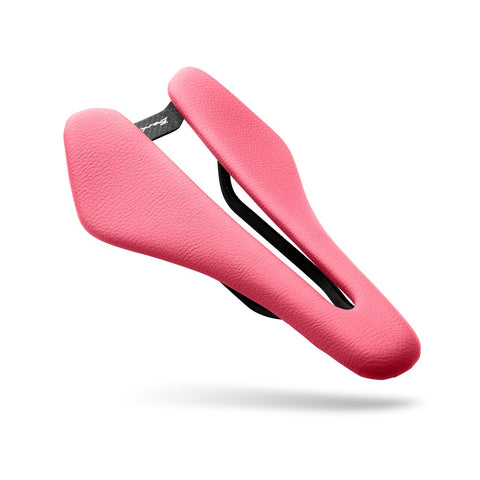

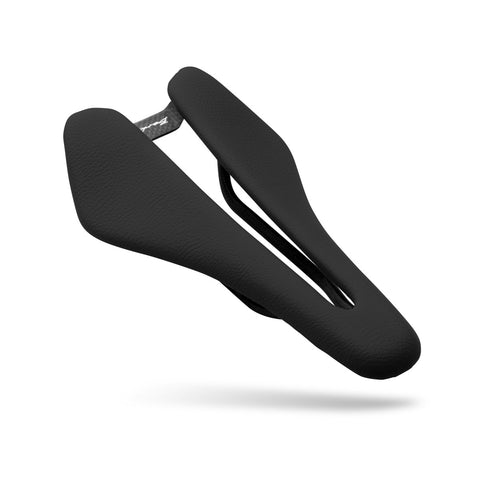

GIRO ROSE NATURAL BLACK LEATHER
