XCADEY CNC Chainring — 110 BCD 4S
The XCADEY CNC Chainring — 110 BCD 4-Arm is a precision CNC-machined AL7075 chainring for 110 BCD 4-arm direct-mount road cranks. Available in 50/34T, 52/36T and 54/40T for 2x drivetrains, in Black or Silver, it pairs perfectly with XCADEY VENTUS cranksets and XPOWER-S power meters — or upgrades your existing 110 BCD 4-arm setup. Light (170–180 g), stiff and clean-shifting.
Spec Snapshot:
CNC AL7075 · 110 BCD · 4-arm direct-mount • 2x road •
50/34T · 52/36T · 54/40T · Black or Silver •
170 g / 180 g ±10 g
XCADEY CNC Chainring — 110 BCD 4-Arm — Features & Benefits
- CNC-Machined AL7075: aerospace-grade aluminium, precision-milled for stiffness and clean, reliable shifts.
- Lightweight: 170–180 g (±10 g) depending on size — a light, responsive front end.
- 2x Road Ratios: 50/34T, 52/36T and 54/40T cover compact through semi-aero gearing.
- Two Finishes: choose Black or Silver to match your crank and frame.
- Direct-Mount 110 BCD: 4-arm direct-mount interface for a tidy, secure fit.
- System-Matched: designed to pair with XCADEY VENTUS cranksets and XPOWER-S power meters.
XCADEY CNC Chainring — 110 BCD 4-Arm — Specifications
Construction
- Material: AL7075 aluminium alloy
- Process: CNC-machined
- Weight: 170 g / 180 g ±10 g (by size)
- Finishes: Black · Silver
- Brand: XCADEY / PROWHEEL
Sizing & Ratios
- Sizes: 50/34T · 52/36T · 54/40T
- Drivetrain: 2x road
- 50/34T: compact — climbing & all-round
- 52/36T: semi-compact — versatile
- 54/40T: semi-aero — flat/fast riding
Fit & Compatibility
- BCD: 110 mm
- Interface: 4-arm direct-mount
- Discipline: road
- Pairs with: XCADEY VENTUS cranks & XPOWER-S spiders
- Also fits: other 110 BCD 4-arm direct-mount cranks — send us your crank if unsure
CNC-Machined AL7075
- Milled from a solid AL7075 billet for high stiffness-to-weight and durable, precise tooth profiles.
- Refined shift ramps and pins support fast, quiet gear changes under load.

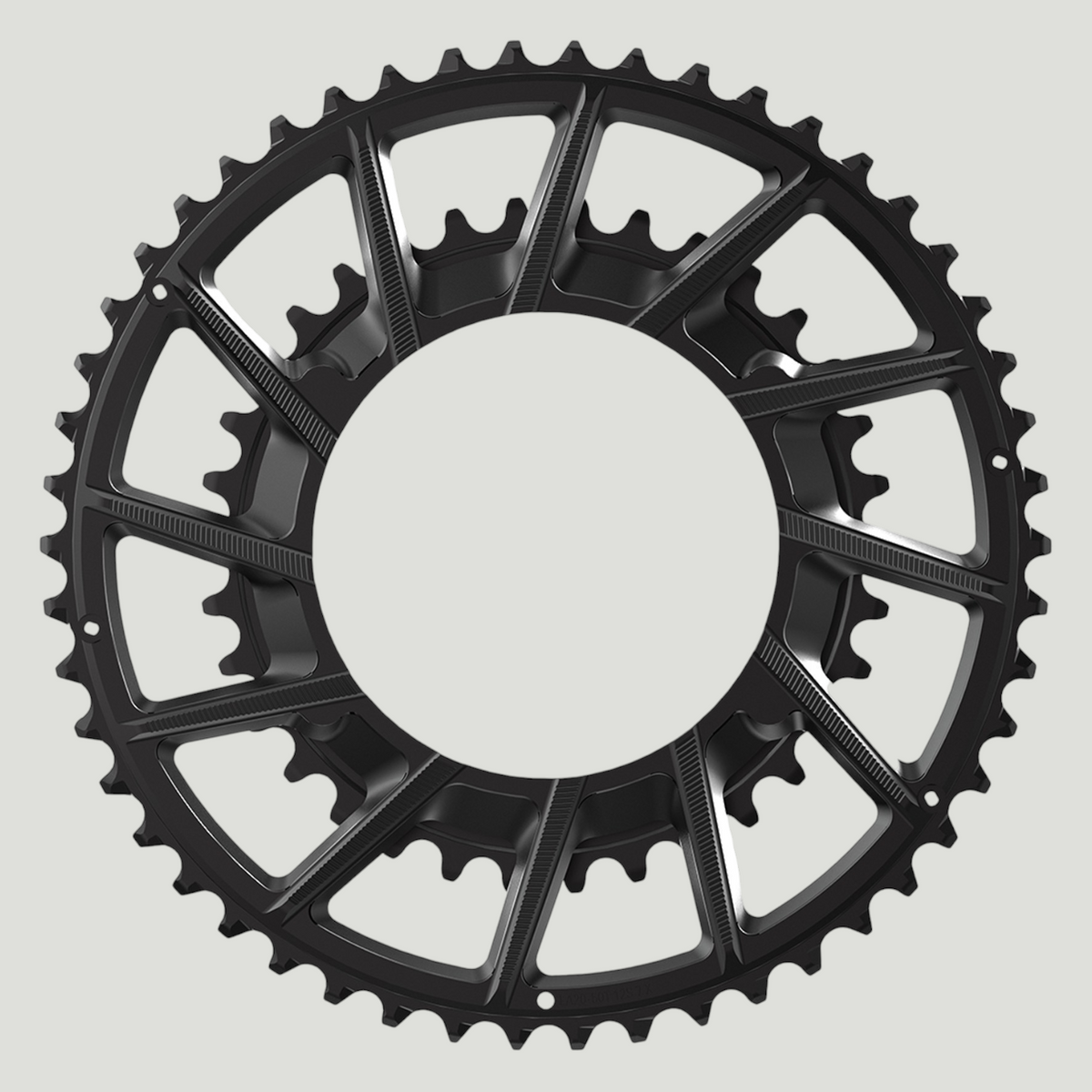

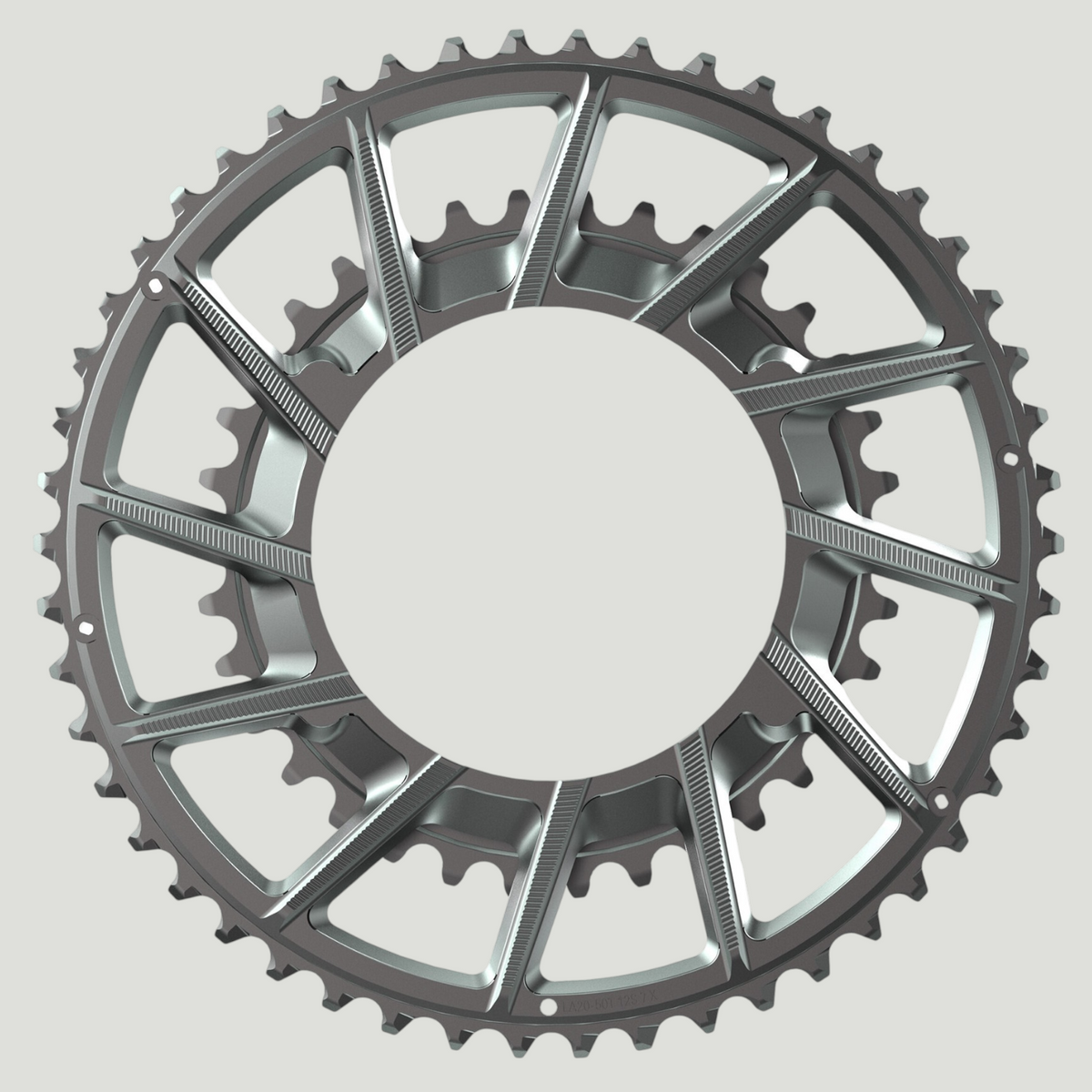

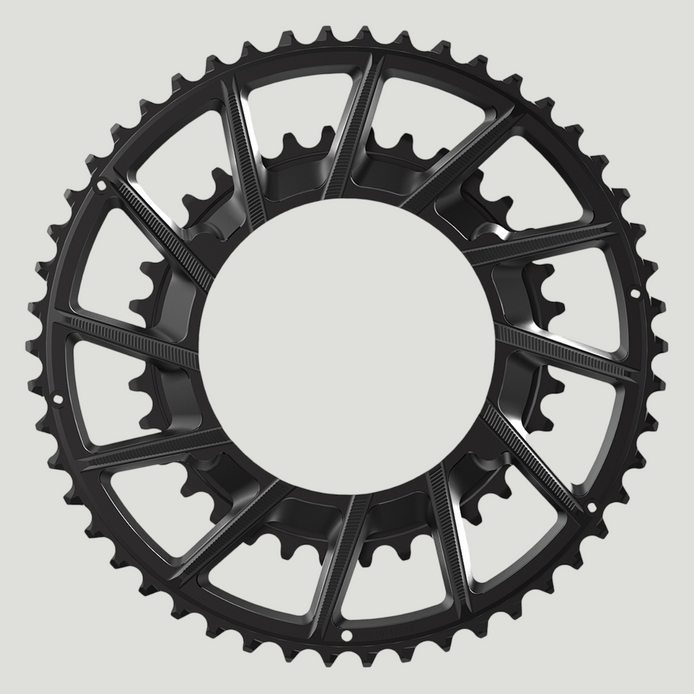

Black or Silver
- Pick the finish that matches your build — stealth Black or classic Silver.
- Both finishes come in all three ratios (50/34T · 52/36T · 54/40T).
Shipping Information
- Dispatch: ships once processed and a tracking number is generated.
- Tracking: emailed as soon as the shipment is handed to the carrier.
- Made-to-order: some sizes/finishes ship after a short lead time — message us for an ETA.
Warranty Coverage
- Coverage: manufacturing defects under normal use
- Support: handled through Underdogs Cycling
- Terms: manufacturer warranty — message us for current details.
