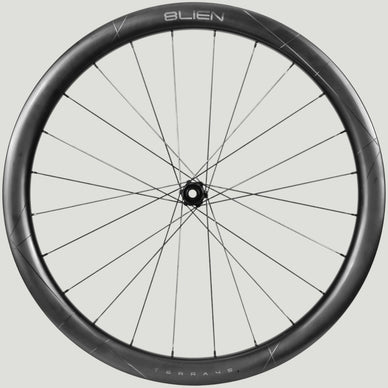

8LIEN 2026 TERRA 45 Gravel Wheelset

Q: What kind of wheelset is the 8LIEN TERRA 45?

The TERRA 45 is a 700C carbon gravel wheelset with a 45 mm front and rear rim depth, 32 mm internal width, and 40 mm external width.

Q: What tyre sizes are recommended?

8LIEN lists the optimized tyre size range as 44C–65C, with a minimum labelled tyre size of 44C.

Q: Is the TERRA 45 tubeless compatible?

The tyre fit is listed for clincher and tubeless tyres.

Q: What is the listed wheelset weight?

The published weight is 1310 ± 30 g.

Q: What hubs and spokes does the TERRA 45 use?

The wheelset is listed with TERRA 01 hubs, a 45T ratchet, and Sapim CX Ray spokes.

Q: What axle spacing does the TERRA 45 use?

The listed spacing is 12x100 front and 12x142 rear.

Q: What brake standard does the wheelset use?

The TERRA 45 is listed as Disc Brake Centerlock. Lockrings are listed as not included.

Q: Which freehub options are available?

Available freehub options are listed as Shimano 10/11/12S, SRAM XDR, Campagnolo N3W, and Micro Spline (GRX MS Body).

Q: What is the rider weight limit?

The published rider weight limit is 120 kg.

Q: What should I confirm before ordering?

Confirm your bike’s axle spacing, Centerlock rotor compatibility, cassette/freehub requirement, intended tyre size, and frame/fork clearance before ordering.

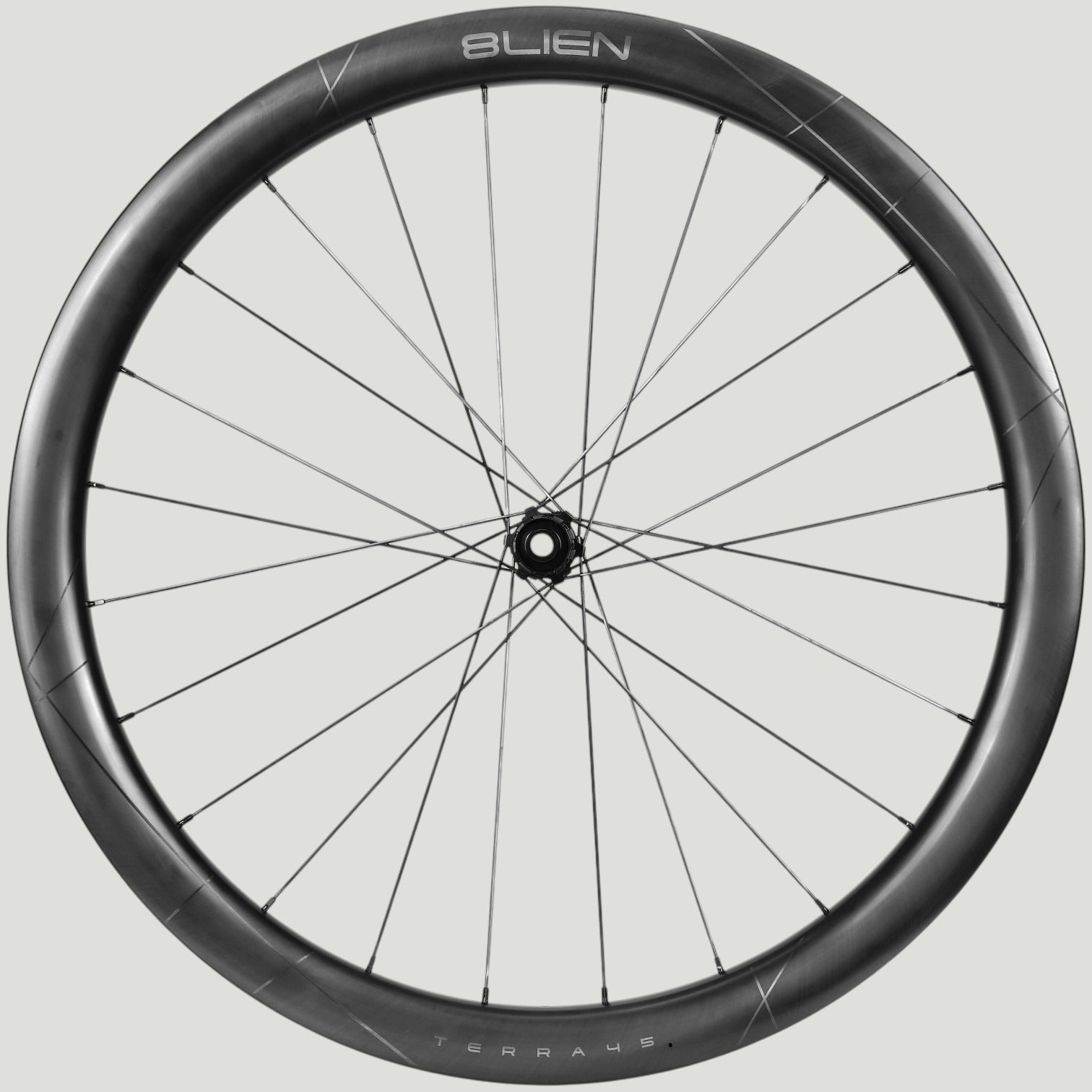

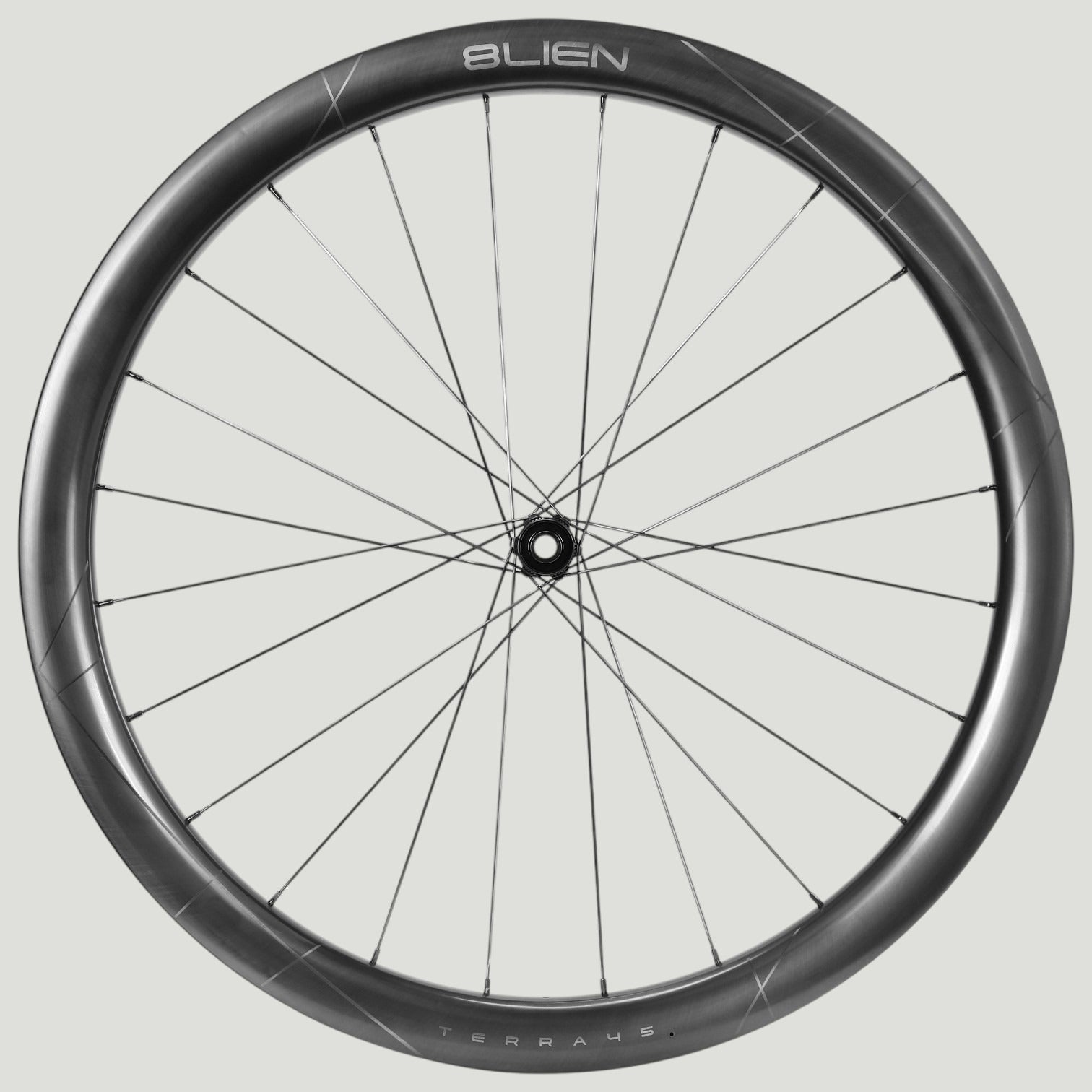

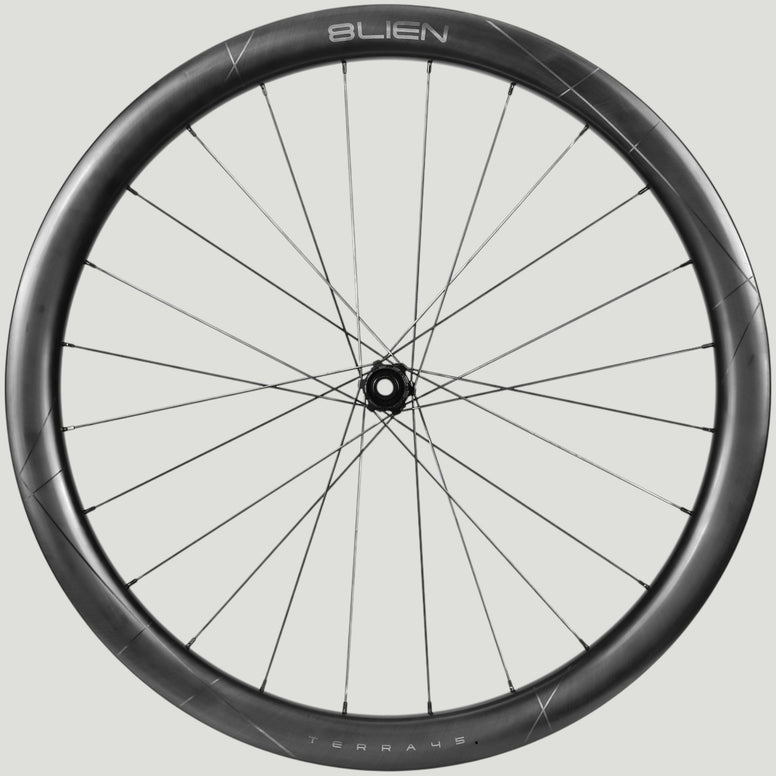

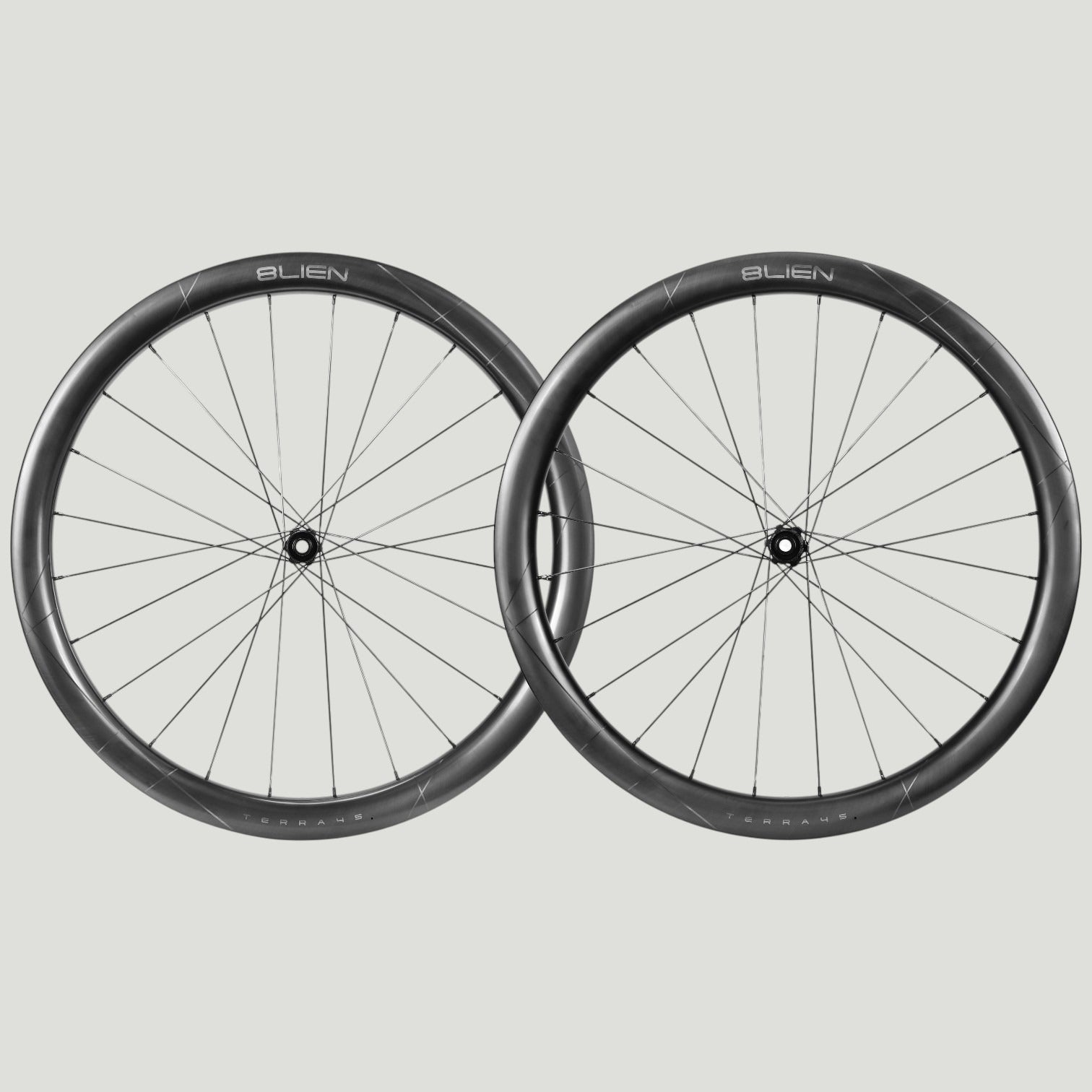

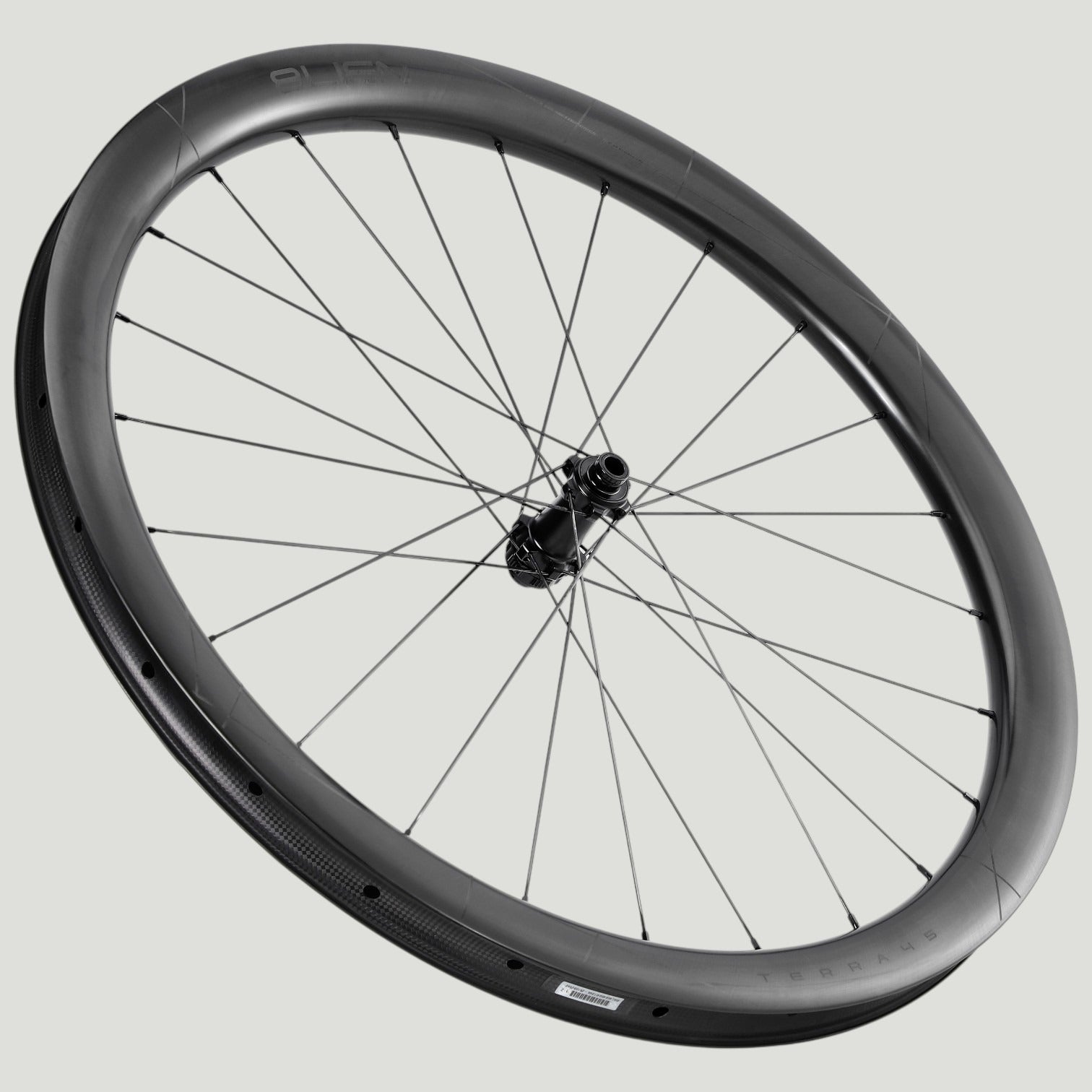

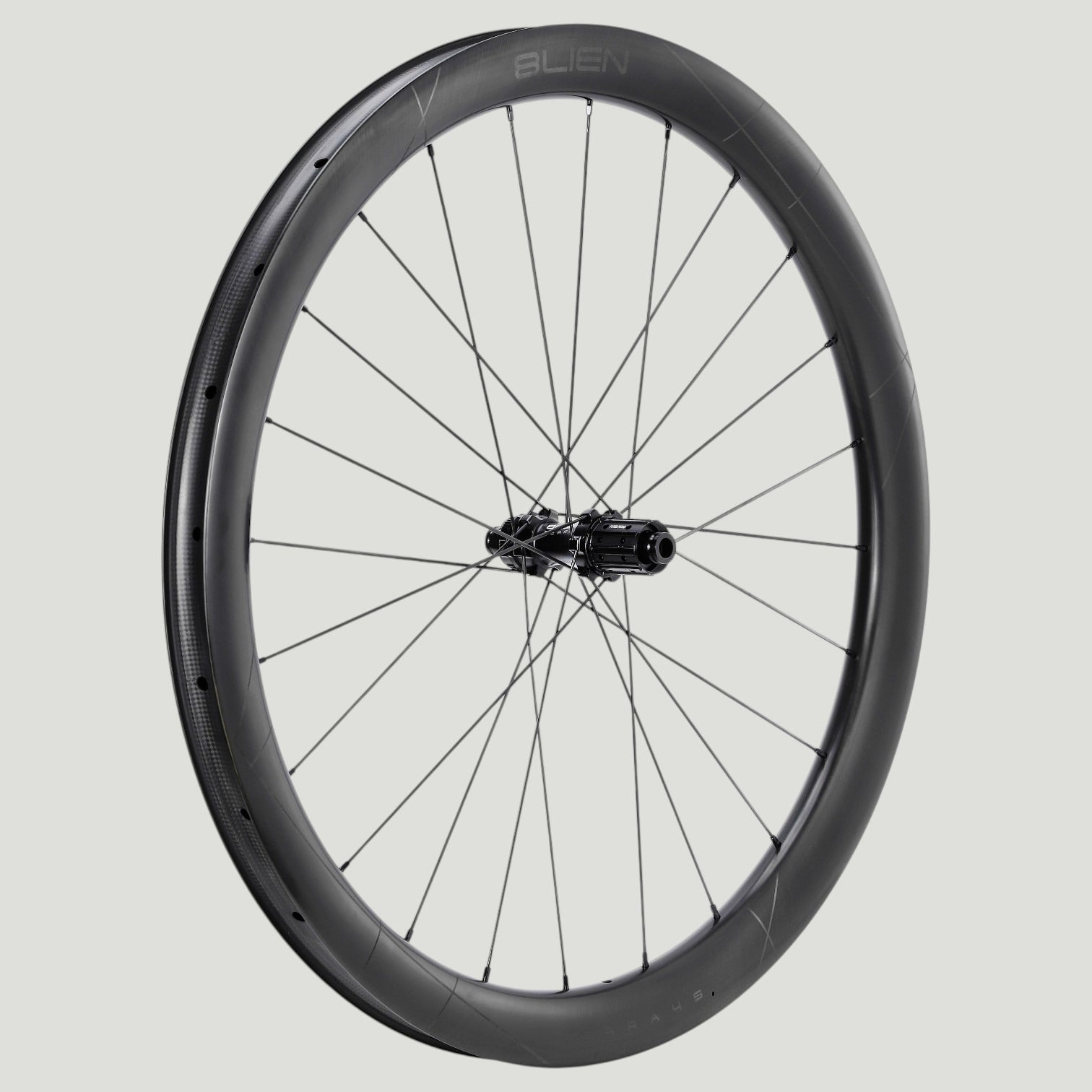

The 8LIEN 2026 TERRA 45 is a carbon gravel wheelset built around a 45 mm front and rear rim depth, 32 mm internal width, and 40 mm external width. It is designed for modern wide gravel tyres, with an optimized tyre size range of 44C–65C and a minimum labelled tyre size of 44C. The wheelset uses a hooked rim, supports clincher and tubeless tyres, and is listed with a weight of 1310 ± 30 g. Build details include TERRA 01 hubs with a 45T ratchet, Sapim CX Ray spokes, Centerlock disc brake compatibility, and modern 12x100 / 12x142 thru-axle spacing.

8LIEN 2026 TERRA 45 Gravel Wheelset — Features & Benefits

45 mm gravel wheel profile: front and rear rim depth are both listed at 45 mm.
Wide gravel rim shape: 32 mm internal and 40 mm external width for modern wide tyre support.
Hooked rim construction: designed for clincher and tubeless tyre compatibility.
Optimized for wide gravel tyres: listed tyre range is 44C–65C, with a minimum labelled tyre size of 44C.
Light listed weight: published wheelset weight is 1310 ± 30 g.

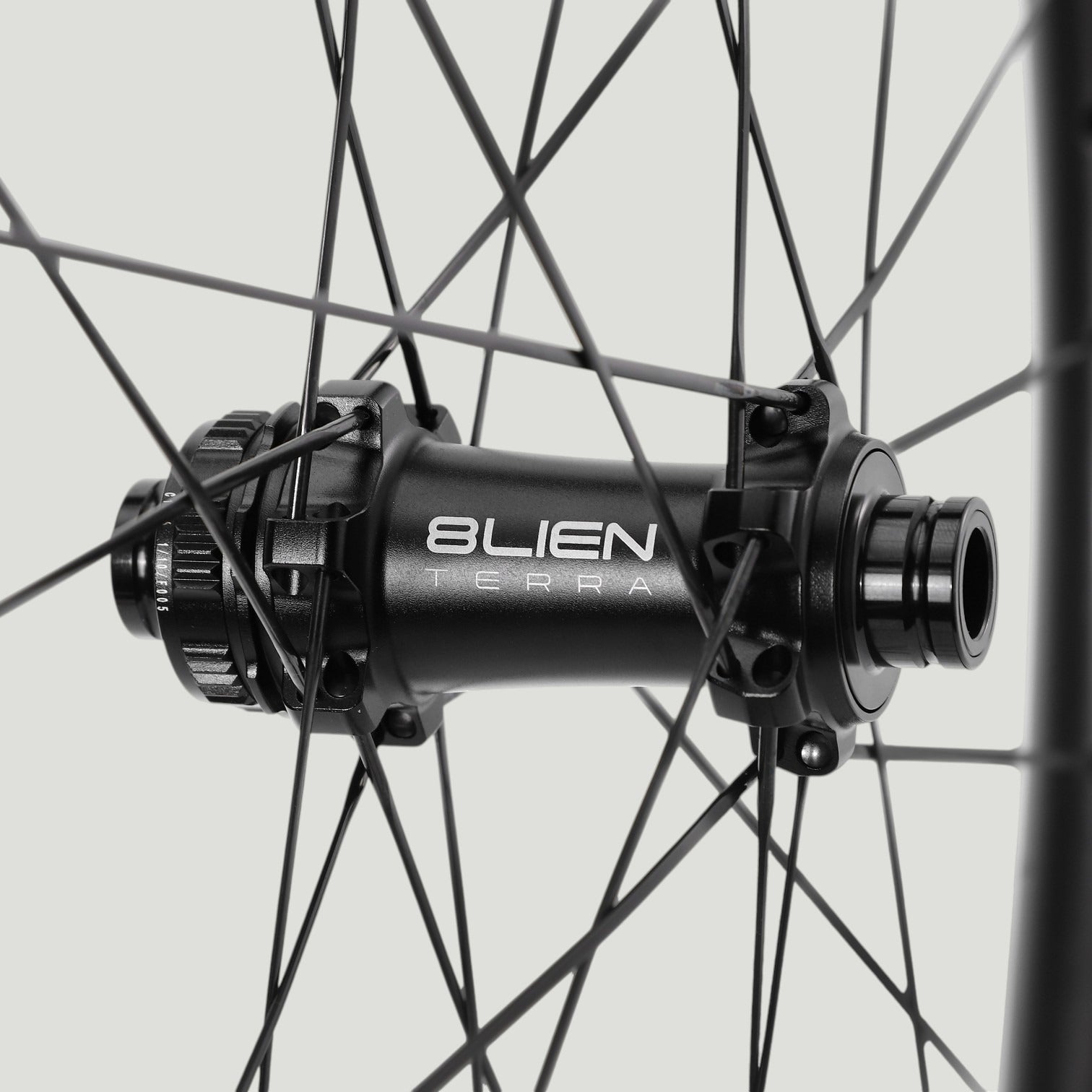

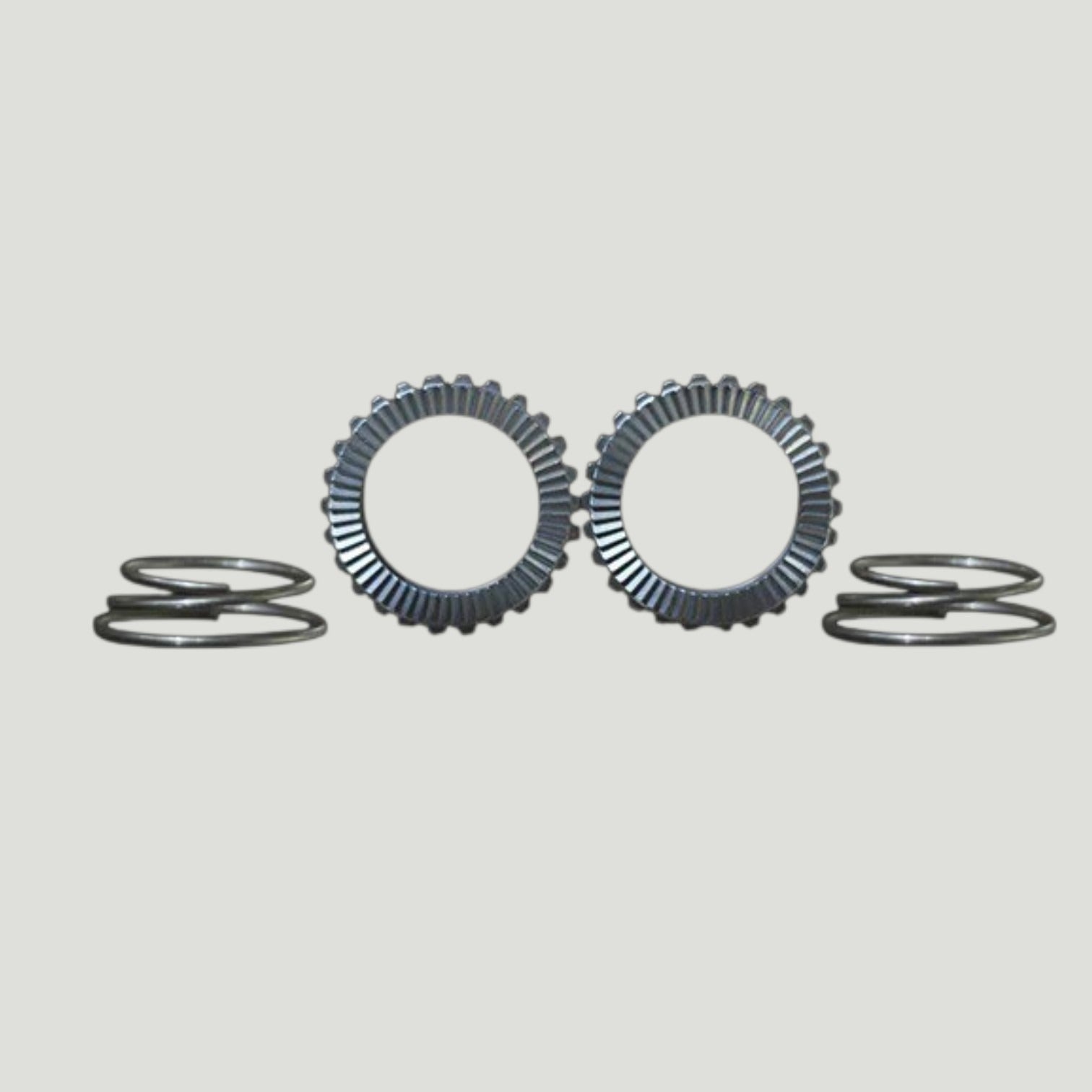

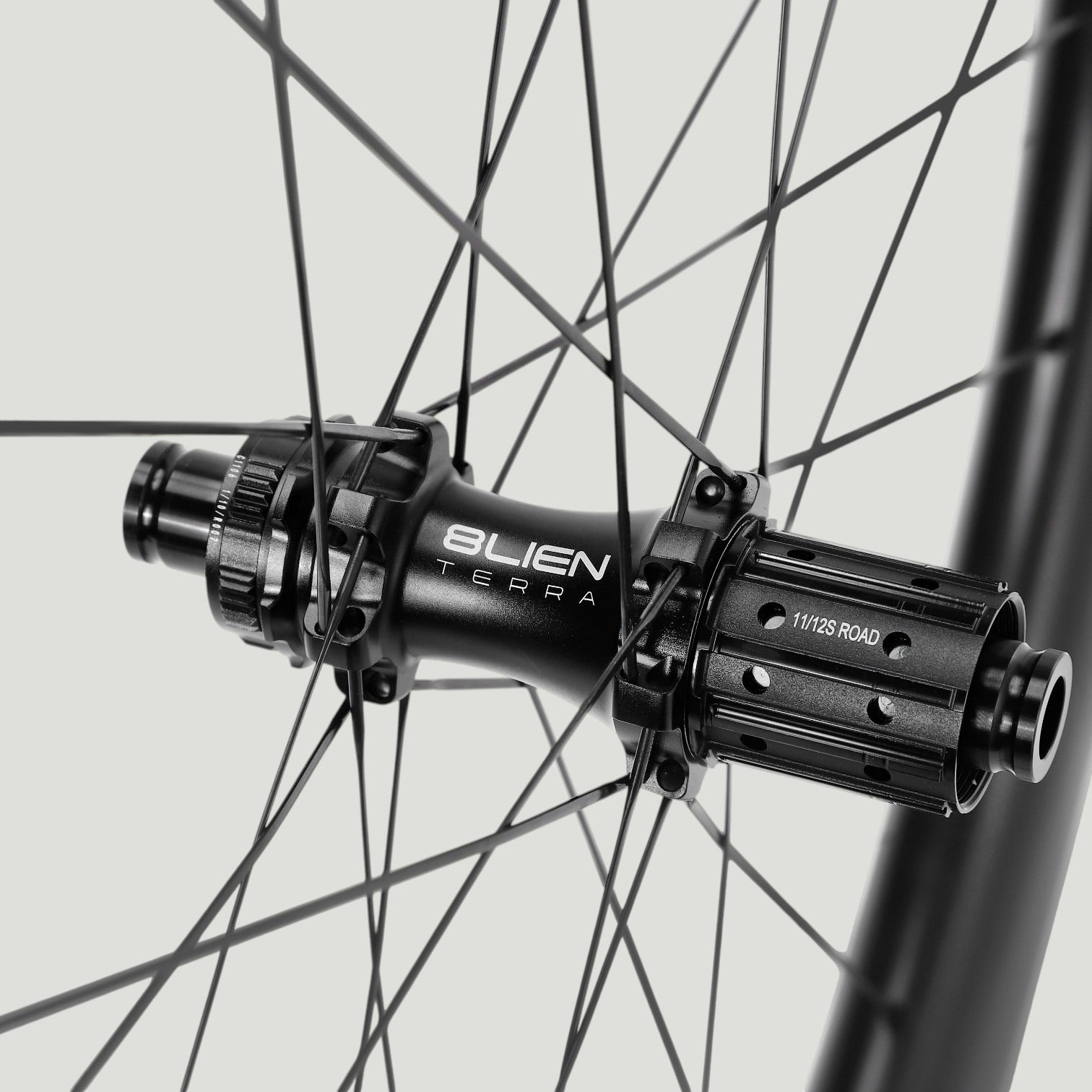

TERRA 01 hubs: hubset is listed with a 45T ratchet.
Sapim CX Ray spokes: published as the spoke choice for this build.
Modern gravel axle standard: 12x100 front and 12x142 rear.
Centerlock brake interface: listed as Disc Brake Centerlock; lockrings are not included.
120 kg rider limit: published rider weight limit is 120 kg.

8LIEN 2026 TERRA 45 — Specifications

Rims & Tyres

Wheel Size: 700C
Inner Rim Width: 32 mm
Outer Rim Width: 40 mm
Rim Depth: Front 45 mm / Rear 45 mm
Rim Finish: Coating Free
Tyre Fit: Clincher & Tubeless
Optimized Tyre Size: 44C–65C
Minimum Labelled Tyre Size: 44C
Max Tyre Pressure: 55 psi / 3.79 bar with 45C tyre

Hubs & Spokes

Hubs: TERRA 01 • Ratchet 45T
Spokes: Sapim CX Ray
Spoke Count: 24 front / 24 rear
Axles: 12x100 (F) / 12x142 (R)
Brake Type: Disc Brake Centerlock
Lockrings: Not included
Freehub: Shimano 10/11/12S, SRAM XDR, Campagnolo N3W, Micro Spline (GRX MS Body)

Weights & Limits

Approx. Weight: 1310 g (±30 g)
Rider Limit: 120 kg
Use Case: Gravel

8LIEN TERRA 45 — Overview

45 mm deep carbon gravel wheelset with 32 mm internal and 40 mm external rim width.

Specification	TERRA 45
Wheel Size	700C
Depth (F/R)	45 / 45 mm
Internal / External Width	32 / 40 mm
Tyre Fit	Clincher & Tubeless
Tyre Range	Optimized 44C–65C
Minimum Labelled Tyre Size	44C
Hubset	TERRA 01 • 45T ratchet
Spokes	Sapim CX Ray
Spoke Count	24H / 24H
Axles	12x100 / 12x142
Brake Type	Disc Brake Centerlock
Approx. Weight	1310 g (±30 g)
Rider Limit	120 kg

All weights are manufacturer-claimed and may vary by freehub body or final configuration.

Helpful Links

Browse gravel framesets here.

Then compare geometry on Geometry Geeks.

8LIEN TERRA 45 — FAQ

What kind of wheelset is the 8LIEN TERRA 45?

The TERRA 45 is a 700C carbon gravel wheelset with a 45 mm front and rear rim depth, 32 mm internal width, and 40 mm external width.

What tyre sizes are recommended?

8LIEN lists the optimized tyre size range as 44C–65C, with a minimum labelled tyre size of 44C.

Is the TERRA 45 tubeless compatible?

The tyre fit is listed for clincher and tubeless tyres.

What is the listed wheelset weight?

The published weight is 1310 ± 30 g.

What hubs and spokes does the TERRA 45 use?

The wheelset is listed with TERRA 01 hubs, a 45T ratchet, and Sapim CX Ray spokes.

What axle spacing does the TERRA 45 use?

The listed spacing is 12x100 front and 12x142 rear.

What brake standard does the wheelset use?

The TERRA 45 is listed as Disc Brake Centerlock. Lockrings are listed as not included.

Which freehub options are available?

Available freehub options are listed as Shimano 10/11/12S, SRAM XDR, Campagnolo N3W, and Micro Spline (GRX MS Body).

What is the rider weight limit?

The published rider weight limit is 120 kg.

What should I confirm before ordering?

Confirm your bike’s axle spacing, Centerlock rotor compatibility, cassette/freehub requirement, intended tyre size, and frame/fork clearance before ordering.
