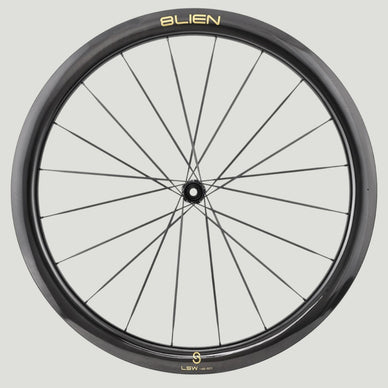

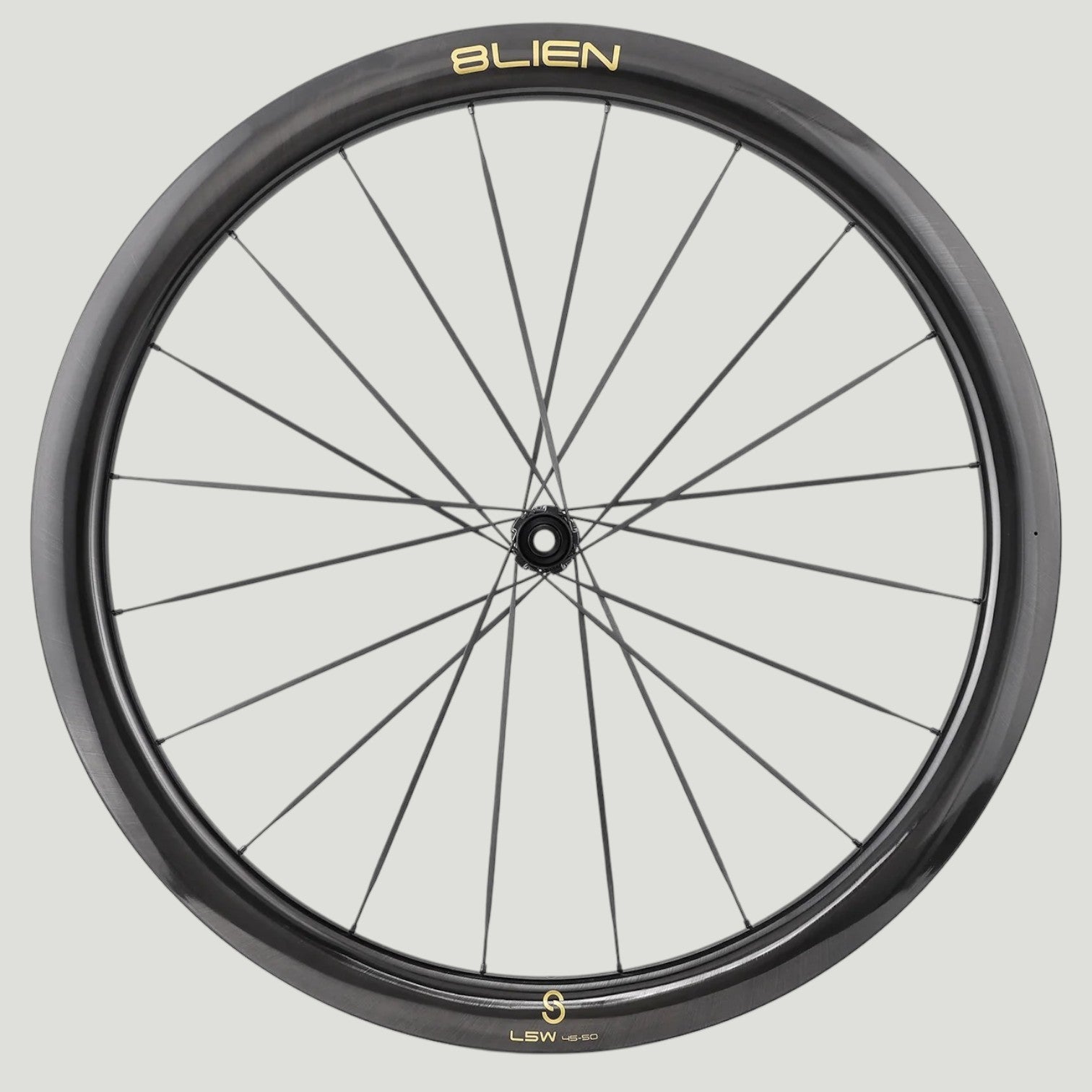

8lien L Series Wide Wheelset Front Gold Decal

Product label: % Sale

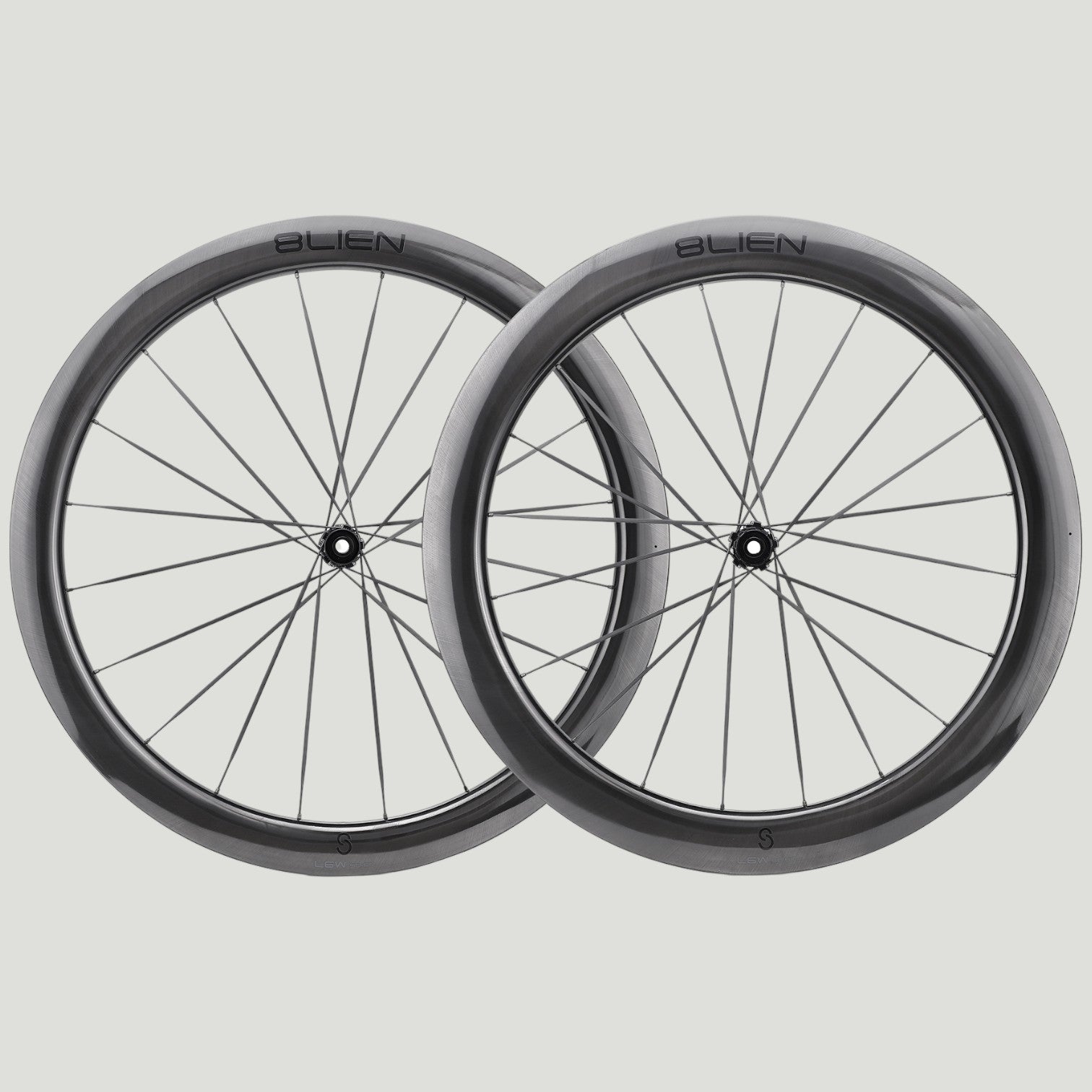

8lien L Series Wide Wheelset L6W Black Decal

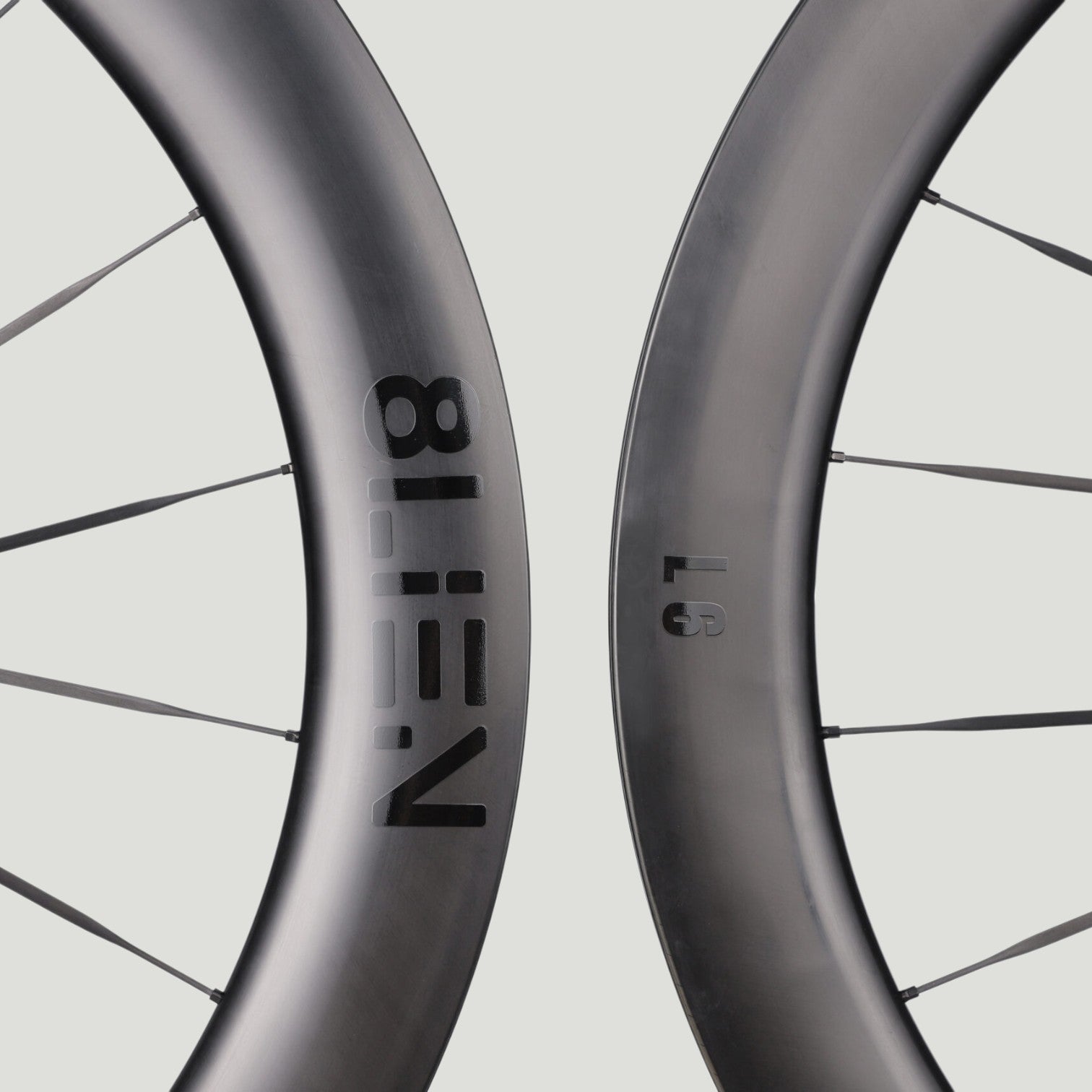

8lien L Series Wide Wheelset Original Black Glossy Decal

Road Wheelsets 8LIEN

8LIEN L Series Wide Wheelset

Name: 8LIEN L Series Wide Wheelset
Brand: 8LIEN
Price: 1196.00 USD
Availability: InStock

$1,196.00 USD

0 products in stock

Built for free speed, the 8LIEN L-Series Aero Wheels use a premium Toray T1000 layup, wide 25/34 mm hooked rims, and aero carbon spokes (1:1) for sharp handling and low drag. The R01 36T ratchet hub with S&S ceramic bearings rolls fast and engages instantly. Choose L3W 30/35, L5W 45/50, L6W 60/60, or F50/R60—all tubeless-ready, optimized for 28–48 mm tyres, with claimed weights from ~1130–1290 g and a 110 kg rider limit.

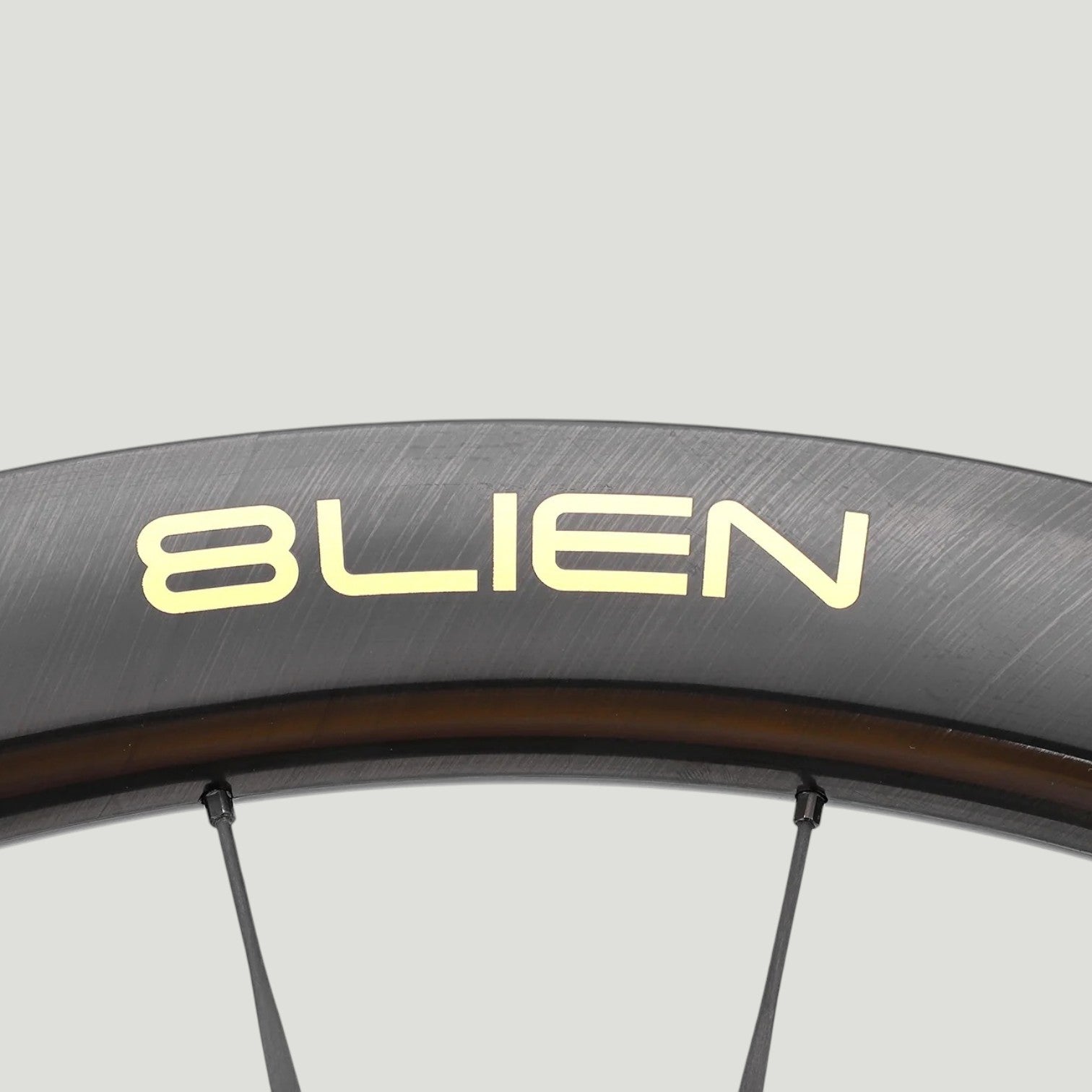

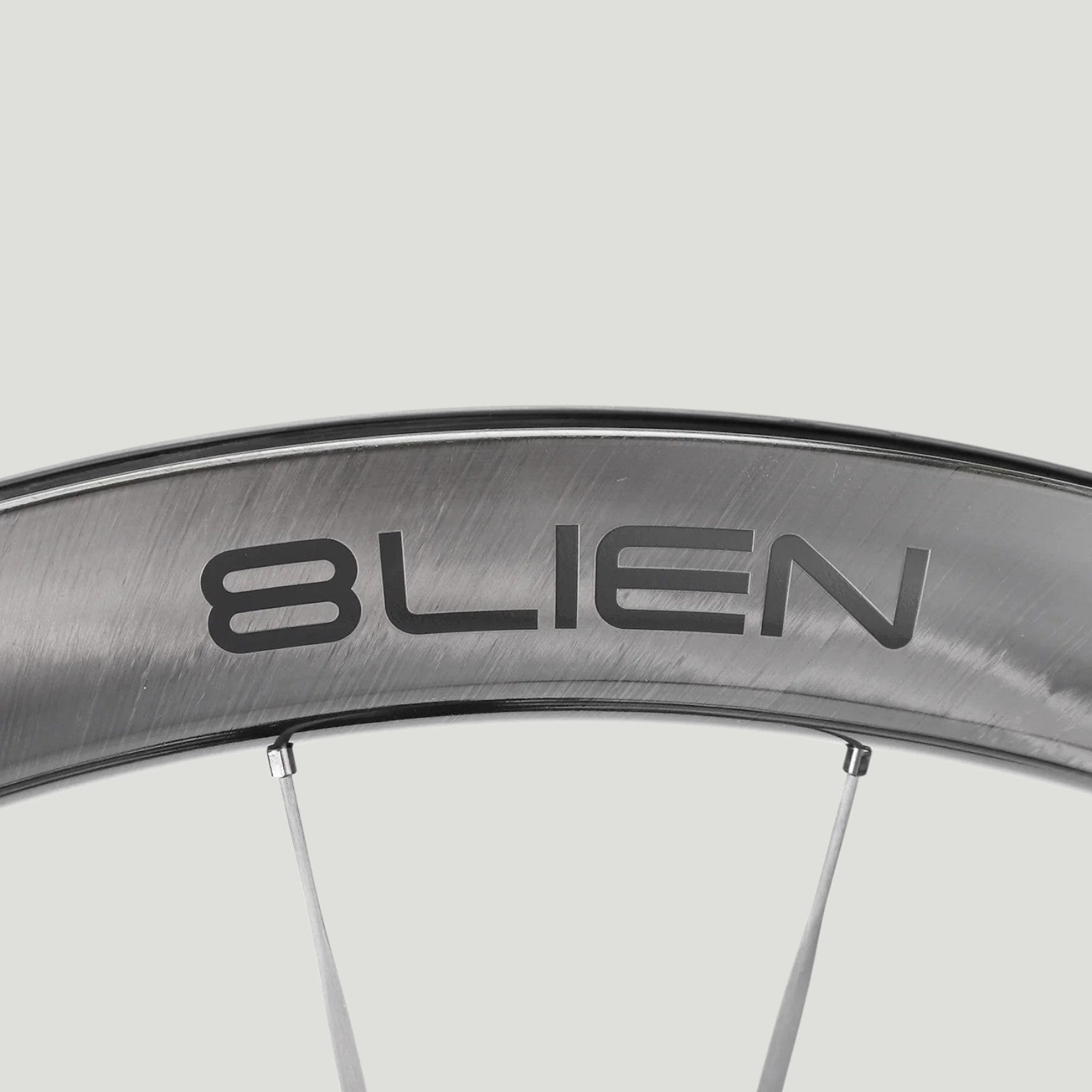

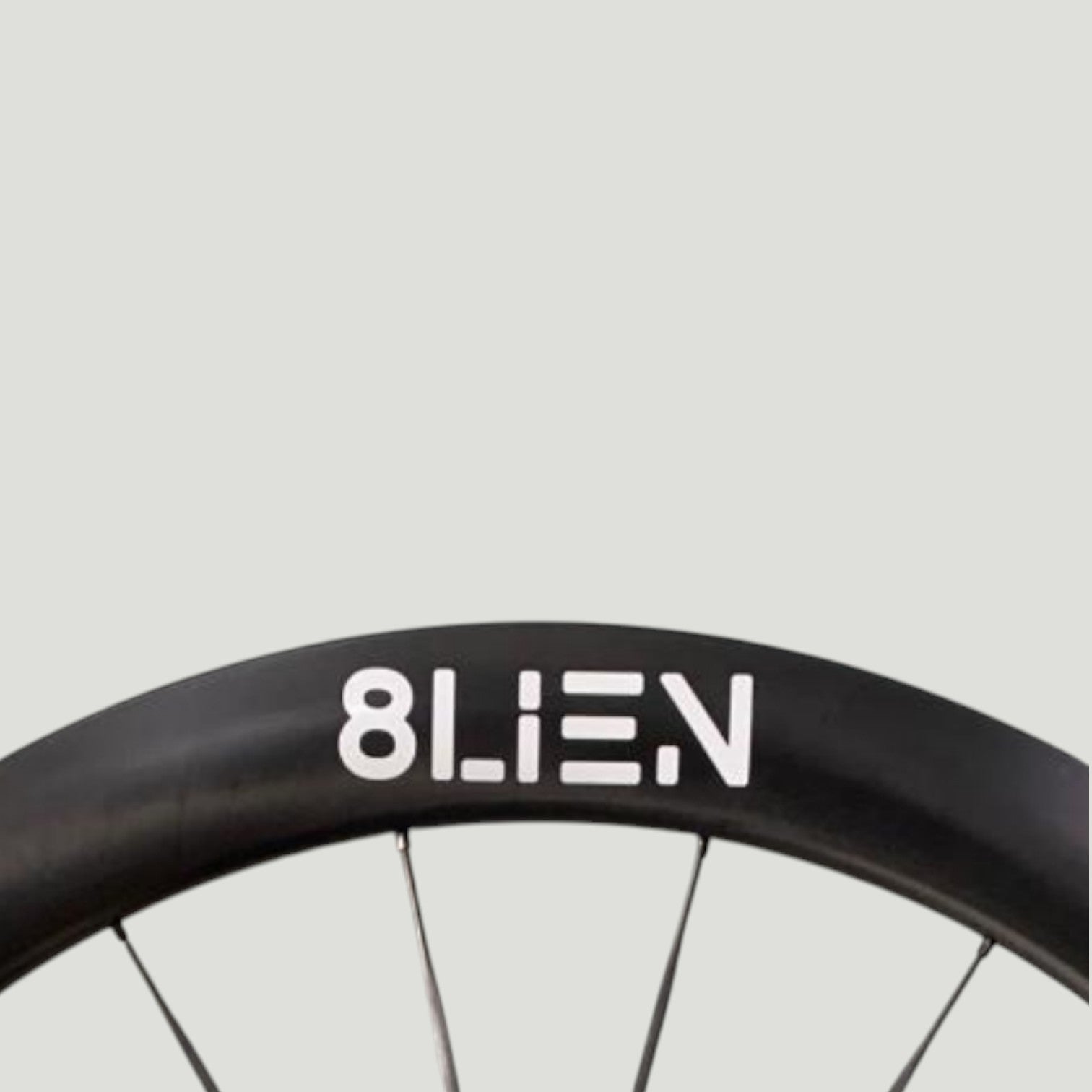

NOTE: Logo colour options use the new 8lien font, as seen in the Gold & New Black Glossy logos. The swatches are for reference only

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected 3-year warranty + crash replacement (5-year with registration)

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

8LIEN L Series Wide Wheelset

The 8LIEN L Series Wide was engineered for free speed with modern 25 mm internal rims and a coating-free finish. Built from Toray T1000 carbon for a high stiffness-to-weight ratio, the lineup lets you choose your depth—L3W 30/35 for punchy terrain, L5W 45/50 as the fast all-rounder, L6W 60/60 for aero days, or a F50/R60 mixed set. Stiff carbon spokes (1:1) tie into the new R01 36T ratchet hub with S&S ceramic bearings for crisp engagement and smooth rolling. Hooked, tubeless-ready rims are optimized for 28–48 mm tyres, rider limit 110 kg.

8LIEN L Series Wide — Features & Benefits

Toray T1000 Carbon: premium layup for high stiffness with low weight.
Pick Your Depth: L3W (F30/R35), L5W (F45/R50), L6W (60/60), or F50/R60 mixed.
Modern Wide Rim: 25 mm internal, 34 mm external for fast tyre shaping and stability.
Hooked & Tubeless-Ready: Clincher & tubeless compatibility with easy inflation.
R01 Ratchet Hub: 36T star-ratchet with S&S ceramic bearings for low drag & quick pickup.
Carbon Spokes: Aero 4.5 mm blades in a 1:1 pattern (20F/20R) for stiffness and low aero drag.
Coating-Free Finish: Paintless CF surface for scratch resistance and reduced weight.
Tyre Range: Optimized for 28–48 mm tyres (min labeled 28 mm); rider limit 110 kg.

8LIEN L Series Wide— Specifications

Rims & Tyres

Material: Toray T1000 carbon, coating-free (paintless) finish
Wheel Size: 700C
Internal / External Width: 25 mm / 34 mm
Tyre Fit: Clincher & Tubeless; min labeled 28 mm (optimum 28–48 mm)
Pressure (max): Clincher < 125 psi (8.6 bar); Tubeless < 90 psi (6.2 bar)

Hubs & Spokes

Hubs: R01 ratchet, 36T, Center Lock
Bearings: S&S ceramic
Spokes: Carbon aero (4.5 mm), 1:1 pattern
Spoke Count: 20 front / 20 rear
Axles: 12×100 (F) / 12×142 (R)
Freehub: Shimano 10/11/12s, SRAM XDR, Campagnolo N3W

Weights & Limits

L3W: ~1130 g (±30 g)
L5W: ~1220 g (±30 g)
L6W: ~1290 g (±30 g)
F50/R60 mix: ~1250 g (±30 g)
Rider Limit: 110 kg

8LIEN L Series Wide — Lineup & Sizes

8LIEN L3W 30/35, L5W 45/50, L6W 60/60, and F50/R60 profiles — Pick a depth for your terrain: 30/35 climb • 45/50 all-round • 60/60 aero.

Model	L3W	L5W	L6W	F50/R60
Depth (F/R)	30 / 35	45 / 50	60 / 60	50 / 60
Internal / External (mm)	25 / 34
Spoke Count	20F / 20R (1:1 pattern)
Hubset	R01 36T ratchet • S&S ceramic • Center Lock
Approx. Weight (pair)	~1130 g	~1220 g	~1290 g	~1250 g
Tyre Range	Optimized 28–48 mm (min labeled 28 mm)
Rider Limit	≤ 110 kg
