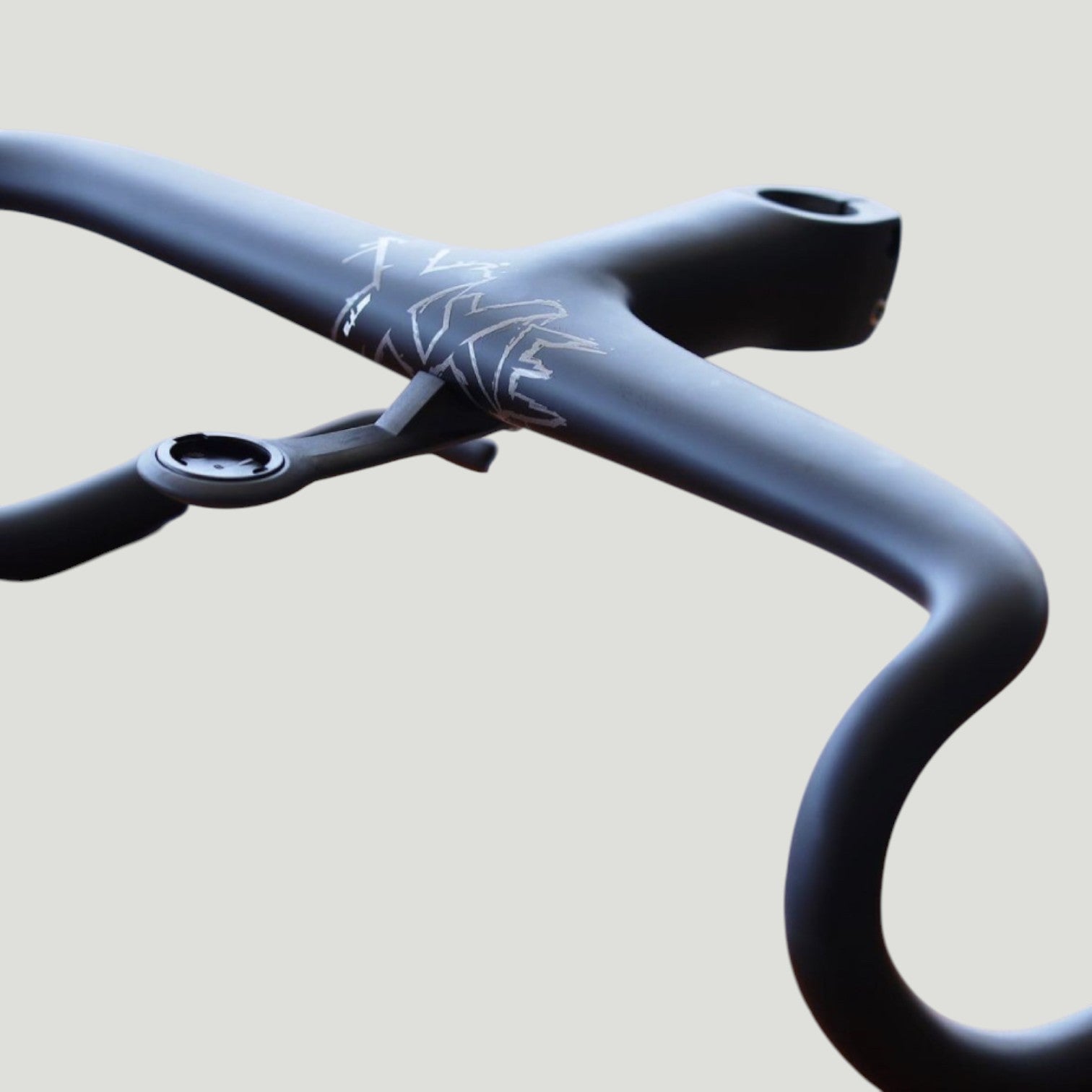

Elilee Xxe Integrated Handlebar Computer Mount

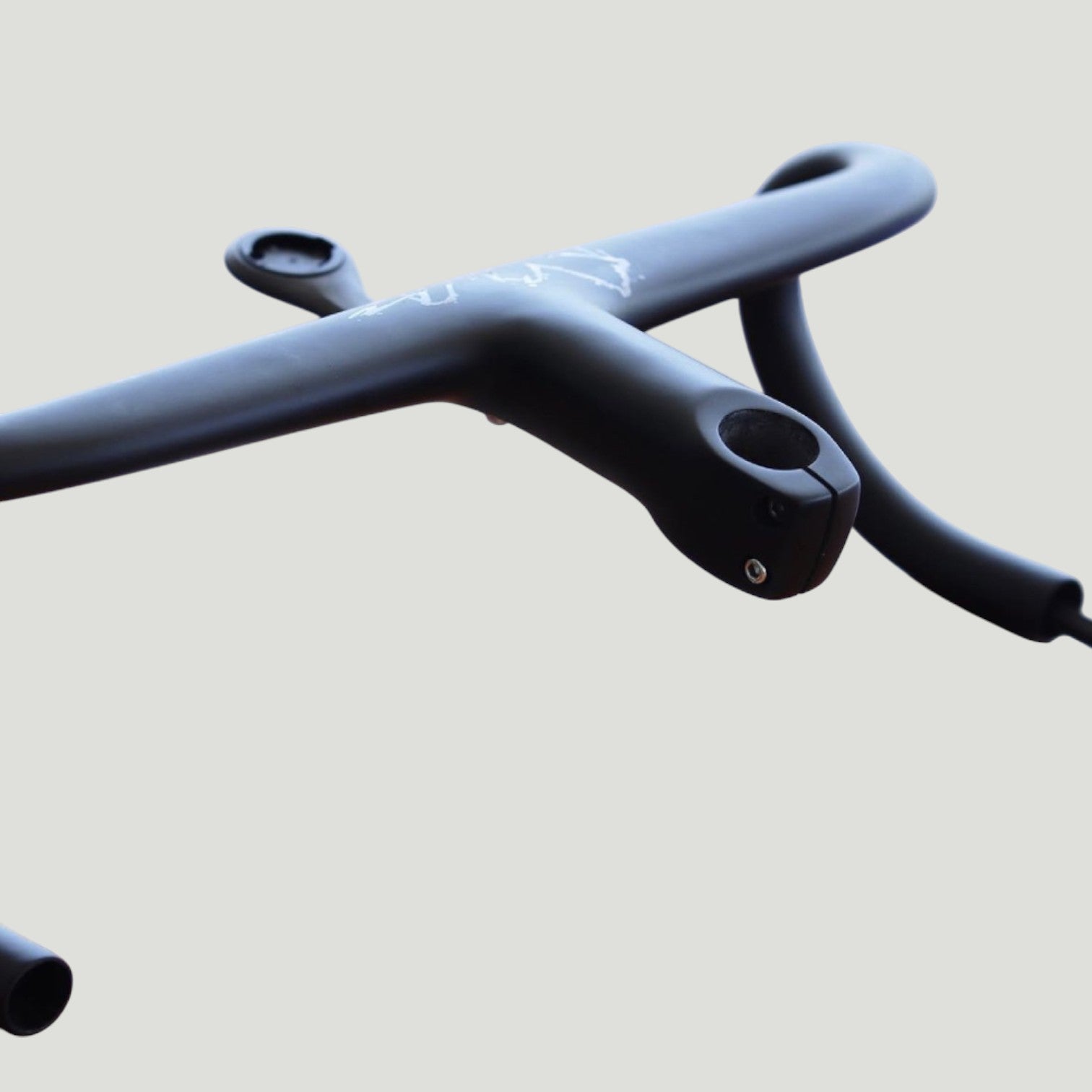

Elilee Xxe Integrated Handlebar Stem View

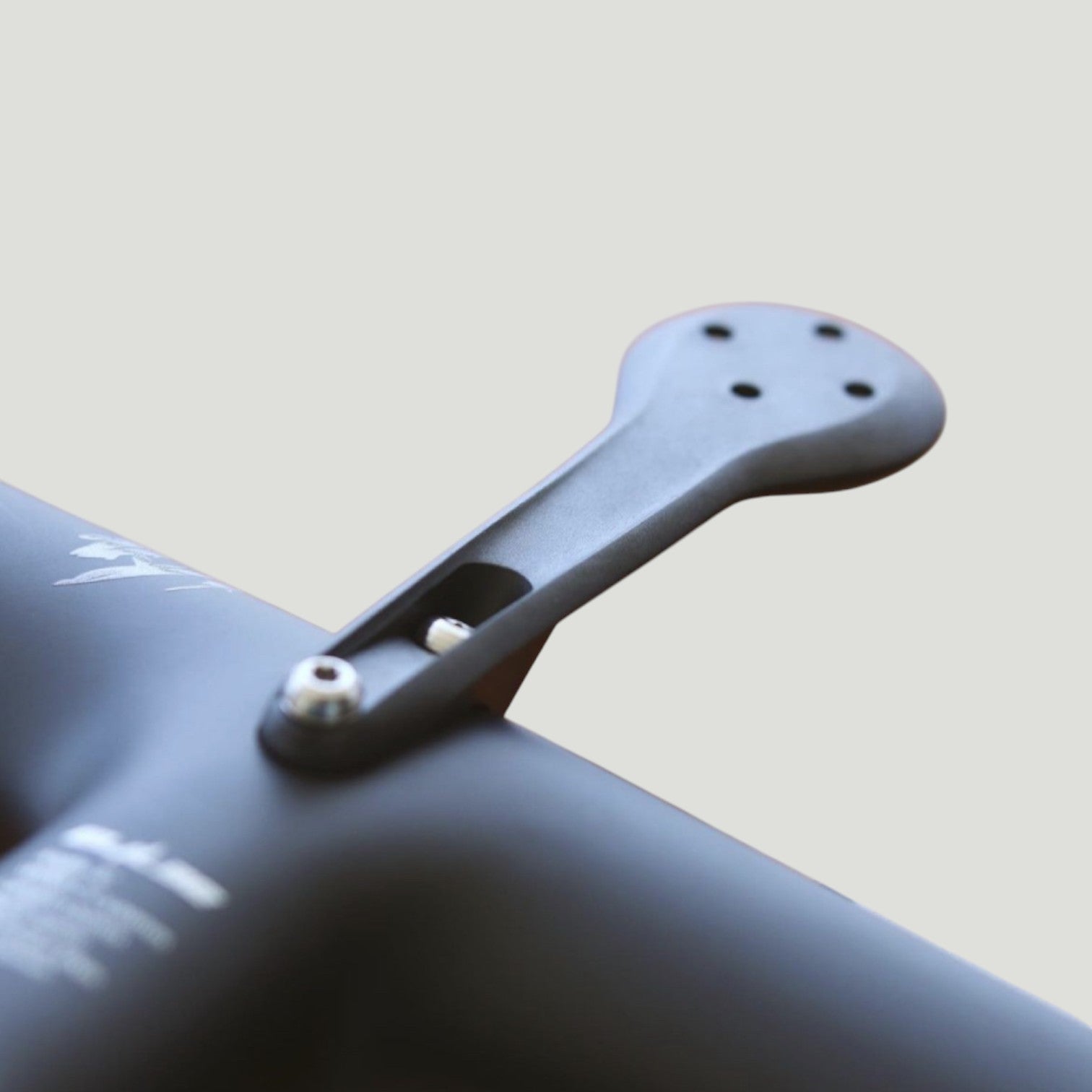

Elilee Xxe Integrated Handlebar Computer Mount Bottom

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected Lifetime warranty on carbon components

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

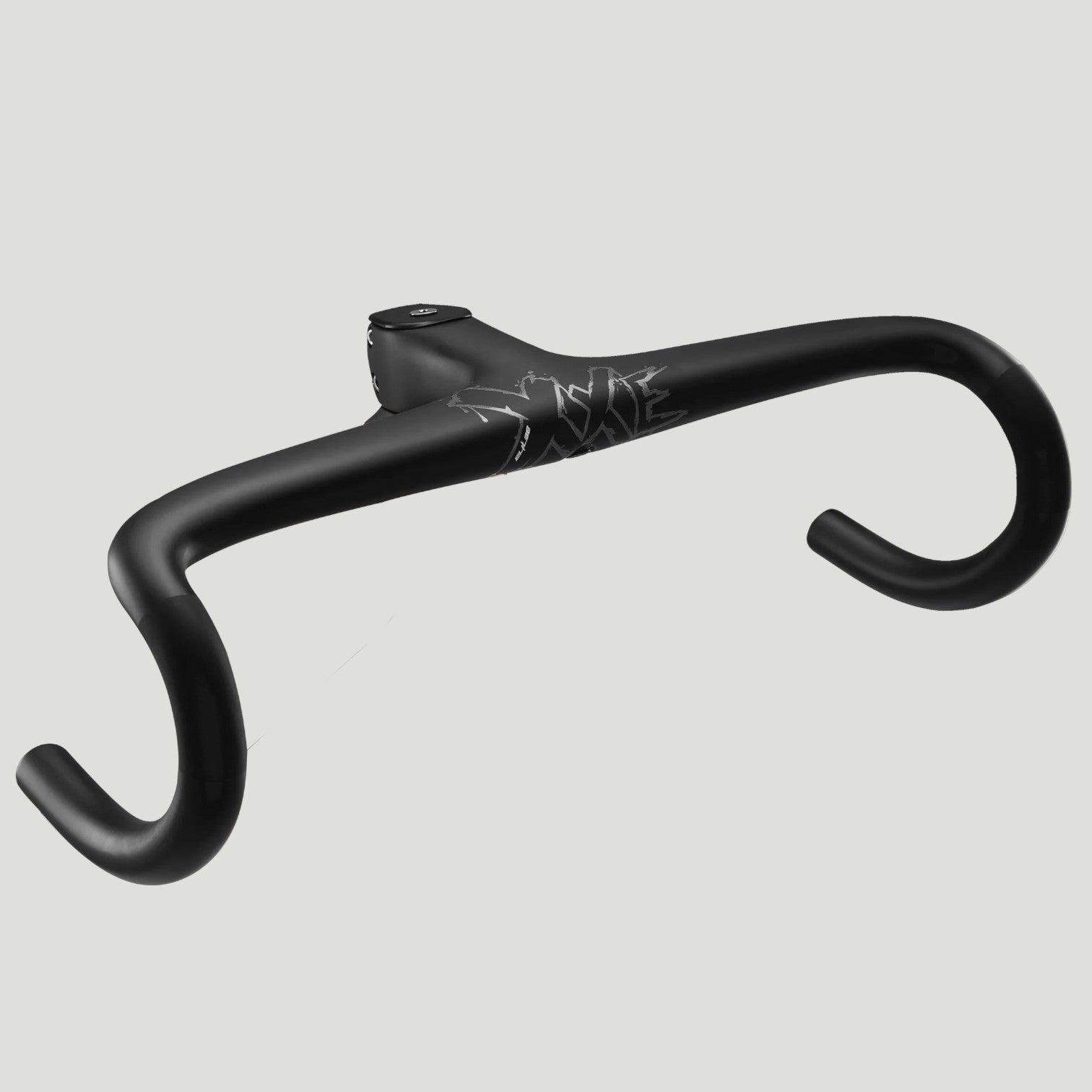

ELILEE XXE Integrated Handlebar

The ELILEE XXE Integrated Handlebar (model FS-330) is a one-piece carbon road cockpit built for responsive handling and clean aero routing. Constructed from Toray T800 carbon, it pairs a compact drop with a race-oriented −6° stem. Claimed weight is about 330 g (400 mm × 100 mm).

ELILEE XXE — Features & Benefits

Model: FS-330 (XXE)
Carbon layup: Toray T800 for balanced stiffness-to-weight.
Race fit: integrated −6° stem with compact ergonomics.
Clean routing: one-piece bar/stem with internal cable paths.
Setup friendly: recommended torque 6 Nm; spacer pack 5 × 5 mm.
Reference weight: ~330 g (400×100).

ELILEE XXE — Specifications

Dimensions & Fit

Stem angle: −6°
Stack (headset cover): 38 mm
Reach (bar): 75 mm
Drop (bar): 130 mm
Flare: 5 mm

Construction & Limits

Model: FS-330
Material: Carbon Fiber (Toray T800)
Claimed weight: ~330 g (400×100)
Recommended torque: 6 Nm
Spacers included: 5 mm × 5
Tube diameter: 26.8 mm

Notes

Integrated one-piece bar/stem. Verify steerer, headset and routing compatibility for your frame.
Use carbon assembly paste and torque to manufacturer specifications.

ELILEE XXE — Size Options

ELILEE integrated handlebar size chart showing widths and stem length diagram — Widths 360–420 mm • Stem lengths 80–130 mm • Reach 75 mm • Drop 130 mm • Angle −6°

Handlebar widths (hood-to-hood) × stem lengths — 24 combinations

Stem length (mm)	360	380	400	420
80	✓	✓	✓	✓
90	✓	✓	✓	✓
100	✓	✓	✓	✓
110	✓	✓	✓	✓
120	✓	✓	✓	✓
130	✓	✓	✓	✓

Widths

360 / 380 / 400 / 420 mm

Stem Lengths

80 / 90 / 100 / 110 / 120 / 130 mm

Geometry (All Sizes)

Reach: 75 mm • Drop: 130 mm
Angle: −6° • Cover Stack: 38 mm

All XXE sizes share the same 75 mm reach, 130 mm drop, and −6° stem angle. 24 total size combinations (4 widths × 6 stem lengths).

Headset Cover Compatibility (XXE)

ELILEE headset cover compatibility examples — Representative headset/top cover shapes shown for reference.

Compatible Frames / Systems (as supplied by ELILEE)

#	Frame / System
1	Trek Madone Gen 7
2	Colnago V3Rs (variant “V3rsh”)
3	Colnago V3Rs (variant “V3rsl”)
4	Cervélo R5
5	Trek Émonda
6	Pinarello (select models)
7	Scott Addict
8	Specialized Tarmac SL7 (listed “SI7”)
9	Specialized Tarmac SL8 (listed “SI8”)
10	FSA system
11	FSA D-P (split cover)
12	Trek Madone Gen 8
