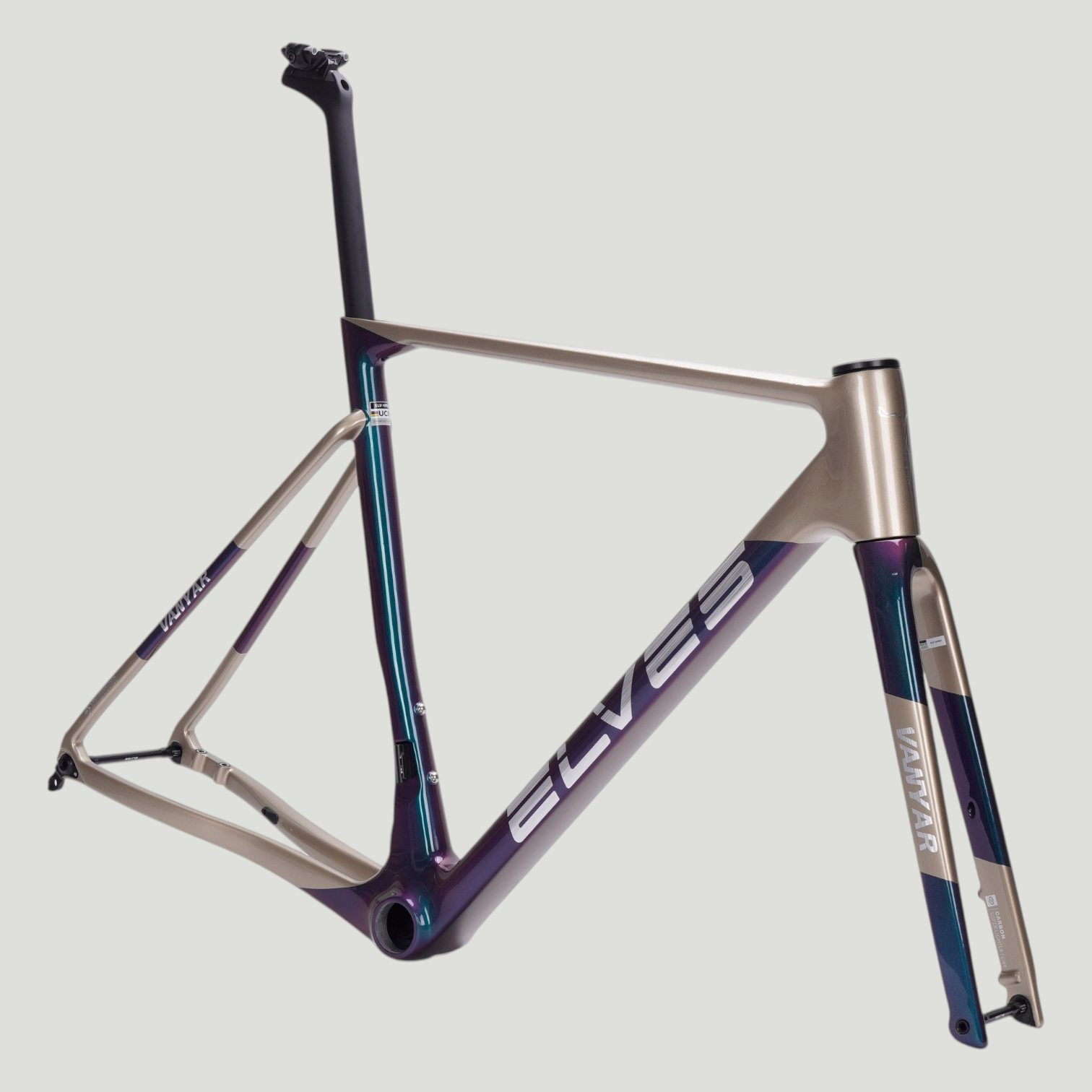

Chameleon (Forest Green), Champagne Golder

Framesets ELVES

ELVES Vanyar Pro Disc

Name: ELVES Vanyar Pro Disc
Brand: ELVES
Price: 1100.00 USD
Availability: InStock

$1,100.00 USD

0 products in stock

The ELVES Vanyar Pro UCI Disc Frameset is a superlight climbing machine, weighing from 870 g with T800/T1000 carbon, BB386 stiffness, 30 mm tyre clearance, and UCI approval—built for riders who demand speed on every ascent.
For Custom Colour Options, conctact us and we’ll work with you to bring your vision to life
ATTENTION: When measuring the stem length for this bike, be sure to subtract 1cm from your selection, since the reference markers used by Avenger are not to the center of the handlebar.

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected 5-year frame/fork, 2-year bars & wheels, 1-year saddles

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

The ELVES Vanyar Pro Disc is an ultra-light hill-climber designed for maximum aerodynamic efficiency and stiffness. Built with Toray T800/T1000 carbon using EPS molding, it features a pro geometry with steep angles for optimized power transfer and cockpit integration for clean lines. Weighing from just 870 g (47 cm, unpainted), this UCI-approved frameset redefines what a race-ready carbon bike can be.

Elves Vanyar Pro Disc Frameset - Features & Benefits

Featherlight Build: From 870 g for 47 cm frame (±30 g unpainted) — one of the lightest UCI-approved disc frames on the market.
Pro Geometry: Steep seat tube (73.5–75°) and headtube angles (72–73.5°) for climbing and sprinting efficiency. :contentReference{index=1}
Premium Carbon Layup: Toray T800 with T1000 reinforcement in key load zones using EPS molding for clean internals. :contentReference{index=2}
Press-Fit BB386: Increases stiffness and strength while maintaining sleek lines. :contentReference{index=3}
Full Internal Routing: Supports 10/11/12-speed mechanical or electronic groupsets (e.g., Di2 & AXS). :contentReference{index=4}
Modern Drivetrain Friendly: Integrated cockpit design ideal for mechanical and electronic builds. :contentReference{index=5}
UCI & Safety Certified: UCI-approved (code 44895), meeting EN 14766 and ISO 4210-6:2023 safety standards. :contentReference{index=6}
Comprehensive Warranty: 5-year global frame/fork, 2-year bars & wheels, 1-year saddles. :contentReference{index=7}

Elves Vanyar Pro Disc Frameset — Specifications

Technical Specifications

Frame: Toray T800 & T1000 carbon, EPS molding, pro geometry
Frame Weights (unpainted): 47 cm 870 g; 50 cm 890 g; 53 cm 920 g; 56 cm 950 g; 59 cm 980 g; 62 cm 1050 g (±30 g) :contentReference{index=8}
Fork: Carbon fiber, 430 g (uncut steerer), 45 mm offset, flat-mount disc, 300 mm steerer, 121 mm thru-axle, 140/160 mm rotor :contentReference{index=9}
Bottom Bracket: Press-fit BB386 (46 mm ID × 86.5 mm width) :contentReference{index=10}
Routing: Fully internal, mechanical/electronic 10–12 speed compatible :contentReference{index=11}
Thru-Axles: 100 mm front & 142 mm rear supplied :contentReference{index=12}
Seatpost: Full carbon, 350 mm for 47–53 cm, 400 mm for 56–62 cm, 200–215 g, offsets 25 mm & 12 mm, adjustable clamp (7×7 mm & 7×10 mm) :contentReference{index=13}
Max Tyre Clearance: 700×30 mm :contentReference{index=14}
Certifications: UCI (code 44895), EN 14766, ISO 4210-6:2023 :contentReference{index=15}
Warranty: 5-year frame/fork; 2-year bars & wheels; 1-year saddles :contentReference{index=16}

What's Included

Vanyar Pro Frame & Fork
Press-fit BB386 (choice of Shimano 24 mm, SRAM DUB 28.99 mm, or 30 mm) — tool included
Headset & 10 mm handlebar spacers (×3)
Thru-axles (100 mm front, 142 mm rear)
2 × Standard derailleur hangers (non-UDH)
Cable-routing stem adapter (for standard bar compatibility)
Internal cable dampeners, end stops, and computer mount (bundled options) :contentReference{index=17}
