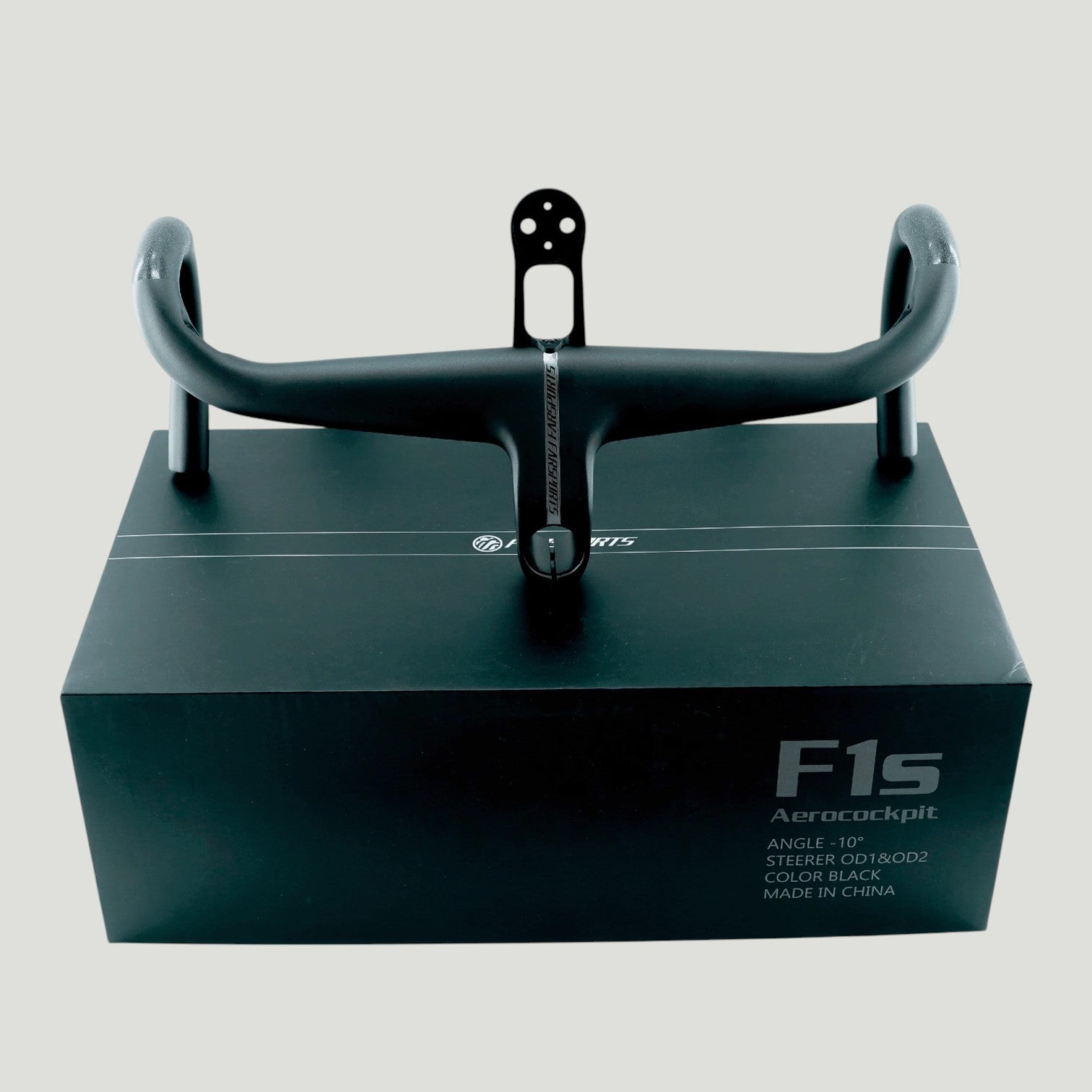

Farsports F1s Integrated Handlebar With Computer Mount

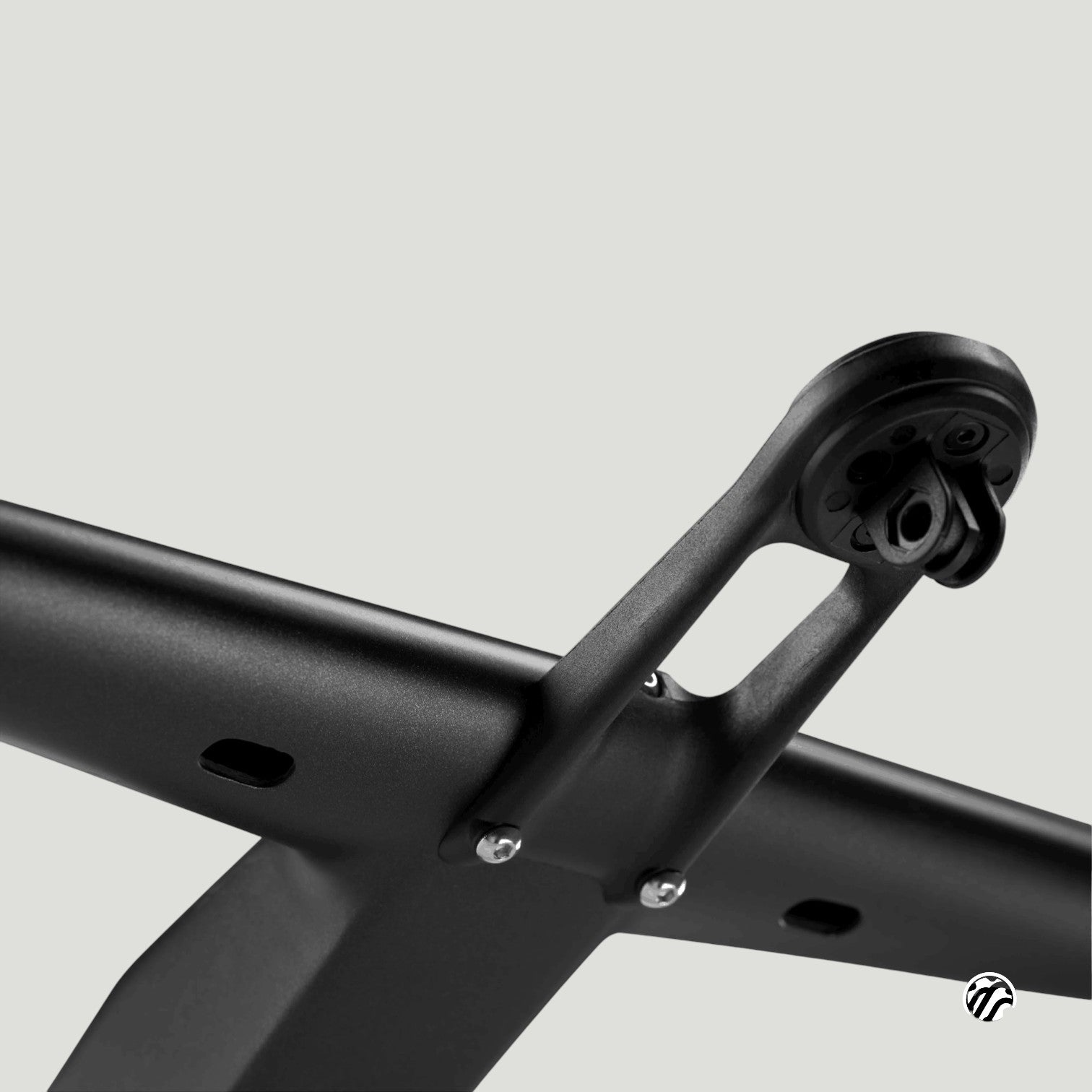

Farsports F1s Integrated Handlebar Bottom View

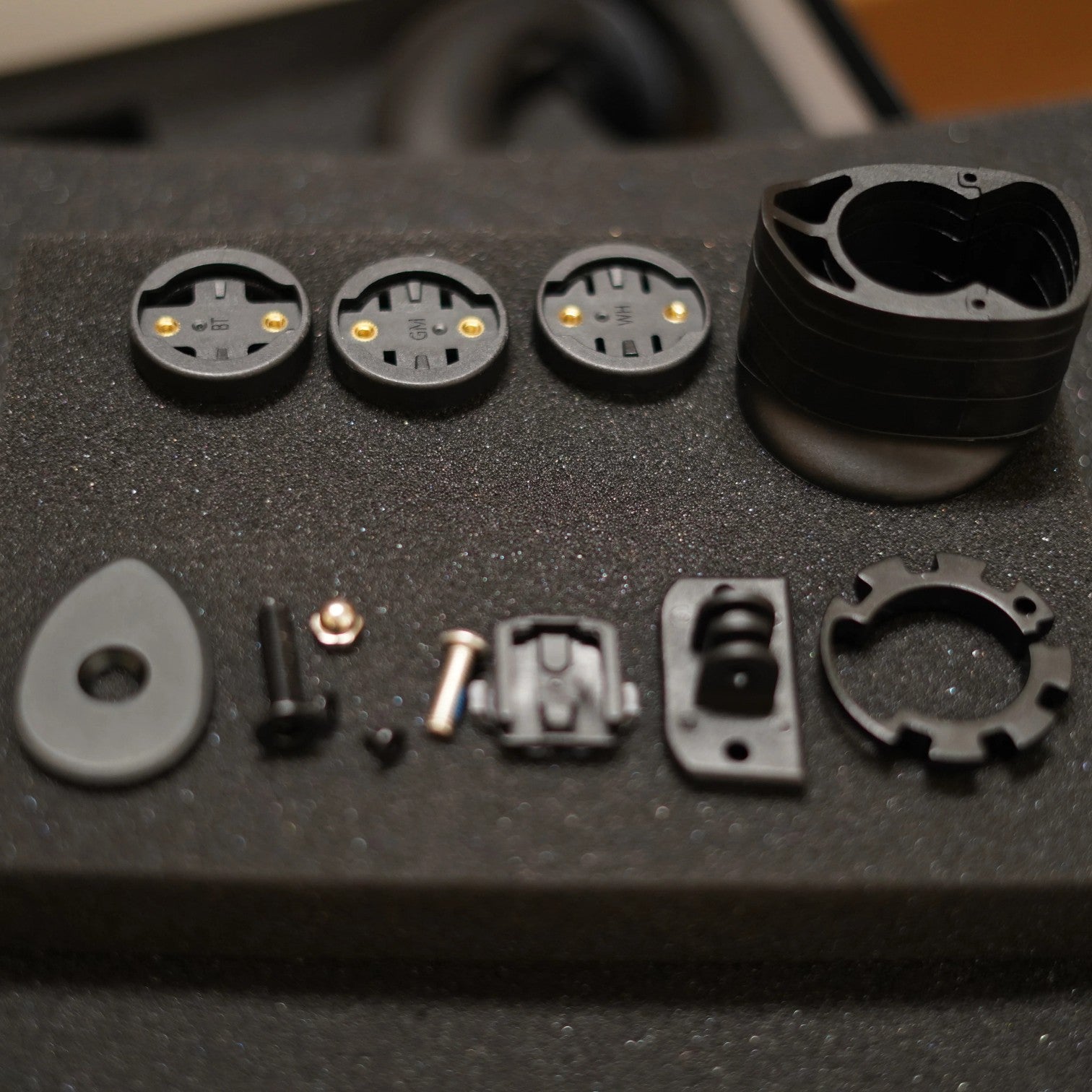

Farsports F1s Integrated Handlebar Accessories

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected 2-year manufacturer warranty (3-year on handlebars)

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

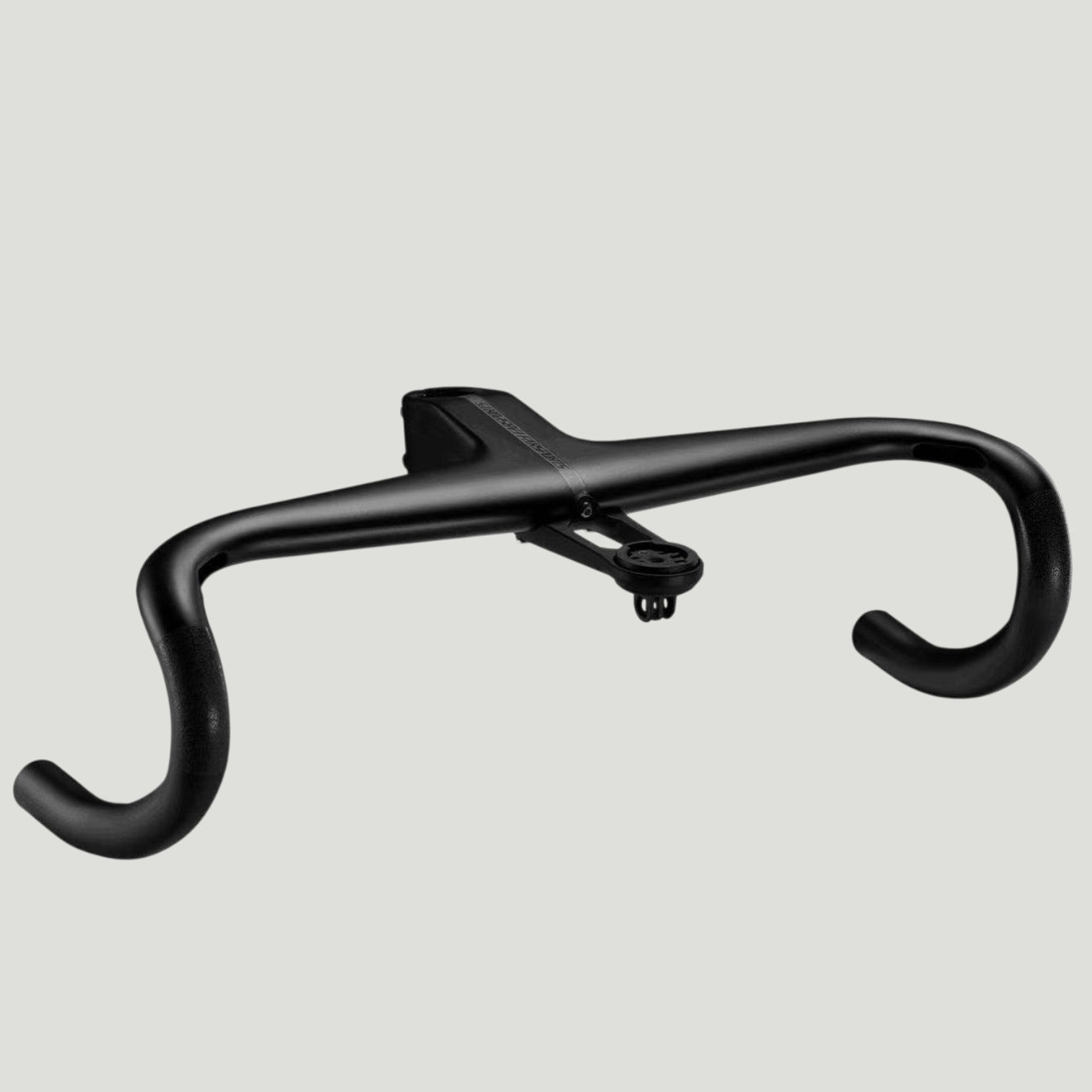

Farsports F1s Integrated Handlebar

The Farsports F1s Integrated Handlebar is a one-piece carbon road cockpit built for stiffness, control and clean cable routing. A compact 75 mm reach, 127 mm stack and −10° stem angle deliver a racy position, while multiple widths and stem lengths cover most fits. Claimed weight: 325 g (400×100).

Farsports F1s Integrated Handlebar — Features & Benefits

Integrated cockpit: one-piece bar/stem with internal routing.
Fit & control: 75 mm reach, −10° stem, compact road ergonomics.
Light weight: ~325 g (400×100 reference).
Steerer compatibility: 1-1/8″ (with shim) & 1-1/4″ (OD2).
Certified: EN ISO 4210-2:2015.

Farsports F1s Handlebar — Specifications

Dimensions & Fit

Reach: 75 mm
Stack: 127 mm
Stem angle: −10°

Construction & Limits

Claimed weight: 325 g (400×100)
Steerer sizes: 1-1/8″ (with shim) & 1-1/4″ (OD2)
Certification: EN ISO 4210-2:2015

Notes

Integrated one-piece bar/stem. Verify headset, spacers and routing with your frame.
Use carbon assembly paste and torque to manufacturer specifications.

Farsports F1s — Size Options

Handlebar widths (hood-to-hood) × stem lengths — 20 combinations

Stem length (mm)	360	380	400	420
80	✓	✓	✓	✓
90	✓	✓	✓	✓
100	✓	✓	✓	✓
110	✓	✓	✓	✓
120	✓	✓	✓	✓

Widths

360 / 380 / 400 / 420 mm

Drop Widths

380 / 400 / 420 / 440 mm

Stem Lengths

80 / 90 / 100 / 110 / 120 mm

Shared Geometry

Reach: 75 mm • Stack: 127 mm • Angle: −10°

All data based on the F1s spec sheet. If you have fit questions, compare stack/reach with your current cockpit.

Helpful Links

Headset spacers & adapters kit: found here ↗

Compare bike fits with Geometry Geeks.

More Information

Elevated from original F1 handlebar design with better ergonomics & aerodynamics. A new mount design is here: 3Over 50% stiffer with no weight penalty. Compatible with Wahoo, Garmin and Gopro. F1s is compatible with most major bike brands. F1s handlebar has passed rigorous testing protocols and is among one of the best one-piece handlebars.
