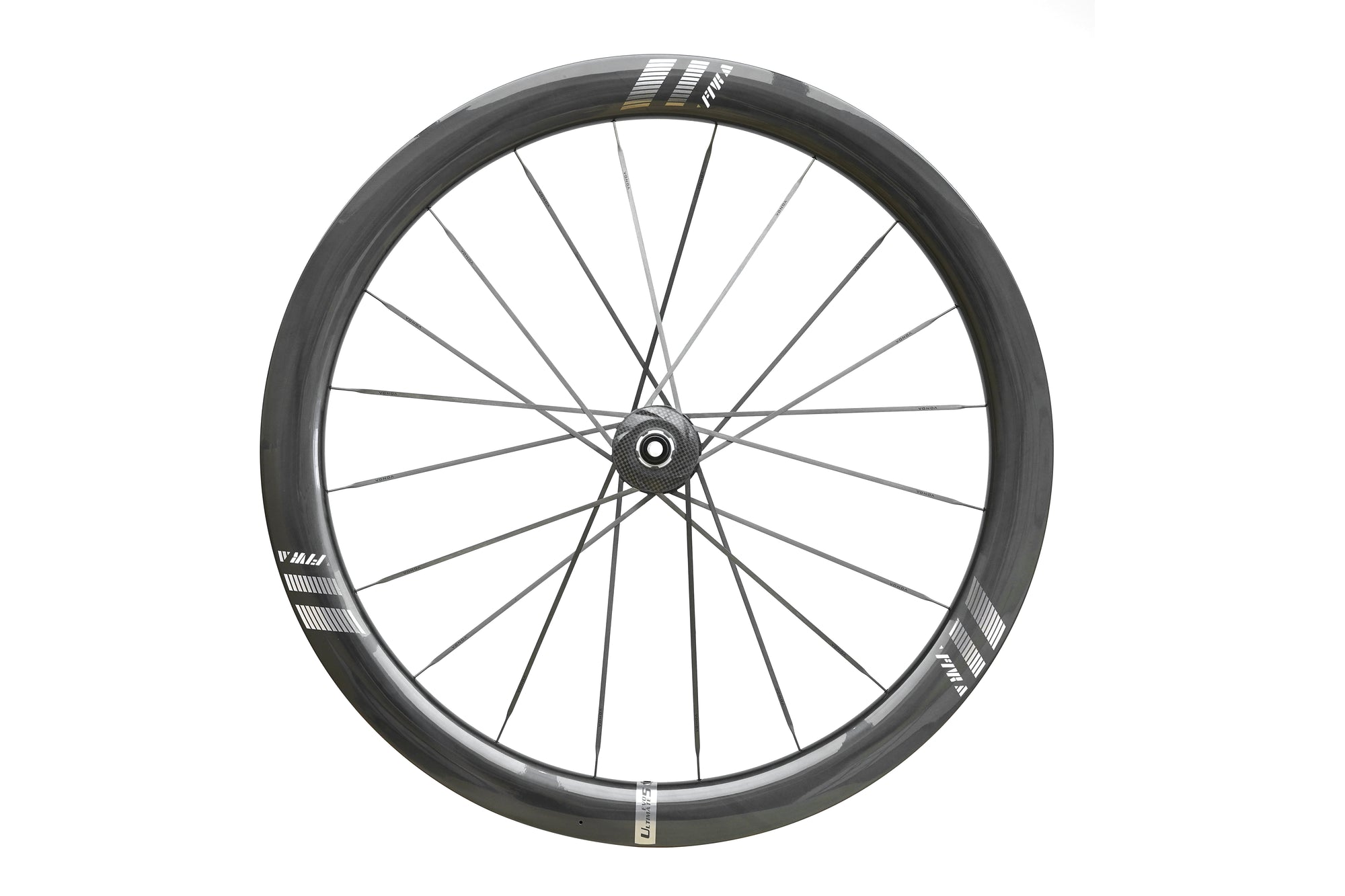

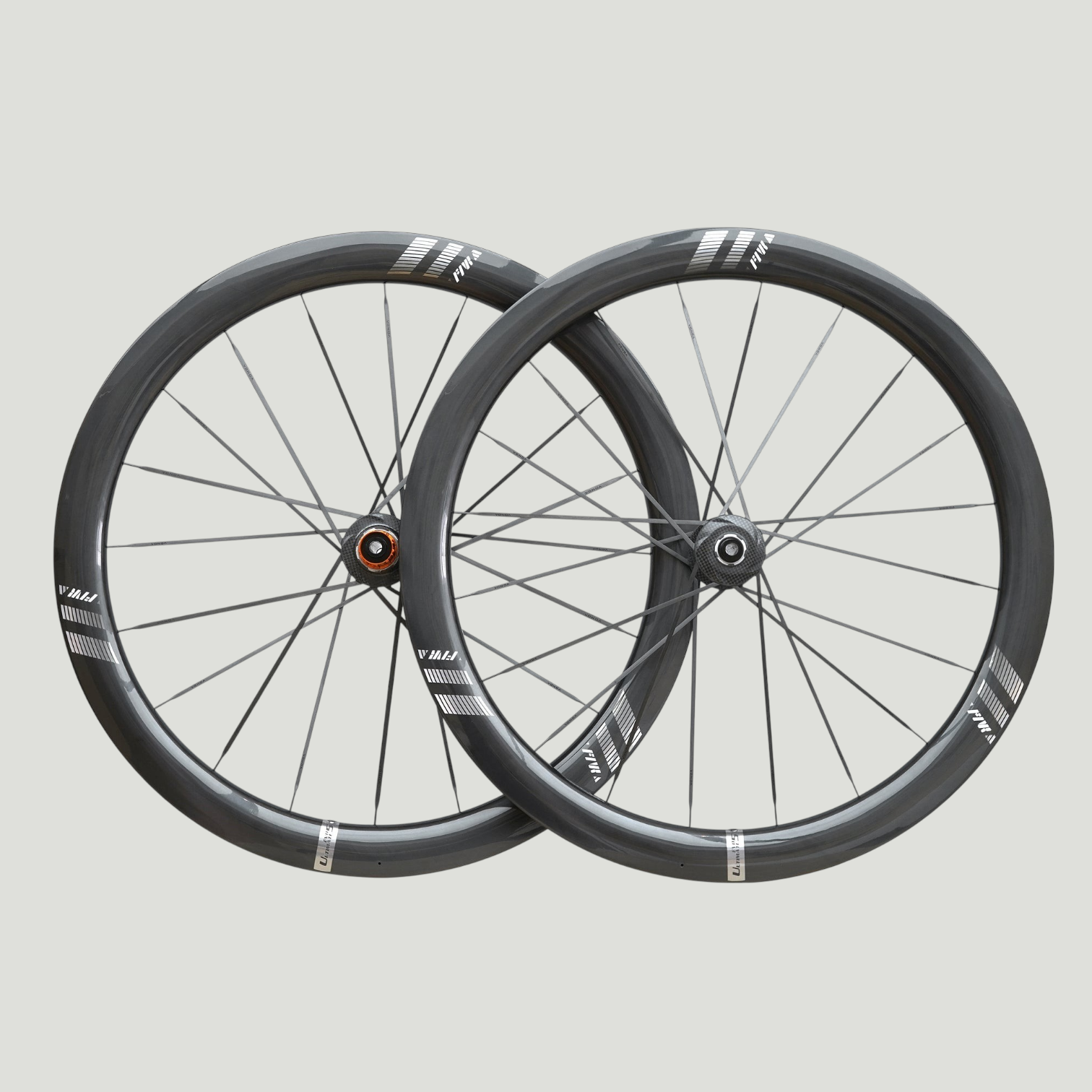

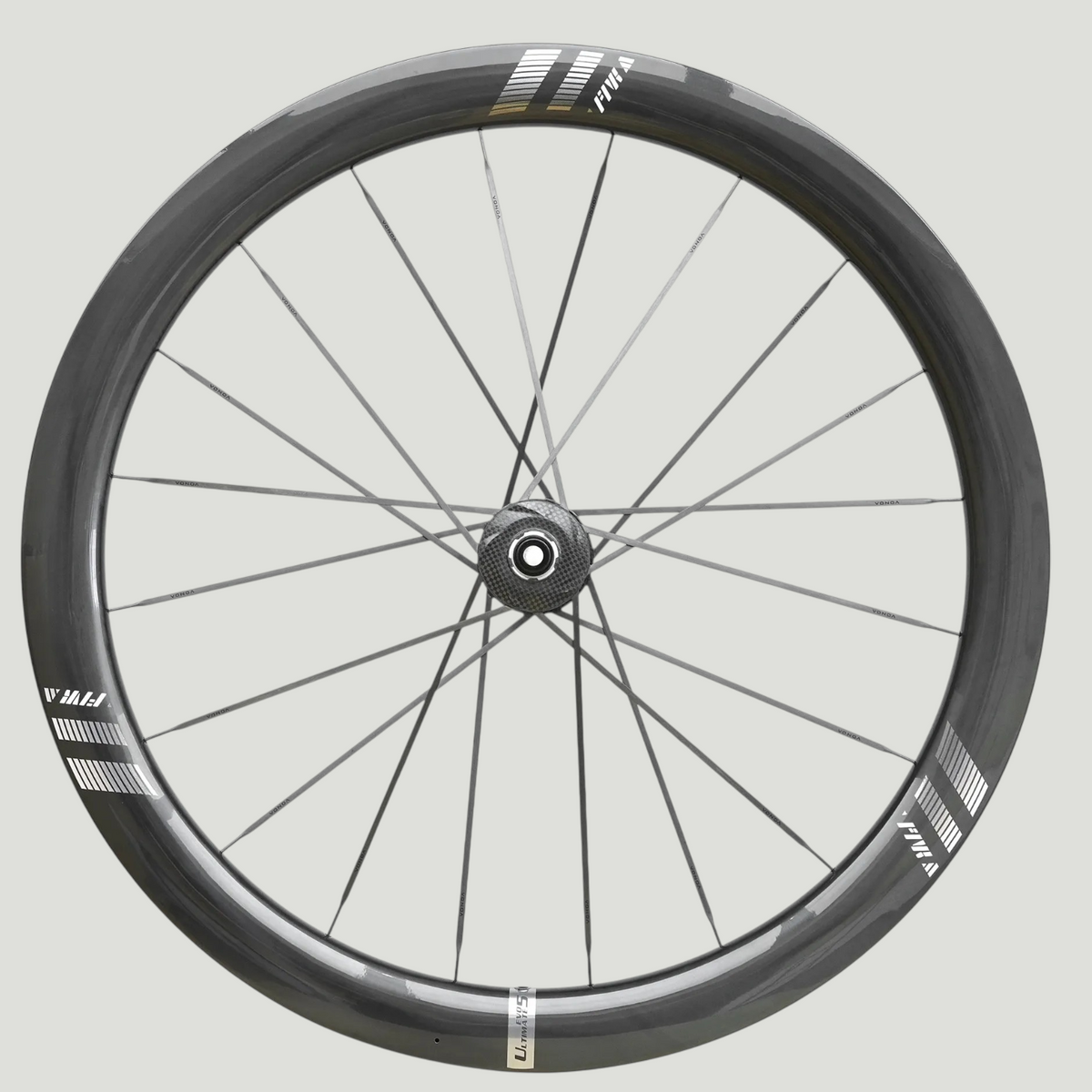

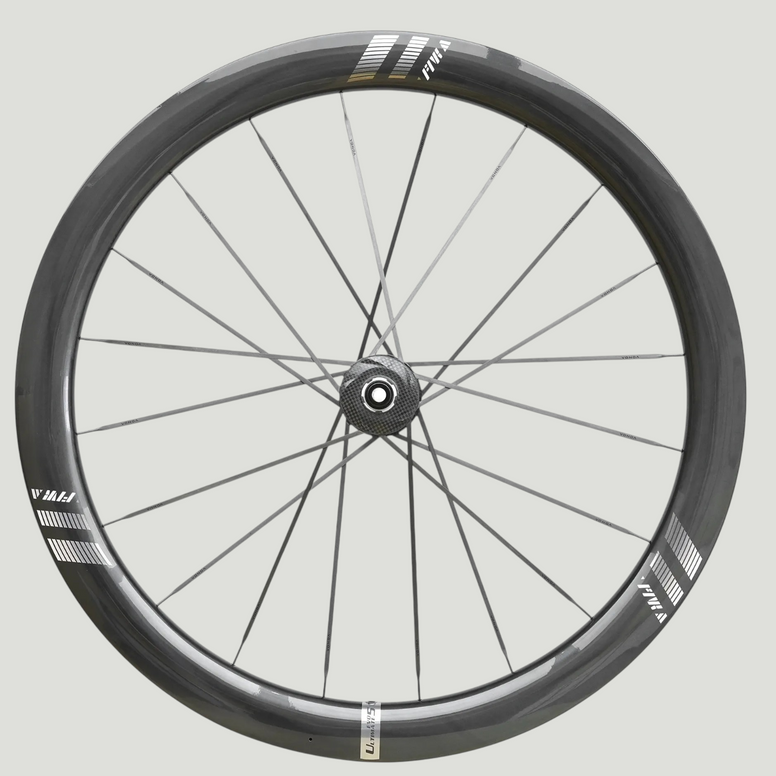

FARSPORTS Ultimate EVO5 S Carbon Wheelset — 50 mm • Integrated Carbon Spokes • Disc / Center Lock
The FARSPORTS Ultimate EVO5 S is FARSPORTS' flagship one-piece carbon-spoke wheelset. Its bladed carbon spokes are moulded as a single continuous assembly and integrated directly into an oversized carbon hub flange — removing the traditional spoke-to-flange joint to build a stiffer, lighter, and cleaner-running wheel. A 50 mm deep, 24 mm internal hooked, tubeless-ready rim balances aerodynamics with modern wide-tyre stability. Choose standard steel or CeramicSpeed bearings, and a Shimano 11/12-speed or SRAM XDR freehub. Manufacturer-claimed weight is just 1,160 g the pair.
Spec Snapshot:
50 mm depth • 24 mm internal / 30 mm external (hooked, tubeless-ready) •
1,160 g pair (±5%, manufacturer-claimed) •
120 kg rider limit • Disc / Center Lock • Shimano 11/12s or SRAM XDR
FARSPORTS Ultimate EVO5 S — Features & Benefits
- One-Piece Integrated Carbon Spokes: spokes and hub flange are moulded as a single carbon assembly — no spoke heads, no J-bends, no elbow joints to fatigue.
- Oversized Carbon Hub Flange: a bigger, moulded flange increases bracing angle and torsional stiffness while shedding weight.
- Bladed Carbon Spokes: aerofoil VONOA carbon spokes cut drag and friction versus round steel spokes.
- Internal Nipples: a clean, uninterrupted rim wall for tidy aerodynamics and a tubeless-friendly bed.
- Modern Wide Rim: 24 mm internal hooked, tubeless-ready profile for stable tyre shaping and confident handling.
- 50 mm All-Round Aero Depth: deep enough to hold speed on the flats, shallow enough to stay composed in crosswinds.
- Disc / Center Lock: clean rotor interface with broad rotor compatibility.
- Bearing & Freehub Choice: steel or CeramicSpeed bearings; Shimano HG or SRAM XDR driver to match your groupset.
Engineering & Construction — Built as One Piece

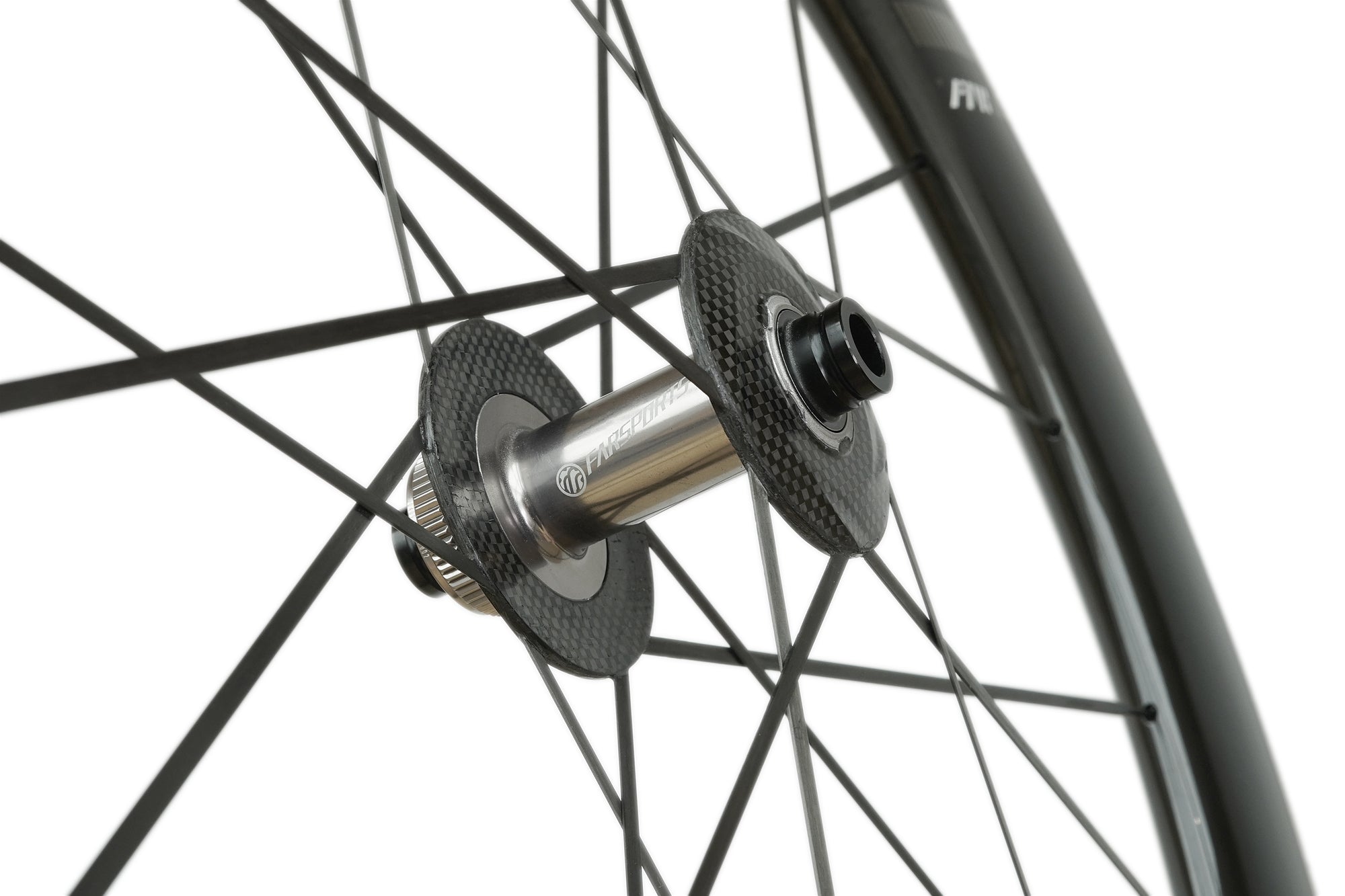

Integrated Spoke-Hub Architecture
- Bladed carbon spokes and the hub flange are moulded as a single continuous carbon assembly.
- Eliminates the traditional spoke-to-flange interface — a common stress-concentration and creak point.
- Direct load path from rim to axle for an immediate, connected feel under power.

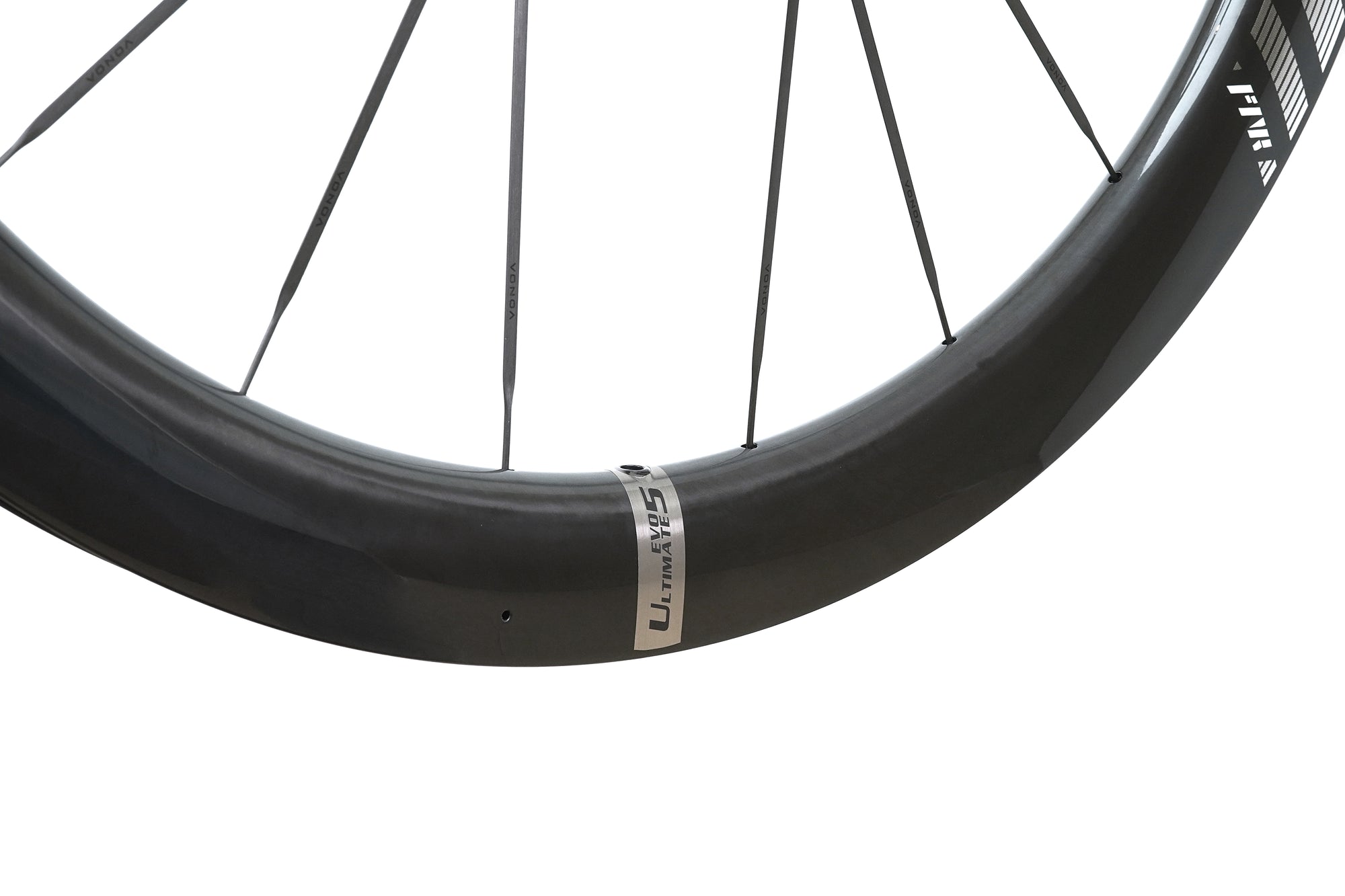

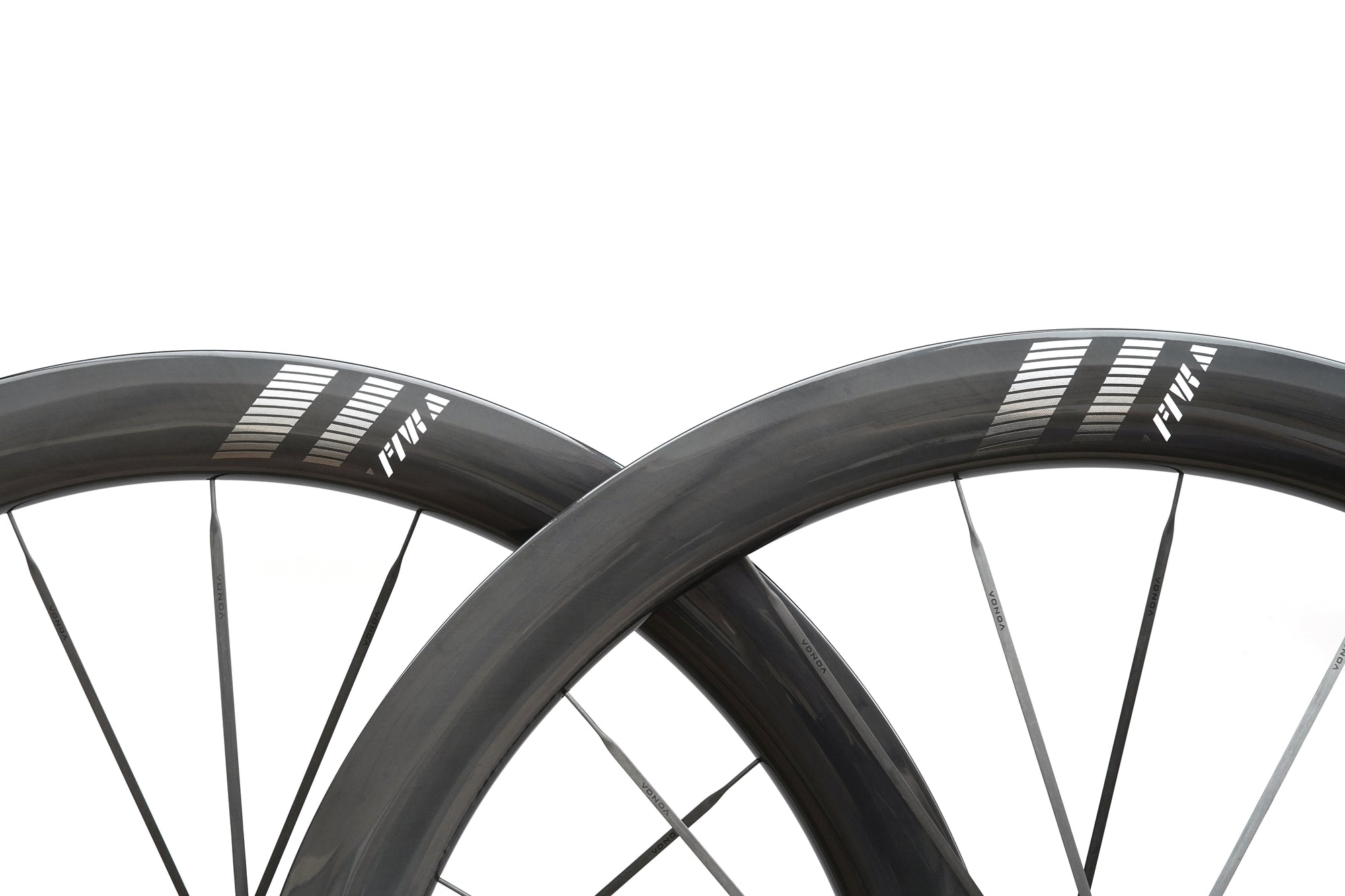

Rim & Aerodynamics

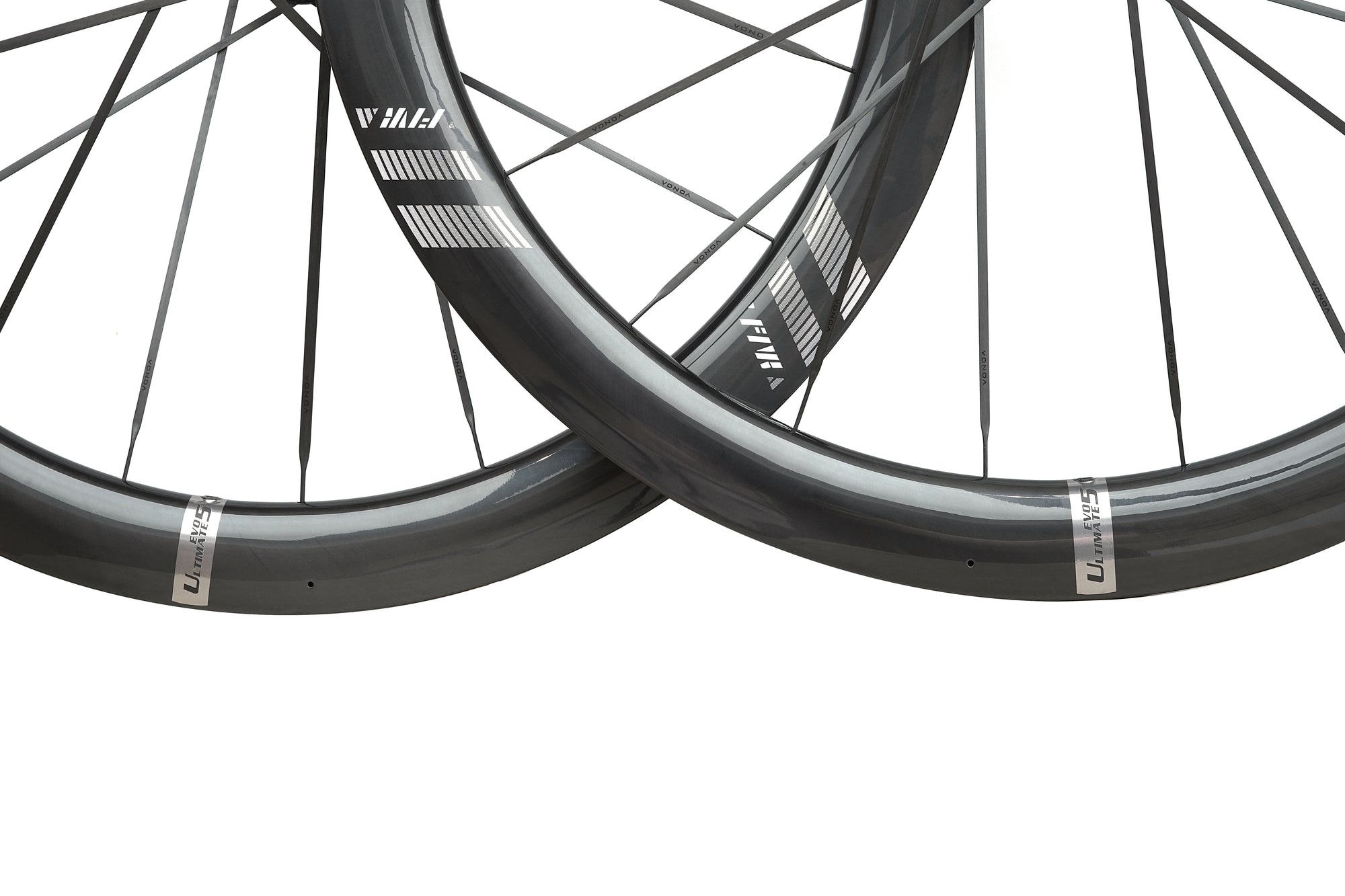

- 50 mm depth with a 30 mm external / 24 mm internal hooked profile.
- Tubeless-ready bed with internal nipples for an uninterrupted, aero-clean rim wall.
- Bladed spoke sections reduce turbulence and drag around the hub.

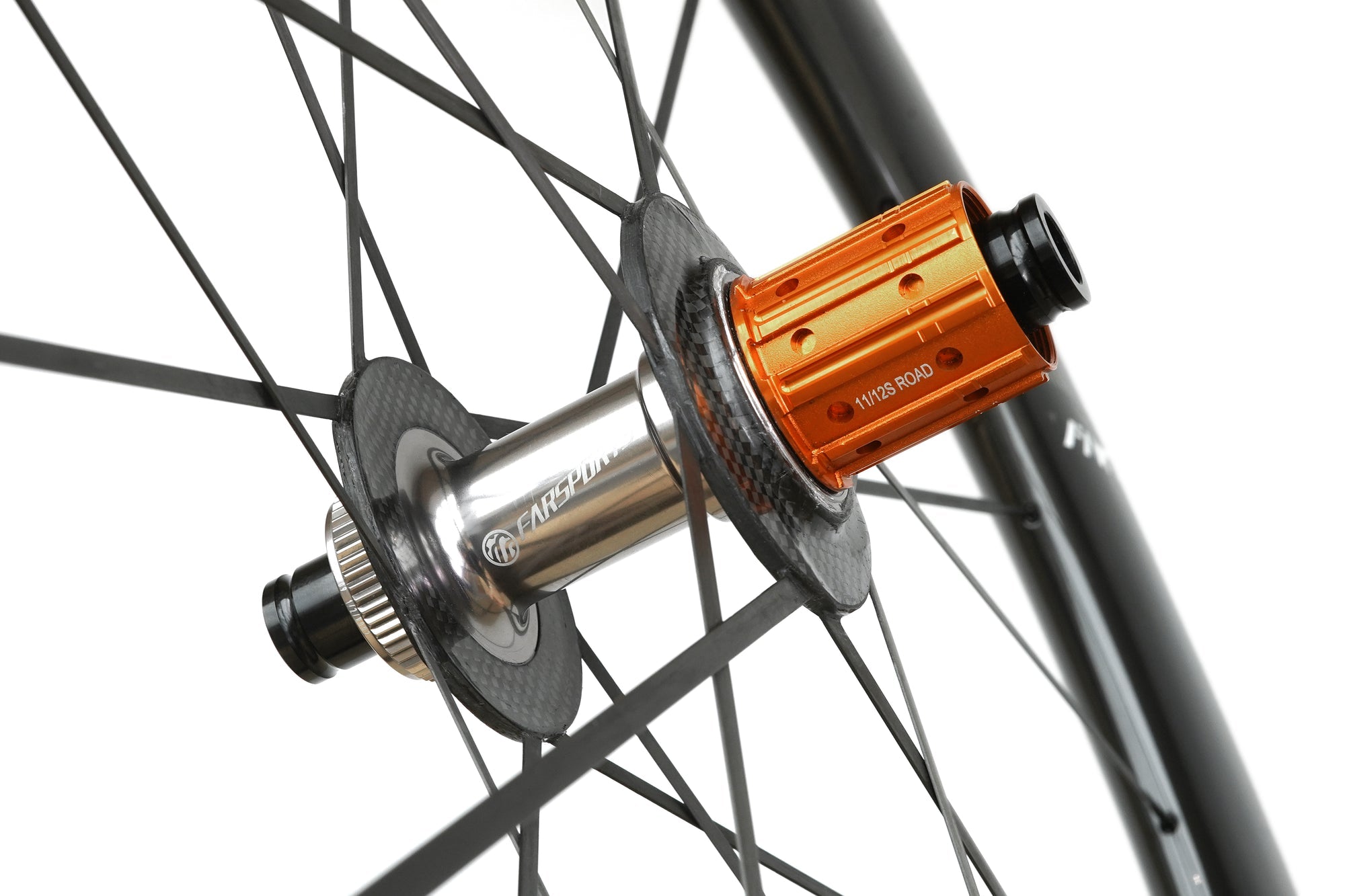

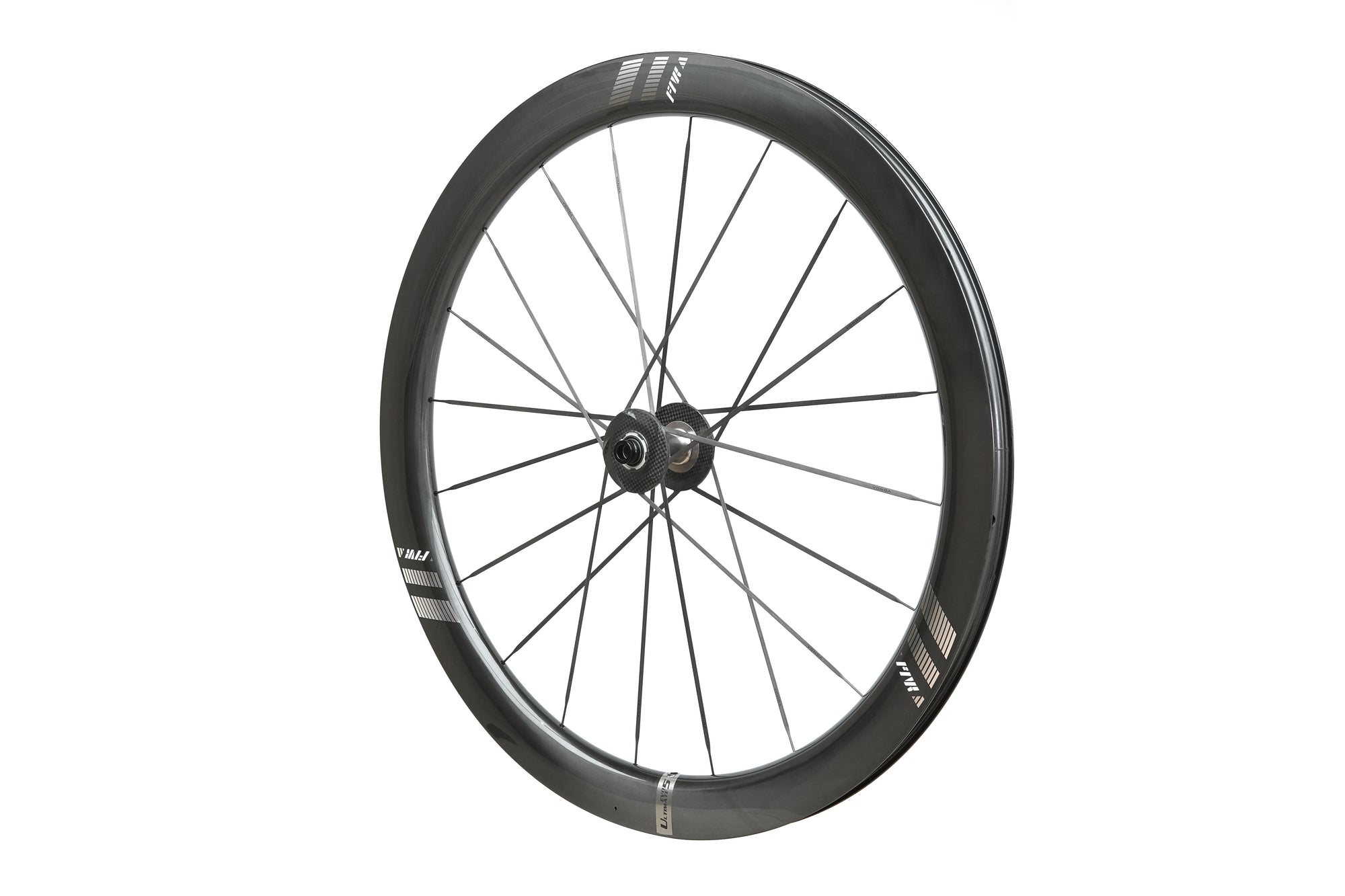

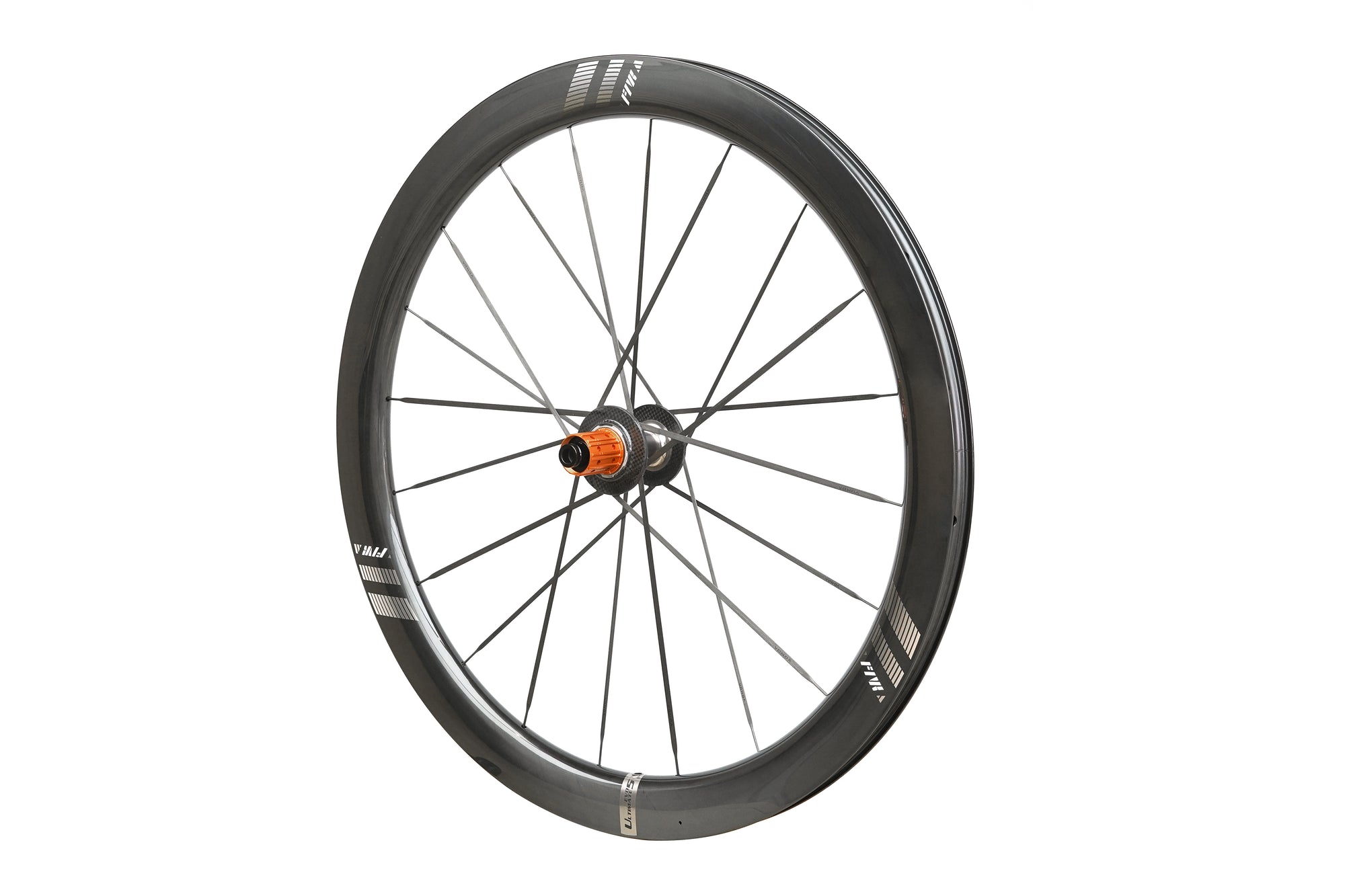

Hubs, Bearings & Freehub
- FARSPORTS in-house SH001 front & rear hubs with an oversized carbon flange.
- Bearing choice: standard steel or premium CeramicSpeed.
- Center Lock disc interface; Shimano 11/12s or SRAM XDR freehub.
Spokes & Wheel Build
- VONOA bladed carbon spokes, moulded one-piece with the flange.
- 20H front / 20H rear, conservative 1:1 lacing for balanced tension and stability.
- Manufacturer-claimed 1,160 g pair (±5%) — 120 kg rider weight limit.
Warranty: 2-year manufacturer warranty. Underdogs Cycling coordinates claims with FARSPORTS where applicable.
FARSPORTS Ultimate EVO5 S — Specifications
Rims & Tyres
- Wheel Size: 700C
- Bead Type: Hooked, tubeless-ready
- Rim Depth: 50 mm (front & rear)
- Internal Width: 24 mm
- External Width: 30 mm
- Nipples: Internal
- Drilling: 20H front / 20H rear
- Tyre sizing guidance: follow tyre manufacturer fitment and pressure recommendations; do not exceed the tyre's or rim's stated limits.
Hubs & Spokes
- Hubs: FARSPORTS in-house SH001 F/R • oversized carbon flange • Center Lock
- Bearings: Standard steel or CeramicSpeed (upgrade)
- Spokes: VONOA bladed carbon, one-piece moulded & integrated with hub flange
- Lacing: 20F / 20R • 1:1 configuration
- Freehub: Shimano 11/12s (HG) or SRAM XDR (12s)
Weights & Limits
- Wheelset Weight: 1,160 g pair (±5%, manufacturer-claimed)
- Rider Weight Limit: 120 kg
- Brake Interface: Disc / Center Lock
