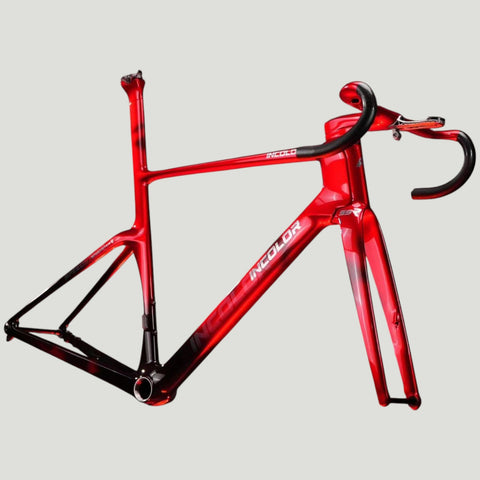

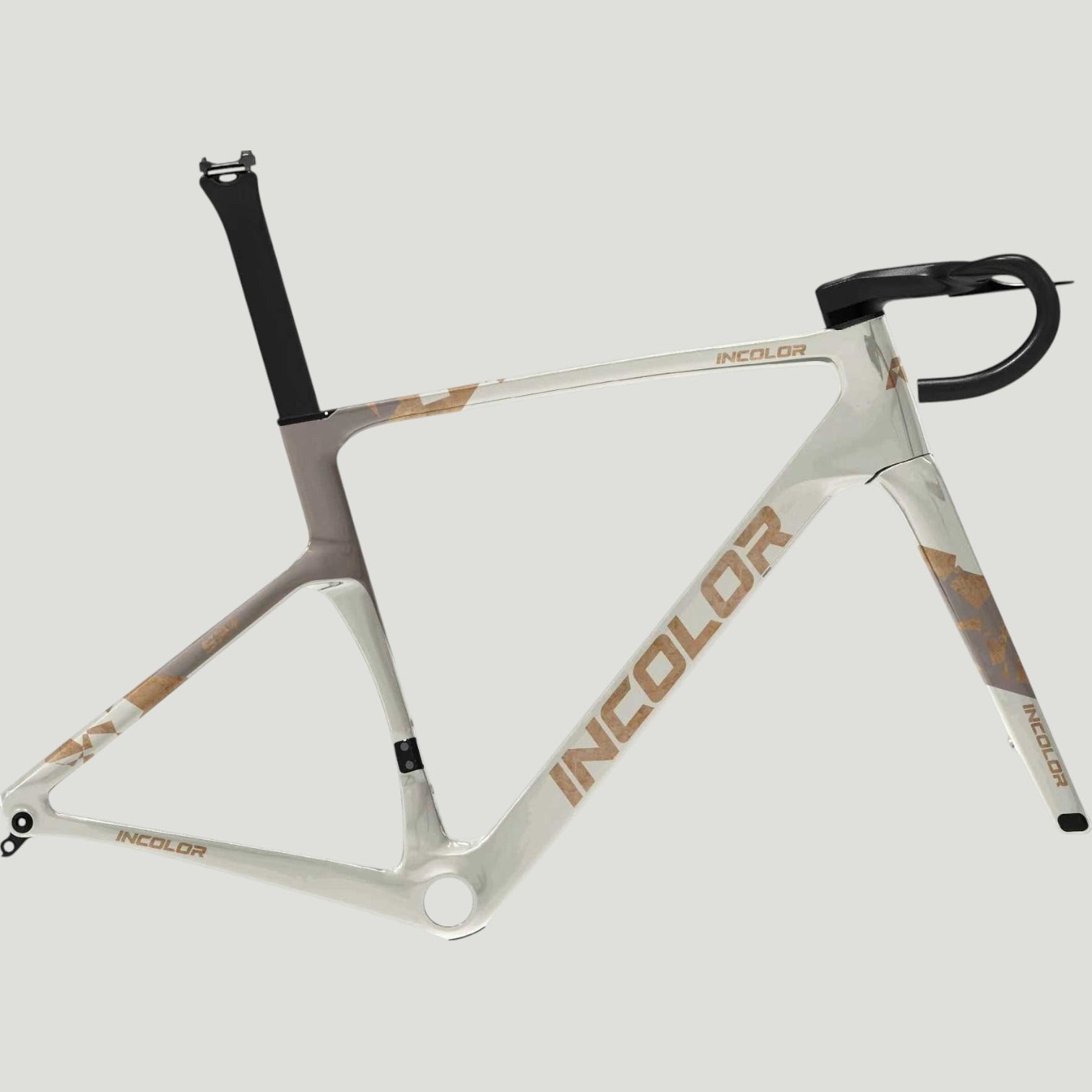

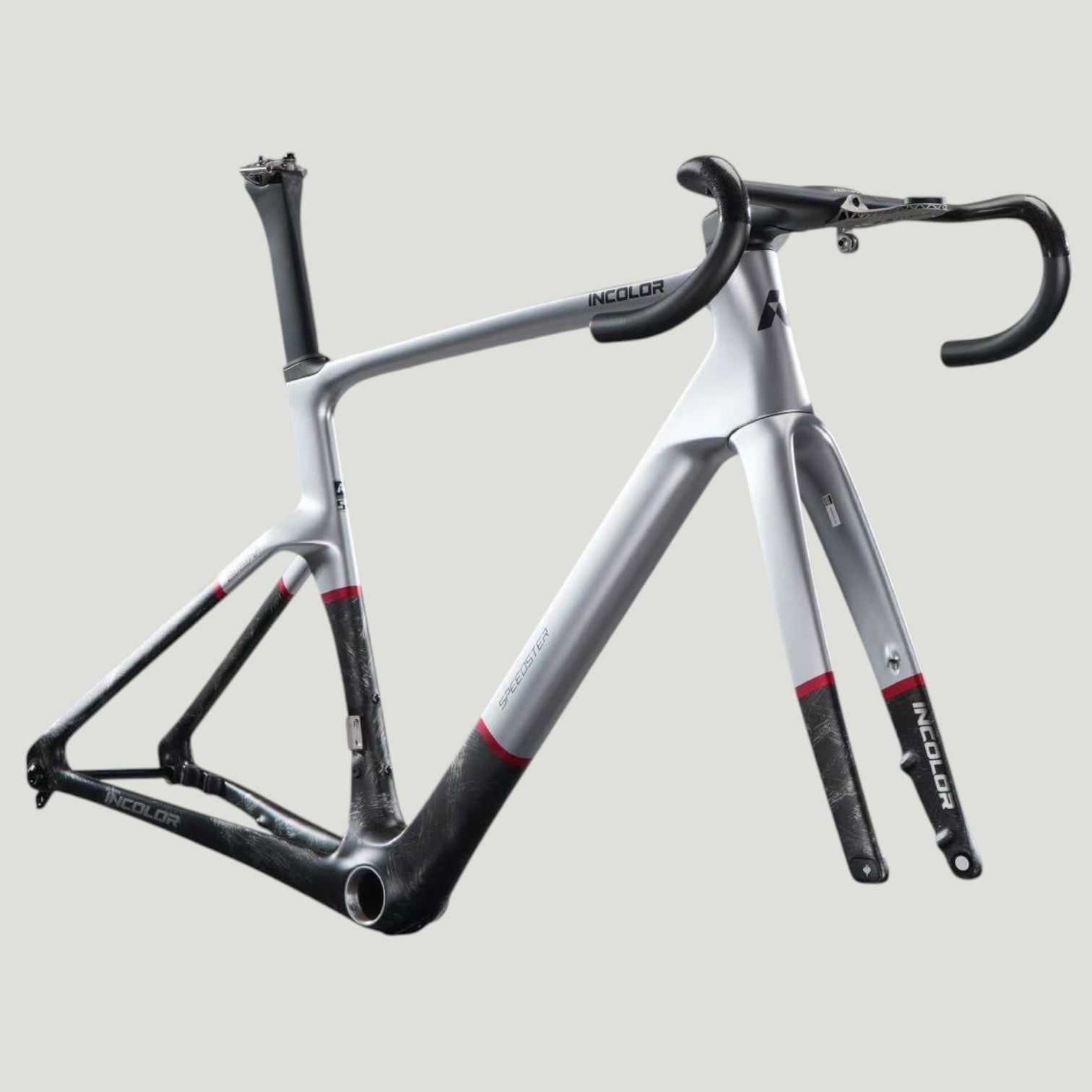

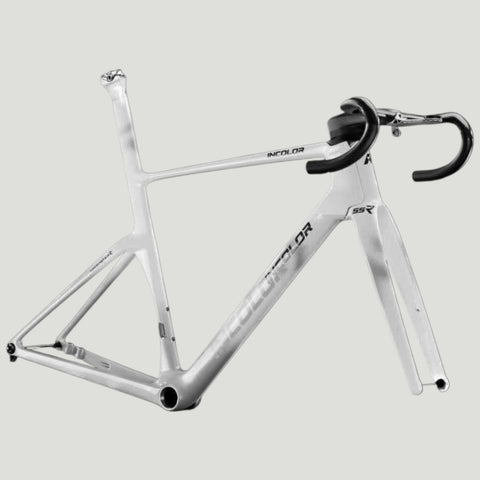

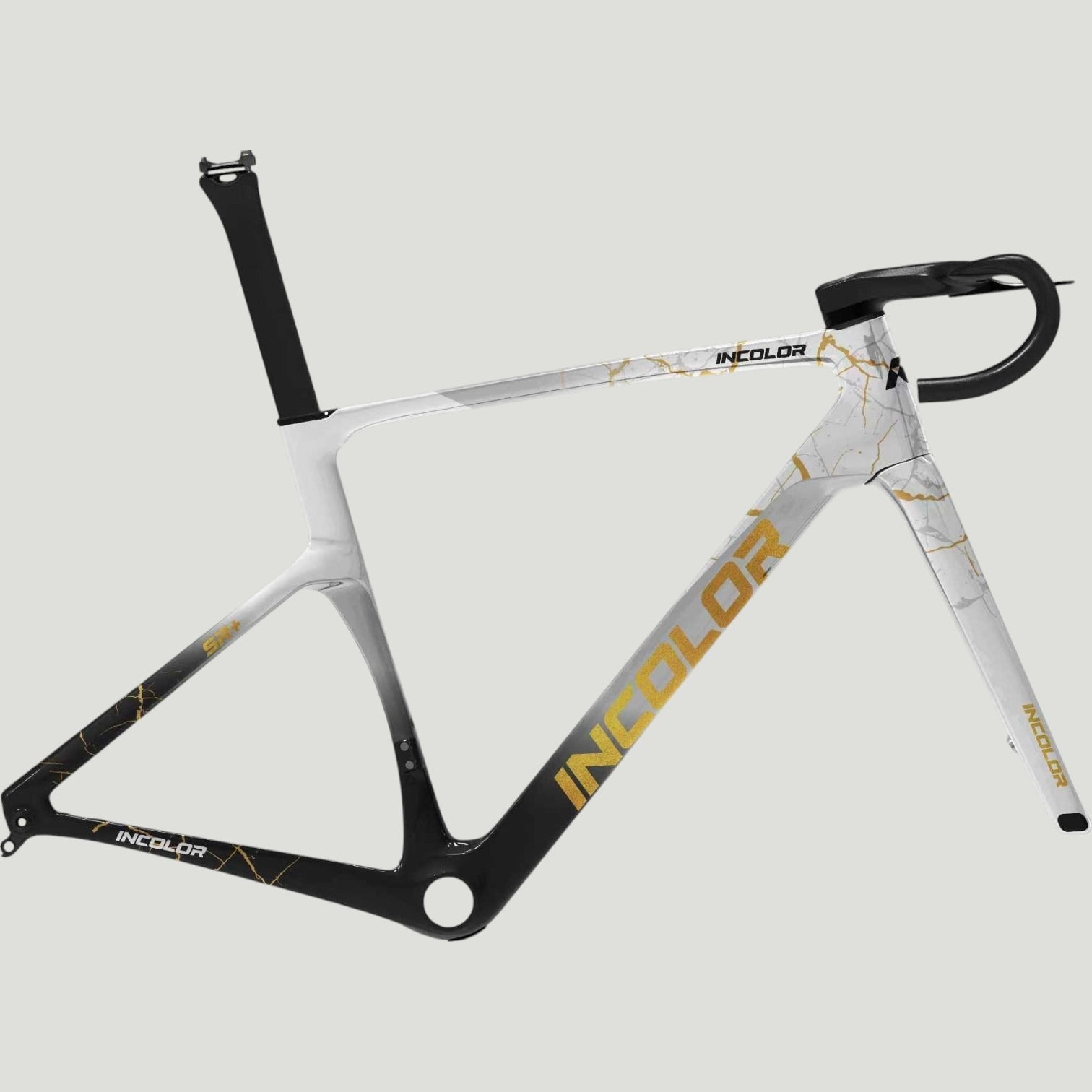

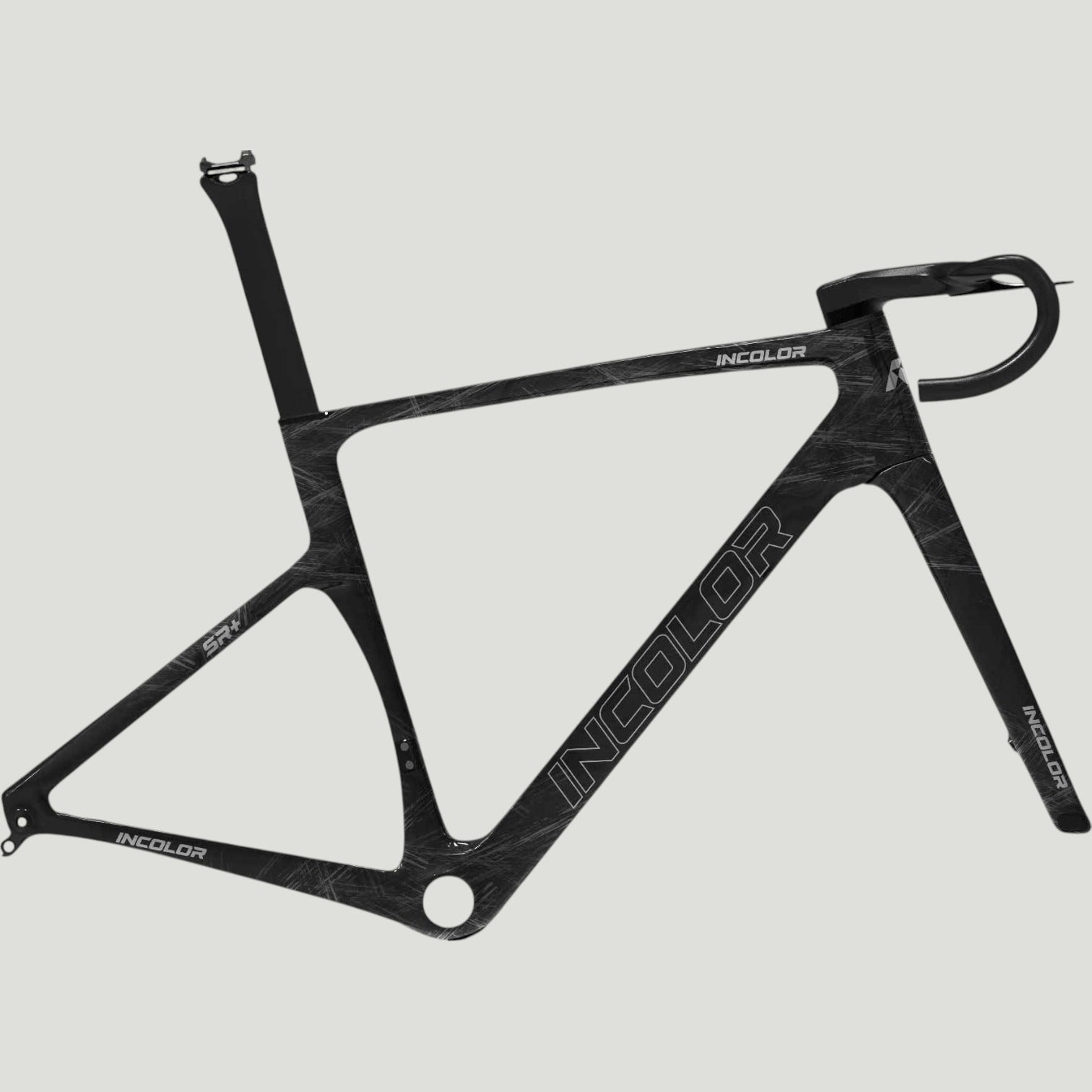

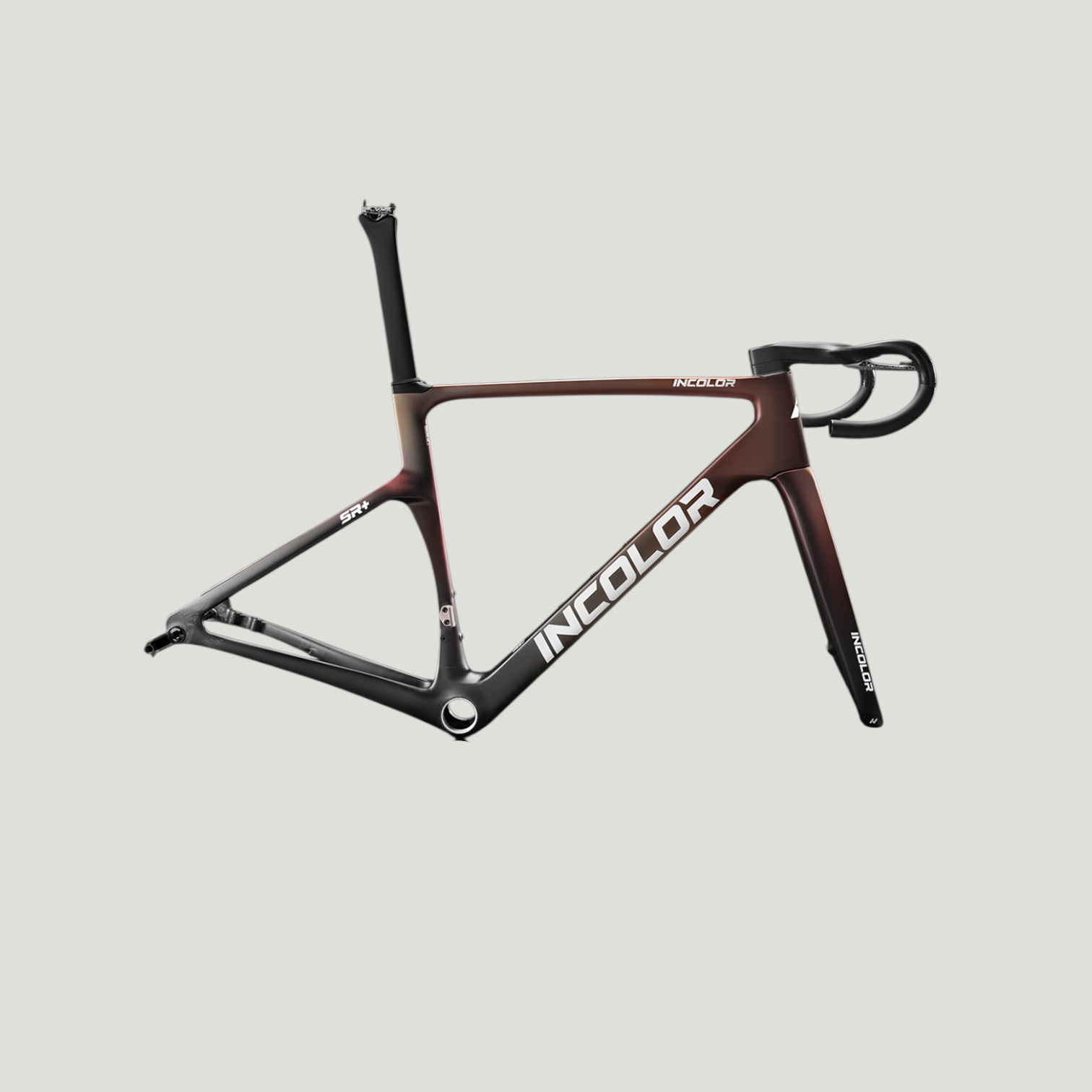

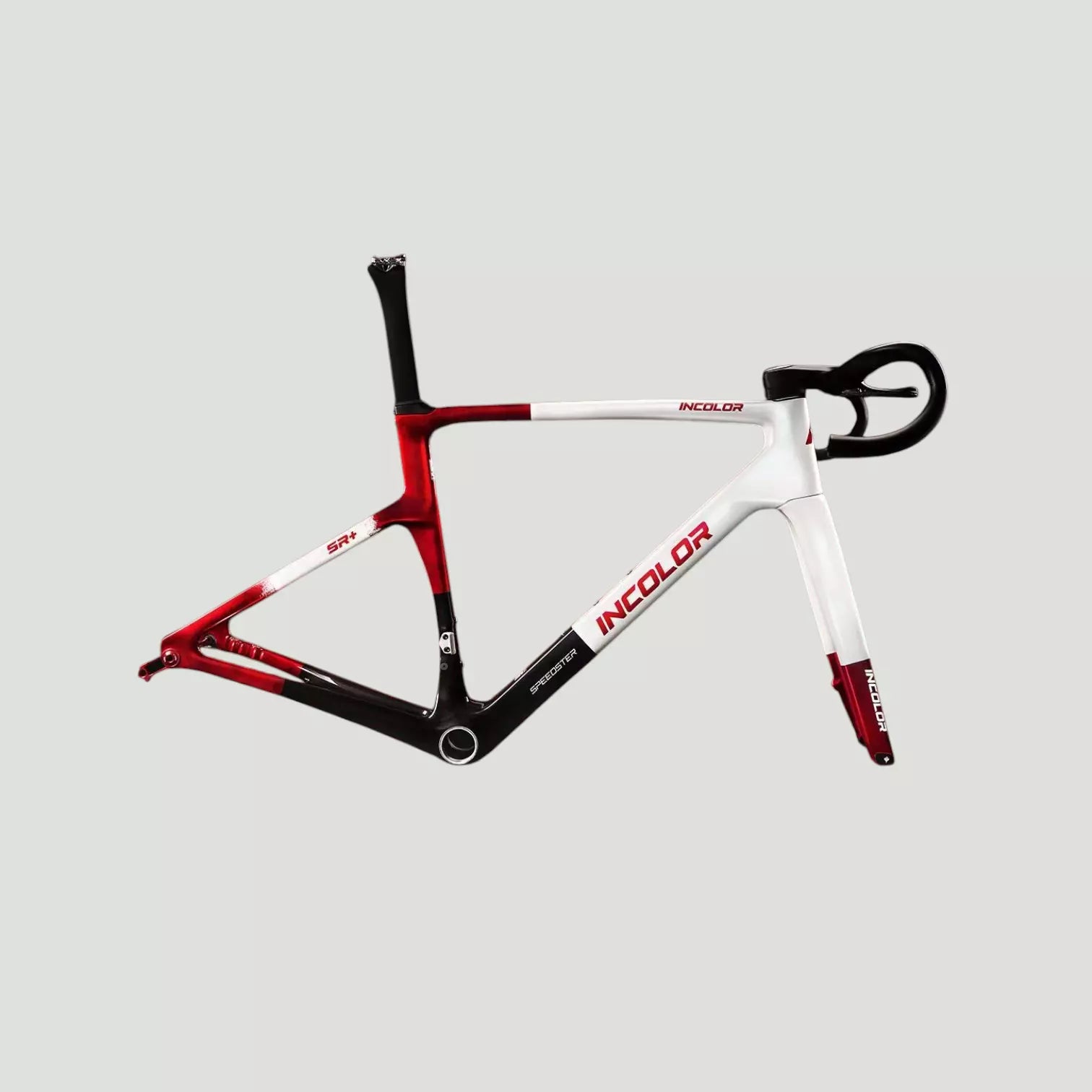

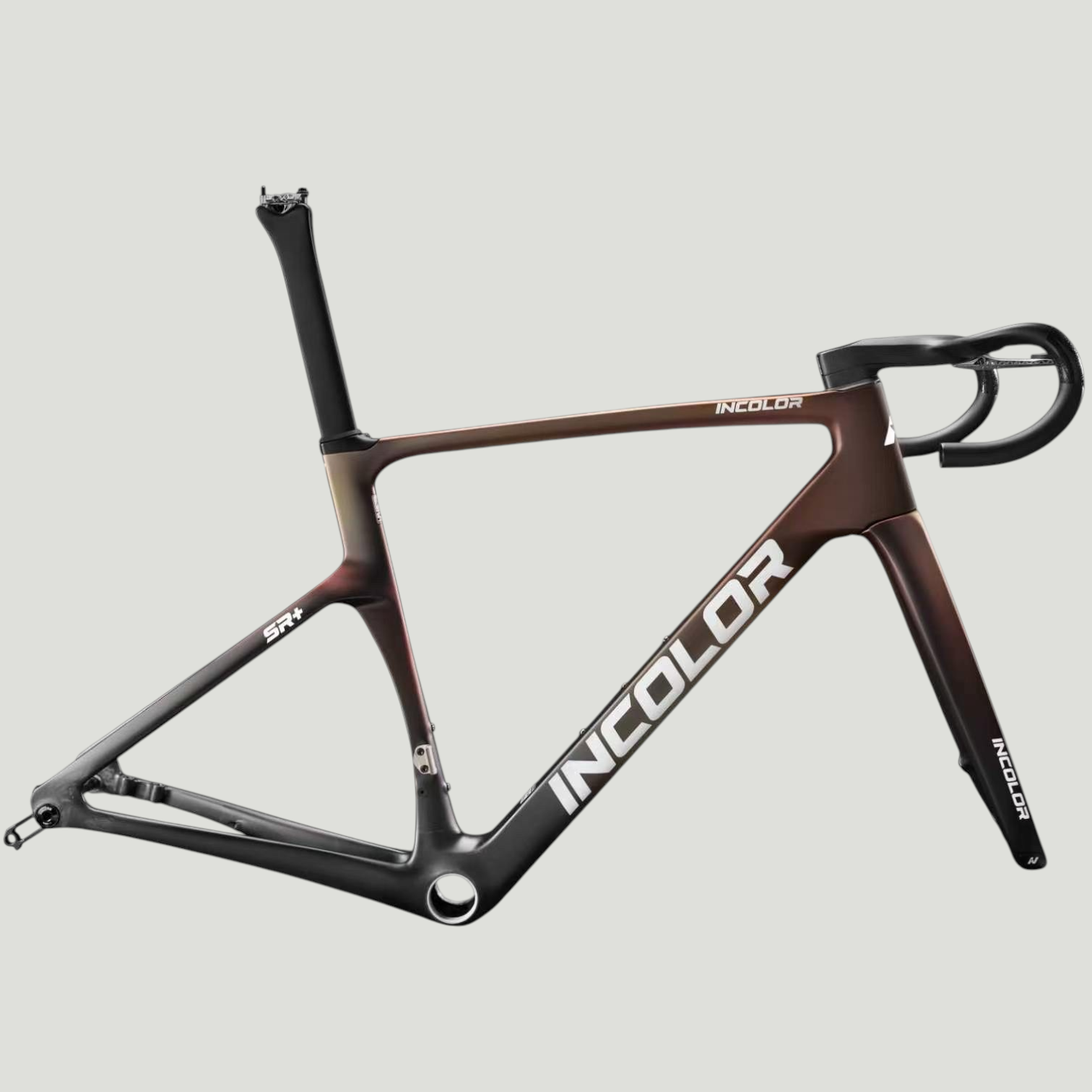

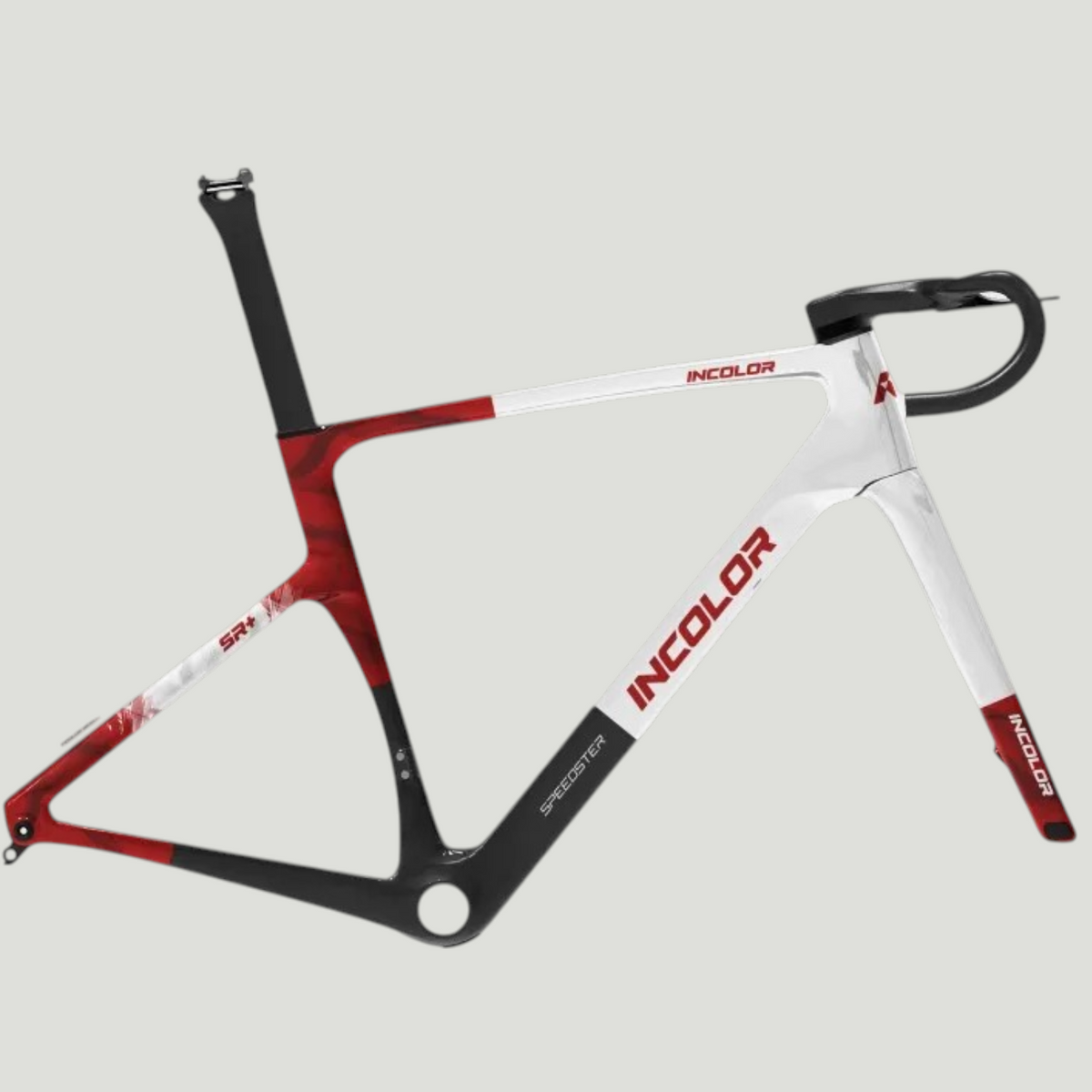

Incolor SR+ Frameset

The Incolor SR Plus Frameset (SR+) is the lighter, stiffer evolution of the SR, using an elite 80T (pitch-based) + T1100 layup for a frame weight around 720 g (size 54, bare). It keeps the everyday-friendly bits:T47A threaded BB, UDH hanger, fully internal routing, and clearance for 38C slicks, while adding a titanium 3D-printed accessory kit that trims about 45 g from the small parts. Proven aero shaping helps save roughly 3 W at 45 km/h vs benchmark race frames.

Incolor SR+ Frameset — Features & Benefits

Lighter Layup: 80T (pitch-based) + T1100 carbon; ~720 g frame (54, bare).
Aero, Verified: ~3 W less drag at 45 km/h in wind-tunnel comparison (≈0.12 km/h faster or 21 s/100 km).
Stiff Where It Matters: Pedal stiffness up to 181 N/mm (SR: 175 N/mm).
40 mm Head Tube, Standard Steerer: Offset steerer design keeps a 28.6 mm steerer for easy headset/compatibility.
Race-Day Practical: T47A threaded BB, UDH hanger, quiet internal routing.
Real-World Range: Fits up to 38C slicks (≈46 mm internal width at frame/fork).
Ti 3D-Printed Kit Included: Computer mount, GoPro base, stem cover, seat mount & FD hanger (about −45 g vs standard kit).
Coverage: Manufacturer lifetime warranty terms apply.

Incolor Intropy Speedster SR Plus Frameset complete build

SR+ — Specifications

Speedster SR+ Frame Specs

Layup/Material: 80T (pitch-based) + T1100 carbon
Frame Weight: ~720 g (size 54, unpainted/without accessories)
Bottom Bracket: T47A asymmetric threaded
Derailleur Hanger: UDH (Shimano/SRAM compatible)
Brakes/Routing: Flat-mount disc; fully internal
Tire Clearance: up to 38C slick (≈46 mm internal width)
Pedal Stiffness (max): ~181 N/mm

Included with the Frameset

Model: SR PLUS — Aero Frame Set (SR+ version)
Frame/Fork: SR PLUS frame & fork
Cockpit: AEROWAV Aero cockpit
Seatpost: SR PLUS Aero seatpost
Accessory Kit: Titanium 3D-printed package (about −45 g vs standard)

Build Notes

Use a T47A BB matched to your crank spindle (24 mm / 30 mm / DUB).
Confirm bar/stem compatibility if using third-party integrated cockpits.
For mixed surfaces, start with 30–34 mm tires and tune pressure to terrain.

Incolor SR+ Frameset — Geometry

Speedster SR geometry illustration with labeled dimensions — Geometry diagram for reference. Wheel shown with 700×28C.

Size	45-XXS	48-XS	51-S	54-M	56-L	58-XL
Recommended Height (cm)	155–162	162–168	167–173	172–178	177–183	182–188
A Reach (mm)	365	371	376	383	390	398
B Stack (mm)	508	516	525	540	560	584
C Seat Tube Angle (°)	75	74.5	74.5	74	73.75	73.5
D Head Tube Angle (°)	70.8	71	71.2	72	72	72.25
E Front Center (mm)	578.3	585.2	592.1	591.3	605.3	618.5
F Rear Center (mm)	405	405	405	405	405	405
G Bottom Bracket Drop (mm)	78	78	75	75	72	72
H Wheelbase (mm)	970.4	977.4	985.3	984.6	999.6	1012.8
I Fork Offset (mm)	55	55	55	50	50	50
J Trail (mm)	60.2	58.9	57.7	58	58	56.4
K Head Tube Length (mm)	104.5	112.2	124.1	135.1	159.3	183.6
L Stand Over Height (mm)	717.4	726.9	741.3	757.5	780.3	805.1
M Seat Tube Length (mm)	443	453	464	480	500	526
N Effective Top Tube (mm)	501.1	514.1	521.6	537.8	553.2	571.0
