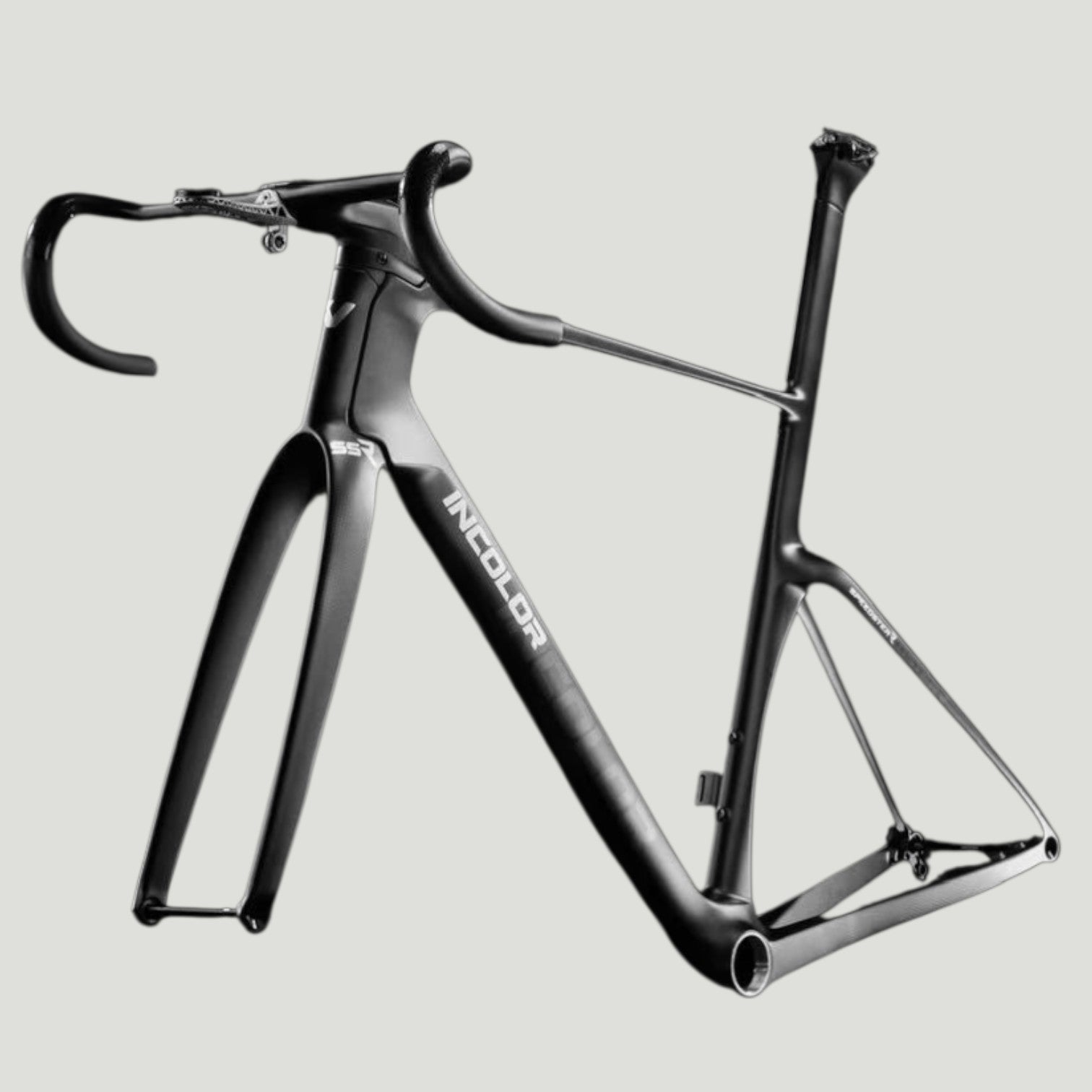

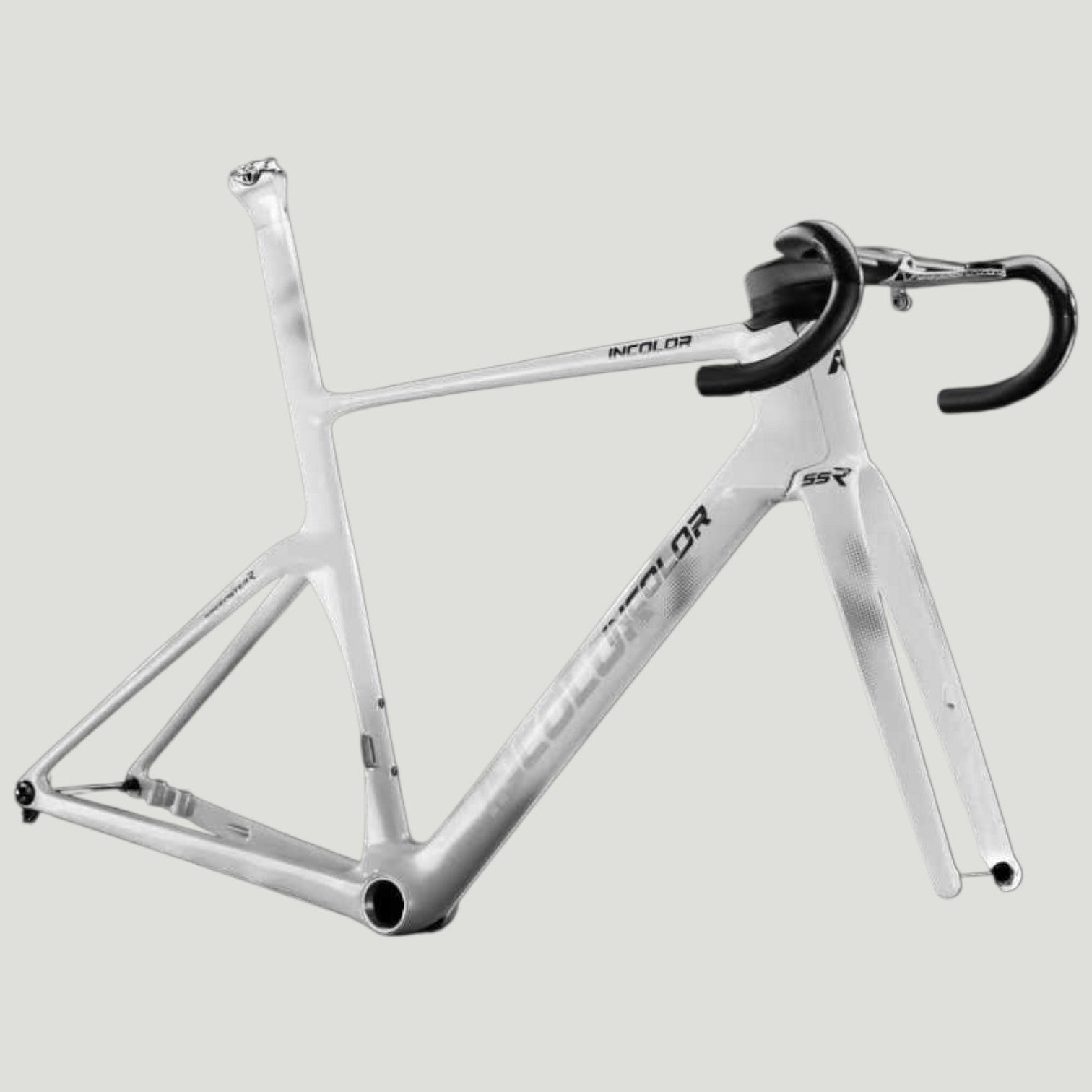

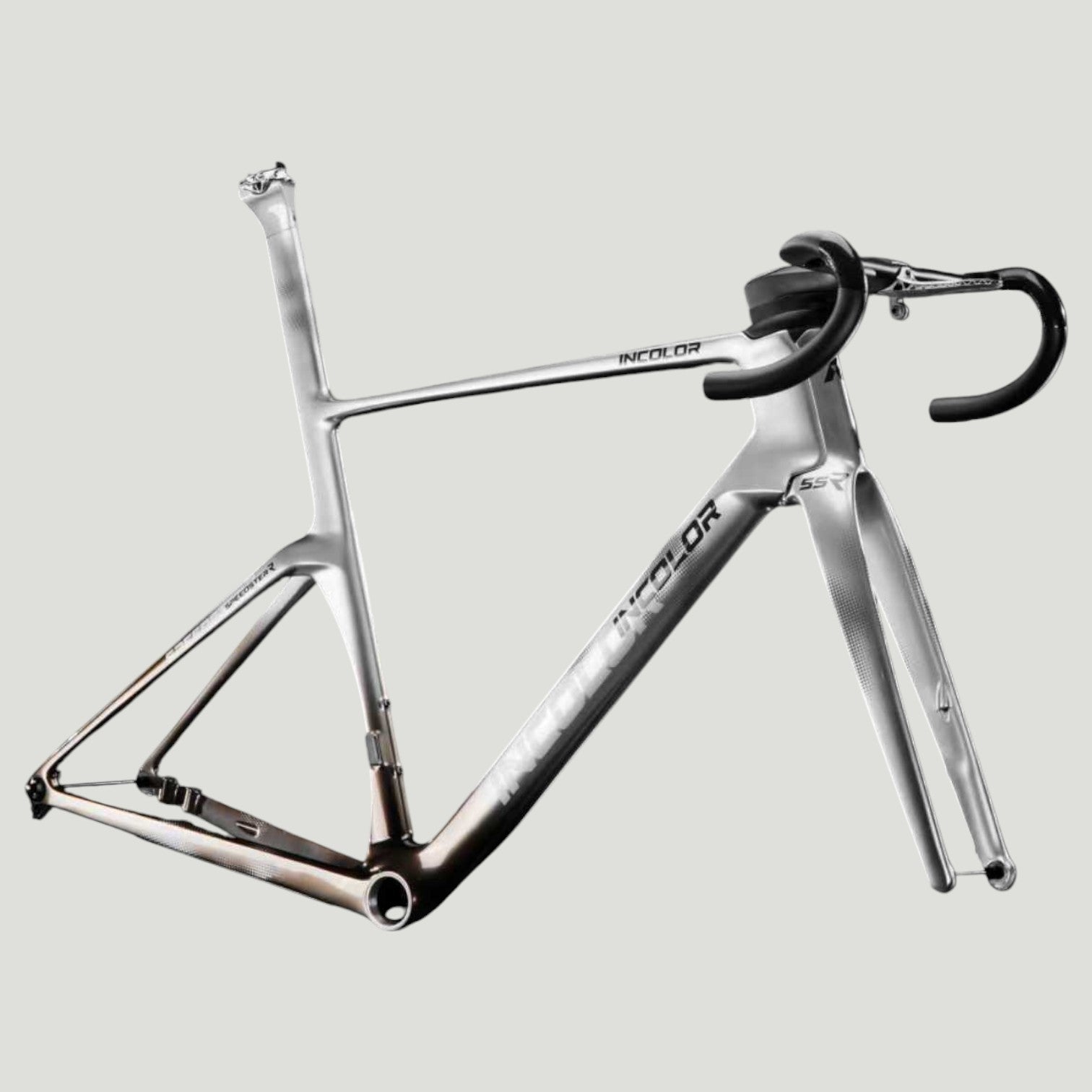

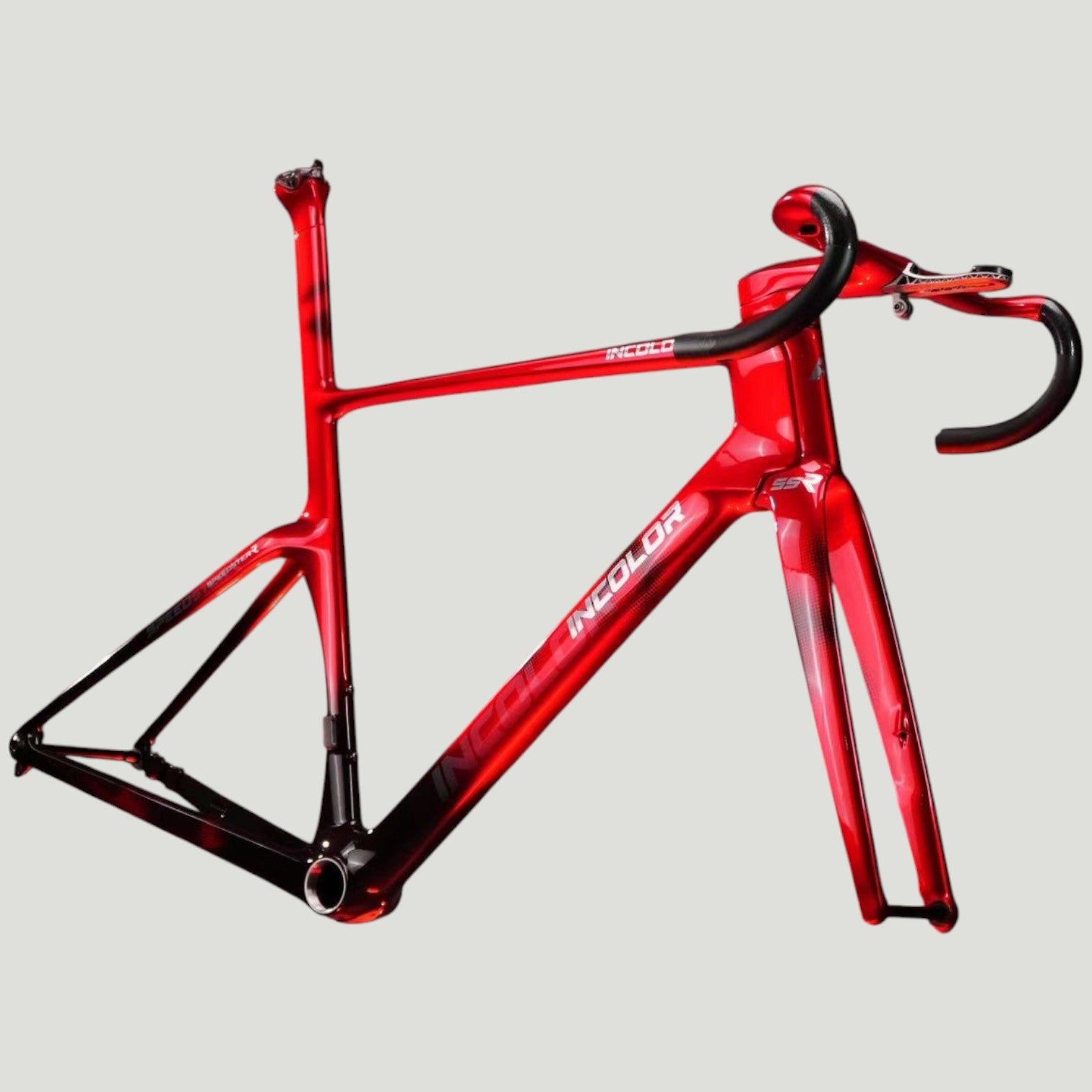

Incolor SSR Frameset

The Incolor SSR Frameset pushes aero efficiency even further with a dual steer-tube design that narrows the head tube to just 34 mm and drives frontal area down to ≈586.6 cm² (about 6.4% lower than SR+). Wind-tunnel testing shows meaningful power savings at race speeds, while the integrated seatpost trims surface area—and weight—without sacrificing stiffness. A renewed layup using more 80T pitch-based carbon keeps the chassis light, strong and responsive.

Incolor SSR Frameset — Features & Benefits

Smaller Frontal Area: ≈586.6 cm² (size 54), ~6.4% lower vs SR+ for less drag.
Dual Steer-Tube Front End: 34 mm head tube width with a standard 28.6 mm inner steerer for stiffness and broad cockpit compatibility.
Wind-Tunnel Proven: At 45 km/h, SSR shows up to −5.35 W vs SR+ (0–5° yaw) and ~−3.99 W average vs S5 (0–20° yaw).
Integrated Seatpost (ISP): Lowers surface area (≈3325 cm²) and mass—about 127 g lighter vs SR+ kit.
Renewed Carbon Layup: Heavier use of 80T pitch-based fiber plus T1100; deep BB section maintains pedaling stiffness.
Refined Molding: EPS + latex process for clean internal walls and lighter finish quality.
Seven Sizes + Custom Options: Standard sizes 45–60 with extended rider-height range and limited geo customization.

Incolor SSR Frameset — Specifications

SSR Frame Specs

Layup/Material: 80T (pitch-based) + T1100 carbon; renewed laminate scheme
Head Tube Width: 34 mm (dual steer-tube design)
Frontal Area: ≈586.59 cm² (size 54); ~6.4% lower vs SR+
Frame Weight: ~750 g (size 54, unpainted/without accessories)
Fork Weight: ~320 g (reference)
Wind-Tunnel Data: Up to −5.35 W vs SR+ (0–5° yaw); avg −3.99 W vs S5 (0–20°)
Molding: EPS + latex process for improved finish quality
Bottom Bracket: T47A 76.75mm

Included with the Frameset

Frame/Fork: INTROPY SSR frame & fork
Cockpit: Aero cockpit
Seatpost: Integrated seat post (ISP)
Accessory Kit: Titanium 3D-printed package
Warranty: Lifetime warranty terms (manufacturer)

Build Notes

Seven sizes (45–60) cover riders ~155–195 cm; limited geometry customization supported.
ISP is cut-to-fit—confirm saddle height before trimming; customization options for height/setback.
Use cockpit/spacers compatible with a 28.6 mm steerer; follow torque specs for all interfaces.

Incolor SSR Frameset — Geometry

Incolor SSR geometry diagram with labeled dimensions — Geometry diagram for reference.

Size	45-XXS	48-XS	51-S	54-M	56-L	58-XL	60-XXL
Recommended Height (cm)	155–162	162–168	167–173	172–178	177–183	182–188	185–195
A Reach (mm)	364	370	375	382	389	397	404
B Stack (mm)	511	519	528	543	563	583	598
C Seat Tube Angle (°)	75	74.5	74.5	74	73.75	73.5	73
D Head Tube Angle (°)	70.8	71	71.2	72	72	72.25	72.5
E Front Center (mm)	578.3	585.2	592.1	591.4	605.3	615	626
F Rear Center (mm)	405	405	405	405	405	405	405
G Bottom Bracket Drop (mm)	78	78	75	75	72	72	72
H Wheelbase (mm)	970.4	977.4	985.3	984.6	999.6	1010	1020.6
I Fork Offset (mm)	55	55	55	50	50	50	50
J Trail (mm)	60.2	58.9	57.7	58	58	56.4	55
K Head Tube Length (mm)	110	117	129	140	164	184.5	199
L Stand Over Height (mm)	715	724	738	754	777	799	829
M Top Tube Length (mm)	501	514	522	538	553.2	571	589
N Min/Max Saddle Height (cm)	59–71	63–75	67–79	71–83	73–87	75–91	75–93
