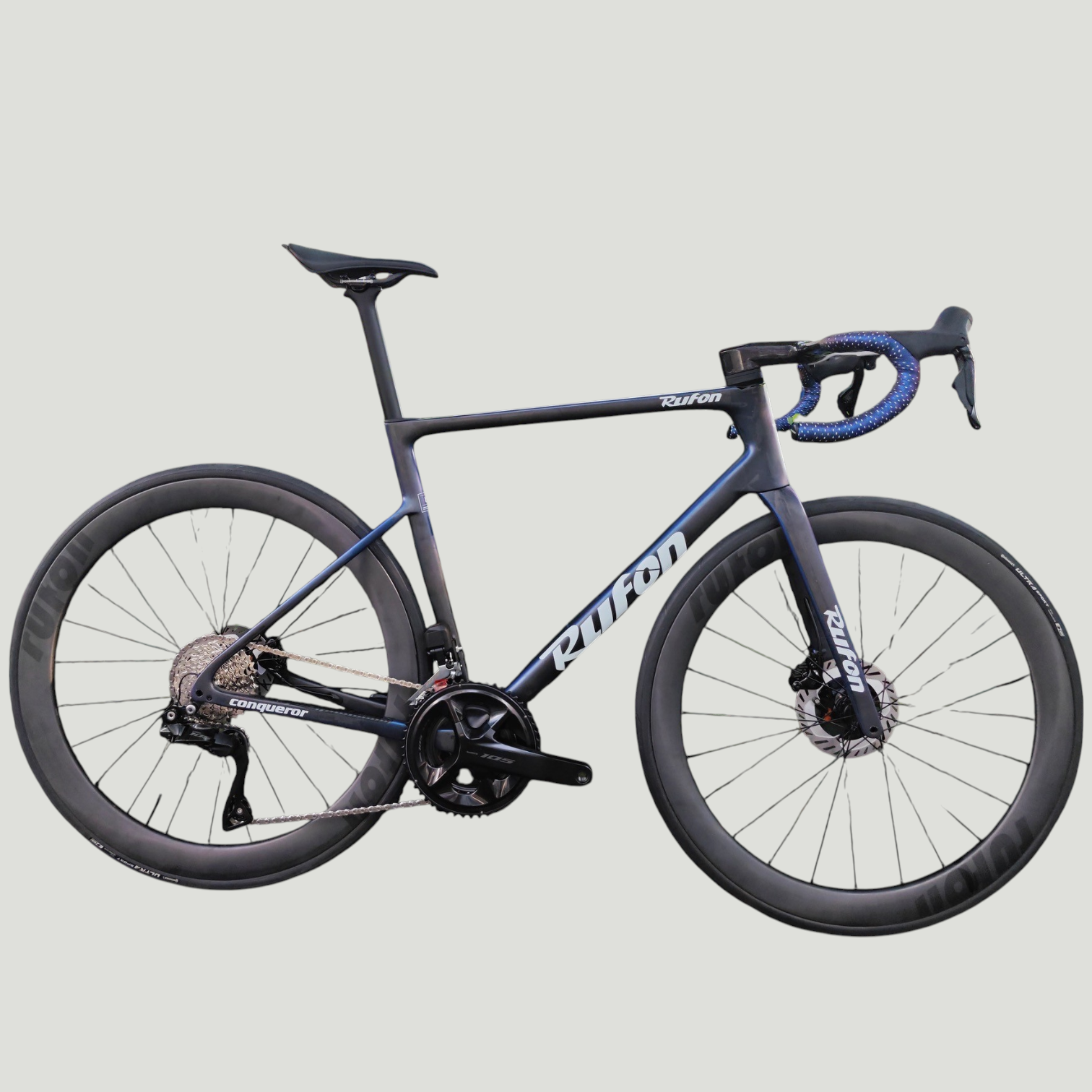

RUFON Conqueror Complete Bike
The RUFON Conqueror Complete Bike builds the ultralight all-round Conqueror frameset into a ready-to-ride machine — BB68 threaded bottom bracket, 1-1/2″ front end, 700×32C clearance and five finish options. Builds are completed with the RUFON T800 carbon integrated handlebar and RUFON 45/50 mm carbon-spoke wheelsets
RUFON Conqueror Complete Bike — Features & Benefits
- All-rounder, complete: the Conqueror frameset built up ready to ride.
- RUFON integrated cockpit: T800 carbon one-piece bar (approx. 300 g) with hidden routing; tops 350–410 mm, stems 80–120 mm.
- RUFON carbon wheels: 45 mm (approx. 1040 g) 50 mm (approx. 1160 g) carbon-spoke wheelsets with 54T ratchet hubs.
- BB68 bottom bracket: threaded, robust, serviceable anywhere.

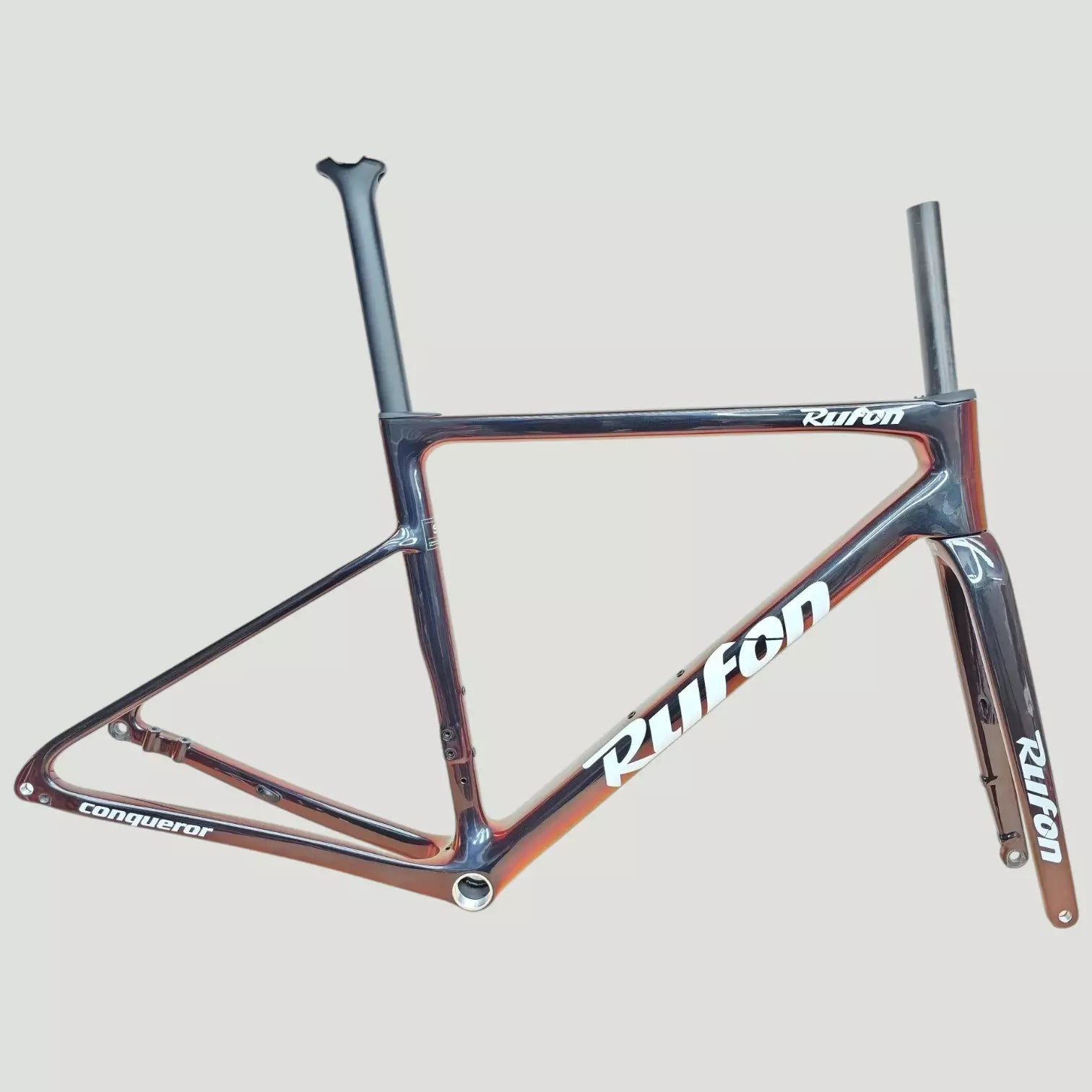

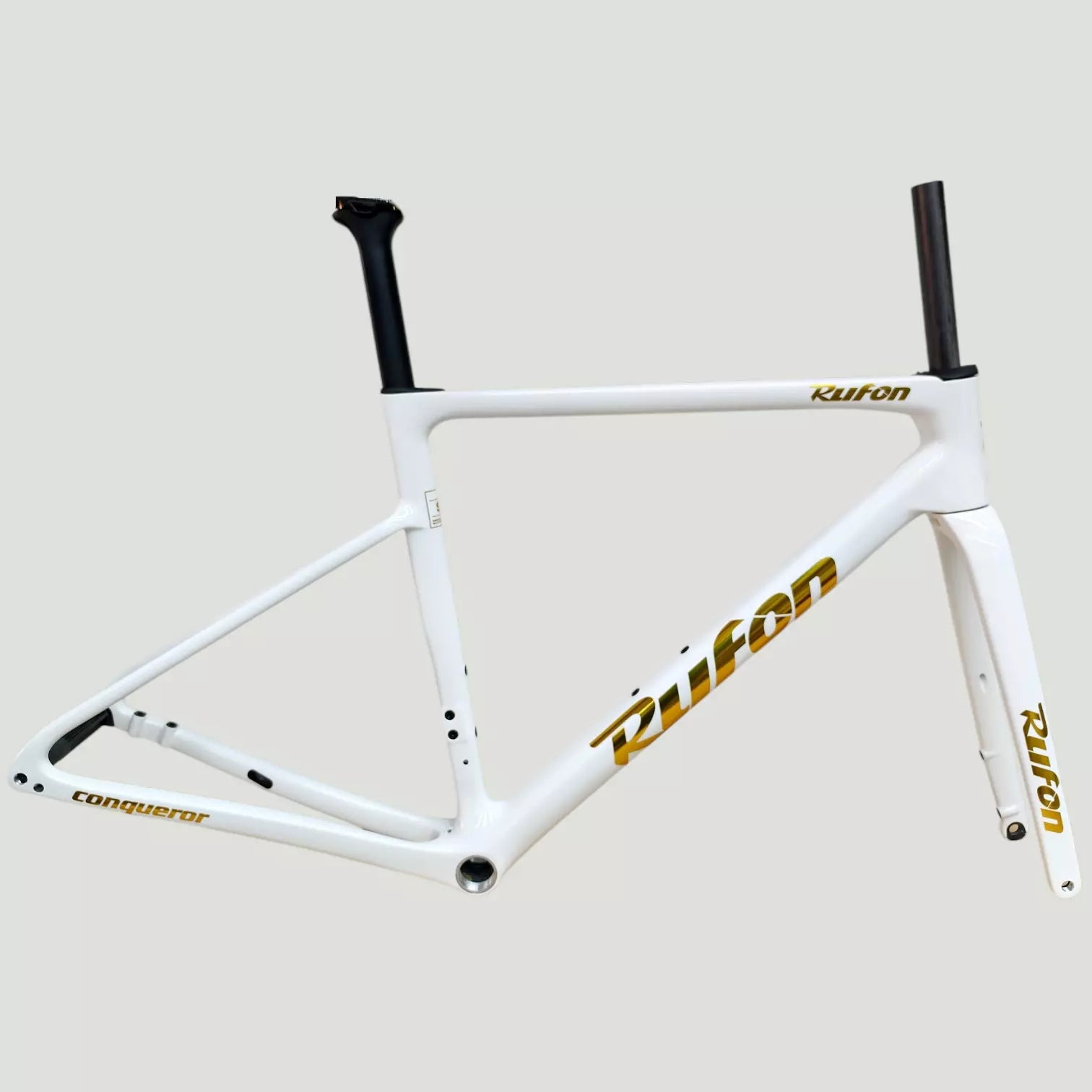

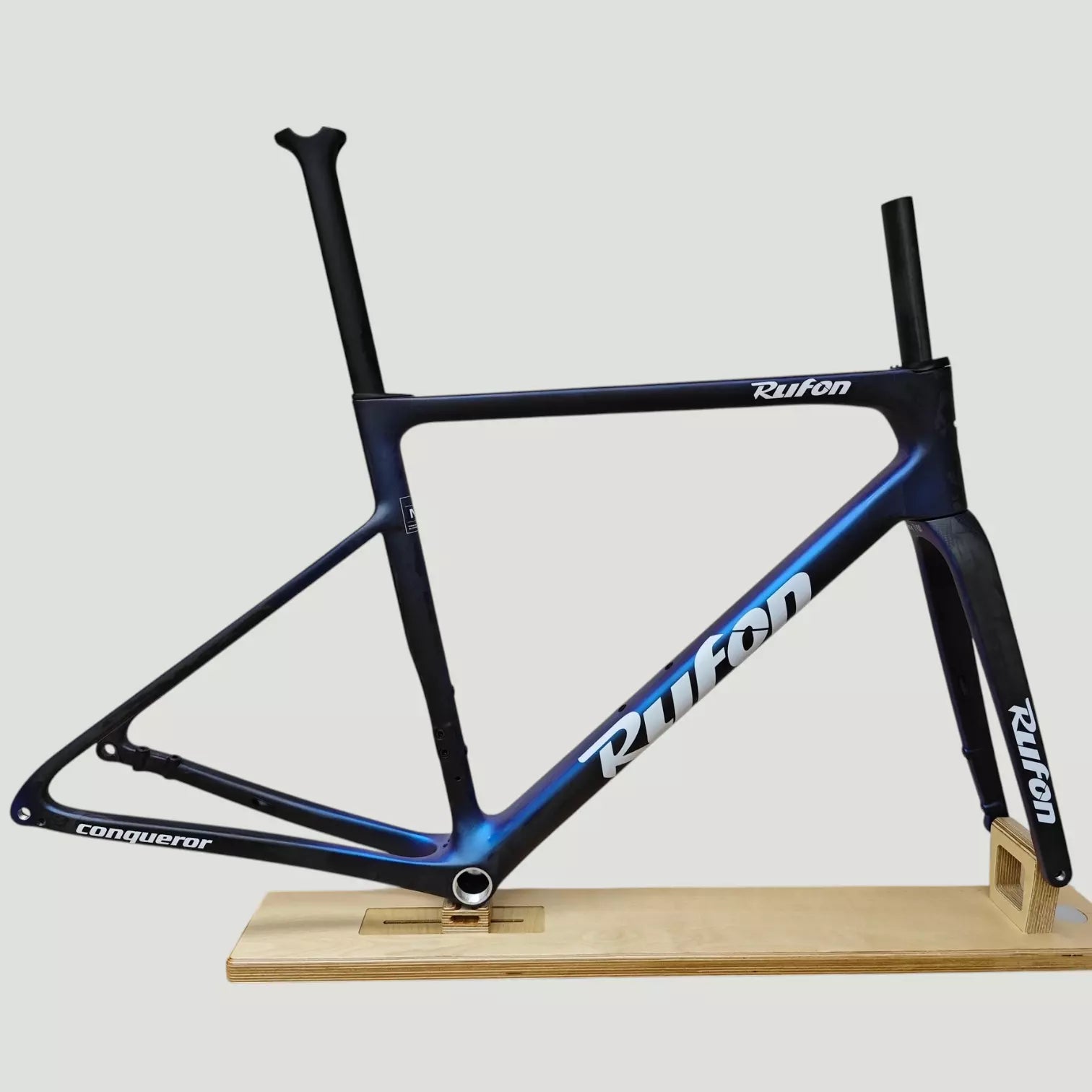

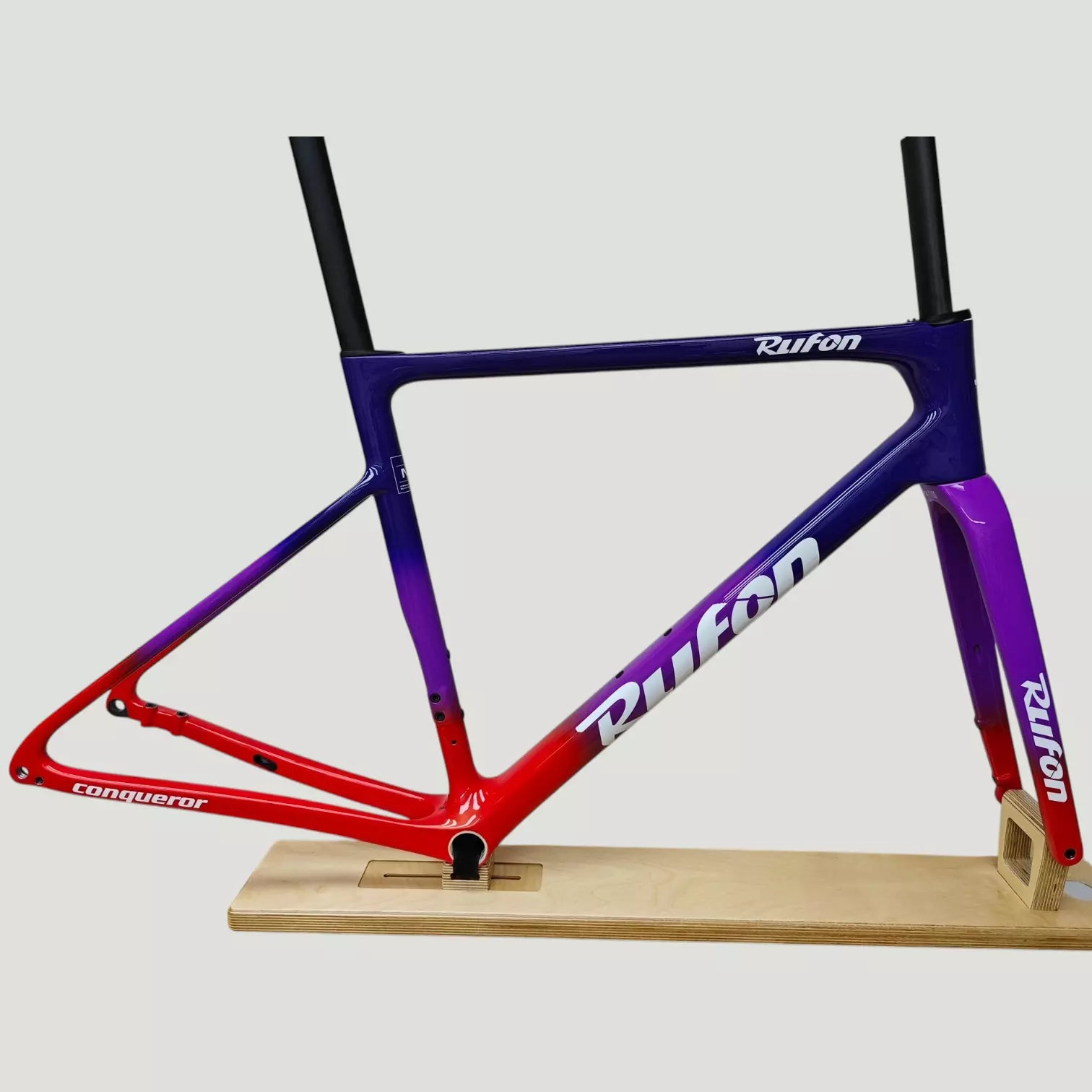

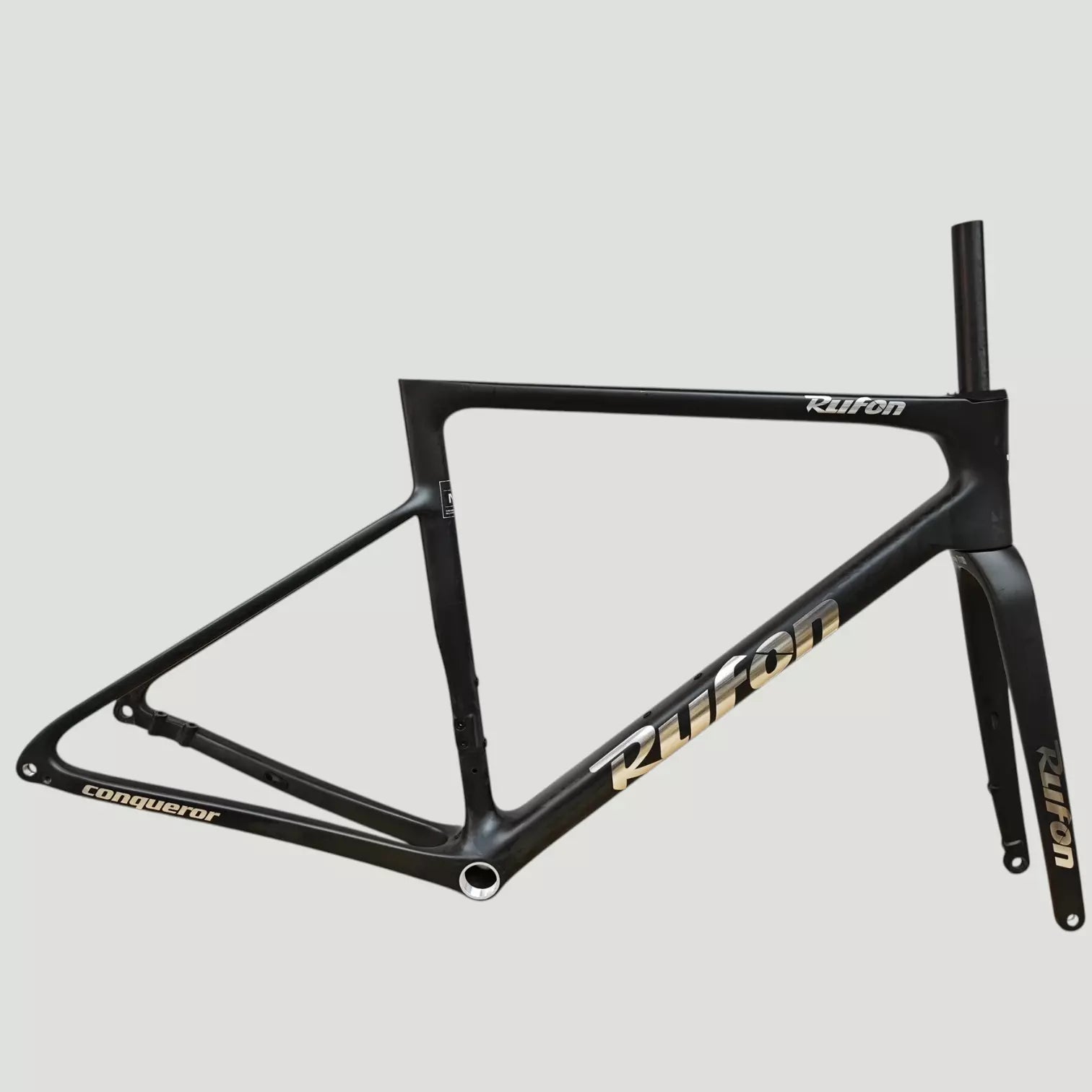

- Five finishes: Raw Carbon Black, Chameleon Blue, Chameleon Red, Gradient Blue-Purple-Red, White Gold.
- Modern standards: 12 mm thru-axles, disc brakes, 700×32C clearance.
RUFON Conqueror Complete Bike — Specifications
Frame Platform
- Type: full-carbon ultralight all-round disc road frameset
- Bottom bracket: BB68
- Headset: upper 1-1/2″, lower 1-1/2″
- Thru-axles: M12×P1.5×100 mm front / M12×P1.5×142 mm rear
- Max tire: 700×32C
- Routing: fully internal (integrated cockpit compatible)
RUFON Wheels and Handlebar
- Cockpit: RUFON T800 carbon integrated handlebar (approx. 300 g)
- Wheels: RUFON 45 mm (approx. 1040 g)
- Rim Material T800+T1000
- 11-12S Compatible 54T ratchet
- 22mm Internal 28mm External
- Wheels: Rufon 50 mm (approx. 1160 g) carbon-spokes
- Rim Material T800+T1000
- 26mm Internal 31mm External
Available Sizes & Colours
- Sizes: XS / S / M / L / XL
- Colours: Raw Carbon Black, Chameleon Blue, Chameleon Red, Gradient Blue-Purple-Red, White Gold
- Warranty: 2-year frameset warranty

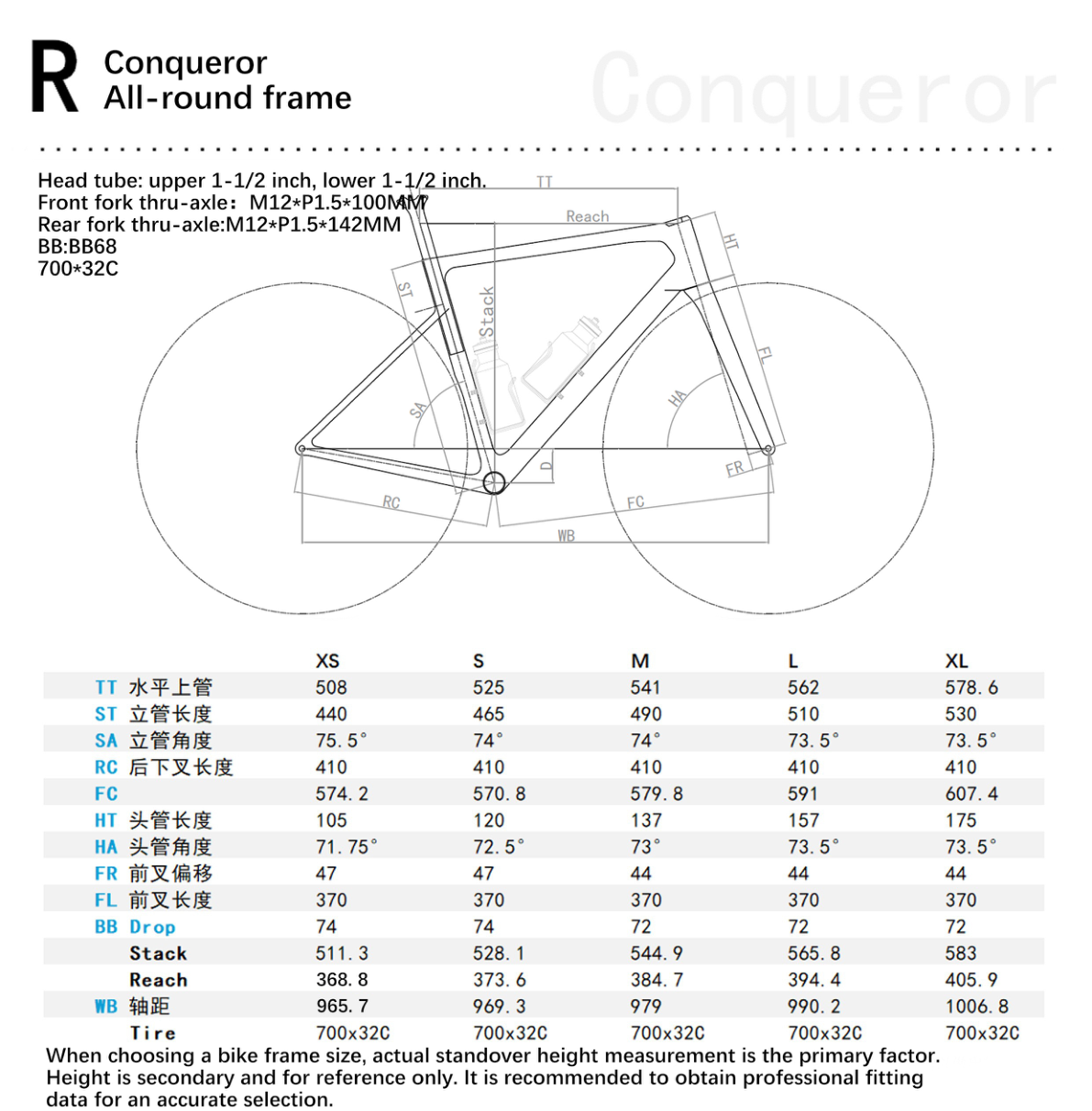

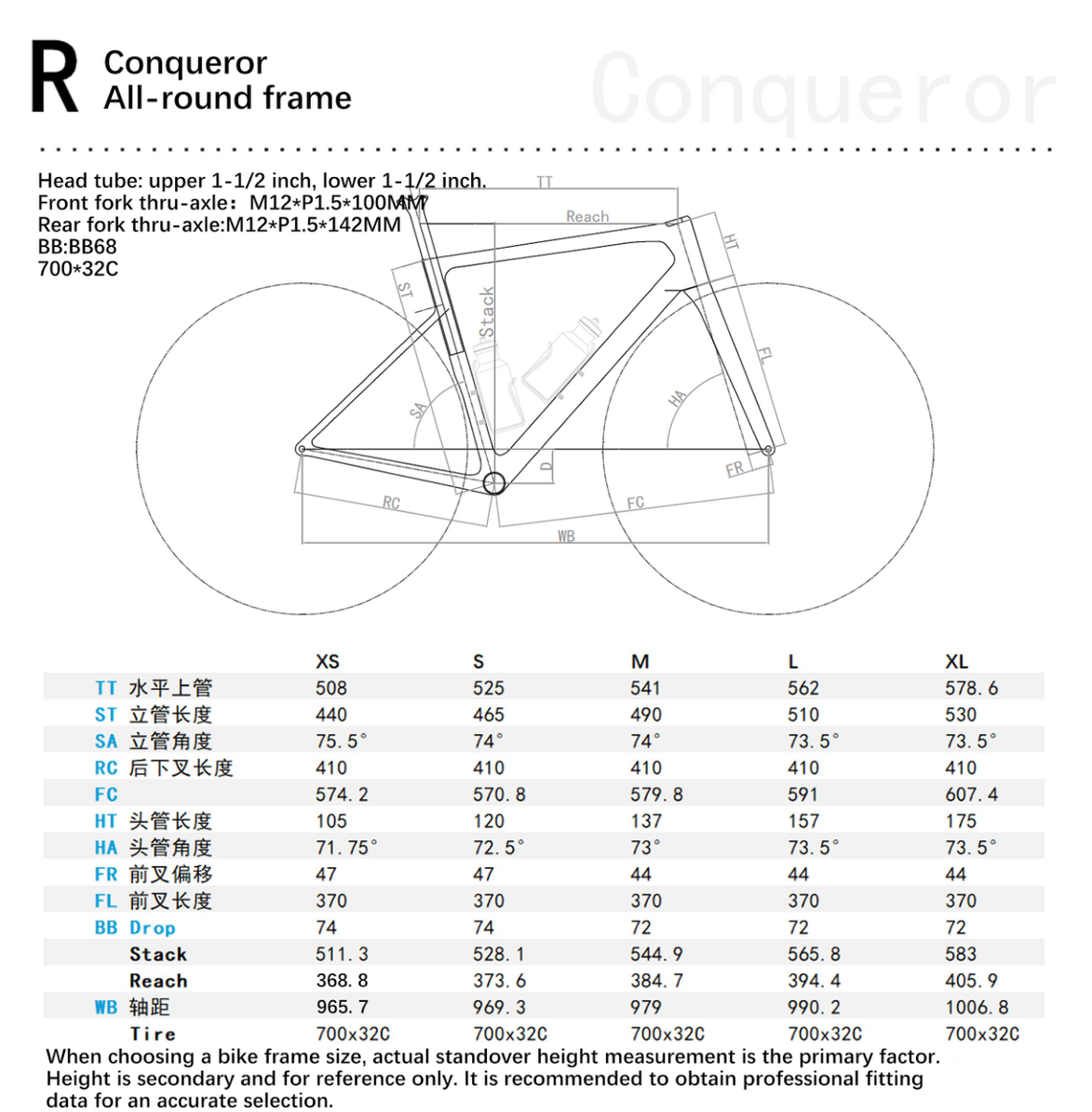

RUFON Conqueror Complete Bike — Geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube / TT (mm) | 508 | 525 | 541 | 562 | 578.6 |
| Seat Tube / ST (mm) | 440 | 465 | 490 | 510 | 530 |
| Seat Angle / SA (°) | 75.5 | 74 | 74 | 73.5 | 73.5 |
| Head Tube / HT (mm) | 105 | 120 | 137 | 157 | 175 |
| Head Angle / HA (°) | 71.75 | 72.5 | 73 | 73.5 | 73.5 |
| Fork Offset / FR (mm) | 47 | 47 | 44 | 44 | 44 |
| Fork Length / FL (mm) | 370 | 370 | 370 | 370 | 370 |
| Rear Center / RC (mm) | 410 | 410 | 410 | 410 | 410 |
| Front Center / FC (mm) | 574.2 | 570.8 | 579.8 | 591 | 607.4 |
| BB Drop (mm) | 74 | 74 | 72 | 72 | 72 |
| Stack (mm) | 511.3 | 528.1 | 544.9 | 565.8 | 583 |
| Reach (mm) | 368.8 | 373.6 | 384.7 | 394.4 | 405.9 |
| Wheelbase / WB (mm) | 965.7 | 969.3 | 979 | 990.2 | 1006.8 |
| Max Tire | 700×32C | 700×32C | 700×32C | 700×32C | 700×32C |
All dimensions in mm unless noted (°). Manufacturer-published chart. When choosing a size, actual standover measurement is the primary factor; height ranges are secondary — contact us for a fit consult.
Helpful Links
Compare geometry with other bikes on Geometry Geeks.
Browse complete bikes and components.
Frame-only option: RUFON Conqueror Frameset.
RUFON Conqueror Complete Bike — FAQ
Which groupsets will be offered?
Build options are being finalised with RUFON and will be announced on this page. Contact us to register interest and we will confirm available groupsets, wheel depths and pricing for your build.
What colours are available?
Raw Carbon Black, Chameleon Blue, Chameleon Red, Gradient Blue-Purple-Red and White Gold — select from the swatches above.
What are the key frame standards?
BB68 threaded bottom bracket, 1-1/2″ upper and lower headset, M12×P1.5 thru-axles (100/142 mm), disc brakes, 700×32C clearance.
How does shipping and import duty work?
Orders ship tracked and insured. For most destinations we ship DDP (duties pre-paid) where available, so there are no surprise charges at delivery — contact us before ordering if you are unsure about your country.
What warranty applies?
The frameset carries a 2-year manufacturer warranty against manufacturing defects, supported through Underdogs Cycling. Crash replacement support is available — contact us with your order number.
