RUFON Conqueror Frameset
The RUFON Conqueror is the ultralight all-round frameset in the RUFON range — a full-carbon disc road chassis for riders who want one bike for climbing days, long rides and fast group efforts. It runs a proven BB68 threaded bottom bracket, a 1-1/2″ head tube top and bottom, 12 mm thru-axles and clearance for 700×32C tires, with size-specific fork offsets (47 mm on XS/S, 44 mm on M–XL) keeping the handling consistent across all five sizes.
RUFON Conqueror Frameset — Features & Benefits
- All-round by design: balanced, ultralight chassis that climbs, descends and cruises without a specialty bias.
- BB68 threaded bottom bracket: simple, robust, creak-free and serviceable anywhere.
- Size-specific handling: fork offset changes from 47 mm (XS/S) to 44 mm (M–XL) for consistent steering.
- Modern clearances: 700×32C tires on 12 mm thru-axles front and rear.

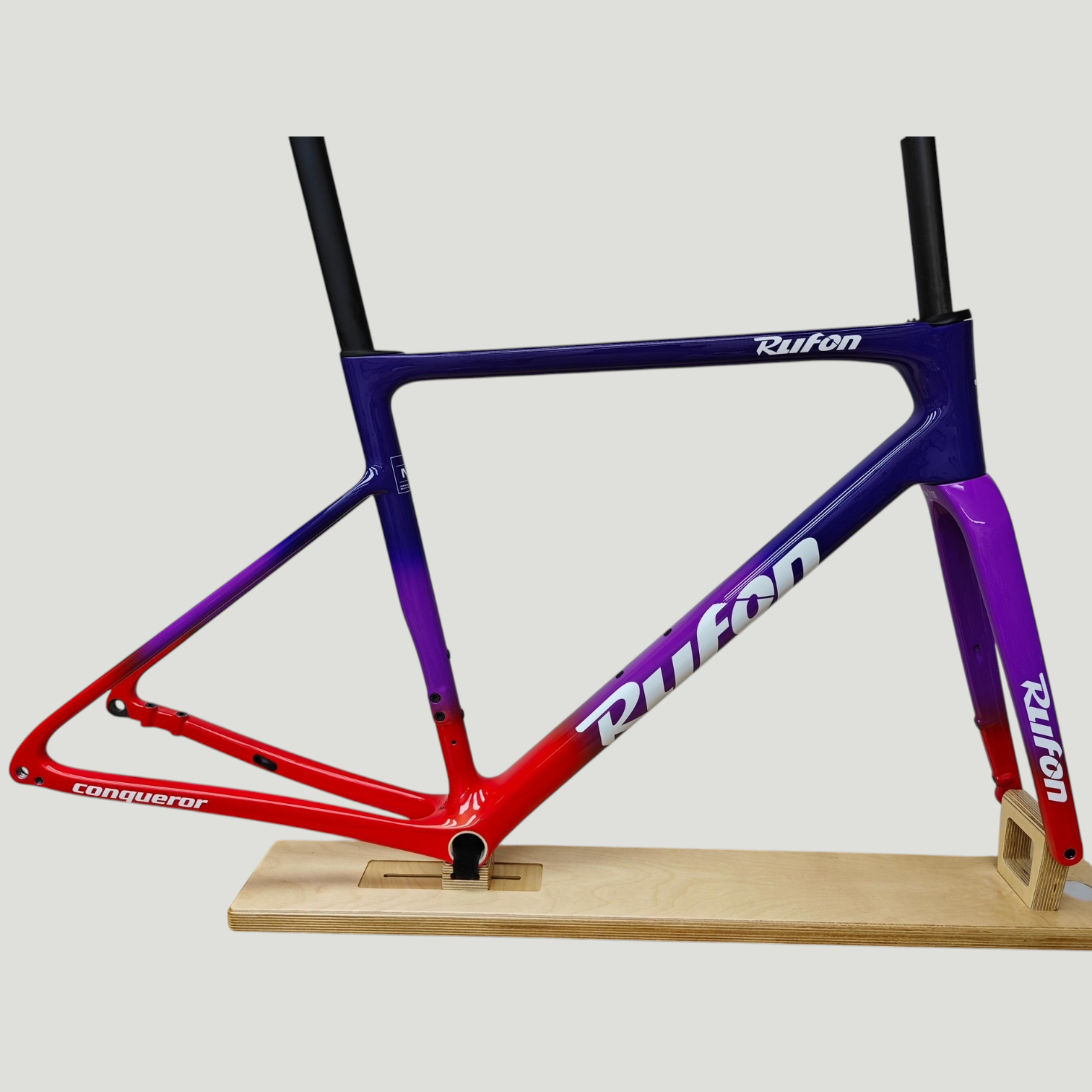

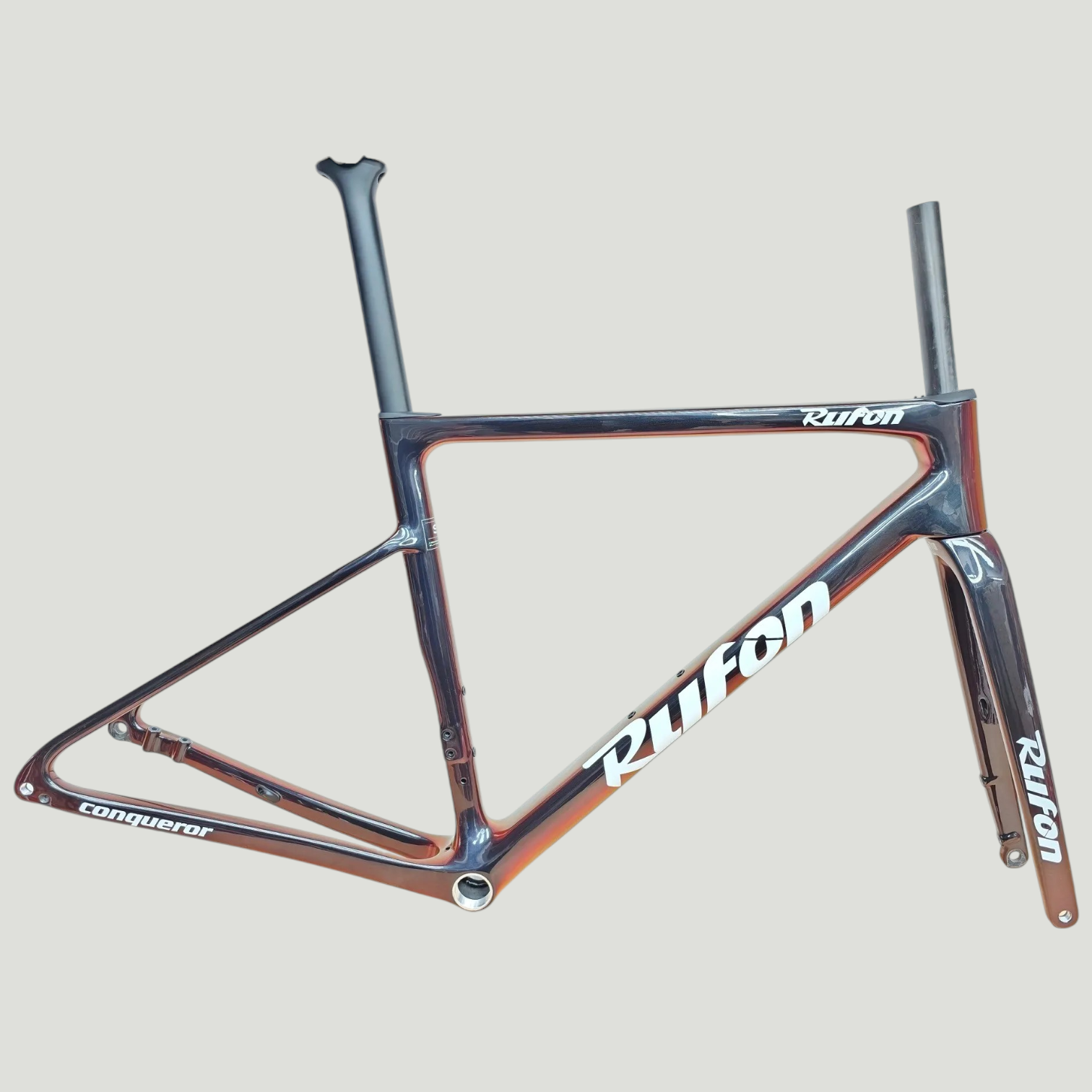

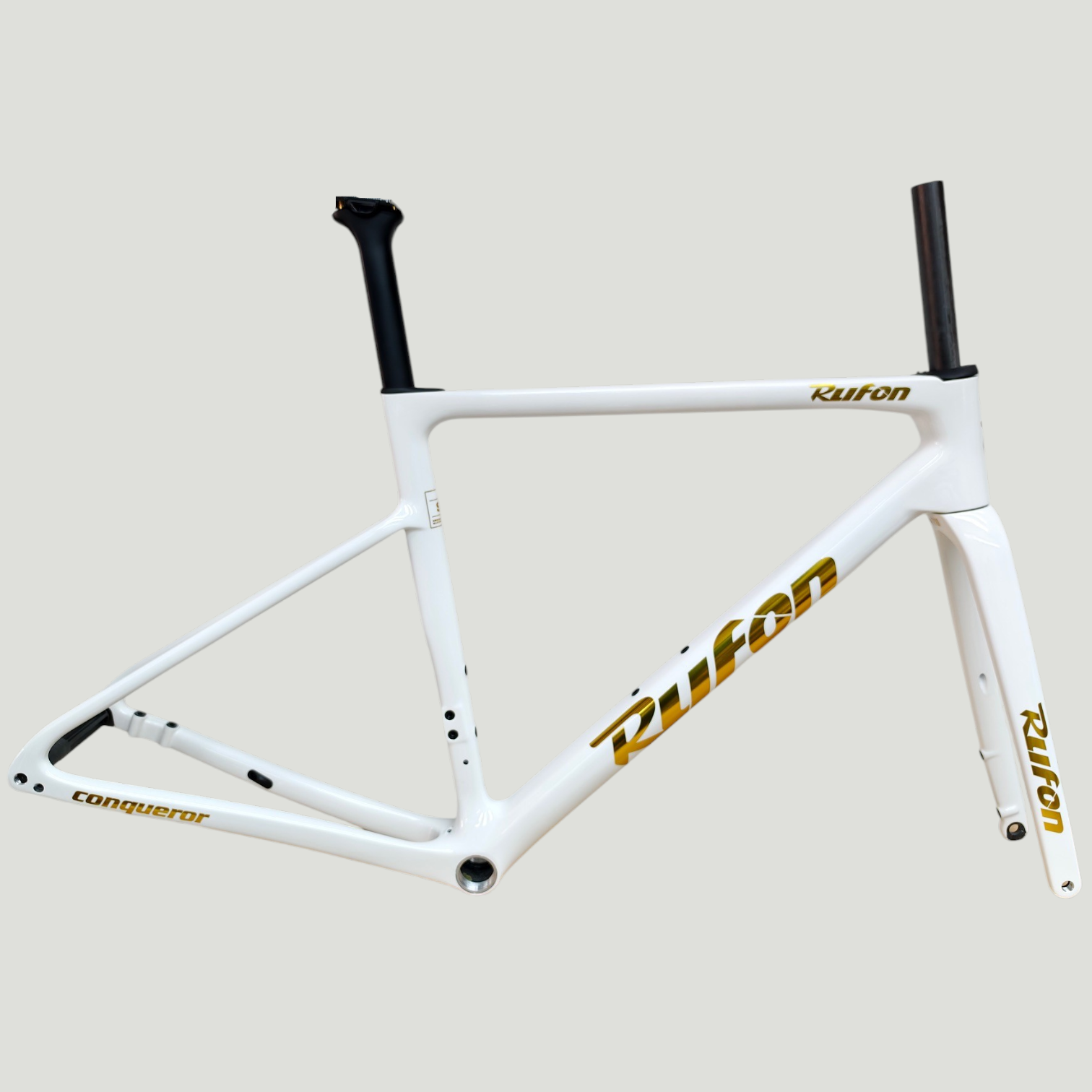

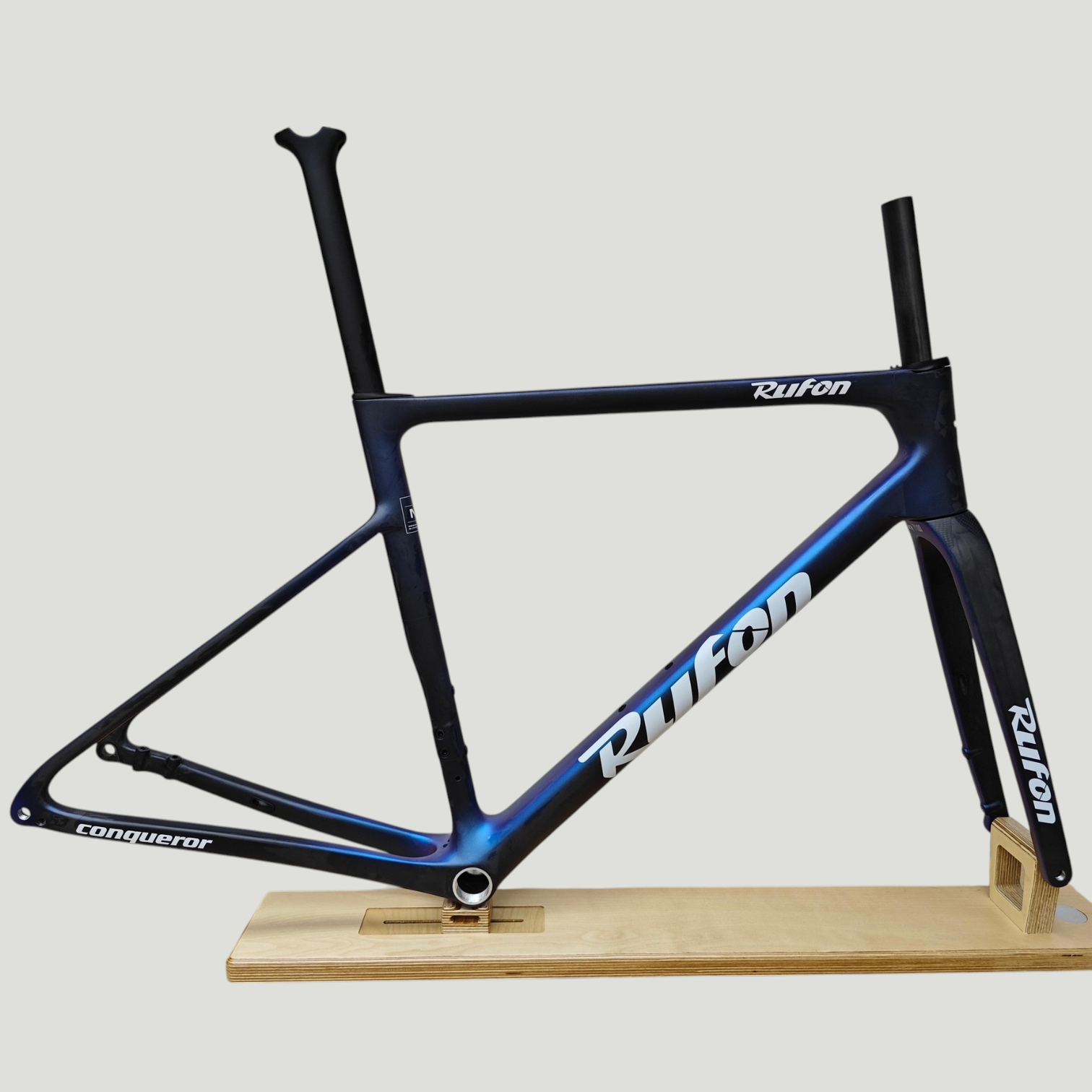

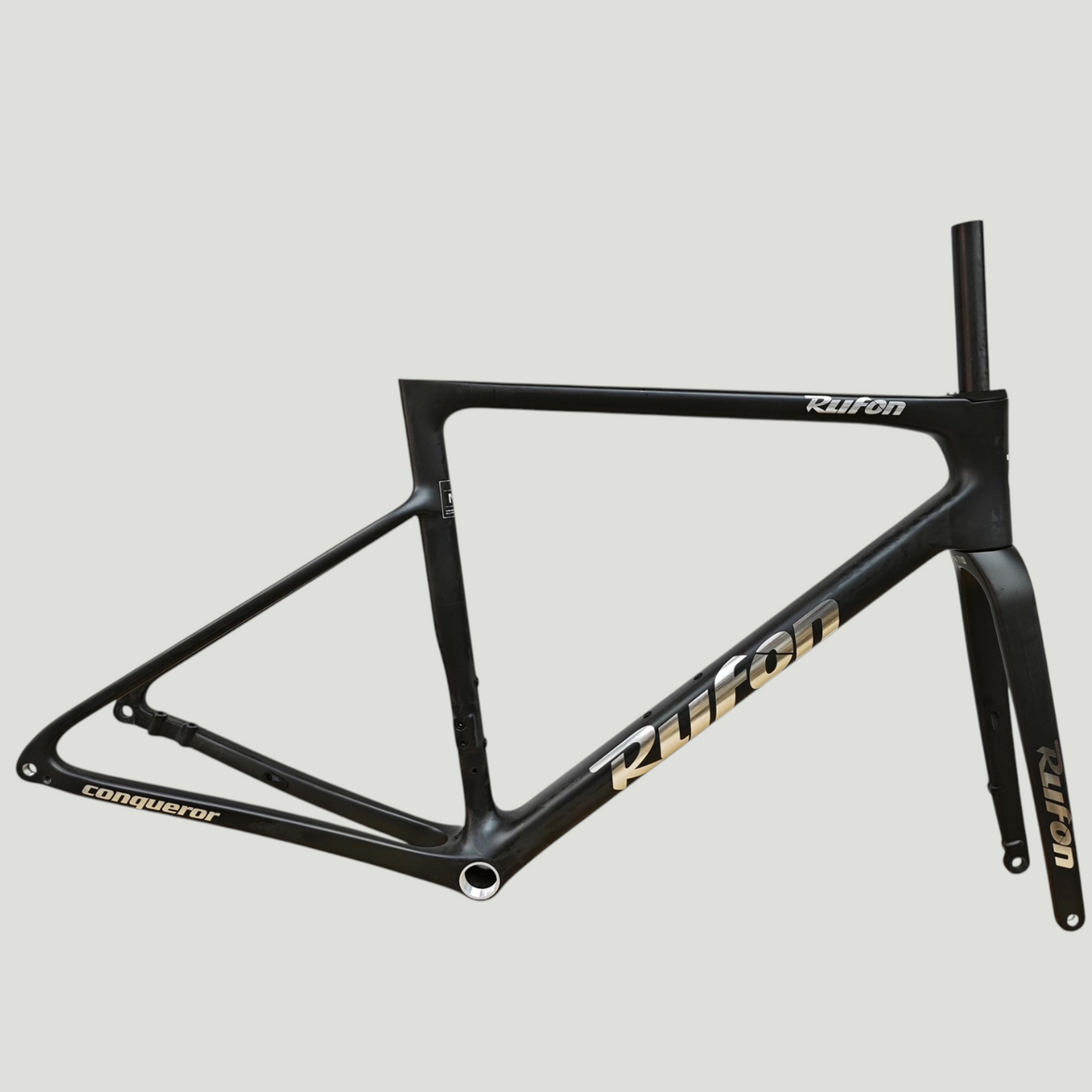

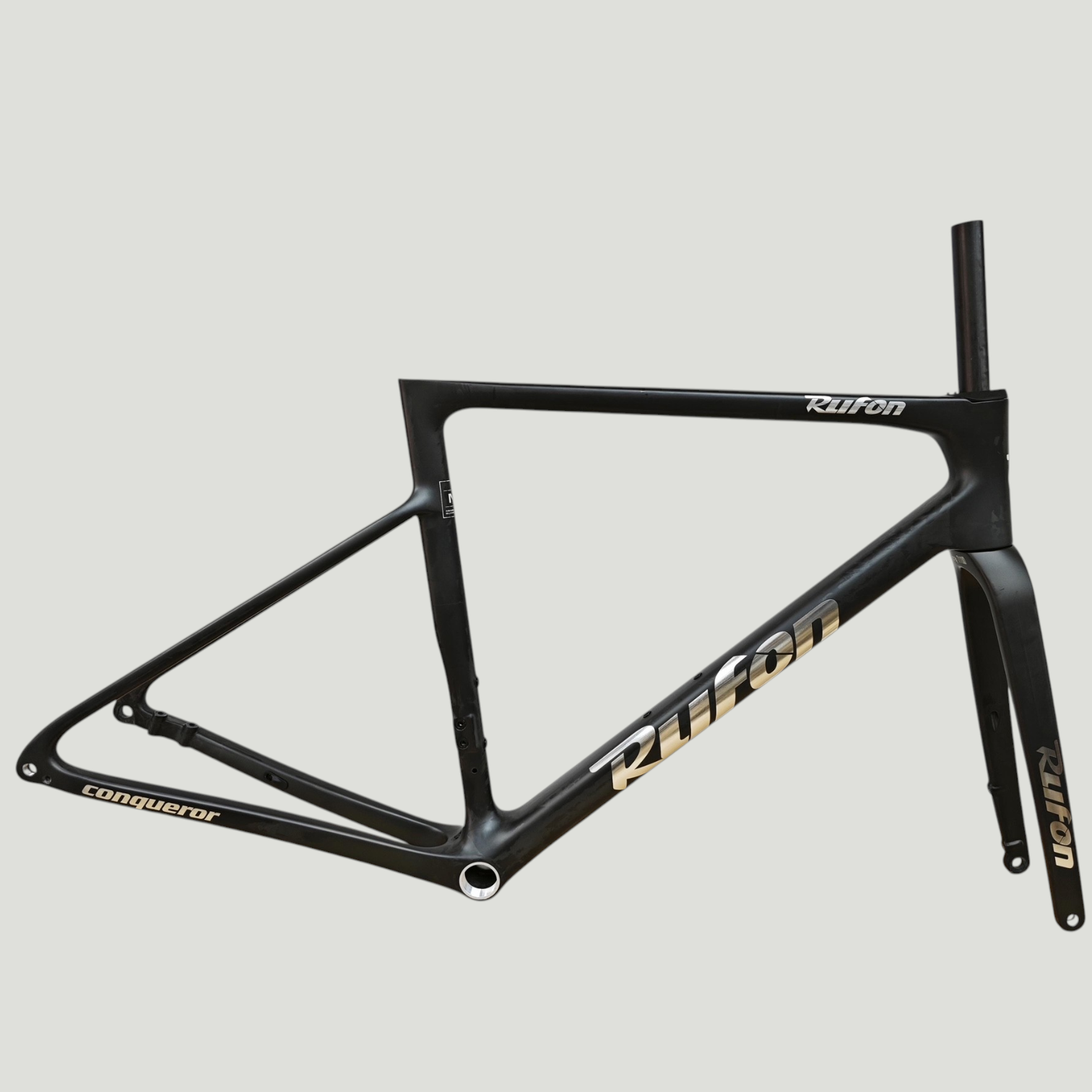

- Five finishes: Raw Carbon Black, Chameleon Blue, Chameleon Red, Gradient Blue-Purple-Red and White Gold.
- Integrated-ready: pairs with the RUFON T800 integrated handlebar for a clean hidden-cable cockpit.
RUFON Conqueror Frameset — Specifications
Frame Platform
- Type: full-carbon ultralight all-round disc road frameset
- Bottom bracket: BB68
- Headset: upper 1-1/2″, lower 1-1/2″
- Thru-axles: M12×P1.5×100 mm front / M12×P1.5×142 mm rear
- Max tire: 700×32C
- Routing: fully internal (integrated cockpit compatible)
RUFON Ecosystem
- Cockpit: RUFON T800 carbon integrated handlebar (approx. 300 g; tops 350–410 mm, drops 380–440 mm, stems 80–120 mm)
- Compatibility: OD1 & OD2 steerers, universal conversion spacers
Available Sizes & Colours
- Sizes: XS / S / M / L / XL
- Colours: Raw Carbon Black, Chameleon Blue, Chameleon Red, Gradient Blue-Purple-Red, White Gold
- Warranty: 2-year frameset warranty

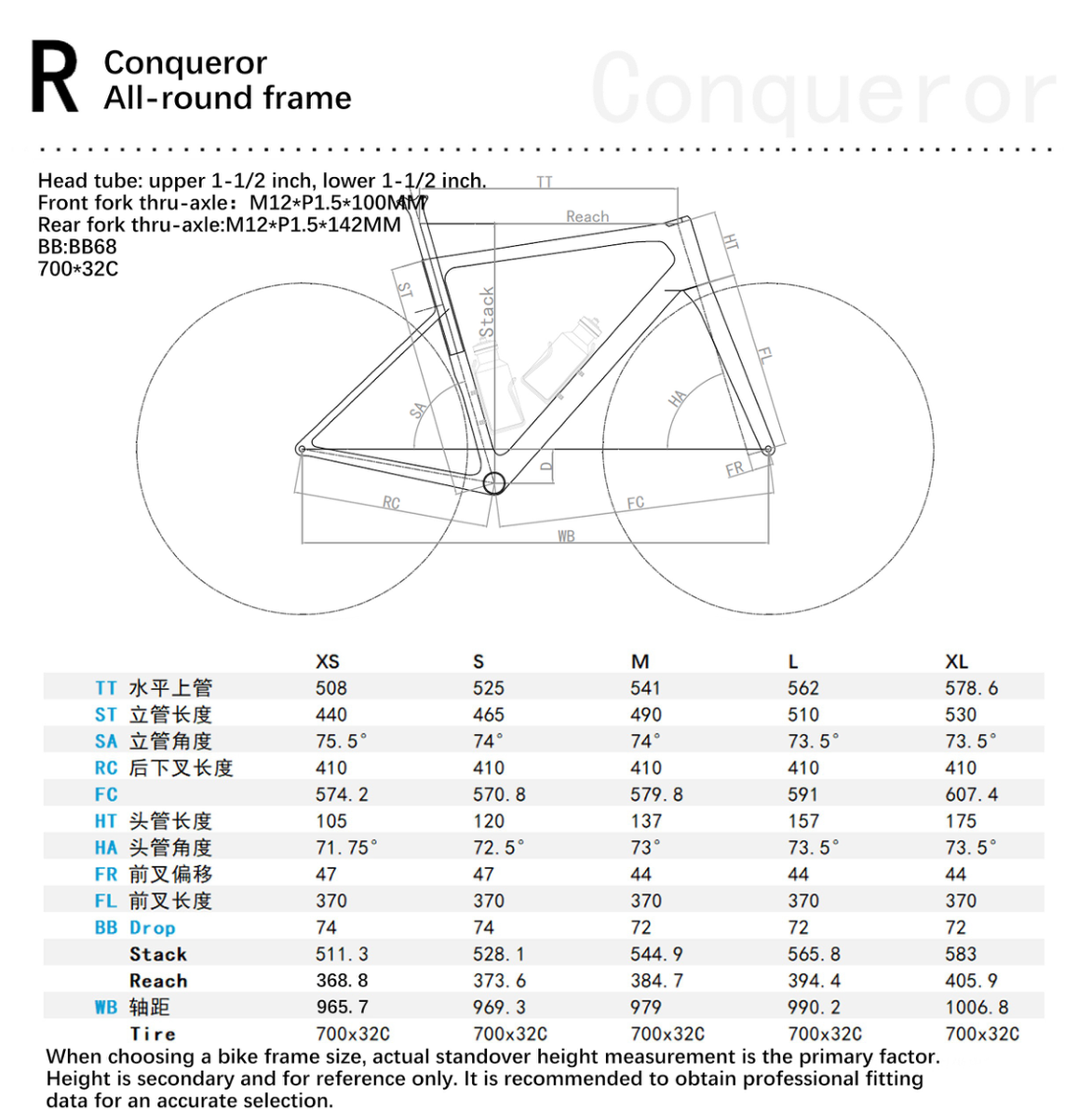

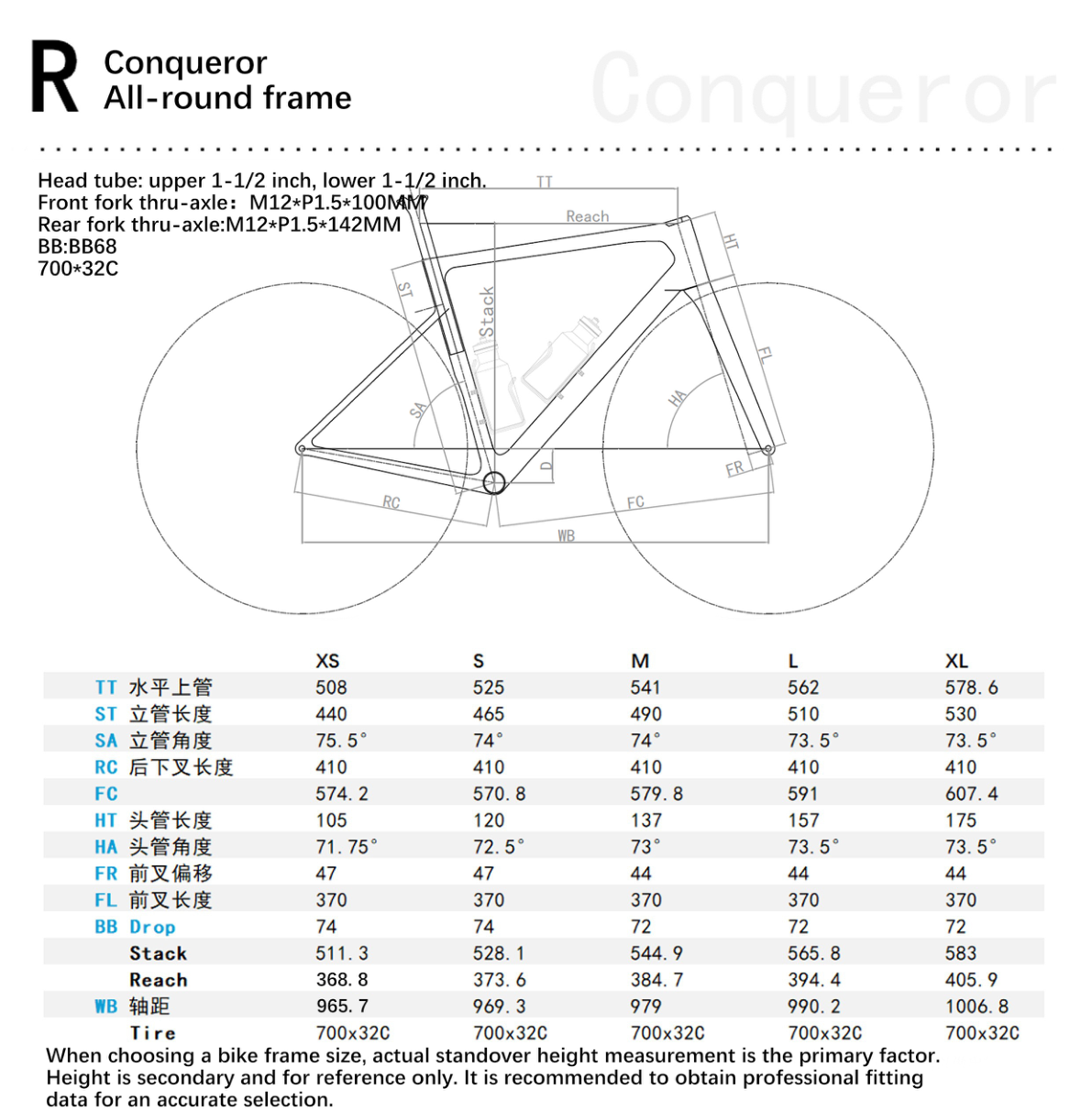

RUFON Conqueror Frameset — Geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube / TT (mm) | 508 | 525 | 541 | 562 | 578.6 |
| Seat Tube / ST (mm) | 440 | 465 | 490 | 510 | 530 |
| Seat Angle / SA (°) | 75.5 | 74 | 74 | 73.5 | 73.5 |
| Head Tube / HT (mm) | 105 | 120 | 137 | 157 | 175 |
| Head Angle / HA (°) | 71.75 | 72.5 | 73 | 73.5 | 73.5 |
| Fork Offset / FR (mm) | 47 | 47 | 44 | 44 | 44 |
| Fork Length / FL (mm) | 370 | 370 | 370 | 370 | 370 |
| Rear Center / RC (mm) | 410 | 410 | 410 | 410 | 410 |
| Front Center / FC (mm) | 574.2 | 570.8 | 579.8 | 591 | 607.4 |
| BB Drop (mm) | 74 | 74 | 72 | 72 | 72 |
| Stack (mm) | 511.3 | 528.1 | 544.9 | 565.8 | 583 |
| Reach (mm) | 368.8 | 373.6 | 384.7 | 394.4 | 405.9 |
| Wheelbase / WB (mm) | 965.7 | 969.3 | 979 | 990.2 | 1006.8 |
| Max Tire | 700×32C | 700×32C | 700×32C | 700×32C | 700×32C |
All dimensions in mm unless noted (°). Manufacturer-published chart. When choosing a size, actual standover measurement is the primary factor; height ranges are secondary — contact us for a fit consult.
Helpful Links
Compare geometry with other bikes on Geometry Geeks.
Browse framesets and components.
Chasing aero? See the RUFON Wind Speed Aero Frameset.
RUFON Conqueror Frameset — FAQ
What colours are available?
Raw Carbon Black, Chameleon Blue, Chameleon Red, Gradient Blue-Purple-Red and White Gold — select from the swatches above.
What sizes does it come in?
XS / S / M / L / XL. The geometry table above lists stack, reach and all key dimensions per size; standover measurement is the primary sizing factor.
What are the key frame standards?
BB68 threaded bottom bracket, 1-1/2″ upper and lower headset, M12×P1.5 thru-axles (100 mm front / 142 mm rear), disc brakes, and clearance for 700×32C tires.
How does shipping and import duty work?
Orders ship tracked and insured. For most destinations we ship DDP (duties pre-paid) where available, so there are no surprise charges at delivery — contact us before ordering if you are unsure about your country.
What warranty applies?
The frameset carries a 2-year manufacturer warranty against manufacturing defects, supported through Underdogs Cycling. Crash replacement support is available — contact us with your order number.
