RUFON Wind Speed Aero Frameset
Underdogs note: This is a preparation listing — final pricing and availability are being confirmed with RUFON. Contact us to register interest.
The RUFON Wind Speed (feng su) is the aero platform in the RUFON range — a full-carbon disc road frameset built around a modern T47 (85.5) bottom bracket, a 1-1/2″ head tube top and bottom for a stiff, integrated front end, and clearance for 700×32C rubber. Size-specific fork offsets (50 mm on XS/S, 44 mm on M–XL) keep the handling consistent across the five-size run, and the paint program is one of the deepest we stock — nine finishes plus full custom paint.
RUFON Wind Speed Aero Frameset — Features & Benefits
- Aero-first design: wind-cheating tube shaping on a modern disc platform — built to go fast on flat and rolling roads.
- T47 bottom bracket: threaded, stiff, creak-free and easy to service — the standard we recommend.
- Size-specific handling: fork offset changes from 50 mm (XS/S) to 44 mm (M–XL) so every size steers the same.
- Modern clearances: 700×32C tires on 12 mm thru-axles front and rear.
- Ten paint options: from Raw Carbon Black to Magic Orange and White Gold Marble — plus full custom paint.
- Integrated-ready: pairs with the RUFON T800 integrated handlebar for a clean hidden-cable cockpit.
RUFON Wind Speed Aero Frameset — Specifications
Frame Platform
- Type: full-carbon aero disc road frameset
- Bottom bracket: T47 (85.5)
- Headset: upper 1-1/2″, lower 1-1/2″
- Thru-axles: M12×P1.5×100 mm front / M12×P1.5×142 mm rear
- Max tire: 700×32C
- Routing: fully internal (integrated cockpit compatible)
RUFON Ecosystem
- Cockpit: RUFON T800 carbon integrated handlebar
- Compatibility: OD1 & OD2 steerers, universal conversion spacers
Available Sizes & Colours
- Sizes: XS / S / M / L / XL
- Colours: nine finishes plus a custom paint program — see swatches
- Warranty: 2-year frameset warranty

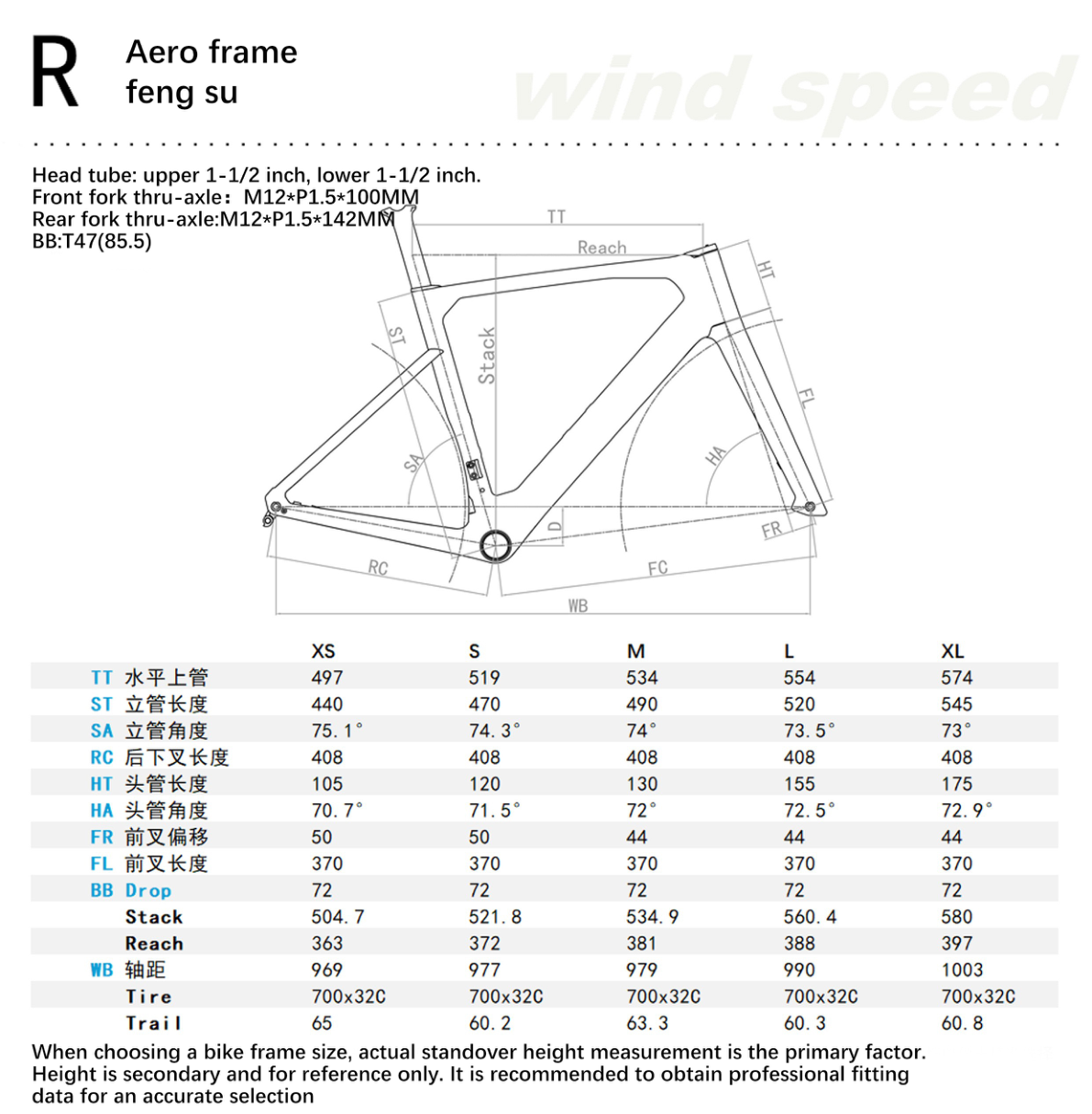

RUFON Wind Speed Aero Frameset — Geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube / TT (mm) | 497 | 519 | 534 | 554 | 574 |
| Seat Tube / ST (mm) | 440 | 470 | 490 | 520 | 545 |
| Seat Angle / SA (°) | 75.1 | 74.3 | 74 | 73.5 | 73 |
| Head Tube / HT (mm) | 105 | 120 | 130 | 155 | 175 |
| Head Angle / HA (°) | 70.7 | 71.5 | 72 | 72.5 | 72.9 |
| Fork Offset / FR (mm) | 50 | 50 | 44 | 44 | 44 |
| Fork Length / FL (mm) | 370 | 370 | 370 | 370 | 370 |
| Rear Center / RC (mm) | 408 | 408 | 408 | 408 | 408 |
| BB Drop (mm) | 72 | 72 | 72 | 72 | 72 |
| Stack (mm) | 504.7 | 521.8 | 534.9 | 560.4 | 580 |
| Reach (mm) | 363 | 372 | 381 | 388 | 397 |
| Wheelbase / WB (mm) | 969 | 977 | 979 | 990 | 1003 |
| Trail (mm) | 65 | 60.2 | 63.3 | 60.3 | 60.8 |
| Max Tire | 700×32C | 700×32C | 700×32C | 700×32C | 700×32C |
All dimensions in mm unless noted (°). Manufacturer-published chart. When choosing a size, actual standover measurement is the primary factor; height ranges are secondary — contact us for a fit consult.
Helpful Links
Compare geometry with other bikes on Geometry Geeks.
Browse framesets and components.
Prefer an all-round ride? See the RUFON Conqueror Frameset.
RUFON Wind Speed Aero Frameset — FAQ
What colours are available?

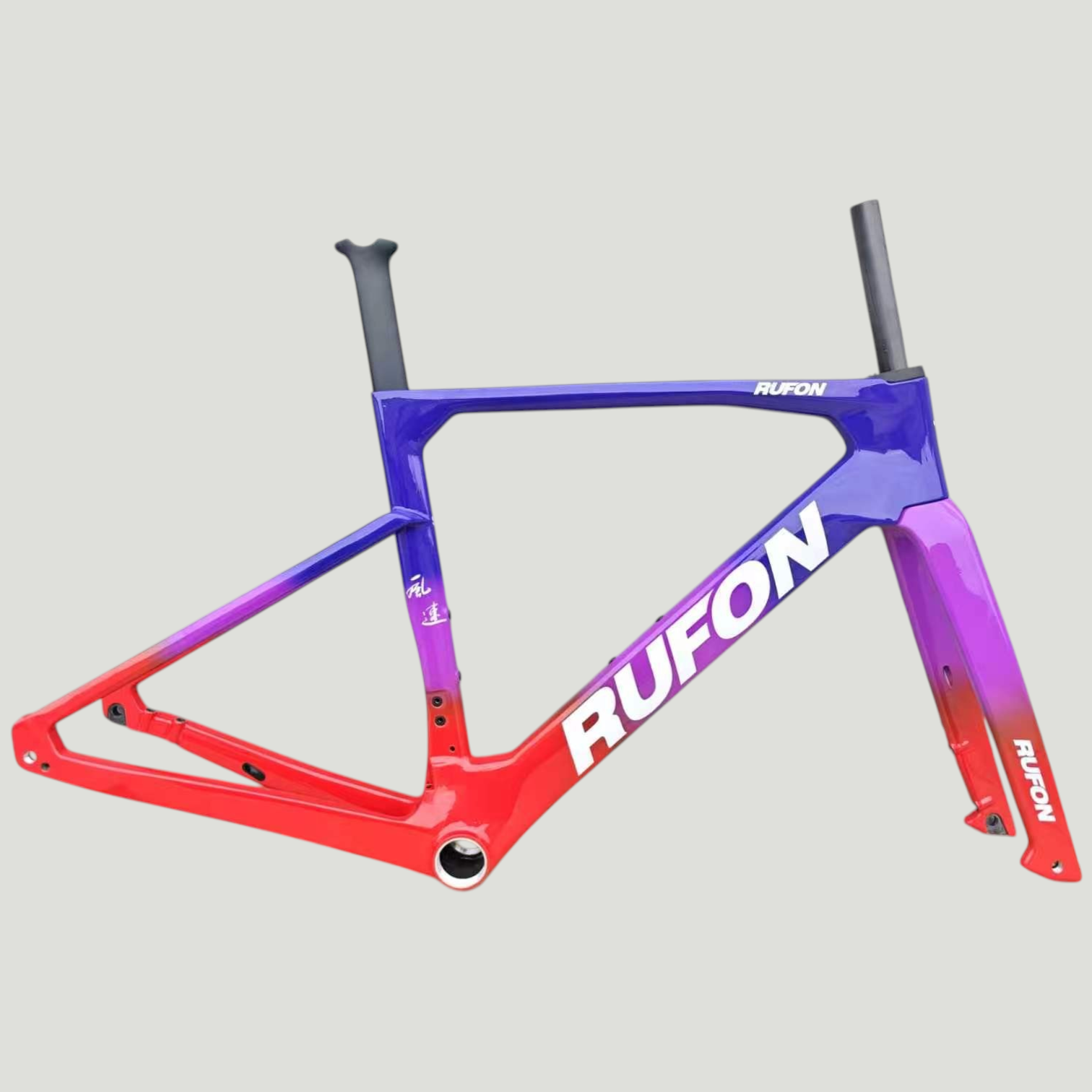

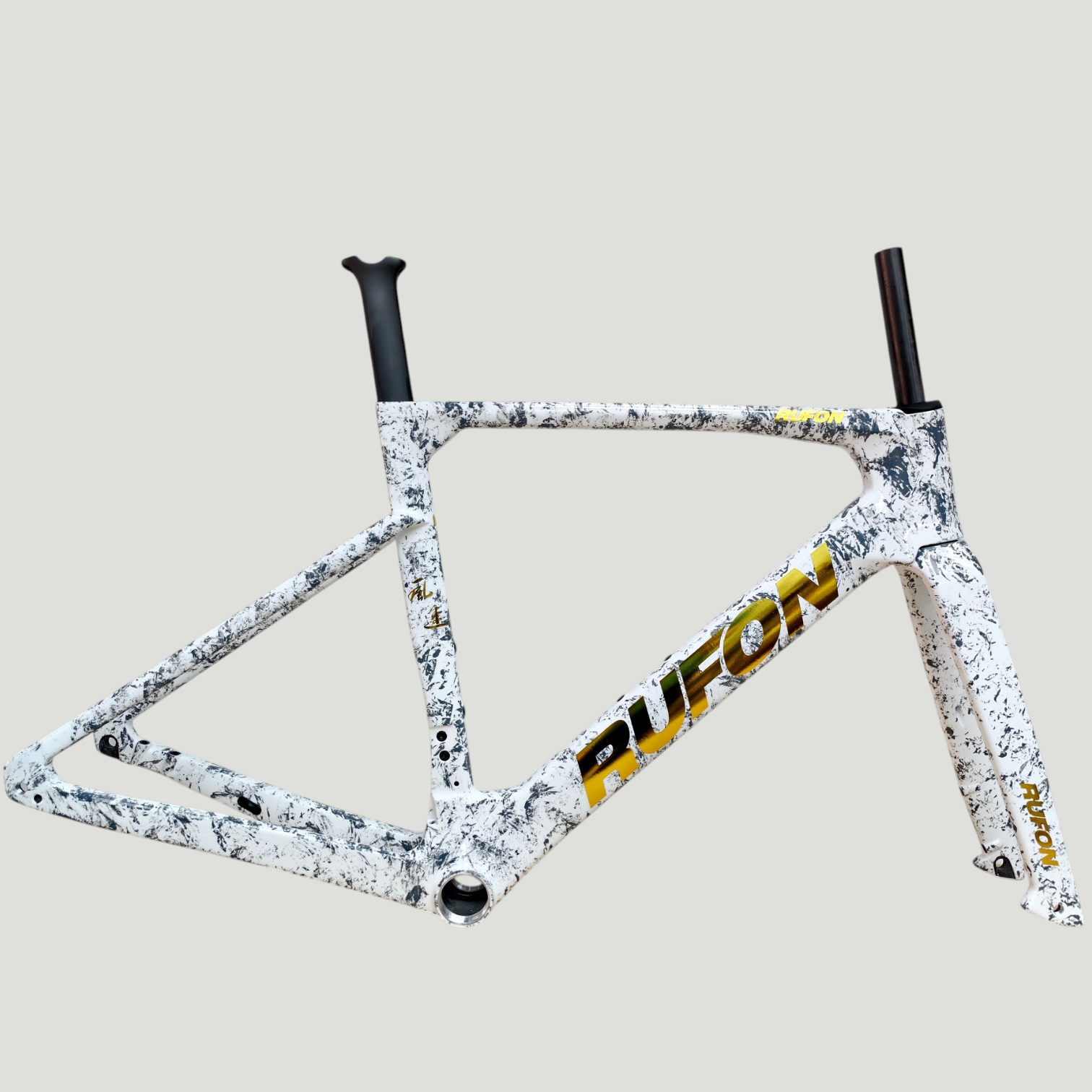

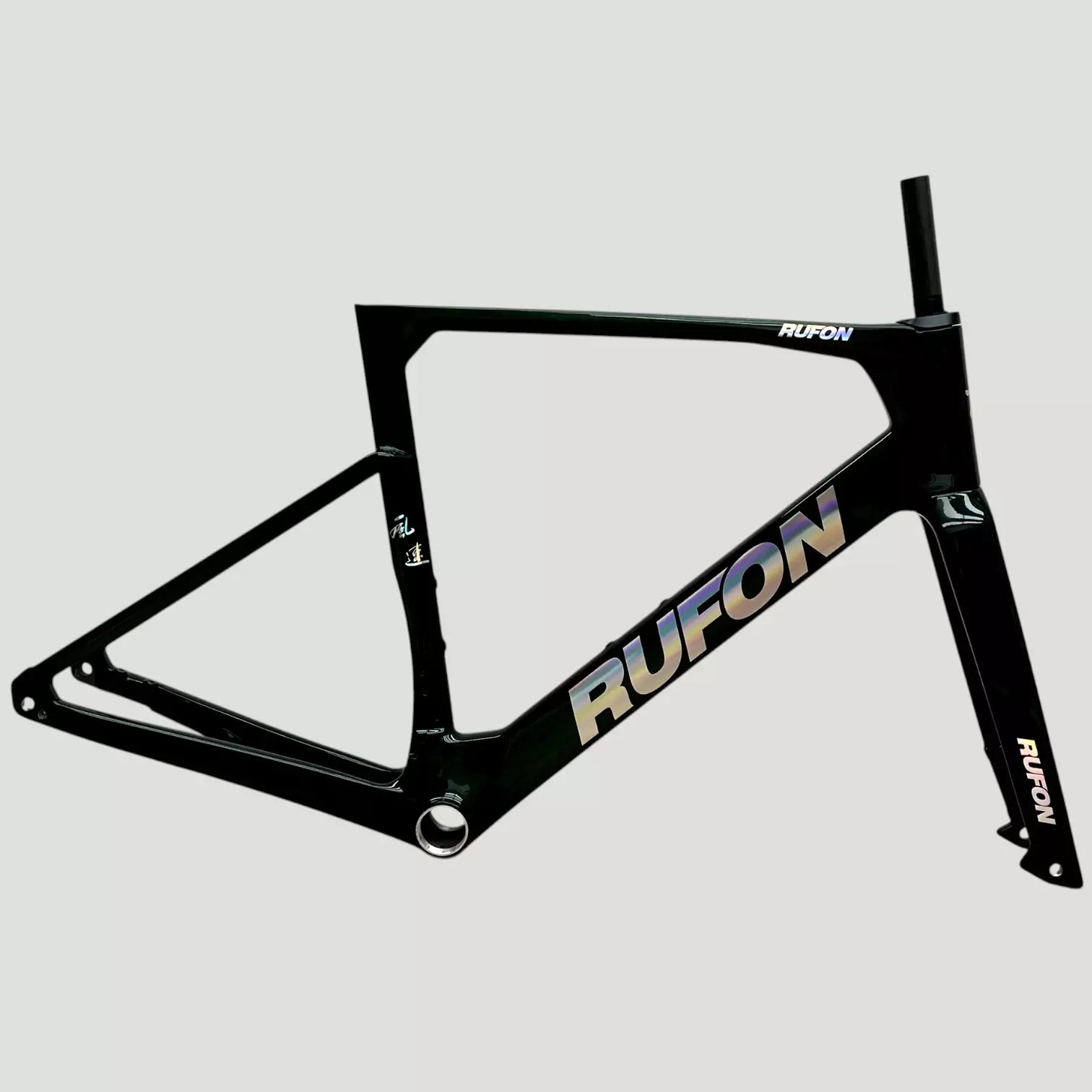

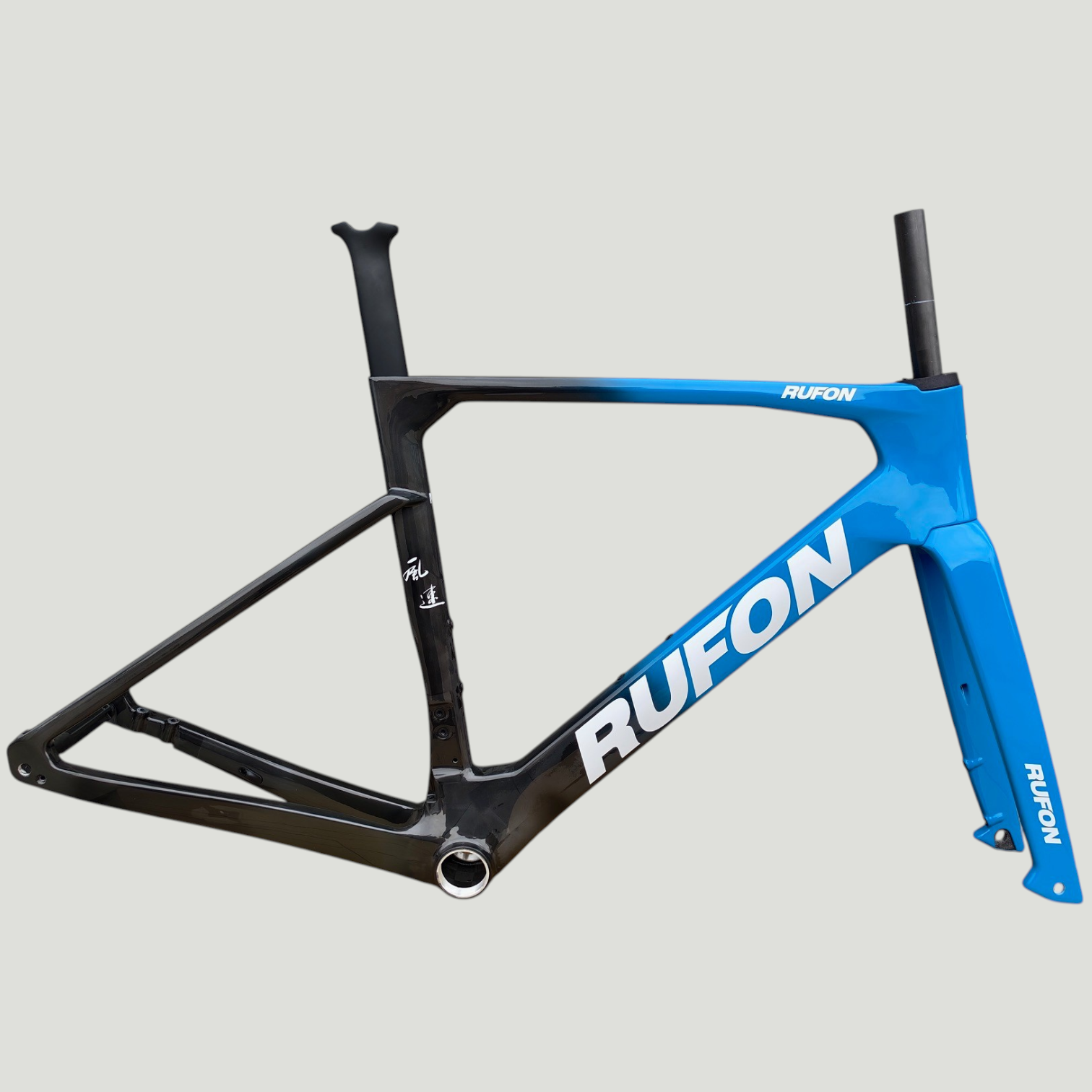

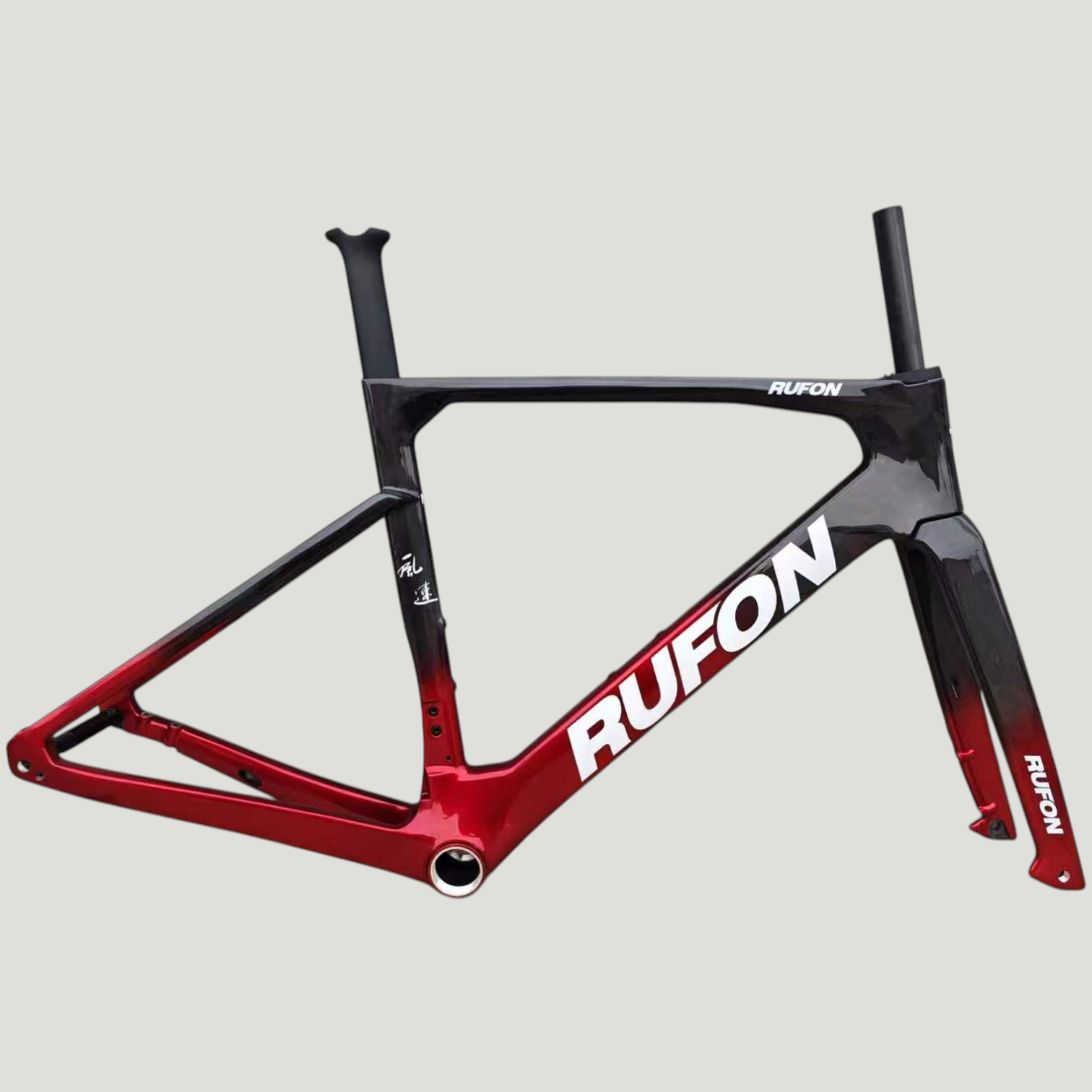

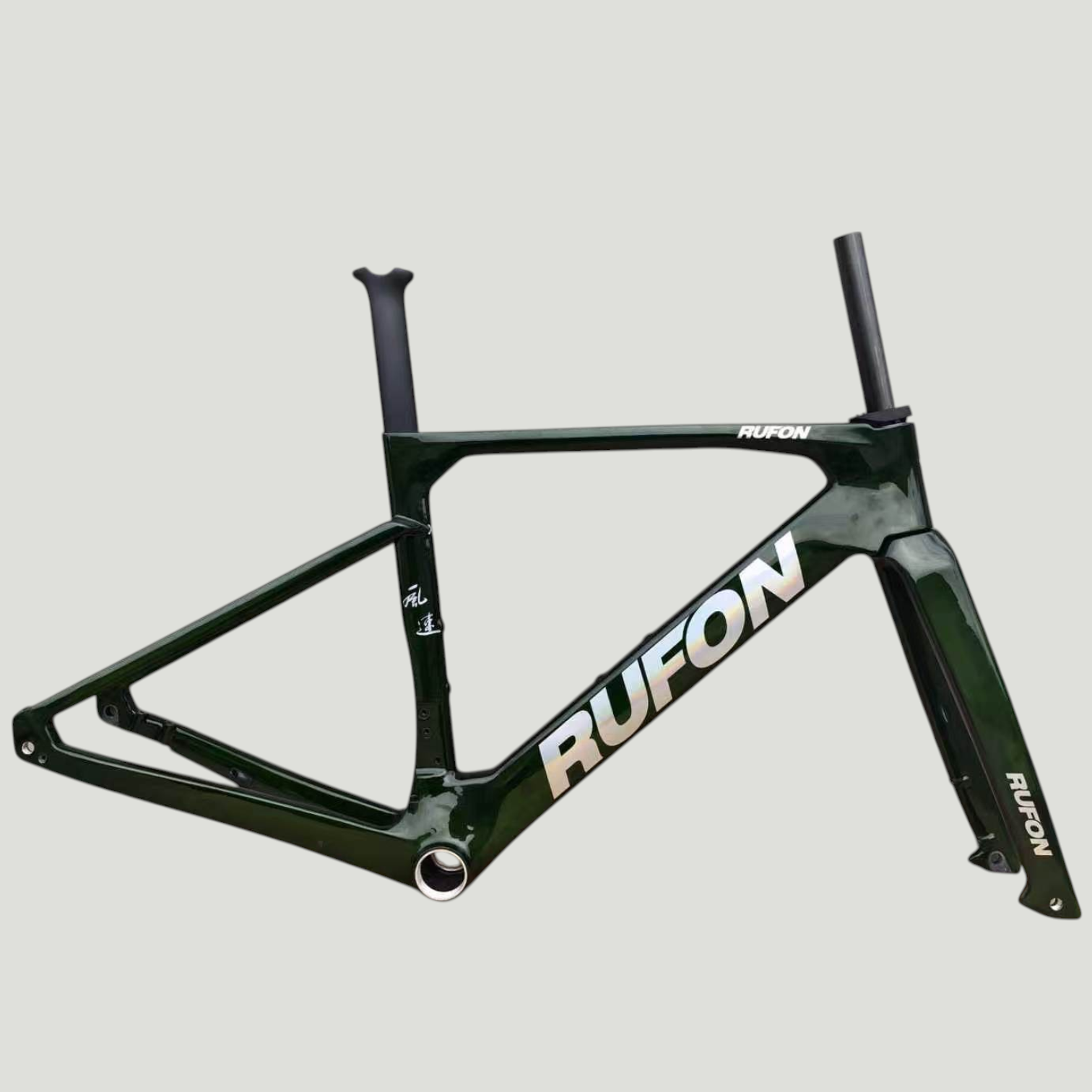

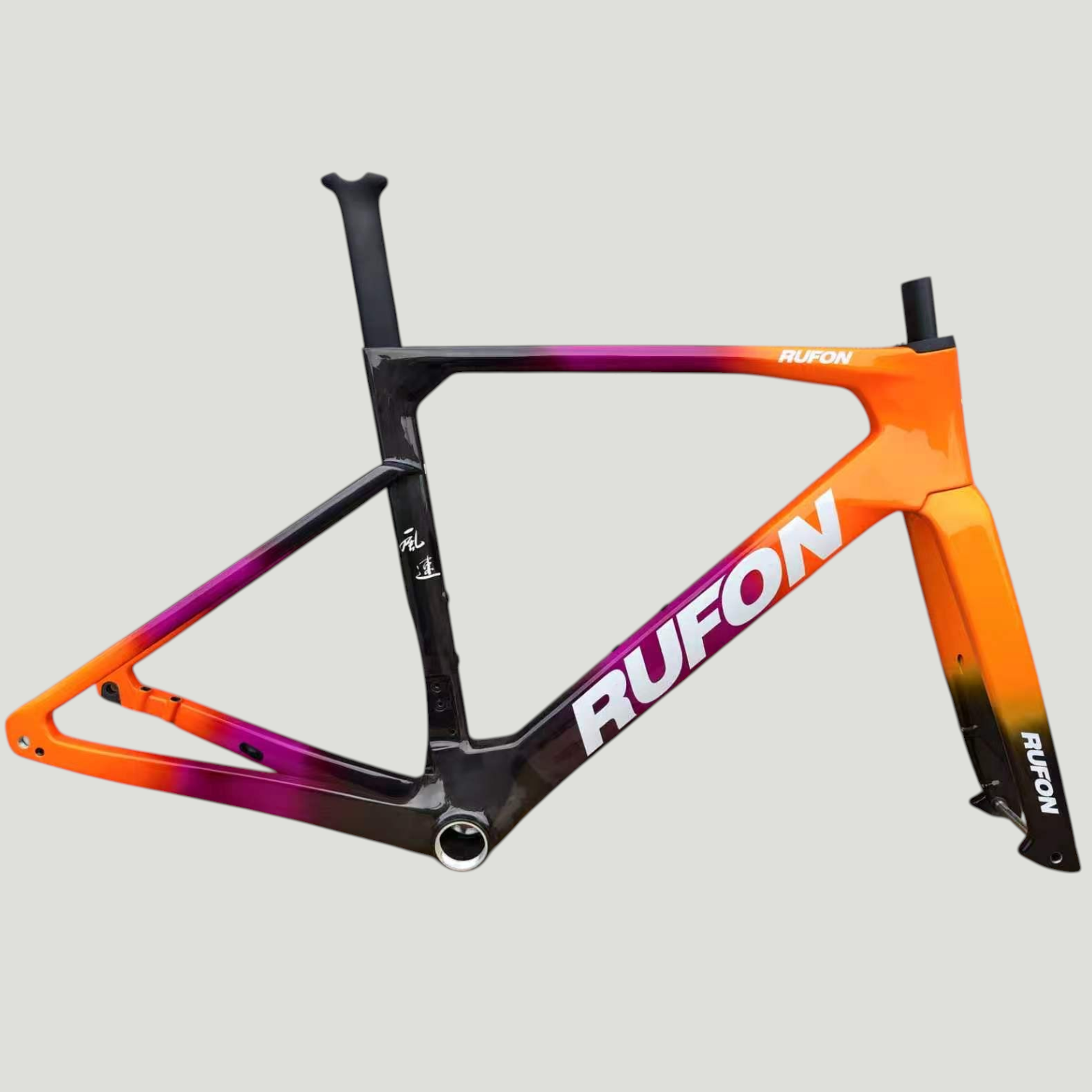

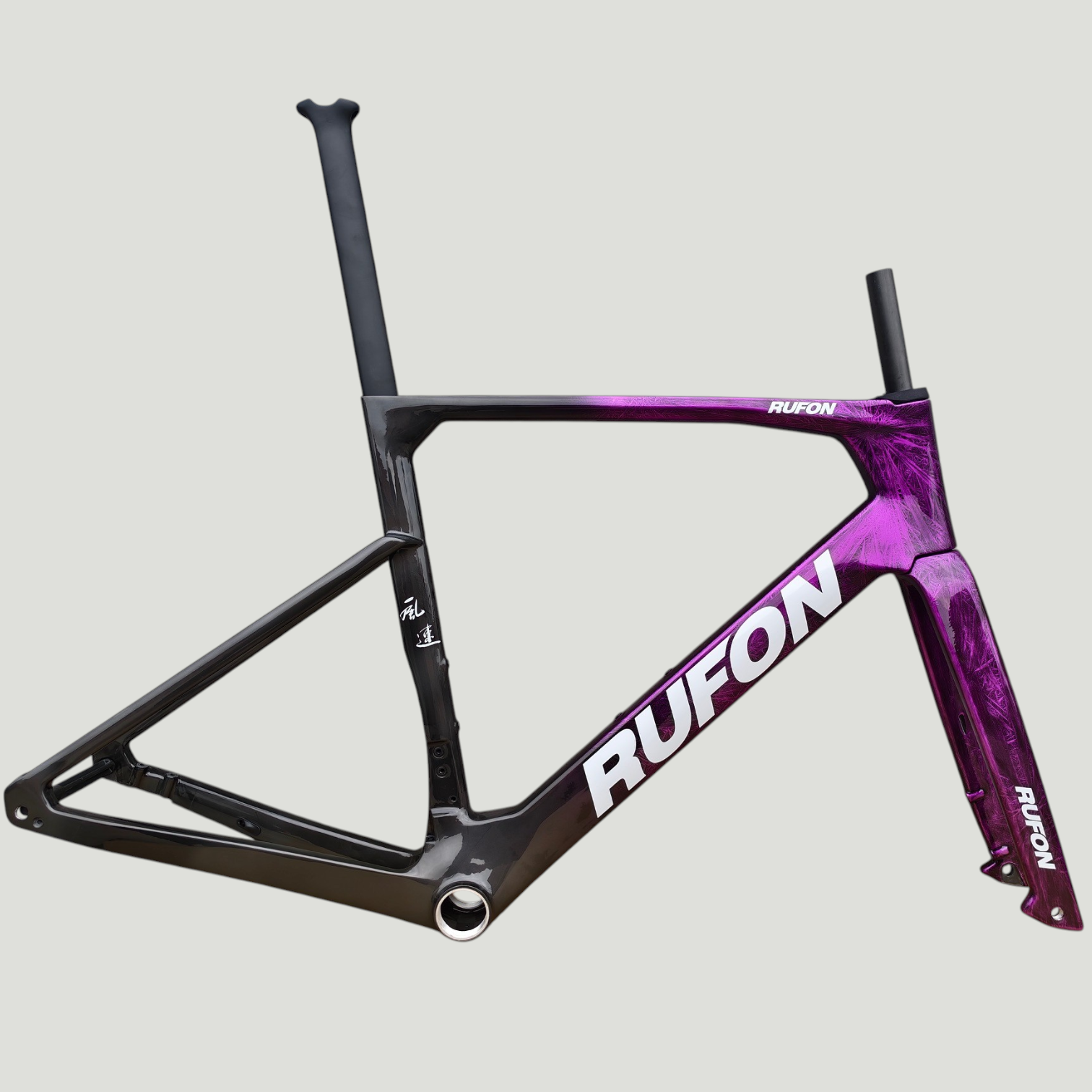

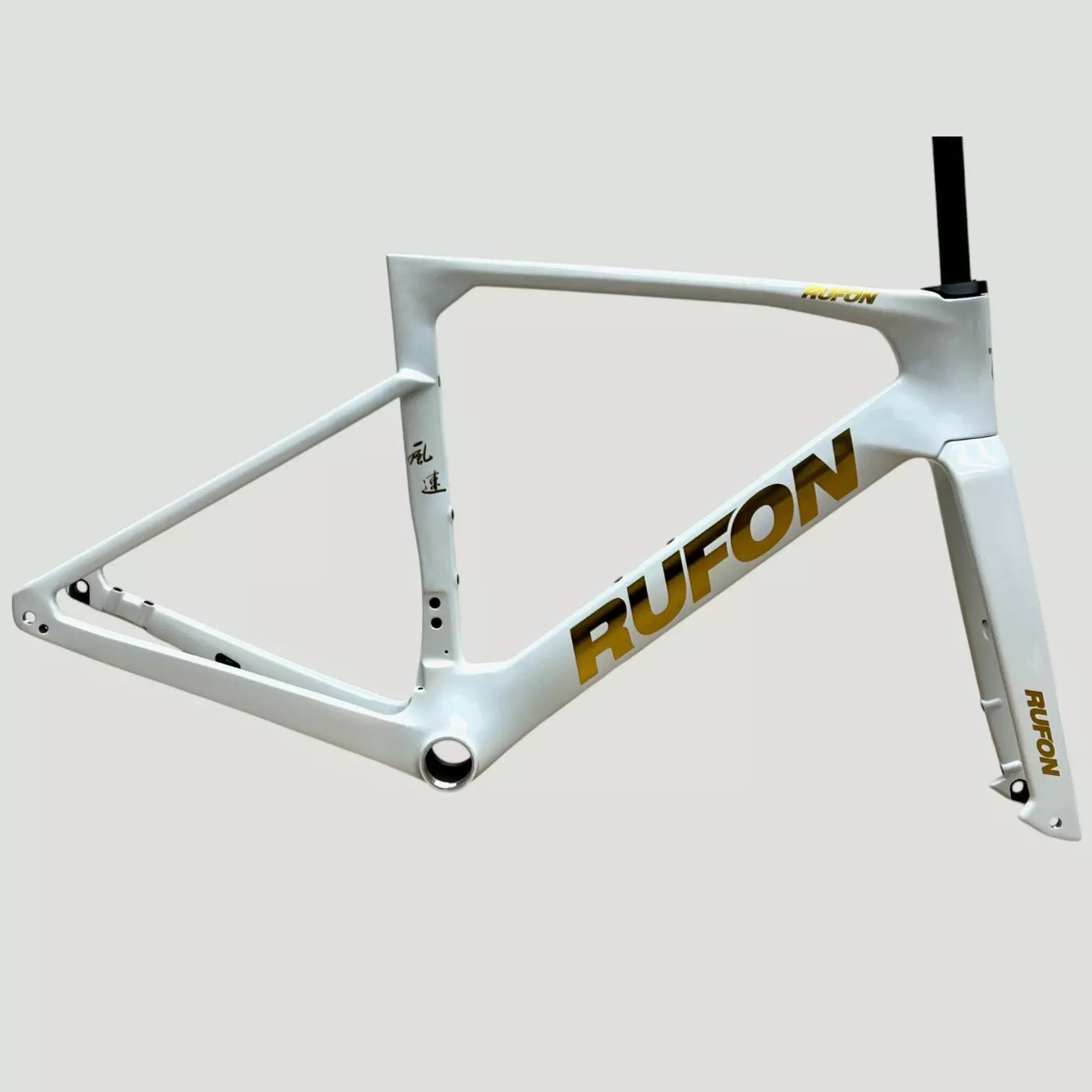

Nine finishes: White Gold, Raw Carbon Black, Raw Carbon Green, Frost Purple, Gradient Metallic Red, Gradient Blue-Purple-Red, Raw Carbon Black-Blue Gradient, Magic Orange and White Gold Marble — plus a full custom paint program. Select from the swatches above.
What sizes does it come in?
XS / S / M / L / XL. The geometry table above lists stack, reach, trail and all key dimensions per size; standover measurement is the primary sizing factor.
What are the key frame standards?
T47 (85.5) threaded bottom bracket, 1-1/2″ upper and lower headset, M12×P1.5 thru-axles (100 mm front / 142 mm rear), disc brakes, and clearance for 700×32C tires.
How does shipping and import duty work?
Orders ship tracked and insured. For most destinations we ship DDP (duties pre-paid) where available, so there are no surprise charges at delivery — contact us before ordering if you are unsure about your country.
What warranty applies?
The frameset carries a 2-year manufacturer warranty against manufacturing defects, supported through Underdogs Cycling. Crash replacement support is available — contact us with your order number.
