RUFON Wind Speed Complete Bike

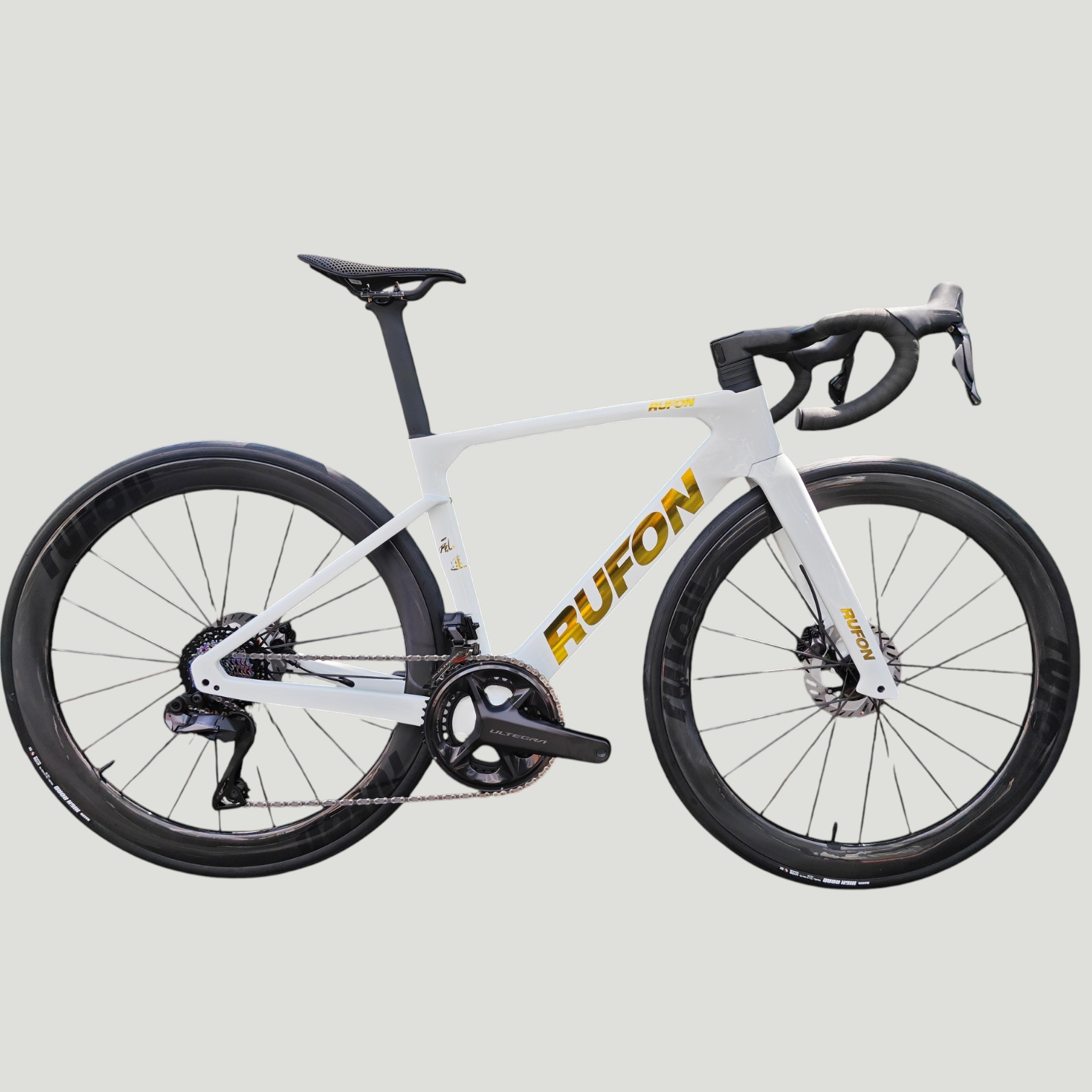

The RUFON Wind Speed Complete Bike delivers the full-carbon Wind Speed aero frameset as a ready-to-ride build — T47 (85.5) bottom bracket, 1-1/2″ integrated front end, 700×32C clearance and the same nine-finish (plus custom) paint program. Builds are completed with the RUFON T800 carbon integrated handlebar and RUFON 45/50 mm carbon-spoke wheelsets
RUFON Wind Speed Complete Bike — Features & Benefits
- Aero platform, complete: the Wind Speed frameset built up ready to ride.

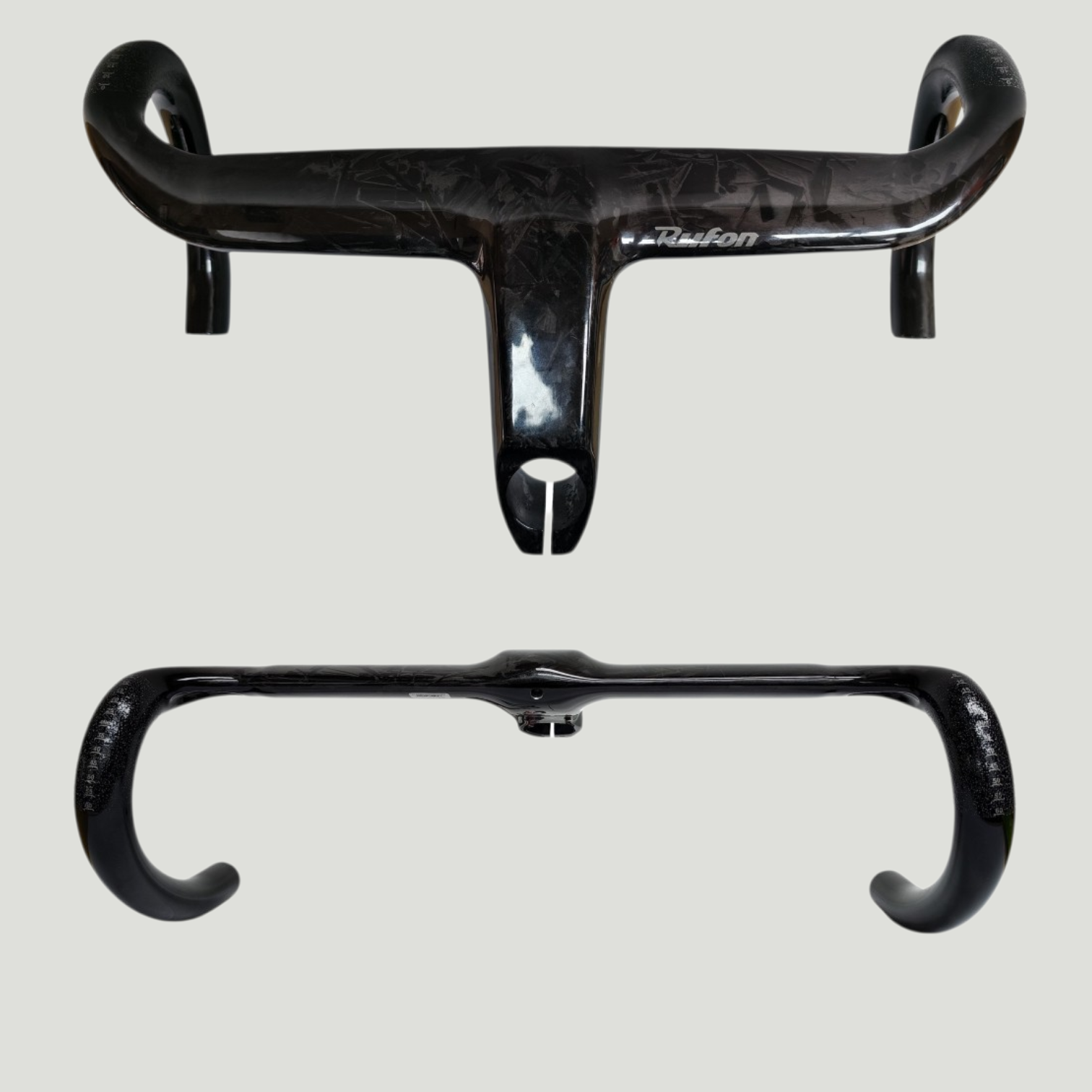

- RUFON integrated cockpit: T800 carbon one-piece bar (approx. 300 g) with hidden routing; tops 350–410 mm, stems 80–120 mm.

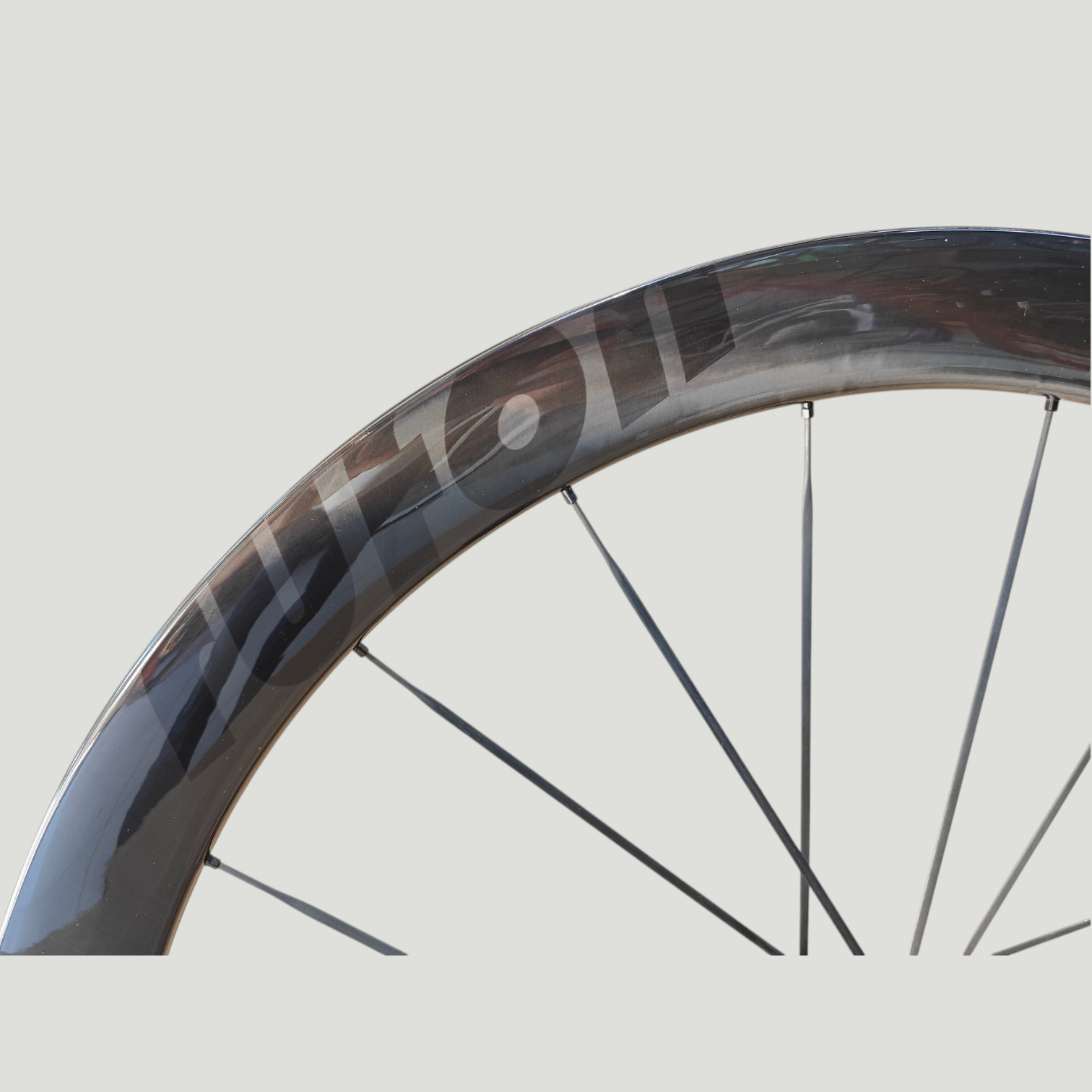

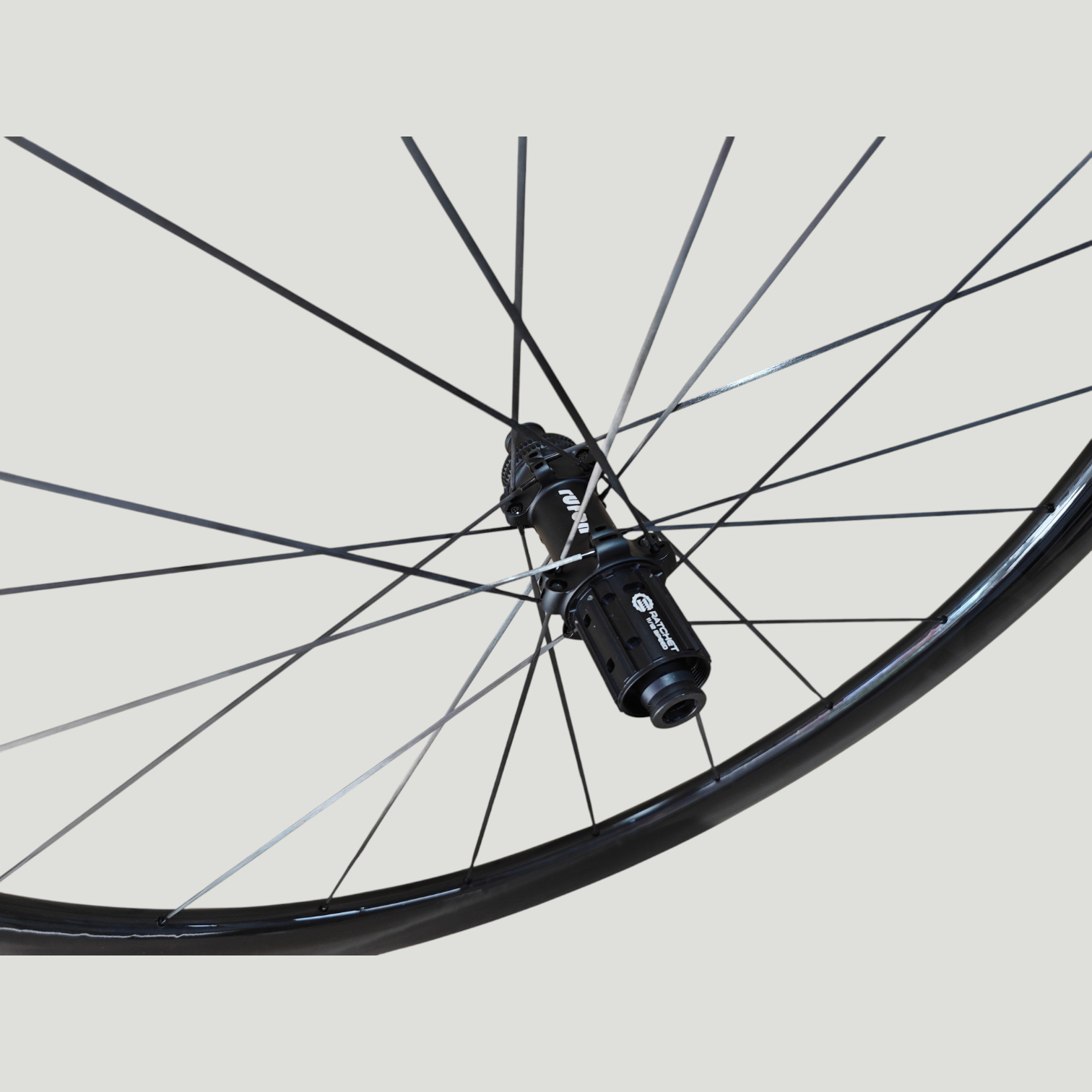

- RUFON carbon wheels: 45 mm (approx. 1040 g) 50 mm (approx. 1160 g) carbon-spoke wheelsets with 54T ratchet hubs.
- T47 bottom bracket: threaded, stiff and serviceable.
- Ten paint options: nine finishes plus full custom paint — same program as the frameset.
- Modern standards: 12 mm thru-axles, disc brakes, 700×32C clearance.
RUFON Wind Speed Complete Bike — Specifications
Frame Platform
- Type: full-carbon aero disc road frameset
- Bottom bracket: T47 (85.5)
- Headset: upper 1-1/2″, lower 1-1/2″
- Thru-axles: M12×P1.5×100 mm front / M12×P1.5×142 mm rear
- Max tire: 700×32C
- Routing: fully internal (integrated cockpit compatible)
RUFON Wheels and Handlebar

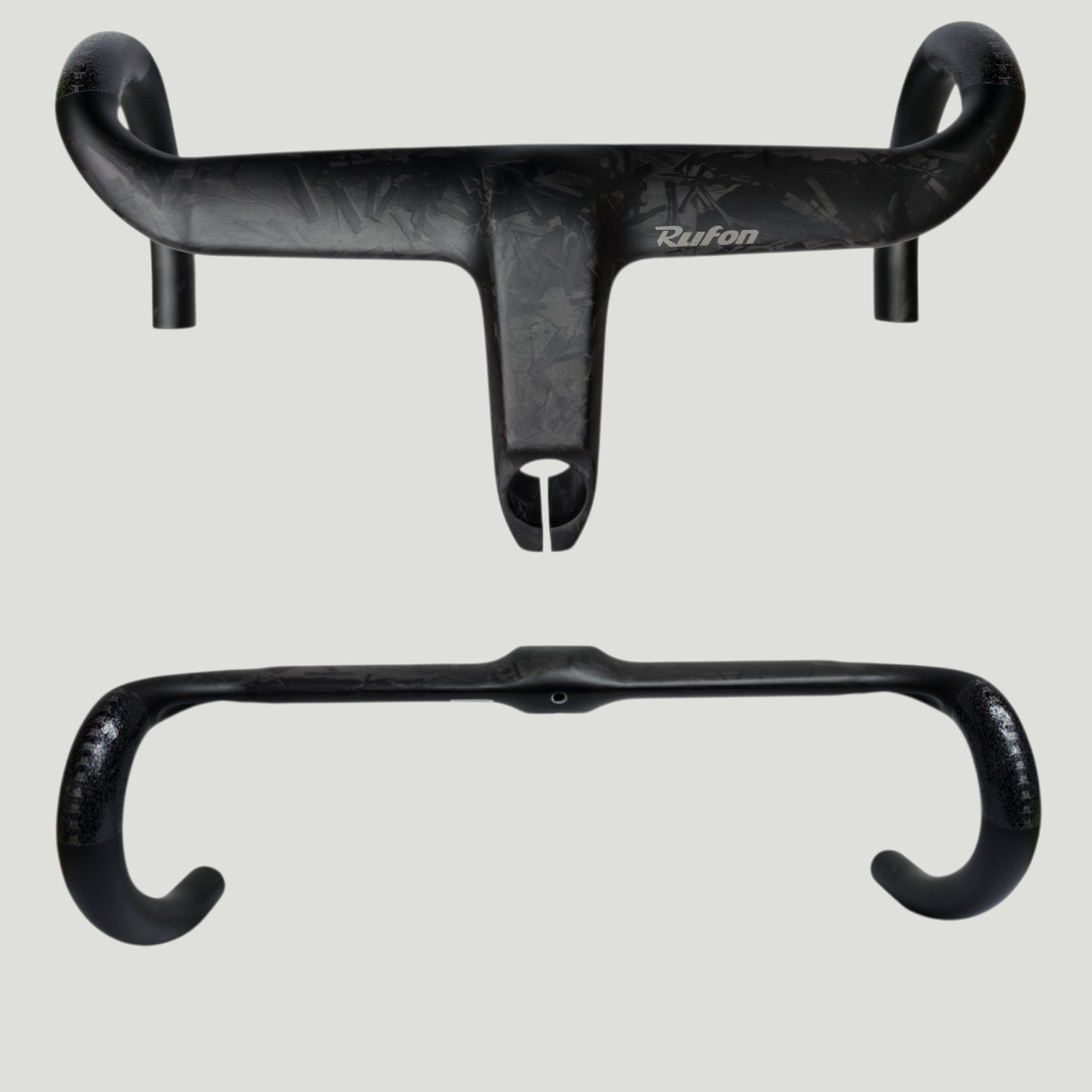

- Cockpit: RUFON T800 carbon integrated handlebar (approx. 300 g)

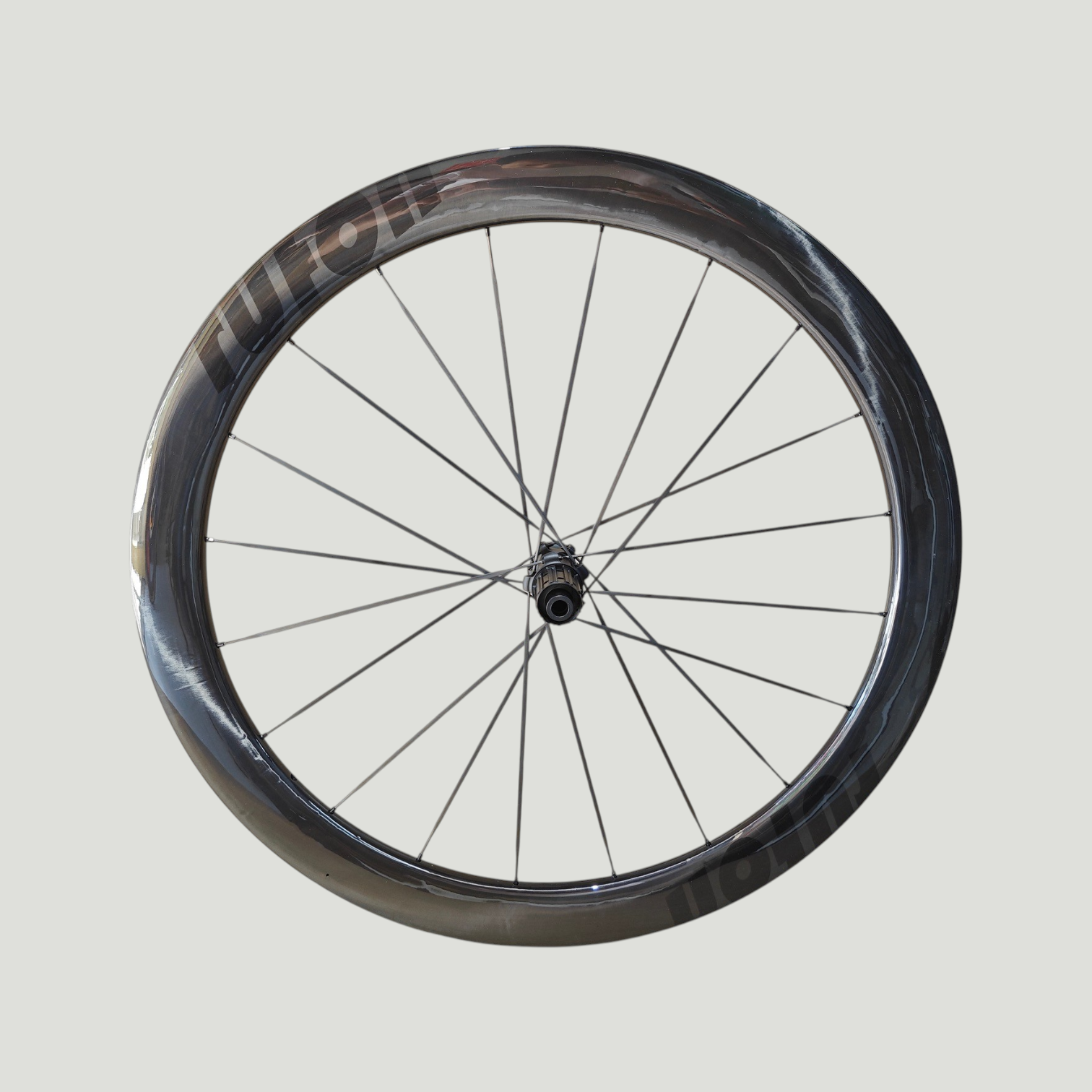

- Wheels: RUFON 45 mm (approx. 1040 g)
- Rim Material T800+T1000
- 11-12S Compatible 54T ratchet
- 22mm Internal 28mm External

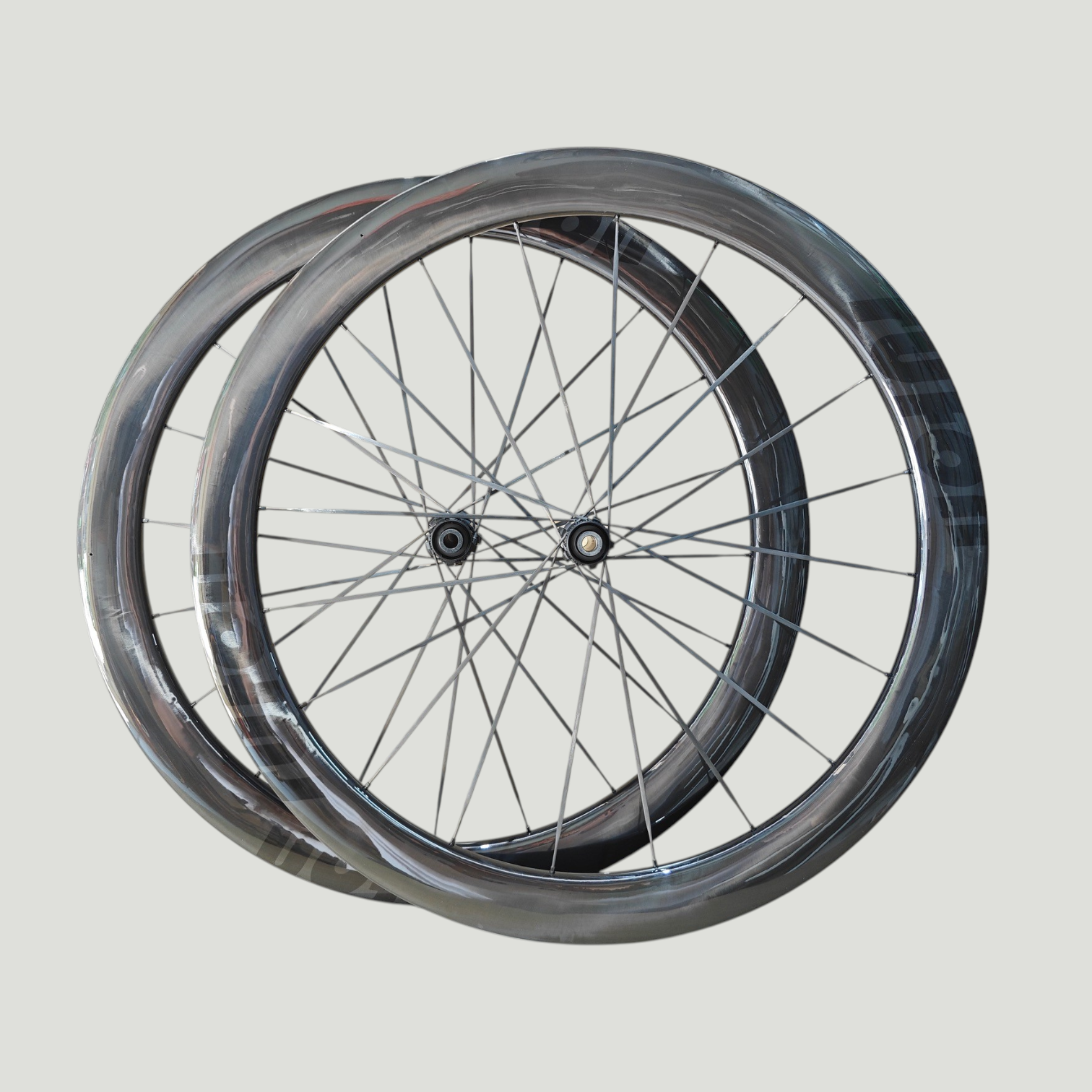

- Wheels: Rufon 50 mm (approx. 1160 g) carbon-spokes
- Rim Material T800+T1000
- 26mm Internal 31mm External
Available Sizes & Colours
- Sizes: XS / S / M / L / XL

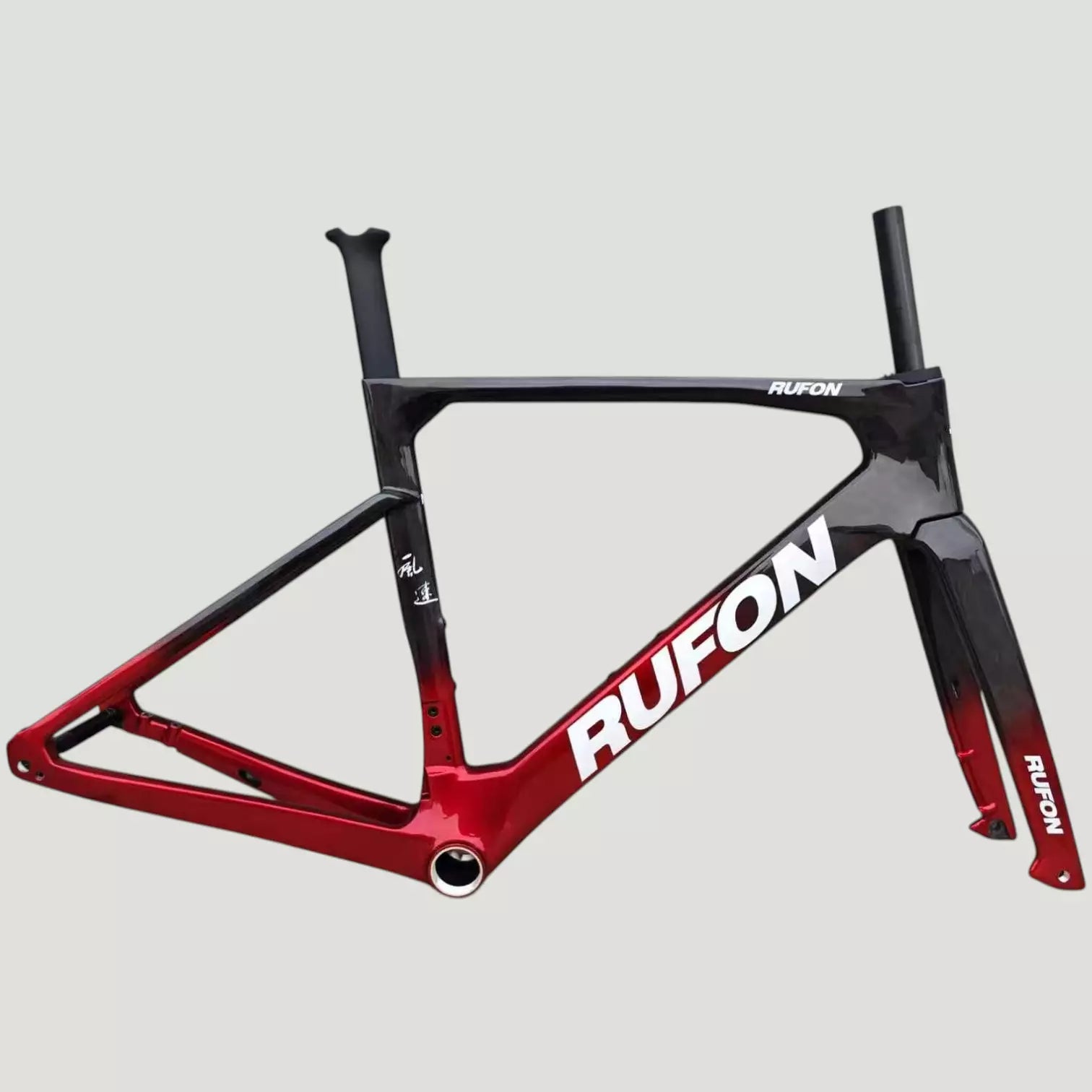

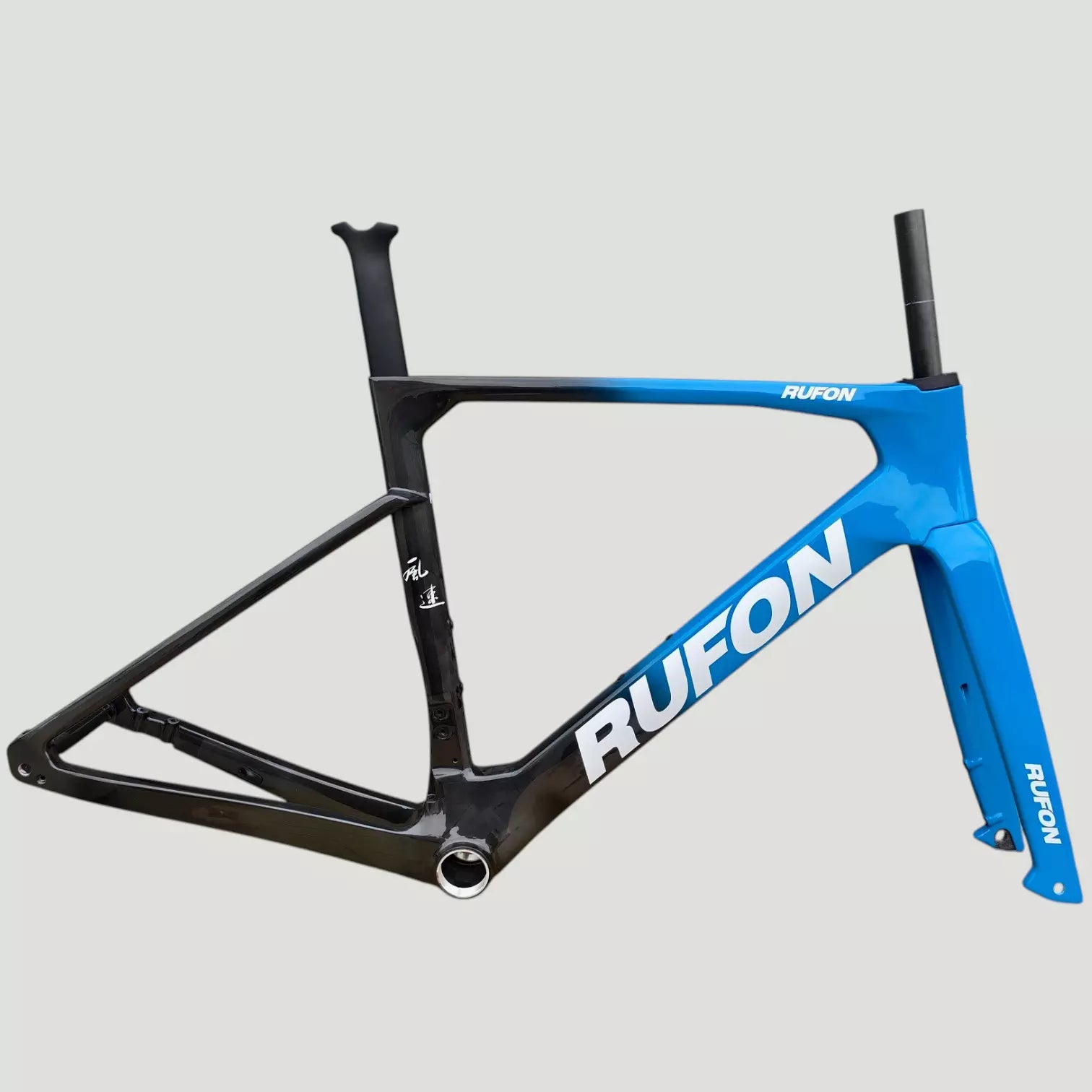

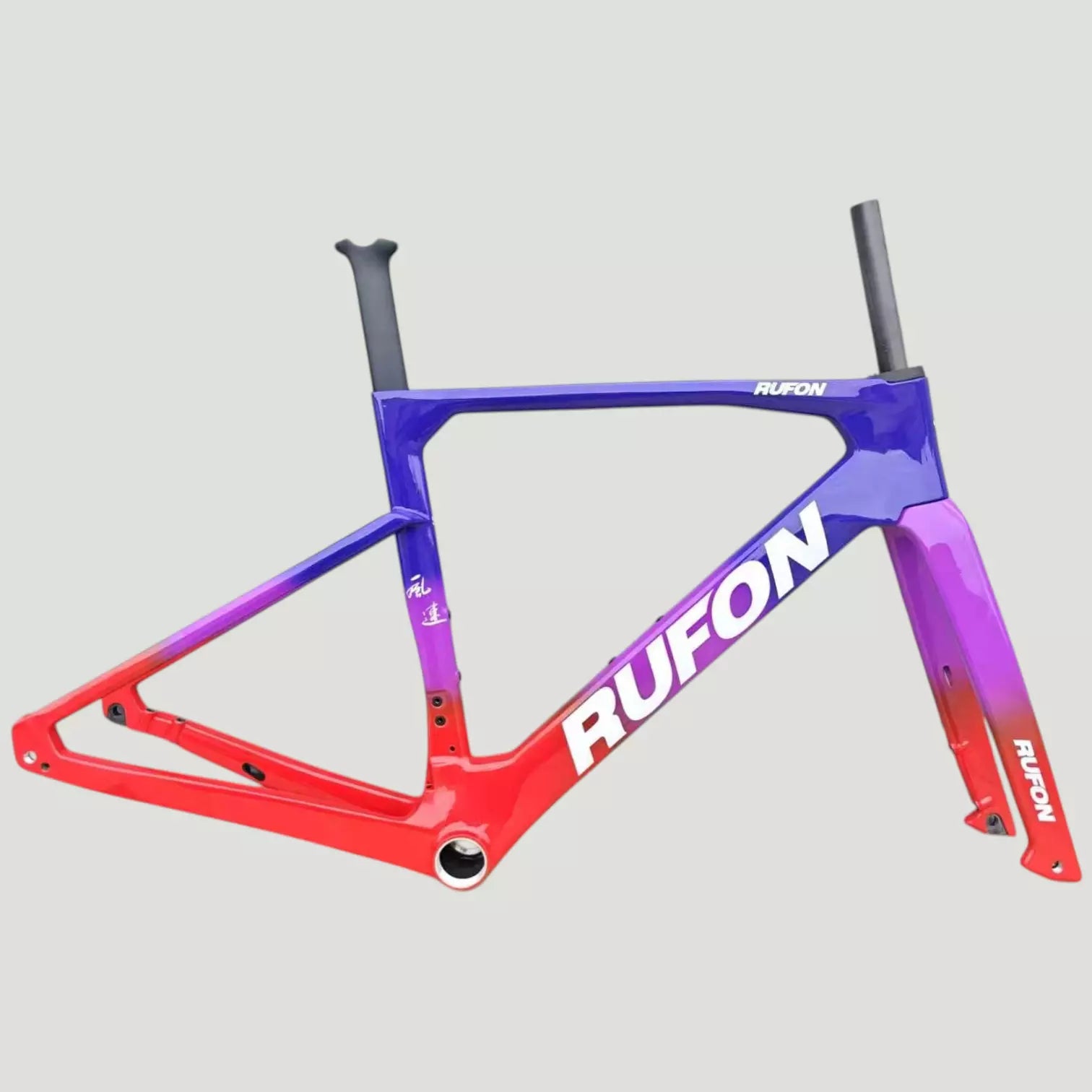

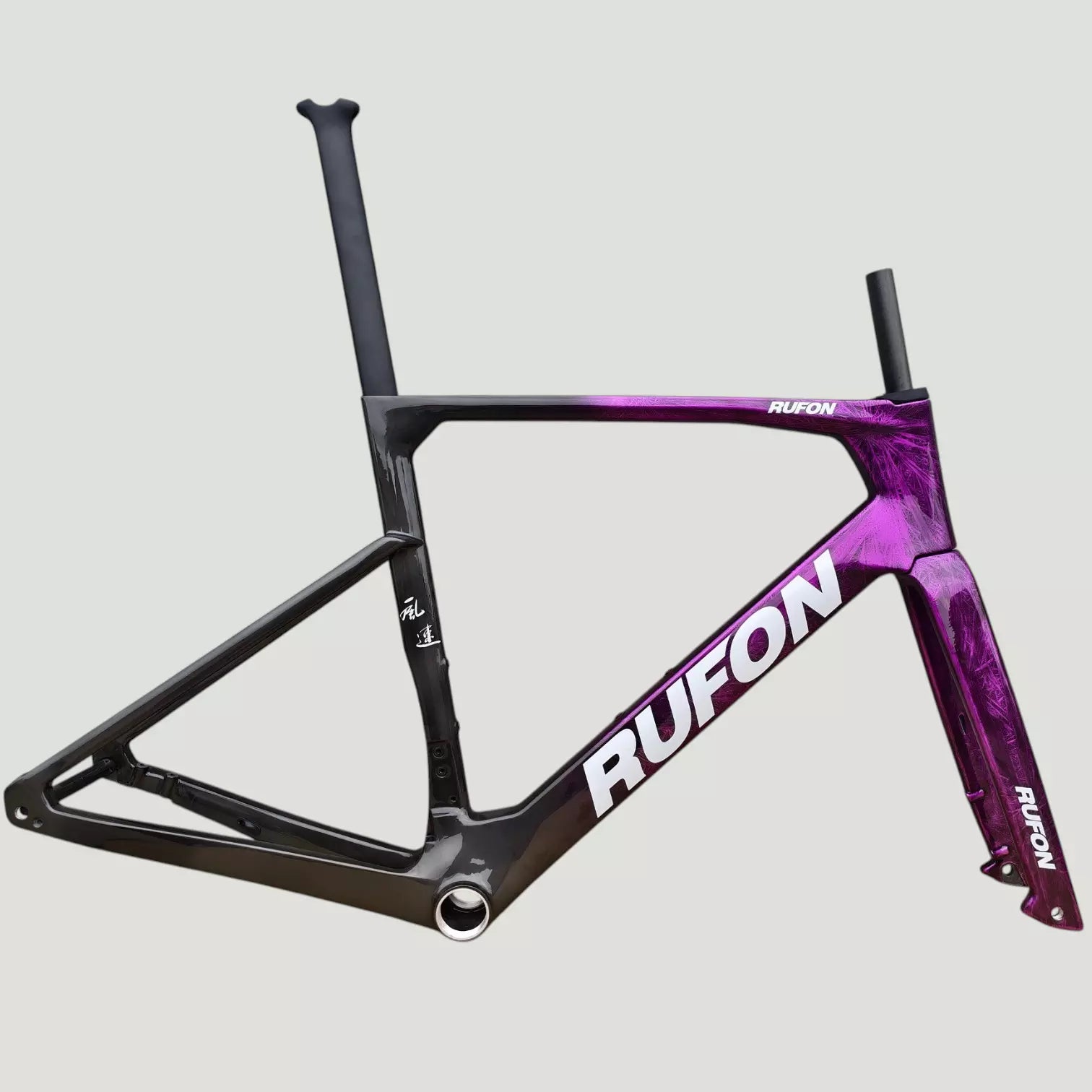

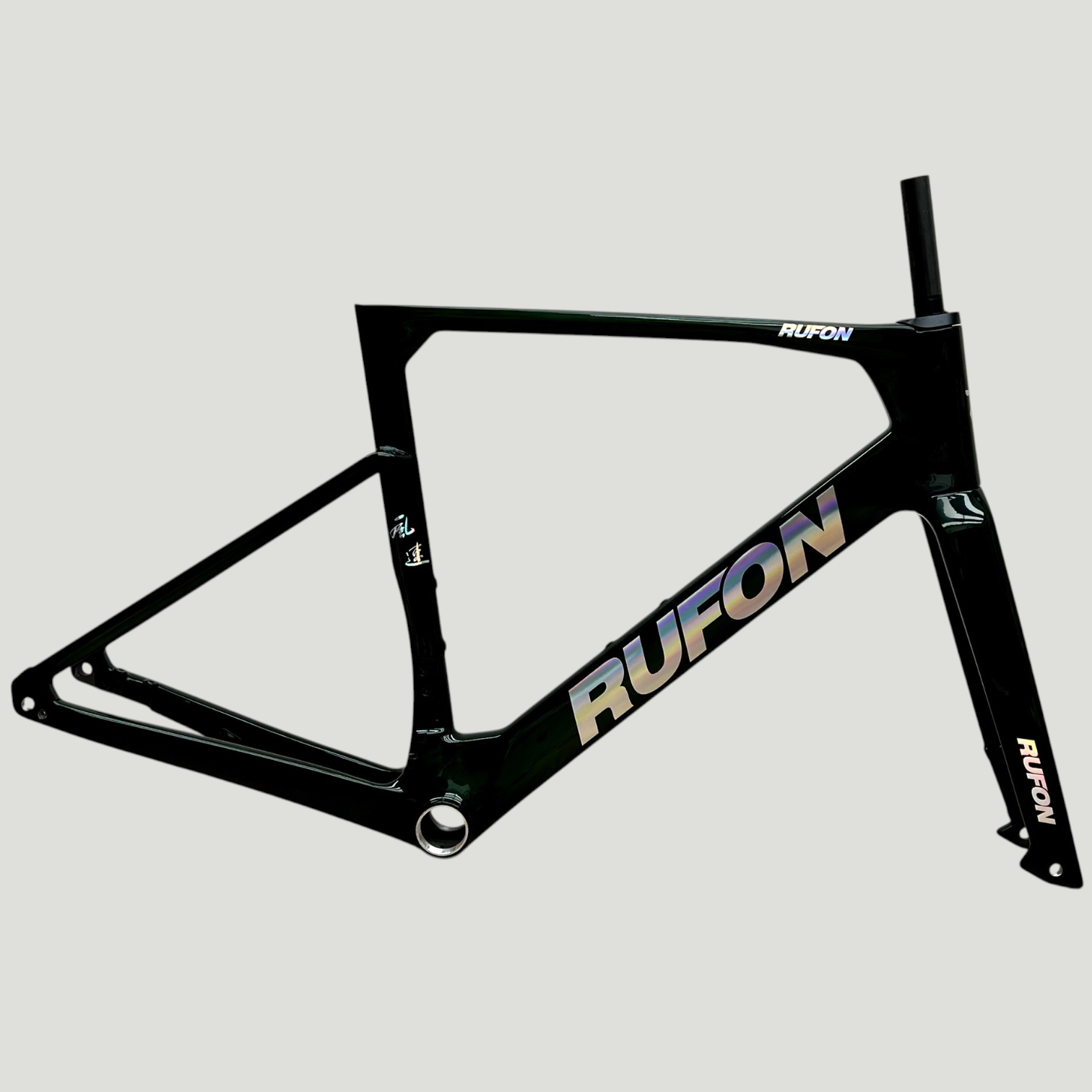

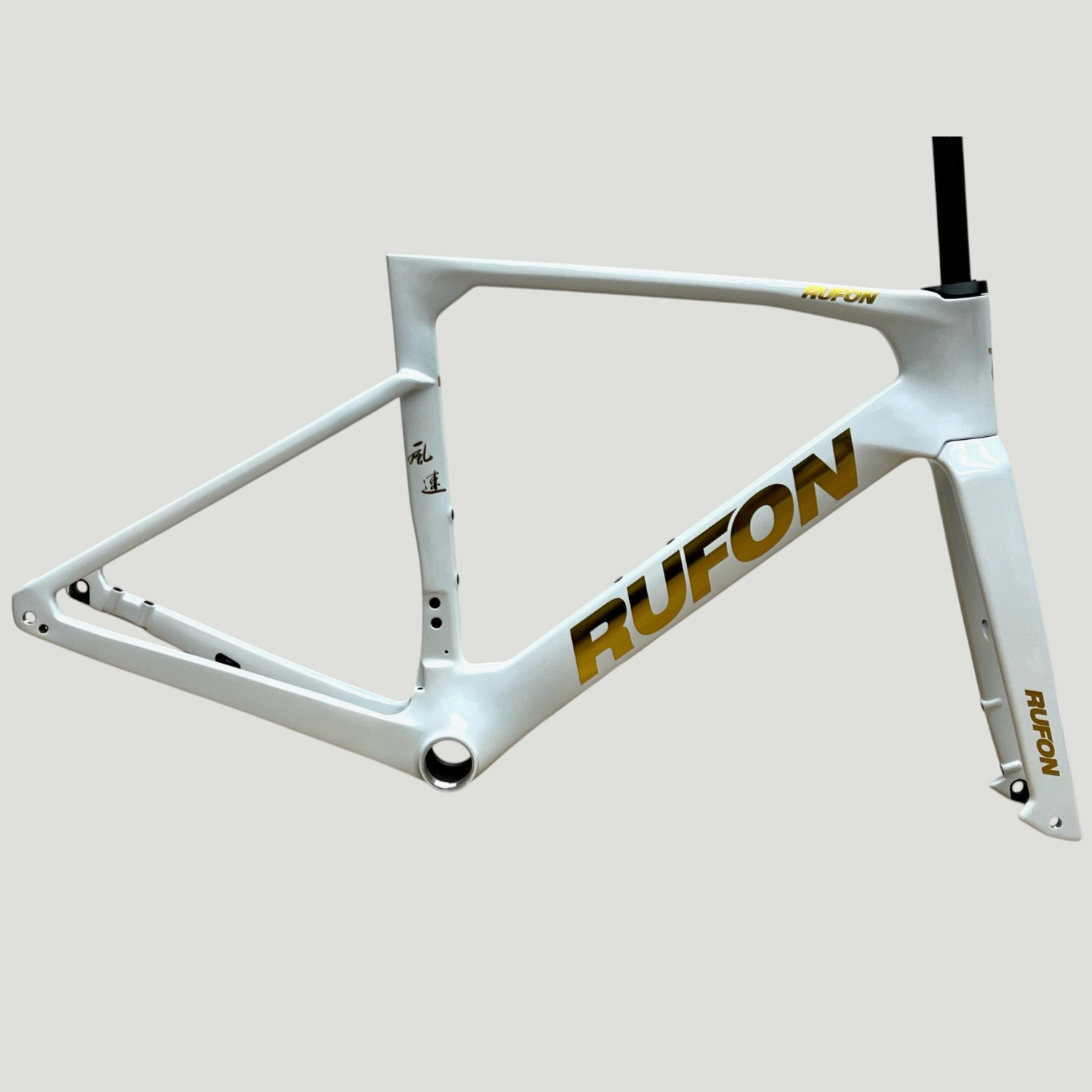

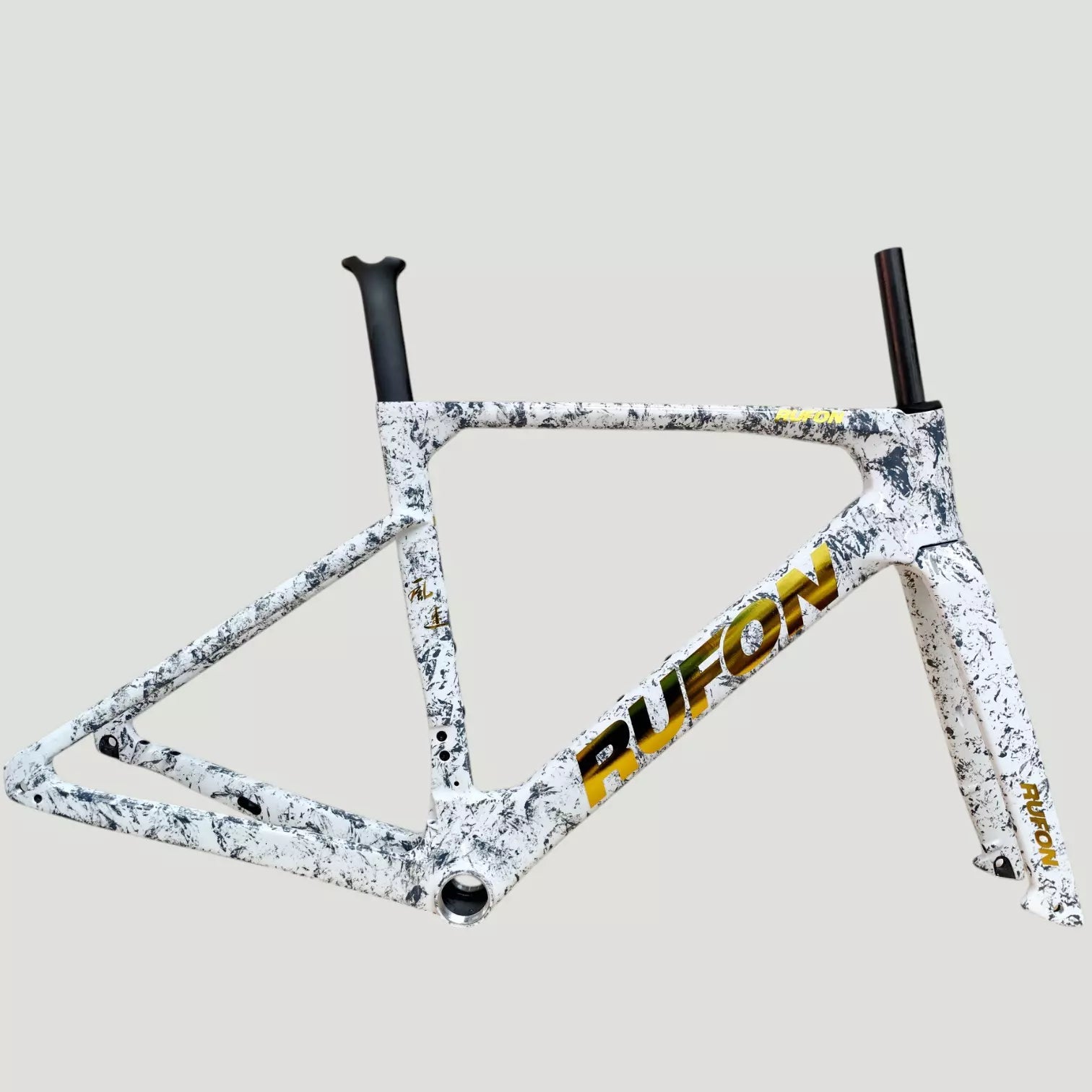

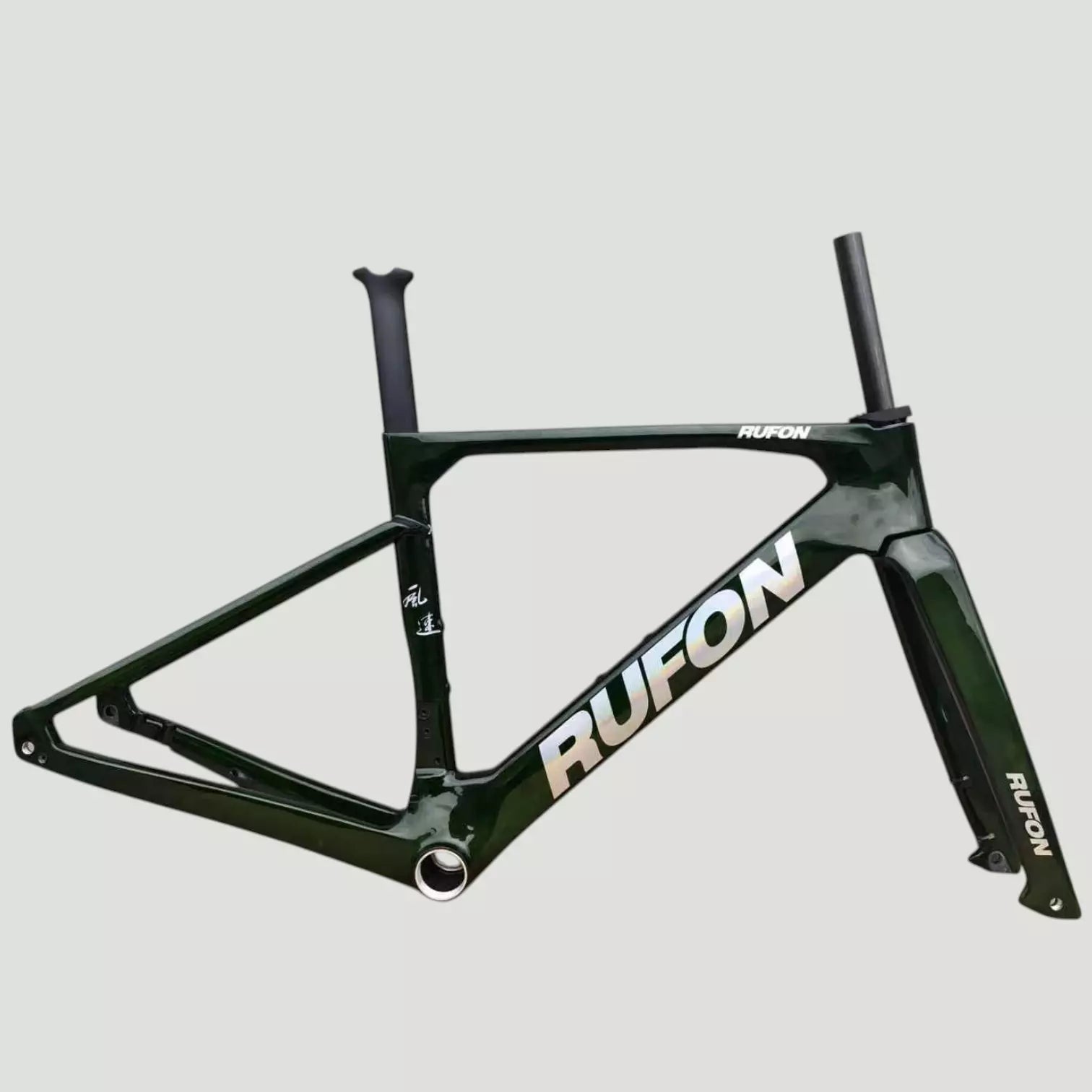

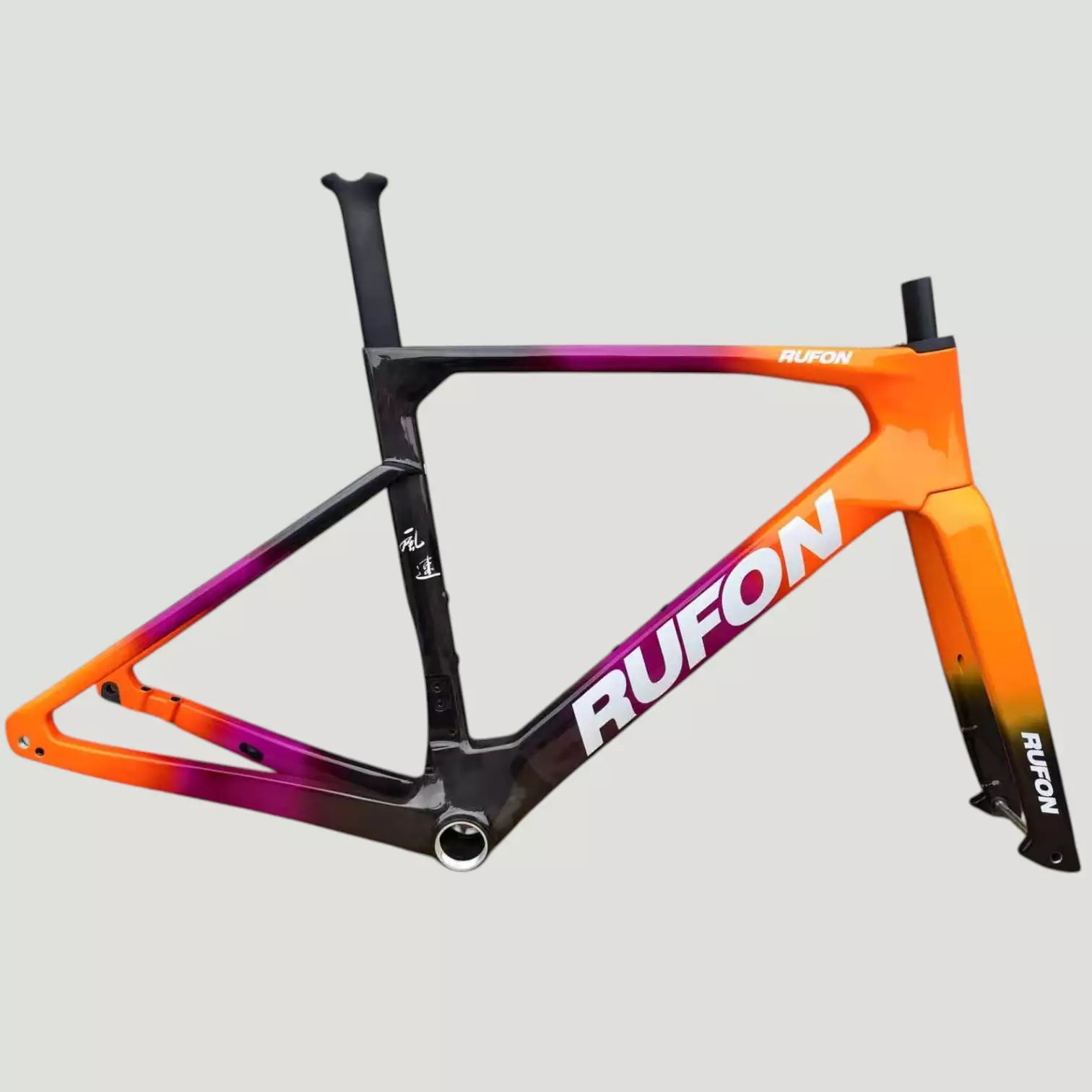

- Colours: nine finishes plus a custom paint program — see swatches
- Warranty: 2-year frameset warranty

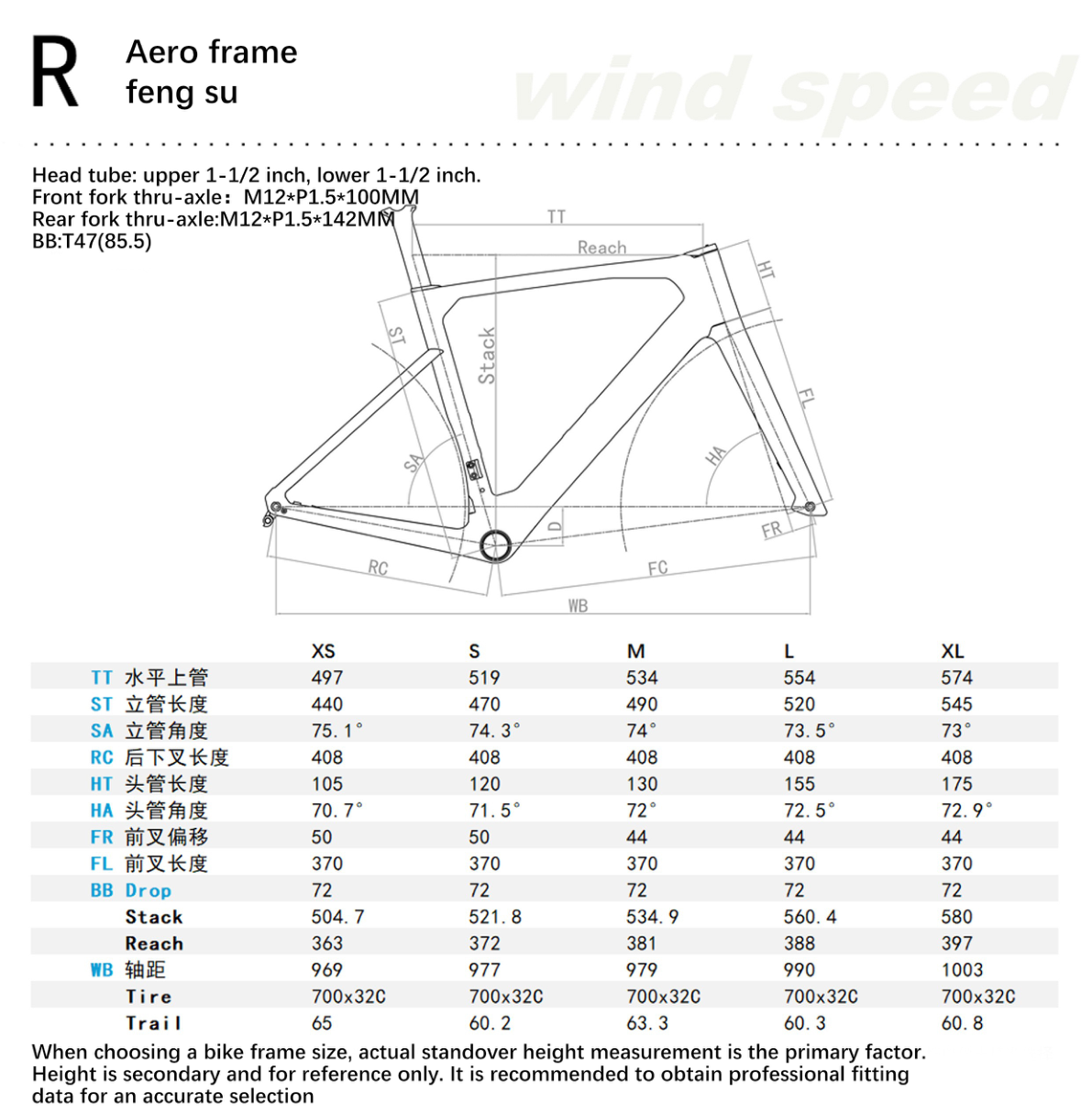

RUFON Wind Speed Complete Bike — Geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Top Tube / TT (mm) | 497 | 519 | 534 | 554 | 574 |
| Seat Tube / ST (mm) | 440 | 470 | 490 | 520 | 545 |
| Seat Angle / SA (°) | 75.1 | 74.3 | 74 | 73.5 | 73 |
| Head Tube / HT (mm) | 105 | 120 | 130 | 155 | 175 |
| Head Angle / HA (°) | 70.7 | 71.5 | 72 | 72.5 | 72.9 |
| Fork Offset / FR (mm) | 50 | 50 | 44 | 44 | 44 |
| Fork Length / FL (mm) | 370 | 370 | 370 | 370 | 370 |
| Rear Center / RC (mm) | 408 | 408 | 408 | 408 | 408 |
| BB Drop (mm) | 72 | 72 | 72 | 72 | 72 |
| Stack (mm) | 504.7 | 521.8 | 534.9 | 560.4 | 580 |
| Reach (mm) | 363 | 372 | 381 | 388 | 397 |
| Wheelbase / WB (mm) | 969 | 977 | 979 | 990 | 1003 |
| Trail (mm) | 65 | 60.2 | 63.3 | 60.3 | 60.8 |
| Max Tire | 700×32C | 700×32C | 700×32C | 700×32C | 700×32C |
All dimensions in mm unless noted (°). Manufacturer-published chart. When choosing a size, actual standover measurement is the primary factor; height ranges are secondary — contact us for a fit consult.
Helpful Links
Compare geometry with other bikes on Geometry Geeks.
Browse complete bikes and components.
Frame-only option: RUFON Wind Speed Aero Frameset.
RUFON Wind Speed Complete Bike — FAQ
Which groupsets will be offered?
Build options are being finalised with RUFON and will be announced on this page. Contact us to register interest and we will confirm available groupsets, wheel depths and pricing for your build.
What colours are available?
The same program as the frameset: nine finishes plus full custom paint — select from the swatches above.
What are the key frame standards?
T47 (85.5) threaded bottom bracket, 1-1/2″ upper and lower headset, M12×P1.5 thru-axles (100/142 mm), disc brakes, 700×32C clearance.
How does shipping and import duty work?
Orders ship tracked and insured. For most destinations we ship DDP (duties pre-paid) where available, so there are no surprise charges at delivery — contact us before ordering if you are unsure about your country.
What warranty applies?
The frameset carries a 2-year manufacturer warranty against manufacturing defects, supported through Underdogs Cycling. Crash replacement support is available — contact us with your order number.
