Arden Race Frameset is now available for pre-order. Estimated shipping starts from August 15

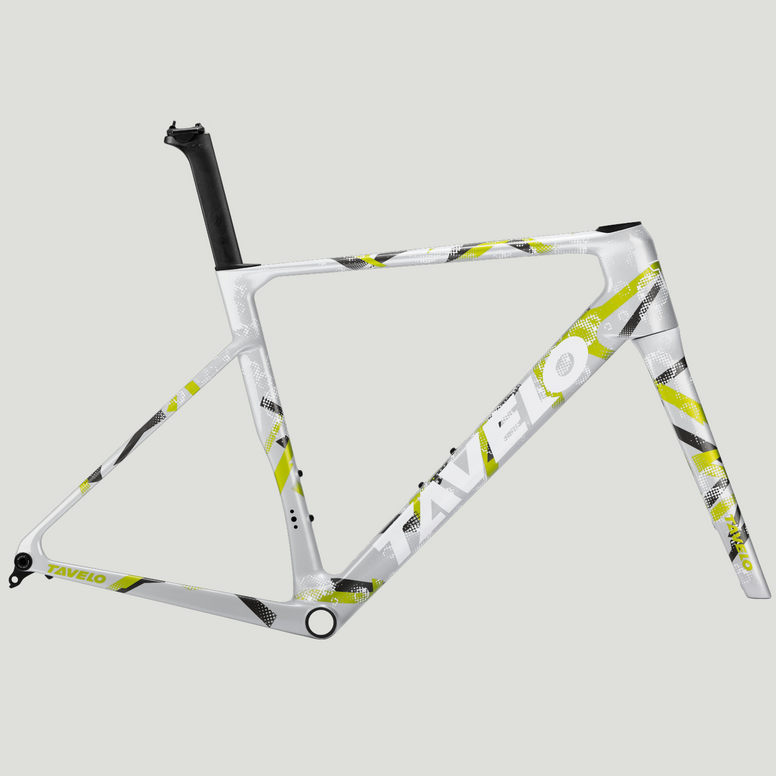

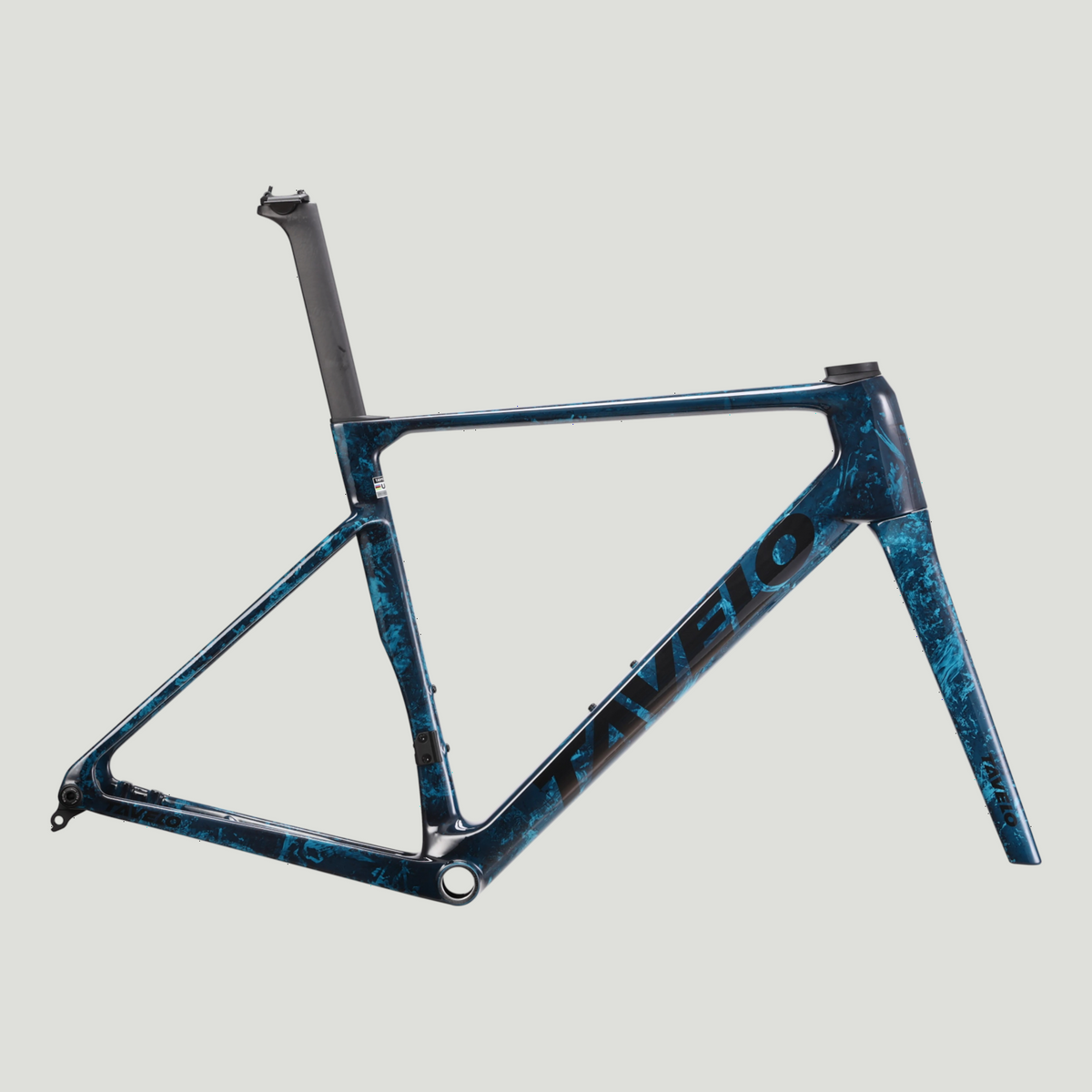

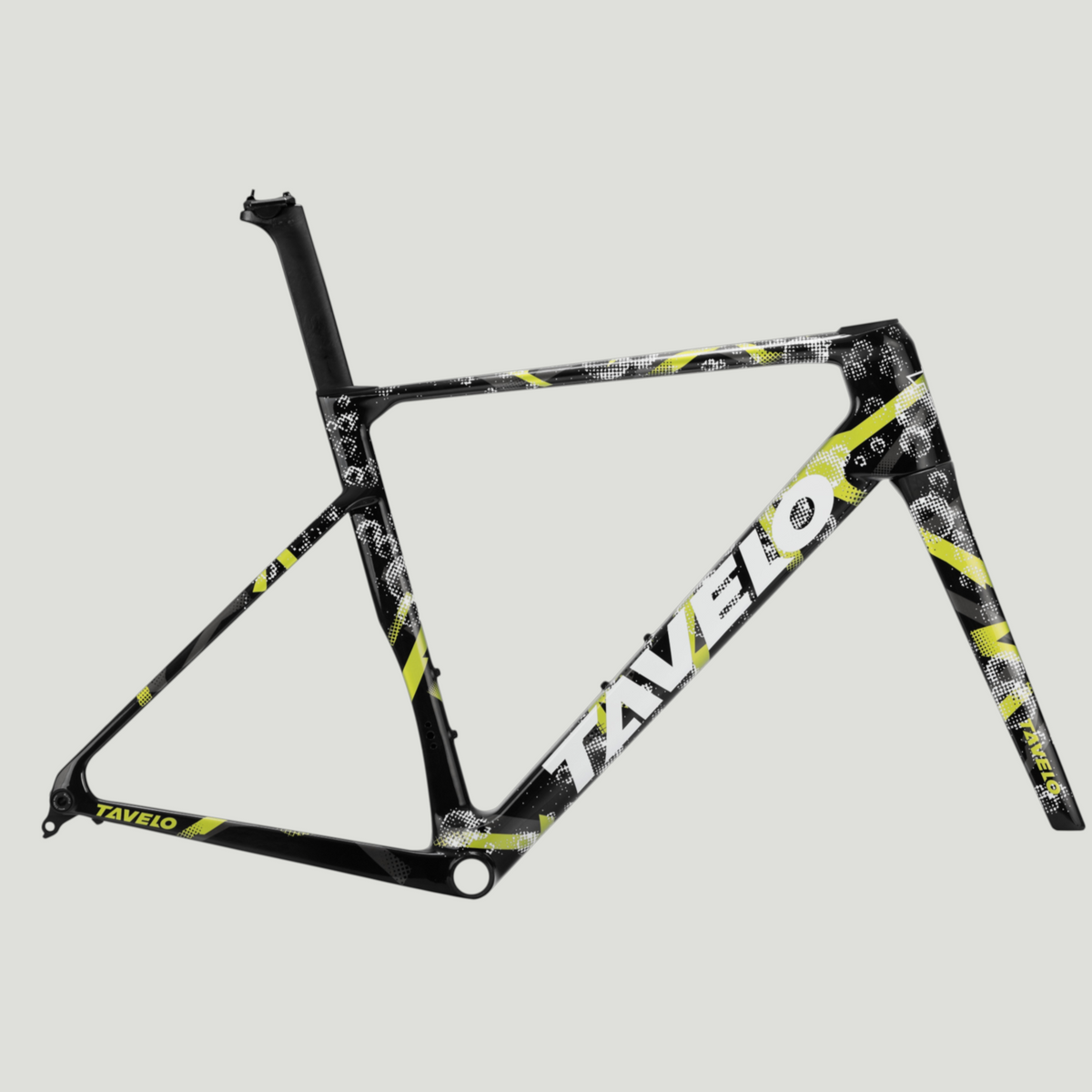

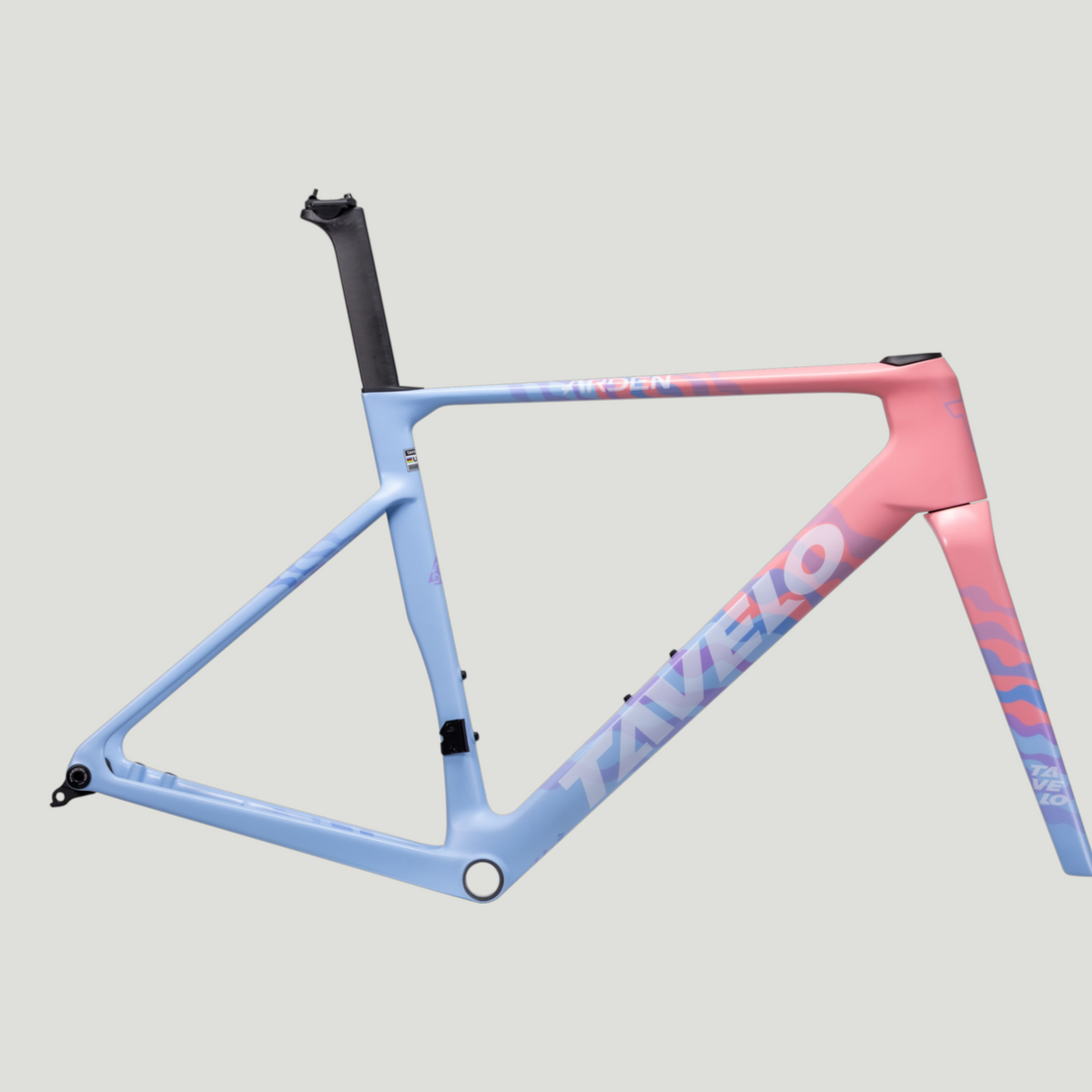

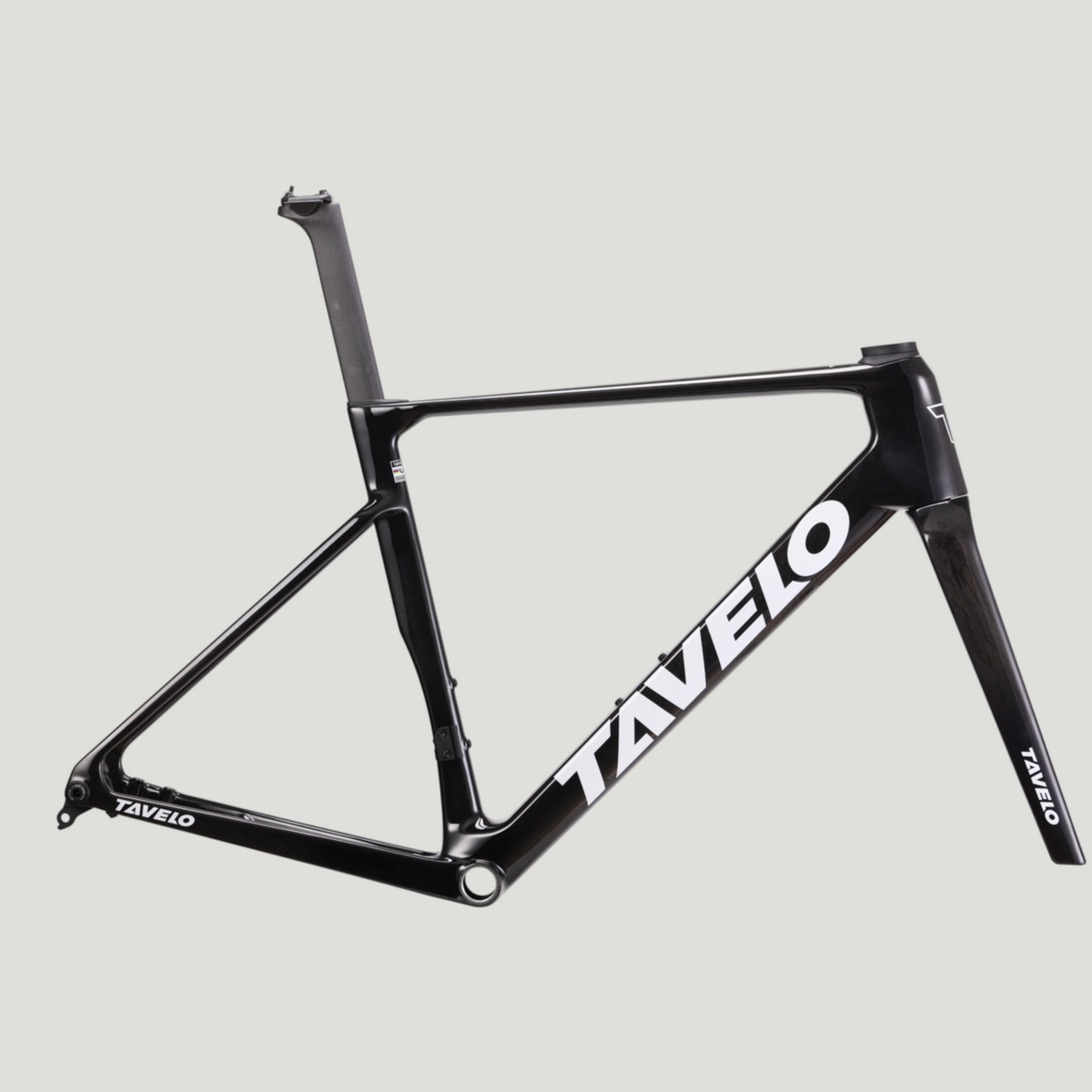

The Tavelo Arden Frameset is engineered around the principle that aero is everything—developed in the wind tunnel to maximize speed while minimizing energy expenditure by reducing frontal area. A narrowed, streamlined head tube cuts drag, while the frame design balances stiffness and comfort for confident handling and all-day efficiency. With clearance for 38 mm tires, the Arow adds compliance without sacrificing race-ready responsiveness.

Through precise calculations and optimization, the Arden’s tube shapes and lay-up target low aerodynamic drag and efficient power transfer. The rear triangle is tuned for comfort and control, so the bike stays fast and forgiving on varied road surfaces. Included in your purchase, is Tavelo’s integrated AVRO GEN-1 cockpit for clean routing and enhanced aerodynamics.

Tavelo Arden Frameset Features & Benefits

Wind-Tunnel Developed: Narrowed, streamlined head tube reduces frontal surface area and drag.

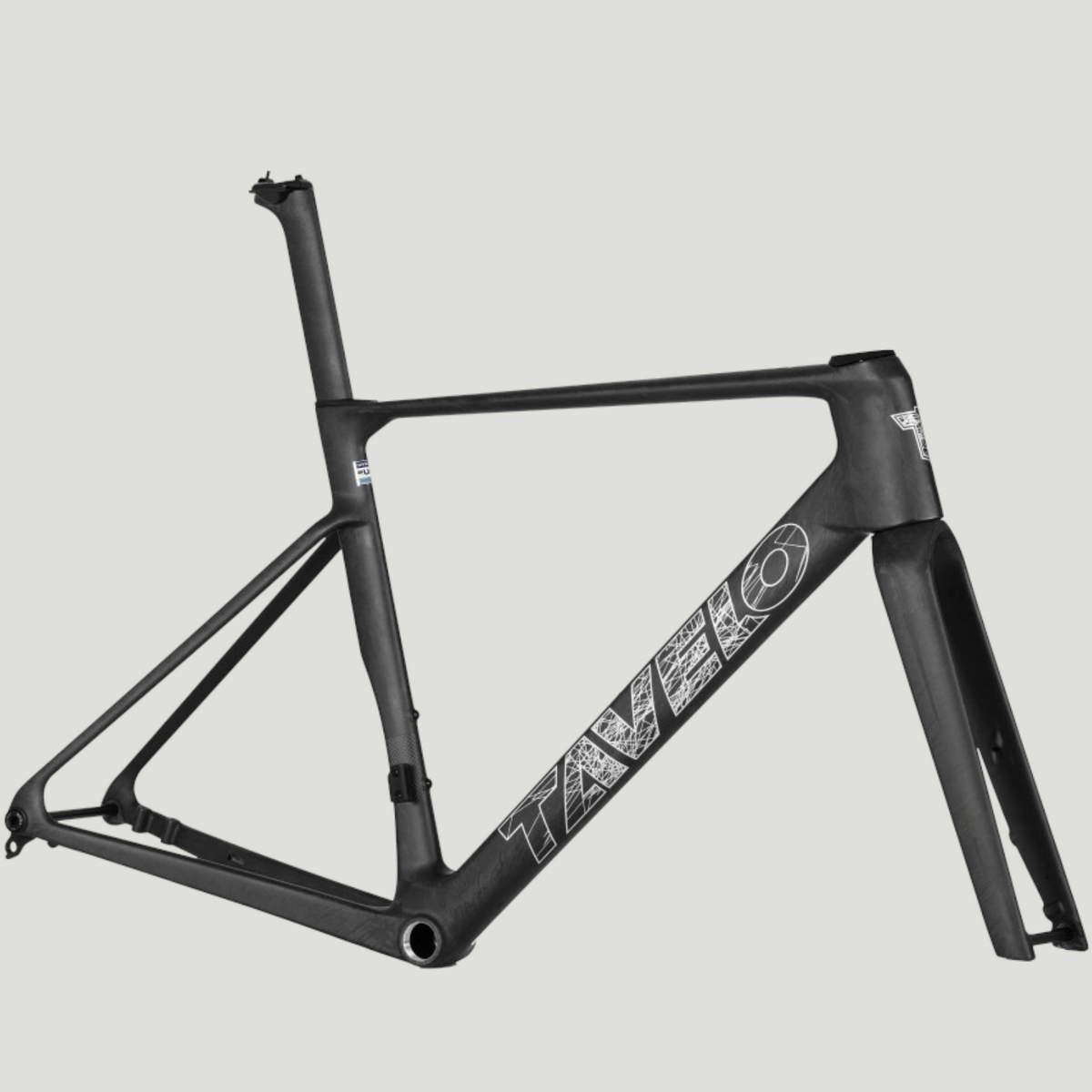

Lightweight Construction: Optimized lay-up; Race (XS) ~820 g, SL (XS) ~710 g (frameset).
Ride Quality: Enhanced stiffness with a rear design tuned for comfort and precise control.
Tire Clearance: Up to 700×38 mm for added compliance and traction.
Integrated Cockpit: AVRO GEN-1 handlebar with sleek internal cable routing.

Tavelo Arden Frameset Specifications

Frame Specs

Material: Toray T800 + M40 carbon
780g race 680g SL
Brake Type: Disc
Cable Routing: Fully internal
Bottom Bracket: threaded bsa
Thru-Axles: 12×100 mm (front), 12×142 mm (rear)
Headset: 32.8–41.8 mm & 34.1–46.9 mm (FSA)
Seat Rail Specs: 7×7 mm (metal), 7×9 mm (carbon)
Tire Clearance: Max 700×38 1x 34mm 2x mm
Compliance: EN ISO 4210:2014; UCI approved

Included with Frameset

Frame & Fork
Seatpost
Headset & Spacers
Front & Rear Thru-Axles
Saddle Clamp (alloy & carbon-rail)
Shimano-compatible 24 mm bottom bracket
Warranty: 5 years

Compatibility

Gear Type: Electronic shifting
Brake Type: Disc brakes (140 mm or 160 mm rotor)
Tire Clearance: Supports up to 38 mm 1x 34mm 2x
Dropout Type: Modular or direct mount

Tavelo Arden Frameset Geometry

Reference: A–K, reach, stack, stand-over, fork trail.

SIZE	XS	S	M	L	XL	XXL	xxxl
A	425	450	475	500	530	560	590
B	504	516	533	554	571	584	597
C	106.9	120.6	135.2	149.1	165.9	188.5	209.4
D	410	410	410	410	410	410	410
E (°)	71°	71.3°	72.1°	72.6°	73.2°	73.3°	73.3°
F (°)	74.5°	74.5°	74°	73.5°	73°	73°	73°
G	74	74	72	72	70	70	70
H	574	584	586	595	599	611	624
I	370	370	370	370	370	370	370
J	973	983	986	995	999	1011	1024
K	52	52	48	48	45	45	45
REACH	365	373	381	390	397	403	410
STACK	508	522	538	553	570	592	612
STAND OVER	717	736	761	784	809	835	859
FORK TRAIL	63.1	61.2	60.3	57.2	56.6	55.9	55.9

Compare your current bike’s reach and stack for best results.

Tavelo Avro Gen 1 Integrated Carbon Handlebar geometry reference showing A/B widths, C stem length, D outsweep, E stem angle, F stack height, plus reach and drop — Geometry reference: A/B (widths), C (stem length), D (outsweep), E (stem angle), F (stack height), Reach & Drop.

Tavelo Avro Gen 1 Integrated Carbon Handlebar Geometry & Sizes

A = Width at hoods (mm)
B = Width at drops (mm)
C = Stem length (mm)
D = Outsweep / flare (°)
E = Stem angle (°)
F = Stack height (mm)
Reach = Horizontal from tops to hoods (mm)
Drop = Vertical from tops to drops (mm)

A/B Width Options

Size label	A — Hoods (mm)	B — Drops (mm)
36	360	380
38	380	400
40	400	420
42	420	440

C — Stem Lengths

80 / 90 / 100 / 110 / 120 / 130 mm

D — Outsweep

2.6°

E — Stem Angle

10°

F — Stack Height

36.4 mm

Reach

77 mm

Drop

130 mm

Note: Drop width (B) includes the 2.6° outsweep, so it measures wider than hood width (A).
