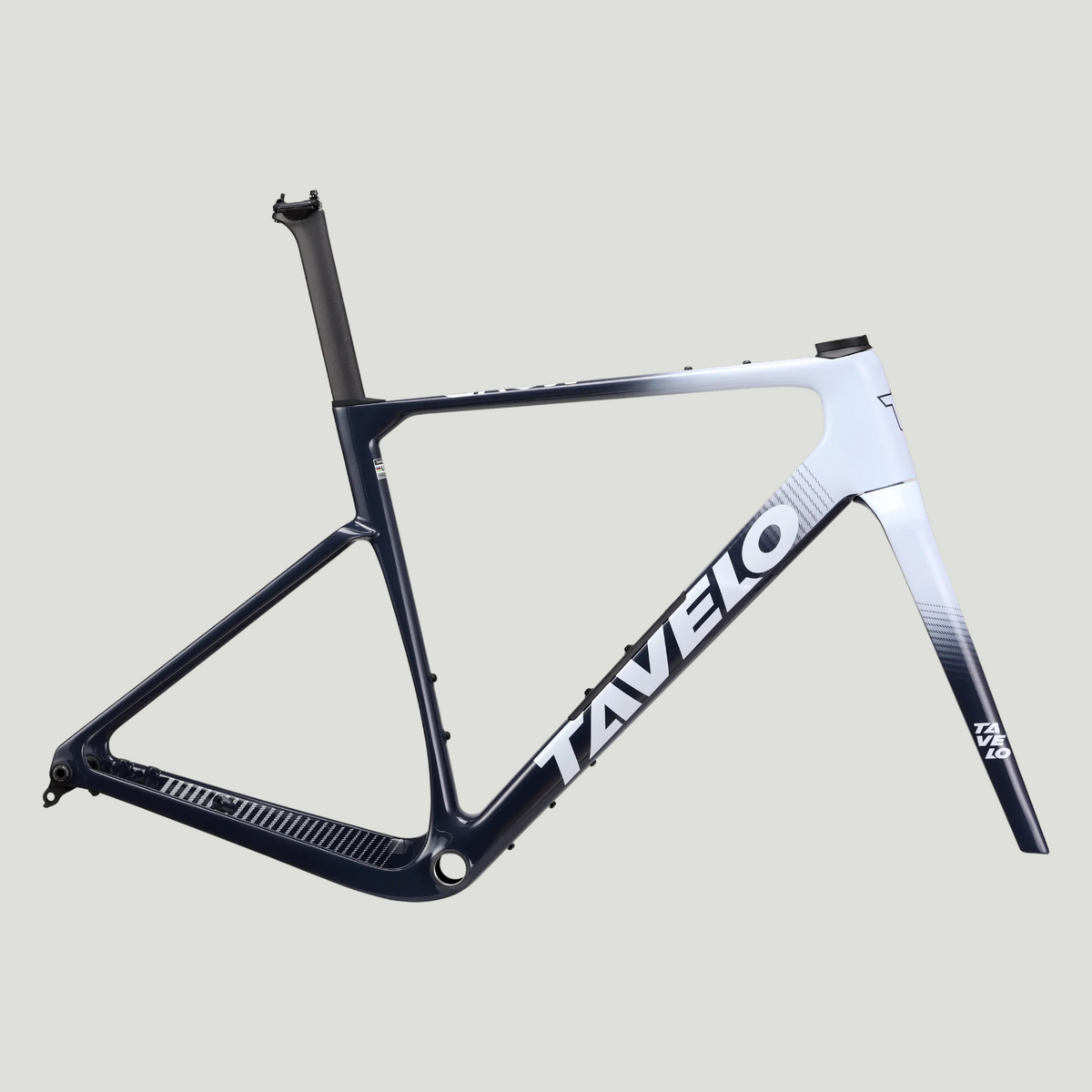

TAVELO Grow Gravel Frameset

Q: What kind of bike is the TAVELO Grow?

The Grow is a carbon gravel frameset developed around weight, aerodynamics, control, and comfort, making it suitable for riders building a fast but capable mixed-surface bike.

Q: What frame sizes are available?

The Grow is listed in 430 / 460 / 490 / 515 / 540 / 570. Use the geometry chart above as the starting point, then refine fit based on inseam, saddle height, bar reach, and intended terrain.

Q: What colours are shown for the Grow?

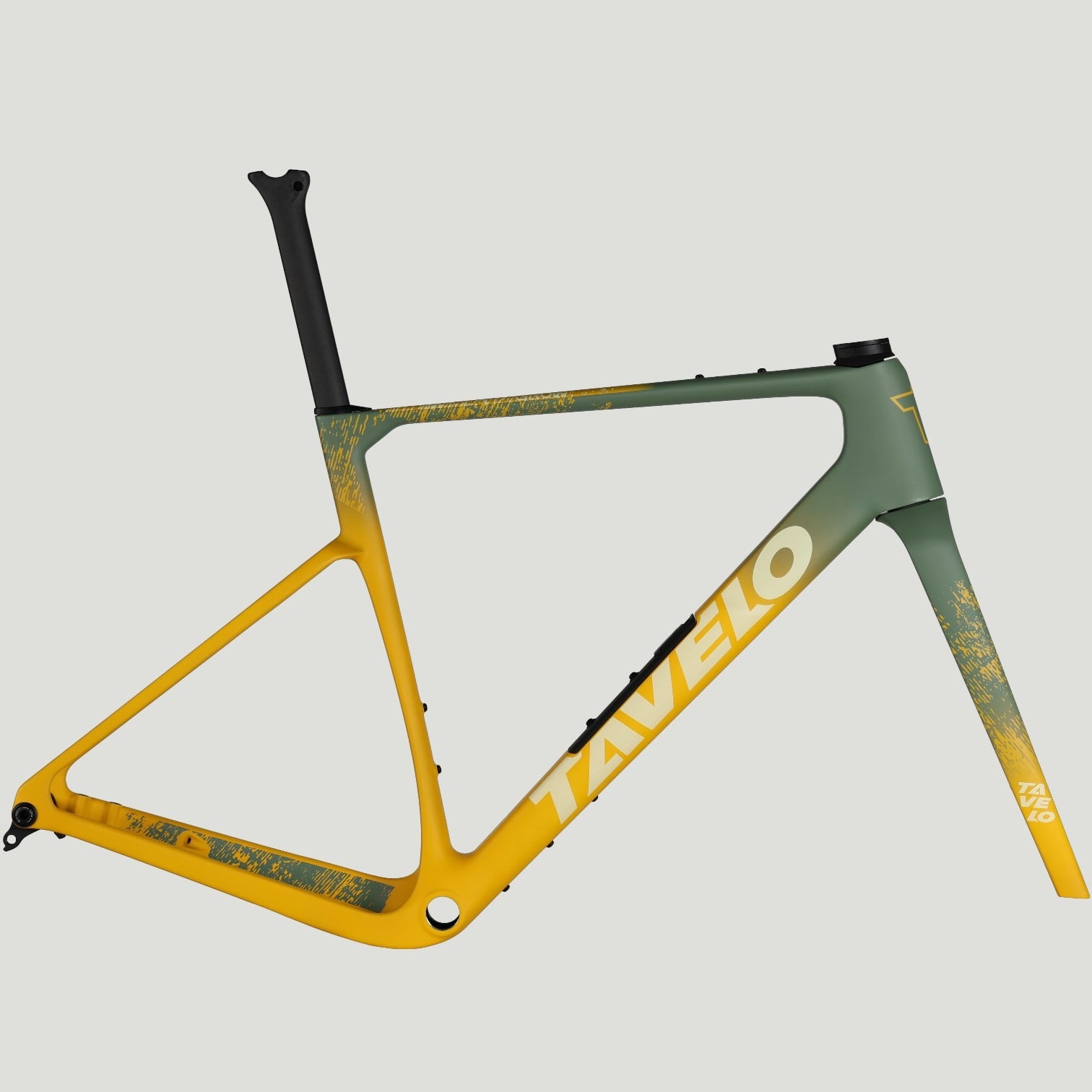

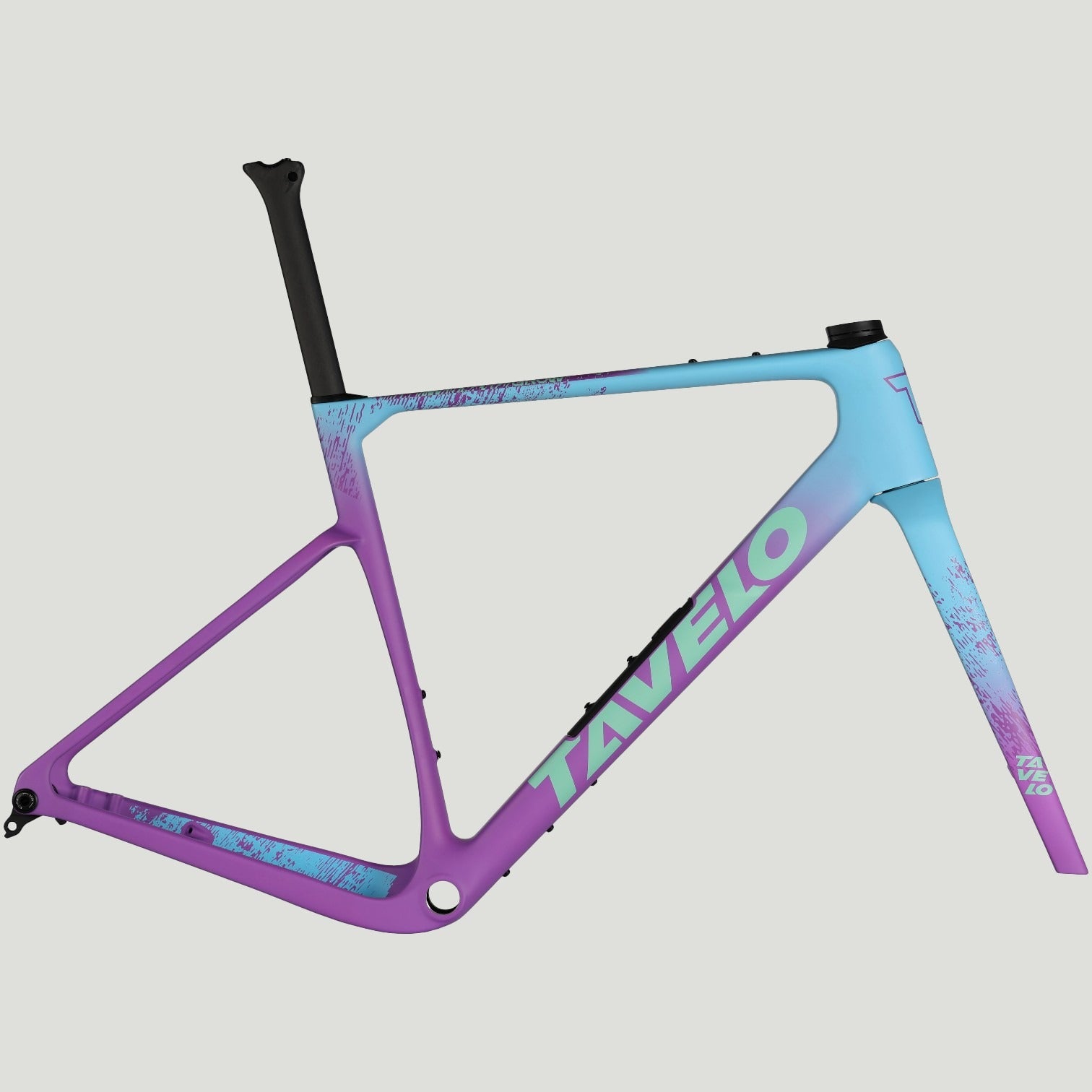

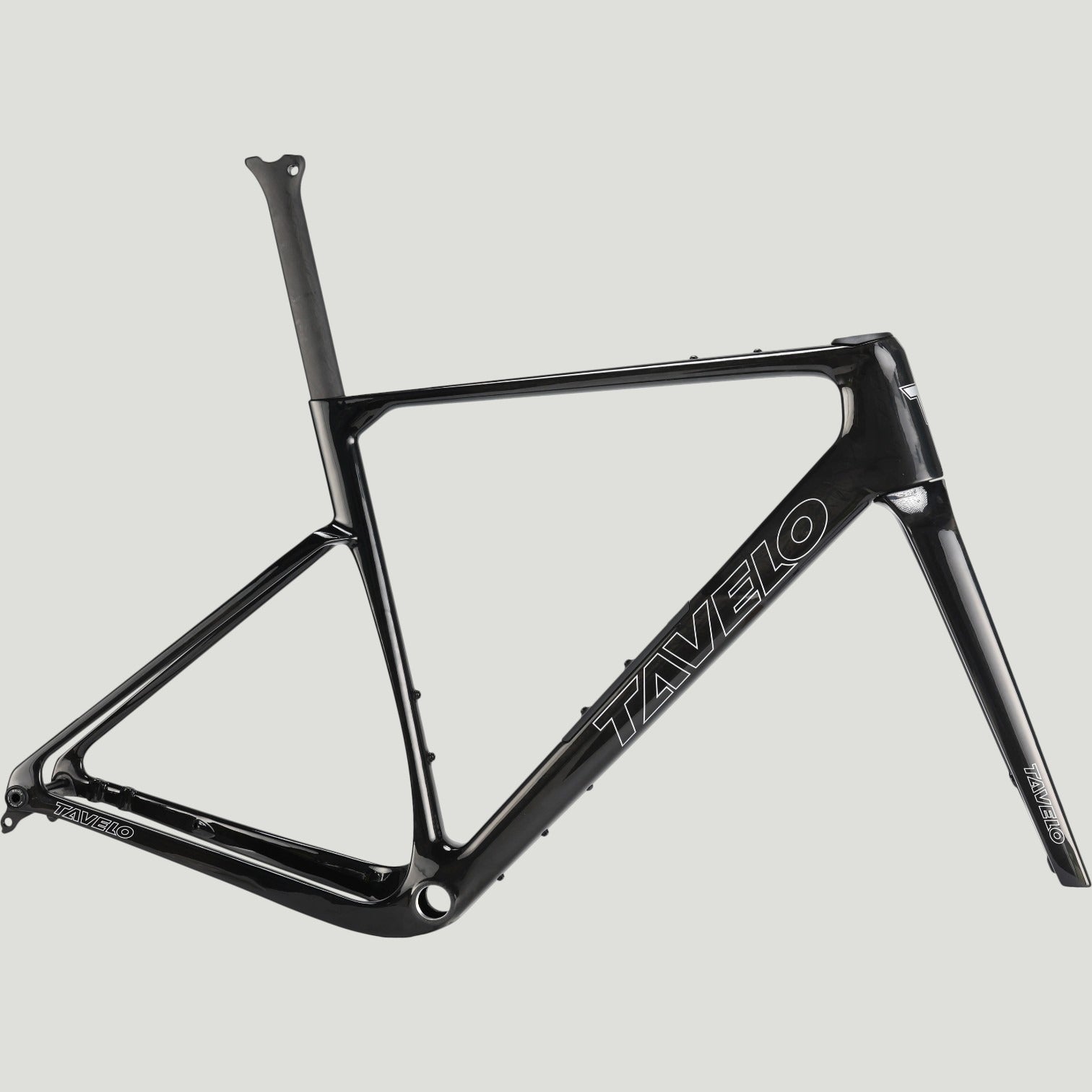

TAVELO currently shows the Grow in Purple, Yellow, and Black.

Q: What are the key frame standards?

The Grow uses a threaded BSA bottom bracket, a UDH hanger, and a wireless-shift-only frame layout.

Q: Is the TAVELO Grow designed for 1x or 2x drivetrains?

The published frame chart states that the Grow is for single-ring drivetrains only. TAVELO also lists a maximum of 50T when chainline is 47.5 mm.

Q: What tire clearance does the Grow have?

The listed maximum tire clearance is 700x55C up front and 700x50C at the rear.

Q: Does the Grow have internal storage?

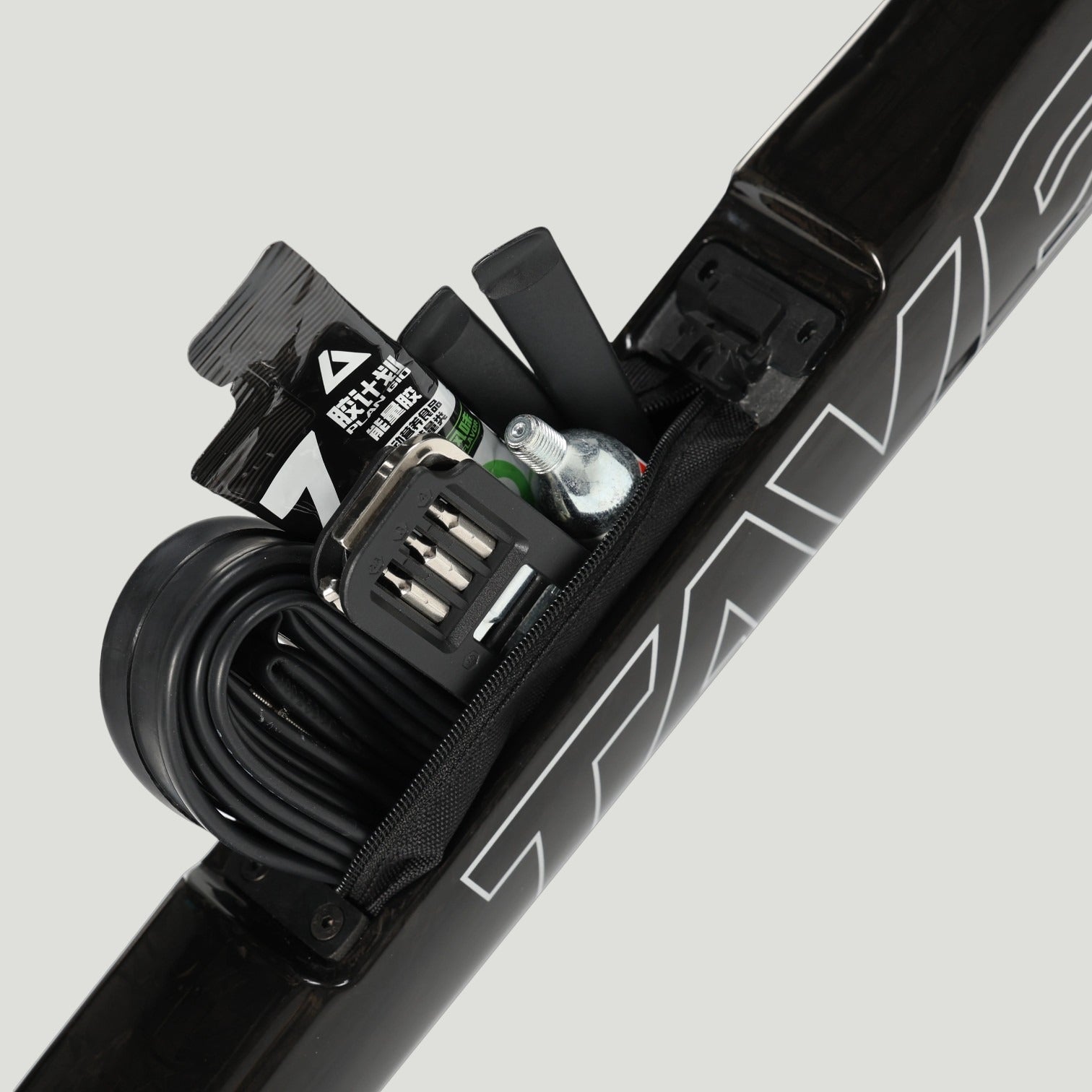

Yes. The published frame chart notes a storage box fixed by FIDLOCK system, and TAVELO’s product images show an internal downtube storage solution for ride essentials.

Q: What seatpost offsets are available?

The Grow chart lists 0 mm and 15 mm seatpost offset options.

Q: What cockpit can I pair with the Grow?

TAVELO shows the AVRO-GR as a buy-together cockpit option with the Grow. The geometry chart above summarizes the width, stem length, reach, drop, and flare values from the supplied AVRO-GR chart.

Q: How do I choose the right size?

Start with stack, reach, top tube, and standover from the geometry chart, then compare them to your current bike and intended bar/stem setup. If you send us your fit reference, we’ll help you narrow it down.

The TAVELO Grow is a carbon gravel platform designed around a balanced mix of weight, aerodynamics, control, and comfort. It uses a threaded BSA bottom bracket, a UDH derailleur hanger, and a wireless-shifting-only layout for a cleaner modern build. Clearance is generous for mixed-surface riding, with a stated maximum of 700x55C front and 700x50C rear. The frame is also built for single-ring drivetrains only, includes a FIDLOCK-based storage box system, and is available in six frame sizes with multiple colour options.

TAVELO Grow — Features & Benefits

Modern carbon gravel platform: shaped for riders who want one frameset that can cover fast gravel, rougher mixed-terrain riding, and long adventure days.
Built around control and comfort: the published Grow positioning specifically highlights control and comfort alongside weight and aero development.
Threaded BSA bottom bracket: a practical serviceable standard that many riders and mechanics still prefer.
UDH-ready frame: easier hanger replacement and broader drivetrain compatibility planning.
Wireless-shifting-only routing: cleaner frame layout for modern electronic builds.
Large tire clearance: stated maximum tire room is 700x55C front and 700x50C rear.
Single-ring gravel focus: designed for 1x drivetrains only, with a stated maximum 50T chainring when chainline is 47.5 mm.
Integrated storage concept: the frame chart notes a storage box fixed by FIDLOCK system, adding practical on-bike storage for tools and ride essentials.
Seatpost : 8mm setback.
Six frame sizes: available in 430 / 460 / 490 / 515 / 540 / 570.

Fit note: If you send us your height, inseam, current bike size, and the kind of terrain you ride most, we’ll help you sanity-check the right Grow size before you order.

TAVELO Grow — Specifications

Frame Platform

Model: TAVELO Grow
Category: Carbon gravel frameset
Bottom Bracket: Threaded BSA
Hanger: UDH system
Shifting layout: Wireless shift system only
Drivetrain format: Single-ring only
Max chainring: 50T with 47.5 mm chainline

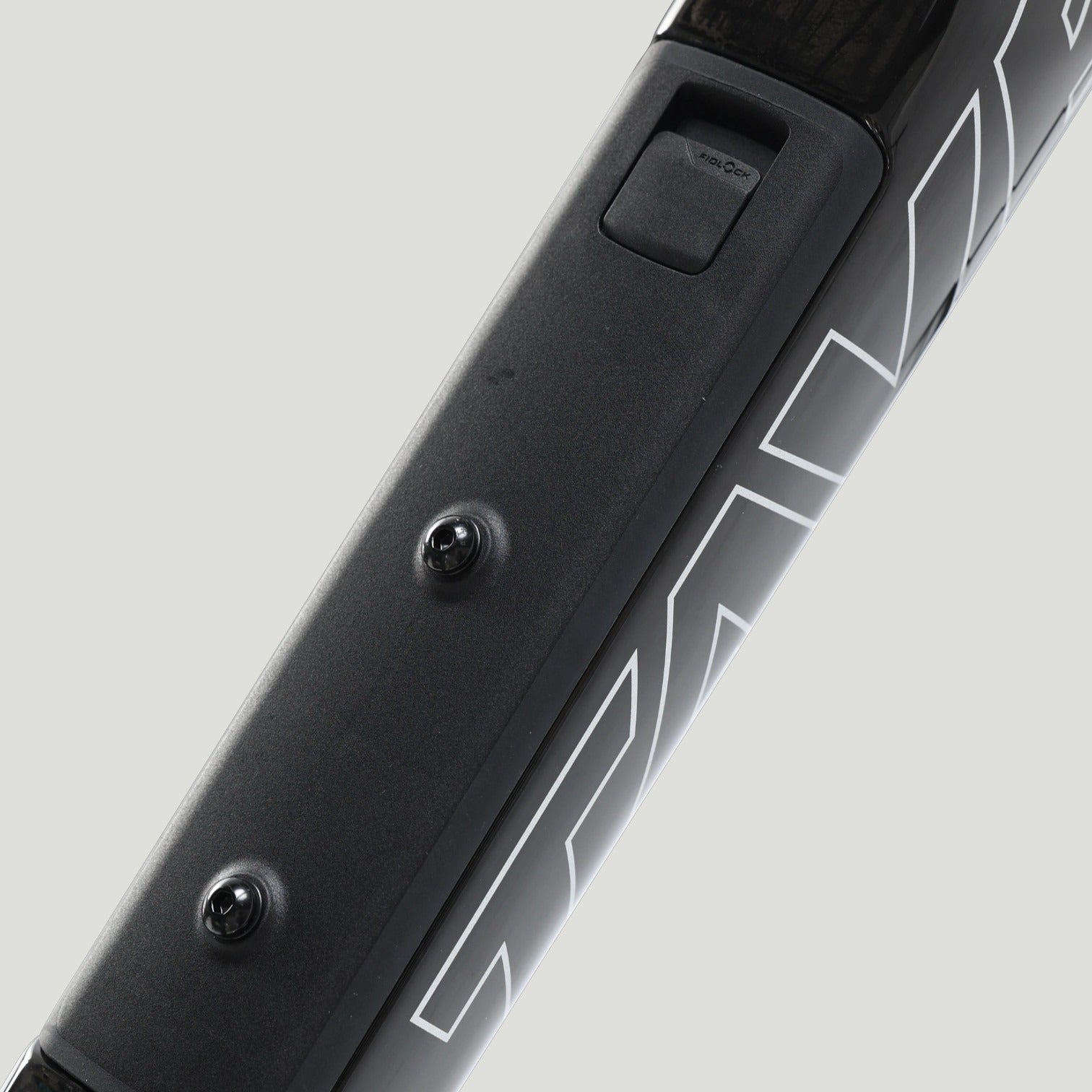

Storage: Storage box fixed by FIDLOCK system

Tires / Seatpost / Integration

Max front tire: 700x55C
Max rear tire: 700x50C
Seatpost offset options: 0 mm / 15 mm
Fork length: 400 mm across all listed sizes
Fork rake: 55 mm across all listed sizes
Frame intent: developed around weight, aerodynamics, control, and comfort

Available Sizes & Colours

Frame sizes: 430 / 460 / 490 / 515 / 540 / 570
Colours: Purple/Teal / Yellow/Green / Black
Geometry guidance: see the geometry table below for stack, reach, and key fit numbers
Best final fit still depends on inseam, saddle height, bar setup, tire choice, and intended riding style.

Platform Notes

What you’re getting

Your selected TAVELO Grow frameset size
Carbon frame and matching fork
Internal frame storage concept using a FIDLOCK-fixed storage box system
Geometry and cockpit choices should be checked before final assembly

Build intent

1x drivetrain only
Wireless shifting only
Clearance aimed at high-volume gravel tires
Designed to balance speed, composure, and long-ride comfort

Need help choosing?

Send your height and inseam
Your current bike size and fit reference
Your main terrain: fast gravel, rough mixed surfaces, or all-road
If you want an integrated bar option, see the AVRO-GR geometry section below

TAVELO Grow — Geometry

TAVELO Grow frameset geometry chart — Geometry chart for the TAVELO Grow frameset.

Size	430	460	490	515	540	570
Standover (mm)	747	768	794	816	843	869
Head Tube / HT (mm)	95	105	127	145	174	197
Seat Angle / SA (°)	74	74	73.5	73.5	73	73
Head Angle / HA (°)	70.5	71	71	71.3	71.3	71.6
Top Tube / TT (mm)	520	530	550	567	586	605
Front Center / FC (mm)	588	598	614	622	642	652
Rear Center / RC (mm)	423	423	423	423	423	423
Fork Length / FL (mm)	400	400	400	400	400	400
Wheelbase / WB (mm)	998	1008	1025	1033	1054	1064
BB Drop / BB DROP (mm)	80	80	78	78	75	75
Fork Rake / RAKE (mm)	55	55	55	55	55	55
Trail (mm)	69.67	66.31	66.31	64.3	64.3	62.29
Reach (mm)	368	375	385	395	406	414
Stack (mm)	530	540	558	579	603	627

All dimensions are shown in millimeters unless otherwise noted. Final fit should always be checked against your current bike, bar setup, tire choice, and riding goals.

AVRO-GR gravel handlebar geometry drawing — Geometry for the AVRO-GR gravel cockpit shown in the attached chart.

AVRO-GR Gravel Cockpit — Geometry & Sizes

Hood-to-hood widths = 360 / 380 / 400 / 420 mm
Drop-to-drop widths = 425 / 445 / 465 / 485 mm
Stem lengths = 80 / 90 / 100 / 110 / 120 / 130 mm
Key shape = 78 mm reach • 137 mm drop • 80° angle • 36.4 mm stack

AVRO-GR Width Options
Size label	Hood-to-hood (mm)	Drop-to-drop (mm)	Stem length (mm)
36	360	425	80 / 90 / 100 / 110 / 120 / 130
38	380	445	80 / 90 / 100 / 110 / 120 / 130
40	400	465	80 / 90 / 100 / 110 / 120 / 130
42	420	485	80 / 90 / 100 / 110 / 120 / 130

Stem lengths

80 | 90 | 100 | 110 | 120 | 130

Hood widths

360 | 380 | 400 | 420

Drop widths

425 | 445 | 465 | 485

Reach / Drop

78 mm reach • 137 mm drop

The AVRO-GR additional bar details from the chart are 17.35° drop flare 1, 24.35° drop flare 2, 80° angle, 36.4 mm stack, and a stated weight of 320 g for the 380 mm x 110 mm reference.

Always verify frame, fork, bar, seatpost, drivetrain, and tire compatibility before final assembly. If you’re unsure, message us your current bike and intended build.
