Name: TAVELO Arow Complete Bike
Brand: Tavelo Complete
Price: 3550.00 USD
Availability: InStock

Product label: % Sale

Product label: % Sale

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected UCI approved, EN ISO 4210 certified

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

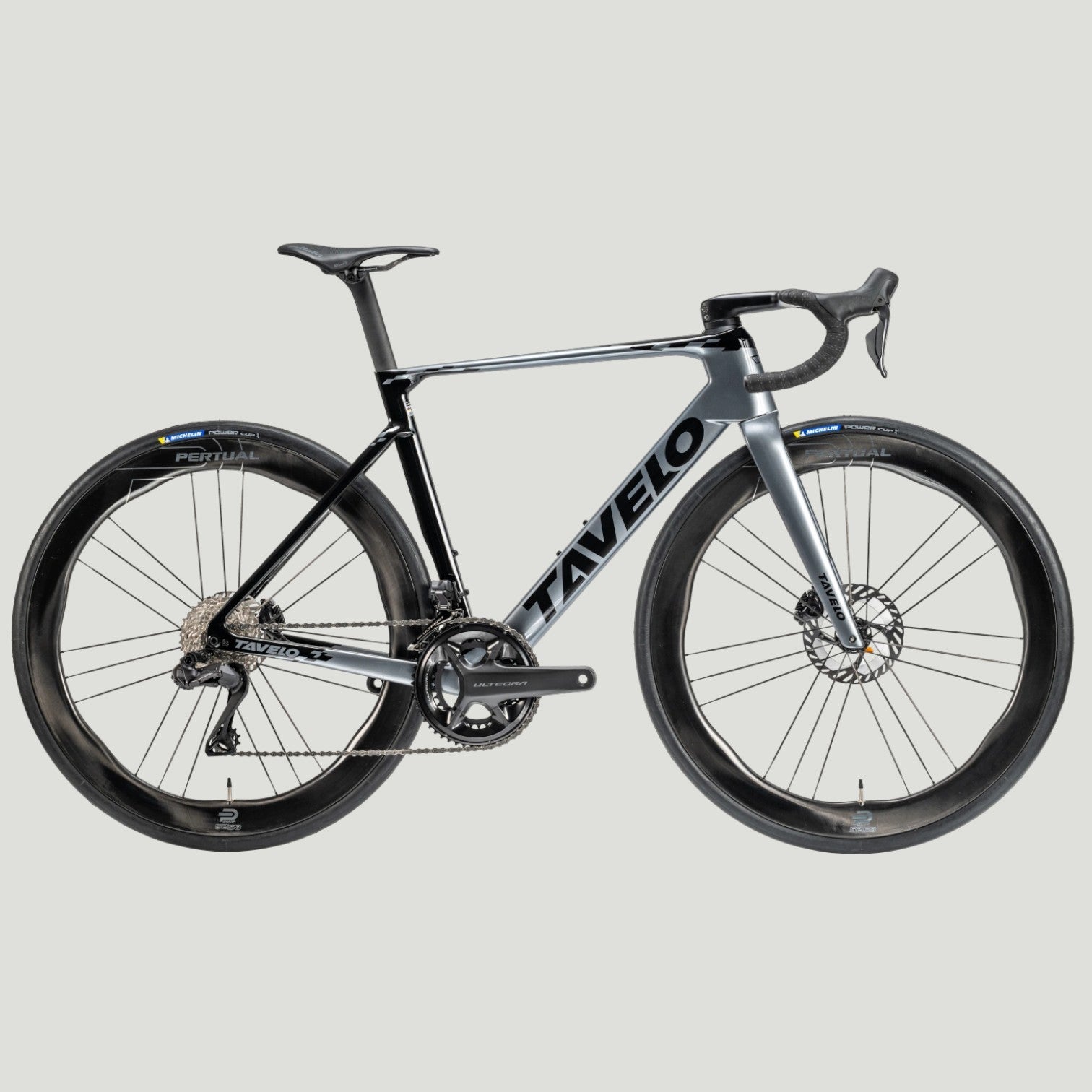

The Tavelo Arow Complete Bike is engineered around the principle that aero is everything—developed in the wind tunnel to maximize speed while minimizing energy expenditure by reducing frontal area. A narrowed, streamlined head tube cuts drag, while the frame design balances stiffness and comfort for confident handling and all-day efficiency. With clearance for 32 mm tires, the Arow adds compliance without sacrificing race-ready responsiveness.

Through precise calculations and optimization, the Arow’s tube shapes and lay-up target low aerodynamic drag and efficient power transfer. The rear triangle is tuned for comfort and control, so the bike stays fast and forgiving on varied road surfaces. Choose your build with Tavelo’s integrated AVRO GEN-1 cockpit for clean routing and enhanced aerodynamics.

Tavelo Arow Complete Bike Features & Benefits

Wind-Tunnel Developed: Narrowed, streamlined head tube reduces frontal surface area and drag.
Lightweight Construction: Optimized lay-up; Race (XS) ~820 g, SL (XS) ~710 g (frameset).
Ride Quality: Enhanced stiffness with a rear design tuned for comfort and precise control.
Tire Clearance: Up to 700×32 mm for added compliance and traction.
Integrated Cockpit: AVRO GEN-1 handlebar with sleek internal cable routing.
Wheelset Options: Complete builds spec Pertual Sharp Pro (steel spokes) or Pertual Sharp (carbon spokes), per groupset.

Tavelo Arow Complete Bike Specifications

Frameset Highlights

Design: Aero-first profile; narrowed head tube to reduce drag
Construction: Optimized carbon lay-up (Race & SL options)
Tire (Max): 700×32 mm
Cockpit: AVRO GEN-1 integrated handlebar, internal routing

Approx. Frame Weights (XS)

Race: ~820 g
SL: ~710 g

Complete Build Options

Pertual Sharp Pro (steel spokes) wheelset or
Pertual Sharp (carbon spokes) wheelset
Groupset-dependent selections

Tavelo Arow Complete Bike Geometry

Tavelo Arow geometry diagram with labeled measurements A–K plus reach/stack — Reference: A–K, reach, stack, stand-over, fork trail.

SIZE	XS	S	M	L	XL	XXL
A	420	450	480	510	540	580
B	510	520	536	549	575	587
C	116	123.3	134.1	148.9	172.1	200.7
D	410	410	410	410	410	410
E (°)	70.8°	71.4°	72°	72.8°	73°	73°
F (°)	75°	74.5°	74°	73.5°	73°	73°
G	71	71	71	70	70	70
H	572.2	577	583.5	589.3	602	620.5
I	370	370	370	370	370	370
J	971.6	976.4	983	989.1	1001.9	1020.5
K	45	45	45	45	45	45
REACH	365	372	380	388	396	407
STACK	517	526	538	554	576	604
STAND OVER	702	727	752	779	805	841
FORK TRAIL	72.4	68.4	64.6	59.6	58.4	58.4

Compare your current bike’s reach and stack for best results.

Tavelo Avro Gen 1 Integrated Carbon Handlebar geometry reference showing widths, stem length/angle, outsweep, stack, reach and drop — Geometry reference: A/B (widths), C (stem length), D (outsweep), E (stem angle), F (stack height), Reach & Drop.

Tavelo Avro Gen 1 Integrated Carbon Handlebar Geometry & Sizes

A = Width at hoods (mm)
B = Width at drops (mm)
C = Stem length (mm)
D = Outsweep / flare (°)
E = Stem angle (°)
F = Stack height (mm)
Reach = Horizontal from tops to hoods (mm)
Drop = Vertical from tops to drops (mm)

A/B Width Options

Size label	A — Hoods (mm)	B — Drops (mm)
36	360	380
38	380	400
40	400	420
42	420	440

C — Stem Lengths

80 / 90 / 100 / 110 / 120 / 130 mm

D — Outsweep

2.6°

E — Stem Angle

10°

F — Stack Height

36.4 mm

Reach

77 mm

Drop

130 mm

Note: Drop width (B) includes the 2.6° outsweep, so it measures wider than hood width (A).

Upgrade the Tavelo Arow saddle with a lightweight Berk saddle Berk Saddles.

If you're looking to compare your existing frame or fit, and considering this frame, be sure to check out Geometry Geeks. If you still have questions about sizing, feel free to contact us. We're readily available and happy to assist.
