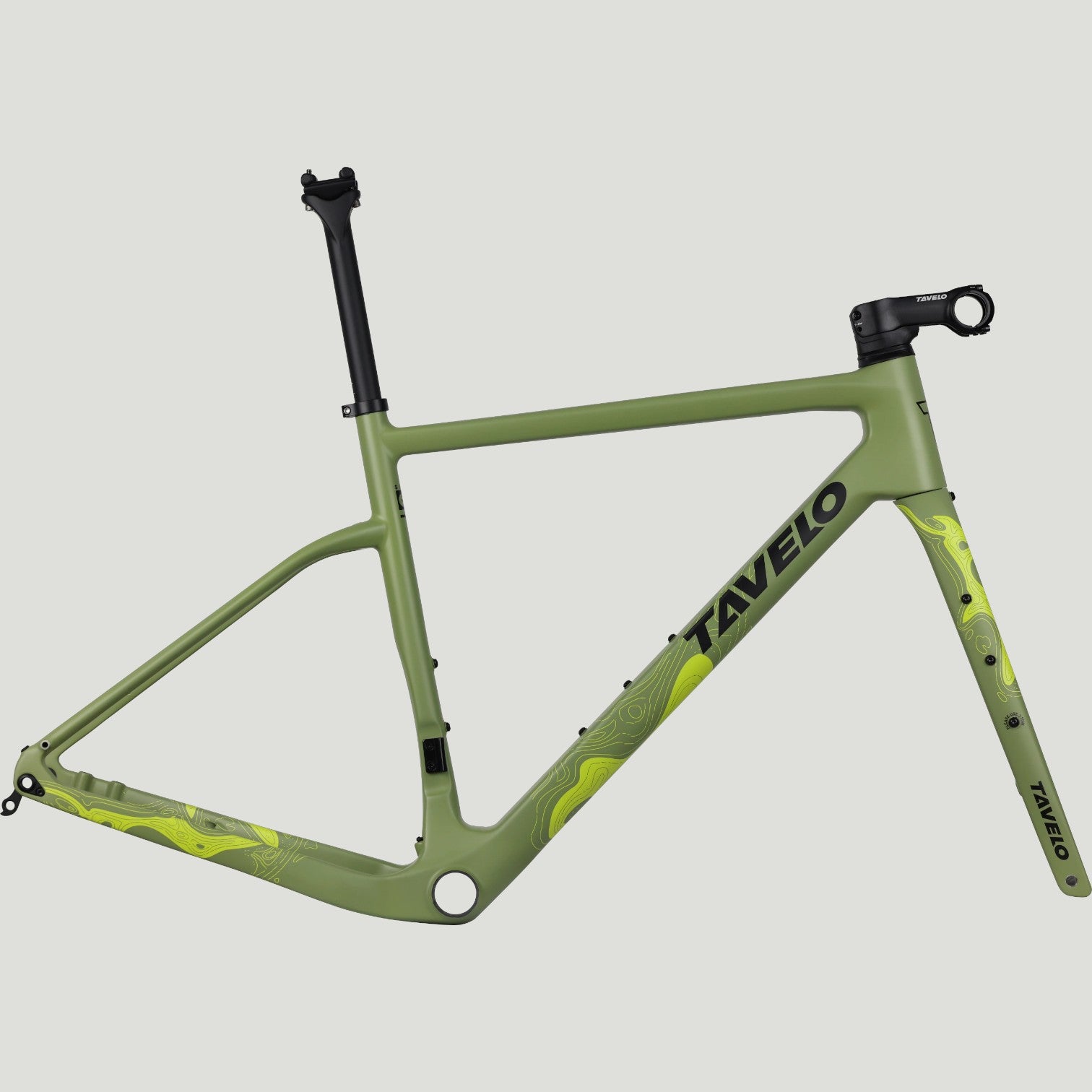

Name: TAVELO Wild GXR Frameset
Brand: Tavelo Frameset
Price: 1300.00 USD
Availability: InStock

Product label: % Sale

Product label: % Sale

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected UCI approved, EN ISO 4210 certified

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

Let the Tavelo WILD GXR Frameset be your partner in crime as you embark on a journey where riding isn’t just a sport—it’s an expression of unbridled fun and a testament to the wild spirit within. Unleash the adventurer in you with the WILD GXR, and let the joy of riding take you to new heights of excitement and exploration.

Features & Benefits

Lightweight Carbon Construction: Crafted from premium Toray T800 carbon fiber, the frame and fork offer a responsive and agile ride, enhancing performance on varied terrains.
Generous Tire Clearance: Accommodates tires up to 50 mm wide, providing versatility and improved traction for diverse gravel conditions.
Modern Frame Design: Features clean internal cable routing, a press-fit BB86 bottom bracket, and flat-mount disc brakes, ensuring a sleek appearance and efficient functionality.
Thru-Axle Compatibility: Equipped with 12×142 mm rear and 12×100 mm front thru-axles, enhancing stiffness and handling precision.
27.2 mm Carbon Seatpost: Includes a Tavelo carbon seatpost with 0 mm offset for comfort and clean aesthetics.
Enhanced Ride Quality: The carbon frame’s compliance absorbs vibrations, reducing fatigue during long rides and improving overall comfort.
Versatile Performance: With ample tire clearance and robust construction, the Tavelo WILD GXR is suited for both competitive gravel racing and adventurous explorations.
Streamlined Aesthetics: Internal cable routing and modern design elements provide a clean, aerodynamic profile.
Optimized Geometry: Designed for responsiveness and stability, the frame geometry supports confident handling across various terrains.

Tavelo WILD GXR Frameset Specifications

Frame Specs

Frame Material: Toray T800 carbon fiber
Frame Weight: Starting from 960 g (size XS, raw finish)
Fork: Toray T800 carbon fiber
Headset: FSA integrated (1-1/8″ to 1-1/4″)
Bottom Bracket: Press-fit BB86
Brake Type: Flat-mount disc
Front Axle: 12×100 mm thru-axle
Rear Axle: 12×142 mm thru-axle
Tire Clearance: Up to 50 mm
Seatpost: 27.2 mm Tavelo carbon seatpost with 0 mm offset

Included with Frameset

Frame & Fork
Headset & Spacers
Front & Rear Thru-Axles
Seatpost (27.2 mm) & Seatpost Clamp
Derailleur Hanger / Small Parts

Size Recommendation

Rider Height	Recommended Size
< 168 cm	XS (460)
168–175 cm	S (490)
173–180 cm	M (510)
181–186 cm	L (530)
> 186 cm	XL (560)

If you’re between sizes, compare reach/stack and stem length preferences.

Tavelo WILD GXR Geometry Chart

SIZE	A	B	C	D	E	F	G	H	I	J	K	REACH	STACK
460	460	517	115	70.5°	74.5°	70	591	400	1006	50	367	367	539
490	490	532	135	71°	74.5°	70	602	400	1017	50	377	377	560
510	510	556	155	71°	73.5°	70	617	400	1032	50	385	385	579
530	530	573	170	71.5°	73.5°	70	627	400	1043	50	395	395	595
560	560	585	190	71.5°	73.5°	70	642	400	1057	50	403	403	614

Tavelo Avro Gen 1 Integrated Carbon Handlebar geometry reference showing A/B widths, C stem length, D outsweep, E stem angle, F stack height, plus reach and drop — Geometry reference: A/B (widths), C (stem length), D (outsweep), E (stem angle), F (stack height), Reach & Drop.

Tavelo Avro Gen 1 Integrated Carbon Handlebar Geometry & Sizes

A = Width at hoods (mm)
B = Width at drops (mm)
C = Stem length (mm)
D = Outsweep / flare (°)
E = Stem angle (°)
F = Stack height (mm)
Reach = Horizontal from tops to hoods (mm)
Drop = Vertical from tops to drops (mm)

A/B Width Options

Size label	A — Hoods (mm)	B — Drops (mm)
36	360	380
38	380	400
40	400	420
42	420	440

C — Stem Lengths

80 / 90 / 100 / 110 / 120 / 130 mm

D — Outsweep

2.6°

E — Stem Angle

10°

F — Stack Height

36.4 mm

Reach

77 mm

Drop

130 mm

Note: Drop width (B) includes the 2.6° outsweep, so it measures wider than hood width (A).

Looking to complete your build? Check out some lightweight offerings from Berk Saddles.

Or check out some of the best offerings in carbon wheelsets.

If you're looking to compare your existing frame or fit, and considering this frame, be sure to check out Geometry Geeks. If you still have questions about sizing, feel free to contact us. We're readily available and happy to assist.
