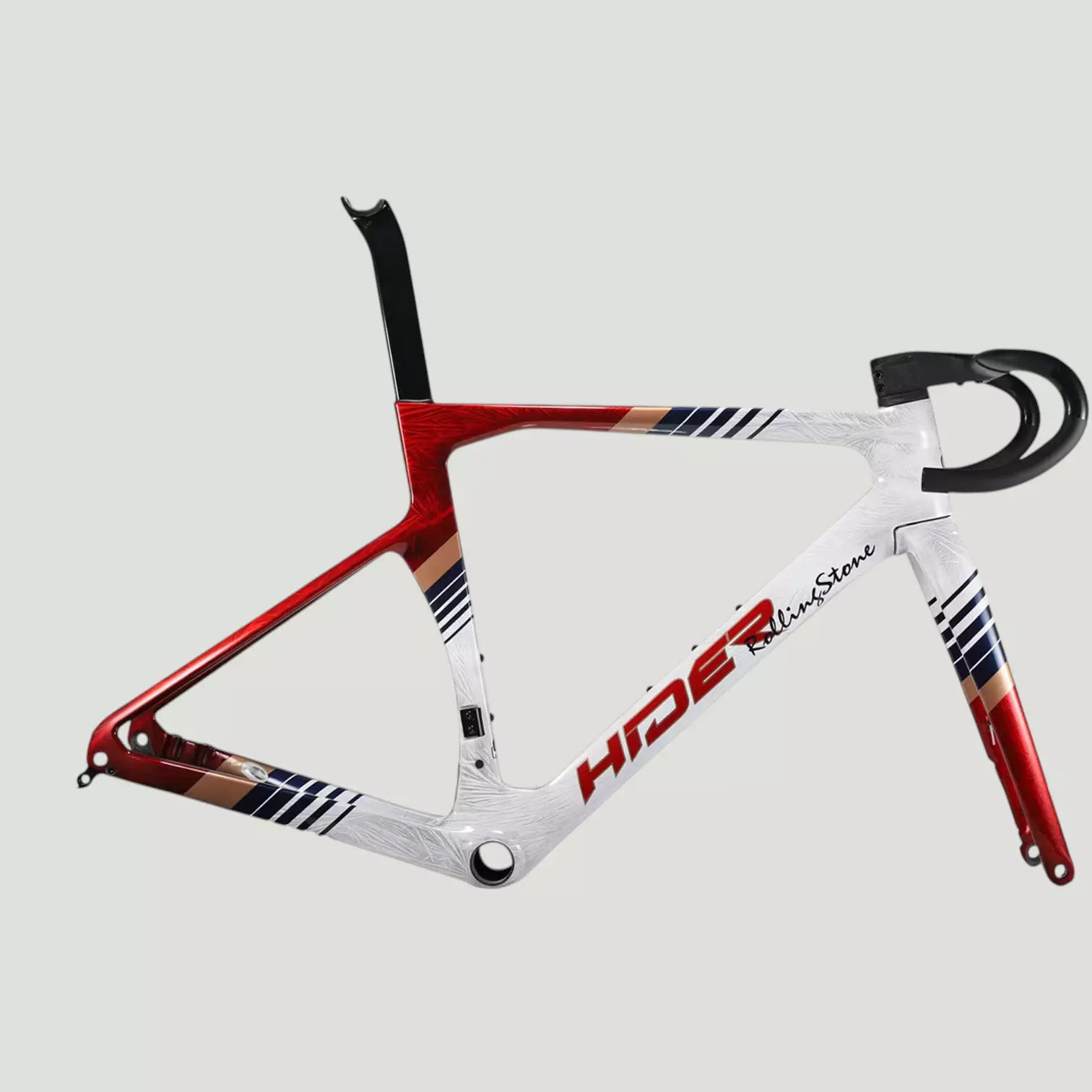

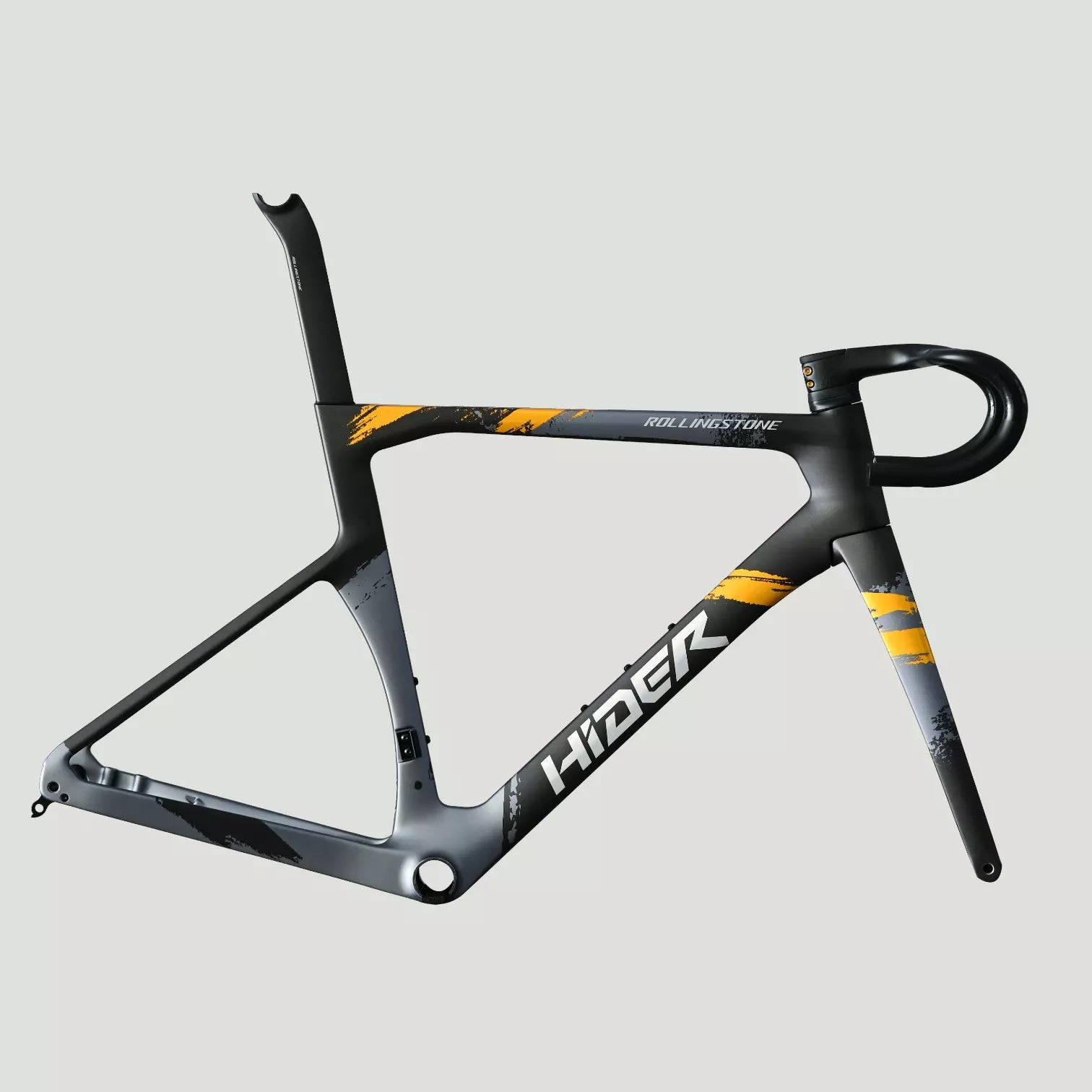

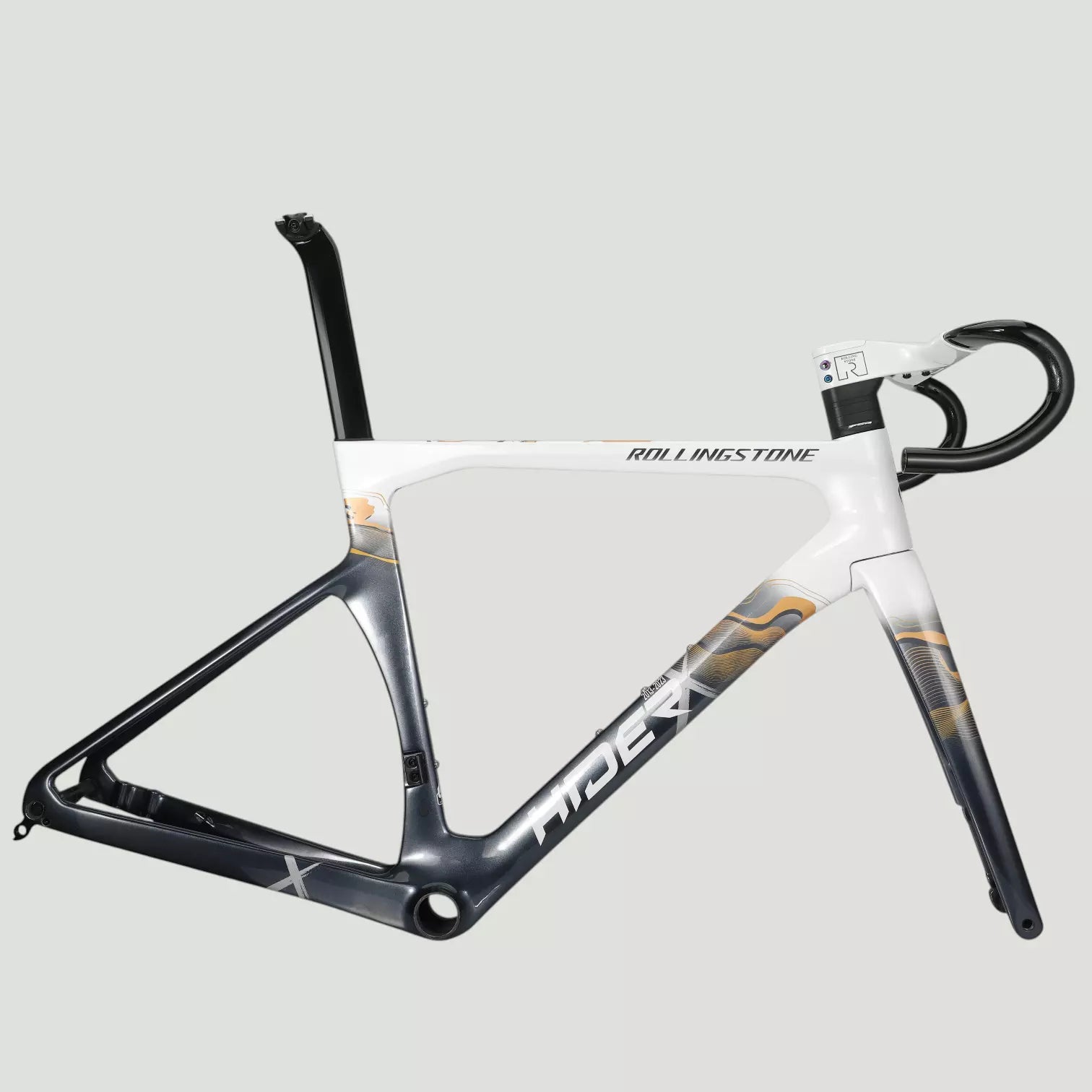

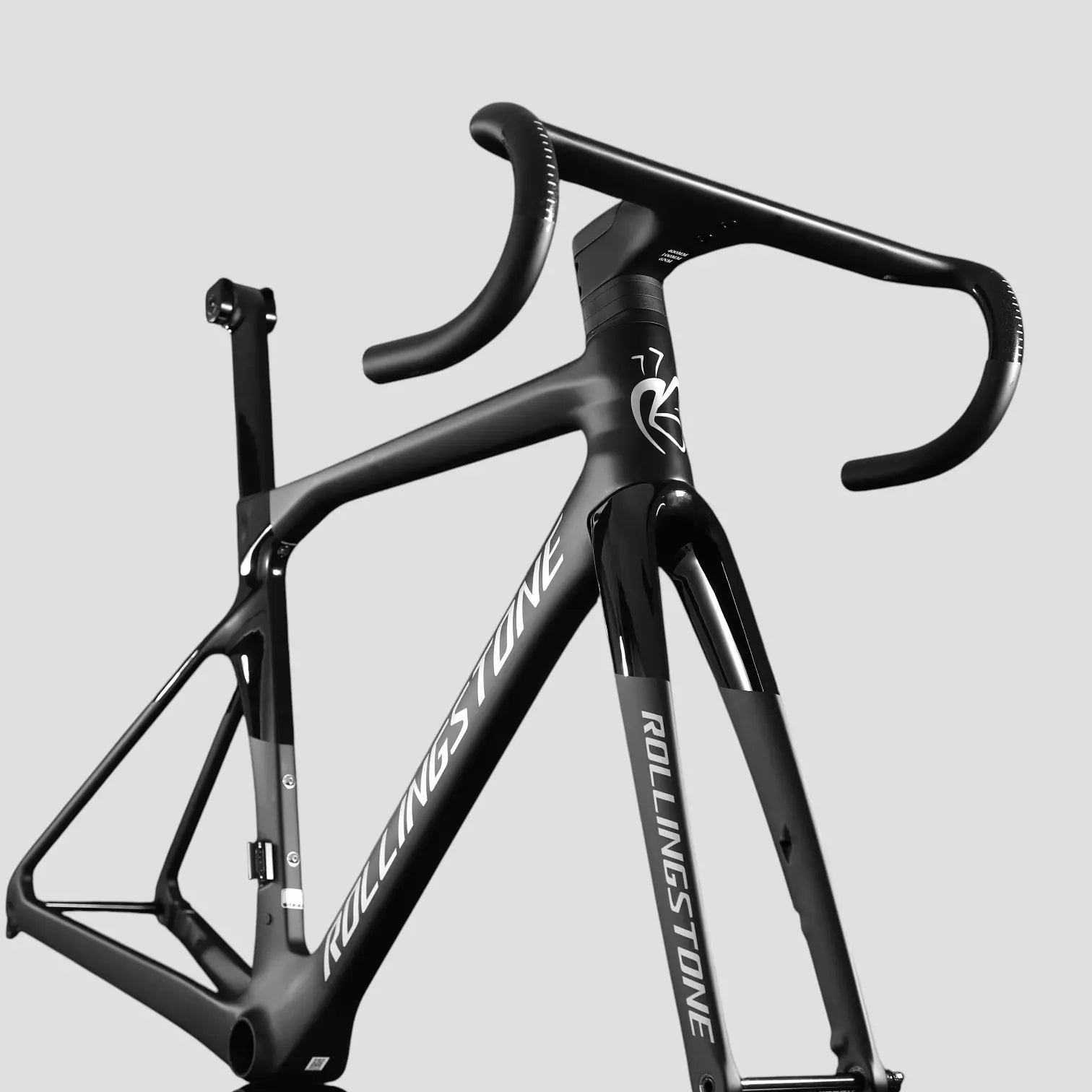

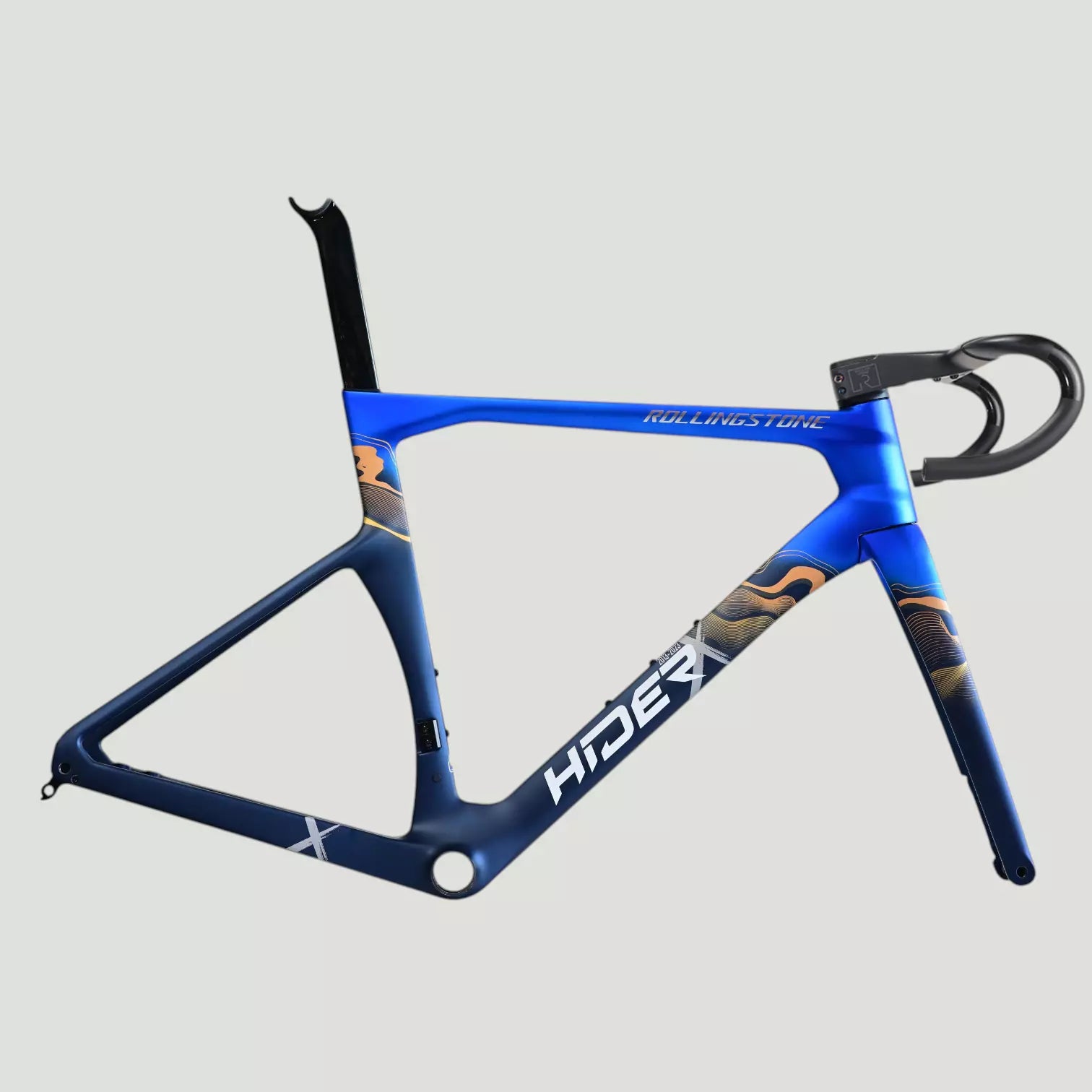

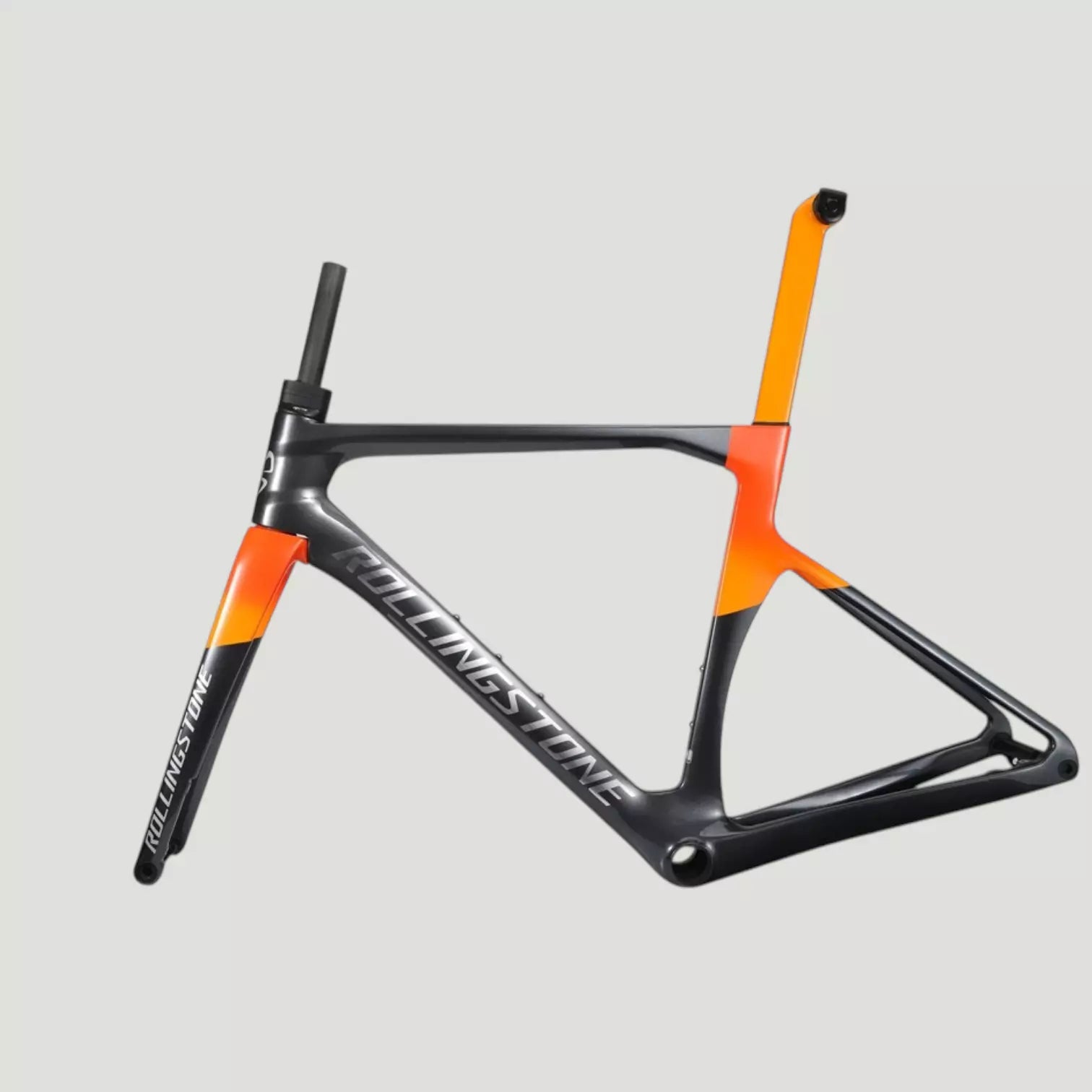

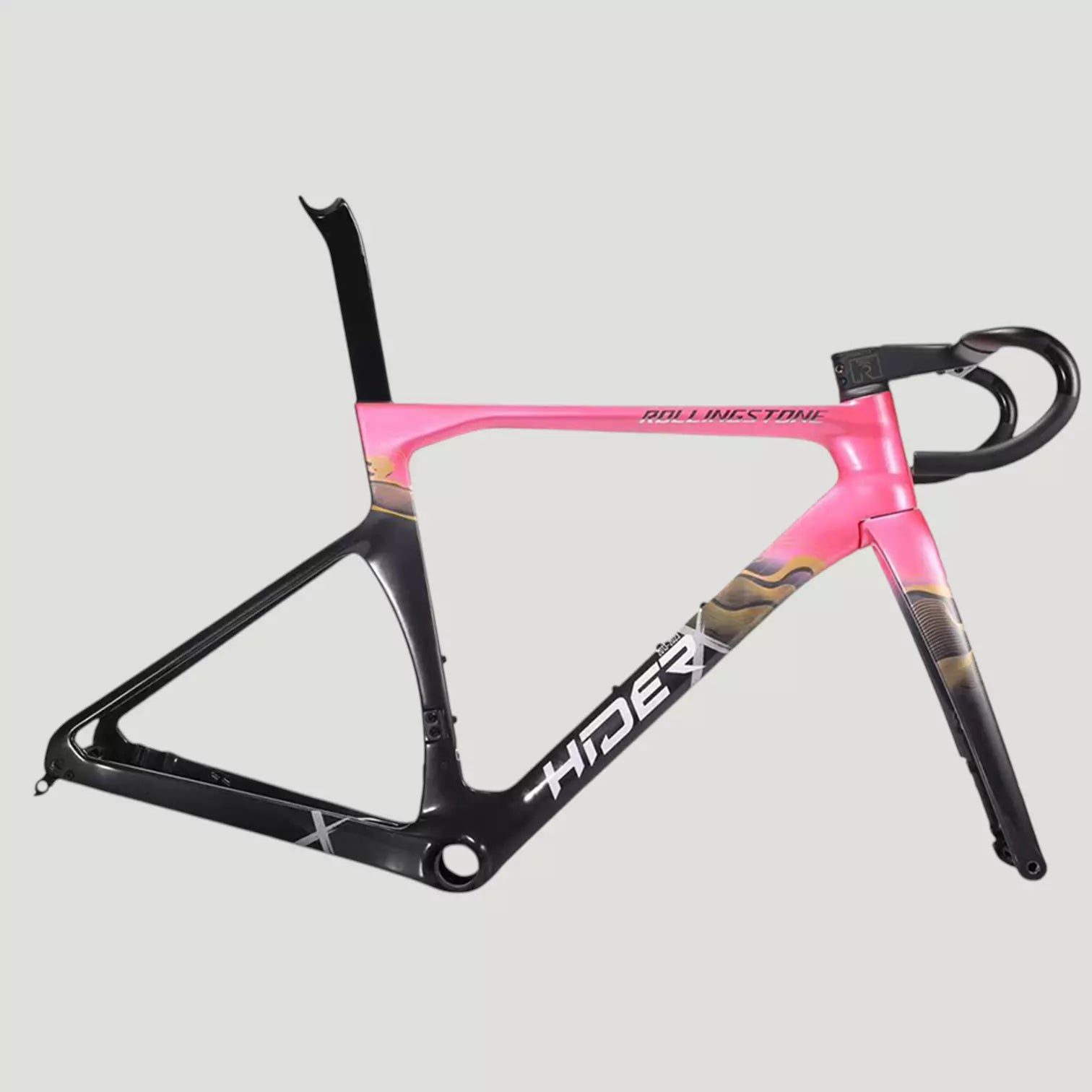

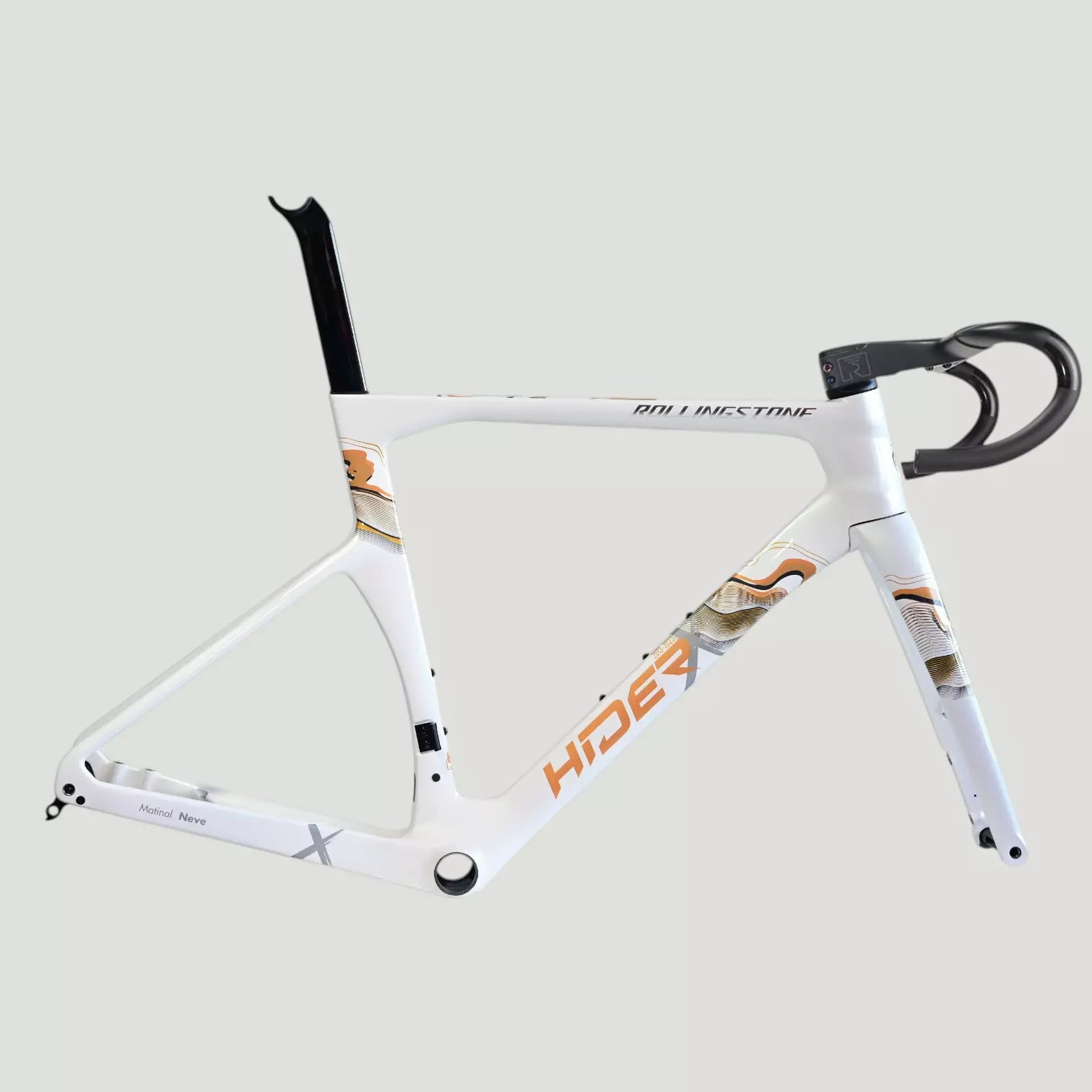

RollingStone Hider Aero Road Frameset

Sale price $1,200.00 USDRegular price
Regular price $1,200.00 USD
Customer Support Our dedicated team is always here to help with sizing, builds, and orders.
Warranty Protected Backed by manufacturer warranty
Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.
Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

RollingStone Hider Aero Road Frameset

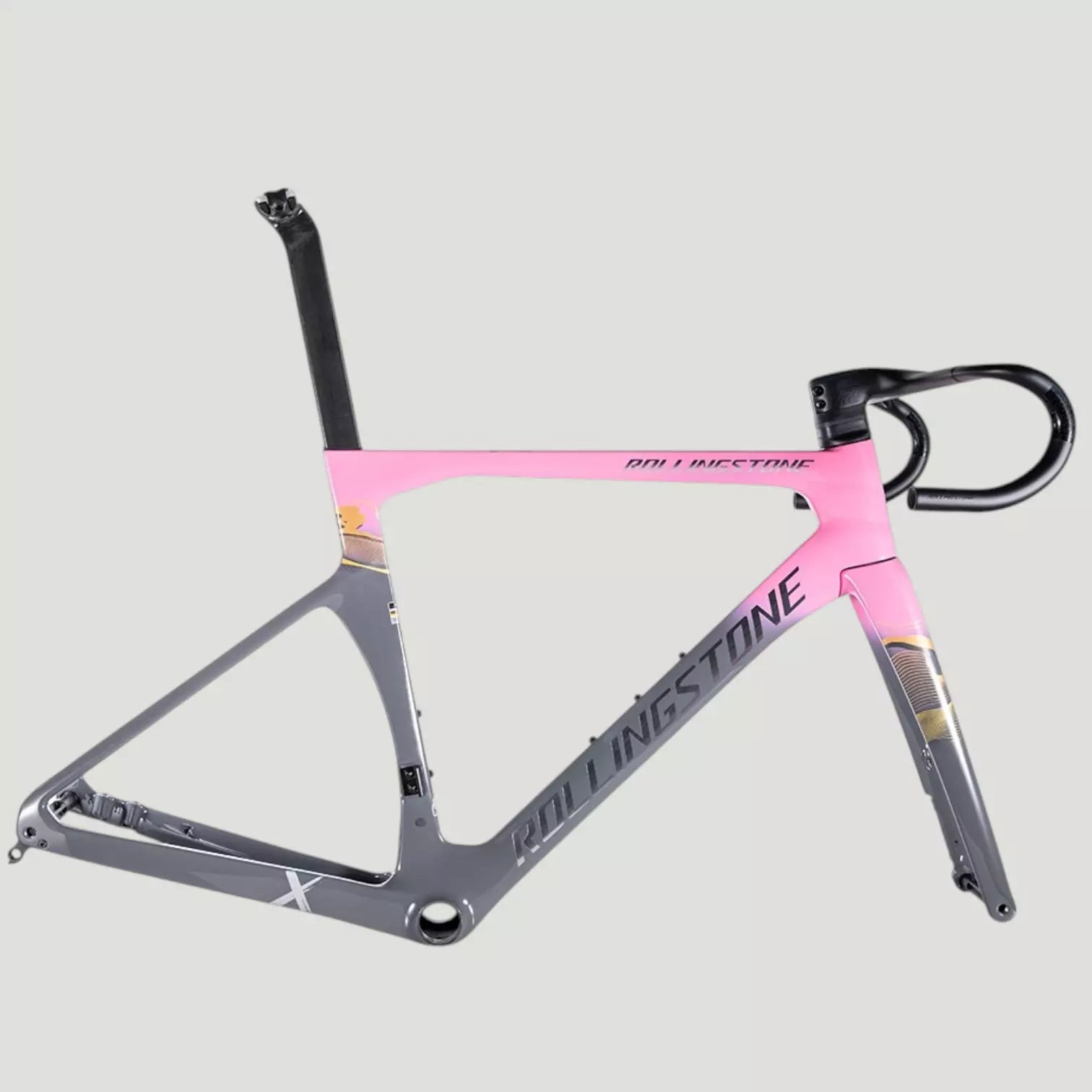

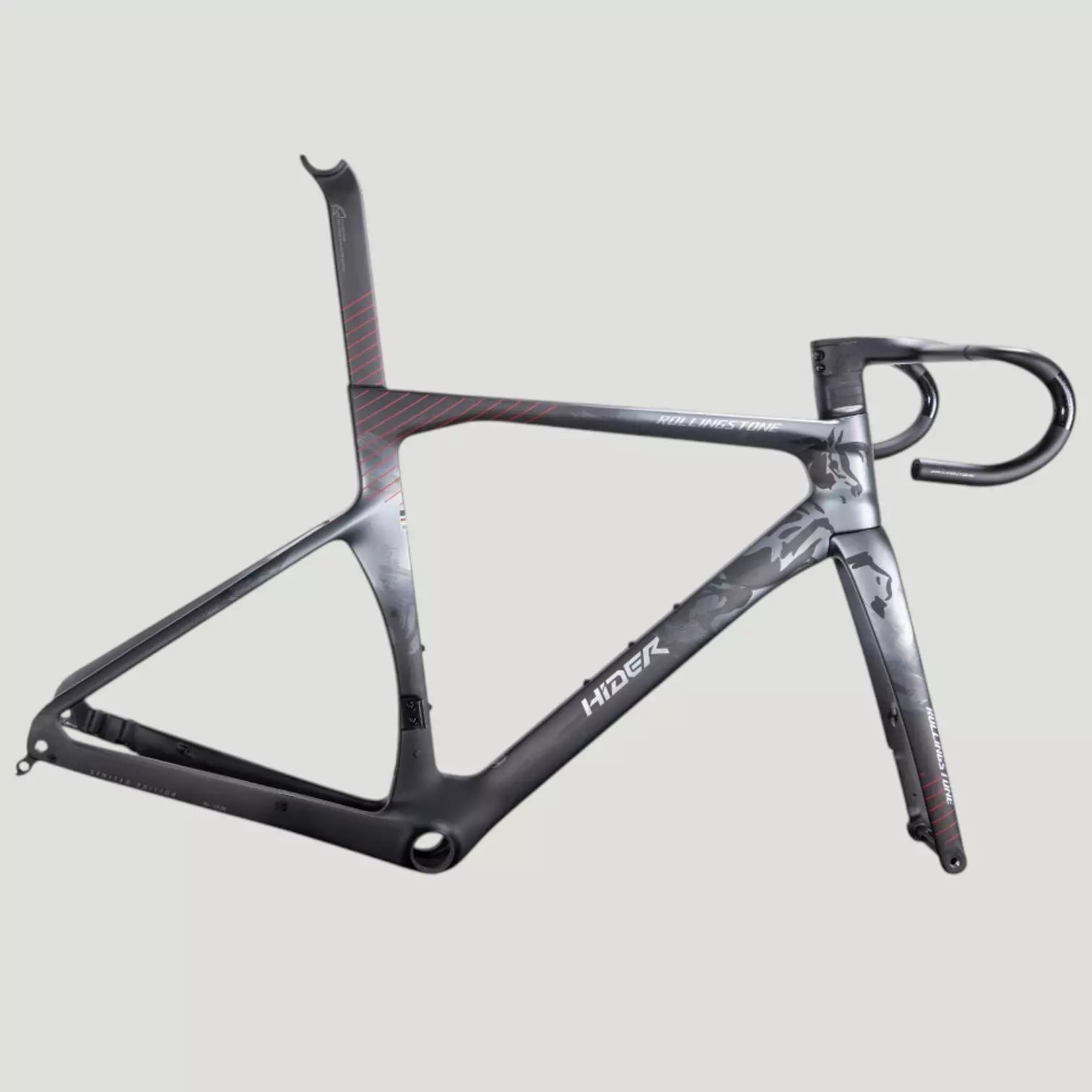

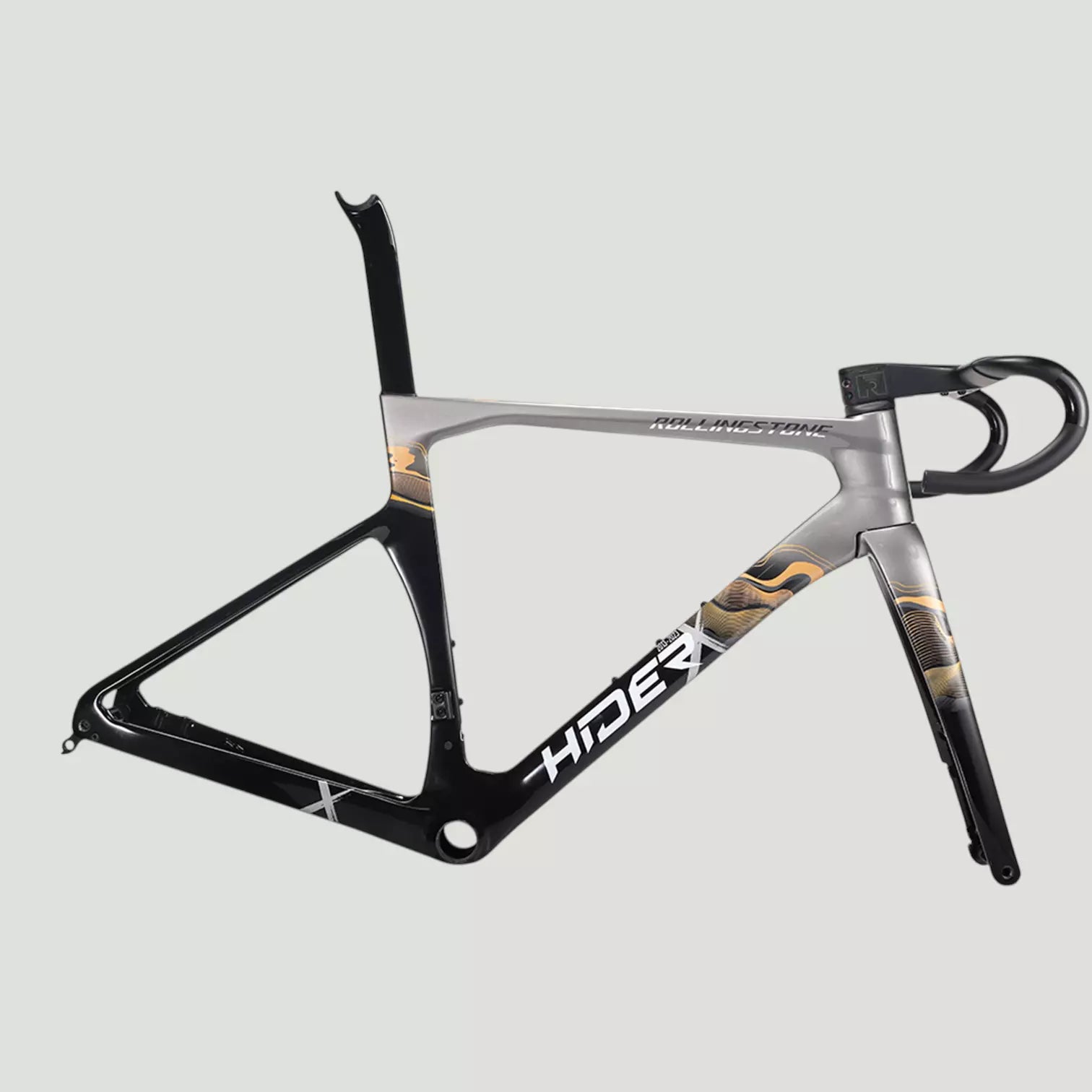

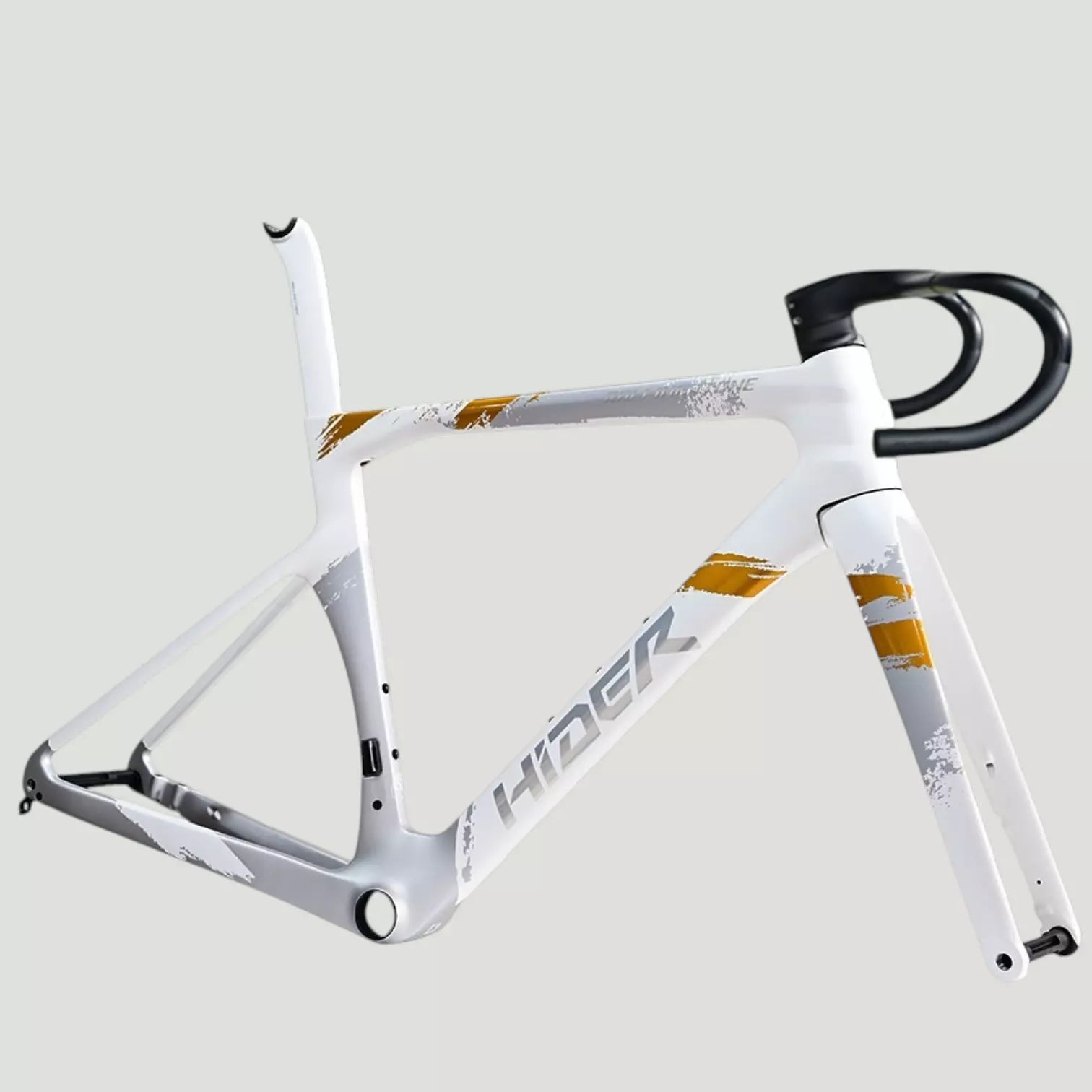

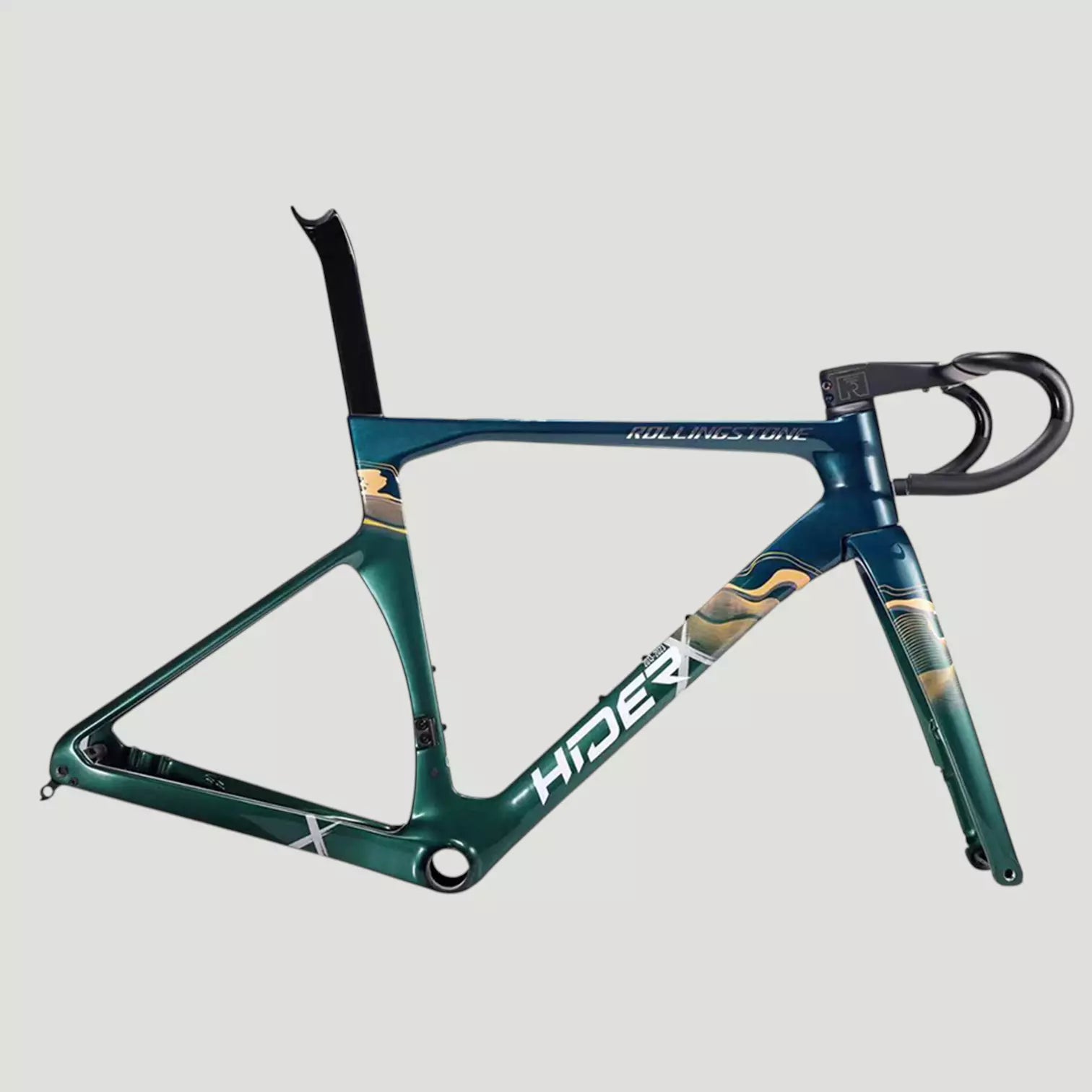

The RollingStone Hider is a full-carbon aero road frameset built around a clean, integrated front end. It uses a Toray T800 + T1000 reinforced layup, EPS-moulded with smooth internal tube walls, and runs fully internal headset routing with Di2 and mechanical shifting both reserved. The platform is built on a Pressfit BB86 bottom bracket, flat-mount disc brakes, and 12 mm thru-axles (100 mm front / 142 mm rear), with a built-in hidden seatpost clamp for a tidy silhouette. Manufacturer-claimed weights are frame 1150 g, fork 400 g, and seatpost 245 g. The recommended cockpit is the RollingStone Classic carbon handlebar.

Spec Snapshot:
Toray T800 + T1000 carbon • Aero road • Frame 1150 g / Fork 400 g / Seatpost 245 g •
Internal routing • Flat-mount disc • F100×12 / R142×12 • Pressfit BB86 •
Di2 + mechanical reserved • Sizes 46 / 49 / 52 / 55 / 58 cm (C–T)

RollingStone Hider Aero Road Frameset — Features & Benefits

  • Aero road platform: Aerodynamic frame shaping with a deep, integrated profile for a fast-looking build.
  • T800 + T1000 carbon: Reinforced Toray layup, EPS-moulded with smooth internal tube walls.
  • Hidden seatpost clamp: Built-in concealed clamp for a clean, uninterrupted silhouette.
  • Fully internal routing: Internal headset routing keeps the cockpit tidy; Di2 and mechanical shifting reserved.
  • Disc / thru-axle: Flat-mount disc brakes with 100×12 mm front and 142×12 mm rear thru-axles.
  • Pressfit BB86: BB86-24 or BB86-29 bottom-bracket compatibility.
  • Electronic-ready: In-seatpost battery holder for electronic groupsets.
  • Claimed weights: Frame 1150 g, fork 400 g, seatpost 245 g (manufacturer-claimed).

Fit note: Send us your height, inseam, current bike size, and riding goal and we’ll help you choose the right frame size before you order.


RollingStone Hider Aero Road Frameset — Specifications

Frame Platform

  • Model: RollingStone Hider aero road frameset
  • Material: Toray T800 + T1000 reinforce
  • Construction: EPS moulding, smooth inner tube walls
  • Geometry: Aerodynamic road
  • Routing: Fully internal (headset)
  • Bottom Bracket: Pressfit BB86 (BB86-24 / BB86-29)
  • Brake Standard: Flat-mount disc
  • Axles: F100×12 mm / R142×12 mm
  • Tire Clearance: 700×28C
  • Headset: FSA No.55 R 1.5″ (ACR/STD), internal routing
  • Shifting: Di2 and mechanical reserved

Weights, Fork & Seatpost

  • Frame weight: 1150 g (manufacturer-claimed)
  • Fork weight: 400 g
  • Seatpost weight: 245 g
  • Seatpost Options 0 or 25mm
  • Seatpost clamp: Built-in hidden type + rubber seal
  • Saddle clamp: 7×7 or 7×9 mm rails
  • Battery holder: In seatpost

Sizes & Included

  • Frame sizes: 46 / 49 / 52 / 55 / 58 cm (C–T)
  • Included: Headset (internal routing type), seatpost clamp & rubber seal, thru-axle levers (10×100/142 mm)
  • Recommended cockpit: RollingStone Classic carbon handlebar
  • Best final fit depends on inseam, saddle height, reach preference, and cockpit choice.

RollingStone Hider — Geometry

RollingStone Hider geometry chart
Geometry chart for the RollingStone Hider frameset. H/T FSA No.55 R 1.5″ ACR/STD · Dropout 142×12 mm (P1.5) · Tire 700×28C · BB86.
Size 46 49 52 55 58
Top Tube Length / A (mm) 518 530 545 560 575
Head Tube Length / B (mm) 110 125 135 155 175
Seat Tube Angle / C (°) 73.5 73.5 73.5 73.5 73.5
Head Tube Angle / D (°) 71 71.5 72 72.5 73
BB Drop / E (mm) 68 68 68 68 68
Chain Stay / F (mm) 410 410 410 410 410
Wheelbase / G (mm) 971.1 979.3 990 1000.7 1011.1
BB to Front Wheel / H (mm) 570.9 579 589.6 600.29 610.6
Fork Length / I (mm) 374 374 374 374 374
Fork Rake / J (mm) 45 45 45 45 45
Seat Tube Total / K (mm) 460 490 520 550 580
Reach / L (mm) 366.4 373.6 385.3 394.1 403
Stack / M (mm) 511.9 527.9 539.1 560 580.8
Standover / N (mm) 744 767 788 814 839

All dimensions in millimetres unless noted (°). Reference standards: H/T FSA No.55 R 1.5″ ACR/STD, dropout 142×12 mm (P1.5), tire clearance 700×28C, BB86. Height guidance should be cross-checked against your current fit.

RollingStone Classic II Cockpit — Specifications & Sizes

RollingStone Classic II integrated handlebar technical parameter and size chart
RollingStone Classic II cockpit — Toray T800 carbon, ~358 g, reach 75 mm, 6° stem angle, drop 125 mm, 28.6 mm steerer, with the stem-length × width size chart.

The RollingStone Classic II integrated carbon handlebar is the recommended cockpit for this frameset. See the Classic II integrated carbon handlebar for full details, options, and ordering.

RollingStone Manta Cockpit — Specifications & Sizes

RollingStone Manta integrated handlebar product parameter and size chart
RollingStone Manta cockpit — Toray T800 carbon, ~320 g, reach 75 mm, 10° stem angle, drop 125 mm, 28.6/31.8 mm steerer fit, with the full stem-length × width size chart.

The RollingStone Manta integrated carbon handlebar is also fully compatible with this frameset. See the Manta integrated carbon handlebar for full details, options, and ordering.

RollingStone Hider Aero Road Frameset — FAQ

How fast does it ship?

Orders ship once processing is complete and a tracking number is generated. Delivery time depends on destination. If you want an ETA before ordering, message us with your location and the exact size you’re considering.

Do prices include duties and taxes?

Shipping and duty handling can vary by destination. If DDP (Delivered Duties Paid) is offered for your destination, duties and import handling are included at checkout for eligible orders. If DDP is not available, duties and taxes may be collected by the carrier or local customs authority.

What is the warranty?

Warranty terms are provided by the manufacturer. If an issue occurs, Underdogs Cycling will guide you through the claims process and coordinate with the manufacturer where applicable.

How do I confirm compatibility before ordering?

Compatibility depends on your frame, headset/steerer, and internal routing standards. If you’re unsure, send us your frame model, model year (if known), and groupset (Shimano vs SRAM) and we’ll help sanity-check fit.

What frame sizes are available?

The Hider is offered in 46 / 49 / 52 / 55 / 58 cm (centre-to-top). Send us your height and inseam and we’ll help you choose.

What are the key frame standards?

Fully internal headset routing, a Pressfit BB86 bottom bracket, flat-mount disc brakes, 100×12 mm front / 142×12 mm rear thru-axles, and a built-in hidden seatpost clamp.

Does it support electronic shifting?

Yes. Di2 and mechanical shifting are both reserved, and there is a battery holder inside the seatpost for electronic groupsets.

How much does the frameset weigh?

Manufacturer-claimed weights are frame 1150 g, fork 400 g, and seatpost 245 g.
