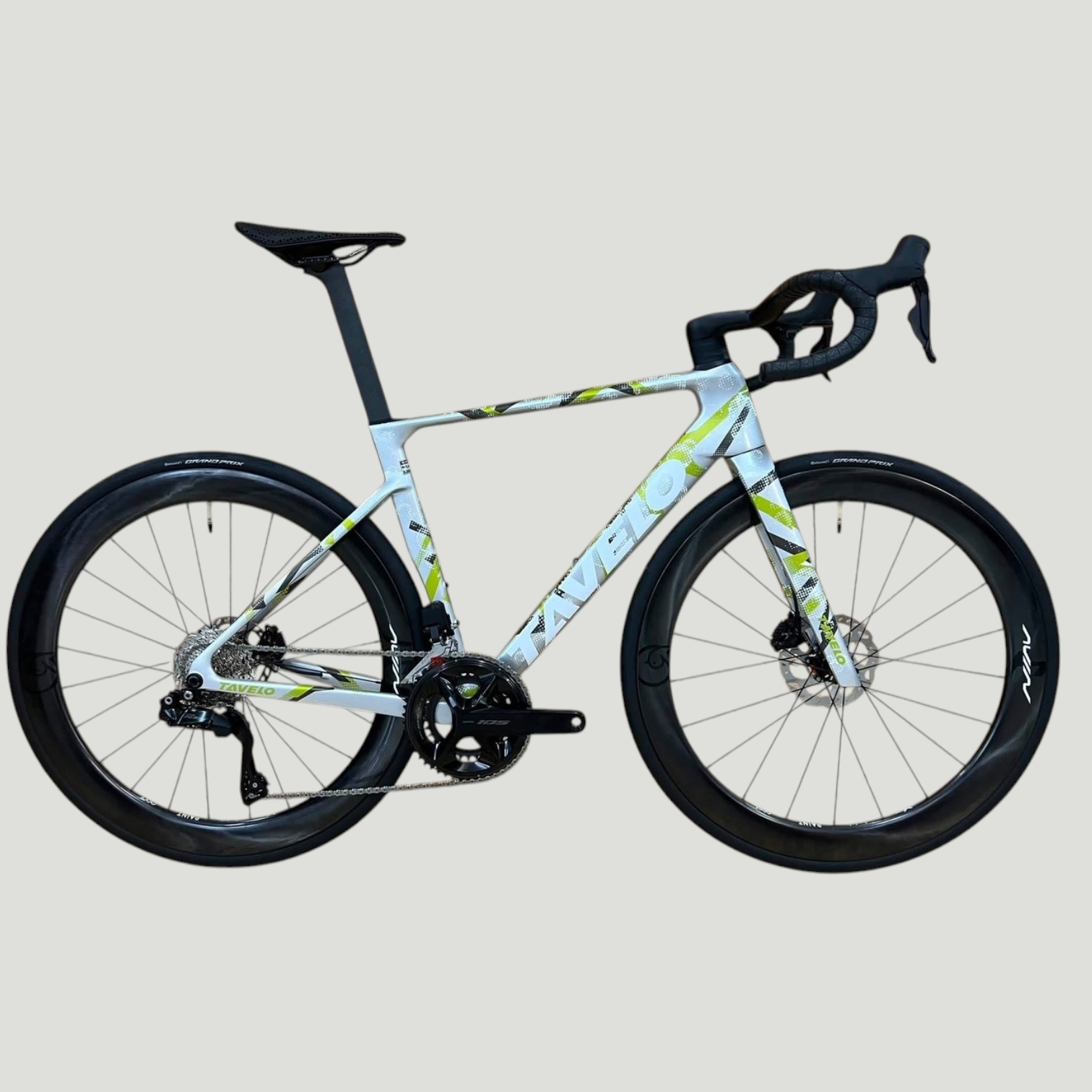

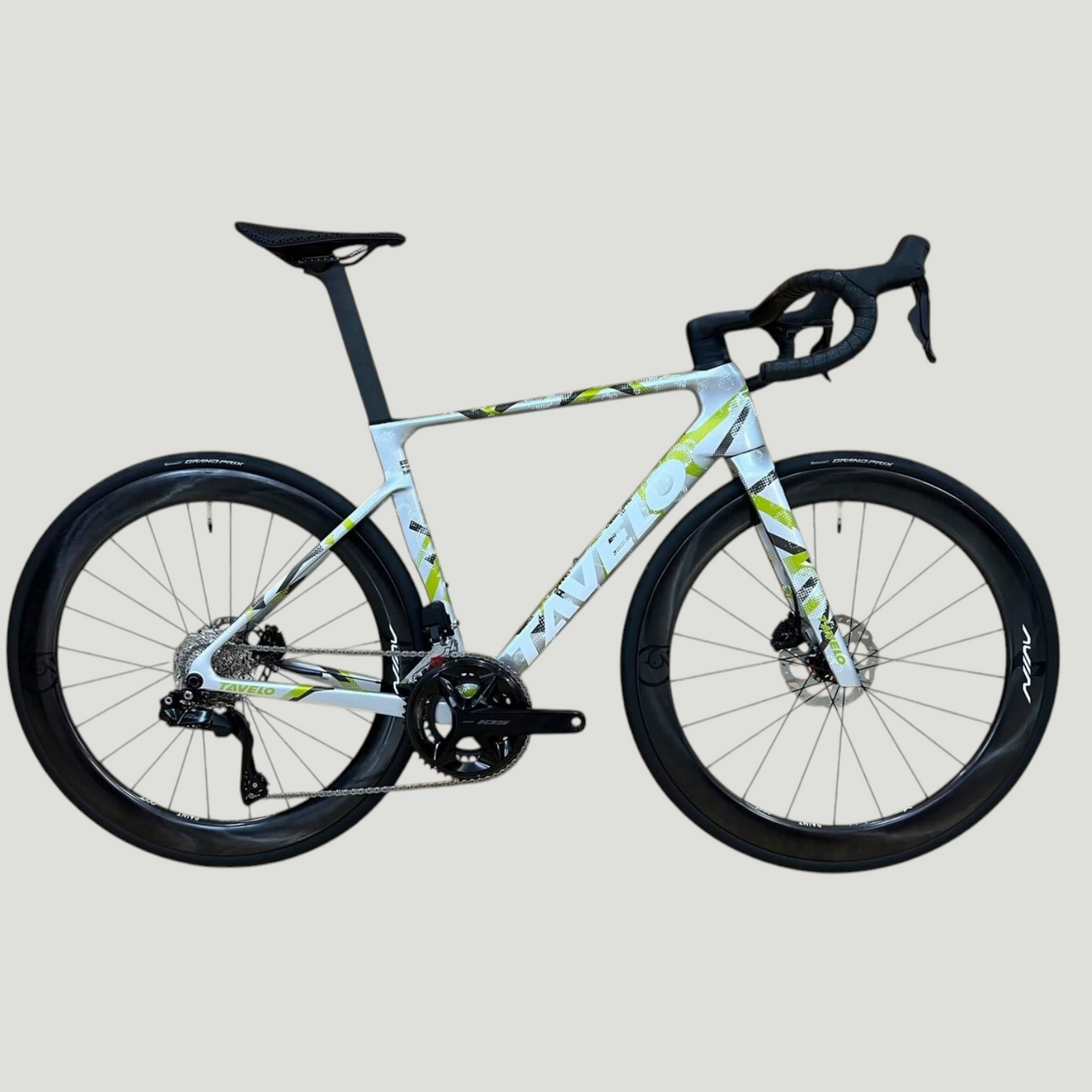

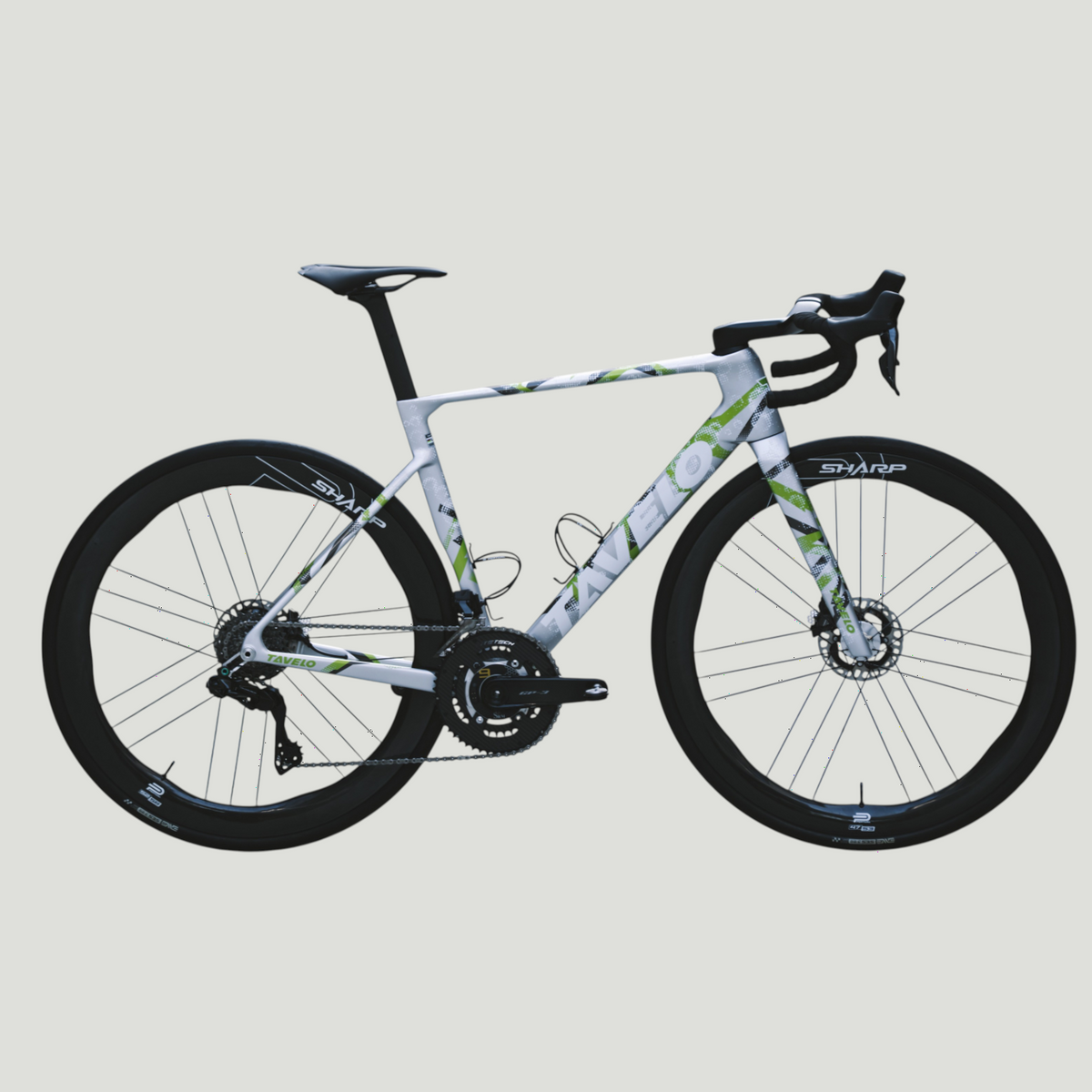

Name: TAVELO Arden Complete Bike
Brand: Tavelo Complete
Price: 4100.00 USD
Availability: InStock

Product label: % Sale

Product label: % Sale

Customer Support Our dedicated team is always here to help with sizing, builds, and orders.

Warranty Protected UCI approved, EN ISO 4210 certified

Shipping Included Included on most components and wheelsets. Free on orders over $100. Worldwide delivery with tracking.

Rider Approved We test and ride what we sell. Every product is hand-selected for quality and performance.

Arden Race Frameset is now available for pre-order. Estimated shipping starts from August 15

The Tavelo Arden Complete Bike is engineered around the principle that aero is everything—developed in the wind tunnel to maximize speed while minimizing energy expenditure by reducing frontal area. A narrowed, streamlined head tube cuts drag, while the frame design balances stiffness and comfort for confident handling and all-day efficiency. With clearance for 38 mm tires, the Arow adds compliance without sacrificing race-ready responsiveness.

Through precise calculations and optimization, the Arow’s tube shapes and lay-up target low aerodynamic drag and efficient power transfer. The rear triangle is tuned for comfort and control, so the bike stays fast and forgiving on varied road surfaces. Choose your build with Tavelo’s integrated AVRO GEN-1 cockpit for clean routing and enhanced aerodynamics.

Tavelo Arden Complete Bike Features & Benefits

Wind-Tunnel Developed: Narrowed, streamlined head tube reduces frontal surface area and drag.
Lightweight Construction: Optimized lay-up; Race (XS) ~820 g, SL (XS) ~710 g (frameset).
Ride Quality: Enhanced stiffness with a rear design tuned for comfort and precise control.
Tire Clearance: Up to 700×38 mm for added compliance and traction.
Integrated Cockpit: AVRO GEN-1 handlebar with sleek internal cable routing.
Wheelset Options: Complete builds spec Pertual Sharp Pro (steel spokes) or Pertual Sharp (carbon spokes), per groupset.

Tavelo Arden Complete Bike Specifications

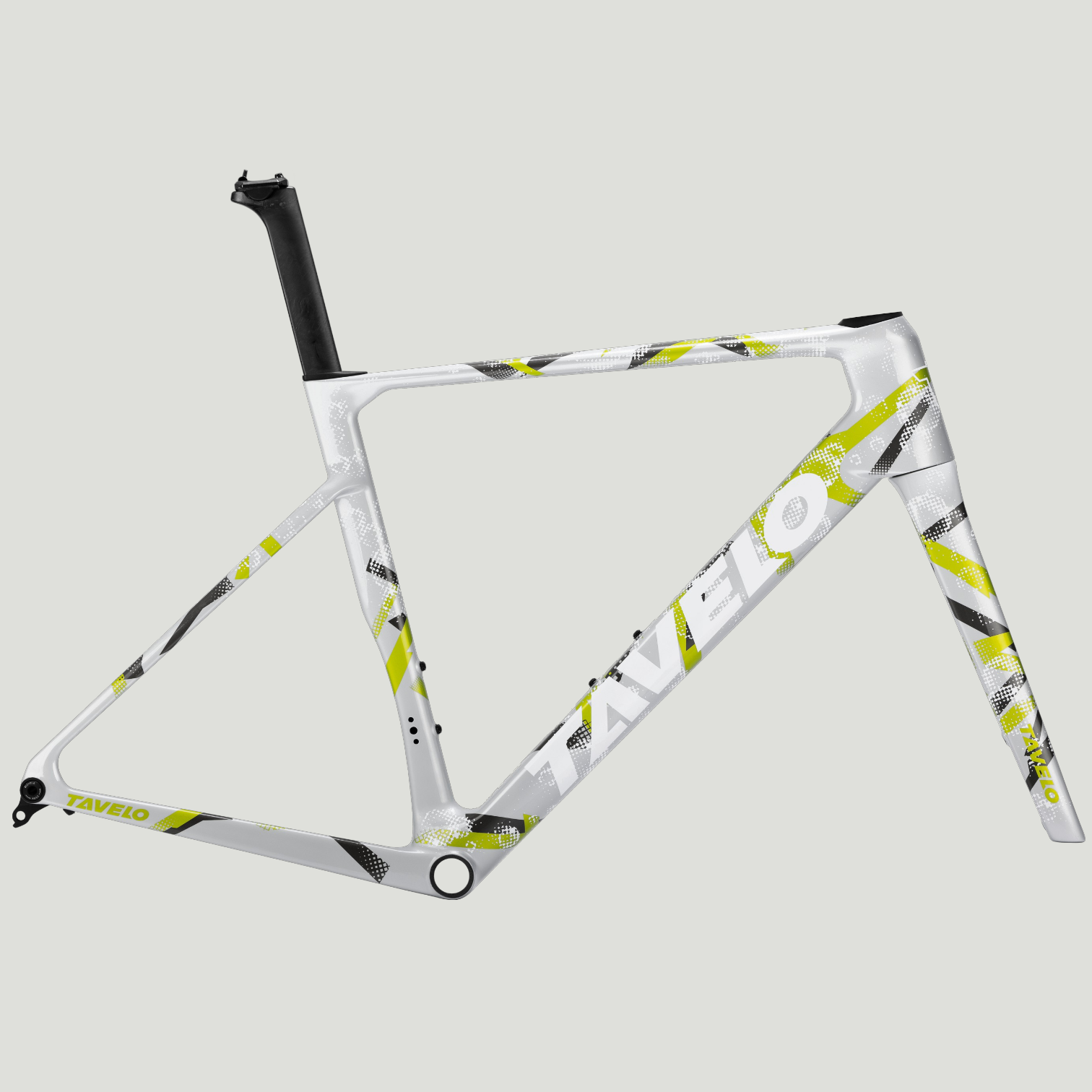

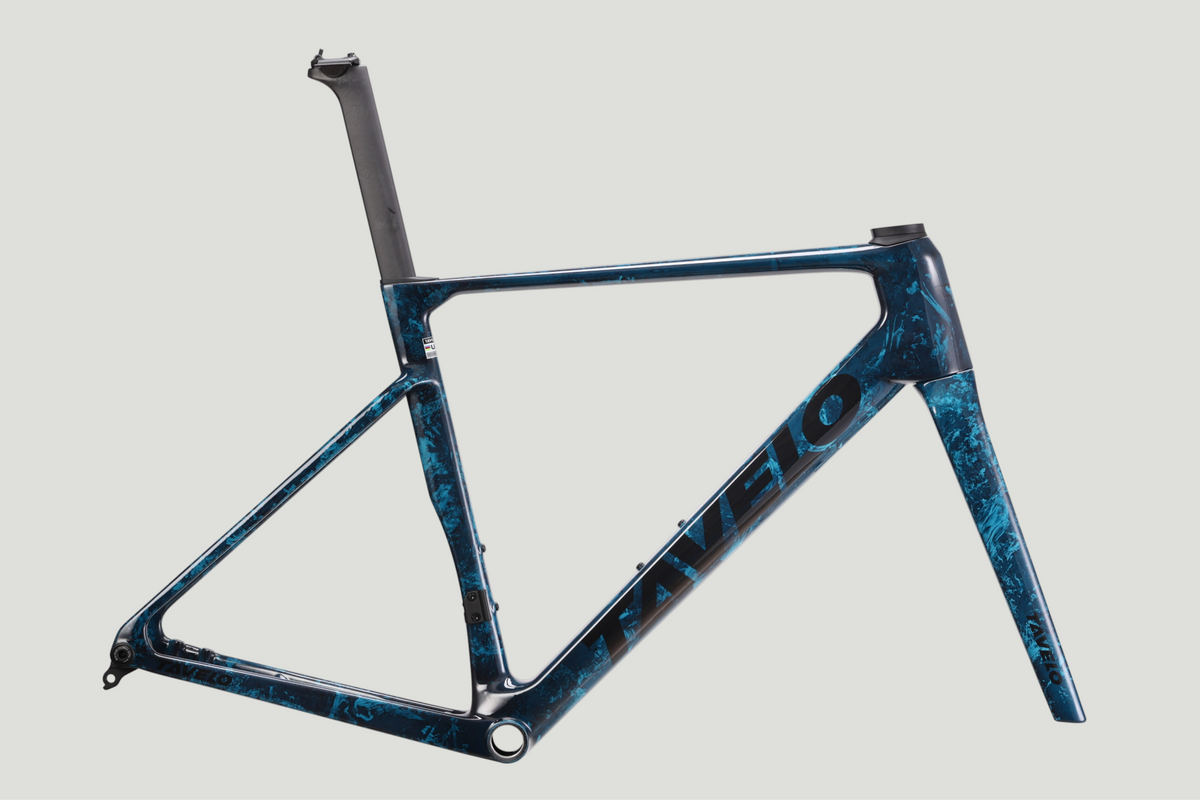

Frameset Highlights

Design: Aero-first profile; narrowed head tube to reduce drag
Construction: Optimized carbon lay-up (Race & SL options)
Cockpit: AVRO GEN-1 integrated handlebar, internal routing
Material: Toray T800 + M40 carbon
Brake Type: Disc
Cable Routing: Fully internal
Bottom Bracket: threaded bsa
Thru-Axles: 12×100 mm (front), 12×142 mm (rear)
Headset: 32.8–41.8 mm & 34.1–46.9 mm (FSA)
Seat Rail Specs: 7×7 mm (metal), 7×9 mm (carbon)
Tire Clearance: Max 700×38 1x 34mm 2x mm
Compliance: EN ISO 4210:2014; UCI approved

Approx. Frame Weights (XS) and what's included

Race: ~780 g
SL: ~680 g
Saddle-Selle Italia
Bar tape-Selle Italia
Tires: MICHELIN POWER CUP 28C Tires

Complete Build Options

Pertual Sharp Pro (steel spokes) wheelset or
Pertual Sharp (carbon spokes) wheelset
Groupset-dependent selections

Tavelo Arden Complete Bike Geometry

Reference: A–K, reach, stack, stand-over, fork trail.

SIZE	XS	S	M	L	XL	XXL	xxxl
A	425	450	475	500	530	560	590
B	504	516	533	554	571	584	597
C	106.9	120.6	135.2	149.1	165.9	188.5	209.4
D	410	410	410	410	410	410	410
E (°)	71°	71.3°	72.1°	72.6°	73.2°	73.3°	73.3°
F (°)	74.5°	74.5°	74°	73.5°	73°	73°	73°
G	74	74	72	72	70	70	70
H	574	584	586	595	599	611	624
I	370	370	370	370	370	370	370
J	973	983	986	995	999	1011	1024
K	52	52	48	48	45	45	45
REACH	365	373	381	390	397	403	410
STACK	508	522	538	553	570	592	612
STAND OVER	717	736	761	784	809	835	859
FORK TRAIL	63.1	61.2	60.3	57.2	56.6	55.9	55.9

Compare your current bike’s reach and stack for best results.

Tavelo Avro Gen 1 Integrated Carbon Handlebar geometry reference showing widths, stem length/angle, outsweep, stack, reach and drop — Geometry reference: A/B (widths), C (stem length), D (outsweep), E (stem angle), F (stack height), Reach & Drop.

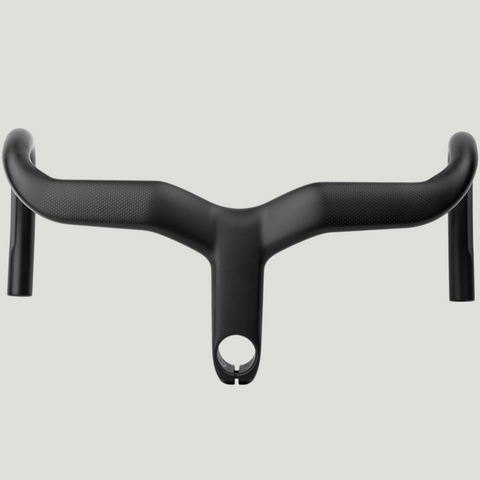

Tavelo Avro Gen 1 Integrated Carbon Handlebar Geometry & Sizes

A = Width at hoods (mm)
B = Width at drops (mm)
C = Stem length (mm)
D = Outsweep / flare (°)
E = Stem angle (°)
F = Stack height (mm)
Reach = Horizontal from tops to hoods (mm)
Drop = Vertical from tops to drops (mm)

A/B Width Options

Size label	A — Hoods (mm)	B — Drops (mm)
36	360	380
38	380	400
40	400	420
42	420	440

C — Stem Lengths

80 / 90 / 100 / 110 / 120 / 130 mm

D — Outsweep

2.6°

E — Stem Angle

10°

F — Stack Height

36.4 mm

Reach

77 mm

Drop

130 mm

Note: Drop width (B) includes the 2.6° outsweep, so it measures wider than hood width (A).

Upgrade the Tavelo Arden saddle with a lightweight Berk saddle Berk Saddles.

If you're looking to compare your existing frame or fit, and considering this frame, be sure to check out Geometry Geeks. If you still have questions about sizing, feel free to contact us. We're readily available and happy to assist.
